文章目录

多臂赌博机Multi-armed bandit（无状态）
马尔科夫决策过程MDP(markov decision process
1.动态规划

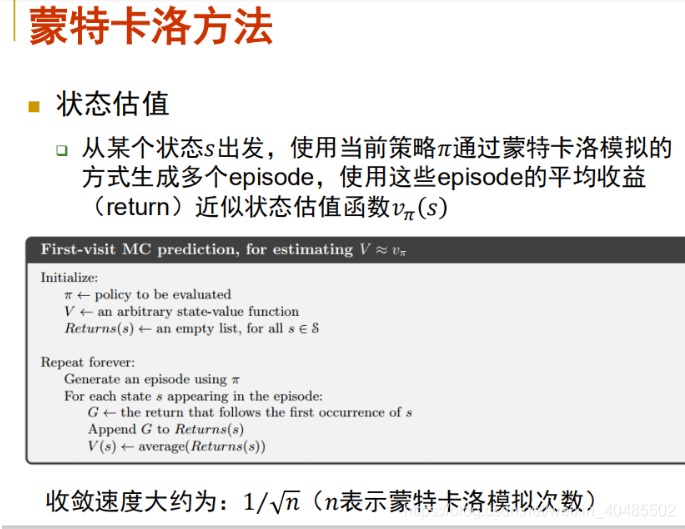

蒙特卡罗方法——不知道环境完整模型情况下
- 2.1 on-policy蒙特卡罗

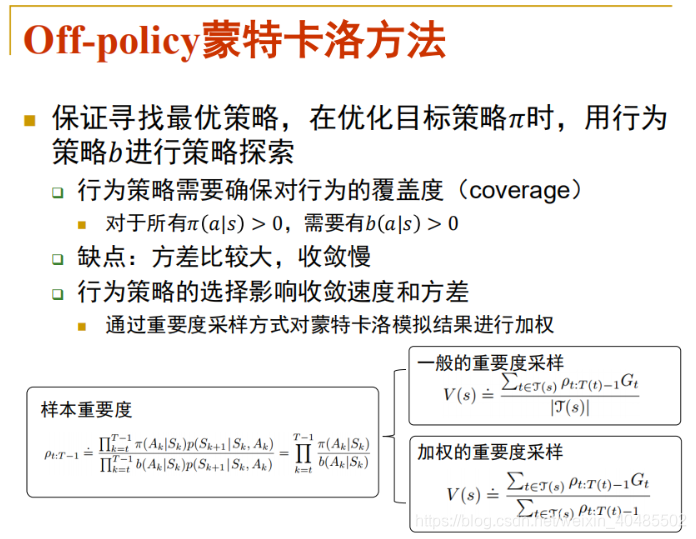

- 2.2 off-policy蒙特卡罗

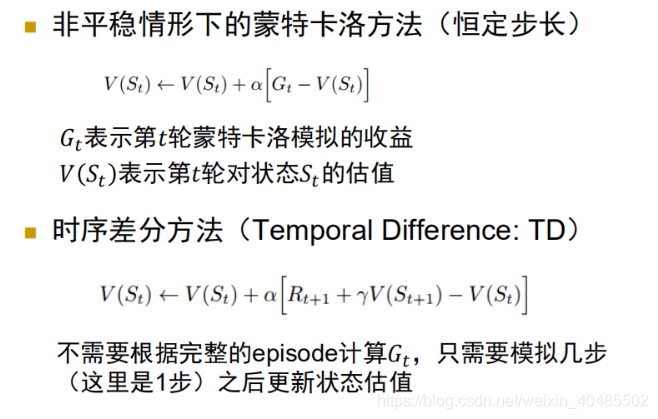

时序差分方法

强化学习：Reinforcement learning
- 目标：学习从环境状态到行为的映射，智能体选择能够获得环境最大奖赏的行为，使得外部环境对学习系统在某种意义下的评价为最佳
- 区别：
  - 监督学习：标注中学习
  - 强化学习：交互——学习策略
- 特性——用于判断某一问题可否用强化学习求解
  - 试错搜索
  - 延迟奖励
- 挑战
  - exploitation 开采（按原方法进行
  - exploration勘测（看有没有其他方法，试一试
- 注重总体目标，阶段性不重要
- 主体：智能体和环境
  - 状态、行为和奖励
- 要素
  - 策略
    - 状态到行为的映射
      - 确定策略S->A
      - 随机策略S->A1\A2\A3?
  - 奖励
    - 关于状态和行为的函数，有不确定性
  - 价值
    - 累积奖励
    - 长期目标
  - 环境模型
    - 刻画反馈
反馈
- 评价性反馈（强化学习）
  - 对行为评价
- 指导性反馈（监督学习）
  - 独立于行为

多臂赌博机Multi-armed bandit（无状态）

	方法	确定性？	特性
贪心策略	$At=argmax_aQ_t(a)(均值）$	确定性算法
$ϵ\epsilon$ 贪心策略	$1−ϵ1-\epsilon$ :贪心选择； $ϵ\epsilon$ :随机选择	确定性算法	-
乐观初值法Optimistic initial values	每个行为的初值都高Q1高， $ϵ=0\epsilon=0$ ，	确定性算法	初始只探索，最终贪心
UCB	$AT=argmaxa(Qt(a)+clntNt(a)),Nt(a)−a被选择的次数A_T=argmax_a(Q_t(a)+c\sqrt{\frac{lnt}{N_t(a)}}),N_t(a)-a被选择的次数$	确定性算法	最初差，后比贪心好，收敛于贪心
梯度赌博机算法	$P(A_t=a)=\frac{e^{{H_t(a)}}{\Sigma_b=1}k e^{H_t(b)}}=\pi_t(a).优化目标 E(R_t)=\Sigma_b\pi_t(b)q(b) $	不确定性算法	更新Ht

形式化
- 行为：摇哪个臂
  - At:第t轮的行为
- 奖励：每次摇臂获得的奖励
  - Rt：奖励
- 第t轮采取的行为a的期望：
  - q(a)=E(Rt|At=a)
  - –贪心策略，每次都选期望最大的a，但不知道期望
  - 只能通过经验，对q(a)估计Qt(a),用贪心策略依据Qt(a)
优化目标：当前行为的期望收益
策略
- 利用：exploitation
  - 按照贪心策略进行选择，即选择𝑄𝑡 𝑎 最大的行为𝑎
  - 优点：最大化即时奖励
  - 缺点：由于𝑄𝑡 𝑎 只是对𝑞∗ 𝑎 的估计，估计的不确定性导致按照贪心策略选择的行为不一定是使𝑞∗ 𝑎 最大的行为
- 探索：Exploration
  - 选择贪心策略之外的行为（non-greedy actions）
  - 缺点：短期奖励会比较低
  - 优点：长期奖励会比较高，通过探索可以找出奖励更大的行为，供后续选择
- 每次二选一，如何平衡？
贪心策略
- $A_t=argmax_aQ_t(a)$
- 有多个最大，则随即一个
$ϵ\epsilon$ 贪心策略
- $1−ϵ1-\epsilon$ :贪心选择（exploitation
- $ϵ\epsilon$ :随机选择（exporation
- $ϵ\epsilon$ –取决于q(a)的方差，方差越大，取值越大
- eg
  - 假设q(a)~N(0,1)
  - 则At~N(0,1)正态分布
行为估值方法Qt(a)
- $Qt(a)=采取该行为所获得的奖励和采取该行为的次数=Σi=1t−1Ri1Ai=aΣi=1t−11Ai=a=行为a奖励的均值Q_t(a)=\frac{采取该行为所获得的奖励和}{采取该行为的次数}=\frac{\Sigma_{i=1}^{t-1}R_i1_{A_i=a}}{\Sigma_{i=1}^{t-1}1_{A_i=a}}=行为a奖励的均值$
- 约定，分母=0，Qt(a)=0
- 分母无穷大，Qt(a)–>q(a)
- 增量实现
  - $Qn(a)=R1+R2+...+Rn−1n−1Q_n(a)=\frac{R_1+R_2+...+R_{n-1}}{n-1}$
  - $Qn+1(a)=R1+R2+...+Rn−1+Rnn=1n(Rn+Σi=1n−1Ri)=1n(Rn+(n−1)Qn(a))=Qn(a)−1n(Rn−Qn(a))Q_{n+1}(a)=\frac{R_1+R_2+...+R_{n-1}+R_{n}}{n}=\frac{1}{n}(R_n+\Sigma_{i=1}^{n-1}R_i)=\frac{1}{n}(R_n+(n-1)Q_n(a))=Q_n(a)-\frac{1}{n}(R_n-Q_n(a))$
- 更新公式 $n e w E s t i m a t e < - - o l d E s t i m a t e + s t e p s i z e (t a r g e t - o l d E s t i m a t e)$
  - 贪心策略的步长：1/n
    - 收敛
  - 更一般的： $α或αt(a)\alpha或\alpha_t(a)$ ——像SGD
- 非平稳状态的更新公式
  - $Qn+1(a)=Qn(a)−α(Rn−Qn(a))=αRn+(1−α)Qn(a)=αRn+(1−α)αRn−1+(1−α)2Qn−1=...=(1−α)nQ1+Σi=1n(1−α)n−iαRiQ_{n+1}(a)=Q_n(a)-\alpha(R_n-Q_n(a))=\alpha R_n+(1-\alpha)Q_n(a)=\alpha R_n+(1-\alpha)\alpha R_{n-1}+(1-\alpha)^2Q_{n-1}=...=(1-\alpha)^nQ_1+\Sigma_{i=1}^n(1-\alpha)^{n-i}\alpha R_i$
  - 这已经是个非平稳的了，时间越近，占比越大—带权值平均
  - 不收敛
- 收敛条件
  - $Σn=1∞αn(a)=∞\Sigma_{n=1}^{\infty}\alpha_n(a)=\infty$ :步长足够大，克服初值和随机扰动的影响
  - $ \Sigma_{n=1}^{{\infty}\alpha_n}2(a)<\infty$:步长最终会越来越小，小到保证收敛
平稳问题
- q(a)是稳定的，不随时间改变
- 随着观测样本的增加，平均值估计方法最终收敛于q(a)
非平稳问题
- q(a)是关于时间的函数（可能老化了）
- 关注最近的观测样本，时间远的就不靠谱了

在这里插入图片描述

N(A)–A被选择的次数
行为选择策略
- 如何制定？
  - 贪心策略：选择当前估值最好的行为
  - 𝜺贪心策略：以一定的概率随机选择非贪心行为（nongreedy actions），但是对于非贪心行为不加区分
-  平衡exploitation和exploration，应对行为估值的不确定性
-  关键：确定每个行为被选择的概率
- 行为的初始估值
  - 前述贪心策略中，每个行为的初始估值为0
  - 每个行为的初始估值可以帮助我们引入先验知识
  - 初始估值还可以帮助我们平衡exploitation和exploration
  - 乐观初值法Optimistic initial values
    - 每个行为都有个高的初值
    - 优点：初期每个行为都有较大的机会被探索，快速探索
    - 早期只探索，不开采，不关心历史
    - 早期差，但后期很快就跟上
    - 缺点：可能一辈子都探索不完
    - ==Q1=5,𝜺=0的𝜺贪心
- UCB(Upper-confidence-bound上确界
  - $AT=argmaxa(Qt(a)+clntNt(a)),Nt(a)−a被选择的次数A_T=argmax_a(Q_t(a)+c\sqrt{\frac{lnt}{N_t(a)}}),N_t(a)-a被选择的次数$
  - 选择潜力大的：依据估值的置信上界选择
    - 第一项：当前估值高（接近贪心
    - 第二项：不确定性要求高（被选择的次数少–潜力大
    - c:控制探索的程度

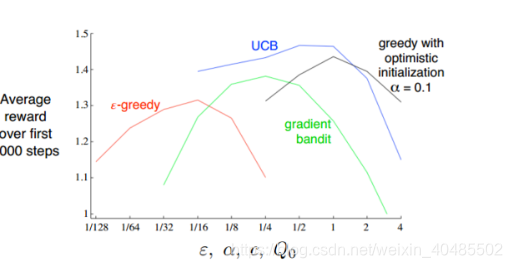

  - 比较：
    - 最初几轮差，之后会比𝜺贪心策略好
    - 稳定
    - 参数不好调
    - 最终会收敛到贪婪策略
  - 复杂，在多臂赌博机之外的情况用得少
梯度赌博机算法
- 不确定性算法（随机策略
- Ht(a):在t轮对行为a的偏好程度
  - 依据选择后的行为，再更新Ht(a)
- 选择a的概率 $P(At=a)=eHt(a)Σb=1keHt(b)=πt(a)P(A_t=a)=\frac{e^{H_t(a)}}{\Sigma_b=1^k e^{H_t(b)}}=\pi_t(a)$
- 更新公式==SGD
  - $Ht+1(At)=Ht(At)+α(Rt−Rtˉ)(1−πt(At));Rtˉ=Qt(a)均值H_{t+1}(A_t)=H_t(A_t)+\alpha(R_t-\bar{R_t})(1-\pi_t(A_t));\bar{R_t}=Q_t(a)均值$
  - 对所有a!=A_t： $Ht+1(a)=Ht(a)−α(Rt−Rtˉ)(πt(a))H_{t+1}(a)=H_t(a)-\alpha(R_t-\bar{R_t})(\pi_t(a))$
- 优化目标：第t轮期望奖励的大小
  - $E(Rt)=Σbπt(b)q(b)E(R_t)=\Sigma_b\pi_t(b)q(b)$
多臂赌博机–强化学习的简化
- 行为和状态之间无关
扩展
- 有上下文的多臂赌博及
  - 行为不改变状态
更一般的情形
- 马尔科夫决策过程

马尔科夫决策过程MDP(markov decision process

常用于建模序列化决策过程
行为
- 可获得奖励
- 改变状态–影响长期奖励
学习状态到行为的映射–策略
- 多臂赌博机q(a)
- MDP学习𝑞(𝑠,𝑎) 或𝒗(𝑠)
智能体和环境按离散的时间交互
形式化记号
- $St∈SS_t \in S$ 状态
- $At∈AA_t \in A$ 行为（有的地方可以走，有的不可以走，有个取值范围）
- 采取At后，转到状态St+1,并获得Rt+1
- 马尔科夫决策过程得到的序列记为
  - $S_0,A_0,R_1,S_1,A_1,R_2,S_2,...$

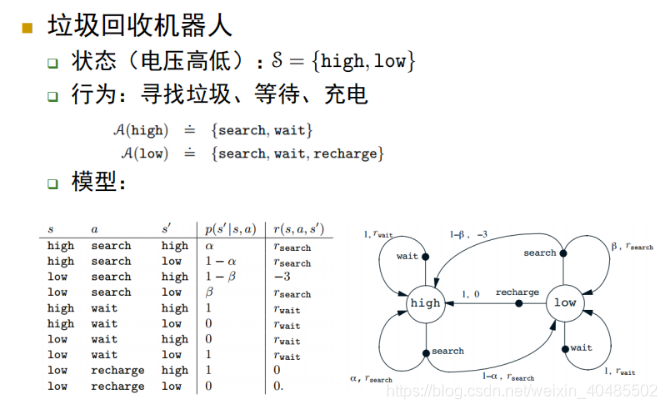

有限马尔科夫决策过程的建模
- $p(s',r|s,a)=P(St=s',Rt=r|s_{t-1}=s,A_{t-1}=a),[0,1]$
  - 和为1
  - 枚举很大，（能枚举出来的话，A*就可以了
- 状态转移概率:
  - $p(s′∣s,a)=Σrp(s′,r∣s,a)p(s'|s,a)=\Sigma_r p(s',r|s,a)$
- 状态-行为对的期望奖励
  - $r(s,a)=E(Rt∣st−1=s,At−1=a)=ΣrrΣs′p(s′,r∣s,a)r(s,a)=E(Rt|s_{t-1}=s,A_{t-1}=a)=\Sigma_r r\Sigma_s' p(s',r|s,a)$
- 状态-行为-下一个状态，的奖励
  - $r(s,a，s′)=E(Rt∣St−1=s,At−1=a,St=s′)=Σrrp(s′,r∣s,a)p(s′∣s,a)r(s,a，s')=E(Rt|S_{t-1}=s,A_{t-1}=a,S_t=s')=\Sigma_r r \frac{p(s',r|s,a)}{p(s'|s,a)}$
奖励假设
- 目标：长期或最终的
- 奖励：即时的
- 假设（强化学习的基础）
  - 目标和目的是奖励累积的期望值的最大化
累积奖励
- 多幕式任务： $G_t=R_{t+1}+R_{t+2}+R_{t+3}+...+R_{T}(t<T，T-最终步，终止态)$
  - 具有终止态的马尔科夫决策过程——多幕式任务
- 连续式任务 $Gt=Rt+1+γRt+2+γ2Rt+3+...=Σk=0∞γkRt+k+1,0≤γ≤1(折扣率G_t=R_{t+1}+\gamma R_{t+2}+\gamma^2 R_{t+3}+...=\Sigma_{k=0}^{\infty}\gamma^kR_{t+k+1},0 \leq \gamma \leq 1(折扣率$
  - 无终止
  - 递推： $Gt=Σk=0∞γkRt+k+1=Rt+1+γGt+1G_t=\Sigma_{k=0}^{\infty}\gamma^kR_{t+k+1}=R_{t+1}+\gamma G_{t+1}$
  - 求和公式 $Gt=Σk=t+1Tγk−t−1Rk,T=∞和γ=1不能同时出现（不收敛）G_t=\Sigma_{k=t+1}^{T}\gamma^{k-t-1}R_{k},T=\infty和\gamma=1不能同时出现（不收敛）$
策略
- 状态到行为的映射
- 随机式策略 $π(a∣s)\pi(a|s)$ 概率
- 确定式策略 $a=π(s)a=\pi(s)$
- 状态估值函数
  - $vπ(s)=Eπ(Gt∣St=s)=Eπ(Σk=0∞γkRt+k+1∣St=s),foralls∈Sv_{\pi}(s)=E_\pi(G_t|S_t=s)=E_\pi(\Sigma_{k=0}^{\infty}\gamma^kR_{t+k+1}|S_t=s),for all s \in S$
- 行为估值函数
  - $q(s,a)=Eπ(Gt∣St=s,At=a)=Eπ(Σk=0∞γkRt+k+1∣St=s,At=a)q(s,a)=E_\pi(G_t|S_t=s,A_t=a)=E_\pi(\Sigma_{k=0}^{\infty}\gamma^kR_{t+k+1}|S_t=s,A_t=a)$

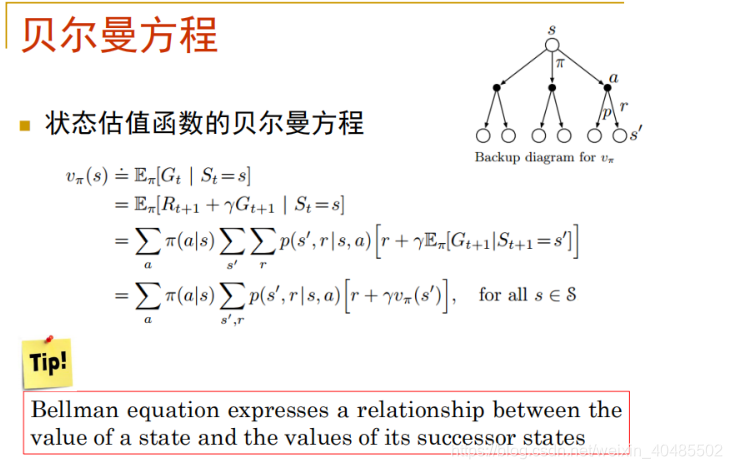

贝尔曼方程（方程，可以联立）
- n个状态–>n个方程n个变量的线性方程组
最优策略
- $策略π和π′两个策略，对于所有s，vπ(s)≥vπ′(s)===π≥π′策略\pi和\pi'两个策略，对于所有s，v_{\pi}(s)\geq v_{\pi'}(s)===\pi \geq \pi'$
- $v∗(s)=maxπvπ(s),对应的最优策略可以有多个，但v一样v*(s)=max_{\pi}v_{\pi}(s),对应的最优策略可以有多个，但v一样$
- 行为估值函数： $q∗(s,a)=maxπqπ(s,a)q*(s,a)=max_\pi q_\pi(s,a)$

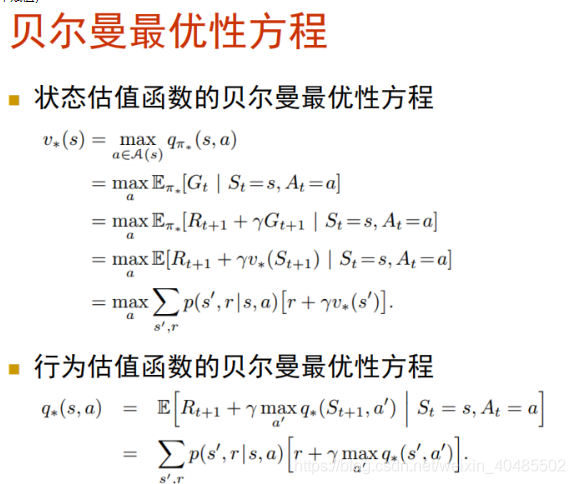

贝尔曼最优方程（这是个赋值）
基于状态估值函数的贝尔曼最优性方程
-  第一步：求解状态估值函数的贝尔曼最优性方程得到最优策略对应的状态估值函数
-  第二步：根据状态估值函数的贝尔曼最优性方程，进行一步搜索找到每个状态下的最优行为
-  注意：最优策略可以存在多个
-  贝尔曼最优性方程的优势，可以采用贪心局部搜索即可得到全局最优解
基于行为估值函数的贝尔曼最优性方程
- 直接得到最优策略
局限性
1. 需要知道环境模型
2. 需要高昂的计算代价和内存（存放估值函数）
3. 依赖于马尔科夫性

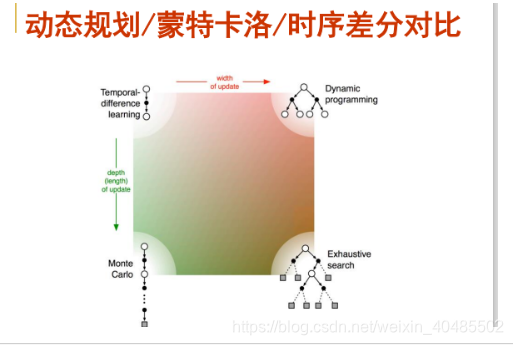

实际应用
1. 动态规划（考）
2. 蒙特卡罗方法
3. 时序查分（用的多
4. 参数化方法（用的多

1.动态规划

策略估值
1. 列方程（计算量大

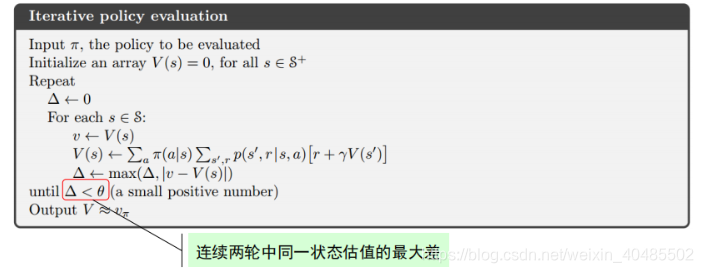

2. 迭代策略估值——寻找不动点
  - 更新规则（期望更新） $vk+1(s)=Σaπ(a∣s)Σs′r′p(s′,r∣s,a)(r+γvk(s′))v_{k+1}(s)=\Sigma_a\pi(a|s)\Sigma_{s'r'}p(s',r|s,a)(r+\gamma v_k(s'))$
  - 得到稳定点时，得到方程的解
  - 两种实现方式
    1. 同步更新：两个数组存放，一个新数组，一个旧数组
    2. 异步更新：一个数组，同时放新的和旧的。（收敛快，收敛性有保证）

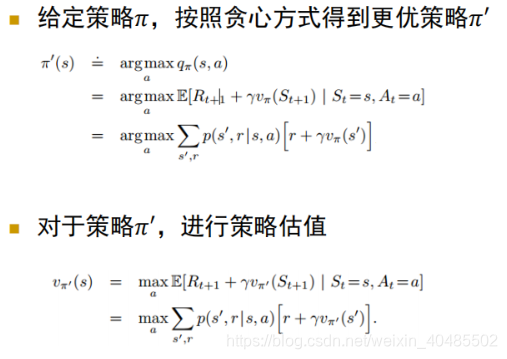

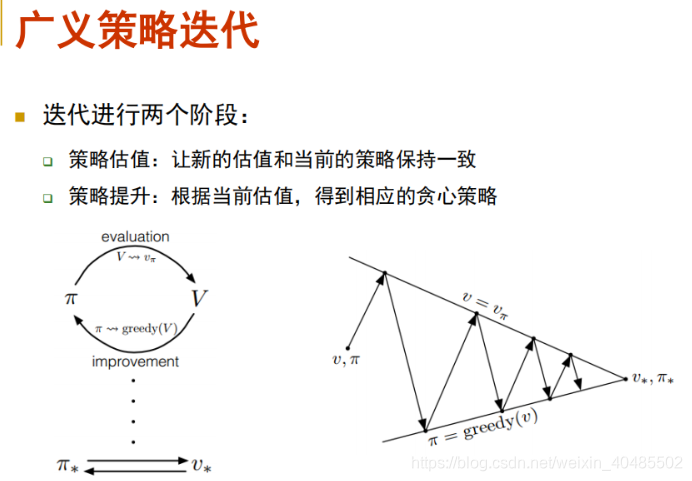

- 目标：寻找最优策略（策略提升）

import numpy as np

v=np.zeros((5,5))
print(v)

[[0. 0. 0. 0. 0.][0. 0. 0. 0. 0.][0. 0. 0. 0. 0.][0. 0. 0. 0. 0.][0. 0. 0. 0. 0.]]

action=np.array([[-1,0],[1,0],[0,-1],[0,1]])
for k in range(100):  for i in range(0,5):for j in range(5):s=np.array([i,j])v_a=0.0for a in action:s_1=s+a                if(s_1[0]<0 or s_1[0]>4 or s_1[1]<0 or s_1[1]>4):#超出范围s_1=sv_a+=1/4*(-1.+0.9*v[s_1[0],s_1[1]])elif(np.equal([0,1],s).all()):#As_1=np.array([4,1])v_a+=1/4*(10.+0.9*v[s_1[0],s_1[1]])elif(np.equal([0,3],s).all()):#As_1=np.array([2,3])v_a+=1/4*(5.+0.9*v[s_1[0],s_1[1]])else:v_a+=1/4*0.9*v[s_1[0],s_1[1]]v[i,j]=v_a
#             print(v[i,j])
#                 s_.append(s_1)print(v)

[[-0.5         7.25        1.38125     3.5         0.2875    ][-0.3625      1.5496875   0.65946094  0.93587871  0.02526021][-0.3315625   0.27407813  0.21004629  0.25783312 -0.186304  ][-0.32460156 -0.01136777  0.04470267  0.06807055 -0.27660253][-0.57303535 -0.3814907  -0.32577731 -0.30798402 -0.63153197]]
[[ 0.8246875   8.62374378  2.93700231  4.46153736  0.63890445][ 0.12807031  2.17920446  1.40897965  1.38456233  0.16904517][-0.30715352  0.46591413  0.48992165  0.39515637 -0.22720862][-0.5236356  -0.08876464  0.03227631 -0.03535962 -0.51340812][-0.96151933 -0.64544919 -0.5305602  -0.58872306 -1.0321689 ]]
[[ 1.84026754  8.75466414  3.70149128  4.77057646  0.89892187][ 0.61408748  2.52982021  1.82380398  1.61068095  0.30157386][-0.19392719  0.61583626  0.64509141  0.44847092 -0.24787869][-0.64776552 -0.14514798 -0.01484469 -0.15041361 -0.6873706 ][-1.22365701 -0.82258324 -0.69026002 -0.80385226 -1.30000115]]
[[ 2.43608951  8.66455575  4.01609618  4.87609758  1.06949091][ 0.96186575  2.71486389  2.0220148   1.72083536  0.38990482][-0.08439791  0.70434212  0.71099621  0.45754634 -0.26975458][-0.72271789 -0.19255583 -0.07250248 -0.24889027 -0.81385373][-1.39833841 -0.94834094 -0.81586503 -0.96293696 -1.48477842]]
[[ 2.76218512e+00  8.55939491e+00  4.13156078e+00  4.90596573e+001.17284179e+00][ 1.17976629e+00  2.80474158e+00  2.10783013e+00  1.76878058e+004.38898838e-01][-7.67666250e-03  7.45988690e-01  7.28744102e-01  4.45247962e-01-2.94878841e-01][-7.72289979e-01 -2.35607559e-01 -1.28614221e-01 -3.28535315e-01-9.07460420e-01][-1.51639424e+00 -1.04114675e+00 -9.13426666e-01 -1.08017741e+00-1.61536880e+00]]
[[ 2.93429457  8.4730898   4.16415045  4.90438466  1.23001759][ 1.3050033   2.84218018  2.13836745  1.78355225  0.46045771][ 0.0359807   0.75854192  0.7230472   0.42371669 -0.32158709][-0.80986999 -0.27474503 -0.17857346 -0.39206128 -0.97820746][-1.59885617 -1.11133929 -0.98879128 -1.16718972 -1.70963033]]
[[ 3.02050351  8.40629118  4.16296859  4.88949532  1.25724735][ 1.37082523  2.8516558   2.14227537  1.78108765  0.46487126][ 0.05498252  0.75486161  0.70701305  0.39925177 -0.34802609][-0.84140995 -0.30970375 -0.22129723 -0.4426746  -1.03267116][-1.65885386 -1.16545484 -1.04711494 -1.23248716 -1.77899427]]
[[ 3.05907777  8.3547335   4.14863137  4.86963139  1.2660244 ][ 1.4007218   2.84683326  2.1338022   1.77020024  0.45944071][ 0.05806009  0.7429956   0.68731927  0.37503424 -0.37290002][-0.86917918 -0.34041052 -0.25714818 -0.48313626 -1.07523288][-1.70427689 -1.20788287 -1.09254246 -1.28211103 -1.8309498 ]]
[[ 3.07156244  8.3144941   4.12997579  4.84881517  1.26406856][ 1.40986496  2.83526029  2.12012001  1.75576728  0.44893472][ 0.05189183  0.7276637   0.6672757   0.35257651 -0.39548988][-0.89394432 -0.36704513 -0.28697583 -0.51564223 -1.10889583][-1.73983572 -1.24164389 -1.12823647 -1.3203114  -1.87049904]]
[[ 3.07018389  8.28265155  4.11085157  4.82897256  1.25635999][ 1.40762022  2.82106248  2.10486533  1.74045355  0.43630814][ 0.04097707  0.71151078  0.64844478  0.3324974  -0.41550554][-0.91596582 -0.38994182 -0.31170954 -0.54189436 -1.13577882][-1.76838826 -1.26884735 -1.15654857 -1.35008201 -1.90104325]]
[[ 3.0618939   8.25712464  4.09290817  4.81095457  1.2459961 ][ 1.39959957  2.80644757  2.08985717  1.72566389  0.42330408][ 0.02812736  0.69594252  0.6314822   0.31494289 -0.43293341][-0.93538792 -0.40950052 -0.33220378 -0.56320239 -1.15741552][-1.79172765 -1.29099042 -1.17921057 -1.3735461  -1.92493583]]
[[ 3.0506152   8.23643451  4.07678474  4.79505123  1.23482819][ 1.38907768  2.79254517  2.0759571   1.71208244  0.41088829][ 0.01499592  0.68164262  0.61657624  0.29981765 -0.44791967][-0.95236454 -0.42613113 -0.34919277 -0.58057577 -1.17494053][-1.81103231 -1.309157   -1.19749895 -1.39222524 -1.94383342]]
[[ 3.03851708e+00  8.21951679e+00  4.06264472e+00  4.78126344e+001.22390683e+00][ 1.37790557e+00  2.77987997e+00  2.06351626e+00  1.69998427e+003.99543436e-01][ 2.49040483e-03  6.68883485e-01  6.03680541e-01  2.86913109e-01-4.60690822e-01][-9.67083453e-01 -4.40223689e-01 -3.63289019e-01 -5.94796878e-01-1.18920887e+00][-1.82711864e+00 -1.32414961e+00 -1.21236164e+00 -1.40722387e+00-1.95892241e+00]]
[[ 3.02675272  8.20559029  4.05042831  4.76945062  1.21378173][ 1.36708145  2.76864108  2.0526152   1.68941753  0.38946167][-0.00894133  0.65771024  0.59263864  0.27597791 -0.47150353][-0.9797576  -0.45213435 -0.3749972  -0.60647671 -1.20087509][-1.84058251 -1.33657632 -1.22451078 -1.4193551  -1.97106687]]
[[ 3.01588987  8.1940688   4.03997666  4.75941148  1.20469824][ 1.35710099  2.75883642  2.04319558  1.68031049  0.38066755][-0.01912473  0.6480486   0.5832506   0.26675569 -0.48061496][-0.99060982 -0.46218032 -0.38473137 -0.61609632 -1.21044698][-1.85187901 -1.34690795 -1.23448867 -1.42922657 -1.98090664]]
[[ 3.00616364  8.18450261  4.03109442  4.75092768  1.19672313][ 1.34816967  2.75038121  2.03513326  1.67253394  0.37309467][-0.02804116  0.63976732  0.5753081   0.25900442 -0.48826664][-0.99985982 -0.47063966 -0.39283122 -0.62403758 -1.21832301][-1.8613683  -1.35551603 -1.24271406 -1.43729909 -1.98892296]]
[[ 2.9976249   8.17653977  4.0235814   4.74378671  1.18982372][ 1.34033029  2.74314839  2.02827866  1.66593701  0.36663247][-0.03575576  0.63271374  0.56861226  0.25250514 -0.49467671][-1.0077153  -0.47775348 -0.39957589 -0.63060589 -1.22481893][-1.86934278 -1.36269843 -1.24951468 -1.44392709 -1.99548319]]
[[ 2.99022697  8.16990001  4.01724803  4.73779298  1.1839164 ][ 1.33353873  2.73699701  2.02247872  1.66036709  0.36115383][-0.04237418  0.62673336  0.5629818   0.24706491 -0.5000373 ][-1.01436679 -0.48372924 -0.4051953  -0.63604719 -1.23018699][-1.87604393 -1.36869691 -1.25515015 -1.44938671 -2.00087152]]
[[ 2.98387585  8.16435708  4.01192228  4.73277224  1.17889575][ 1.32770842  2.73178746  2.01758819  1.65568031  0.35653083][-0.04801732  0.62168011  0.55825603  0.24251667 -0.50451478][-1.01998539 -0.48874444 -0.40987929 -0.64056067 -1.23463014][-1.88167329 -1.37370958 -1.25982829 -1.45389562 -2.00531048]]
[[ 2.97845887  8.15972638  4.00745205  4.7285725   1.17465134][ 1.32273592  2.72738938  2.013475    1.65174638  0.3526431 ][-0.052807    0.61742114  0.55429504  0.23871734 -0.50825151][-1.02472228 -0.49295025 -0.41378494 -0.64430851 -1.23831264][-1.88640015 -1.37789986 -1.26371696 -1.4576271  -2.00897616]]
[[ 2.97386051  8.15585603  4.00370501  4.72506302  1.17107698][ 1.31851523  2.72368517  2.01002211  1.64845025  0.34938173][-0.0568584   0.6138386   0.55097845  0.23554546 -0.51136832][-1.02870949 -0.49647503 -0.41704246 -0.64742327 -1.24136809][-1.89036717 -1.38140328 -1.2669527  -1.46072033 -2.01200916]]
[[ 2.96997076  8.15262039  4.00056737  4.72213236  1.16807531][ 1.31494537  2.72057096  2.00712758  1.6456921   0.34665069][-0.06027638  0.61082955  0.54820353  0.23289841 -0.51396714][-1.03206132 -0.49942744 -0.41975997 -0.65001374 -1.24390558][-1.89369476 -1.38433259 -1.26964726 -1.46328786 -2.01452265]]
[[ 2.96668914  8.14991509  3.99794204  4.71968621  1.16555969][ 1.31193404  2.71795641  2.00470367  1.64338627  0.34436664][-0.06315417  0.60830512  0.54588313  0.23068991 -0.51613364][-1.03487598 -0.50189927 -0.42202736 -0.65216945 -1.24601455][-1.89648457 -1.38678183 -1.27189247 -1.4654213  -2.01660826]]
[[ 2.96392617  8.14765316  3.99574664  4.71764509  1.1634545 ][ 1.30939905  2.71576373  2.00267545  1.64145985  0.34245815][-0.06557335  0.6061892   0.54394362  0.22884759 -0.51793955][-1.03723746 -0.50396793 -0.4239194  -0.65396422 -1.24776848][-1.8988224  -1.38882954 -1.27376411 -1.46719552 -2.01834062]]
[[ 2.96160352  8.14576202  3.99391157  4.71594227  1.16169462][ 1.30726841  2.71392639  2.00097932  1.63985115  0.34086448][-0.06760447  0.60441696  0.54232301  0.22731084 -0.51944486][-1.03921726 -0.50569858 -0.42549838 -0.6554591  -1.24922794][-1.90078061 -1.39054139 -1.27532486 -1.46867202 -2.01978077]]
[[ 2.95965343  8.14418102  3.99237819  4.71452182  1.1602245 ][ 1.30547985  2.71238786  1.99956155  1.6385082   0.33953427][-0.06930811  0.60293344  0.54096917  0.22602902 -0.52069964][-1.04087602 -0.50714603 -0.42681618 -0.6567046  -1.25044291][-1.90242019 -1.39197231 -1.27662671 -1.46990142 -2.02097882]]
[[ 2.95801774  8.14285942  3.99109722  4.713337    1.15899706][ 1.3039799   2.71110022  1.99837683  1.63738735  0.33842429][-0.07073593  0.60169217  0.53983842  0.22495984 -0.52174564][-1.04226509 -0.50835632 -0.42791607 -0.65774263 -1.25145475][-1.9037925  -1.39316826 -1.27771281 -1.47092553 -2.02197603]]
[[ 2.95664683  8.14175479  3.99002732  4.71234872  1.1579726 ][ 1.30272298  2.71002303  1.99738712  1.63645199  0.33749823][-0.07193182  0.60065399  0.5388941   0.22406801 -0.52261769][-1.04342779 -0.50936808 -0.42883412 -0.65860794 -1.25229769][-1.90494074 -1.39416772 -1.27861904 -1.47177892 -2.02280645]]
[[ 2.95549857  8.14083161  3.98913382  4.71152437  1.15711776][ 1.30167037  2.7091222   1.99656048  1.63567149  0.3367257 ][-0.07293293  0.59978594  0.53810557  0.22332407 -0.52334476][-1.04440064 -0.51021372 -0.4296004  -0.65932941 -1.25300012][-1.90590121 -1.39500288 -1.27937528 -1.47249026 -2.02349824]]
[[ 2.9545373   8.14006017  3.98838774  4.71083673  1.15640454][ 1.30078931  2.70836908  1.99587012  1.63502024  0.33608129][-0.07377062  0.59906032  0.53744717  0.22270348 -0.52395103][-1.0452144  -0.51092041 -0.43024003 -0.65993106 -1.2535856 ][-1.90670443 -1.39570068 -1.28000641 -1.47308334 -2.02407472]]
[[ 2.95373292  8.13941558  3.98776479  4.71026311  1.15580953][ 1.30005215  2.70773959  1.99529365  1.63447685  0.33554374][-0.07447132  0.59845388  0.53689747  0.22218575 -0.5244566 ][-1.04589488 -0.51151088 -0.43077395 -0.66043286 -1.2540737 ][-1.90737599 -1.39628364 -1.28053315 -1.47357792 -2.02455524]]
[[ 2.95306005  8.13887705  3.98724469  4.70978458  1.15531316][ 1.29943561  2.70721354  1.99481232  1.63402344  0.33509534][-0.07505726  0.59794715  0.53643854  0.22175382 -0.52487826][-1.04646378 -0.5120042  -0.43121963 -0.66085142 -1.25448069][-1.90793737 -1.39677063 -1.2809728  -1.47399041 -2.02495585]]
[[ 2.95249737  8.13842716  3.98681047  4.70938536  1.15489908][ 1.29892008  2.70677401  1.99441045  1.63364512  0.33472129][-0.07554711  0.59752378  0.53605539  0.22139344 -0.52522995][-1.0469393  -0.5124163  -0.43159165 -0.6612006  -1.25482009][-1.90840655 -1.39717741 -1.28133976 -1.47433449 -2.02528992]]
[[ 2.95202695  8.13805136  3.98644797  4.70905228  1.15455364][ 1.29848914  2.70640681  1.99407494  1.63332944  0.33440924][-0.07595654  0.59717011  0.53573554  0.22109275 -0.52552331][-1.0473367  -0.51276052 -0.4319022  -0.66149191 -1.25510318][-1.90879862 -1.39751717 -1.28164607 -1.47462154 -2.02556852]]
[[ 2.95163374  8.13773746  3.98614535  4.70877437  1.15426545][ 1.29812896  2.70610008  1.99379484  1.63306602  0.33414891][-0.07629869  0.59687469  0.53546852  0.22084185 -0.52576804][-1.04766877 -0.51304803 -0.43216143 -0.66173497 -1.25533931][-1.90912622 -1.39780093 -1.28190174 -1.47486102 -2.02580091]]
[[ 2.95130513  8.1374753   3.98589272  4.70854248  1.15402502][ 1.29782798  2.70584388  1.99356101  1.63284621  0.33393172][-0.07658458  0.59662795  0.53524561  0.22063248 -0.52597221][-1.04794621 -0.51328814 -0.43237783 -0.66193778 -1.2555363 ][-1.90939991 -1.39803791 -1.28211516 -1.47506085 -2.02599477]]
[[ 2.95103055  8.13725635  3.98568182  4.70834898  1.15382442][ 1.29757651  2.70562991  1.9933658   1.63266277  0.33375051][-0.07682342  0.59642189  0.53505953  0.22045777 -0.52614255][-1.04817798 -0.51348866 -0.43255847 -0.66210701 -1.25570064][-1.90962853 -1.39823581 -1.28229332 -1.47522759 -2.0261565 ]]
[[ 2.95080114  8.13707351  3.98550578  4.70818752  1.15365704][ 1.29736643  2.70545122  1.99320284  1.63250969  0.33359931][-0.07702294  0.59624981  0.53490419  0.22031197 -0.52628468][-1.04837158 -0.51365611 -0.43270926 -0.66224824 -1.25583776][-1.9098195  -1.39840107 -1.28244203 -1.47536673 -2.02629143]]
[[ 2.9506095   8.13692082  3.98535881  4.70805277  1.15351739][ 1.29719095  2.70530199  1.9930668   1.63238194  0.33347314][-0.0771896   0.59610611  0.53477452  0.2201903  -0.52640328][-1.04853328 -0.51379594 -0.43283513 -0.6623661  -1.25595218][-1.909979   -1.39853906 -1.28256616 -1.47548285 -2.02640403]]
[[ 2.95044942  8.13679332  3.98523614  4.70794032  1.15340085][ 1.29704437  2.70517739  1.99295325  1.63227533  0.33336786][-0.07732879  0.59598611  0.53466627  0.22008875 -0.52650224][-1.04866833 -0.51391269 -0.4329402  -0.66246446 -1.25604765][-1.91011221 -1.39865428 -1.28266978 -1.47557975 -2.02649798]]
[[ 2.95031572  8.13668686  3.98513373  4.70784648  1.15330361][ 1.29692196  2.70507334  1.99285845  1.63218635  0.33328   ][-0.07744504  0.59588592  0.53457591  0.220004   -0.52658483][-1.04878111 -0.51401017 -0.43302791 -0.66254655 -1.25612733][-1.91022346 -1.39875048 -1.28275628 -1.47566063 -2.02657638]]
[[ 2.95020406  8.13659797  3.98504824  4.70776816  1.15322246][ 1.29681972  2.70498646  1.99277932  1.63211208  0.33320669][-0.07754211  0.59580227  0.53450048  0.21993327 -0.52665374][-1.04887529 -0.51409157 -0.43310113 -0.66261506 -1.25619381][-1.91031635 -1.39883081 -1.28282849 -1.47572812 -2.02664181]]
[[ 2.95011081  8.13652375  3.98497688  4.70770279  1.15315474][ 1.29673435  2.70491393  1.99271326  1.6320501   0.3331455 ][-0.07762318  0.59573242  0.53443751  0.21987423 -0.52671126][-1.04895394 -0.51415953 -0.43316225 -0.66267224 -1.2562493 ][-1.91039393 -1.39889787 -1.28288877 -1.47578446 -2.02669641]]
[[ 2.95003293  8.13646178  3.98491731  4.70764823  1.15309822][ 1.29666306  2.70485337  1.99265811  1.63199837  0.33309444][-0.07769087  0.59567411  0.53438495  0.21982496 -0.52675926][-1.04901961 -0.51421627 -0.43321327 -0.66271997 -1.25629561][-1.9104587  -1.39895386 -1.28293908 -1.47583148 -2.02674198]]
[[ 2.94996791  8.13641005  3.98486758  4.7076027   1.15305106][ 1.29660353  2.7048028   1.99261208  1.63195519  0.33305182][-0.07774739  0.59562542  0.53434107  0.21978383 -0.52679933][-1.04907444 -0.51426363 -0.43325586 -0.6627598  -1.25633426][-1.91051278 -1.39900061 -1.28298108 -1.47587073 -2.02678001]]
[[ 2.94991361  8.13636685  3.98482607  4.70756469  1.15301169][ 1.29655383  2.70476059  1.99257366  1.63191915  0.33301625][-0.07779458  0.59558477  0.53430444  0.2197495  -0.52683276][-1.04912022 -0.51430318 -0.43329142 -0.66279305 -1.25636652][-1.91055794 -1.39903963 -1.28301614 -1.47590349 -2.02681176]]
[[ 2.94986828  8.13633079  3.98479142  4.70753297  1.15297884][ 1.29651233  2.70472535  1.99254158  1.63188907  0.33298656][-0.07783398  0.59555084  0.53427386  0.21972085 -0.52686067][-1.04915845 -0.5143362  -0.43332109 -0.66282081 -1.25639345][-1.91059564 -1.39907221 -1.28304541 -1.47593083 -2.02683825]]
[[ 2.94983043  8.13630068  3.9847625   4.70750649  1.15295141][ 1.29647768  2.70469593  1.99251481  1.63186396  0.33296179][-0.07786688  0.59552251  0.53424834  0.21969694 -0.52688396][-1.04919036 -0.51436376 -0.43334587 -0.66284397 -1.25641592][-1.91062712 -1.39909941 -1.28306984 -1.47595365 -2.02686037]]
[[ 2.94979882  8.13627555  3.98473835  4.70748439  1.15292853][ 1.29644875  2.70467136  1.99249245  1.631843    0.3329411 ][-0.07789435  0.59549886  0.53422704  0.21967697 -0.52690341][-1.04921701 -0.51438677 -0.43336655 -0.66286331 -1.25643467][-1.9106534  -1.39912212 -1.28309024 -1.4759727  -2.02687882]]
[[ 2.94977244  8.13625457  3.9847182   4.70746595  1.15290942][ 1.2964246   2.70465086  1.9924738   1.63182551  0.33292384][-0.07791728  0.59547911  0.53420925  0.21966031 -0.52691963][-1.04923925 -0.51440598 -0.43338381 -0.66287945 -1.25645033][-1.91067534 -1.39914108 -1.28310726 -1.4759886  -2.02689423]]
[[ 2.94975041  8.13623705  3.98470137  4.70745055  1.15289348][ 1.29640443  2.70463374  1.99245822  1.63181091  0.33290943][-0.07793642  0.59546263  0.5341944   0.2196464  -0.52693318][-1.04925782 -0.51442202 -0.43339822 -0.66289292 -1.2564634 ][-1.91069365 -1.3991569  -1.28312147 -1.47600188 -2.02690709]]
[[ 2.94973202  8.13622243  3.98468733  4.70743769  1.15288017][ 1.2963876   2.70461945  1.99244522  1.63179872  0.33289741][-0.0779524   0.59544887  0.53418201  0.21963479 -0.52694449][-1.04927333 -0.51443541 -0.43341025 -0.66290417 -1.25647431][-1.91070895 -1.39917011 -1.28313334 -1.47601296 -2.02691782]]
[[ 2.94971666  8.13621022  3.9846756   4.70742697  1.15286906][ 1.29637354  2.70460752  1.99243437  1.63178854  0.33288737][-0.07796575  0.59543738  0.53417167  0.2196251  -0.52695392][-1.04928627 -0.51444658 -0.43342029 -0.66291355 -1.25648341][-1.91072171 -1.39918114 -1.28314324 -1.4760222  -2.02692678]]
[[ 2.94970385  8.13620003  3.98466582  4.70741801  1.15285979][ 1.29636181  2.70459756  1.99242531  1.63178005  0.33287899][-0.07797688  0.5954278   0.53416303  0.21961701 -0.5269618 ][-1.04929708 -0.51445591 -0.43342868 -0.66292139 -1.25649101][-1.91073237 -1.39919035 -1.28315151 -1.47602992 -2.02693426]]
[[ 2.94969314  8.13619152  3.98465765  4.70741054  1.15285205][ 1.29635202  2.70458924  1.99241774  1.63177296  0.33287199][-0.07798618  0.59541979  0.53415582  0.21961026 -0.52696838][-1.0493061  -0.5144637  -0.43343567 -0.66292793 -1.25649736][-1.91074127 -1.39919803 -1.28315841 -1.47603637 -2.02694051]]
[[ 2.94968421  8.13618442  3.98465083  4.7074043   1.15284559][ 1.29634384  2.7045823   1.99241143  1.63176705  0.33286616][-0.07799395  0.59541311  0.5341498   0.21960462 -0.52697386][-1.04931363 -0.5144702  -0.43344151 -0.66293339 -1.25650265][-1.91074869 -1.39920445 -1.28316417 -1.47604175 -2.02694572]]
[[ 2.94967675  8.13617849  3.98464513  4.70739909  1.15284019][ 1.29633701  2.70457651  1.99240616  1.63176211  0.33286128][-0.07800043  0.59540753  0.53414478  0.21959992 -0.52697845][-1.04931991 -0.51447563 -0.43344639 -0.66293795 -1.25650707][-1.91075489 -1.39920981 -1.28316897 -1.47604624 -2.02695007]]
[[ 2.94967053  8.13617354  3.98464038  4.70739474  1.15283569][ 1.29633132  2.70457167  1.99240176  1.63175798  0.33285722][-0.07800584  0.59540287  0.53414059  0.21959599 -0.52698227][-1.04932516 -0.51448016 -0.43345046 -0.66294175 -1.25651076][-1.91076007 -1.39921428 -1.28317299 -1.47604998 -2.0269537 ]]
[[ 2.94966533  8.13616941  3.98463642  4.70739111  1.15283193][ 1.29632656  2.70456764  1.99239809  1.63175454  0.33285382][-0.07801035  0.59539898  0.53413709  0.21959271 -0.52698546][-1.04932954 -0.51448394 -0.43345386 -0.66294493 -1.25651384][-1.91076439 -1.39921801 -1.28317634 -1.47605311 -2.02695673]]
[[ 2.94966099  8.13616596  3.9846331   4.70738808  1.1528288 ][ 1.29632259  2.70456426  1.99239502  1.63175167  0.33285099][-0.07801412  0.59539574  0.53413416  0.21958997 -0.52698813][-1.0493332  -0.5144871  -0.4334567  -0.66294758 -1.25651641][-1.910768   -1.39922113 -1.28317914 -1.47605572 -2.02695926]]
[[ 2.94965737  8.13616308  3.98463034  4.70738555  1.15282618][ 1.29631927  2.70456145  1.99239247  1.63174927  0.33284862][-0.07801727  0.59539303  0.53413172  0.21958769 -0.52699035][-1.04933625 -0.51448973 -0.43345906 -0.66294979 -1.25651856][-1.91077101 -1.39922373 -1.28318147 -1.4760579  -2.02696137]]
[[ 2.94965435  8.13616068  3.98462803  4.70738344  1.15282399][ 1.2963165   2.7045591   1.99239033  1.63174727  0.33284664][-0.0780199   0.59539077  0.53412969  0.21958578 -0.52699221][-1.0493388  -0.51449193 -0.43346104 -0.66295164 -1.25652035][-1.91077352 -1.3992259  -1.28318342 -1.47605972 -2.02696313]]
[[ 2.94965182  8.13615867  3.98462611  4.70738168  1.15282217][ 1.29631419  2.70455714  1.99238855  1.6317456   0.332845  ][-0.07802209  0.59538888  0.53412799  0.21958419 -0.52699376][-1.04934093 -0.51449377 -0.43346269 -0.66295318 -1.25652184][-1.91077562 -1.39922771 -1.28318505 -1.47606124 -2.0269646 ]]
[[ 2.94964971  8.136157    3.9846245   4.70738021  1.15282065][ 1.29631227  2.70455551  1.99238706  1.6317442   0.33284362][-0.07802392  0.59538731  0.53412657  0.21958286 -0.52699505][-1.0493427  -0.5144953  -0.43346407 -0.66295447 -1.25652309][-1.91077737 -1.39922922 -1.28318641 -1.47606251 -2.02696583]]
[[ 2.94964796  8.1361556   3.98462316  4.70737898  1.15281938][ 1.29631066  2.70455414  1.99238582  1.63174304  0.33284247][-0.07802545  0.59538599  0.53412539  0.21958175 -0.52699613][-1.04934419 -0.51449658 -0.43346522 -0.66295554 -1.25652413][-1.91077883 -1.39923049 -1.28318754 -1.47606357 -2.02696686]]
[[ 2.94964649  8.13615443  3.98462204  4.70737795  1.15281831][ 1.29630931  2.704553    1.99238478  1.63174207  0.33284151][-0.07802673  0.59538489  0.5341244   0.21958083 -0.52699703][-1.04934542 -0.51449765 -0.43346618 -0.66295644 -1.256525  ][-1.91078006 -1.39923154 -1.28318849 -1.47606445 -2.02696771]]
[[ 2.94964526  8.13615346  3.9846211   4.7073771   1.15281743][ 1.29630819  2.70455205  1.99238391  1.63174125  0.33284071][-0.07802779  0.59538398  0.53412357  0.21958005 -0.52699779][-1.04934646 -0.51449854 -0.43346698 -0.66295719 -1.25652573][-1.91078107 -1.39923242 -1.28318928 -1.47606519 -2.02696843]]
[[ 2.94964424  8.13615264  3.98462032  4.70737638  1.15281669][ 1.29630725  2.70455125  1.99238319  1.63174058  0.33284004][-0.07802868  0.59538321  0.53412288  0.21957941 -0.52699841][-1.04934732 -0.51449929 -0.43346765 -0.66295781 -1.25652634][-1.91078192 -1.39923315 -1.28318994 -1.47606581 -2.02696903]]
[[ 2.94964338  8.13615197  3.98461967  4.70737579  1.15281607][ 1.29630647  2.70455059  1.99238259  1.63174001  0.33283949][-0.07802942  0.59538257  0.53412231  0.21957887 -0.52699894][-1.04934804 -0.51449991 -0.4334682  -0.66295833 -1.25652684][-1.91078264 -1.39923377 -1.28319049 -1.47606632 -2.02696952]]
[[ 2.94964267  8.1361514   3.98461912  4.70737529  1.15281556][ 1.29630582  2.70455003  1.99238208  1.63173954  0.33283902][-0.07803004  0.59538204  0.53412183  0.21957842 -0.52699938][-1.04934864 -0.51450043 -0.43346867 -0.66295877 -1.25652726][-1.91078323 -1.39923428 -1.28319095 -1.47606675 -2.02696994]]
[[ 2.94964208  8.13615093  3.98461867  4.70737487  1.15281513][ 1.29630528  2.70454957  1.99238166  1.63173914  0.33283863][-0.07803056  0.59538159  0.53412143  0.21957805 -0.52699974][-1.04934914 -0.51450086 -0.43346906 -0.66295913 -1.25652762][-1.91078372 -1.39923471 -1.28319133 -1.47606711 -2.02697029]]
[[ 2.94964158  8.13615053  3.98461829  4.70737453  1.15281477][ 1.29630482  2.70454919  1.99238131  1.63173882  0.33283831][-0.07803099  0.59538122  0.53412109  0.21957773 -0.52700005][-1.04934956 -0.51450122 -0.43346938 -0.66295943 -1.25652791][-1.91078414 -1.39923506 -1.28319165 -1.47606741 -2.02697058]]
[[ 2.94964116  8.1361502   3.98461797  4.70737424  1.15281447][ 1.29630444  2.70454886  1.99238102  1.63173854  0.33283804][-0.07803135  0.59538091  0.53412081  0.21957747 -0.5270003 ][-1.04934991 -0.51450153 -0.43346965 -0.66295969 -1.25652816][-1.91078448 -1.39923536 -1.28319192 -1.47606766 -2.02697082]]
[[ 2.94964082  8.13614993  3.98461771  4.707374    1.15281422][ 1.29630412  2.7045486   1.99238077  1.63173831  0.33283781][-0.07803165  0.59538065  0.53412058  0.21957725 -0.52700051][-1.0493502  -0.51450178 -0.43346988 -0.6629599  -1.25652836][-1.91078477 -1.39923561 -1.28319214 -1.47606787 -2.02697102]]
[[ 2.94964053  8.1361497   3.98461749  4.7073738   1.15281401][ 1.29630386  2.70454837  1.99238057  1.63173812  0.33283762][-0.0780319   0.59538044  0.53412039  0.21957707 -0.52700069][-1.04935045 -0.51450199 -0.43347007 -0.66296008 -1.25652853][-1.91078501 -1.39923582 -1.28319233 -1.47606804 -2.02697119]]
[[ 2.94964029  8.1361495   3.98461731  4.70737363  1.15281383][ 1.29630364  2.70454818  1.9923804   1.63173796  0.33283746][-0.07803211  0.59538026  0.53412022  0.21957692 -0.52700084][-1.04935065 -0.51450216 -0.43347023 -0.66296022 -1.25652868][-1.91078521 -1.39923599 -1.28319248 -1.47606818 -2.02697133]]
[[ 2.94964009  8.13614934  3.98461715  4.70737349  1.15281369][ 1.29630345  2.70454803  1.99238026  1.63173783  0.33283733][-0.07803229  0.5953801   0.53412009  0.21957679 -0.52700096][-1.04935082 -0.51450231 -0.43347036 -0.66296035 -1.2565288 ][-1.91078538 -1.39923614 -1.28319261 -1.47606831 -2.02697145]]
[[ 2.94963992  8.13614921  3.98461702  4.70737337  1.15281357][ 1.2963033   2.7045479   1.99238014  1.63173772  0.33283722][-0.07803243  0.59537998  0.53411997  0.21957669 -0.52700107][-1.04935096 -0.51450243 -0.43347047 -0.66296045 -1.2565289 ][-1.91078552 -1.39923626 -1.28319272 -1.47606841 -2.02697154]]
[[ 2.94963978  8.1361491   3.98461692  4.70737327  1.15281347][ 1.29630317  2.70454779  1.99238004  1.63173762  0.33283713][-0.07803255  0.59537987  0.53411988  0.2195766  -0.52700115][-1.04935108 -0.51450253 -0.43347056 -0.66296053 -1.25652898][-1.91078563 -1.39923636 -1.28319281 -1.47606849 -2.02697163]]
[[ 2.94963966  8.13614901  3.98461683  4.70737319  1.15281338][ 1.29630307  2.7045477   1.99237996  1.63173755  0.33283705][-0.07803266  0.59537979  0.5341198   0.21957652 -0.52700122][-1.04935118 -0.51450262 -0.43347064 -0.66296061 -1.25652905][-1.91078573 -1.39923644 -1.28319289 -1.47606856 -2.02697169]]
[[ 2.94963956  8.13614893  3.98461675  4.70737312  1.15281331][ 1.29630298  2.70454762  1.99237989  1.63173748  0.33283699][-0.07803274  0.59537971  0.53411973  0.21957646 -0.52700128][-1.04935126 -0.51450269 -0.4334707  -0.66296067 -1.25652911][-1.91078581 -1.39923651 -1.28319295 -1.47606862 -2.02697175]]
[[ 2.94963948  8.13614886  3.98461669  4.70737306  1.15281325][ 1.2963029   2.70454756  1.99237983  1.63173743  0.33283694][-0.07803281  0.59537965  0.53411968  0.21957641 -0.52700133][-1.04935133 -0.51450275 -0.43347075 -0.66296072 -1.25652915][-1.91078588 -1.39923657 -1.283193   -1.47606867 -2.0269718 ]]
[[ 2.94963941  8.13614881  3.98461664  4.70737302  1.1528132 ][ 1.29630284  2.7045475   1.99237978  1.63173738  0.33283689][-0.07803287  0.5953796   0.53411963  0.21957637 -0.52700138][-1.04935139 -0.5145028  -0.4334708  -0.66296076 -1.25652919][-1.91078594 -1.39923662 -1.28319304 -1.47606871 -2.02697184]]
[[ 2.94963936  8.13614876  3.9846166   4.70737298  1.15281316][ 1.29630279  2.70454746  1.99237974  1.63173734  0.33283685][-0.07803292  0.59537956  0.5341196   0.21957633 -0.52700141][-1.04935143 -0.51450284 -0.43347084 -0.66296079 -1.25652923][-1.91078598 -1.39923666 -1.28319308 -1.47606874 -2.02697187]]
[[ 2.94963931  8.13614873  3.98461656  4.70737294  1.15281313][ 1.29630274  2.70454742  1.99237971  1.63173731  0.33283682][-0.07803296  0.59537952  0.53411956  0.2195763  -0.52700144][-1.04935147 -0.51450288 -0.43347087 -0.66296082 -1.25652926][-1.91078602 -1.39923669 -1.28319311 -1.47606877 -2.0269719 ]]
[[ 2.94963927  8.1361487   3.98461653  4.70737292  1.1528131 ][ 1.29630271  2.70454739  1.99237968  1.63173729  0.3328368 ][-0.078033    0.59537949  0.53411954  0.21957628 -0.52700147][-1.04935151 -0.5145029  -0.43347089 -0.66296085 -1.25652928][-1.91078606 -1.39923672 -1.28319314 -1.4760688  -2.02697192]]
[[ 2.94963924  8.13614867  3.9846165   4.70737289  1.15281307][ 1.29630268  2.70454737  1.99237966  1.63173727  0.33283678][-0.07803303  0.59537947  0.53411951  0.21957626 -0.52700149][-1.04935154 -0.51450293 -0.43347091 -0.66296087 -1.2565293 ][-1.91078608 -1.39923675 -1.28319316 -1.47606882 -2.02697194]]
[[ 2.94963921  8.13614865  3.98461648  4.70737287  1.15281305][ 1.29630265  2.70454735  1.99237964  1.63173725  0.33283676][-0.07803305  0.59537945  0.5341195   0.21957624 -0.5270015 ][-1.04935156 -0.51450295 -0.43347093 -0.66296088 -1.25652932][-1.91078611 -1.39923677 -1.28319318 -1.47606883 -2.02697196]]
[[ 2.94963919  8.13614863  3.98461646  4.70737286  1.15281304][ 1.29630263  2.70454733  1.99237962  1.63173723  0.33283674][-0.07803307  0.59537943  0.53411948  0.21957622 -0.52700152][-1.04935158 -0.51450297 -0.43347095 -0.6629609  -1.25652933][-1.91078613 -1.39923678 -1.28319319 -1.47606885 -2.02697197]]
[[ 2.94963917  8.13614861  3.98461645  4.70737284  1.15281302][ 1.29630261  2.70454731  1.99237961  1.63173722  0.33283673][-0.07803309  0.59537942  0.53411947  0.21957621 -0.52700153][-1.04935159 -0.51450298 -0.43347096 -0.66296091 -1.25652934][-1.91078614 -1.3992368  -1.2831932  -1.47606886 -2.02697198]]
[[ 2.94963915  8.1361486   3.98461644  4.70737283  1.15281301][ 1.2963026   2.7045473   1.9923796   1.63173721  0.33283672][-0.0780331   0.5953794   0.53411946  0.2195762  -0.52700154][-1.04935161 -0.51450299 -0.43347097 -0.66296092 -1.25652935][-1.91078615 -1.39923681 -1.28319321 -1.47606887 -2.02697199]]
[[ 2.94963914  8.13614859  3.98461643  4.70737282  1.152813  ][ 1.29630259  2.70454729  1.99237959  1.6317372   0.33283671][-0.07803311  0.59537939  0.53411945  0.21957619 -0.52700155][-1.04935162 -0.514503   -0.43347098 -0.66296093 -1.25652936][-1.91078617 -1.39923682 -1.28319322 -1.47606888 -2.026972  ]]
[[ 2.94963913  8.13614858  3.98461642  4.70737282  1.15281299][ 1.29630258  2.70454728  1.99237958  1.63173719  0.3328367 ][-0.07803312  0.59537939  0.53411944  0.21957619 -0.52700155][-1.04935163 -0.51450301 -0.43347099 -0.66296093 -1.25652936][-1.91078618 -1.39923683 -1.28319323 -1.47606888 -2.02697201]]
[[ 2.94963912  8.13614857  3.98461641  4.70737281  1.15281299][ 1.29630257  2.70454727  1.99237957  1.63173719  0.3328367 ][-0.07803313  0.59537938  0.53411943  0.21957618 -0.52700156][-1.04935164 -0.51450302 -0.43347099 -0.66296094 -1.25652937][-1.91078618 -1.39923683 -1.28319324 -1.47606889 -2.02697201]]
[[ 2.94963911  8.13614857  3.98461641  4.7073728   1.15281298][ 1.29630256  2.70454727  1.99237957  1.63173718  0.33283669][-0.07803314  0.59537937  0.53411943  0.21957618 -0.52700156][-1.04935164 -0.51450302 -0.433471   -0.66296094 -1.25652937][-1.91078619 -1.39923684 -1.28319324 -1.47606889 -2.02697202]]
[[ 2.9496391   8.13614856  3.9846164   4.7073728   1.15281298][ 1.29630255  2.70454726  1.99237956  1.63173718  0.33283669][-0.07803314  0.59537937  0.53411942  0.21957617 -0.52700157][-1.04935165 -0.51450303 -0.433471   -0.66296095 -1.25652938][-1.91078619 -1.39923684 -1.28319325 -1.4760689  -2.02697202]]
[[ 2.9496391   8.13614856  3.9846164   4.7073728   1.15281297][ 1.29630255  2.70454726  1.99237956  1.63173717  0.33283669][-0.07803315  0.59537936  0.53411942  0.21957617 -0.52700157][-1.04935165 -0.51450303 -0.43347101 -0.66296095 -1.25652938][-1.9107862  -1.39923685 -1.28319325 -1.4760689  -2.02697202]]
[[ 2.94963909  8.13614855  3.98461639  4.70737279  1.15281297][ 1.29630254  2.70454725  1.99237955  1.63173717  0.33283668][-0.07803315  0.59537936  0.53411942  0.21957616 -0.52700157][-1.04935166 -0.51450303 -0.43347101 -0.66296095 -1.25652938][-1.9107862  -1.39923685 -1.28319325 -1.4760689  -2.02697203]]
[[ 2.94963909  8.13614855  3.98461639  4.70737279  1.15281297][ 1.29630254  2.70454725  1.99237955  1.63173717  0.33283668][-0.07803315  0.59537936  0.53411941  0.21957616 -0.52700158][-1.04935166 -0.51450304 -0.43347101 -0.66296096 -1.25652939][-1.91078621 -1.39923685 -1.28319325 -1.47606891 -2.02697203]]
[[ 2.94963909  8.13614855  3.98461639  4.70737279  1.15281297][ 1.29630254  2.70454725  1.99237955  1.63173717  0.33283668][-0.07803316  0.59537936  0.53411941  0.21957616 -0.52700158][-1.04935166 -0.51450304 -0.43347101 -0.66296096 -1.25652939][-1.91078621 -1.39923685 -1.28319326 -1.47606891 -2.02697203]]

在这里插入图片描述贪心策略–找Gt最大的下一步s’–v最大

策略提升
- 根据当前的估值函数，寻找更优的策略，珠宝找到最优策略
  - $依据π的估值函数vπ,得到最优策略π′依据\pi的估值函数v_\pi,得到最优策略\pi'$
- 提升方法
  - $看qπ(s,a)是否大于vπ(s)(这是下面定理的特例看q_\pi(s,a)是否大于v_\pi(s)(这是下面定理的特例$ `
- 定理
  - 如果 $qπ(s,π′(s))≥vπ(s),则π′比π好，vπ′(s)≥vπ(s)q_\pi(s,\pi'(s))\geq v_\pi(s),则\pi'比\pi好，v_\pi'(s) \geq v\pi(s)$
循环进行–》策略迭代
策略估值
策略迭代=策略估值+策略提升
- 贝尔曼方程
估值迭代=不精确估值（一轮估值后）+策略提升
- 贝尔曼最优方程
可否在不精确估值情况下，策略提升？——精确估值耗费很长时间
- 可以——估值迭代
策略迭代
估值迭代
比较
动态规划
- 自举的方法（无中生有
- 把贝尔曼方程变成更新规则
- 优点：计算效率高
- 缺点：要知道环境的完整模型

蒙特卡罗方法——不知道环境完整模型情况下

从真实或模拟的经验中计算状态（行动）估值函数
不需要知道完整的模型
采样
回到原状态的就不要了
基于蒙特卡罗的方法的策略迭代
- 仅有状态估值无法得出策略
- $蒙特卡罗得到qπ(s,a)蒙特卡罗得到q_\pi(s,a)$ ，贪心得到策略
优点：不同状态的估值在计算时独立（不依赖于自举）
- 适用于模型未知或环境模型复杂
- 收敛性由大数经历决定
缺点：部分状态行为再蒙特卡罗模拟中不出现
- 解决方案：exploring start ：每个“状态-行为”对都以一定的概率作为模拟的起始点（残局）

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-HuOcKGpM-1578385252941)(attachment:image.png)]

不要exploring start了
其他方法——平衡开采和探索
- on-policy
  - 每个状态都进行探索：eg:𝜺贪心
    - $1−ϵ+ϵA(s)贪心；以ϵA(s)选择费贪心1-\epsilon+\frac{\epsilon}{A(s)}贪心；以\frac{\epsilon}{A(s)}选择费贪心$
  - 缺点：最终得到的最优策略仅仅是 $ϵ\epsilon$ 最优策略（与最优解还有个小误差）
- off-policy
  - 使用两个策略：
    - 目标策略 $π\pi$ ,和
      - 待优化策略
      - 贪心
    - 行为策略b
      - 保证每个状态对所有行为进行探索的可能

2.1 on-policy蒙特卡罗

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-dL99rUiO-1578385252942)(attachment:image.png)]

2.2 off-policy蒙特卡罗

在这里插入图片描述

时序差分方法

蒙特卡洛一定要模拟到最后吗
非平稳模拟
时序差分方法是强化学习中最核心的策略学习方法
TD和蒙特卡洛方法的联系和区别
- 联系：都是从经验中学习
- 非平稳情形下的蒙特卡洛方法是TD的特例
- 区别：蒙特卡洛方法需要episode完整的信息，TD只需要episode的部分信息
- TD比蒙特卡罗快吧
TD和动态规划方法的联系和区别
- 联系：TD和动态规划方法都采用自举的方法
- 区别：动态规划方法依赖于完整的环境模型进行估计，TD依赖于经验进行估计
从一个猜测学习一个猜测
- 保证他学对了：多走了一步
收敛
在线的从经验中进行策略学习
直接学习行为估值函数完成策略学习
适用于状态和行为空间比较小的问题
