任务：将400个两种颜色的点用背景色分为两类。

前面的还是建议重点学神经网络知识，至于数据集怎么做的后面在深究，首先先看看数据集，代码如下：



def load_planar_dataset():np.random.seed(1)m = 400 # number of examplesN = int(m/2) # number of points per classD = 2 # dimensionalityX = np.zeros((m,D)) # data matrix where each row is a single exampleY = np.zeros((m,1), dtype='uint8') # labels vector (0 for red, 1 for blue)a = 4 # maximum ray of the flowerfor j in range(2):ix = range(N*j,N*(j+1))t = np.linspace(j*3.12,(j+1)*3.12,N) + np.random.randn(N)*0.2 # thetar = a*np.sin(4*t) + np.random.randn(N)*0.2 # radiusX[ix] = np.c_[r*np.sin(t), r*np.cos(t)]Y[ix] = jX = X.TY = Y.Treturn X, Y

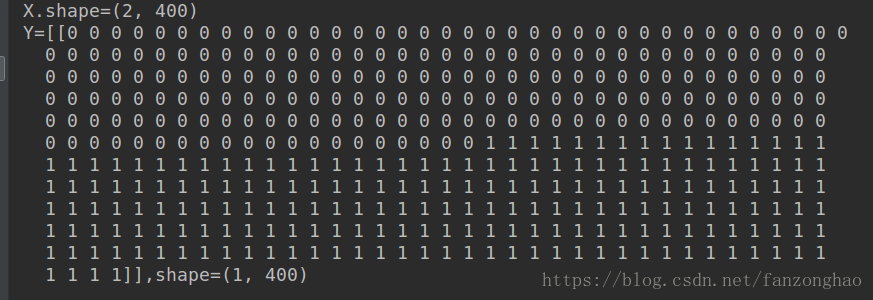

打印看看返回的X,Y

由于X太多不方便粘贴，只打印了shape,可看出X是2行400列的矩阵（2，400），Y是1行400列矩阵（1，400）。

然后用X的数据作为二维的坐标点，Y的0，1作为分类点，比如0代表红色点，1代表蓝色点，这样400个两种颜色的点就可以显示出来，代码如下：



"""
测试函数：实现数据集的显示
"""
def test():X,Y=planar_utils.load_planar_dataset()plt.scatter(X[0,:],X[1,:],c=np.squeeze(Y),s = 80,cmap=plt.cm.Spectral)plt.show()

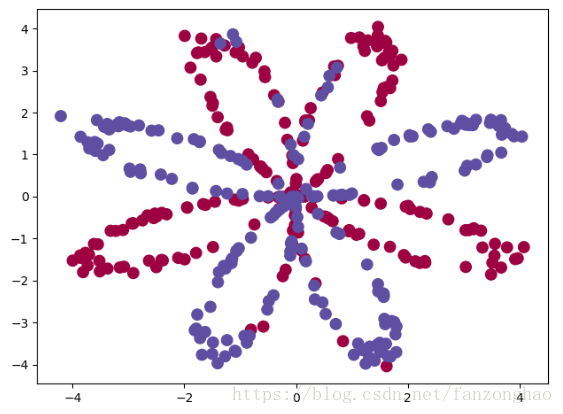

显示结果如下：

利用两层神经网络，一层隐藏层，一层输出层，400个点，所以有400个样本，两种特征（两种颜色），所以输入层节点是2个，隐藏层定义4个节点，输出层1个节点，脑海里就有神经网络的结构图了,故W1(4,2),b1(4,1),W2(1,4),b2(1,1)简单的演示一遍。Z1=W1*X=(4,400),Z2=W2*Z1=(1,400),就对应Y的维度了。中间加激活函数和b值不影响维度

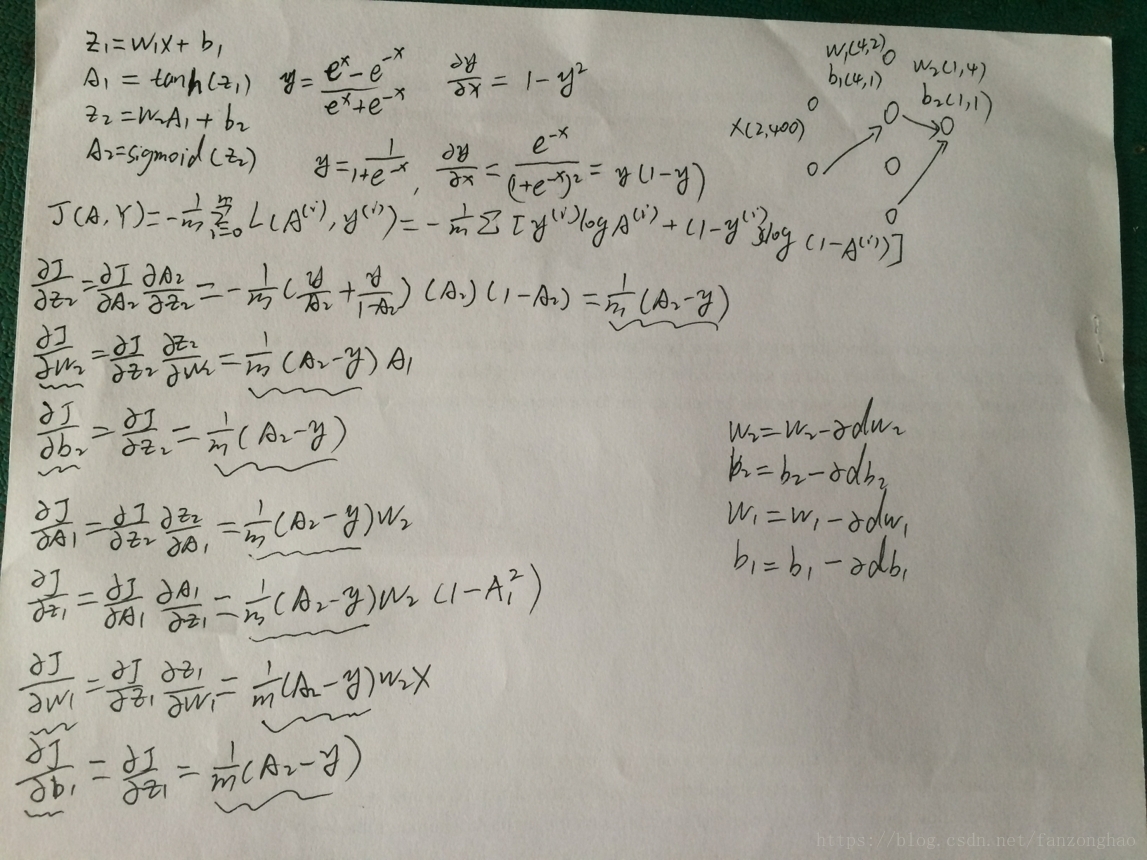

具体公式推导如下，右上角是神经网络：

下面看代码：



def sigmoid(z):s=1.0/(1+np.exp(-z))return s
"""
返回输入层节点和输出层节点
"""
def lay_sizer(X,Y):n_x = X.shape[0]n_y = Y.shape[0]return n_x,n_y
"""
初始化W和b,n_h就是隐藏层节点
"""
def initialize_parameters(n_x,n_h,n_y):W1 = np.random.randn(n_h,n_x)*0.01b1=np.zeros((n_h,1))W2 = np.random.randn(n_y, n_h) * 0.01b2 = np.zeros((n_y, 1))parameters={'W1':W1,'b1':b1,'W2':W2,'b2':b2}return parameters
"""
前向传播，返回中间量Z1 A1 Z2 A2 最后一层加sigmoid因为要实现二分类
"""
def forward_propagation(X,parameters):W1 = parameters['W1']W2 = parameters['W2']b1 = parameters['b1']b2 = parameters['b2']Z1 = np.dot(W1, X) + b1A1 = np.tanh(Z1)#Relu(Z1)Z2 = np.dot(W2, A1) + b2A2 = sigmoid(Z2)cache={'Z1':Z1,'Z2':Z2,'A1':A1,'A2':A2}return cache,A2
"""
利用交叉熵函数计算损失值
"""
def compute_cost(A2,Y):m=Y.shape[1]cost=-1 / m *(np.dot(Y,np.log(A2).T)+np.dot((1-Y),np.log(1-A2).T))cost=np.squeeze(cost)return cost
"""
后向传播：注意维度
"""
def back_propagation(parameters,cache,X,Y):m = Y.shape[1]A2 = cache['A2']A1 = cache['A1']W2 = parameters['W2']dZ2 = A2-YdW2 = 1/m*(np.dot(dZ2,A1.T))db2 = 1/m*(np.sum(dZ2,axis=1,keepdims=True)) #db2(n_y,1) 按行相加 保持二维性# [[1,2],[3,4]] [[3],[7]]dA1 = np.dot(W2.T,dZ2)dZ1 = dA1*(1-np.power(A1,2))dW1 = 1/m*np.dot(dZ1,X.T)db1 = 1/m*(np.sum(dZ1,axis=1,keepdims=True))  #db1(n_h,1) 按行相加 保持二维性grads={'dW2':dW2,'dW1':dW1,'db2':db2,'db1':db1}return grads
"""
更新参数 W和b
"""
def update_parameters(grads,parameters,learning_rate):dW2=grads['dW2']dW1=grads['dW1']db2=grads['db2']db1=grads['db1']W2=parameters['W2']W1= parameters['W1']b2 = parameters['b2']b1 = parameters['b1']W2 = W2 - learning_rate*dW2W1 = W1 - learning_rate * dW1b2 = b2 - learning_rate * db2b1 = b1 - learning_rate * db1parameters = {'W1': W1,'b1': b1,'W2': W2,'b2': b2}return parameters
"""
构建模型
"""
def nn_model(X,Y,num_iterations,learning_rate,print_cost,n_h):n_x,n_y = lay_sizer(X, Y)parameters = initialize_parameters(n_x, n_h, n_y)#costs=[]for i in range(num_iterations):cache, A2 = forward_propagation(X, parameters)cost = compute_cost(A2, Y)#costs.append(cost)grads = back_propagation(parameters, cache, X,Y)parameters = update_parameters(grads, parameters, learning_rate)if print_cost and i%100==0:print('Cost after iterations {}:{}'.format(i,cost))return parameters  #,costs
"""
用更新好的参数预测Y值
"""
def prediction(X,parameters):cache,A2=forward_propagation(X,parameters)predictions=np.around(A2)return predictions
def train_accuracy():X, Y = planar_utils.load_planar_dataset()parameters = nn_model(X, Y, num_iterations=10000, learning_rate=1.2, print_cost=True,n_h=8)# print('parameters W1', parameters['W1'])# print('parameters W2', parameters['W2'])# print('parameters b1', parameters['b1'])# print('parameters b2', parameters['b2'])predictions = prediction(X, parameters)print(predictions)planar_utils.plot_decision_boundary(lambda x: prediction(x.T, parameters), X, np.squeeze(Y))plt.show()###########二分类精度求解result = np.dot(np.squeeze(Y), np.squeeze(predictions.T)) + np.dot(np.squeeze(1 - Y), np.squeeze(1 - predictions.T))print('The accuracy is {}%'.format((result) / Y.size * 100))if __name__=='__main__':#test()train_accuracy()

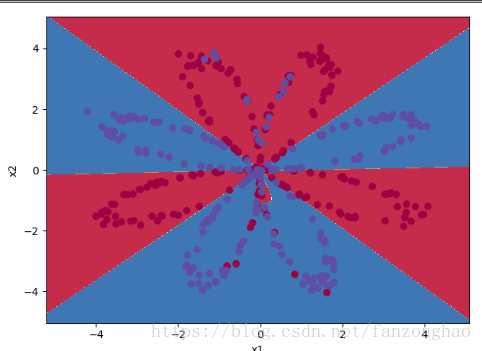

结果：

更改隐藏层个数：



def Different_Hidden_Size():X, Y = planar_utils.load_planar_dataset()hidden_layer_sizes=[1,2,3,4,5,10,20]plt.figure(figsize=(16,16))for i,n_h in enumerate(hidden_layer_sizes):print('n_h=',n_h)plt.subplot(3,3,i+1)plt.title('hidden_layer_sizes{}'.format(n_h))parameters = nn_model(X, Y, num_iterations=2000, learning_rate=1.2, print_cost=False,n_h=n_h)planar_utils.plot_decision_boundary(lambda x: prediction(x.T, parameters), X, np.squeeze(Y))predictions = prediction(X, parameters)###########二分类精度求解result = np.dot(np.squeeze(Y), np.squeeze(predictions.T)) + np.dot(np.squeeze(1 - Y),np.squeeze(1 - predictions.T))print('The accuracy hidden_layer_sizes{} is {}%'.format(n_h,(result) / Y.size * 100))plt.savefig('1.png')plt.show()

if __name__=='__main__':#test()#train_accuracy()Different_Hidden_Size()

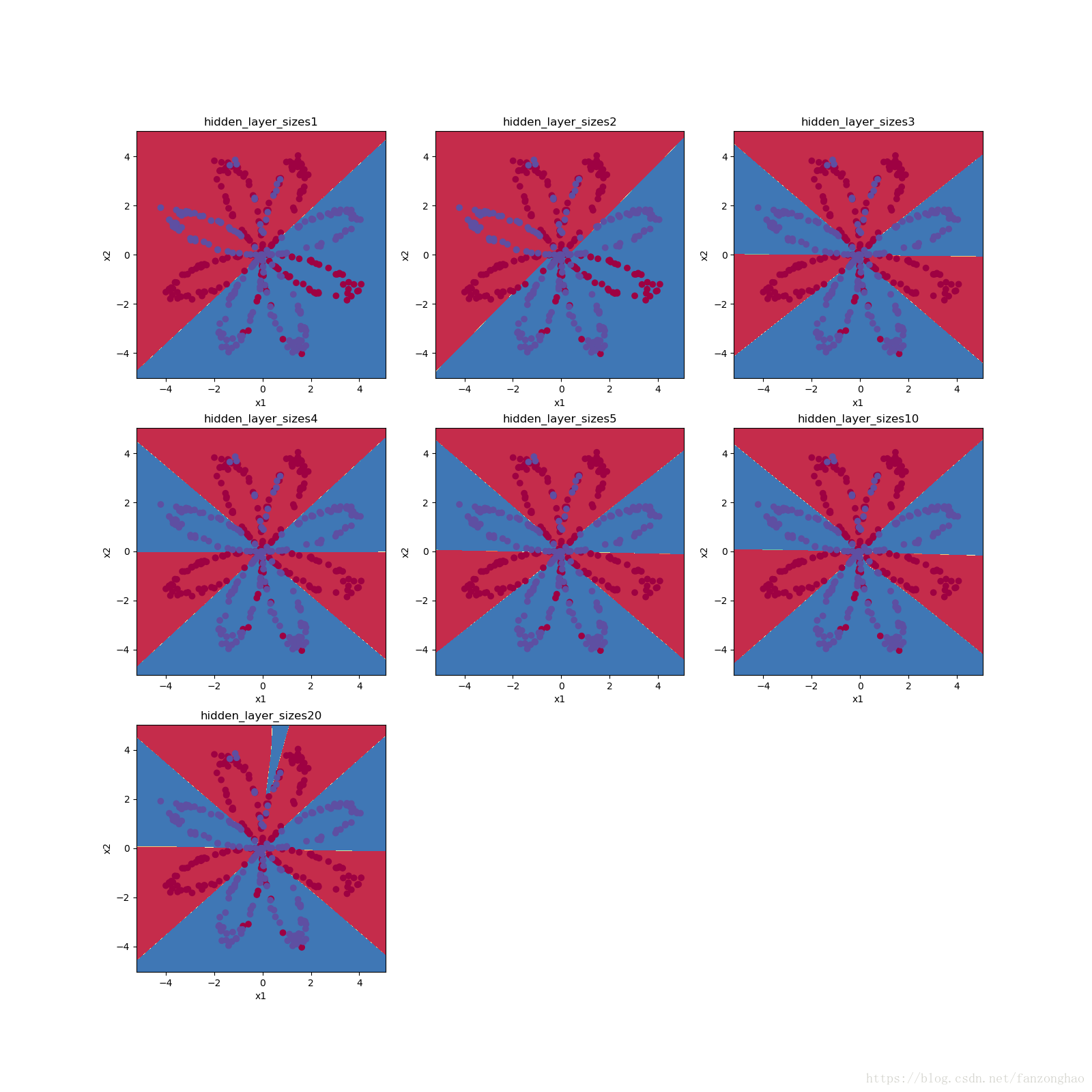

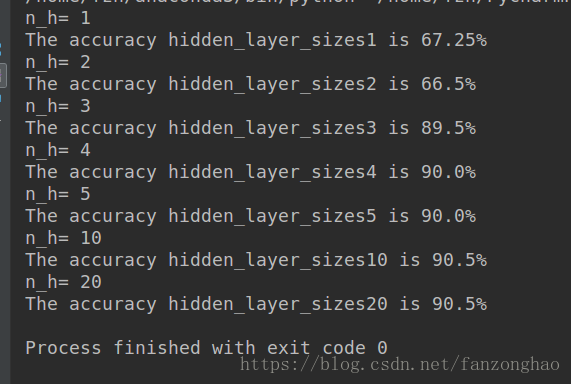

结果：
