测试题：参考博文

笔记：W3.序列模型和注意力机制

作业1：机器翻译

建立一个神经元机器翻译（NMT）模型来将人类可读日期（25th of June, 2009）翻译成机器可读日期（“2009—06—25”）

将使用注意力模型来实现这一点，这是最复杂的 序列到序列 模型之一

注意安装包

pip install Faker==2.0.0
pip install babel

• 导入包

from keras.layers import Bidirectional, Concatenate, Permute, Dot, Input, LSTM, Multiply
from keras.layers import RepeatVector, Dense, Activation, Lambda
from keras.optimizers import Adam
from keras.utils import to_categorical
from keras.models import load_model, Model
import keras.backend as K
import numpy as npfrom faker import Faker
import random
from tqdm import tqdm
from babel.dates import format_date
from nmt_utils import *
import matplotlib.pyplot as plt
%matplotlib inline

1. 日期转换

模型将输入以各种可能格式书写的日期（例如"the 29th of August 1958", "03/30/1968", "24 JUNE 1987"），并将其转换为标准化、机器可读的日期（如 "1958-08-29", "1968-03-30", "1987-06-24"）。我们将让模型学习以通用机器可读格式YYYY-MM-DD输出日期

1.1 数据集

• 1万条数据

m = 10000
dataset, human_vocab, machine_vocab, inv_machine_vocab = load_dataset(m)

• 打印看看

dataset[:10]

输出：

[('9 may 1998', '1998-05-09'),('10.11.19', '2019-11-10'),('9/10/70', '1970-09-10'),('saturday april 28 1990', '1990-04-28'),('thursday january 26 1995', '1995-01-26'),('monday march 7 1983', '1983-03-07'),('sunday may 22 1988', '1988-05-22'),('08 jul 2008', '2008-07-08'),('8 sep 1999', '1999-09-08'),('thursday january 1 1981', '1981-01-01')]

上面加载了：

• dataset
• human_vocab: 字典， human readable dates ： an integer-valued index
• machine_vocab: 字典， machine readable dates ： an integer-valued index
• inv_machine_vocab: 字典，machine_vocab的反向映射，indices ： characters

Tx = 30 # 最大输入长度，如果大了，就截断
Ty = 10 # 输出日期长度 YYYY-MM-DD
X, Y, Xoh, Yoh = preprocess_data(dataset, human_vocab, machine_vocab, Tx, Ty)print("X.shape:", X.shape)
print("Y.shape:", Y.shape)
print("Xoh.shape:", Xoh.shape)
print("Yoh.shape:", Yoh.shape)

输出：

X.shape: (10000, 30)
Y.shape: (10000, 10)
Xoh.shape: (10000, 30, 37) # 37 是 len(human_vocab)
Yoh.shape: (10000, 10, 11) # 11 是 日期中的字符种类 0-9 和 ‘-’

• 看看数据（数据不够长度的，会补充 pad，所有 x 都是 30 长度）

index = 52
print("Source date:", dataset[index][0])
print("Target date:", dataset[index][1])
print()
print("Source after preprocessing (indices):", X[index])
print("Target after preprocessing (indices):", Y[index])
print()
print("Source after preprocessing (one-hot):", Xoh[index])
print("Target after preprocessing (one-hot):", Yoh[index])

输出：

Source date: saturday october 9 1976
Target date: 1976-10-09Source after preprocessing (indices): [29 13 30 31 28 16 13 34  0 26 15 30 26 14 17 28  0 12  0  4 12 10  9 3636 36 36 36 36 36]
Target after preprocessing (indices): [ 2 10  8  7  0  2  1  0  1 10]Source after preprocessing (one-hot): [[0. 0. 0. ... 0. 0. 0.][0. 0. 0. ... 0. 0. 0.][0. 0. 0. ... 0. 0. 0.]...[0. 0. 0. ... 0. 0. 1.][0. 0. 0. ... 0. 0. 1.][0. 0. 0. ... 0. 0. 1.]]
Target after preprocessing (one-hot): [[0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0.][0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1.][0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0.][0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0.][1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.][0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0.][0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0.][1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.][0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0.][0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]]

2. 用注意力模型进行机器翻译

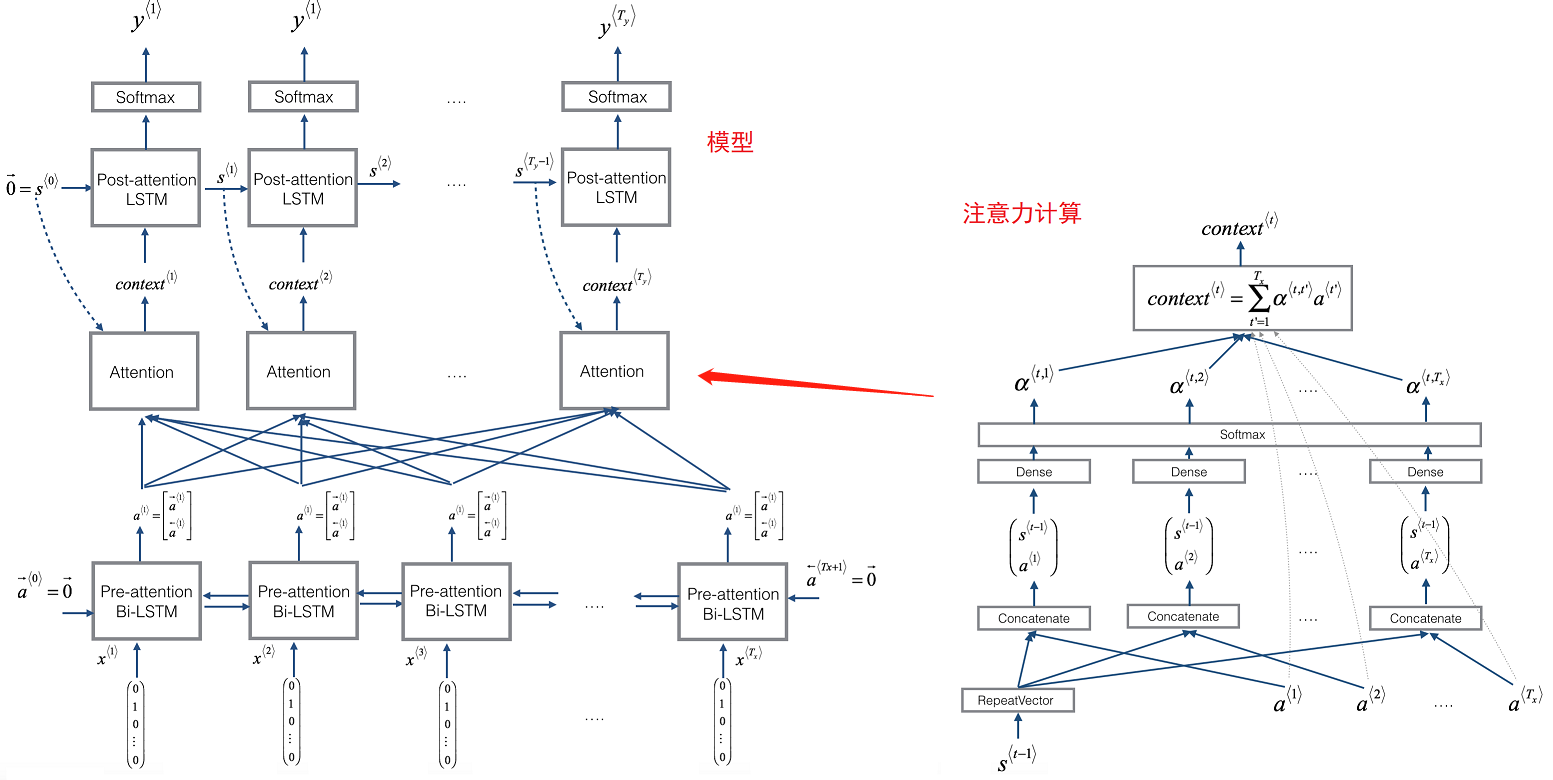

2.1 注意力机制

$$contex{t}^{<t>}=\sum _{t^{\prime }=0}^{T_x}{\alpha }^{<t,t^{\prime }>}{a}^{<t^{\prime }>}$$

将输入重复几次：https://keras.io/zh/layers/core/#repeatvector
输入张量通过 axis 轴串联起来 https://keras.io/zh/layers/merge/#concatenate_1
https://keras.io/zh/layers/wrappers/#bidirectional

# Defined shared layers as global variables
repeator = RepeatVector(Tx)
concatenator = Concatenate(axis=-1)
densor1 = Dense(10, activation = "tanh")
densor2 = Dense(1, activation = "relu")
activator = Activation(softmax, name='attention_weights')
# We are using a custom softmax(axis = 1) loaded in this notebookdotor = Dot(axes = 1)

• 注意力计算

# GRADED FUNCTION: one_step_attentiondef one_step_attention(a, s_prev):"""Performs one step of attention: Outputs a context vector computed as a dot product of the attention weights"alphas" and the hidden states "a" of the Bi-LSTM.Arguments:a -- hidden state output of the Bi-LSTM, numpy-array of shape (m, Tx, 2*n_a)s_prev -- previous hidden state of the (post-attention) LSTM, numpy-array of shape (m, n_s)Returns:context -- context vector, input of the next (post-attetion) LSTM cell"""### START CODE HERE #### Use repeator to repeat s_prev to be of shape (m, Tx, n_s) so that you can concatenate it with all hidden states "a" (≈ 1 line)s_prev = repeator(s_prev)# Use concatenator to concatenate a and s_prev on the last axis (≈ 1 line)concat = concatenator(inputs=[a, s_prev])# Use densor1 to propagate concat through a small fully-connected neural network to compute the "intermediate energies" variable e. (≈1 lines)e = densor1(concat)# Use densor2 to propagate e through a small fully-connected neural network to compute the "energies" variable energies. (≈1 lines)energies = densor2(e)# Use "activator" on "energies" to compute the attention weights "alphas" (≈ 1 line)alphas = activator(energies)# Use dotor together with "alphas" and "a" to compute the context vector to be given to the next (post-attention) LSTM-cell (≈ 1 line)context = dotor([alphas, a])### END CODE HERE ###return context

n_a = 32
n_s = 64
post_activation_LSTM_cell = LSTM(n_s, return_state = True)
output_layer = Dense(len(machine_vocab), activation=softmax)

# GRADED FUNCTION: modeldef model(Tx, Ty, n_a, n_s, human_vocab_size, machine_vocab_size):"""Arguments:Tx -- length of the input sequenceTy -- length of the output sequencen_a -- hidden state size of the Bi-LSTMn_s -- hidden state size of the post-attention LSTMhuman_vocab_size -- size of the python dictionary "human_vocab"machine_vocab_size -- size of the python dictionary "machine_vocab"Returns:model -- Keras model instance"""# Define the inputs of your model with a shape (Tx,)# Define s0 and c0, initial hidden state for the decoder LSTM of shape (n_s,)X = Input(shape=(Tx, human_vocab_size))s0 = Input(shape=(n_s,), name='s0')c0 = Input(shape=(n_s,), name='c0')s = s0c = c0# Initialize empty list of outputsoutputs = []### START CODE HERE #### Step 1: Define your pre-attention Bi-LSTM. Remember to use return_sequences=True. (≈ 1 line)a = Bidirectional(LSTM(n_a, return_sequences=True))(X)# Step 2: Iterate for Ty stepsfor t in range(Ty):# Step 2.A: Perform one step of the attention mechanism to get back the context vector at step t (≈ 1 line)context = one_step_attention(a, s)# Step 2.B: Apply the post-attention LSTM cell to the "context" vector.# Don't forget to pass: initial_state = [hidden state, cell state] (≈ 1 line)s, _, c = post_activation_LSTM_cell(context, initial_state=[s, c])# Step 2.C: Apply Dense layer to the hidden state output of the post-attention LSTM (≈ 1 line)out = output_layer(s)# Step 2.D: Append "out" to the "outputs" list (≈ 1 line)outputs.append(out)# Step 3: Create model instance taking three inputs and returning the list of outputs. (≈ 1 line)model = Model(inputs=[X, s0, c0], outputs=outputs)### END CODE HERE ###return model

• 定义模型

model = model(Tx, Ty, n_a, n_s, len(human_vocab), len(machine_vocab))

• 定义优化器、配置模型

### START CODE HERE ### (≈2 lines)
opt = Adam(learning_rate=0.005, beta_1=0.9, beta_2=0.999,decay=0.01)
model.compile(loss='categorical_crossentropy',optimizer=opt, metrics=['accuracy'])
### END CODE HERE ###

• 训练

s0 = np.zeros((m, n_s))
c0 = np.zeros((m, n_s))
outputs = list(Yoh.swapaxes(0,1))

model.fit([Xoh, s0, c0], outputs, epochs=1, batch_size=100)

• 为了节省时间，老师准备好了训练好的权值

model.load_weights('models/model.h5')

EXAMPLES = ['5th Otc 2019', '5 April 09', '21th of August 2016', 'Tue 10 Jul 2007', 'Saturday May 9 2018', 'March 3 2001', 'March 3rd 2001', '1 March 2001']
for example in EXAMPLES:source = string_to_int(example, Tx, human_vocab)source = np.array(list(map(lambda x: to_categorical(x, num_classes=len(human_vocab)), source))).swapaxes(0,1)source = source.transpose() #交换两个轴source = np.expand_dims(source, axis=0) #增加一维轴prediction = model.predict([source, s0, c0])prediction = np.argmax(prediction, axis = -1)output = [inv_machine_vocab[int(i)] for i in prediction]print("source:", example)print("output:", ''.join(output))

输出：

source: 5th Otc 2019
output: 2019-10-05
source: 5 April 09
output: 2009-04-05
source: 21th of August 2016
output: 2016-08-20
source: Tue 10 Jul 2007
output: 2007-07-10
source: Saturday May 9 2018
output: 2018-05-09
source: March 3 2001
output: 2001-03-03
source: March 3rd 2001
output: 2001-03-03
source: 1 March 2001
output: 2001-03-01

3. 可视化注意力

attention_map = plot_attention_map(model, human_vocab, inv_machine_vocab, "Tuesday 09 Oct 1993", num = 7, n_s = 64)

可以看出大部分的注意力用来预测年份

作业2：触发词检测

• 导入包

import numpy as np
from pydub import AudioSegment
import random
import sys
import io
import os
import glob
import IPython
from td_utils import *
%matplotlib inline

1. 数据合成：创建语音数据集

1.1 听一下数据

有正向音频 activates（触发词）、负向音频（非触发词）、背景噪声

IPython.display.Audio("./raw_data/backgrounds/1.wav")

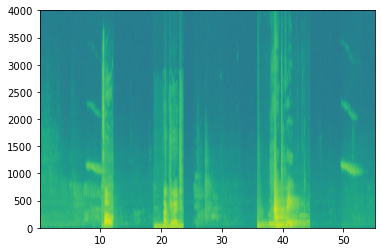

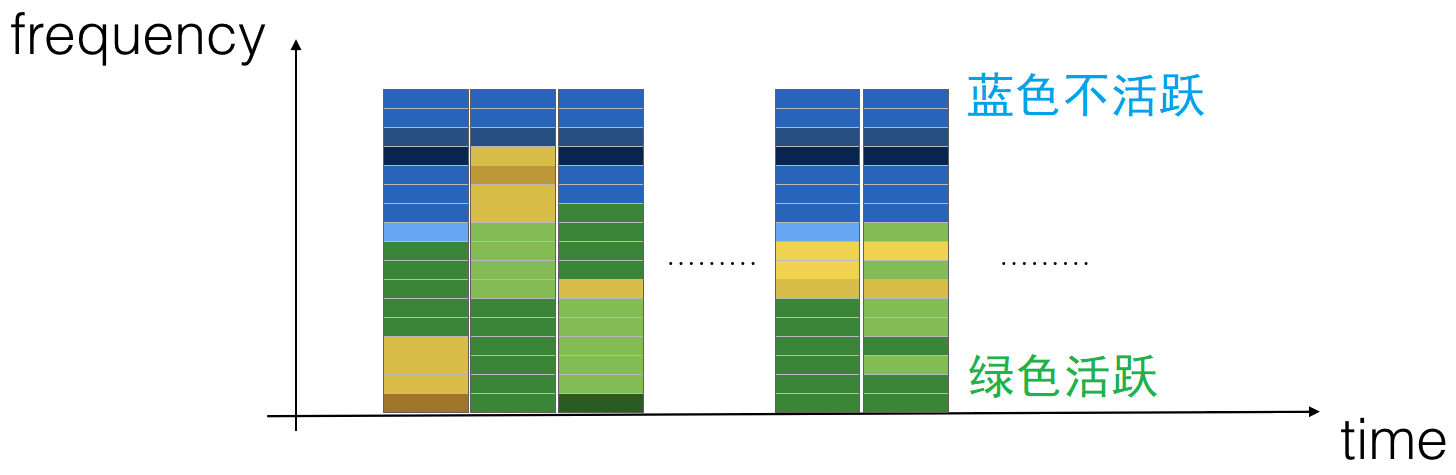

1.2 音频转频谱

音频为 44100 Hz 的，时长 10秒

x = graph_spectrogram("audio_examples/example_train.wav")

本作业训练样本时长 10 秒，频谱时间步为 5511，所以 $T_x=5511$

_, data = wavfile.read("audio_examples/example_train.wav")
print("Time steps in audio recording before spectrogram", data[:,0].shape)
print("Time steps in input after spectrogram", x.shape)

输出：

Time steps in audio recording before spectrogram (441000,)
Time steps in input after spectrogram (101, 5511)

• 定义参数

Tx = 5511 # The number of time steps input to the model from the spectrogram
n_freq = 101 # Number of frequencies input to the model at each time step of the spectrogram
Ty = 1375 # The number of time steps in the output of our model

1.3 生成一个训练样本

• 随机选择10s 背景噪声
• 随机插入 0-4 段 触发词音频
• 随机插入 0-2 段 非触发词音频

# Load audio segments using pydub
activates, negatives, backgrounds = load_raw_audio()print("background len: " + str(len(backgrounds[0])))    # Should be 10,000, since it is a 10 sec clip
print("activate[0] len: " + str(len(activates[0])))     # Maybe around 1000, since an "activate" audio clip is usually around 1 sec (but varies a lot)
print("activate[1] len: " + str(len(activates[1])))     # Different "activate" clips can have different lengths

输出：

background len: 10000
activate[0] len: 721
activate[1] len: 731

• 获取背景音频中的随机时间段

def get_random_time_segment(segment_ms):"""Gets a random time segment of duration segment_ms in a 10,000 ms audio clip.Arguments:segment_ms -- the duration of the audio clip in ms ("ms" stands for "milliseconds")Returns:segment_time -- a tuple of (segment_start, segment_end) in ms"""segment_start = np.random.randint(low=0, high=10000-segment_ms)   # Make sure segment doesn't run past the 10sec background segment_end = segment_start + segment_ms - 1return (segment_start, segment_end)

• 检测插入的音频是否重叠

# GRADED FUNCTION: is_overlappingdef is_overlapping(segment_time, previous_segments):"""Checks if the time of a segment overlaps with the times of existing segments.Arguments:segment_time -- a tuple of (segment_start, segment_end) for the new segmentprevious_segments -- a list of tuples of (segment_start, segment_end) for the existing segmentsReturns:True if the time segment overlaps with any of the existing segments, False otherwise"""segment_start, segment_end = segment_time### START CODE HERE ### (≈ 4 line)# Step 1: Initialize overlap as a "False" flag. (≈ 1 line)overlap = False# Step 2: loop over the previous_segments start and end times.# Compare start/end times and set the flag to True if there is an overlap (≈ 3 lines)for previous_start, previous_end in previous_segments:if previous_end >= segment_start and previous_start <= segment_end:overlap = True### END CODE HERE ###return overlap

• 插入音频

# GRADED FUNCTION: insert_audio_clipdef insert_audio_clip(background, audio_clip, previous_segments):"""Insert a new audio segment over the background noise at a random time step, ensuring that the audio segment does not overlap with existing segments.Arguments:background -- a 10 second background audio recording.  audio_clip -- the audio clip to be inserted/overlaid. previous_segments -- times where audio segments have already been placedReturns:new_background -- the updated background audio"""# Get the duration of the audio clip in mssegment_ms = len(audio_clip)### START CODE HERE ### # Step 1: Use one of the helper functions to pick a random time segment onto which to insert # the new audio clip. (≈ 1 line)segment_time = get_random_time_segment(segment_ms)# Step 2: Check if the new segment_time overlaps with one of the previous_segments. If so, keep # picking new segment_time at random until it doesn't overlap. (≈ 2 lines)while is_overlapping(segment_time, previous_segments):segment_time = get_random_time_segment(segment_ms)# Step 3: Add the new segment_time to the list of previous_segments (≈ 1 line)previous_segments.append(segment_time)### END CODE HERE #### Step 4: Superpose audio segment and backgroundnew_background = background.overlay(audio_clip, position = segment_time[0])return new_background, segment_time

• 插入标签 1

# GRADED FUNCTION: insert_onesdef insert_ones(y, segment_end_ms):"""Update the label vector y. The labels of the 50 output steps strictly after the end of the segment should be set to 1. By strictly we mean that the label of segment_end_y should be 0 while, the50 followinf labels should be ones.Arguments:y -- numpy array of shape (1, Ty), the labels of the training examplesegment_end_ms -- the end time of the segment in msReturns:y -- updated labels"""# duration of the background (in terms of spectrogram time-steps)segment_end_y = int(segment_end_ms * Ty / 10000.0)# Add 1 to the correct index in the background label (y)### START CODE HERE ### (≈ 3 lines)for i in range(segment_end_y+1, segment_end_y+51):if i < Ty:y[0, i] = 1### END CODE HERE ###return y

• 合成训练数据

# GRADED FUNCTION: create_training_exampledef create_training_example(background, activates, negatives):"""Creates a training example with a given background, activates, and negatives.Arguments:background -- a 10 second background audio recordingactivates -- a list of audio segments of the word "activate"negatives -- a list of audio segments of random words that are not "activate"Returns:x -- the spectrogram of the training exampley -- the label at each time step of the spectrogram"""# Set the random seednp.random.seed(18)# Make background quieterbackground = background - 20### START CODE HERE #### Step 1: Initialize y (label vector) of zeros (≈ 1 line)y = np.zeros((1, Ty))# Step 2: Initialize segment times as empty list (≈ 1 line)previous_segments = []### END CODE HERE #### Select 0-4 random "activate" audio clips from the entire list of "activates" recordingsnumber_of_activates = np.random.randint(0, 5)random_indices = np.random.randint(len(activates), size=number_of_activates)random_activates = [activates[i] for i in random_indices]### START CODE HERE ### (≈ 3 lines)# Step 3: Loop over randomly selected "activate" clips and insert in backgroundfor random_activate in random_activates:# Insert the audio clip on the backgroundbackground, segment_time = insert_audio_clip(background, random_activate, previous_segments)# Retrieve segment_start and segment_end from segment_timesegment_start, segment_end = segment_time# Insert labels in "y"y = insert_ones(y, segment_end)### END CODE HERE #### Select 0-2 random negatives audio recordings from the entire list of "negatives" recordingsnumber_of_negatives = np.random.randint(0, 3)random_indices = np.random.randint(len(negatives), size=number_of_negatives)random_negatives = [negatives[i] for i in random_indices]### START CODE HERE ### (≈ 2 lines)# Step 4: Loop over randomly selected negative clips and insert in backgroundfor random_negative in random_negatives:# Insert the audio clip on the background background, _ = insert_audio_clip(background, random_negative, previous_segments)### END CODE HERE #### Standardize the volume of the audio clip background = match_target_amplitude(background, -20.0)# Export new training example file_handle = background.export("train" + ".wav", format="wav")print("File (train.wav) was saved in your directory.")# Get and plot spectrogram of the new recording (background with superposition of positive and negatives)x = graph_spectrogram("train.wav")return x, y

x, y = create_training_example(backgrounds[0], activates, negatives)

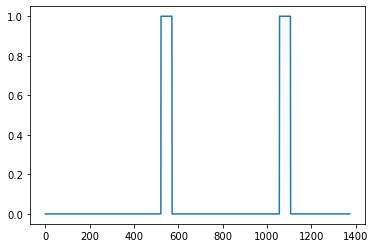

plt.plot(y[0])

1.4 全部训练集

老师已经处理完了所有数据

# Load preprocessed training examples
X = np.load("./XY_train/X.npy")
Y = np.load("./XY_train/Y.npy")

1.5 开发集

使用真人录制的音频

# Load preprocessed dev set examples
X_dev = np.load("./XY_dev/X_dev.npy")
Y_dev = np.load("./XY_dev/Y_dev.npy")

2. 模型

• 导入包

from keras.callbacks import ModelCheckpoint
from keras.models import Model, load_model, Sequential
from keras.layers import Dense, Activation, Dropout, Input, Masking, TimeDistributed, LSTM, Conv1D
from keras.layers import GRU, Bidirectional, BatchNormalization, Reshape
from keras.optimizers import Adam

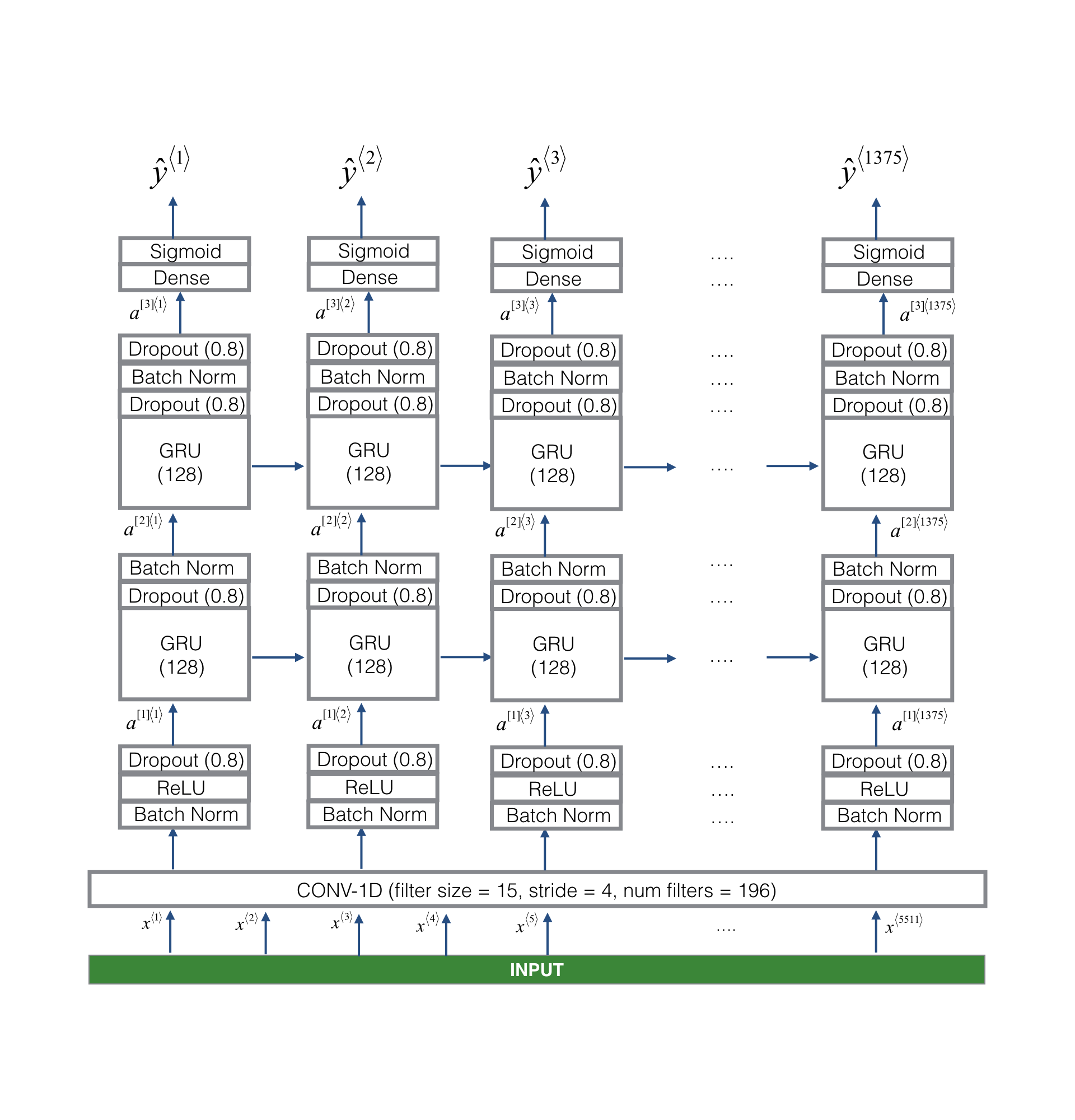

2.1 建模

模型先由一个 1维的卷积 来抽取一些特征，还可以加速GRU计算只需要处理 1375 个时间步，而不是5511个

注意：不要使用双向RNN，我们需要检测到触发词后马上输出动作，如果使用双向RNN，我们需要等待 10s 音频被记录下来，再判断

• 一些 Keras 参考

conv1d https://keras.io/zh/layers/convolutional/#conv1d

BN https://keras.io/zh/layers/normalization/#batchnormalization

GRU https://keras.io/zh/layers/recurrent/#gru

timedistributed https://keras.io/zh/layers/wrappers/#timedistributed

# GRADED FUNCTION: modeldef model(input_shape):"""Function creating the model's graph in Keras.Argument:input_shape -- shape of the model's input data (using Keras conventions)Returns:model -- Keras model instance"""X_input = Input(shape = input_shape)### START CODE HERE #### Step 1: CONV layer (≈4 lines)X = Conv1D(filters=196,kernel_size=15,strides=4)(X_input)   # CONV1DX = BatchNormalization()(X)               # Batch normalizationX = Activation('relu')(X)                # ReLu activationX = Dropout(rate=0.8)(X)              # dropout (use 0.8)# Step 2: First GRU Layer (≈4 lines)X = GRU(128, return_sequences=True)(X) # GRU (use 128 units and return the sequences)X = Dropout(rate=0.8)(X)              # dropout (use 0.8)X = BatchNormalization()(X)          # Batch normalization# Step 3: Second GRU Layer (≈4 lines)X = GRU(128, return_sequences=True)(X) # GRU (use 128 units and return the sequences)X = Dropout(rate=0.8)(X)              # dropout (use 0.8)X = BatchNormalization()(X)          # Batch normalizationX = Dropout(rate=0.8)(X)              # dropout (use 0.8)# Step 4: Time-distributed dense layer (≈1 line)X = TimeDistributed(Dense(1, activation = "sigmoid"))(X) # time distributed  (sigmoid)### END CODE HERE ###model = Model(inputs = X_input, outputs = X)return model

model = model(input_shape = (Tx, n_freq))

model.summary()

输出：

Model: "model_1"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
input_2 (InputLayer)         (None, 5511, 101)         0
_________________________________________________________________
conv1d_2 (Conv1D)            (None, 1375, 196)         297136
_________________________________________________________________
batch_normalization_2 (Batch (None, 1375, 196)         784
_________________________________________________________________
activation_2 (Activation)    (None, 1375, 196)         0
_________________________________________________________________
dropout_2 (Dropout)          (None, 1375, 196)         0
_________________________________________________________________
gru_2 (GRU)                  (None, 1375, 128)         124800
_________________________________________________________________
dropout_3 (Dropout)          (None, 1375, 128)         0
_________________________________________________________________
batch_normalization_3 (Batch (None, 1375, 128)         512
_________________________________________________________________
gru_3 (GRU)                  (None, 1375, 128)         98688
_________________________________________________________________
dropout_4 (Dropout)          (None, 1375, 128)         0
_________________________________________________________________
batch_normalization_4 (Batch (None, 1375, 128)         512
_________________________________________________________________
dropout_5 (Dropout)          (None, 1375, 128)         0
_________________________________________________________________
time_distributed_1 (TimeDist (None, 1375, 1)           129
=================================================================
Total params: 522,561
Trainable params: 521,657
Non-trainable params: 904

2.2 训练

训练很费时，在4000个样本上，老师已经训练好了该模型

model = load_model('./models/tr_model.h5')

再用我们的数据集，训练1代

opt = Adam(lr=0.0001, beta_1=0.9, beta_2=0.999, decay=0.01)
model.compile(loss='binary_crossentropy', optimizer=opt, metrics=["accuracy"])

model.fit(X, Y, batch_size = 5, epochs=1)

2.3 测试模型

loss, acc = model.evaluate(X_dev, Y_dev)
print("Dev set accuracy = ", acc)

输出：

25/25 [==============================] - 1s 46ms/step
Dev set accuracy =  0.9427199959754944

但是 准确率 在这里不是一个好的衡量标准，因为大部分标签都是0，都预测为0，准确率也会很高，应该用 F1值等

3. 预测

def detect_triggerword(filename):plt.subplot(2, 1, 1)x = graph_spectrogram(filename)# the spectogram outputs (freqs, Tx) and we want (Tx, freqs) to input into the modelx  = x.swapaxes(0,1)x = np.expand_dims(x, axis=0)predictions = model.predict(x)plt.subplot(2, 1, 2)plt.plot(predictions[0,:,0])plt.ylabel('probability')plt.show()return predictions

一旦估计了在每个输出步骤检测到单词“activate”的概率，当概率高于某个阈值时，您可以触发“chiming”声音播放。此外，在说“activate”之后，有很多个 y 值可能接近1，但我们只想发出一次蜂鸣音。所以最多每75个输出步骤插入一个蜂鸣音。这将有助于防止我们为“activate”的单个实例插入两个蜂鸣音。（这与计算机视觉的非最大值抑制类似）

chime_file = "audio_examples/chime.wav"
def chime_on_activate(filename, predictions, threshold):audio_clip = AudioSegment.from_wav(filename)chime = AudioSegment.from_wav(chime_file)Ty = predictions.shape[1]# Step 1: Initialize the number of consecutive output steps to 0consecutive_timesteps = 0# Step 2: Loop over the output steps in the yfor i in range(Ty):# Step 3: Increment consecutive output stepsconsecutive_timesteps += 1# Step 4: If prediction is higher than the threshold and more than 75 consecutive output steps have passedif predictions[0,i,0] > threshold and consecutive_timesteps > 75:# Step 5: Superpose audio and background using pydubaudio_clip = audio_clip.overlay(chime, position = ((i / Ty) * audio_clip.duration_seconds)*1000)# Step 6: Reset consecutive output steps to 0consecutive_timesteps = 0audio_clip.export("chime_output.wav", format='wav')

3.3 在开发集上测试

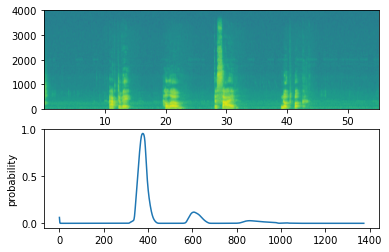

• 第一段语音，有1个触发

filename = "./raw_data/dev/1.wav"
prediction = detect_triggerword(filename)
chime_on_activate(filename, prediction, 0.5)
IPython.display.Audio("./chime_output.wav")

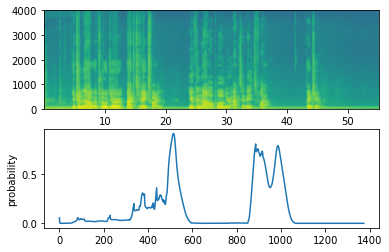

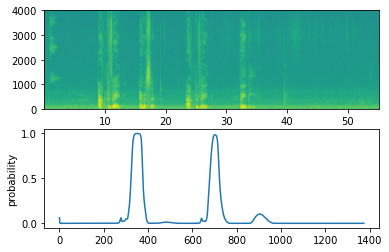

• 第二段语音，有2个触发


4. 用自己的样本测试

# Preprocess the audio to the correct format
def preprocess_audio(filename):# Trim or pad audio segment to 10000mspadding = AudioSegment.silent(duration=10000)segment = AudioSegment.from_wav(filename)[:10000]segment = padding.overlay(segment)# Set frame rate to 44100segment = segment.set_frame_rate(44100)# Export as wavsegment.export(filename, format='wav')

your_filename = "audio_examples/my_audio.wav"
preprocess_audio(your_filename)
IPython.display.Audio(your_filename) # listen to the audio you uploaded

chime_threshold = 0.5
prediction = detect_triggerword(your_filename)
chime_on_activate(your_filename, prediction, chime_threshold)
IPython.display.Audio("./chime_output.wav")

---
