为了方便后续的直方图滑窗对车道线进行准确的定位，我们在这里利用透视变换将图像转换成俯视图，也可将俯视图恢复成原有的图像，代码如下：

计算透视变换所需的参数矩阵：

def cal_perspective_params(img, points):offset_x = 330offset_y = 0img_size = (img.shape[1], img.shape[0])src = np.float32(points)# 俯视图中四点的位置dst = np.float32([[offset_x, offset_y], [img_size[0] - offset_x, offset_y],[offset_x, img_size[1] - offset_y],[img_size[0] - offset_x, img_size[1] - offset_y]])# 从原始图像转换为俯视图的透视变换的参数矩阵M = cv2.getPerspectiveTransform(src, dst)# 从俯视图转换为原始图像的透视变换参数矩阵M_inverse = cv2.getPerspectiveTransform(dst, src)return M, M_inverse

透视变换：

def img_perspect_transform(img, M):img_size = (img.shape[1], img.shape[0])return cv2.warpPerspective(img, M, img_size)

下面我们调用上述两个方法看下透视变换的结果：

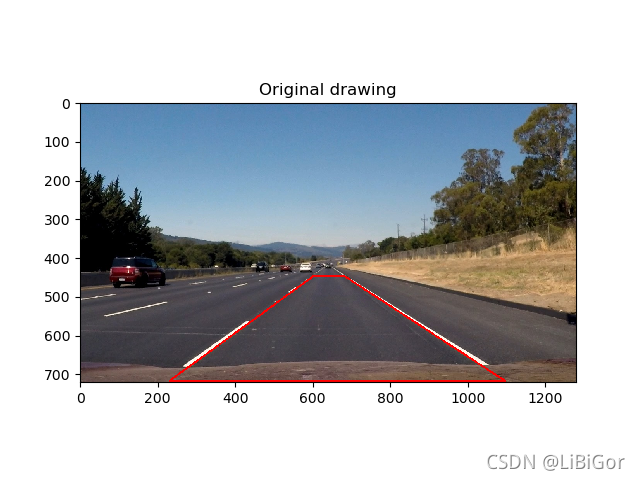

在原始图像中我们绘制道路检测的结果，然后通过透视变换转换为俯视图。

img = cv2.imread("./test/straight_lines2.jpg")
img = cv2.line(img, (601, 448), (683, 448), (0, 0, 255), 3)
img = cv2.line(img, (683, 448), (1097, 717), (0, 0, 255), 3)
img = cv2.line(img, (1097, 717), (230, 717), (0, 0, 255), 3)
img = cv2.line(img, (230, 717), (601, 448), (0, 0, 255), 3)
points = [[601, 448], [683, 448], [230, 717], [1097, 717]]
M, M_inverse = cal_perspective_params(img, points)
transform_img = img_perspect_transform(img, M)
plt.figure(figsize=(20,8))
plt.subplot(1,2,1)
plt.title('原始图像')
plt.imshow(img[:,:,::-1])
plt.subplot(1,2,2)
plt.title('俯视图')
plt.imshow(transform_img[:,:,::-1])
plt.show()

---

总结：

透视变换将检测结果转换为俯视图。

---

代码：

# encoding:utf-8
import cv2
import numpy as np
import matplotlib.pyplot as plt
#遍历文件夹
import glob
from moviepy.editor import VideoFileClip
import sys
reload(sys)
sys.setdefaultencoding('utf-8')"""参数设置"""
nx = 9
ny = 6
#获取棋盘格数据
file_paths = glob.glob("./camera_cal/calibration*.jpg")# 绘制对比图
def plot_contrast_image(origin_img, converted_img, origin_img_title="origin_img", converted_img_title="converted_img",converted_img_gray=False):fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(15, 20))ax1.set_title = origin_img_titleax1.imshow(origin_img)ax2.set_title = converted_img_titleif converted_img_gray == True:ax2.imshow(converted_img, cmap="gray")else:ax2.imshow(converted_img)plt.show()#相机矫正使用opencv封装好的api
#目的:得到内参、外参、畸变系数
def cal_calibrate_params(file_paths):#存储角点数据的坐标object_points = [] #角点在真实三维空间的位置image_points = [] #角点在图像空间中的位置#生成角点在真实世界中的位置objp = np.zeros((nx*ny,3),np.float32)#以棋盘格作为坐标，每相邻的黑白棋的相差1objp[:,:2] = np.mgrid[0:nx,0:ny].T.reshape(-1,2)#角点检测for file_path in file_paths:img = cv2.imread(file_path)#将图像灰度化gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)#角点检测rect,coners = cv2.findChessboardCorners(gray,(nx,ny),None)#若检测到角点，则进行保存 即得到了真实坐标和图像坐标if rect == True :object_points.append(objp)image_points.append(coners)# 相机较真ret, mtx, dist, rvecs, tvecs = cv2.calibrateCamera(object_points, image_points, gray.shape[::-1], None, None)return ret, mtx, dist, rvecs, tvecs# 图像去畸变：利用相机校正的内参，畸变系数
def img_undistort(img, mtx, dist):dis = cv2.undistort(img, mtx, dist, None, mtx)return dis#车道线提取
#颜色空间转换--》边缘检测--》颜色阈值--》并且使用L通道进行白色的区域进行抑制
def pipeline(img,s_thresh = (170,255),sx_thresh=(40,200)):# 复制原图像img = np.copy(img)# 颜色空间转换hls = cv2.cvtColor(img,cv2.COLOR_RGB2HLS).astype(np.float)l_chanel = hls[:,:,1]s_chanel = hls[:,:,2]#sobel边缘检测sobelx = cv2.Sobel(l_chanel,cv2.CV_64F,1,0)#求绝对值abs_sobelx = np.absolute(sobelx)#将其转换为8bit的整数scaled_sobel = np.uint8(255 * abs_sobelx / np.max(abs_sobelx))#对边缘提取的结果进行二值化sxbinary = np.zeros_like(scaled_sobel)#边缘位置赋值为1，非边缘位置赋值为0sxbinary[(scaled_sobel >= sx_thresh[0]) & (scaled_sobel <= sx_thresh[1])] = 1#对S通道进行阈值处理s_binary = np.zeros_like(s_chanel)s_binary[(s_chanel >= s_thresh[0]) & (s_chanel <= s_thresh[1])] = 1# 结合边缘提取结果和颜色通道的结果，color_binary = np.zeros_like(sxbinary)color_binary[((sxbinary == 1) | (s_binary == 1)) & (l_chanel > 100)] = 1return color_binary#透视变换-->将检测结果转换为俯视图。
#获取透视变换的参数矩阵【二值图的四个点】
def cal_perspective_params(img,points):# x与y方向上的偏移offset_x = 330offset_y = 0#转换之后img的大小img_size = (img.shape[1],img.shape[0])src = np.float32(points)#设置俯视图中的对应的四个点 左上角 右上角 左下角 右下角dst = np.float32([[offset_x, offset_y], [img_size[0] - offset_x, offset_y],[offset_x, img_size[1] - offset_y], [img_size[0] - offset_x, img_size[1] - offset_y]])## 原图像转换到俯视图M = cv2.getPerspectiveTransform(src, dst)# 俯视图到原图像M_inverse = cv2.getPerspectiveTransform(dst, src)return M, M_inverse#根据透视变化矩阵完成透视变换
def img_perspect_transform(img,M):#获取图像大小img_size = (img.shape[1],img.shape[0])#完成图像的透视变化return cv2.warpPerspective(img,M,img_size)if __name__ == "__main__":#透视变换#获取原图的四个点img = cv2.imread('./test/straight_lines2.jpg')points = [[601, 448], [683, 448], [230, 717], [1097, 717]]#将四个点绘制到图像上 (文件，坐标起点，坐标终点，颜色，连接起来)img = cv2.line(img, (601, 448), (683, 448), (0, 0, 255), 3)img = cv2.line(img, (683, 448), (1097, 717), (0, 0, 255), 3)img = cv2.line(img, (1097, 717), (230, 717), (0, 0, 255), 3)img = cv2.line(img, (230, 717), (601, 448), (0, 0, 255), 3)plt.figure()#反转CV2中BGR 转化为matplotlib的RGBplt.imshow(img[:, :, ::-1])plt.title("Original drawing")plt.show()#透视变换M,M_inverse = cal_perspective_params(img,points)if np.all(M != None):trasform_img = img_perspect_transform(img, M)plt.figure()plt.imshow(trasform_img[:, :, ::-1])plt.title("vertical view")plt.show()else:print("failed")

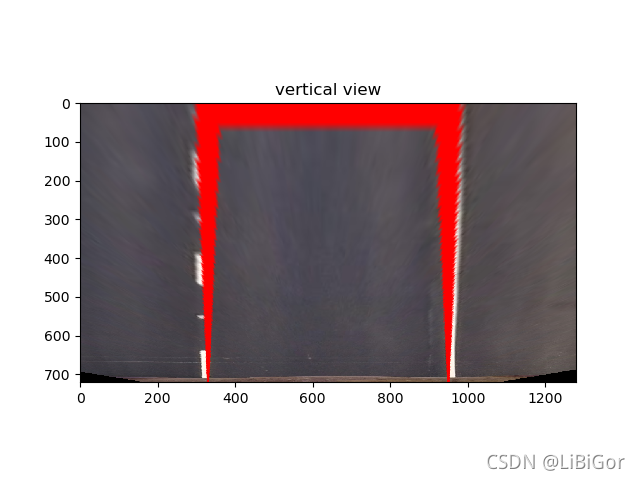

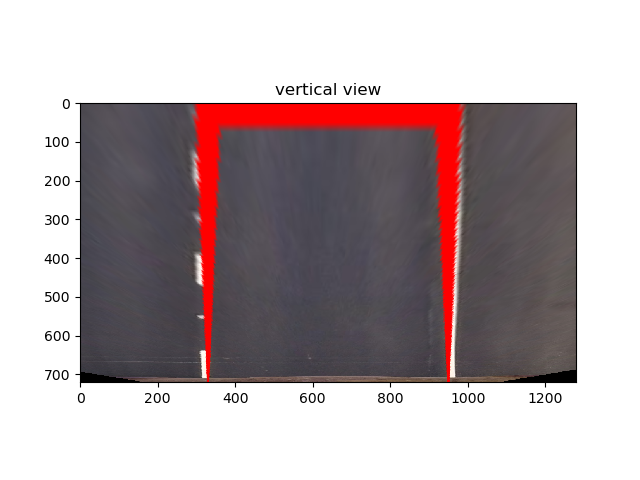

效果图：
