企业微信小程序_授权登录接口获取用户userid

在这里插入图片描述

文章目录

- - - - 一、前置知识
      - 1. 阅读企业微信小程序开发文档
        2. 企业微信小程序登录流程
        3. 微信小程序区别
      - 二、前端部分
      - 2.1. 调用登录接口
        2.2. 请求后端接口
        2.3. 项目源码
      - 三、后端部分
      - 3.1. yml配置
        3.2. 获取用户信息接口
        3.3. 获取token
        3.4. 工具类
        3.5. vo对象
      - 四、调试部分
      - 4.1. 模式切换
        4.2. api执行流程
        4.3. 报文赏评

一、前置知识

获取小程序userid就要先将小程序提交审核->发布小程序->企微后台在自建应用中绑定小程序

1. 阅读企业微信小程序开发文档

https://developer.work.weixin.qq.com/document/path/92426

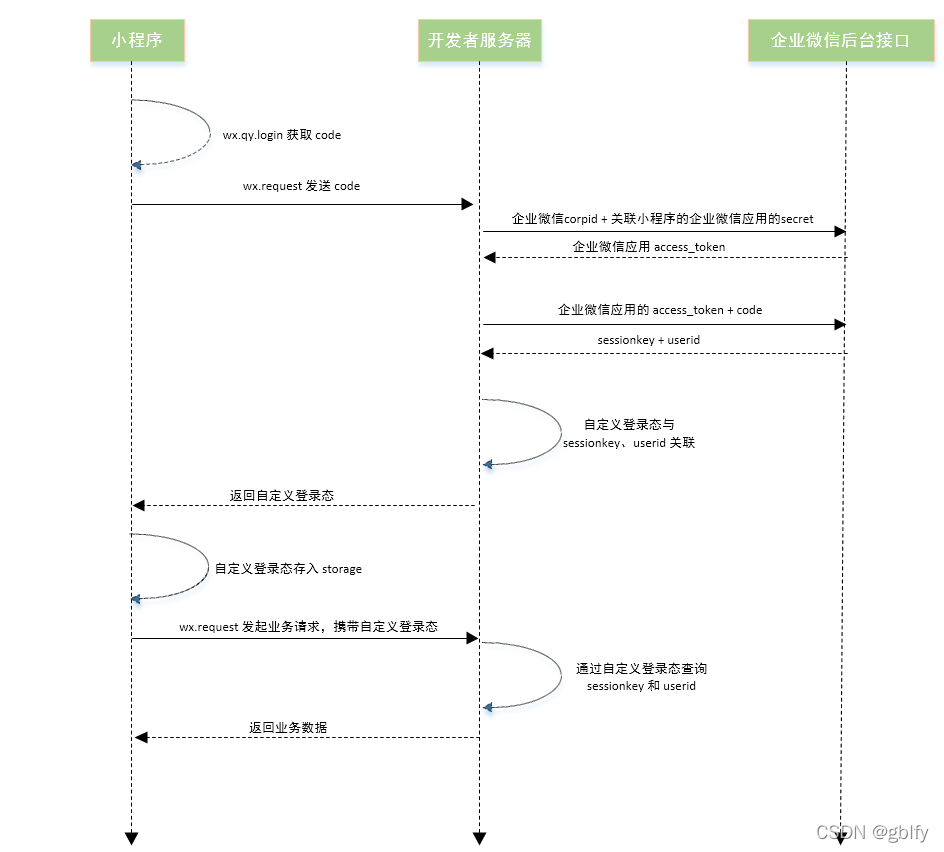

2. 企业微信小程序登录流程

企业微信小程序获取access_token文档

在这里插入图片描述

3. 微信小程序区别

区分企业微信小程序登录流程和微信小程序登录流程不同点。

不同点：
1.企业微信小程序登录流程和微信小程序登录流程不一样，获取的用户信息也不一样。
2.企业微信小程序登录流程需要将企业微信小程序先发布上传吗，审核通过后，将企业微信小程序与企业应用进行绑定后，获取该应用的agentSecret和corpId去获取AccessToken，然后，通过AccessToken和code获取用户信息，最后通过获取的userid在调用通讯录接口获取该用户的详细信息。
3.开发阶段：可以使用企业微信提供的测试应用的agentSecret和corpId

二、前端部分

2.1. 调用登录接口

执行流程会从前端到后端：
前端调用腾讯企业微信登录接口api
登录api开发文档：https://developer.work.weixin.qq.com/document/path/91506
uniapp项目小程序项目写法：

           // 企业微信下程序登录的方法login() {wx.qy.login({success: function(res) {// 调用成功，会返回codeconsole.log("res", res)}})},

返回的报文：

{code: "VFUfreDIauQszKQy5mZgRC3aaMijd7DM-xnOcZW3LVE", errMsg: "qy__login:ok"}

小程序项目写法：

//app.js
App({onLaunch: function() {wx.qy.login({success: function(res) {if (res.code) {//发起网络请求wx.request({url: 'https://test.com/onLogin',data: {code: res.code}})} else {console.log('登录失败！' + res.errMsg)}}});}
})

2.2. 请求后端接口

携带code调用后端接口
这里使用封装好的axios和user接口api，直接使用即可
utils/request.js,这个js主要封装了axios，对请求统一管理，请求url以及数据拼接以及响应处理（这个工具类需要和后端的返回对象JsonData.java对上，下面会贴出来代码）。

const BASE_URL = 'http://api.ant-qywx.com:9900';
function request({ url, data, method }) {return new Promise((resolve, reject) => {// 发起网络请求uni.request({url: BASE_URL + url,data,method,success: ({ data }) => {console.log("data",data)// 响应成功，获取数据，解析数据if (data.success) {resolve(data);} else {// 响应失败，给用户提示uni.showToast({title: data.message,icon: 'none',mask: true,duration: 3000,});reject(data.message);}},fail: (error) => {reject(error);},complete: () => {// 关闭加载uni.hideLoading();},});});
}export default request;

引入api

<script>// 引用用户接口api 调用后端登录接口import {loginAuth} from '../../api/user.js';
</script>

编写登录方法调用企业微信登录接口

methods: {
// 企业微信下程序登录的方法login() {wx.qy.login({success: function(res) {console.log("res", res)loginAuth(res).then((response) => {console.log("response", response)});}})}
}

api/user.js这里js，作用是管理用户相关接口api

import request from '../utils/request';/*** 微信用户授权登录，携带appid和code参数，调用后端接口获取Openid*/
export function loginAuth(data) {return request({url: '/mini/login',data: {code: data.code,},});
}

2.3. 项目源码

https://gitee.com/gblfy/qywx-inner-java-api

三、后端部分

3.1. yml配置

application.yml

server:port: 9900qywx:mini:agentSecret: i5t-rh8bXeNCgihcYPrG9ZPpWkivzPJ69sv570osk6IcorpId: ww17f8d10783494584

3.2. 获取用户信息接口

Controller

package com.gblfy.qywxin.controller;import com.gblfy.qywxin.service.QywxInnerMiniService;
import com.gblfy.qywxin.utils.JWTUtils;
import com.gblfy.qywxin.vo.JsonData;
import com.gblfy.qywxin.vo.QywxInnerUser;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;import java.util.Map;@RestController
@RequestMapping("/mini")
public class QywxMiniController {private static final Logger logger = LoggerFactory.getLogger(QywxMiniController.class);@Value("${qywx.mini.corpId}")private String corpId;@Autowiredprivate QywxInnerMiniService qywxInnerMiniService;@GetMapping("/login")public JsonData login(@RequestParam(value = "code", required = false) String code) {logger.info("accept code->{}", code);Map result = qywxInnerMiniService.getOauthUser(corpId, code);logger.info("accept result->{}", result);//本案例仅从企业微信接口获取未从数据表中获取QywxInnerUser user = new QywxInnerUser();user.setCorpId(corpId);user.setUserId((String) result.get("userId"));String token = JWTUtils.geneJsonWebToken(user);result.put("token", token);return JsonData.buildSuccess(result);}
}

3.3. 获取token

service

package com.gblfy.qywxin.service;import com.gblfy.qywxin.config.QywxInnerConfig;
import com.gblfy.qywxin.utils.RestUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;import java.util.Map;@Service
public class QywxInnerMiniService {private static final Logger logger = LoggerFactory.getLogger(QywxInnerMiniService.class);@Value("${qywx.mini.agentSecret}")private String AGENT_SECRET;public Map getOauthUser(String corpId, String code) {// 1.通过corpId获取AccessTokenString accessToken = getAccessToken(corpId);String getOauthUrl = String.format(QywxInnerConfig.MINI_OAUTH_USER_URL, accessToken, code);Map response = RestUtils.get(getOauthUrl);if (response.containsKey("errcode") && (Integer) response.get("errcode") != 0) {logger.error(response.toString());return response;}System.out.println("response->" + response);//  目前已经获取到userid了// return response;//根据用户UserId->获取通讯录用户详情getString userId = (String) response.get("userid");String url = String.format(QywxInnerConfig.USER_DETAIL_URL, accessToken, userId);Map detaiResponse = RestUtils.get(url);//获取错误日志if (detaiResponse.containsKey("errcode") && (Integer) detaiResponse.get("errcode") != 0) {logger.error(detaiResponse.toString());}return detaiResponse;}/*** 通过corpId获取AccessToken** @param corpId 企业ID* @return*/public String getAccessToken(String corpId) {String result = "";String accessTokenUrl = String.format(QywxInnerConfig.MINI_ACCESS_TOKEN_URL, corpId, AGENT_SECRET);Map response = RestUtils.get(accessTokenUrl);//获取错误日志if (response.containsKey("errcode") && (Integer) response.get("errcode") != 0) {logger.error(response.toString());} else {result = (String) response.get("access_token");}return result;}
}

3.4. 工具类

RestUtils

package com.gblfy.qywxin.utils;import com.alibaba.fastjson.JSONObject;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.*;
import org.springframework.util.MultiValueMap;
import org.springframework.web.client.RestTemplate;
import org.springframework.web.util.UriComponentsBuilder;import java.io.IOException;
import java.net.URI;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.Map;
import java.util.Objects;@Configuration
public class RestUtils {private static final RestTemplate restTemplate = new RestTemplate();public static JSONObject get(String url, Map<String,String> urlParams){return get(urlToUri(url,urlParams));}//在处理企业微信某些参数时有问题public static JSONObject get(String url){return get(URI.create(url));}private static JSONObject get(URI uri){ResponseEntity<JSONObject> responseEntity =restTemplate.getForEntity(uri,JSONObject.class);serverIsRight(responseEntity);   //判断服务器返回状态码return responseEntity.getBody();}public static JSONObject post(String url,Map<String,String> urlParams,JSONObject json){//组装urlreturn post(urlToUri(url,urlParams),json);}public static JSONObject post(String url,JSONObject json){//组装urLreturn post(URI.create(url),json);}private static JSONObject post(URI uri,JSONObject json){//组装url//设置提交json格式数据HttpHeaders headers = new HttpHeaders();headers.setContentType(MediaType.APPLICATION_JSON);HttpEntity<JSONObject> request = new HttpEntity(json, headers);ResponseEntity<JSONObject> responseEntity = restTemplate.postForEntity(uri,request,JSONObject.class);serverIsRight(responseEntity);  //判断服务器返回状态码return responseEntity.getBody();}private static URI urlToUri(String url,Map<String,String> urlParams){//设置提交json格式数据UriComponentsBuilder uriBuilder = UriComponentsBuilder.fromHttpUrl(url);for(Map.Entry<String,String> entry : urlParams.entrySet())  {uriBuilder.queryParam((String)entry.getKey(),  (String) entry.getValue()) ;}return  uriBuilder.build(true).toUri();}public static JSONObject upload(String url,MultiValueMap formParams){//设置表单提交HttpHeaders headers = new HttpHeaders();headers.setContentType(MediaType.MULTIPART_FORM_DATA);HttpEntity<MultiValueMap<String, String>> request = new HttpEntity<>(formParams, headers);ResponseEntity<JSONObject> responseEntity = restTemplate.postForEntity(url,request,JSONObject.class);serverIsRight(responseEntity);  //判断服务器返回状态码return responseEntity.getBody();}public static String download(String url,String targetPath) throws IOException {ResponseEntity<byte[]> rsp = restTemplate.getForEntity(url, byte[].class);if(rsp.getStatusCode() != HttpStatus.OK){System.out.println("文件下载请求结果状态码：" + rsp.getStatusCode());}// 将下载下来的文件内容保存到本地Files.write(Paths.get(targetPath), Objects.requireNonNull(rsp.getBody()));return targetPath;}public static byte[] dowload(String url){ResponseEntity<byte[]> rsp = restTemplate.getForEntity(url, byte[].class);return rsp.getBody();}private static void serverIsRight(ResponseEntity responseEntity){if(responseEntity.getStatusCodeValue()==200){
//            System.out.println("服务器请求成功：{}"+responseEntity.getStatusCodeValue());}else {System.out.println("服务器请求异常：{}"+responseEntity.getStatusCodeValue());}}}

JWTUtils

package com.gblfy.qywxin.utils;import com.gblfy.qywxin.vo.QywxInnerUser;
import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;import java.util.Date;public class JWTUtils {private static final long EXPIRE = 60000 * 60 * 24 * 7;private static final String SECRET = "tobdev.com";private static final String TOKEN_PREFIX = "tobdev";private static final String SUBJECT = "tobdev";/*** 生成jwt token** @param user* @return*/public static String geneJsonWebToken(QywxInnerUser user) {String token = Jwts.builder().setSubject(SUBJECT).claim("corp_id", user.getCorpId()).claim("user_id", user.getUserId()).claim("user_name", user.getName()).claim("mobile", user.getMobile()).claim("qr_code", user.getQrCode()).claim("user_type", user.getUserType()).setIssuedAt(new Date()).setExpiration(new Date(System.currentTimeMillis() + EXPIRE)).signWith(SignatureAlgorithm.HS256, SECRET).compact();token = TOKEN_PREFIX + token;return token;}/*** 校验token是否合法** @param token* @return*/public static Claims checkJWT(String token) {try {final Claims claims = Jwts.parser().setSigningKey(SECRET).parseClaimsJws(token.replace(TOKEN_PREFIX, "")).getBody();return claims;} catch (Exception e) {return null;}}
}

3.5. vo对象

package com.gblfy.qywxin.vo;/*** 返回封装对象** @author gblfy* @date 2022-01-12*/
public class JsonData {/*** 业务上的成功或失败*/private boolean success = true;private Integer code;private String msg;private Object data;public JsonData() {}public JsonData(Integer code, Object data, String msg,boolean success) {this.code = code;this.data = data;this.msg = msg;this.success = success;}public static JsonData buildSuccess() {return new JsonData(0, null, null,true);}public static JsonData buildSuccess(Object data) {return new JsonData(0, data, null,true);}public static JsonData buildError(String msg) {return new JsonData(-1, null, msg,false);}public static JsonData buildError(Integer code, String msg) {return new JsonData(code, null, msg,false);}public Integer getCode() {return code;}public void setCode(Integer code) {this.code = code;}public String getMsg() {return msg;}public void setMsg(String msg) {this.msg = msg;}public Object getData() {return data;}public void setData(Object data) {this.data = data;}public boolean getSuccess() {return success;}public void setSuccess(boolean success) {this.success = success;}
}

其他相关类，小伙伴们看源码吧，见2.3小节

四、调试部分

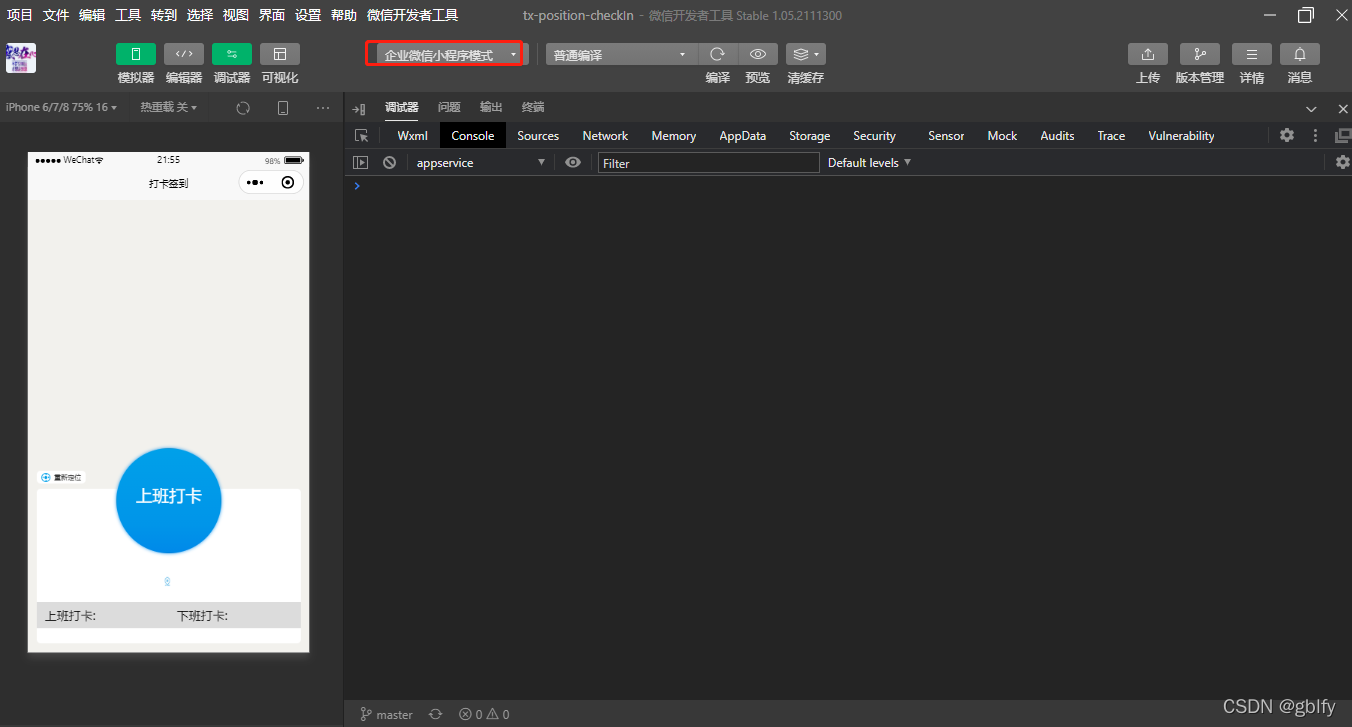

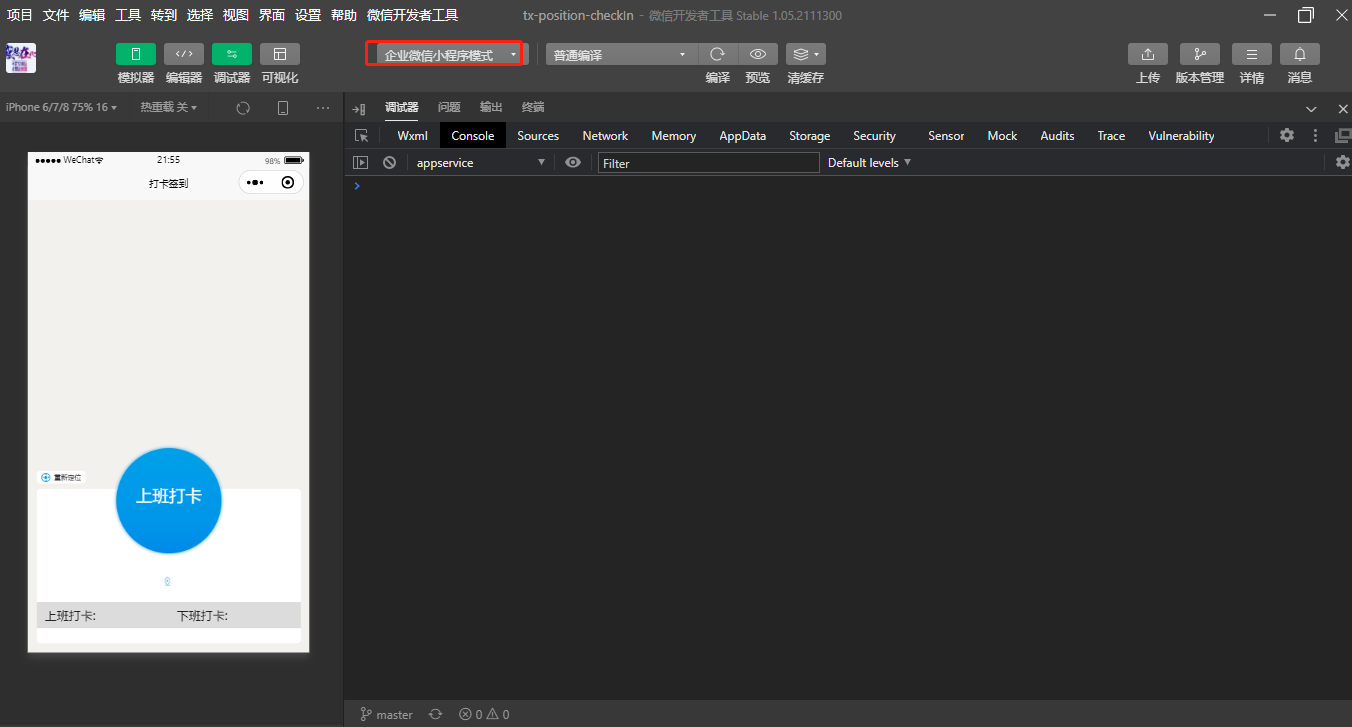

4.1. 模式切换

在这里插入图片描述

4.2. api执行流程

在这里插入图片描述

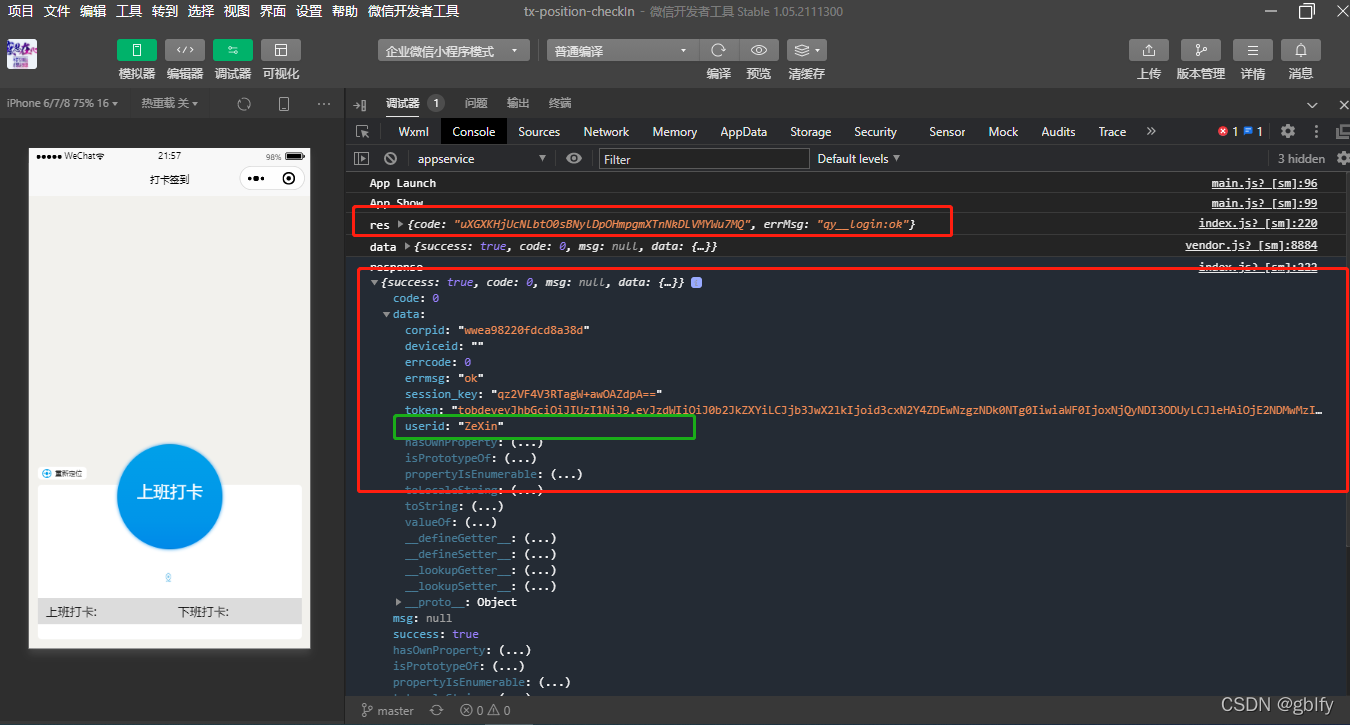

4.3. 报文赏评

调用login的api返回报文

{"code": "uXGXKHjUcNLbtO0sBNylDpOHmpgmXTnNkDLVMYWu7MQ"
}

调用后端获取用户信息接口返回的报文

{"success": true,"code": 0,"msg": null,"data": {"corpid": "wwea98220fdcd8a38d","deviceid": "","errcode": 0,"errmsg": "ok","session_key": "qz2VF4V3RTagW+awOAZdpA==","token": "tobdeveyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJ0b2JkZXYiLCJjb3JwX2lkIjoid3cxN2Y4ZDEwNzgzNDk0NTg0IiwiaWF0IjoxNjQyNDI3ODUyLCJleHAiOjE2NDMwMzI2NTJ9.965kwCYUt6h-BeCA-WUaf20LrHpMvzX8WYigNlkJJIQ","userid": "ZeXin"}
}
