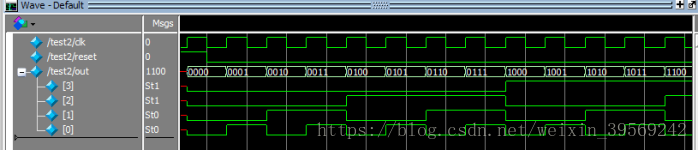

- 完成课本例题4.12，进行综合和仿真（包括功能仿真和时序仿真），查看仿真结果，将Verilog代码和仿真波形图整理入实验报告。
功能文件：
module shiyan1(out,reset,clk);
input reset,clk;
output reg[3:0] out;
always @(posedge clk)
begin
if(reset)
out<=0;
else
out<=out+1;
end
endmodule
测试文件
`timescale 1ns/1ns
module test2();
reg clk,reset;
wire[3:0] out;
parameter DELY=100;
shiyan1 U1(out,reset,clk);
always #(DELY/2) clk=~clk;
initial
begin clk =0;reset=0;
#DELY reset=1;
#DELY reset=0;
#(DELY*20) $finish;
end
initial $monitor($time,,,"clk=%d reset=%d out=%d",clk,reset,out);
endmodule

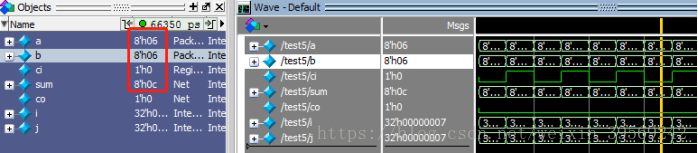

- 课后习题4.1，用Verilog设计一个8位加法器，进行功能仿真，查看综合和仿真结果，将Verilog代码和仿真波形图整理入实验报告。
功能代码:
module a(a,b,ci,sum,co);
input [7:0] a,b;
input ci;
output [7:0] sum;
output co;
reg sum,co;
assign {co,sum}=a+b+ci;
Endmodule
测试代码:
`timescale 1ns/1ns
module test5();
reg[7:0] a,b;
reg ci;
wire[7:0] sum;
wire co;
integer i,j;
a U4(a,b,ci,sum,co);
always #10 ci=~ci;
initial begin a=0;b=0;ci=0;
for(i=1;i<16;i=i+1)
#10 a=i;
end
initial
begin for(j=1;j<16;j=j+1)
#10 b=j;
end
initial
begin
#160 $finish;
end
Endmodule
