RDD 编程

文章目录

- 1. RDD 创建
- 2. RDD转换
- 3. RDD动作
- 4. 持久化
- 5. 分区
- 6. 文件数据读写
- - 6.1 本地
  - 6.2 hdfs
  - 6.3 Json文件
  - 6.4 Hbase

学习自 MOOC Spark编程基础

1. RDD 创建

从文件创建

Welcome to____              __/ __/__  ___ _____/ /___\ \/ _ \/ _ `/ __/  '_//___/ .__/\_,_/_/ /_/\_\   version 2.1.0/_/Using Scala version 2.11.8 (OpenJDK 64-Bit Server VM, Java 1.8.0_131)
Type in expressions to have them evaluated.
Type :help for more information.scala> val lines = sc.textFile("file:///home/hadoop/workspace/word.txt")
lines: org.apache.spark.rdd.RDD[String] = file:////home/hadoop/workspace/word.txt MapPartitionsRDD[1] at textFile at <console>:24

从 hdfs 创建

scala> val lines = sc.textFile("hdfs://localhost:9000/user/word.txt")
lines: org.apache.spark.rdd.RDD[String] = hdfs://localhost:9000/user/word.txt MapPartitionsRDD[3] at textFile at <console>:24

scala> val lines = sc.textFile("/user/word.txt")
lines: org.apache.spark.rdd.RDD[String] = /user/word.txt MapPartitionsRDD[9] at textFile at <console>:24

通过并行集合创建

scala> val array = Array(1,2,3,4,5)
array: Array[Int] = Array(1, 2, 3, 4, 5)scala> val rdd = sc.parallelize(array)
rdd: org.apache.spark.rdd.RDD[Int] = ParallelCollectionRDD[12] at parallelize at <console>:26

2. RDD转换

filter(func)，过滤

scala> val linesWithSpark = lines.filter(line=>line.contains("spark"))
linesWithSpark: org.apache.spark.rdd.RDD[String] = MapPartitionsRDD[13] at filter at <console>:26

map(func) ，映射

scala> val rdd2 = rdd.map(x => x+10)
rdd2: org.apache.spark.rdd.RDD[Int] = MapPartitionsRDD[14] at map at <console>:28

scala> val words = lines.map(line => line.split(" "))
words: org.apache.spark.rdd.RDD[Array[String]] = MapPartitionsRDD[15] at map at <console>:26

输出： n 个元素，每个元素是一个 String 数组

flatMap(func)

scala> val words = lines.flatMap(line => line.split(" "))
words: org.apache.spark.rdd.RDD[String] = MapPartitionsRDD[16] at flatMap at <console>:26

输出：所有单词

groupByKey(), reduceByKey(func)
按 key 合并，得到 value list，后者还可以根据 func 对 value list 进行操作

3. RDD动作

spark 遇到 RDD action 时才会真正的开始执行，遇到转换的时候，只是记录下来，并不真正执行

count() ，统计 rdd 元素个数
collect()，以数组形式返回所有的元素
first()，返回第一个元素
take(n)，返回前 n 个元素
reduce(func)，聚合
foreach(func)，遍历

scala> val rdd = sc.parallelize(Array(1,2,3,4,5))
rdd: org.apache.spark.rdd.RDD[Int] = ParallelCollectionRDD[0] at parallelize at <console>:24scala> rdd.count()
res0: Long = 5scala> rdd.first()
res1: Int = 1scala> rdd.take(3)
res2: Array[Int] = Array(1, 2, 3)scala> rdd.reduce((a,b)=>a+b)
res3: Int = 15scala> rdd.collect()
res4: Array[Int] = Array(1, 2, 3, 4, 5)scala> rdd.foreach(elem => println(elem))

4. 持久化

persist()，对一个 rdd 标记为持久化，遇到第一个 rdd动作时，才真正持久化

scala> val list = List("Hadoop","Spark","Hive")
list: List[String] = List(Hadoop, Spark, Hive)scala> val rdd1 = sc.parallelize(list)
rdd1: org.apache.spark.rdd.RDD[String] = ParallelCollectionRDD[1] at parallelize at <console>:26scala> println(rdd1.count())
3scala> println(rdd1.collect().mkString("--"))
Hadoop--Spark--Hivescala> rdd1.cache() # 缓存起来，后续用到rdd1的时候，不用从头开始计算了
res10: rdd1.type = ParallelCollectionRDD[1] at parallelize at <console>:26

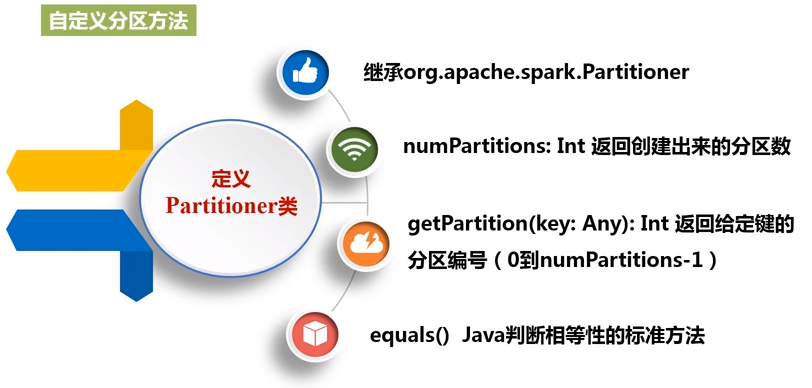

5. 分区

提高并行度
减小通信开销

分区原则：分区个数尽量 = 集群CPU核心数

创建rdd时指定分区数量 sc.textFile(path, partitionNum)

scala> val arr = Array(1,2,3,4,5)
arr: Array[Int] = Array(1, 2, 3, 4, 5)scala> val rdd = sc.parallelize(arr, 2) # 2 个分区
rdd: org.apache.spark.rdd.RDD[Int] = ParallelCollectionRDD[0] at parallelize at <console>:26

更改分区数量

scala> rdd.partitions.size
res0: Int = 2scala> val rdd1 = rdd.repartition(1)
rdd1: org.apache.spark.rdd.RDD[Int] = MapPartitionsRDD[4] at repartition at <console>:28scala> rdd1.partitions.size
res1: Int = 1

wordCount 例子

scala> val lines = sc.| textFile("/user/word.txt") # 读取文件
lines: org.apache.spark.rdd.RDD[String] = /user/word.txt MapPartitionsRDD[6] at textFile at <console>:25scala> val wordCount = lines.flatMap(line => line.split(" ")).| map(word => (word, 1)).reduceByKey((a, b) => a+b)
wordCount: org.apache.spark.rdd.RDD[(String, Int)] = ShuffledRDD[9] at reduceByKey at <console>:27scala> wordCount.collect() # 收集
res2: Array[(String, Int)] = Array((love,2), (spark,1), (c++,1), (i,2), (michael,1))scala> wordCount.foreach(println) # 打印
(spark,1)
(c++,1)
(i,2)
(michael,1)
(love,2)

求平均值例子

scala> val rdd = sc.parallelize(Array(("spark",2),("hadoop",3),("hadoop",7),("spark",3)))
rdd: org.apache.spark.rdd.RDD[(String, Int)] = ParallelCollectionRDD[0] at parallelize at <console>:24scala> rdd.mapValues(x => (x, 1)).reduceByKey((x,y)=>(x._1+y._1, x._2+y._2)).mapValues(x => (x._1/x._2)).collect()
res0: Array[(String, Int)] = Array((spark,2), (hadoop,5))

6. 文件数据读写

6.1 本地

scala> val textFile = sc.| textFile("file:///home/hadoop/workspace/word.txt")
textFile: org.apache.spark.rdd.RDD[String] = file:///home/hadoop/workspace/word.txt MapPartitionsRDD[5] at textFile at <console>:25scala> textFile.| saveAsTextFile("file:///home/hadoop/workspace/writeword")# 后面跟的是一个目录，而不是文件名

ls /home/hadoop/workspace/writeword/
part-00000  part-00001  _SUCCESShadoop@dblab-VirtualBox:/usr/local/spark/bin$ cat /home/hadoop/workspace/writeword/part-00000
i love programming
it is very interesting

再次读取写入的文件（会把目录下所有文件读取）

scala> val textFile = sc.textFile("file:///home/hadoop/workspace/writeword")
textFile: org.apache.spark.rdd.RDD[String] = file:///home/hadoop/workspace/writeword MapPartitionsRDD[9] at textFile at <console>:24

6.2 hdfs

scala> val textFile = | sc.textFile("hdfs://localhost:9000/user/word.txt")
textFile: org.apache.spark.rdd.RDD[String] = hdfs://localhost:9000/user/word.txt MapPartitionsRDD[11] at textFile at <console>:25scala> textFile.first()
res6: String = i love programming

保存到 hdfs （默认当前用户的目录前缀 /user/用户名/）

scala> textFile.saveAsTextFile("writeword")

查看 hdfs

hadoop@dblab-VirtualBox:/usr/local/hadoop/bin$ ./hdfs dfs -ls -R /user/
drwxr-xr-x   - hadoop supergroup          0 2021-04-22 16:01 /user/hadoop
drwxr-xr-x   - hadoop supergroup          0 2021-04-21 22:48 /user/hadoop/.sparkStaging
drwx------   - hadoop supergroup          0 2021-04-21 22:48 /user/hadoop/.sparkStaging/application_1618998320460_0002
-rw-r--r--   1 hadoop supergroup      73189 2021-04-21 22:48 /user/hadoop/.sparkStaging/application_1618998320460_0002/__spark_conf__.zip
-rw-r--r--   1 hadoop supergroup  120047699 2021-04-21 22:48 /user/hadoop/.sparkStaging/application_1618998320460_0002/__spark_libs__4686608713384839717.zip
drwxr-xr-x   - hadoop supergroup          0 2021-04-22 16:01 /user/hadoop/writeword
-rw-r--r--   1 hadoop supergroup          0 2021-04-22 16:01 /user/hadoop/writeword/_SUCCESS
-rw-r--r--   1 hadoop supergroup         42 2021-04-22 16:01 /user/hadoop/writeword/part-00000
-rw-r--r--   1 hadoop supergroup         20 2021-04-22 16:01 /user/hadoop/writeword/part-00001
drwxr-xr-x   - hadoop supergroup          0 2017-11-05 21:57 /user/hive
drwxr-xr-x   - hadoop supergroup          0 2017-11-05 21:57 /user/hive/warehouse
drwxr-xr-x   - hadoop supergroup          0 2017-11-05 21:57 /user/hive/warehouse/hive.db
-rw-r--r--   1 hadoop supergroup         62 2021-04-21 20:06 /user/word.txt

6.3 Json文件

hadoop@dblab-VirtualBox:/usr/local/hadoop/bin$ cat /usr/local/spark/examples/src/main/resources/people.json
{"name":"Michael"}
{"name":"Andy", "age":30}
{"name":"Justin", "age":19}

scala> val jsonStr = sc.| textFile("file:///usr/local/spark/examples/src/main/resources/people.json")
jsonStr: org.apache.spark.rdd.RDD[String] = file:///usr/local/spark/examples/src/main/resources/people.json MapPartitionsRDD[14] at textFile at <console>:25scala> jsonStr.foreach(println)
{"name":"Michael"}
{"name":"Andy", "age":30}
{"name":"Justin", "age":19}

解析 json 文件

scala.util.parsing.json.JSON
JSON.parseFull(jsonString : String)
返回 Some or None

编写程序

import org.apache.spark.SparkContext
import org.apache.spark.SparkContext._
import org.apache.spark.SparkConf
import scala.util.parsing.json.JSON
object JSONRead{def main(args:Array[String]){val inputFile = "file:///usr/local/spark/examples/src/main/resources/people.json"val conf = new SparkConf().setAppName("JSONRead")val sc = new SparkContext(conf)val jsonStrs = sc.textFile(inputFile)val res = jsonStrs.map(s => JSON.parseFull(s))res.foreach({ r => r match {case Some(map:Map[String, Any]) => println(map)case None => println("parsing failed")case other => println("unknown data structure: " + other)}})}
}

使用 sbt 编译打包为 jar，spark-submit --class "JSONRead" <路径 of jar>（有待实践操作）
参考：使用Intellij Idea编写Spark应用程序（Scala+SBT） http://dblab.xmu.edu.cn/blog/1492-2/

6.4 Hbase

hadoop@dblab-VirtualBox:/usr/local/hbase/bin$ ./hbase shell
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/usr/local/hbase/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/usr/local/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
HBase Shell; enter 'help<RETURN>' for list of supported commands.
Type "exit<RETURN>" to leave the HBase Shell
Version 1.1.5, r239b80456118175b340b2e562a5568b5c744252e, Sun May  8 20:29:26 PDT 2016hbase(main):001:0> disable "student"
0 row(s) in 3.0730 secondshbase(main):002:0> drop "student"
0 row(s) in 1.3530 secondshbase(main):003:0> create "student","info"
0 row(s) in 1.3570 seconds=> Hbase::Table - student
hbase(main):004:0> put "student","1","info:name","michael"
0 row(s) in 0.0920 secondshbase(main):005:0> put "student","1","info:gender","M"
0 row(s) in 0.0410 secondshbase(main):006:0> put "student","1","info:age","18"
0 row(s) in 0.0080 seconds
