本项目是搭建基于consul注册中心的springcloud，使用zuul网关和gateway网关

一、框架搭建

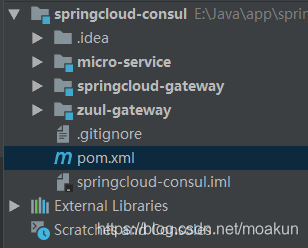

（1）项目结构

micro-service  服务提供者
zuul-gateway  zuul网关
springcloud-gateway  gateway网关

（2）环境

consul 1.9.0

springboot 2.1.9

springcloud Greenwich

注：consul安装



二、项目配置application.yaml

192.168.31.188:8500为本地consul地址

（1）micro-service

spring:application:name: micro-serviceprofiles:active: devjackson:time-zone: GMT+8date-format: yyyy-MM-dd HH:mm:ssdefault-property-inclusion: ALWAYScloud:consul:host: 192.168.31.188port: 8500discovery:health-check-path: /actuator/healthhealth-check-interval: 15shealth-check-critical-timeout: 60mtags:- devprefer-ip-address: trueservice-name: ${spring.application.name}server:port: 8081

（2）zuul-gateway

spring:application:name: zuul-gatewayprofiles:active: devjackson:time-zone: GMT+8date-format: yyyy-MM-dd HH:mm:ssdefault-property-inclusion: ALWAYScloud:consul:host: 192.168.31.188port: 8500discovery:health-check-path: /actuator/healthhealth-check-interval: 15shealth-check-critical-timeout: 60mtags:- devprefer-ip-address: trueservice-name: ${spring.application.name}server:port: 8082zuul:strip-prefix: true #转发路径截断匹配前缀
#  prefix: "/api"add-proxy-headers: falseset-content-length: truesemaphore:max-semaphores: 600hystrix:command:default:execution:isolation:thread:timeoutInMilliseconds: 120000
ribbon:ReadTimeout: 240000ConnectTimeout: 2000MaxAutoRetries: 0MaxAutoRetriesNextServer: 1eager-load:enabled: trueclients: micro-service

（3） springcloud-gateway

spring:application:name: springcloud-gatewayprofiles:active: devjackson:time-zone: GMT+8date-format: yyyy-MM-dd HH:mm:ssdefault-property-inclusion: ALWAYScloud:consul:host: 192.168.31.188port: 8500discovery:health-check-path: /actuator/healthhealth-check-interval: 15shealth-check-critical-timeout: 60mtags:- devprefer-ip-address: trueservice-name: ${spring.application.name}gateway:discovery:locator:enabled: truelower-case-service-id: truehttpclient:connect-timeout: 60000response-timeout: 5sroutes:- id: micro-service1uri: lb://micro-servicepredicates:- Path=/micro-service1/**filters:- StripPrefix=1- id: micro-service3uri: lb://micro-servicepredicates:- Path=/micro-service3/**filters:- PrefixPath=/microserver:port: 8083hystrix:command:default:execution:isolation:thread:timeoutInMilliseconds: 120000
ribbon:ReadTimeout: 240000ConnectTimeout: 2000MaxAutoRetries: 0MaxAutoRetriesNextServer: 1eager-load:enabled: trueclients: micro-service



三、项目地址

https://github.com/90duc/springcloud-consul
