本项目是搭建基于zookeeper注册中心的springcloud，使用zuul网关和gateway网关

一、框架搭建

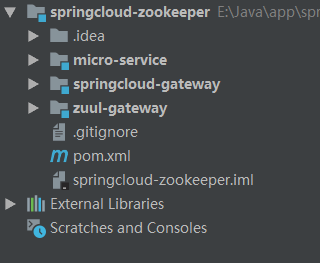

（1）项目结构

micro-service  服务提供者
zuul-gateway  zuul网关
springcloud-gateway  gateway网关

（2）环境

zookeeper 3.6.2

springboot 2.1.9

springcloud Greenwich



二、项目配置application.yaml

192.168.31.188为本地zookeeper地址

（1）micro-service

spring:application:name: micro-serviceprofiles:active: devjackson:time-zone: GMT+8date-format: yyyy-MM-dd HH:mm:ssdefault-property-inclusion: ALWAYScloud:zookeeper:enabled: trueconnect-string: 192.168.31.188:2181discovery:enabled: trueroot: /services/springcloud-zookeeper #zookeeper中的根路径，即服务注册路径:${spring.cloud.zookeeper.config.root}/${spring.application.name}register: trueconfig:enabled: trueroot: /config/springcloud-zookeeper  #zookeeper中的根路径，即服务配置信息的路径:${spring.cloud.zookeeper.config.root}/${spring.application.name},${spring.profiles.active}watcher:enabled: trueserver:port: 8081

（2）zuul-gateway

spring:application:name: zuul-gatewayprofiles:active: devjackson:time-zone: GMT+8date-format: yyyy-MM-dd HH:mm:ssdefault-property-inclusion: ALWAYScloud:zookeeper:enabled: trueconnect-string: 192.168.31.188:2181discovery:enabled: trueroot: /services/springcloud-zookeeper #zookeeper中的根路径，即服务注册路径:${spring.cloud.zookeeper.config.root}/${spring.application.name}register: trueconfig:enabled: trueroot: /config/springcloud-zookeeper  #zookeeper中的根路径，即服务配置信息的路径:${spring.cloud.zookeeper.config.root}/${spring.application.name},${spring.profiles.active}watcher:enabled: trueserver:port: 8082zuul:strip-prefix: true #转发路径截断匹配前缀
#  prefix: "/api"add-proxy-headers: falseset-content-length: truesemaphore:max-semaphores: 600hystrix:command:default:execution:isolation:thread:timeoutInMilliseconds: 120000
ribbon:ReadTimeout: 240000ConnectTimeout: 2000MaxAutoRetries: 0MaxAutoRetriesNextServer: 1eager-load:enabled: trueclients: micro-service

（3） springcloud-gateway

spring:application:name: springcloud-gatewayprofiles:active: devjackson:time-zone: GMT+8date-format: yyyy-MM-dd HH:mm:ssdefault-property-inclusion: ALWAYScloud:zookeeper:enabled: trueconnect-string: 192.168.31.188:2181discovery:enabled: trueroot: /services/springcloud-zookeeper #zookeeper中的根路径，即服务注册路径:${spring.cloud.zookeeper.config.root}/${spring.application.name}register: trueconfig:enabled: trueroot: /config/springcloud-zookeeper  #zookeeper中的根路径，即服务配置信息的路径:${spring.cloud.zookeeper.config.root}/${spring.application.name},${spring.profiles.active}watcher:enabled: truegateway:discovery:locator:enabled: truelower-case-service-id: truehttpclient:connect-timeout: 60000response-timeout: 5sroutes:- id: micro-service1uri: lb://micro-servicepredicates:- Path=/micro-service1/**filters:- StripPrefix=1- id: micro-service3uri: lb://micro-servicepredicates:- Path=/micro-service3/**filters:- PrefixPath=/microserver:port: 8083hystrix:command:default:execution:isolation:thread:timeoutInMilliseconds: 120000
ribbon:ReadTimeout: 240000ConnectTimeout: 2000MaxAutoRetries: 0MaxAutoRetriesNextServer: 1eager-load:enabled: trueclients: micro-service

zookeeper注册路径



三、项目地址

https://github.com/90duc/springcloud-zookeeper
