OpenCV图像像素操作及效率分析
在计算机视觉应用中,对于图像内容的读取分析是第一步,所以学习高效的处理图像是很有用的。一个图像有可能包含数以万计的像素,从根本上说图像就是一系列像素值,所以OpenCV使用数据结构cv::Mat来表示图像。矩阵中每一个元素都代表一个像素,对于灰度图像,像素用8位无符号数,0表示黑色,255表示白色。对于彩色像素而言,每个像素需要三位这样的8位无符号数来表示,即三个通道(R,G,B),矩阵则依次存储一个像素的三个通道的值,然后再存储下一个像素点。
cv::Mat中,成员变量cols代表图像的宽度(图像的列数),成员变量rows代表图像的高度(图像的行数),step代表以字节为单位的图像的有效宽度,elemSize返回像素的大小,像素的大小 = 颜色大小(字节)*通道数,比如三通道short型矩阵(CV_16SC3)的大小为2*3 = 6,像素的channels方法返回图像的通道数,total函数返回图像的像素数。
闲话少说直接介绍几种读取方式:
RGB图像的颜色数目是256*256*256,本文对图像进行量化,缩减颜色数目到256的1/8(即32*32*32)为目标,分别利用一下几种方法实现,比较几种方法的安全和效率。
1.ptr遍历图像
cv::Mat中提供ptr函数访问任意一行像素的首地址,特别方便图像的一行一行的横向访问,如果需要一列一列的纵向访问图像,就稍微麻烦一点。但是ptr访问效率比较高,程序也比较安全,有越界判断。
也可以使用:
2.使用迭代器遍历图像
cv::Mat 同样有标准模板库(STL),可以使用迭代器访问数据。
用迭代器来遍历图像像素,可简化过程降低出错的机会,比较安全,不过效率较低;如果想避免修改输入图像实例cv::Mat,可采用const_iterator。iterator有两种调用方法,cv::MatIterator_<cv::Vec3b> it;cv::Mat_<cv::Vec3b>::iterator it;中间cv::Vec3b是因为图像是彩色图像,3通道,cv::Vec3b可以代表一个像素。
3.at方法遍历
cv::Mat也是向量,可以使at方法取值,使用调用方法image.at<cv::Vec3b>(j,i),at方法方便,直接给i,j赋值就可以随意访问图像中任何一个像素,其中j表示第j行,i表示该行第i个像素。但是at方法效率是这3中访问方法中最慢的一个,所以如果遍历图像或者访问像素比较多时,建议不要使用这个方法,毕竟程序的效率还是比程序的可读性要重要的。下面是完整的调用方法,其运行时间在下面会介绍。
4.row(i),col(i)
cv::Mat提供image.row(i),和image.col(j)对图像整行和整列进行处理,处理比较方便,因为很少遇到,所以就没有进行效率比较
程序代码如下(三通道):
5.高效率图像遍历循环
对于迭代的for循环,外面一层的循环次数越少速度越快,同样是cols*rows*channels()次循环,使用nc = cols,nl = rows*channels(),与使用nc = cols*rows*channels,nl = 1,以及nc = cols,nl = rows,for函数最里层运行三次颜色的处理。这三种方法最快的是第二种,第三种其次,最慢的是第一种.
6.位运算代替乘法和除法
运行时间比较,以测试图片为例,(Debug模式下的时间)
ptr函数的两种方法的时间:using .ptr and [] = 3.50202ms
using .ptr and * ++ = 3.26124ms
迭代器方法:
using Mat_ iterator = 143.06ms
at方法的运行时间:
using at = 252.779ms
高效率迭代方法:
using .ptr and * ++ and bitwise (continuous) = 2.68335ms
位运算方法:
using .ptr and * ++ and bitwise =2.59823ms
using .ptr and * ++ and modulo =3.78029ms
using .ptr and * ++ and bitwise =2.59823ms
using direct pointer arithmetic =2.57317ms
using .ptr and * ++ and bitwise with image.cols * image.channels() =22.864ms
using Mat_ iterator and bitwise =139.92ms
using MatIterator_ =185.996ms
using .ptr and * ++ and bitwise (continuous+channels) =2.11271ms
using input/output images =2.97717ms
using overloaded operators =2.7237ms
源图像:
量化处理结果 image1:

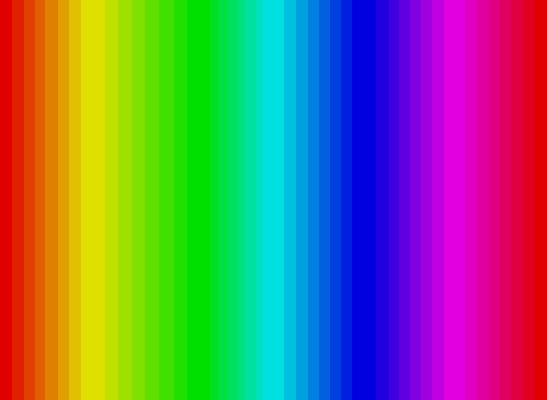

量化处理后的结果 image2:
