在.NET Core中使用MachineKey

在上篇文章中，我介绍了 Cookie是基于 MachineKey生成的， MachineKey决定了 Cookie生成的算法和密钥，并如果使用多台服务器做负载均衡时，必须指定一致的 MachineKey。

但在 .NETCore中，官方似乎并没有提供 MachineKey实现，这为兼容 .NETFramework的 Cookie造成了许多障碍。

今天我将深入探索 MachineKey这个类，看看里面到底藏了什么东西，本文的最后我将使用 .NETCore来解密一个 ASP.NET MVC生成的 Cookie。

认识MachineKey

在 .NETFramework中， machineKey首先需要一个配置，写在 app.config或者 web.config中，格式一般如下：

<machineKey validationKey="128个hex字符" decryptionKey="64个hex字符" validation="SHA1" decryption="AES" />

网上能找到可以直接生成随机 MachineKey的网站：https://www.developerfusion.com/tools/generatemachinekey/
但 MachineKey的 validationKey和 decryptionKey的内容只要符合长度和 hex要求，都是可以随意指定的，所以 machineKey生成器的意义其实不大。

探索MachineKey

打开 MachineKey的源代码如下所示（有删减）：

public static class MachineKey {public static byte[] Unprotect(byte[] protectedData, params string[] purposes) {// ...有删减return Unprotect(AspNetCryptoServiceProvider.Instance, protectedData, purposes);}// Internal method for unit testing.internal static byte[] Unprotect(ICryptoServiceProvider cryptoServiceProvider, byte[] protectedData, string[] purposes) {// If the user is calling this method, we want to use the ICryptoServiceProvider// regardless of whether or not it's the default provider.Purpose derivedPurpose = Purpose.User_MachineKey_Protect.AppendSpecificPurposes(purposes);ICryptoService cryptoService = cryptoServiceProvider.GetCryptoService(derivedPurpose);return cryptoService.Unprotect(protectedData);}
}

具体代码可参见：https://referencesource.microsoft.com/#system.web/Security/MachineKey.cs,209

可见它本质是使用了 AspNetCryptoServiceProvider.Instance，然后调用其 GetCryptoService方法，然后获取一个 cryptoService，最后调用 Unprotect，注意其中还使用了一个 Purpose的类，依赖非常多。

AspNetCryptoServiceProvider

其中 AspNetCryptoServiceProvider.Instance的定义如下（有删减和整合）：

internal sealed class AspNetCryptoServiceProvider : ICryptoServiceProvider {private static readonly Lazy<AspNetCryptoServiceProvider> _singleton = new Lazy<AspNetCryptoServiceProvider>(GetSingletonCryptoServiceProvider);internal static AspNetCryptoServiceProvider Instance {get {return _singleton.Value;}}private static AspNetCryptoServiceProvider GetSingletonCryptoServiceProvider() {// Provides all of the necessary dependencies for an application-level// AspNetCryptoServiceProvider.MachineKeySection machineKeySection = MachineKeySection.GetApplicationConfig();return new AspNetCryptoServiceProvider(machineKeySection: machineKeySection,cryptoAlgorithmFactory: new MachineKeyCryptoAlgorithmFactory(machineKeySection),masterKeyProvider: new MachineKeyMasterKeyProvider(machineKeySection),dataProtectorFactory: new MachineKeyDataProtectorFactory(machineKeySection),keyDerivationFunction: SP800_108.DeriveKey);}
}

具体代码可见：https://referencesource.microsoft.com/#system.web/Security/Cryptography/AspNetCryptoServiceProvider.cs,68dbd1c184ea4e88

可见它本质是依赖于 AspNetCryptoServiceProvider，它使用了 MachineKeyCryptoAlgorithmFactory、 MachineKeyMasterKeyProvider、 MachineKeyDataProtectorFactory，以及一个看上去有点奇怪的 SP800_108.DeriveKey。

AspNetCryptoServiceProvider的 GetCryptoService方法如下：

public ICryptoService GetCryptoService(Purpose purpose, CryptoServiceOptions options = CryptoServiceOptions.None) {ICryptoService cryptoService;if (_isDataProtectorEnabled && options == CryptoServiceOptions.None) {// We can only use DataProtector if it's configured and the caller didn't ask for any special behavior like cacheabilitycryptoService = GetDataProtectorCryptoService(purpose);}else {// Otherwise we fall back to using the <machineKey> algorithms for cryptographycryptoService = GetNetFXCryptoService(purpose, options);}// always homogenize errors returned from the crypto servicereturn new HomogenizingCryptoServiceWrapper(cryptoService);
}
private NetFXCryptoService GetNetFXCryptoService(Purpose purpose, CryptoServiceOptions options) {// Extract the encryption and validation keys from the provided Purpose objectCryptographicKey encryptionKey = purpose.GetDerivedEncryptionKey(_masterKeyProvider, _keyDerivationFunction);CryptographicKey validationKey = purpose.GetDerivedValidationKey(_masterKeyProvider, _keyDerivationFunction);// and return the ICryptoService// (predictable IV turned on if the caller requested cacheable output)return new NetFXCryptoService(_cryptoAlgorithmFactory, encryptionKey, validationKey, predictableIV: (options == CryptoServiceOptions.CacheableOutput));
}

注意其中有一个判断，我结合 dnSpy做了认真的调试，发现它默认走的是 GetNetFXCryptoService，也就是注释中所谓的 <machineKey>算法。

然后 GetNetFXCryptoService方法依赖于 _masterKeyProvider和 _keyDerivationFunction用来生成两个 CryptographicKey，这两个就是之前所说的 MachineKeyMasterKeyProvider和 MachineKeyDataProtectorFactory。

注意其中还有一个 HomogenizingCryptoServiceWrapper类，故名思义，它的作用应该是统一管理加密解释过程中的报错，实际也确实如此，我不作深入，有兴趣的读者可以看看原始代码在这：https://referencesource.microsoft.com/#system.web/Security/Cryptography/HomogenizingCryptoServiceWrapper.cs,25

最后调用 NetFXCryptoService来执行 Unprotect任务。

NetFXCryptoService

这个是重点了，源代码如下（有删减）：

internal sealed class NetFXCryptoService : ICryptoService {private readonly ICryptoAlgorithmFactory _cryptoAlgorithmFactory;private readonly CryptographicKey _encryptionKey;private readonly bool _predictableIV;private readonly CryptographicKey _validationKey;// ...有删减// [UNPROTECT]// INPUT: protectedData// OUTPUT: clearData// ALGORITHM://   1) Assume protectedData := IV || Enc(Kenc, IV, clearData) || Sign(Kval, IV || Enc(Kenc, IV, clearData))//   2) Validate the signature over the payload and strip it from the end//   3) Strip off the IV from the beginning of the payload//   4) Decrypt what remains of the payload, and return it as clearDatapublic byte[] Unprotect(byte[] protectedData) {// ...有删减using (SymmetricAlgorithm decryptionAlgorithm = _cryptoAlgorithmFactory.GetEncryptionAlgorithm()) {// 省略约100行代码????}}
}

这个代码非常长，我直接一刀全部删减了，只保留注释。如果不理解先好好看注释，不理解它在干嘛，直接看代码可能非常难，有兴趣的可以直接先看看代码：https://referencesource.microsoft.com/#system.web/Security/Cryptography/NetFXCryptoService.cs,35

首先看注释：

protectedData := IV || Enc(Kenc, IV, clearData) || Sign(Kval, IV || Enc(Kenc, IV, clearData))

加密之后的数据由 IV、 密文以及 签名三部分组成；

其中 密文使用 encryptionKey、 IV和 原始明文加密而来；

签名由 validationKey作验证，传入参数是 IV以及 密文（这一点有点像 jwt）。

现在再来看看代码：

int ivByteCount = decryptionAlgorithm.BlockSize / 8; // IV length is equal to the block size
int signatureByteCount = validationAlgorithm.HashSize / 8;

IV的长度由解密算法的 BlockSize决定，签名算法的长度由验证算法的 BlockSize决定，有了 IV和 签名的长度，就知道了密文的长度：

int encryptedPayloadByteCount = protectedData.Length - ivByteCount - signatureByteCount;

下文就应该是轻车熟路，依葫芦画瓢了，先验证签名：

byte[] computedSignature = validationAlgorithm.ComputeHash(protectedData, 0, ivByteCount + encryptedPayloadByteCount);
if (/*验证不成功*/) {return null;
}

然后直接解密：

using (MemoryStream memStream = new MemoryStream()) {using (ICryptoTransform decryptor = decryptionAlgorithm.CreateDecryptor()) {using (CryptoStream cryptoStream = new CryptoStream(memStream, decryptor, CryptoStreamMode.Write)) {cryptoStream.Write(protectedData, ivByteCount, encryptedPayloadByteCount);cryptoStream.FlushFinalBlock();// At this point// memStream := clearDatabyte[] clearData = memStream.ToArray();return clearData;}}
}

可见这个类都是一些“正常操作”。之后我们来补充一下遗漏的部分。

MachineKeyCryptoAlgorithmFactory

首先是 MachineKeyCryptoAlgorithmFactory，代码如下（只保留了重点）：

switch (algorithmName) {case "AES":case "Auto": // currently "Auto" defaults to AESreturn CryptoAlgorithms.CreateAes;case "DES":return CryptoAlgorithms.CreateDES;case "3DES":return CryptoAlgorithms.CreateTripleDES;default:return null; // unknown
}
switch (algorithmName) {case "SHA1":return CryptoAlgorithms.CreateHMACSHA1;case "HMACSHA256":return CryptoAlgorithms.CreateHMACSHA256;case "HMACSHA384":return CryptoAlgorithms.CreateHMACSHA384;case "HMACSHA512":return CryptoAlgorithms.CreateHMACSHA512;default:return null; // unknown
}

源代码链接在这：https://referencesource.microsoft.com/#system.web/Security/Cryptography/MachineKeyCryptoAlgorithmFactory.cs,14

可见非常地直白、浅显易懂。

MachineKeyMasterKeyProvider

然后是 MachineKeyMasterKeyProvider，核心代码如下:

private CryptographicKey GenerateCryptographicKey(string configAttributeName, string configAttributeValue, int autogenKeyOffset, int autogenKeyCount, string errorResourceString) {byte[] keyMaterial = CryptoUtil.HexToBinary(configAttributeValue);// If <machineKey> contained a valid key, just use it verbatim.if (keyMaterial != null && keyMaterial.Length > 0) {return new CryptographicKey(keyMaterial);}// 有删减
}public CryptographicKey GetEncryptionKey() {if (_encryptionKey == null) {_encryptionKey = GenerateCryptographicKey(configAttributeName: "decryptionKey",configAttributeValue: _machineKeySection.DecryptionKey,autogenKeyOffset: AUTOGEN_ENCRYPTION_OFFSET,autogenKeyCount: AUTOGEN_ENCRYPTION_KEYLENGTH,errorResourceString: SR.Invalid_decryption_key);}return _encryptionKey;
}
public CryptographicKey GetValidationKey() {if (_validationKey == null) {_validationKey = GenerateCryptographicKey(configAttributeName: "validationKey",configAttributeValue: _machineKeySection.ValidationKey,autogenKeyOffset: AUTOGEN_VALIDATION_OFFSET,autogenKeyCount: AUTOGEN_VALIDATION_KEYLENGTH,errorResourceString: SR.Invalid_validation_key);}return _validationKey;
}

可见这个类就是从 app.config/ web.config中读取两个 xml位置的值，并转换为 CryptographicKey，然后 CryptographicKey的本质就是一个字节数组 byte[]。

注意，原版的 GenerateCrytographicKey函数其实很长，但重点确实就是前面这三行代码，后面的是一些骚操作，可以自动从一些配置的位置生成 machineKey，这应该和 machineKey节点缺失或者不写有关，不在本文考虑的范畴以内。有兴趣的读者可以参见原始代码：https://referencesource.microsoft.com/#system.web/Security/Cryptography/MachineKeyMasterKeyProvider.cs,87

MachineKeyDataProtectorFactory

其源代码如下（有删减）：

internal sealed class MachineKeyDataProtectorFactory : IDataProtectorFactory {public DataProtector GetDataProtector(Purpose purpose) {if (_dataProtectorFactory == null) {_dataProtectorFactory = GetDataProtectorFactory();}return _dataProtectorFactory(purpose);}private Func<Purpose, DataProtector> GetDataProtectorFactory() {string applicationName = _machineKeySection.ApplicationName;string dataProtectorTypeName = _machineKeySection.DataProtectorType;Func<Purpose, DataProtector> factory = purpose => {// Since the custom implementation might depend on the impersonated// identity, we must instantiate it under app-level impersonation.using (new ApplicationImpersonationContext()) {return DataProtector.Create(dataProtectorTypeName, applicationName, purpose.PrimaryPurpose, purpose.SpecificPurposes);}};// 删减验证factory的部分代码和try-catchreturn factory; // we know at this point the factory is good}
}

其原始代码如下：https://referencesource.microsoft.com/#System.Web/Security/Cryptography/MachineKeyDataProtectorFactory.cs,cc110253450fcb16

注意 _machineKeySection的 ApplicationName和 DataProtectorType默认都是空字符串 ""，具体不细说，在这定义的：https://referencesource.microsoft.com/#System.Web/Configuration/MachineKeySection.cs,50

所以我们继续看 DataProtector的代码：

public abstract class DataProtector
{public static DataProtector Create(string providerClass,string applicationName,string primaryPurpose,params string[] specificPurposes){// Make sure providerClass is not null - Other parameters checked in constructorif (null == providerClass)throw new ArgumentNullException("providerClass");// Create a DataProtector based on this type using CryptoConfigreturn (DataProtector)CryptoConfig.CreateFromName(providerClass, applicationName, primaryPurpose, specificPurposes);}
}

注意它唯一的引用 CryptoConfig，已经属于 .NETCore已经包含的范畴了，因此没必要继续深入追踪。

Purpose

注意一开始时，我们说到的 Purpose，相关定义如下：

public class Purpose {// ...有删减public static readonly Purpose User_MachineKey_Protect = new Purpose("User.MachineKey.Protect");internal Purpose AppendSpecificPurposes(IList<string> specificPurposes){if (specificPurposes == null || specificPurposes.Count == 0){return this;}string[] array = new string[SpecificPurposes.Length + specificPurposes.Count];Array.Copy(SpecificPurposes, array, SpecificPurposes.Length);specificPurposes.CopyTo(array, SpecificPurposes.Length);return new Purpose(PrimaryPurpose, array);}// Returns a label and context suitable for passing into the SP800-108 KDF.internal void GetKeyDerivationParameters(out byte[] label, out byte[] context) {// The primary purpose can just be used as the label directly, since ASP.NET// is always in full control of the primary purpose (it's never user-specified).if (_derivedKeyLabel == null) {_derivedKeyLabel = CryptoUtil.SecureUTF8Encoding.GetBytes(PrimaryPurpose);}// The specific purposes (which can contain nonce, identity, etc.) are concatenated// together to form the context. The BinaryWriter class prepends each element with// a 7-bit encoded length to guarantee uniqueness.if (_derivedKeyContext == null) {using (MemoryStream stream = new MemoryStream())using (BinaryWriter writer = new BinaryWriter(stream, CryptoUtil.SecureUTF8Encoding)) {foreach (string specificPurpose in SpecificPurposes) {writer.Write(specificPurpose);}_derivedKeyContext = stream.ToArray();}}label = _derivedKeyLabel;context = _derivedKeyContext;}
}

注意其 PrimaryPurpose值为： "User.MachineKey.Protect"。

另外还需要记住这个 GetKeyDerivationParameters方法，它将在接下来的 SP800_108类中使用，它将 PrimaryPurpose经过 utf8编码生成 label参数，然后用所有的 SpecificPurposes通过二进制序列化，生成 context参数。

原始代码链接：https://referencesource.microsoft.com/#System.Web/Security/Cryptography/Purpose.cs,6fd5fbe04ec71877

SP800_108

已经接近尾声了，我们知道一个字符串要转换为密钥，就必须经过一个安全的哈希算法。之前我们接触得最多的，是 Rfc2898DeriveBytes，但它是为了保存密码而设计的。这里不需要这么复杂，因此…… .NET另写了一个。

这个类代码非常长，但好在它所有内容都兼容 .NETCore，因此可以直接复制粘贴。

它的目的是通过 Purpose来生成密钥。有兴趣的读者可以了解一下其算法：https://referencesource.microsoft.com/#System.Web/Security/Cryptography/SP800_108.cs,38

收尾

关系图整理

我已经尽力将代码重点划出来，但仍然很复杂。这么多类，我最后理了一个关系图，用于了解其调用、依赖链：

MachineKeyPurposeAspNetCryptoServiceProviderMachineKeySectionMachineKeyCryptoAlgorithmFactoryCryptoAlgorithmsMachineKeyMasterKeyProviderCryptographicKeyMachineKeyDataProtectorFactoryDataProtectorCryptoConfigSP800_108

祖传代码

整理了这么久，没有点干货怎么能行？基于以上的整理，我写了一份“祖传代码”，可以直接拿来在 .NETCore中使用。代码较长，约 200行，已经上传到我的博客数据网站，各位可以自取：https://github.com/sdcb/blog-data/tree/master/2020/20200222-machinekey-in-dotnetcore

其实只要一行代码？

直到后来，我发现有人将这些功能封闭成了一个 NuGet包： AspNetTicketBridge，只需“一行”代码，就能搞定所有这些功能：

// https://github.com/dmarlow/AspNetTicketBridge
string cookie = "你的Cookie内容";
string validationKey = "machineKey中的validationKey";
string decryptionKey = "machineKey中的decryptionKey";
OwinAuthenticationTicket ticket = MachineKeyTicketUnprotector.UnprotectCookie(cookie, decryptionKey, validationKey);

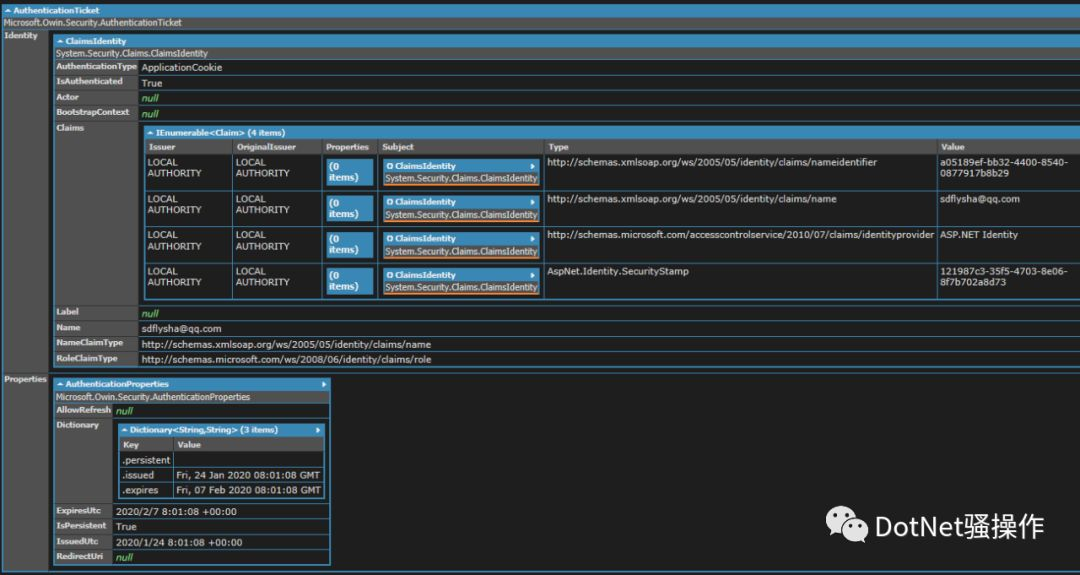

用 LINQPad运行，结果如下（完美破解）：
