整数倍数据位宽转换8to16

题目描述
实现数据位宽转换电路，实现8bit数据输入转换为16bit数据输出。其中，先到的8bit数据应置于输出16bit的高8位。

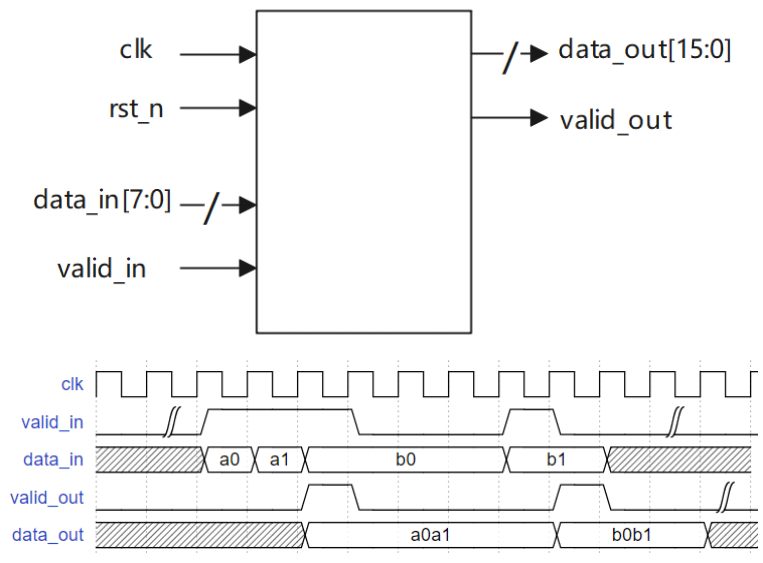

电路的接口如下图所示。valid_in用来指示数据输入data_in的有效性，valid_out用来指示数据输出data_out的有效性；clk是时钟信号；rst_n是异步复位信号。

方法一

`timescale 1ns/1nsmodule width_8to16(input 				   clk 		,   input 				   rst_n		,input				      valid_in	,input	   [7:0]		   data_in	,output	reg			valid_out,output   reg [15:0]	data_out
);reg [1:0] cnt;always@(posedge clk or negedge rst_n)beginif(!rst_n)cnt <= 2'b0;else if(valid_in == 1'b1 && cnt == 2'd1)cnt <= 2'b0;else if(valid_in == 1'b1)cnt <= cnt + 1'b1;endreg [7:0] data_in_reg;always@(posedge clk or negedge rst_n)beginif(!rst_n)data_in_reg <= 8'b0;else if(valid_in == 1'b1)data_in_reg <= data_in;endalways@(posedge clk or negedge rst_n)beginif(!rst_n)data_out <= 16'b0;else if(valid_in == 1'b1 && cnt == 2'd1)data_out <= {data_in_reg,data_in};endalways@(posedge clk or negedge rst_n)beginif(!rst_n)valid_out <= 1'b0;else if(valid_in == 1'b1 && cnt == 2'd1 )valid_out <= 1'b1;elsevalid_out <= 1'b0;end
endmodule

方法二：

`timescale 1ns/1nsmodule width_8to16(input                  clk      ,  input                  rst_n        ,input                     valid_in  ,input      [7:0]           data_in  ,output  reg         valid_out,output   reg [15:0] data_out
);reg [7:0] data;parameter WAIT1 =  1'b0;parameter WAIT2  = 1'b1;reg  cur_state;reg  next_state;always@(posedge clk or negedge rst_n)if(!rst_n)cur_state <= WAIT1;elsecur_state <= next_state;always@(*)case (cur_state)WAIT1: beginif(data_in) beginnext_state = WAIT2;end else beginnext_state = WAIT1;endendWAIT2: beginif(data_in)next_state = WAIT1;elsenext_state = WAIT2;endendcasealways@(posedge clk or negedge rst_n)if(!rst_n) begindata_out <= 16'd0;valid_out <= 1'b0;data <= 8'd0;end elsecase (cur_state)WAIT1: beginif(valid_in)data <= data_in;valid_out <= 1'b0;endWAIT2: beginif(valid_in) begindata_out <= {data, data_in};valid_out <= 1'b1;end elsevalid_out <= 1'b0;endendcaseendmodule
