时钟分频（偶数）

题目描述
请使用D触发器设计一个同时输出2/4/8分频的50%占空比的时钟分频器
注意rst为低电平复位。

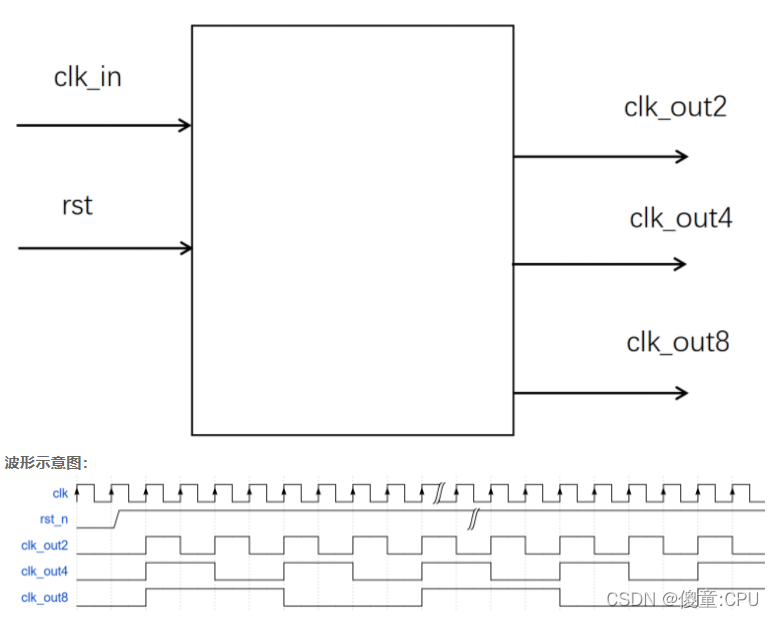

信号示意图：

`timescale 1ns/1nsmodule even_div(input     wire rst ,input     wire clk_in,output    wire clk_out2,output    wire clk_out4,output    wire clk_out8);
//*************code***********//reg[2:0] cnt;always@(posedge clk_in or negedge rst)beginif(!rst)cnt <= 3'b0;else if(cnt == 3'd7)cnt <= 3'b0;elsecnt <= cnt + 1'b1;endreg clk_out2_reg;reg clk_out4_reg;reg clk_out8_reg;always@(posedge clk_in or negedge rst)beginif(!rst)clk_out2_reg <= 1'b0;else if(cnt == 3'd0 || cnt == 3'd2 || cnt == 3'd4 || cnt == 3'd6)clk_out2_reg <= 1'b1;else clk_out2_reg <= 1'b0;                endalways@(posedge clk_in or negedge rst)beginif(!rst)clk_out4_reg <= 1'b0;else if(cnt == 3'd0 || cnt == 3'd1 || cnt == 3'd4 || cnt == 3'd5)clk_out4_reg <= 1'b1;else clk_out4_reg <= 1'b0;                endalways@(posedge clk_in or negedge rst)beginif(!rst)clk_out8_reg <= 1'b0;else if(cnt == 3'd0 || cnt == 3'd1 || cnt == 3'd2 || cnt == 3'd3)clk_out8_reg <= 1'b1;else clk_out8_reg <= 1'b0;                endassign clk_out2 = clk_out2_reg;assign clk_out4 = clk_out4_reg;assign clk_out8 = clk_out8_reg;//*************code***********//
endmodule

方法二

`timescale 1ns/1ns
module even_div(input     wire rst ,input     wire clk_in,output    wire clk_out2,output    wire clk_out4,output    wire clk_out8);reg [2:0]cnt;always@(posedge clk_in or negedge rst)if(!rst)cnt <= 3'b011;elsecnt <= cnt+1;assign clk_out2 = ~cnt[0];assign clk_out4 = ~cnt[1];assign clk_out8 = cnt[2];
endmodule
