基于Echarts+HTML5可视化数据大屏展示—设备环境监测平台大数据平台

🍅 作者主页：Java李杨勇

🍅 简介：Java领域优质创作者🏆、Java李杨勇公号作者✌ 简历模板、学习资料、面试题库、技术互助【关注我，都给你】

🍅 欢迎点赞 👍 收藏 ⭐留言 📝

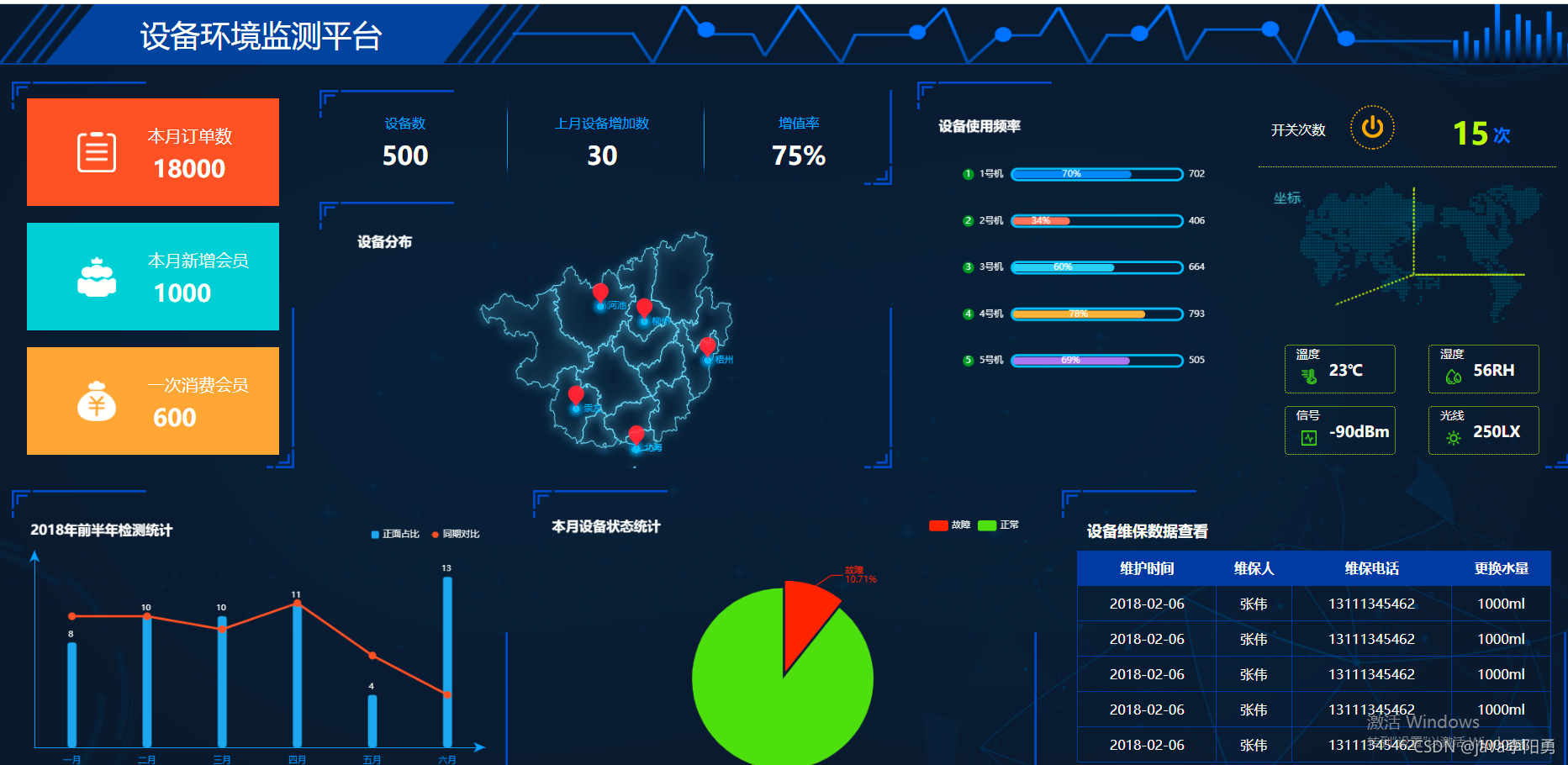

动图演示： 文末获取源码

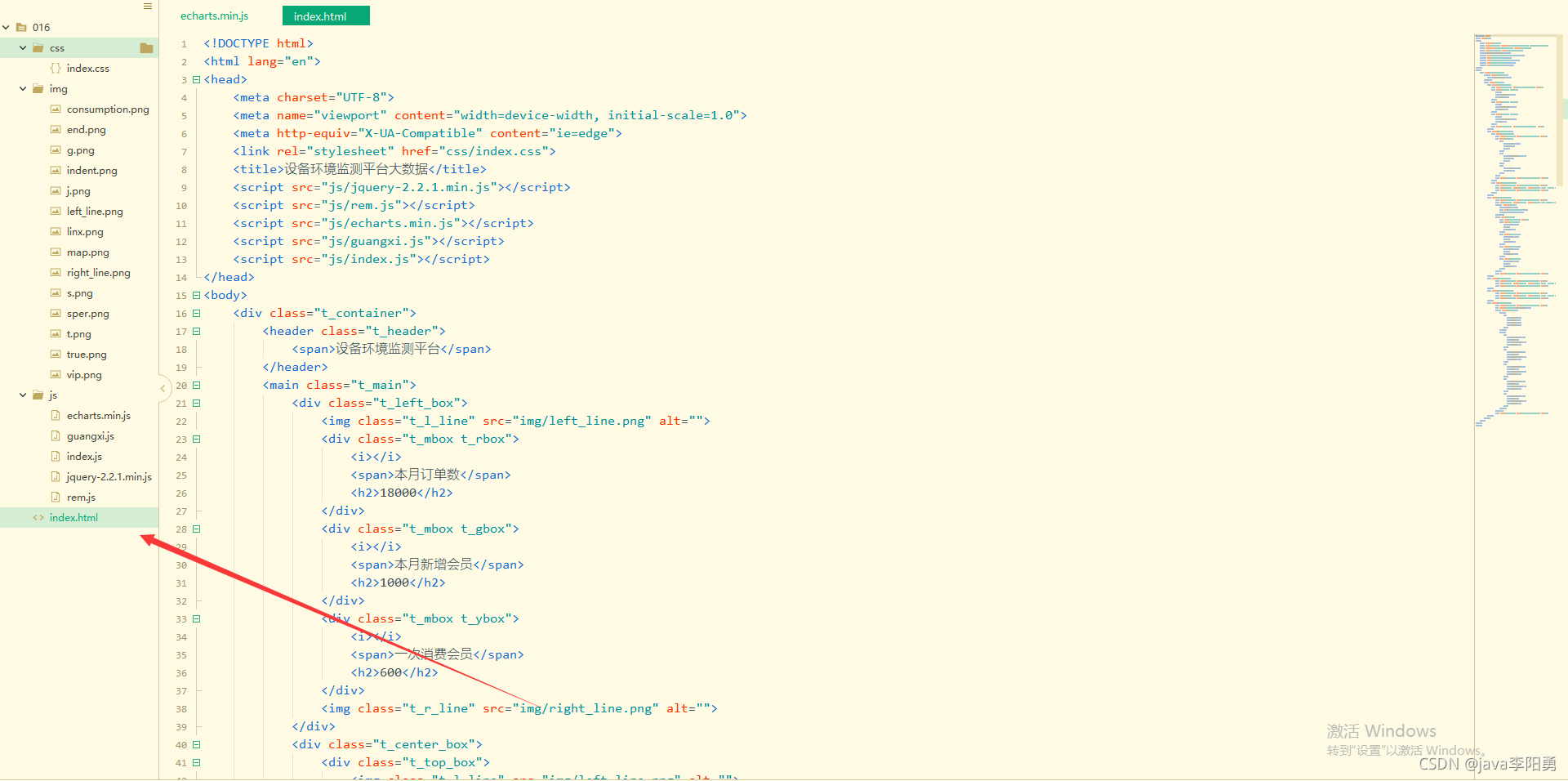

代码目录：

主要代码实现：

主页HTML布局：

 <div class="t_container"><header class="t_header"><span>设备环境监测平台</span></header><main class="t_main"><div class="t_left_box"><img class="t_l_line" src="img/left_line.png" alt=""><div class="t_mbox t_rbox"><i></i><span>本月订单数</span><h2>18000</h2></div><div class="t_mbox t_gbox"><i></i><span>本月新增会员</span><h2>1000</h2></div><div class="t_mbox t_ybox"><i></i><span>一次消费会员</span><h2>600</h2></div><img class="t_r_line" src="img/right_line.png" alt=""></div><div class="t_center_box"><div class="t_top_box"><img class="t_l_line" src="img/left_line.png" alt=""><ul class="t_nav"><li><span>设备数</span><h1>500</h1><i></i></li><li><span>上月设备增加数</span><h1>30</h1><i></i></li><li><span>增值率</span><h1>75%</h1></li></ul><img class="t_r_line" src="img/right_line.png" alt=""></div><div class="t_bottom_box"><img class="t_l_line" src="img/left_line.png" alt=""><div id="chart_3" class="echart" style="width: 100%; height: 3.6rem;"></div><img class="t_r_line" src="img/right_line.png" alt=""></div></div><div class="t_right_box"><img class="t_l_line" src="img/left_line.png" alt=""><div id="chart_4" class="echart" style="width: 50%; height: 4.6rem; position: absolute;"></div><header class="t_b_h"><span>开关次数</span><img src="img/end.png"></img><h3>15<span>次</span></h3></header><main class="t_b_m"><img src="img/map.png" alt=""><div class="t_b_box"><span>溫度</span><i></i><h2>23℃</h2></div><div class="t_b_box1"><span>湿度</span><i></i><h2>56RH</h2></div><div class="t_b_box2"><span>信号</span><i></i><h2>-90dBm</h2></div><div class="t_b_box3"><span>光线</span><i></i><h2>250LX</h2></div></main><img class="t_r_line" src="img/right_line.png" alt=""></div><div class="b_left_box"><img class="t_l_line" src="img/left_line.png" alt=""><div id="chart_2" class="echart" style="width: 100%; height: 3.6rem;"></div><img class="t_r_line" src="img/right_line.png" alt=""></div><div class="b_center_box"><img class="t_l_line" src="img/left_line.png" alt=""><div id="chart_1" class="echart" style="width: 100%; height: 3.6rem;"></div><img class="t_r_line" src="img/right_line.png" alt=""></div><div class="b_right_box"><img class="t_l_line" src="img/left_line.png" alt=""><h1 class="t_title">设备维保数据查看</h1><table class="t_table"><thead><tr><th>维护时间</th><th>维保人</th><th>维保电话</th><th>更换水量</th>  </tr></thead><tbody><tr><td>2018-02-06</td><td>张伟</td><td>13111345462</td><td>1000ml</td></tr><tr><td>2018-02-06</td><td>张伟</td><td>13111345462</td><td>1000ml</td></tr><tr><td>2018-02-06</td><td>张伟</td><td>13111345462</td><td>1000ml</td></tr><tr><td>2018-02-06</td><td>张伟</td><td>13111345462</td><td>1000ml</td></tr><tr><td>2018-02-06</td><td>张伟</td><td>13111345462</td><td>1000ml</td></tr></tbody></table><img class="t_r_line" src="img/right_line.png" alt=""></div></main>

CSS样式文件

html,body{width: 100%;height: 100%;margin: 0;padding: 0;
}
html{font-size: 100px;
}
ul,h1,h2,h3,h4,h5,h6,p{list-style: 0;padding: 0;margin: 0;
}
a{text-decoration: none;
}/*正文*/
.t_container{width: 100%;height: 100%;min-width: 1360px;background: url('../img/true.png') no-repeat;background-size: 100% 100%;position: relative;min-height: 756px;
}
.t_header{width: 100%;height: 80px;background: url('../img/linx.png') no-repeat;background-size: 100% 100%;position: relative;
}
.t_header span{color: #fff;font-size: 0.36rem;position: absolute;top: 50%;margin-top: -0.24rem;left: 9%;
}
.t_main{width: 98%;height: 8.74rem;margin: 0 auto;margin-top: 0.2rem;margin-bottom: 0;
}
.t_left_box{position: relative;width: 3.36rem;height: 4.6rem;display: inline-block;text-align: center;
}
.t_l_line{position: absolute;top: 0;left: 0;
}
.t_r_line{position: absolute;bottom: 0;right: 0;
}
.t_center_box{width: 6.82rem;display: inline-block;min-width: 490px;
}
.t_top_box{width: 100%;height: 1.13rem;overflow: hidden;position: relative;margin-bottom: 0.2rem;
}
.t_bottom_box{width: 100%;height: 3.17rem;overflow: hidden;position: relative;
}
.t_right_box{display: inline-block;width: 7.8rem;height: 4.6rem;position: relative;min-width: 560px;
}
.b_left_box{display: inline-block;width: 5.9rem;height: 3.6rem;position: relative;min-width: 425px;
}
.b_center_box{display: inline-block;width: 6rem;height: 3.6rem;position: relative;min-width: 432px;
}
.b_right_box{display: inline-block;width: 6rem;height: 3.6rem;position: relative;min-width: 432px;
}
.t_mbox{width: 3rem;height: 1.28rem;position: relative;margin: 0 auto;margin-top: 0.2rem;
}
.t_rbox{background: #D9523F;
}
.t_gbox{background: #13D0B2;
}
.t_ybox{background: #F6A645;
}
.t_mbox i{display: inline-block;width: 0.46rem;height: 0.48rem;position: absolute;top: 0;bottom: 0;left: 20%;margin: auto;
}
.t_mbox h2{font-size: 0.28rem;color: #fff;position: absolute;top: 50%;left: 50%;
}
.t_mbox span{font-size: 0.2rem;color: #fff;position: absolute;top: 24%;left: 48%;
}
.t_rbox i{background: url(../img/indent.png) no-repeat;background-size: 100% 100%;
}
.t_gbox i{background: url(../img/vip.png) no-repeat;background-size: 100% 100%;
}
.t_ybox i{background: url(../img/consumption.png) no-repeat;background-size: 100% 100%;
}
.t_nav{width: 100%;height: 100%;
}
.t_nav li{display: inline-block;width: 30%;height: 100%;text-align: center;position: relative;
}
.t_nav li span{font-size: 0.16rem;color: #1AA1FD;position: absolute;left: 0;right: 0;margin: auto;top: 25%;
}
.t_nav li h1{font-size: 0.30rem;color: #fff;position: absolute;left: 0;right: 0;margin: auto;top: 50%;
}
.t_nav li i{width: 1px;height: 100%;position: absolute;right: -0.2rem;background: url('../img/sper.png') no-repeat;background-size: 100% 100%;
}
.t_table{font-size: 0.16rem;color: #fff;width: 94%;margin: 0 auto;border-spacing: 0;text-align: center;box-sizing: border-box;margin-top: 12%;
}
.t_table tr{margin: 0;padding: 0;height: 0.42rem;
}
.t_table thead tr{background: #053A98;
}
.t_table tbody tr td:first-child{border-left: 1px solid #053A98;
}
.t_table td{border-bottom: 1px solid #053A98;border-right: 1px solid #053A98;
}
.t_title{position: absolute;font-size: 0.18rem;color: #fff;left: 5%;top: 10%;
}
.t_b_h,t_b_m{position: absolute;font-size: 0.16rem;left: 54%;width: 50%;height: 4.6rem;
}
.t_b_h span{position: absolute;color: #fff;top: 10%;
}
.t_b_h img{position: absolute;width: 0.53rem;height: 0.53rem;top: 6%;left: 24%
}
.t_b_h h3{font-size: 0.36rem;color: #F0FF00;position: absolute;left: 55%;top: 8%;width: 1rem;
}
.t_b_h h3 span{font-size: 0.2rem;position: absolute;left: 50%;top: 28%;color: #0072FF;
}

作品来自于网络收集、侵权立删

上面的图片文件以及js文件等需要引入进来
