接上一篇：SpringCloud Gateway 集成 oauth2 实现统一认证授权

一、目前存在的问题

1. 问题简述

• SpringCloudGateway的路由规则写死在配置文件中，无法支持动态更新
• 路由规则如何与服务注册中心联动

2. 集成nacos前配置

spring:cloud:gateway:routes:- id: producturi: http://localhost:9000predicates:- Host=product.gblfy.com**- id: authuri: http://localhost:5000predicates:- Path=/oauth/tokendatasource:driver-class-name: com.mysql.cj.jdbc.Driverurl: jdbc:mysql://localhost:3306/auth-serv?characterEncoding=UTF-8&serverTimezone=GMT%2B8username: rootpassword: 123456

3. 前言简述

首先咱们这篇基于SpringCloudGateway集成授权认证中心的oauth2的因此，发起请求之前需要先通过网关访问认证授权中心auth-serv获取token才可以访问后面的模块。

二、网关模块改造集成nacos

2.1. 引入依赖

<parent><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-parent</artifactId><version>2.3.2.RELEASE</version><relativePath/> <!-- lookup parent from repository --></parent><properties><spring.cloud-version>Hoxton.SR9</spring.cloud-version></properties><dependencies><!--配置中心--><dependency><groupId>com.alibaba.cloud</groupId><artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId></dependency><!--服务注册发现--><dependency><groupId>com.alibaba.cloud</groupId><artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId></dependency><!--安全认证框架--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-security</artifactId></dependency><!--security-oauth2整合--><dependency><groupId>org.springframework.security</groupId><artifactId>spring-security-oauth2-resource-server</artifactId></dependency><!--oauth2--><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-oauth2</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-jdbc</artifactId></dependency><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId></dependency><!--网关--><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-gateway</artifactId></dependency></dependencies><dependencyManagement><!--https://github.com/alibaba/spring-cloud-alibaba/wiki/%E7%89%88%E6%9C%AC%E8%AF%B4%E6%98%8E--><dependencies><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-dependencies</artifactId><version>${spring.cloud-version}</version><type>pom</type><scope>import</scope></dependency><!--spring-cloud-alibaba 版本控制--><dependency><groupId>com.alibaba.cloud</groupId><artifactId>spring-cloud-alibaba-dependencies</artifactId><version>2.2.6.RELEASE</version><type>pom</type><scope>import</scope></dependency></dependencies></dependencyManagement>

2.2. 创建bootstrap.yaml

server:port: 8081
spring:cloud:nacos:discovery:service: gateway-servserver-addr: localhost:8848config:server-addr: localhost:8848file-extension: yamlshared-configs[0]:dataId: gateway.yaml# 动态刷新refresh: true

将以前application.yml文件的内容，添加到nacos控制台的gateway.yaml

spring:cloud:gateway:routes:- id: producturi: http://localhost:9000predicates:- Host=product.gblfy.com**- id: authuri: http://localhost:5000predicates:- Path=/oauth/tokendatasource:driver-class-name: com.mysql.cj.jdbc.Driverurl: jdbc:mysql://localhost:3306/auth-serv?characterEncoding=UTF-8&serverTimezone=GMT%2B8username: rootpassword: 123456

2.3. 在nacos配置中心添加配置

新建配置

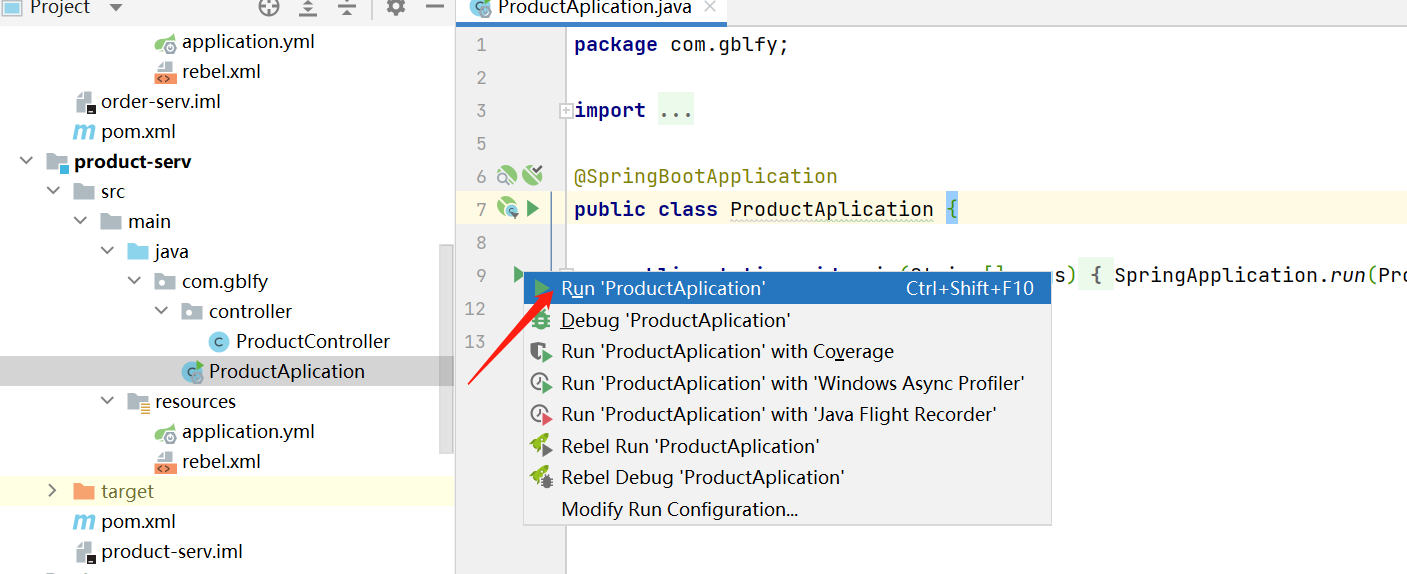

2.4. 启动服务

启动Gateway-Serv模块服务

启动auth-serv认证授权服务

启动product-serv服务

2.5. 访问产品模块

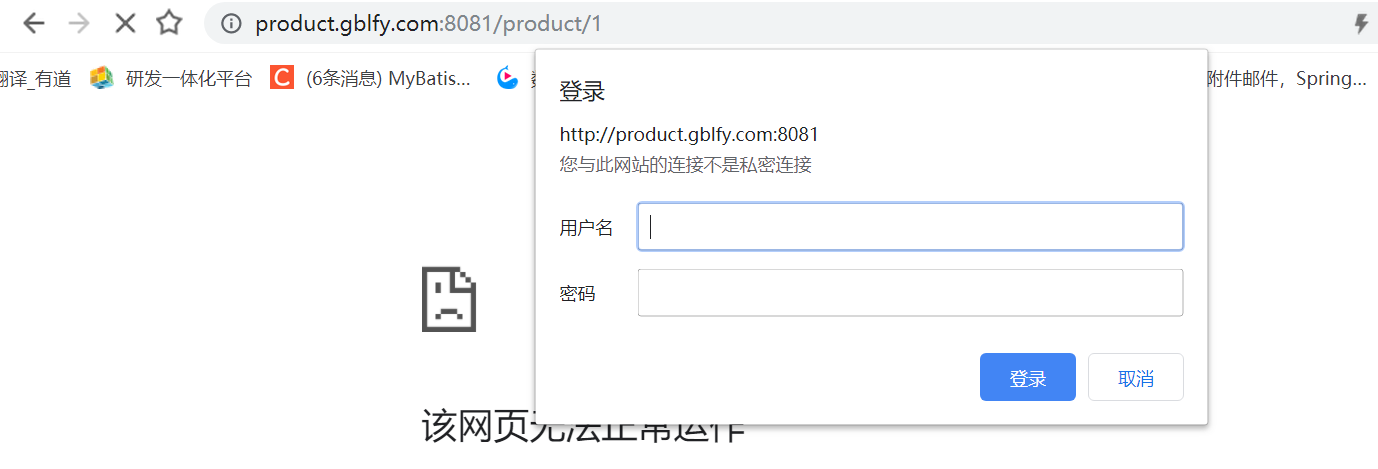

不请求auth-serv模块获取otken，直接通过网关访问产品模块

从上图可以看出访问需要认证授权

2.6. 获取toeken

http://localhost:8081/oauth/token
通过认证授权中心获取toekn

grant_type:password
client_id:app
client_secret:app
username:ziya
password:111111

2.7. 携带toekn访问产品模块

携带toekn通过网关服务访问产品模块
http://product.gblfy.com:8081/product/1

从图中可以看出，获取token后，通过网关服务可以正常请求产品模块，并有响应报文。

2.8. 怎样证明配置动态刷新呢

修改配置

再次通过网关请求产品服务模块服务

从图中可以看出访问请求拒接了，因为没有9200端口的服务应用。我们现在基于nacos-config配置动态将我们的路由规则管理起来了。

三、利用注册中心动态路由

3.1. 查看服务列表

有3台应用

3.2. 应用名称替换ip和端口

原配置

spring:cloud:gateway:routes:- id: producturi: http://localhost:9200predicates:- Host=product.gblfy.com**- id: authuri: http://localhost:5000predicates:- Path=/oauth/tokendatasource:driver-class-name: com.mysql.cj.jdbc.Driverurl: jdbc:mysql://localhost:3306/auth-serv?characterEncoding=UTF-8&serverTimezone=GMT%2B8username: rootpassword: 123456

改造后配置

spring:cloud:gateway:routes:- id: producturi: lb://product-servpredicates:- Host=product.gblfy.com**- id: authuri: lb://auth-servpredicates:- Path=/oauth/tokendatasource:driver-class-name: com.mysql.cj.jdbc.Driverurl: jdbc:mysql://localhost:3306/auth-serv?characterEncoding=UTF-8&serverTimezone=GMT%2B8username: rootpassword: 123456

3.3. 重新请求

http://product.gblfy.com:8081/product/1

Authorization: Bearer d364c6cc-3c60-402f-b3d0-af69f6d6b73e

从上图可以看出可以通过网关服务正常请求产品模块！
