官方文档链接：https://hugegraph.github.io/hugegraph-doc

HugeGraphServer Quick Start

1 概述

HugeGraph-Server 是 HugeGraph 项目的核心部分，包含Core、Backend、API等子模块。

Core模块是Tinkerpop接口的实现，Backend模块用于管理数据存储，目前支持的后端包括：Memory、Cassandra、ScyllaDB以及RocksDB，API模块提供HTTP Server，将Client的HTTP请求转化为对Core的调用。

文档中会大量出现HugeGraph-Server及HugeGraphServer这两种写法，其他组件也类似。这两种写法含义上并无大的差异，可以这么区分：HugeGraph-Server表示服务端相关组件代码，HugeGraphServer表示服务进程。

2 依赖

2.1 安装JDK-1.8

HugeGraph-Server 基于jdk-1.8开发，代码用到了较多jdk-1.8中的类和方法，请用户自行安装配置。

在往下阅读之前务必执行java -version命令查看jdk版本

java -version

2.2 安装GCC-4.3.0(GLIBCXX_3.4.10)或更新版本（可选）

如果使用的是RocksDB后端，请务必执行gcc --version命令查看gcc版本；若使用其他后端，则不需要。

gcc --version

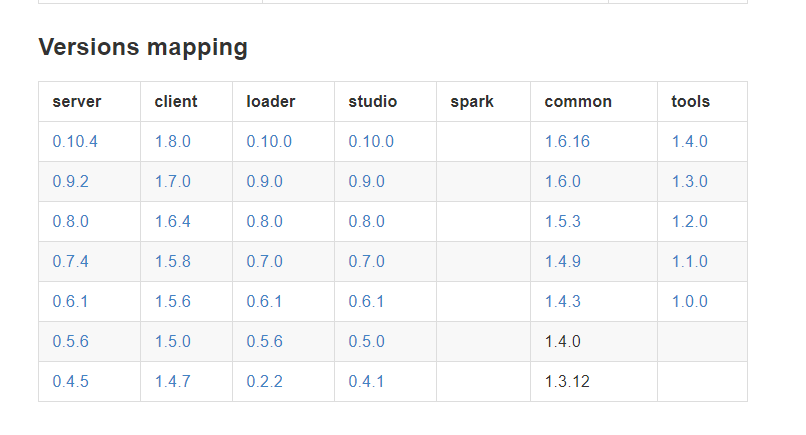

版本对应关系

3 部署

有三种方式可以部署HugeGraph-Server组件：

• 方式1：一键部署
• 方式2：下载tar包
• 方式3：源码编译

3.1 一键部署

HugeGraph-Tools提供了一键部署的命令行工具，用户可以使用该工具快速地一键下载、解压、配置并启动HugeGraphServer和HugeGraphStudio。 当然，还是得先下载HugeGraph-Tools的tar包。

wget https://github.com/hugegraph/hugegraph-tools/releases/download/v${version}/hugegraph-tools-${version}.tar.gz
tar -zxvf hugegraph-tools-${version}.tar.gz
cd hugegraph-tools-${version}

注：${version}为版本号，最新版本号可参考Download页面，或直接从Download页面点击链接下载

HugeGraph-Tools 的总入口脚本是bin/hugegraph，用户可以使用help子命令查看其用法，这里只介绍一键部署的命令。

bin/hugegraph deploy -v {hugegraph-version} -p {install-path} [-u {download-path-prefix}]

{hugegraph-version}表示要部署的HugeGraphServer及HugeGraphStudio的版本，用户可查看conf/version-mapping.yaml文件获取版本信息，{install-path}指定HugeGraphServer及HugeGraphStudio的安装目录，{download-path-prefix}可选，指定HugeGraphServer及HugeGraphStudio tar包的下载地址，不提供时使用默认下载地址，比如要启动 0.6 版本的HugeGraph-Server及HugeGraphStudio将上述命令写为bin/hugegraph deploy -v 0.6 -p services即可。

3.2 下载tar包

所有版本目录，我们这里使用 0.10.4 版本

https://github.com/hugegraph/hugegraph/releases

wget
https://github.com/hugegraph/hugegraph/releases/download/v0.10.4/hugegraph-0.10.4.tar.gz
tar -zxvf hugegraph-0.10.4.tar.gz

3.3 源码编译

下载HugeGraph源代码

git clone https://github.com/hugegraph/hugegraph.git

编译打包生成tar包

cd hugegraph
mvn package -DskipTests

执行日志如下：

......
[INFO] Reactor Summary:
[INFO]
[INFO] hugegraph .......................................... SUCCESS [  0.003 s]
[INFO] hugegraph-core ..................................... SUCCESS [ 15.335 s]
[INFO] hugegraph-api ...................................... SUCCESS [  0.829 s]
[INFO] hugegraph-cassandra ................................ SUCCESS [  1.095 s]
[INFO] hugegraph-scylladb ................................. SUCCESS [  0.313 s]
[INFO] hugegraph-rocksdb .................................. SUCCESS [  0.506 s]
[INFO] hugegraph-mysql .................................... SUCCESS [  0.412 s]
[INFO] hugegraph-palo ..................................... SUCCESS [  0.359 s]
[INFO] hugegraph-dist ..................................... SUCCESS [  7.470 s]
[INFO] hugegraph-example .................................. SUCCESS [  0.403 s]
[INFO] hugegraph-test ..................................... SUCCESS [  1.509 s]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
......

执行成功后，在hugegraph目录下生成 hugegraph-*.tar.gz 文件，就是编译生成的tar包。

4 配置

如果需要快速启动HugeGraph仅用于测试，那么只需要进行少数几个配置项的修改即可（见下一节）。 详细的配置介绍请参考配置文档及配置项介绍

5 启动

启动分为"首次启动"和"非首次启动"，这么区分是因为在第一次启动前需要初始化后端数据库，然后启动服务。 而在人为停掉服务后，或者其他原因需要再次启动服务时，因为后端数据库是持久化存在的，直接启动服务即可。

HugeGraphServer启动时会连接后端存储并尝试检查后端存储版本号，如果未初始化后端或者后端已初始化但版本不匹配时（旧版本数据），HugeGraphServer会启动失败，并给出错误信息。

如果需要外部访问HugeGraphServer，请修改rest-server.properties的restserver.url配置项 （默认为http://127.0.0.1:8080），修改成机器名或IP地址。

由于各种后端所需的配置（hugegraph.properties）及启动步骤略有不同，下面逐一对各后端的配置及启动做介绍。

HugeGraphServer的默认配置只能是本机访问，可以修改配置，使其能在其他机器访问。

 vim conf/rest-server.propertiesrestserver.url=http://0.0.0.0:8080



5.1 Memory （建议测试学习时使用）

修改 hugegraph.properties

backend=memory
serializer=text

Memory后端的数据是保存在内存中无法持久化的，不需要初始化后端，这也是唯一一个不需要初始化的后端。

启动 server

bin/start-hugegraph.sh
Starting HugeGraphServer...
Connecting to HugeGraphServer (http://127.0.0.1:8080/graphs)....OK

提示的 url 与 rest-server.properties 中配置的 restserver.url 一致

5.2 HBase

用户需自行安装 HBase，要求版本 2.0 以上，下载地址

修改 hugegraph.properties

backend=hbase
serializer=hbase# hbase backend config
hbase.hosts=localhost
hbase.port=2181

初始化数据库（仅第一次启动时需要）

cd hugegraph-${version}
bin/init-store.sh

查看日志，发现会在hbase创建一些表

2020-01-08 14:23:37 8612  [main] [INFO ] com.baidu.hugegraph.cmd.InitStore [] - Init graph with config file: conf/hugegraph.properties
2020-01-08 14:23:37 8697  [main] [INFO ] com.baidu.hugegraph.HugeGraph [] - Opening backend store 'hbase' for graph 'hugegraph'
2020-01-08 14:23:37 8944  [main] [WARN ] org.apache.hadoop.util.NativeCodeLoader [] - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2020-01-08 14:23:37 9285  [main] [INFO ] org.apache.hadoop.hbase.zookeeper.ReadOnlyZKClient [] - Connect 0x38aa816f to 192.168.2.116:2181 with session timeout=90000ms, retries 3, retry interval 1000ms, keepAlive=60000ms
2020-01-08 14:23:38 10101 [main] [INFO ] org.apache.hadoop.hbase.zookeeper.ReadOnlyZKClient [] - Connect 0x2c7b5824 to 192.168.2.116:2181 with session timeout=90000ms, retries 3, retry interval 1000ms, keepAlive=60000ms
2020-01-08 14:23:39 11019 [main] [INFO ] org.apache.hadoop.hbase.zookeeper.ReadOnlyZKClient [] - Connect 0x6bb2d00b to 192.168.2.116:2181 with session timeout=90000ms, retries 3, retry interval 1000ms, keepAlive=60000ms
2020-01-08 14:23:41 12754 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_di completed
2020-01-08 14:23:41 13472 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_ie completed
2020-01-08 14:23:43 14700 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_vi completed
2020-01-08 14:23:43 15414 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_hi completed
2020-01-08 14:23:44 16127 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_li completed
2020-01-08 14:23:45 16852 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_ui completed
2020-01-08 14:23:46 17566 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_v completed
2020-01-08 14:23:46 18278 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_si completed
2020-01-08 14:23:47 18990 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_ii completed
2020-01-08 14:23:48 20205 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_oe completed
2020-01-08 14:23:49 20917 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_fi completed
2020-01-08 14:23:50 21631 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_ei completed
2020-01-08 14:23:51 22842 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:s_ai completed
2020-01-08 14:23:52 23783 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_di completed
2020-01-08 14:23:53 25071 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_ie completed
2020-01-08 14:23:54 25784 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_vi completed
2020-01-08 14:23:54 26497 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_hi completed
2020-01-08 14:23:55 27211 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_li completed
2020-01-08 14:23:56 27923 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_ui completed
2020-01-08 14:23:57 28638 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_v completed
2020-01-08 14:23:58 29850 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_si completed
2020-01-08 14:23:59 30584 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_ii completed
2020-01-08 14:23:59 31299 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_oe completed
2020-01-08 14:24:01 32567 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_fi completed
2020-01-08 14:24:09 41383 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_ei completed
2020-01-08 14:24:10 42187 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:g_ai completed
2020-01-08 14:24:11 43427 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:vl completed
2020-01-08 14:24:12 44156 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:el completed
2020-01-08 14:24:13 44923 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:m_si completed
2020-01-08 14:24:14 46156 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:il completed
2020-01-08 14:24:15 47533 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:pk completed
2020-01-08 14:24:16 48291 [main] [INFO ] org.apache.hadoop.hbase.client.HBaseAdmin [] - Operation: CREATE, Table Name: hugegraph:c completed
2020-01-08 14:24:18 50524 [main] [INFO ] com.baidu.hugegraph.HugeGraph [] - Graph 'hugegraph' has been initialized
2020-01-08 14:24:18 50524 [main] [INFO ] com.baidu.hugegraph.HugeGraph [] - Close graph hugegraph[hugegraph]
2020-01-08 14:24:18 50529 [main] [INFO ] org.apache.hadoop.hbase.client.ConnectionImplementation [] - Closing master protocol: MasterService
2020-01-08 14:24:18 50529 [main] [INFO ] org.apache.hadoop.hbase.zookeeper.ReadOnlyZKClient [] - Close zookeeper connection 0x6bb2d00b to 192.168.2.116:2181
2020-01-08 14:24:18 50540 [main] [INFO ] org.apache.hadoop.hbase.client.ConnectionImplementation [] - Closing master protocol: MasterService
2020-01-08 14:24:18 50540 [main] [INFO ] org.apache.hadoop.hbase.zookeeper.ReadOnlyZKClient [] - Close zookeeper connection 0x2c7b5824 to 192.168.2.116:2181
2020-01-08 14:24:18 50540 [main] [INFO ] org.apache.hadoop.hbase.client.ConnectionImplementation [] - Closing master protocol: MasterService
2020-01-08 14:24:18 50544 [main] [INFO ] org.apache.hadoop.hbase.zookeeper.ReadOnlyZKClient [] - Close zookeeper connection 0x38aa816f to 192.168.2.116:2181
2020-01-08 14:24:19 50606 [Thread-1] [INFO ] com.baidu.hugegraph.HugeGraph [] - HugeGraph is shutting down



启动server

bin/start-hugegraph.sh
Starting HugeGraphServer...
Connecting to HugeGraphServer (http://127.0.0.1:8080/graphs)....OK

6 访问Server

6.1 服务启动状态校验

jps查看服务进程

jps
6475 HugeGraphServer

curl请求RestfulAPI

echo `curl -o /dev/null -s -w %{http_code} "http://localhost:8080/graphs/hugegraph/graph/vertices"`

返回结果200，代表server启动正常

7 停止Server

$cd hugegraph-${version}
$bin/stop-hugegraph.sh



异常

1.启动之前未进行初始化操作，第一次启动需要先

bin/init-store.sh

 再执行

bin/start-hugegraph.sh

 异常内容

2020-01-08 14:20:50 13629 [main] [ERROR] com.baidu.hugegraph.dist.HugeGraphServer [] - HugeRestServer start error:
com.baidu.hugegraph.backend.BackendException: The backend store of 'hugegraph' has not been initializedat com.baidu.hugegraph.core.GraphManager.checkBackendVersionOrExit(GraphManager.java:206) ~[hugegraph-api-0.10.4.jar:0.48.0.0]at com.baidu.hugegraph.core.GraphManager.<init>(GraphManager.java:76) ~[hugegraph-api-0.10.4.jar:0.48.0.0]at com.baidu.hugegraph.server.ApplicationConfig$GraphManagerFactory$1.onEvent(ApplicationConfig.java:108) ~[hugegraph-api-0.10.4.jar:0.48.0.0]at org.glassfish.jersey.server.internal.monitoring.CompositeApplicationEventListener.onEvent(CompositeApplicationEventListener.java:74) ~[jersey-server-2.25.1.jar:?]at org.glassfish.jersey.server.internal.monitoring.MonitoringContainerListener.onStartup(MonitoringContainerListener.java:81) ~[jersey-server-2.25.1.jar:?]at org.glassfish.jersey.server.ApplicationHandler.onStartup(ApplicationHandler.java:1180) ~[jersey-server-2.25.1.jar:?]at org.glassfish.jersey.grizzly2.httpserver.GrizzlyHttpContainer.start(GrizzlyHttpContainer.java:357) ~[jersey-container-grizzly2-http-2.25.1.jar:?]at org.glassfish.grizzly.http.server.HttpHandlerChain.start(HttpHandlerChain.java:422) ~[grizzly-http-server-2.3.28.jar:2.3.28]at org.glassfish.grizzly.http.server.HttpServer.setupHttpHandler(HttpServer.java:314) ~[grizzly-http-server-2.3.28.jar:2.3.28]at org.glassfish.grizzly.http.server.HttpServer.start(HttpServer.java:290) ~[grizzly-http-server-2.3.28.jar:2.3.28]at com.baidu.hugegraph.server.RestServer.start(RestServer.java:62) ~[hugegraph-api-0.10.4.jar:0.48.0.0]at com.baidu.hugegraph.server.RestServer.start(RestServer.java:113) ~[hugegraph-api-0.10.4.jar:0.48.0.0]at com.baidu.hugegraph.dist.HugeRestServer.start(HugeRestServer.java:58) ~[hugegraph-dist-0.10.4.jar:?]at com.baidu.hugegraph.dist.HugeGraphServer.<init>(HugeGraphServer.java:55) [hugegraph-dist-0.10.4.jar:?]at com.baidu.hugegraph.dist.HugeGraphServer.main(HugeGraphServer.java:100) [hugegraph-dist-0.10.4.jar:?]
2020-01-08 14:20:50 13645 [main] [INFO ] org.apache.tinkerpop.gremlin.server.GremlinServer [] - Shutting down OpProcessor[]
2020-01-08 14:20:50 13645 [main] [INFO ] org.apache.tinkerpop.gremlin.server.GremlinServer [] - Shutting down OpProcessor[session]
2020-01-08 14:20:50 13646 [main] [INFO ] org.apache.tinkerpop.gremlin.server.GremlinServer [] - Shutting down OpProcessor[traversal]
2020-01-08 14:20:50 13646 [main] [INFO ] org.apache.tinkerpop.gremlin.server.GremlinServer [] - Shutting down thread pools.
2020-01-08 14:20:50 13652 [gremlin-server-stop] [INFO ] org.apache.tinkerpop.gremlin.server.GremlinServer [] - Executing shutdown LifeCycleHook
2020-01-08 14:20:50 13652 [gremlin-server-stop] [INFO ] org.apache.tinkerpop.gremlin.server.GremlinServer [] - Executed once at shutdown of Gremlin Server.
2020-01-08 14:20:52 15854 [gremlin-server-stop] [INFO ] com.baidu.hugegraph.HugeGraph [] - Close graph hugegraph[hugegraph]
2020-01-08 14:20:52 15862 [gremlin-server-stop] [WARN ] org.apache.tinkerpop.gremlin.server.GremlinServer [] - Exception while closing Graph instance [hugegraph]
java.lang.IllegalStateException: Ensure tx closed in all threads when closing graph 'hugegraph'at com.google.common.base.Preconditions.checkState(Preconditions.java:199) ~[guava-19.0.jar:?]at com.baidu.hugegraph.util.E.checkState(E.java:68) ~[hugegraph-common-1.6.16.jar:1.6.16.0]at com.baidu.hugegraph.HugeGraph.close(HugeGraph.java:503) ~[hugegraph-core-0.10.4.jar:0.10.4.0]at org.apache.tinkerpop.gremlin.server.GremlinServer.lambda$null$7(GremlinServer.java:298) ~[gremlin-server-3.4.3.jar:3.4.3]at java.util.concurrent.ConcurrentHashMap$KeySetView.forEach(ConcurrentHashMap.java:4649) ~[?:1.8.0_121]at org.apache.tinkerpop.gremlin.server.GremlinServer.lambda$stop$8(GremlinServer.java:295) ~[gremlin-server-3.4.3.jar:3.4.3]at java.lang.Thread.run(Thread.java:745) [?:1.8.0_121]
2020-01-08 14:20:52 15863 [gremlin-server-stop] [INFO ] org.apache.tinkerpop.gremlin.server.GremlinServer [] - Closed Graph instance [hugegraph]
2020-01-08 14:20:52 15864 [gremlin-server-stop] [INFO ] org.apache.tinkerpop.gremlin.server.GremlinServer [] - Gremlin Server - shutdown complete
Exception in thread "main" com.baidu.hugegraph.backend.BackendException: The backend store of 'hugegraph' has not been initializedat com.baidu.hugegraph.core.GraphManager.checkBackendVersionOrExit(GraphManager.java:206)at com.baidu.hugegraph.core.GraphManager.<init>(GraphManager.java:76)at com.baidu.hugegraph.server.ApplicationConfig$GraphManagerFactory$1.onEvent(ApplicationConfig.java:108)at org.glassfish.jersey.server.internal.monitoring.CompositeApplicationEventListener.onEvent(CompositeApplicationEventListener.java:74)at org.glassfish.jersey.server.internal.monitoring.MonitoringContainerListener.onStartup(MonitoringContainerListener.java:81)at org.glassfish.jersey.server.ApplicationHandler.onStartup(ApplicationHandler.java:1180)at org.glassfish.jersey.grizzly2.httpserver.GrizzlyHttpContainer.start(GrizzlyHttpContainer.java:357)at org.glassfish.grizzly.http.server.HttpHandlerChain.start(HttpHandlerChain.java:422)at org.glassfish.grizzly.http.server.HttpServer.setupHttpHandler(HttpServer.java:314)at org.glassfish.grizzly.http.server.HttpServer.start(HttpServer.java:290)at com.baidu.hugegraph.server.RestServer.start(RestServer.java:62)at com.baidu.hugegraph.server.RestServer.start(RestServer.java:113)at com.baidu.hugegraph.dist.HugeRestServer.start(HugeRestServer.java:58)at com.baidu.hugegraph.dist.HugeGraphServer.<init>(HugeGraphServer.java:55)at com.baidu.hugegraph.dist.HugeGraphServer.main(HugeGraphServer.java:100)
