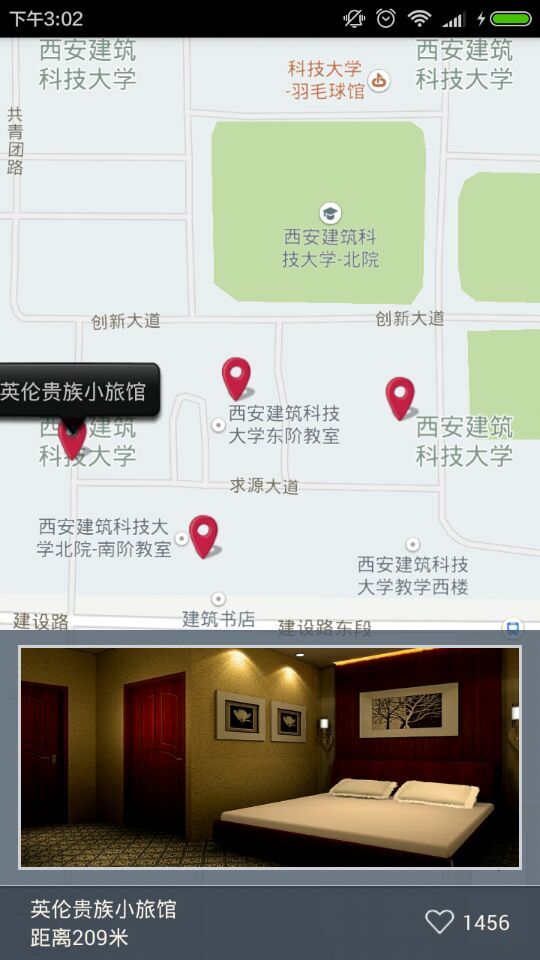

本文主要讲解如何实现在百度地图上添加覆盖物
1.承载数据的实体
我们从服务器返回的数据部分,最终可能是个Json数组,我们需要转换为实体集合,即下面的Info.java
我直接在实体类中声明了一个静态列表集合,模拟从服务器返回的数据Info.infos
package com.zj.map2;import java.io.Serializable;
import java.util.ArrayList;
import java.util.List; public class Info implements Serializable
{ private static final long serialVersionUID = -758459502806858414L; /** * 精度 */ private double latitude; /** * 纬度 */ private double longitude; /** * 图片ID,真实项目中可能是图片路径 */ private int imgId; /** * 商家名称 */ private String name; /** * 距离 */ private String distance; /** * 赞数量 */ private int zan; public static List<Info> infos = new ArrayList<Info>(); static { infos.add(new Info(34.242652, 108.971171, R.drawable.a01, "英伦贵族小旅馆", "距离209米", 1456)); infos.add(new Info(34.242952, 108.972171, R.drawable.a02, "沙井国际洗浴会所", "距离897米", 456)); infos.add(new Info(34.242852, 108.973171, R.drawable.a03, "五环服装城", "距离249米", 1456)); infos.add(new Info(34.242152, 108.971971, R.drawable.a04, "老米家泡馍小炒", "距离679米", 1456)); } public Info() { } public Info(double latitude, double longitude, int imgId, String name, String distance, int zan) { super(); this.latitude = latitude; this.longitude = longitude; this.imgId = imgId; this.name = name; this.distance = distance; this.zan = zan; } public double getLatitude() { return latitude; } public void setLatitude(double latitude) { this.latitude = latitude; } public double getLongitude() { return longitude; } public void setLongitude(double longitude) { this.longitude = longitude; } public String getName() { return name; } public int getImgId() { return imgId; } public void setImgId(int imgId) { this.imgId = imgId; } public void setName(String name) { this.name = name; } public String getDistance() { return distance; } public void setDistance(String distance) { this.distance = distance; } public int getZan() { return zan; } public void setZan(int zan) { this.zan = zan; } }
在地图中添加overlay
/** * 初始化图层 */ public void addInfosOverlay(List<Info> infos) { mBaiduMap.clear(); LatLng latLng = null; OverlayOptions overlayOptions = null; Marker marker = null; for (Info info : infos) { // 位置 latLng = new LatLng(info.getLatitude(), info.getLongitude()); // 图标 overlayOptions = new MarkerOptions().position(latLng) .icon(mIconMaker).zIndex(5); marker = (Marker) (mBaiduMap.addOverlay(overlayOptions)); Bundle bundle = new Bundle(); bundle.putSerializable("info", info); marker.setExtraInfo(bundle); } // 将地图移到到最后一个经纬度位置 MapStatusUpdate u = MapStatusUpdateFactory.newLatLng(latLng); mBaiduMap.setMapStatus(u); }
为地图上的maker添加点击事件
(记得生成TextView的时候,先设置背景,再设置padding,不然可能会失效~~~)
private void initMarkerClickEvent(){// 对Marker的点击mBaiduMap.setOnMarkerClickListener(new OnMarkerClickListener(){@Overridepublic boolean onMarkerClick(final Marker marker){// 获得marker中的数据Info info = (Info) marker.getExtraInfo().get("info");InfoWindow mInfoWindow;// 生成一个TextView用户在地图中显示InfoWindowTextView location = new TextView(getApplicationContext());location.setBackgroundResource(R.drawable.location_tips);location.setPadding(30, 20, 30, 50);location.setText(info.getName());// 将marker所在的经纬度的信息转化成屏幕上的坐标final LatLng ll = marker.getPosition();Point p = mBaiduMap.getProjection().toScreenLocation(ll);p.y -= 47;LatLng llInfo = mBaiduMap.getProjection().fromScreenLocation(p);// 为弹出的InfoWindow添加点击事件//mInfoWindow=new InfoWindow(location);mInfoWindow = new InfoWindow(location, llInfo,0);location.setOnClickListener(new OnClickListener() {@Overridepublic void onClick(View v) {// TODO Auto-generated method stubmBaiduMap.hideInfoWindow();}});// 显示InfoWindowmBaiduMap.showInfoWindow(mInfoWindow);// 设置详细信息布局为可见mMarkerInfoLy.setVisibility(View.VISIBLE);// 根据商家信息为详细信息布局设置信息popupInfo(mMarkerInfoLy, info);return true;}});}
布局文件
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"android:layout_width="match_parent"android:layout_height="match_parent"tools:context="${relativePackage}.${activityClass}" ><com.baidu.mapapi.map.MapView
android:id="@+id/id_bmapView"android:layout_width="fill_parent"android:layout_height="fill_parent"android:clickable="true" /><RelativeLayout android:id="@+id/id_marker_info" android:visibility="gone" android:layout_width="fill_parent" android:layout_height="220dp" android:layout_alignParentBottom="true" android:background="#CC4e5a6b" android:clickable="true" > <ImageView android:id="@+id/info_img" android:layout_width="fill_parent" android:layout_height="150dp" android:layout_marginBottom="10dp" android:layout_marginLeft="12dp" android:layout_marginRight="12dp" android:layout_marginTop="10dp" android:alpha="1.0" android:background="@drawable/map_image_border_white" android:clickable="true" android:scaleType="fitXY" android:src="@drawable/a04" /> <RelativeLayout android:layout_width="fill_parent" android:layout_height="50dp" android:layout_alignParentBottom="true" android:background="@drawable/bg_map_bottom" > <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_centerVertical="true" android:layout_marginLeft="20dp" android:orientation="vertical" > <TextView android:id="@+id/info_name" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="老米家泡馍小炒" android:textColor="#FFF5EB" /> <TextView android:id="@+id/info_distance" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="距离200米" android:textColor="#FFF5EB" /> </LinearLayout> <LinearLayout android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignParentRight="true" android:layout_centerVertical="true" android:layout_marginRight="20dp" android:orientation="horizontal" > <ImageView android:layout_width="wrap_content" android:layout_height="wrap_content" android:onClick="zan" android:src="@drawable/map_zan" /> <TextView android:id="@+id/info_zan" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center" android:text="652" android:textColor="#FFF5EB" /> </LinearLayout> </RelativeLayout> </RelativeLayout> </RelativeLayout>
MainActivity完整代码
package com.zj.map2;import java.util.List;import com.baidu.mapapi.SDKInitializer;
import com.baidu.mapapi.map.BaiduMap;
import com.baidu.mapapi.map.BaiduMap.OnMapClickListener;
import com.baidu.mapapi.map.BaiduMap.OnMarkerClickListener;
import com.baidu.mapapi.map.BitmapDescriptor;
import com.baidu.mapapi.map.BitmapDescriptorFactory;
import com.baidu.mapapi.map.InfoWindow;
import com.baidu.mapapi.map.MapPoi;
import com.baidu.mapapi.map.MapStatusUpdate;
import com.baidu.mapapi.map.MapStatusUpdateFactory;
import com.baidu.mapapi.map.MapView;
import com.baidu.mapapi.map.Marker;
import com.baidu.mapapi.map.MarkerOptions;
import com.baidu.mapapi.map.OverlayOptions;
import com.baidu.mapapi.model.LatLng;import android.app.Activity;
import android.graphics.Point;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.ImageView;
import android.widget.RelativeLayout;
import android.widget.TextView;public class MainActivity extends Activity {MapView mapView;BaiduMap mBaiduMap;// 初始化全局 bitmap 信息,不用时及时 recycleprivate BitmapDescriptor mIconMaker;private RelativeLayout mMarkerInfoLy;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);SDKInitializer.initialize(getApplicationContext());setContentView(R.layout.activity_main);mapView=(MapView) findViewById(R.id.id_bmapView);mMarkerInfoLy = (RelativeLayout) findViewById(R.id.id_marker_info);mBaiduMap=mapView.getMap();mIconMaker = BitmapDescriptorFactory.fromResource(R.drawable.maker);MapStatusUpdate msu = MapStatusUpdateFactory.zoomTo(15.0f);mBaiduMap.setMapStatus(msu);initMarkerClickEvent();initMapClickEvent();}private void initMapClickEvent(){mBaiduMap.setOnMapClickListener(new OnMapClickListener(){@Overridepublic boolean onMapPoiClick(MapPoi arg0){return false;}@Overridepublic void onMapClick(LatLng arg0){mMarkerInfoLy.setVisibility(View.GONE);mBaiduMap.hideInfoWindow();}});}private void initMarkerClickEvent(){// 对Marker的点击mBaiduMap.setOnMarkerClickListener(new OnMarkerClickListener(){@Overridepublic boolean onMarkerClick(final Marker marker){// 获得marker中的数据Info info = (Info) marker.getExtraInfo().get("info");InfoWindow mInfoWindow;// 生成一个TextView用户在地图中显示InfoWindowTextView location = new TextView(getApplicationContext());location.setBackgroundResource(R.drawable.location_tips);location.setPadding(30, 20, 30, 50);location.setText(info.getName());// 将marker所在的经纬度的信息转化成屏幕上的坐标final LatLng ll = marker.getPosition();Point p = mBaiduMap.getProjection().toScreenLocation(ll);p.y -= 47;LatLng llInfo = mBaiduMap.getProjection().fromScreenLocation(p);// 为弹出的InfoWindow添加点击事件//mInfoWindow=new InfoWindow(location);mInfoWindow = new InfoWindow(location, llInfo,0);location.setOnClickListener(new OnClickListener() {@Overridepublic void onClick(View v) {// TODO Auto-generated method stubmBaiduMap.hideInfoWindow();}});// 显示InfoWindowmBaiduMap.showInfoWindow(mInfoWindow);// 设置详细信息布局为可见mMarkerInfoLy.setVisibility(View.VISIBLE);// 根据商家信息为详细信息布局设置信息popupInfo(mMarkerInfoLy, info);return true;}});}/** * 根据info为布局上的控件设置信息 * * @param mMarkerInfo2 * @param info */ protected void popupInfo(RelativeLayout mMarkerLy, Info info) { ViewHolder viewHolder = null; if (mMarkerLy.getTag() == null) { viewHolder = new ViewHolder(); viewHolder.infoImg = (ImageView) mMarkerLy .findViewById(R.id.info_img); viewHolder.infoName = (TextView) mMarkerLy .findViewById(R.id.info_name); viewHolder.infoDistance = (TextView) mMarkerLy .findViewById(R.id.info_distance); viewHolder.infoZan = (TextView) mMarkerLy .findViewById(R.id.info_zan); mMarkerLy.setTag(viewHolder); } viewHolder = (ViewHolder) mMarkerLy.getTag(); viewHolder.infoImg.setImageResource(info.getImgId()); viewHolder.infoDistance.setText(info.getDistance()); viewHolder.infoName.setText(info.getName()); viewHolder.infoZan.setText(info.getZan() + ""); } /** * 复用弹出面板mMarkerLy的控件 * * @author zhy * */ private class ViewHolder { ImageView infoImg; TextView infoName; TextView infoDistance; TextView infoZan; } @Overridepublic boolean onCreateOptionsMenu(Menu menu) {// TODO Auto-generated method stubgetMenuInflater().inflate(R.menu.main, menu);return super.onCreateOptionsMenu(menu);}@Overridepublic boolean onOptionsItemSelected(MenuItem item) {// TODO Auto-generated method stubswitch (item.getItemId()) {case R.id.id_menu_map_addMaker:addInfosOverlay(Info.infos);break;default:break;}return super.onOptionsItemSelected(item);}/*** 初始化图层*/public void addInfosOverlay(List<Info> infos){mBaiduMap.clear();LatLng latLng = null;OverlayOptions overlayOptions = null;Marker marker = null;for (Info info : infos){// 位置latLng = new LatLng(info.getLatitude(), info.getLongitude());// 图标overlayOptions = new MarkerOptions().position(latLng).icon(mIconMaker).zIndex(5);marker = (Marker) (mBaiduMap.addOverlay(overlayOptions));Bundle bundle = new Bundle();bundle.putSerializable("info", info);marker.setExtraInfo(bundle);}// 将地图移到到最后一个经纬度位置MapStatusUpdate u = MapStatusUpdateFactory.newLatLng(latLng);mBaiduMap.setMapStatus(u);}
}
参考链接:
Android 百度地图 SDK v3.0.0 (三) 添加覆盖物Marker与InfoWindow的使用 - Hongyang - 博客频道 - CSDN.NET
