CenterNet:Objects as Points

CenterNet论文链接

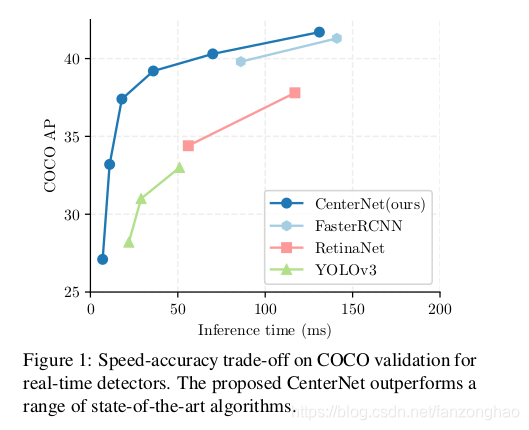

一.背景

1.anchor-base缺点　　　　　　　　　

(１)．anchor的设置对结果影响很大,不同项目这些超参都需要根据经验来确定，难度较大．

(２)．anchor太过密集，其中很多是负样本，引入了不平衡．

(３)．anchor的计算涉及IOU增加计算复杂度．

2.应用场景

（１）．目标检测

（２）．3D定位

（３）．人体姿态估计

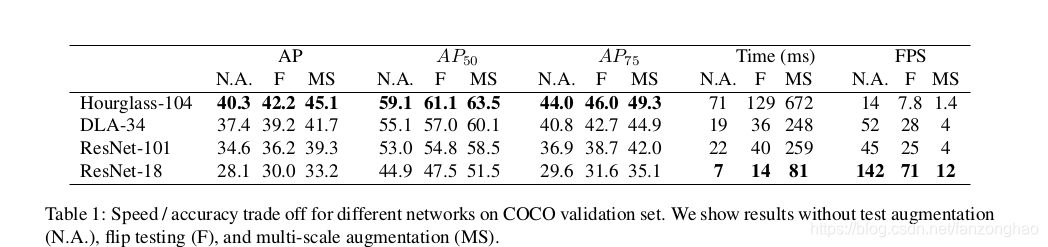

二.网络介绍

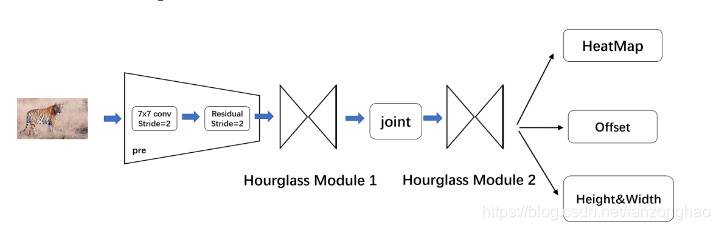

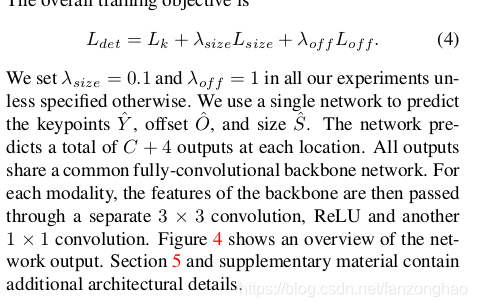

输出分支主要由三部分组成

（１）heatmap,大小为(W/4,H/4,C),输出不同类别的物体中心点

（２）offset，大小为(W/4,H/4,2)输出中心点偏移

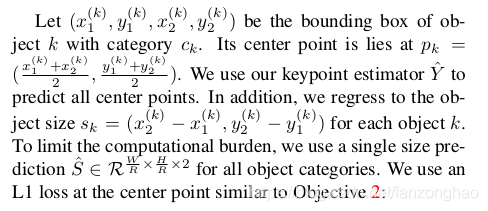

（３）Height&Weight大小为(W/4,H/4,2),输出中心点检测框的宽高

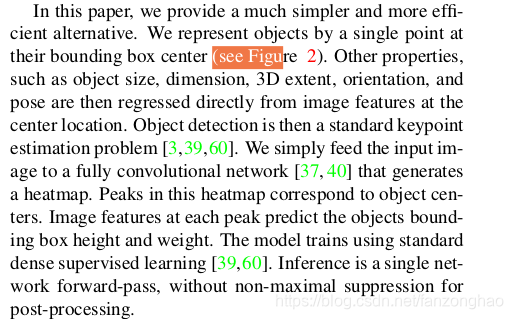

1.思想

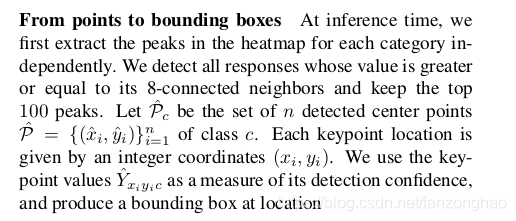

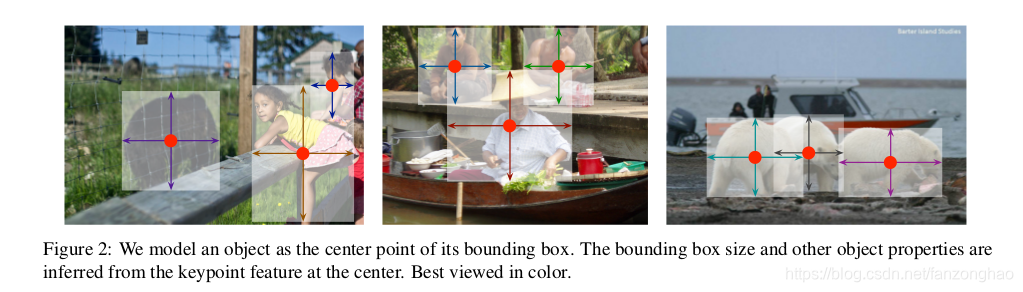

通过预测出目标的heatmap，找出heatmap的峰值就是目标的中心点．

heatmap高斯核半径制作参考这篇文章,和这篇文章。

代码:


import numpy as np
np.set_printoptions(suppress=True)#设置小数显示def gaussian_radius(det_size, min_overlap=0.7):box_w, box_h = det_sizea1 = 1b1 = (box_w + box_h)c1 = box_w * box_h * (1 - min_overlap) / (1 + min_overlap)sq1 = np.sqrt(b1 ** 2 - 4 * a1 * c1)r1 = (b1 + sq1) /2# (2*a1) # (2*a1)a2 = 4b2 = 2 * (box_w + box_h)c2 = (1 - min_overlap) * box_w * box_hsq2 = np.sqrt(b2 ** 2 - 4 * a2 * c2)r2 = (b2 + sq2) / 2# (2*a2)  # (2*a2)a3 = 4 * min_overlapb3 = -2 * min_overlap * (box_w + box_h)c3 = (min_overlap - 1) * box_w * box_hsq3 = np.sqrt(b3 ** 2 - 4 * a3 * c3)print('==b3 + sq3:', b3 + sq3)print('====a3:===', a3)r3 = (b3 + sq3) / 2#(2*a3)  # (2*a3)print('==r1, r2, r3:', r1, r2, r3)return min(r1, r2, r3)gt_numpy = np.zeros((512 // 4, 512 // 4, 3)).astype(np.float32)
box_w_s, box_h_s = 100 / 4, 80 / 4
r = gaussian_radius([box_w_s, box_h_s])
sigma_w = sigma_h = r / 3
# create Gauss heatmap
print('===sigma_w:', sigma_w)
ws = 512 / 4
hs = 512 / 4
grid_x = 64
grid_y = 64
gt_cls = 0
gt_numpy[grid_y, grid_x, gt_cls] = 1
for i in range(grid_x - 3 * int(sigma_w), grid_x + 3 * int(sigma_w) + 1):for j in range(grid_y - 3 * int(sigma_h), grid_y + 3 * int(sigma_h) + 1):if i < ws and j < hs:v = np.exp(- (i - grid_x) ** 2 / (2 * sigma_w ** 2) - (j - grid_y) ** 2 / (2 * sigma_h ** 2))pre_v = gt_numpy[j, i, int(gt_cls)]gt_numpy[j, i, 0] = max(v, pre_v)
print('===gt_numpy.shape:', gt_numpy.shape)middle_gt = gt_numpy[(64 - 3 * int(sigma_h)):(64 + 3*int(sigma_h) + 1),(64 - 3 * int(sigma_w)):(64 + 3 * int(sigma_w)+1), 0]
print(type(middle_gt))
print(np.around(middle_gt, 2))
out_img = gt_numpy[..., 0]*255.
cv2.imwrite('./out_img.jpg', out_img)
import cv2
warped_color = cv2.applyColorMap(out_img.astype(np.uint8), cv2.COLORMAP_JET)
cv2.imwrite('./out_img_color.jpg', warped_color)

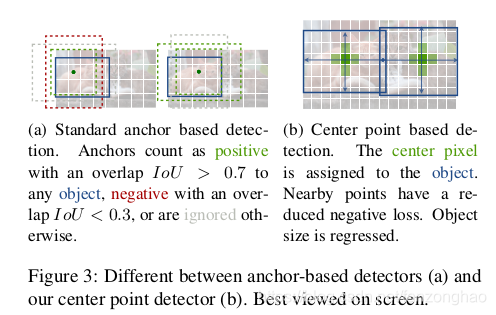

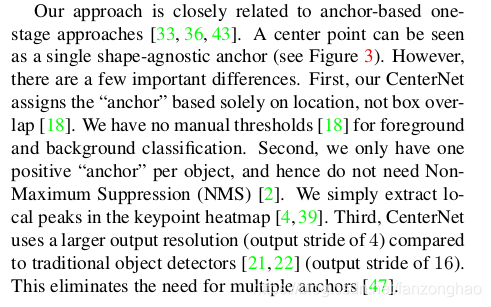

2.与anchor based区别

(1).不需要阈值区分前后景;

(2).一个目标只需要一个heatmap，避免使用nms,heatｍap的峰值就是目标中心点;

(3).下采样步长小只是4,减少了需要多个重复框．

3.heatmap和相应focal loss（分类）

heatmap就是目标的热力图,通道数就是类别数，loss采用focal loss，其按照高斯分布来进行分配,因为除了中心点的heatmap其实没必要完全贡献loss．

Ŷxyc:每个通道预测的heatmap，(x,y)处的值.

Yxyc:每个通道的gt heatmap,(x,y)处的值,服从高斯分布.

α,β: 超参用来控制loss．

N:图片所有的关键点．

pytorch代码示例:


import torchdef modified_focal_loss(pred, gt, alpha, beta):"""focal loss copied from CenterNet, modified version focal losschange log: numeric stable version implementation"""pos_inds = gt.eq(1).float()neg_inds = gt.lt(1).float()neg_weights = torch.pow(1 - gt, beta)# clamp min value is set to 1e-12 to maintain the numerical stabilitypred = torch.clamp(pred, 1e-12)pos_loss = torch.log(pred) * torch.pow(1 - pred, alpha) * pos_indsneg_loss = torch.log(1 - pred) * torch.pow(pred, alpha) * neg_weights * neg_indsnum_pos = pos_inds.float().sum()pos_loss = pos_loss.sum()neg_loss = neg_loss.sum()print('===num_pos:', num_pos)if num_pos == 0:loss = -neg_losselse:loss = -(pos_loss + neg_loss) / num_pos# print(f'num_pos {num_pos},pos_loss {pos_loss},neg_loss {neg_loss}')return lossif __name__ == '__main__':b, c, h, w = 4, 10, 224, 224pred = torch.rand(b, c, h, w)b, c, h, w = 4, 10, 224, 224gt = torch.clamp(torch.rand(b, c, h, w)+0.1, 0., 1.0)print('==pred.shape:', pred.shape)print('==gt.shape:', gt.shape)loss = modified_focal_loss(pred, gt, alpha=2, beta=4)print('=loss:', loss)
