HDFS Java API 实践

文章目录

- 1. 启动 Hadoop 集群
- 2. 使用 HDFS Shell
- 3. 使用 HDFS Web UI
- 4. 安装 Eclipse IDE
- - 4.1 上传文件
  - 4.2 查询文件位置
  - 4.3 创建目录
  - 4.4 读取文件内容
  - 4.5 写入文件

1. 启动 Hadoop 集群

安装集群：https://michael.blog.csdn.net/article/details/114607857

启动命令：

start-dfs.sh
start-yarn.sh
mr-jobhistory-daemon.sh start historyserver
# 第三条可以用下面的命令，上面的显示过期了，以后弃用
mapred --daemon start historyserver

2. 使用 HDFS Shell

创建文件夹，创建文件

[dnn@master ~]$ mkdir /opt/hadoop-3.3.0/HelloHadoop
[dnn@master ~]$ vim /opt/hadoop-3.3.0/HelloHadoop/file1.txt

文本内容：

hello hadoop
i am Michael

[dnn@master ~]$ vim /opt/hadoop-3.3.0/HelloHadoop/file2.txt

文本内容：

learning BigData
very cool

创建 HDFS 目录 hadoop fs -mkdir -p /InputData， -p 多级目录
检查是否创建

[dnn@master ~]$ hadoop fs -ls /
Found 4 items
drwxr-xr-x   - dnn supergroup          0 2021-03-13 06:50 /InputData
drwxr-xr-x   - dnn supergroup          0 2021-03-12 06:53 /InputDataTest
drwxr-xr-x   - dnn supergroup          0 2021-03-12 07:12 /OutputDataTest
drwxrwx---   - dnn supergroup          0 2021-03-12 06:19 /tmp

上传、查看

[dnn@master ~]$ hadoop fs -put /opt/hadoop-3.3.0/HelloHadoop/* /InputData
[dnn@master ~]$ hadoop fs -cat /InputData/file1.txt
hello hadoop
i am Michael
[dnn@master ~]$ hadoop fs -cat /InputData/file2.txt
learning BigData
very cool

查看系统整体信息 hdfs dfsadmin -report

[dnn@master ~]$ hdfs dfsadmin -report
Configured Capacity: 36477861888 (33.97 GB)
Present Capacity: 23138791499 (21.55 GB)
DFS Remaining: 23136948224 (21.55 GB)
DFS Used: 1843275 (1.76 MB)
DFS Used%: 0.01%
Replicated Blocks:Under replicated blocks: 12Blocks with corrupt replicas: 0Missing blocks: 0Missing blocks (with replication factor 1): 0Low redundancy blocks with highest priority to recover: 0Pending deletion blocks: 0
Erasure Coded Block Groups: Low redundancy block groups: 0Block groups with corrupt internal blocks: 0Missing block groups: 0Low redundancy blocks with highest priority to recover: 0Pending deletion blocks: 0-------------------------------------------------
Live datanodes (2):Name: 192.168.253.128:9866 (slave1)
Hostname: slave1
Decommission Status : Normal
Configured Capacity: 18238930944 (16.99 GB)
DFS Used: 929792 (908 KB)
Non DFS Used: 6669701120 (6.21 GB)
DFS Remaining: 11568300032 (10.77 GB)
DFS Used%: 0.01%
DFS Remaining%: 63.43%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 1
Last contact: Sat Mar 13 06:57:09 CST 2021
Last Block Report: Sat Mar 13 06:49:24 CST 2021
Num of Blocks: 12Name: 192.168.253.129:9866 (slave2)
Hostname: slave2
Decommission Status : Normal
Configured Capacity: 18238930944 (16.99 GB)
DFS Used: 913483 (892.07 KB)
Non DFS Used: 6669369269 (6.21 GB)
DFS Remaining: 11568648192 (10.77 GB)
DFS Used%: 0.01%
DFS Remaining%: 63.43%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 1
Last contact: Sat Mar 13 06:57:09 CST 2021
Last Block Report: Sat Mar 13 06:45:42 CST 2021
Num of Blocks: 12

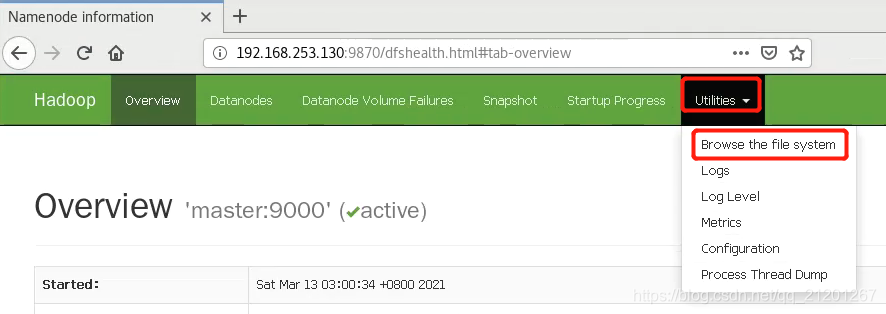

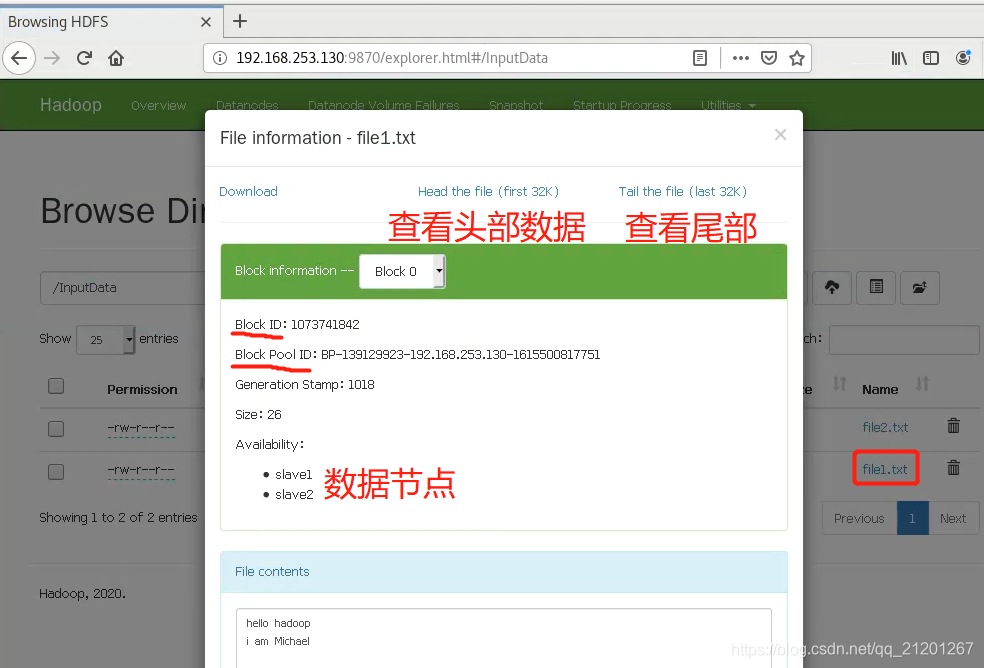

3. 使用 HDFS Web UI

在这里插入图片描述

可以看见副本数是 3，Block 大小是 128 Mb

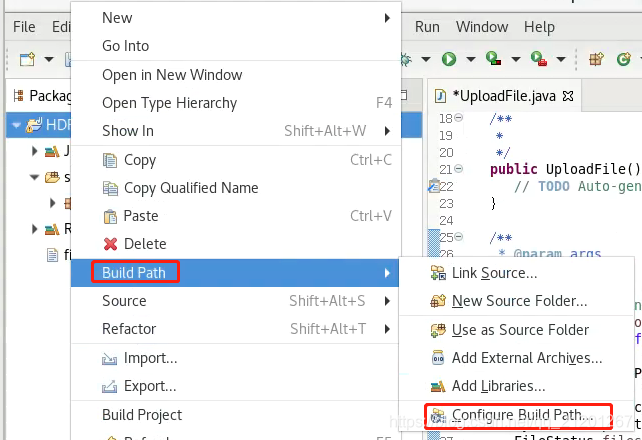

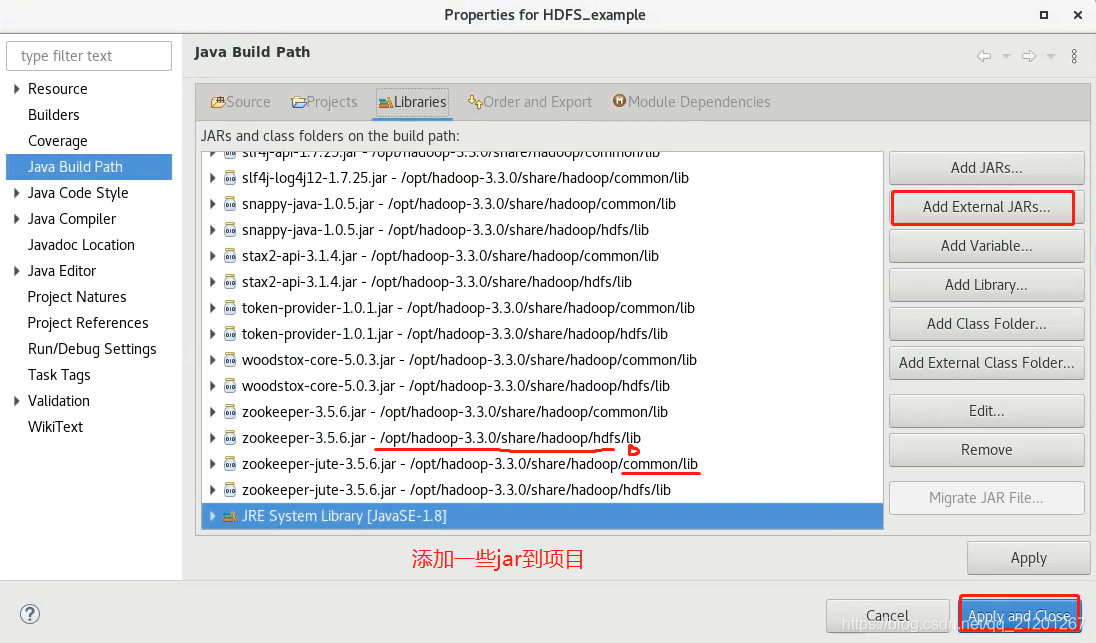

4. 安装 Eclipse IDE

下载地址
安装指导

在这里插入图片描述

4.1 上传文件

编写上传文件的代码：

/*** */
package com.michael.hdfs;
import java.io.IOException;import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.FileStatus;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;/*** @author dnn**/
public class UploadFile {/*** */public UploadFile() {// TODO Auto-generated constructor stub}/*** @param args*/public static void main(String[] args) throws IOException{// TODO Auto-generated method stubConfiguration conf = new Configuration();FileSystem hdfs = FileSystem.get(conf);Path scr = new Path("/opt/hadoop-3.3.0/HelloHadoop/file1.txt");Path dest = new Path("file1.txt");hdfs.copyFromLocalFile(scr, dest);System.out.println("Upload to " + conf.get("fs.defaultFS"));FileStatus files[] = hdfs.listStatus(dest);for(FileStatus file : files) {System.out.println(file.getPath());}}
}

运行：并未拷贝到 hdfs系统内

log4j:WARN No appenders could be found for logger (org.apache.hadoop.util.Shell).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
Upload to file:///
file:/home/dnn/eclipse-workspace/HDFS_example/file1.txt

查看hdfs系统文件，没有file1.txt

[dnn@master ~]$ hadoop fs -ls /
Found 4 items
drwxr-xr-x   - dnn supergroup          0 2021-03-13 06:54 /InputData
drwxr-xr-x   - dnn supergroup          0 2021-03-12 06:53 /InputDataTest
drwxr-xr-x   - dnn supergroup          0 2021-03-12 07:12 /OutputDataTest
drwxrwx---   - dnn supergroup          0 2021-03-12 06:19 /tmp

更改：设置默认地址

		Configuration conf = new Configuration();conf.set("fs.defaultFS", "hdfs://192.168.253.130:9000");//加入这句FileSystem hdfs = FileSystem.get(conf);

输出：正确了，上传到 hdfs 里了

Upload to hdfs://192.168.253.130:9000
hdfs://192.168.253.130:9000/user/dnn/file1.txt

[dnn@master Desktop]$ hadoop fs -ls -R /user
drwxr-xr-x   - dnn supergroup          0 2021-03-16 07:43 /user/dnn
-rw-r--r--   3 dnn supergroup         26 2021-03-16 07:43 /user/dnn/file1.txt

在集群上运行

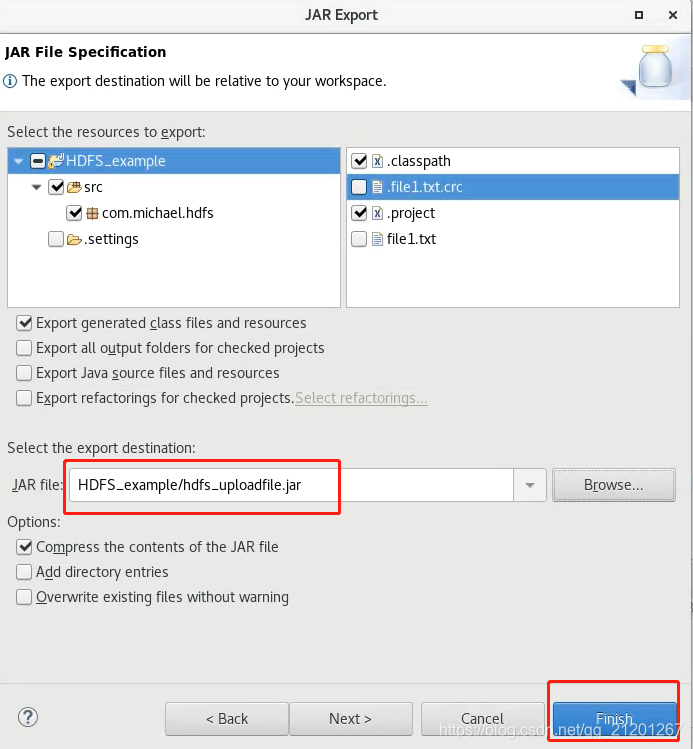

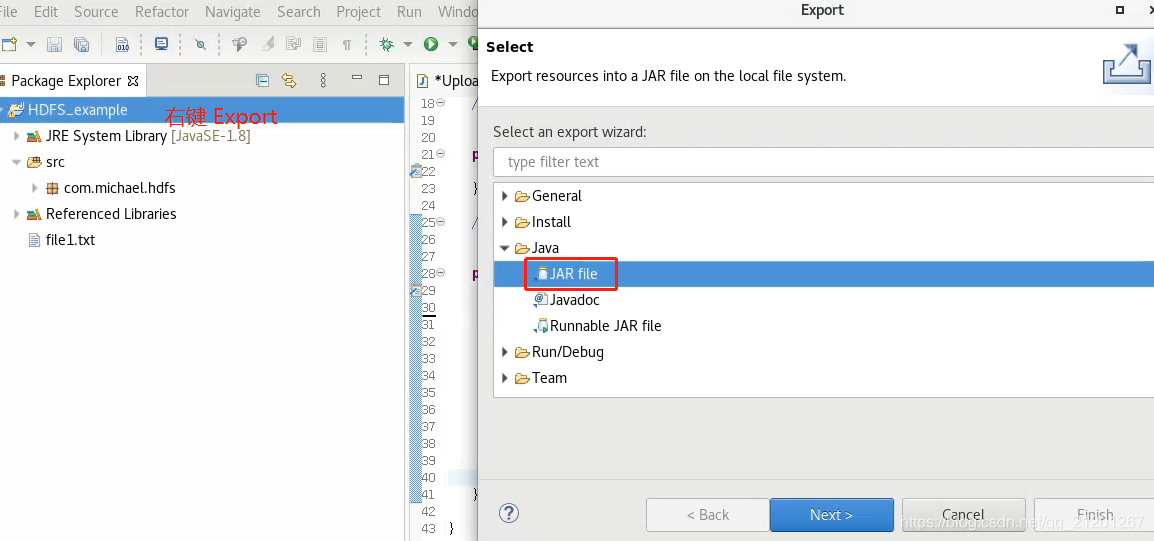

1 、导出 jar 文件

2、bash输入命令执行

[dnn@master Desktop]$ hadoop jar /home/dnn/eclipse-workspace/HDFS_example/hdfs_uploadfile.jar com.michael.hdfs.UploadFile
Upload to hdfs://192.168.253.130:9000
hdfs://192.168.253.130:9000/user/dnn/file1.txt
[dnn@master Desktop]$ hadoop fs -ls -R /user
drwxr-xr-x   - dnn supergroup          0 2021-03-16 07:59 /user/dnn
-rw-r--r--   3 dnn supergroup         26 2021-03-16 07:59 /user/dnn/file1.txt

4.2 查询文件位置

package com.michael.hdfs;
import java.io.IOException;
import java.net.URI;import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.BlockLocation;
import org.apache.hadoop.fs.FileStatus;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;public class FileLoc {public static void main(String[] args) throws IOException{// TODO Auto-generated method stubString uri = "hdfs://master:9000/user/dnn/file1.txt";Configuration conf = new Configuration();try {FileSystem fs = FileSystem.get(URI.create(uri), conf);Path fpath = new Path(uri);FileStatus filestatus = fs.getFileStatus(fpath);BlockLocation [] blklocations = fs.getFileBlockLocations(filestatus, 0, filestatus.getLen());int blockLen = blklocations.length;for(int i = 0; i < blockLen; ++i) {String [] hosts = blklocations[i].getHosts();System.out.println("block" + i + "_location:" + hosts[0]);}}catch(IOException e) {e.printStackTrace();}}
}

[dnn@master Desktop]$ hadoop jar /home/dnn/eclipse-workspace/HDFS_example/hdfs_filelocation.jar com.michael.hdfs.FileLoc
block0_location:slave2

4.3 创建目录

package com.michael.hdfs;
import java.io.IOException;
import java.net.URI;import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;public class CreatDir {public static void main(String[] args) {// TODO Auto-generated method stubString uri = "hdfs://master:9000";Configuration conf = new Configuration();try {FileSystem fs = FileSystem.get(URI.create(uri), conf);Path dfs = new Path("/test");boolean flag = fs.mkdirs(dfs);System.out.println(flag ? "create success" : "create failure");}catch(IOException e) {e.printStackTrace();}}
}

[dnn@master Desktop]$ hadoop jar /home/dnn/eclipse-workspace/HDFS_example/hdfs_mkdir.jar com.michael.hdfs.CreatDir
create success

4.4 读取文件内容

package com.michael.hdfs;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.fs.FSDataInputStream;public class ReadFile {public static void main(String[] args) {// TODO Auto-generated method stubtry {Configuration conf = new Configuration();conf.set("fs.defaultFS", "hdfs://master:9000");conf.set("fs.hdfs.impl", "org.apache.hadoop.hdfs.DistributedFileSystem");FileSystem fs = FileSystem.get(conf);Path file = new Path("file1.txt");FSDataInputStream getIt = fs.open(file);BufferedReader d = new BufferedReader(new InputStreamReader(getIt));String content = d.readLine();System.out.println(content);d.close();fs.close();}catch(IOException e) {e.printStackTrace();}}
}

[dnn@master Desktop]$ hadoop jar /home/dnn/eclipse-workspace/HDFS_example/hdfs_readfile.jar com.michael.hdfs.ReadFile
hello hadoop

4.5 写入文件

package com.michael.hdfs;import java.io.IOException;import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.FSDataOutputStream;
import org.apache.hadoop.fs.Path;
import com.michael.hdfs.ReadFile;public class WriteFile {public static void main(String[] args) {// TODO Auto-generated method stubtry {Configuration conf = new Configuration();conf.set("fs.defaultFS", "hdfs://master:9000");conf.set("fs.hdfs.impl", "org.apache.hadoop.hdfs.DistributedFileSystem");FileSystem fs = FileSystem.get(conf);byte[] buffer = "hello Michael !!!".getBytes();String filename = "test_file.txt";FSDataOutputStream os = fs.create(new Path(filename));os.write(buffer, 0 , buffer.length);System.out.println("create: " + filename);os.close();fs.close();ReadFile r = new ReadFile();r.read(filename);}catch(IOException e) {e.printStackTrace();}}
}

package com.michael.hdfs;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.fs.FSDataInputStream;public class ReadFile {public static void main(String[] args) {// TODO Auto-generated method stubtry {Configuration conf = new Configuration();conf.set("fs.defaultFS", "hdfs://master:9000");conf.set("fs.hdfs.impl", "org.apache.hadoop.hdfs.DistributedFileSystem");FileSystem fs = FileSystem.get(conf);Path file = new Path("test_file.txt");FSDataInputStream getIt = fs.open(file);BufferedReader d = new BufferedReader(new InputStreamReader(getIt));String content = d.readLine();System.out.println(content);d.close();fs.close();}catch(IOException e) {e.printStackTrace();}}public void read(String filename) {// TODO Auto-generated method stubtry {Configuration conf = new Configuration();conf.set("fs.defaultFS", "hdfs://master:9000");conf.set("fs.hdfs.impl", "org.apache.hadoop.hdfs.DistributedFileSystem");FileSystem fs = FileSystem.get(conf);Path file = new Path(filename);FSDataInputStream getIt = fs.open(file);BufferedReader d = new BufferedReader(new InputStreamReader(getIt));String content = d.readLine();System.out.println(content);d.close();fs.close();}catch(IOException e) {e.printStackTrace();}}
}

[dnn@master Desktop]$ hadoop jar /home/dnn/eclipse-workspace/HDFS_example/hdfs_writefile.jar com.michael.hdfs.WriteFile
create: test_file.txt
hello Michael !!!
