CS231n（1）：图片分类笔记与KNN编程作业

声明：本博客笔记部分为CS231n官网笔记，这里对其进行引用，在此表示感谢。
课程官网地址为：http://vision.stanford.edu/teaching/cs231n/syllabus.html

本次课程对应B站教学视频为：
https://www.bilibili.com/video/av58778425?p=4
https://www.bilibili.com/video/av58778425?p=5
https://www.bilibili.com/video/av58778425?p=6

作业Github地址为：https://github.com/cs231n/cs231n.github.io/commit/f1cfea7d43784031ddae770e3870ab8e22d1d70e

This is an introductory lecture designed to introduce people from outside of Computer Vision to the Image Classification problem, and the data-driven approach. The Table of Contents:

文章目录

- - 1）Image Classification
  - 2）Nearest Neighbor Classifier
  - - k - Nearest Neighbor Classifier
  - 3）Validation sets for Hyperparameter tuning
  - 4）Pros and Cons of Nearest Neighbor classifier
  - 5）Summary
  - 6）Summary: Applying kNN in practice
  - 7）Further Reading
  - 8）KNN练习
  - - 导入依赖库
    - Two_loops练习（参考答案）
    - One_loop练习（参考答案）
    - No_loop（参考答案）
    - Cross-validation（参考答案）

1）Image Classification

Motivation. In this section we will introduce the Image Classification problem, which is the task of assigning an input image one label from a fixed set of categories. This is one of the core problems in Computer Vision that, despite its simplicity, has a large variety of practical applications. Moreover, as we will see later in the course, many other seemingly distinct Computer Vision tasks (such as object detection, segmentation) can be reduced to image classification.

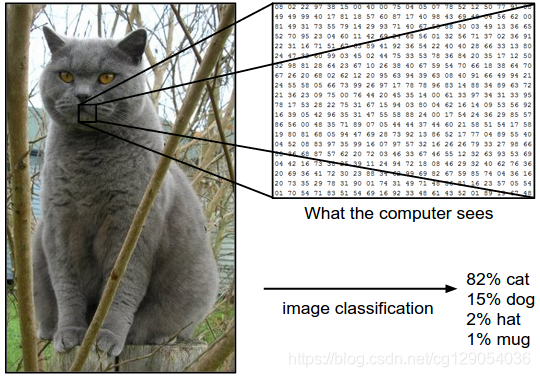

Example. For example, in the image below an image classification model takes a single image and assigns probabilities to 4 labels, {cat, dog, hat, mug}. As shown in the image, keep in mind that to a computer an image is represented as one large 3-dimensional array of numbers. In this example, the cat image is 248 pixels wide, 400 pixels tall, and has three color channels Red,Green,Blue (or RGB for short). Therefore, the image consists of 248 x 400 x 3 numbers, or a total of 297,600 numbers. Each number is an integer that ranges from 0 (black) to 255 (white). Our task is to turn this quarter of a million numbers into a single label, such as “cat”.

在这里插入图片描述

The task in Image Classification is to predict a single label (or a distribution over labels as shown here to indicate our confidence) for a given image. Images are 3-dimensional arrays of integers from 0 to 255, of size Width x Height x 3. The 3 represents the three color channels Red, Green, Blue.

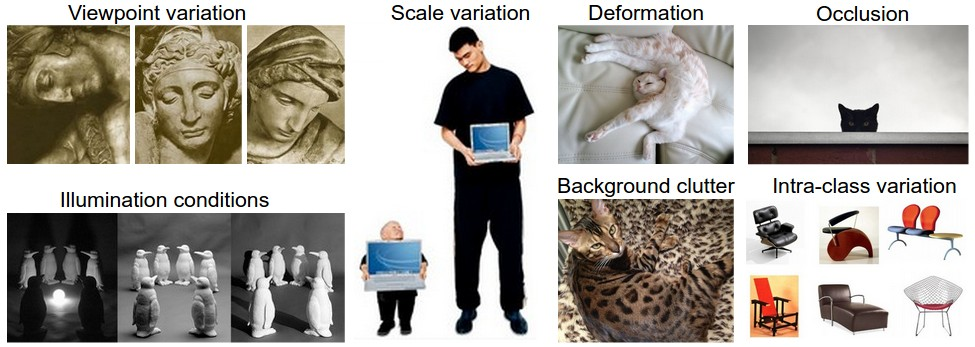

Challenges. Since this task of recognizing a visual concept (e.g. cat) is relatively trivial for a human to perform, it is worth considering the challenges involved from the perspective of a Computer Vision algorithm. As we present (an inexhaustive) list of challenges below, keep in mind the raw representation of images as a 3-D array of brightness values:

Viewpoint variation. A single instance of an object can be oriented in many ways with respect to the camera.
Scale variation.Viisual classes often exhibit variation in their size (size in the real world, not only in terms of their extent in the image).
Deformation. Many objects of interest are not rigid bodies and can be deformed in extreme ways.
Occlusion.The objects of interest can be occluded. Sometimes only a small portion of an object (as little as few pixels) could be visible.
Illumination conditions. The effects of illumination are drastic on the pixel level.
Background clutter. The objects of interest may blend into their environment, making them hard to identify.
Intra-class variation. The classes of interest can often be relatively broad, such as chair. There are many different types of these objects, each with their own appearance.

A good image classification model must be invariant to the cross product of all these variations, while simultaneously retaining sensitivity to the inter-class variations.

在这里插入图片描述

Data-driven approach. How might we go about writing an algorithm that can classify images into distinct categories? Unlike writing an algorithm for, for example, sorting a list of numbers, it is not obvious how one might write an algorithm for identifying cats in images. Therefore, instead of trying to specify what every one of the categories of interest look like directly in code, the approach that we will take is not unlike one you would take with a child: we’re going to provide the computer with many examples of each class and then develop learning algorithms that look at these examples and learn about the visual appearance of each class. This approach is referred to as a data-driven approach, since it relies on first accumulating a training dataset of labeled images. Here is an example of what such a dataset might look like:

在这里插入图片描述

An example training set for four visual categories. In practice we may have thousands of categories and hundreds of thousands of images for each category.

The image classification pipeline. We’ve seen that the task in Image Classification is to take an array of pixels that represents a single image and assign a label to it. Our complete pipeline can be formalized as follows:

Input: Our input consists of a set of N images, each labeled with one of K different classes. We refer to this data as the training set.
Learning: Our task is to use the training set to learn what every one of the classes looks like. We refer to this step as training a classifier, or learning a model.
Evaluation：in the end, we evaluate the quality of the classifier by asking it to predict labels for a new set of images that it has never seen before. We will then compare the true labels of these images to the ones predicted by the classifier. Intuitively, we’re hoping that a lot of the predictions match up with the true answers (which we call the ground truth).

2）Nearest Neighbor Classifier

As our first approach, we will develop what we call a Nearest Neighbor Classifier. This classifier has nothing to do with Convolutional Neural Networks and it is very rarely used in practice, but it will allow us to get an idea about the basic approach to an image classification problem.

Example image classification dataset: CIFAR-10. One popular toy image classification dataset is the CIFAR-10 dataset. This dataset consists of 60,000 tiny images that are 32 pixels high and wide. Each image is labeled with one of 10 classes (for example “airplane, automobile, bird, etc”). These 60,000 images are partitioned into a training set of 50,000 images and a test set of 10,000 images. In the image below you can see 10 random example images from each one of the 10 classes:

在这里插入图片描述 Left: Example images from the CIFAR-10 dataset. Right: first column shows a few test images and next to each we show the top 10 nearest neighbors in the training set according to pixel-wise difference.

Suppose now that we are given the CIFAR-10 training set of 50,000 images (5,000 images for every one of the labels), and we wish to label the remaining 10,000. The nearest neighbor classifier will take a test image, compare it to every single one of the training images, and predict the label of the closest training image. In the image above and on the right you can see an example result of such a procedure for 10 example test images. Notice that in only about 3 out of 10 examples an image of the same class is retrieved, while in the other 7 examples this is not the case. For example, in the 8th row the nearest training image to the horse head is a red car, presumably due to the strong black background. As a result, this image of a horse would in this case be mislabeled as a car.

You may have noticed that we left unspecified the details of exactly how we compare two images, which in this case are just two blocks of 32 x 32 x 3. One of the simplest possibilities is to compare the images pixel by pixel and add up all the differences. In other words, given two images and representing them as vectors
$I_{1}, I_{2}$ , a reasonable choice for comparing them might be the L1 distance:
$d1(I1,I2)=∑p∣I1p−I2p∣d_1 (I_1, I_2) = \sum_{p} \left| I^p_1 - I^p_2 \right|$

Where the sum is taken over all pixels. Here is the procedure visualized:

在这里插入图片描述

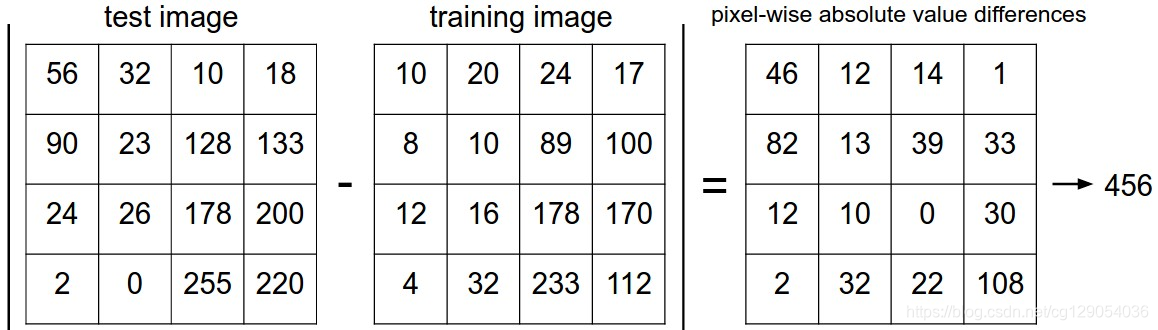

An example of using pixel-wise differences to compare two images with L1 distance (for one color channel in this example). Two images are subtracted elementwise and then all differences are added up to a single number. If two images are identical the result will be zero. But if the images are very different the result will be large.

Let’s also look at how we might implement the classifier in code. First, let’s load the CIFAR-10 data into memory as 4 arrays: the training data/labels and the test data/labels. In the code below, Xtr (of size 50,000 x 32 x 32 x 3) holds all the images in the training set, and a corresponding 1-dimensional array Ytr (of length 50,000) holds the training labels (from 0 to 9):

Xtr, Ytr, Xte, Yte = load_CIFAR10('data/cifar10/') # a magic function we provide
# flatten out all images to be one-dimensional
Xtr_rows = Xtr.reshape(Xtr.shape[0], 32 * 32 * 3) # Xtr_rows becomes 50000 x 3072
Xte_rows = Xte.reshape(Xte.shape[0], 32 * 32 * 3) # Xte_rows becomes 10000 x 3072

Now that we have all images stretched out as rows, here is how we could train and evaluate a classifier:

nn = NearestNeighbor() # create a Nearest Neighbor classifier class
nn.train(Xtr_rows, Ytr) # train the classifier on the training images and labels
Yte_predict = nn.predict(Xte_rows) # predict labels on the test images
# and now print the classification accuracy, which is the average number
# of examples that are correctly predicted (i.e. label matches)
print 'accuracy: %f' % ( np.mean(Yte_predict == Yte) )

Notice that as an evaluation criterion, it is common to use the accuracy, which measures the fraction of predictions that were correct. Notice that all classifiers we will build satisfy this one common API: they have a train(X,y) function that takes the data and the labels to learn from. Internally, the class should build some kind of model of the labels and how they can be predicted from the data. And then there is a predict(X) function, which takes new data and predicts the labels. Of course, we’ve left out the meat of things - the actual classifier itself. Here is an implementation of a simple Nearest Neighbor classifier with the L1 distance that satisfies this template:

import numpy as npclass NearestNeighbor(object):def __init__(self):passdef train(self, X, y):""" X is N x D where each row is an example. Y is 1-dimension of size N """# the nearest neighbor classifier simply remembers all the training dataself.Xtr = Xself.ytr = ydef predict(self, X):""" X is N x D where each row is an example we wish to predict label for """num_test = X.shape[0]# lets make sure that the output type matches the input typeYpred = np.zeros(num_test, dtype = self.ytr.dtype)# loop over all test rowsfor i in xrange(num_test):# find the nearest training image to the i'th test image# using the L1 distance (sum of absolute value differences)distances = np.sum(np.abs(self.Xtr - X[i,:]), axis = 1)min_index = np.argmin(distances) # get the index with smallest distanceYpred[i] = self.ytr[min_index] # predict the label of the nearest examplereturn Ypred

If you ran this code, you would see that this classifier only achieves 38.6% on CIFAR-10. That’s more impressive than guessing at random (which would give 10% accuracy since there are 10 classes), but nowhere near human performance (which is estimated at about 94%) or near state-of-the-art Convolutional Neural Networks that achieve about 95%, matching human accuracy (see the leaderboard of a recent Kaggle competition on CIFAR-10).

The choice of distance. There are many other ways of computing distances between vectors. Another common choice could be to instead use the L2 distance, which has the geometric interpretation of computing the euclidean distance between two vectors. The distance takes the form:
$d2(I1,I2)=∑p(I1p−I2p)2d_2 (I_1, I_2) = \sqrt{\sum_{p} \left( I^p_1 - I^p_2 \right)^2}$

In other words we would be computing the pixelwise difference as before, but this time we square all of them, add them up and finally take the square root. In numpy, using the code from above we would need to only replace a single line of code. The line that computes the distances:

distances = np.sqrt(np.sum(np.square(self.Xtr - X[i,:]), axis = 1))

Note that I included the np.sqrt call above, but in a practical nearest neighbor application we could leave out the square root operation because square root is a monotonic function. That is, it scales the absolute sizes of the distances but it preserves the ordering, so the nearest neighbors with or without it are identical. If you ran the Nearest Neighbor classifier on CIFAR-10 with this distance, you would obtain 35.4% accuracy (slightly lower than our L1 distance result).

L1 vs. L2. It is interesting to consider differences between the two metrics. In particular, the L2 distance is much more unforgiving than the L1 distance when it comes to differences between two vectors. That is, the L2 distance prefers many medium disagreements to one big one. L1 and L2 distances (or equivalently the L1/L2 norms of the differences between a pair of images) are the most commonly used special cases of a p-norm.

k - Nearest Neighbor Classifier

You may have noticed that it is strange to only use the label of the nearest image when we wish to make a prediction. Indeed, it is almost always the case that one can do better by using what’s called a k-Nearest Neighbor Classifier. The idea is very simple: instead of finding the single closest image in the training set, we will find the top k closest images, and have them vote on the label of the test image. In particular, when k = 1, we recover the Nearest Neighbor classifier. Intuitively, higher values of k have a smoothing effect that makes the classifier more resistant to outliers:

在这里插入图片描述

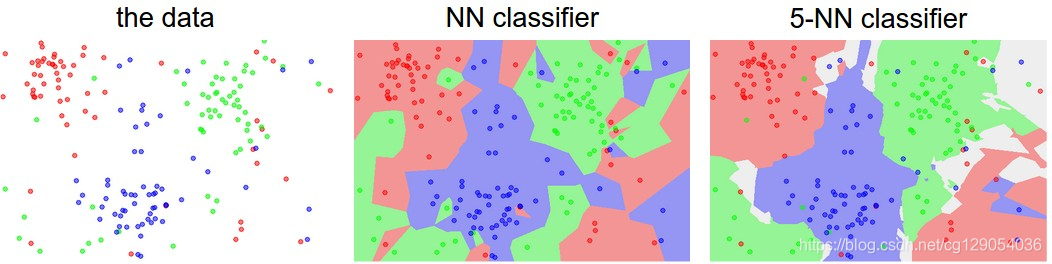

An example of the difference between Nearest Neighbor and a 5-Nearest Neighbor classifier, using 2-dimensional points and 3 classes (red, blue, green). The colored regions show the decision boundaries induced by the classifier with an L2 distance. The white regions show points that are ambiguously classified (i.e. class votes are tied for at least two classes). Notice that in the case of a NN classifier, outlier datapoints (e.g. green point in the middle of a cloud of blue points) create small islands of likely incorrect predictions, while the 5-NN classifier smooths over these irregularities, likely leading to better generalization on the test data (not shown). Also note that the gray regions in the 5-NN image are caused by ties in the votes among the nearest neighbors (e.g. 2 neighbors are red, next two neighbors are blue, last neighbor is green).

In practice, you will almost always want to use k-Nearest Neighbor. But what value of k should you use? We turn to this problem next.

3）Validation sets for Hyperparameter tuning

The k-nearest neighbor classifier requires a setting for k. But what number works best? Additionally, we saw that there are many different distance functions we could have used: L1 norm, L2 norm, there are many other choices we didn’t even consider (e.g. dot products). These choices are called hyperparameters and they come up very often in the design of many Machine Learning algorithms that learn from data. It’s often not obvious what values/settings one should choose.

You might be tempted to suggest that we should try out many different values and see what works best. That is a fine idea and that’s indeed what we will do, but this must be done very carefully. In particular, we cannot use the test set for the purpose of tweaking hyperparameters. Whenever you’re designing Machine Learning algorithms, you should think of the test set as a very precious resource that should ideally never be touched until one time at the very end. Otherwise, the very real danger is that you may tune your hyperparameters to work well on the test set, but if you were to deploy your model you could see a significantly reduced performance. In practice, we would say that you overfit to the test set. Another way of looking at it is that if you tune your hyperparameters on the test set, you are effectively using the test set as the training set, and therefore the performance you achieve on it will be too optimistic with respect to what you might actually observe when you deploy your model. But if you only use the test set once at end, it remains a good proxy for measuring the generalization of your classifier (we will see much more discussion surrounding generalization later in the class).

Evaluate on the test set only a single time, at the very end.

Luckily, there is a correct way of tuning the hyperparameters and it does not touch the test set at all. The idea is to split our training set in two: a slightly smaller training set, and what we call a validation set. Using CIFAR-10 as an example, we could for example use 49,000 of the training images for training, and leave 1,000 aside for validation. This validation set is essentially used as a fake test set to tune the hyper-parameters.

Here is what this might look like in the case of CIFAR-10:

# assume we have Xtr_rows, Ytr, Xte_rows, Yte as before
# recall Xtr_rows is 50,000 x 3072 matrix
Xval_rows = Xtr_rows[:1000, :] # take first 1000 for validation
Yval = Ytr[:1000]
Xtr_rows = Xtr_rows[1000:, :] # keep last 49,000 for train
Ytr = Ytr[1000:]# find hyperparameters that work best on the validation set
validation_accuracies = []
for k in [1, 3, 5, 10, 20, 50, 100]:# use a particular value of k and evaluation on validation datann = NearestNeighbor()nn.train(Xtr_rows, Ytr)# here we assume a modified NearestNeighbor class that can take a k as inputYval_predict = nn.predict(Xval_rows, k = k)acc = np.mean(Yval_predict == Yval)print 'accuracy: %f' % (acc,)# keep track of what works on the validation setvalidation_accuracies.append((k, acc))

By the end of this procedure, we could plot a graph that shows which values of k work best. We would then stick with this value and evaluate once on the actual test set.

Split your training set into training set and a validation set. Use validation set to tune all hyperparameters. At the end run a single time on the test set and report performance.

Cross-validation. In cases where the size of your training data (and therefore also the validation data) might be small, people sometimes use a more sophisticated technique for hyperparameter tuning called cross-validation. Working with our previous example, the idea is that instead of arbitrarily picking the first 1000 datapoints to be the validation set and rest training set, you can get a better and less noisy estimate of how well a certain value of k works by iterating over different validation sets and averaging the performance across these. For example, in 5-fold cross-validation, we would split the training data into 5 equal folds, use 4 of them for training, and 1 for validation. We would then iterate over which fold is the validation fold, evaluate the performance, and finally average the performance across the different folds.

在这里插入图片描述

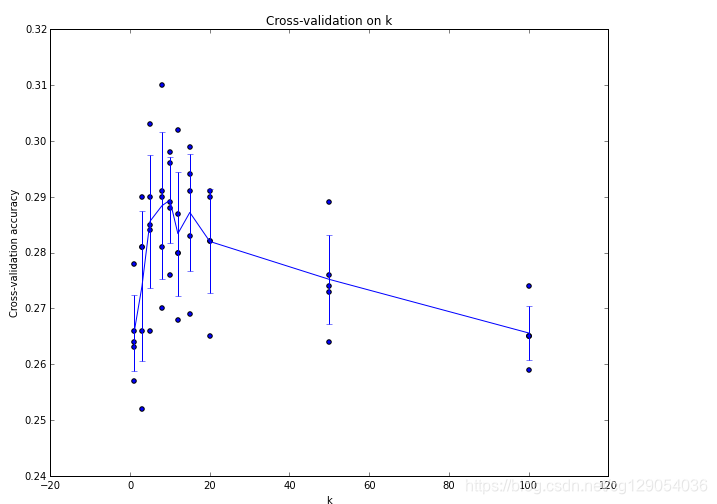

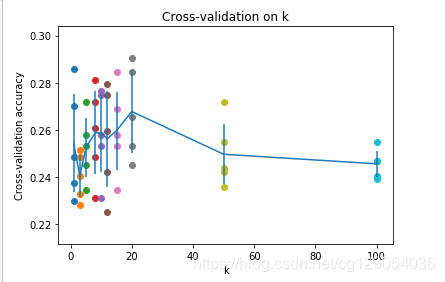

Example of a 5-fold cross-validation run for the parameter k. For each value of k we train on 4 folds and evaluate on the 5th. Hence, for each k we receive 5 accuracies on the validation fold (accuracy is the y-axis, each result is a point). The trend line is drawn through the average of the results for each k and the error bars indicate the standard deviation. Note that in this particular case, the cross-validation suggests that a value of about k = 7 works best on this particular dataset (corresponding to the peak in the plot). If we used more than 5 folds, we might expect to see a smoother (i.e. less noisy) curve.

In practice. In practice, people prefer to avoid cross-validation in favor of having a single validation split, since cross-validation can be computationally expensive. The splits people tend to use is between 50%-90% of the training data for training and rest for validation. However, this depends on multiple factors: For example if the number of hyperparameters is large you may prefer to use bigger validation splits. If the number of examples in the validation set is small (perhaps only a few hundred or so), it is safer to use cross-validation. Typical number of folds you can see in practice would be 3-fold, 5-fold or 10-fold cross-validation.

在这里插入图片描述
Common data splits. A training and test set is given. The training set is split into folds (for example 5 folds here). The folds 1-4 become the training set. One fold (e.g. fold 5 here in yellow) is denoted as the Validation fold and is used to tune the hyperparameters. Cross-validation goes a step further and iterates over the choice of which fold is the validation fold, separately from 1-5. This would be referred to as 5-fold cross-validation. In the very end once the model is trained and all the best hyperparameters were determined, the model is evaluated a single time on the test data (red).

4）Pros and Cons of Nearest Neighbor classifier

It is worth considering some advantages and drawbacks of the Nearest Neighbor classifier. Clearly, one advantage is that it is very simple to implement and understand. Additionally, the classifier takes no time to train, since all that is required is to store and possibly index the training data. However, we pay that computational cost at test time, since classifying a test example requires a comparison to every single training example. This is backwards, since in practice we often care about the test time efficiency much more than the efficiency at training time. In fact, the deep neural networks we will develop later in this class shift this tradeoff to the other extreme: They are very expensive to train, but once the training is finished it is very cheap to classify a new test example. This mode of operation is much more desirable in practice.

As an aside, the computational complexity of the Nearest Neighbor classifier is an active area of research, and several Approximate Nearest Neighbor (ANN) algorithms and libraries exist that can accelerate the nearest neighbor lookup in a dataset (e.g. FLANN). These algorithms allow one to trade off the correctness of the nearest neighbor retrieval with its space/time complexity during retrieval, and usually rely on a pre-processing/indexing stage that involves building a kdtree, or running the k-means algorithm.

The Nearest Neighbor Classifier may sometimes be a good choice in some settings (especially if the data is low-dimensional), but it is rarely appropriate for use in practical image classification settings. One problem is that images are high-dimensional objects (i.e. they often contain many pixels), and distances over high-dimensional spaces can be very counter-intuitive. The image below illustrates the point that the pixel-based L2 similarities we developed above are very different from perceptual similarities:

在这里插入图片描述
Pixel-based distances on high-dimensional data (and images especially) can be very unintuitive. An original image (left) and three other images next to it that are all equally far away from it based on L2 pixel distance. Clearly, the pixel-wise distance does not correspond at all to perceptual or semantic similarity.

Here is one more visualization to convince you that using pixel differences to compare images is inadequate. We can use a visualization technique called t-SNE to take the CIFAR-10 images and embed them in two dimensions so that their (local) pairwise distances are best preserved. In this visualization, images that are shown nearby are considered to be very near according to the L2 pixelwise distance we developed above:

在这里插入图片描述
CIFAR-10 images embedded in two dimensions with t-SNE. Images that are nearby on this image are considered to be close based on the L2 pixel distance. Notice the strong effect of background rather than semantic class differences. Click here for a bigger version of this visualization.

In particular, note that images that are nearby each other are much more a function of the general color distribution of the images, or the type of background rather than their semantic identity. For example, a dog can be seen very near a frog since both happen to be on white background. Ideally we would like images of all of the 10 classes to form their own clusters, so that images of the same class are nearby to each other regardless of irrelevant characteristics and variations (such as the background). However, to get this property we will have to go beyond raw pixels.

5）Summary

In summary:

We introduced the problem of Image Classification, in which we are given a set of images that are all labeled with a single category. We are then asked to predict these categories for a novel set of test images and measure the accuracy of the predictions.
We introduced a simple classifier called the Nearest Neighbor classifier. We saw that there are multiple hyper-parameters (such as value of k, or the type of distance used to compare examples) that
are associated with this classifier and that there was no obvious way of choosing them.
We saw that the correct way to set these hyperparameters is to split your training data into two: a training set and a fake test set, which we call validation set. We try different hyperparameter values and keep the values that lead to the best performance on the validation set.
If the lack of training data is a concern, we discussed a procedure called cross-validation, which can help reduce noise in estimating which hyperparameters work best.
Once the best hyperparameters are found, we fix them and perform a single evaluation on the actual test set.
We saw that Nearest Neighbor can get us about 40% accuracy on CIFAR-10. It is simple to implement but requires us to store the entire training set and it is expensive to evaluate on a test image.
Finally, we saw that the use of L1 or L2 distances on raw pixel values is not adequate since the
distances correlate more strongly with backgrounds and color distributions of images than with their semantic content.

In next lectures we will embark on addressing these challenges and eventually arrive at solutions that give 90% accuracies, allow us to completely discard the training set once learning is complete, and they will allow us to evaluate a test image in less than a millisecond.

6）Summary: Applying kNN in practice

If you wish to apply kNN in practice (hopefully not on images, or perhaps as only a baseline) proceed as follows:

Preprocess your data: Normalize the features in your data (e.g. one pixel in images) to have zero mean and unit variance. We will cover this in more detail in later sections, and chose not to cover data normalization in this section because pixels in images are usually homogeneous and do not exhibit widely different distributions, alleviating the need for data normalization.
If your data is very high-dimensional, consider using a dimensionality reduction technique such as PCA (wiki ref, CS229ref, blog ref) or even Random Projections.
Split your training data randomly into train/val splits. As a rule of thumb, between 70-90% of your data usually goes to the train split. This setting depends on how many hyperparameters you have and how much of an influence you expect them to have. If there are many hyperparameters to estimate, you should err on the side of having larger validation set to estimate them effectively. If you are concerned about the size of your validation data, it is best to split the training data into folds and perform cross-validation. If you can afford the computational budget it is always safer to go with cross-validation (the more folds the better, but more expensive).
Train and evaluate the kNN classifier on the validation data (for all folds, if doing cross-validation) for many
choices of k (e.g. the more the better) and across different distance types (L1 and L2 are good candidates)
If your kNN classifier is running too long, consider using an Approximate Nearest Neighbor library (e.g. FLANN) to accelerate the retrieval (at cost of some accuracy).
Take note of the hyperparameters that gave the best results. There is a question of whether you should use the full training set with the best hyperparameters, since the optimal hyperparameters might change if you were to fold the validation data into your training set (since the size of the data would be larger). In practice it is cleaner to not use the validation data in the final classifier and consider it to be burned on estimating the hyperparameters. Evaluate the best model on the test set. Report the test set accuracy and declare the result to be the performance of the kNN classifier on your data.

7）Further Reading

Here are some (optional) links you may find interesting for further reading:

A Few Useful Things to Know about Machine Learning, where especially section 6 is related but the whole paper is a warmly recommended reading.
Recognizing and Learning Object Categories, a short course of object categorization at ICCV 2005.

8）KNN练习

导入依赖库

Complete and hand in this completed worksheet (including its outputs and any supporting code outside of the worksheet) with your assignment submission. For more details see the assignments page on the course website.

The kNN classifier consists of two stages:

During training, the classifier takes the training data and simply remembers it
During testing, kNN classifies every test image by comparing to all training images and transfering the labels of the k most similar training examples
The value of k is cross-validated

In this exercise you will implement these steps and understand the basic Image Classification pipeline, cross-validation, and gain proficiency in writing efficient, vectorized code.

# Run some setup code for this notebook.import random
import numpy as np
from cs231n.data_utils import load_CIFAR10
import matplotlib.pyplot as plt# This is a bit of magic to make matplotlib figures appear inline in the notebook
# rather than in a new window.
%matplotlib inline
plt.rcParams['figure.figsize'] = (10.0, 8.0) # set default size of plots
plt.rcParams['image.interpolation'] = 'nearest'
plt.rcParams['image.cmap'] = 'gray'# Some more magic so that the notebook will reload external python modules;
# see http://stackoverflow.com/questions/1907993/autoreload-of-modules-in-ipython
%reload_ext autoreload
%autoreload 2

在这里加载图片文件CIFAR-10，加载图片之前需要运行压缩文件中的.sh文件进行下载.

# Load the raw CIFAR-10 data.
cifar10_dir = 'cs231n/datasets/cifar-10-batches-py'# Cleaning up variables to prevent loading data multiple times (which may cause memory issue)
try:del X_train, y_traindel X_test, y_testprint('Clear previously loaded data.')
except:passX_train, y_train, X_test, y_test = load_CIFAR10(cifar10_dir)# As a sanity check, we print out the size of the training and test data.
print('Training data shape: ', X_train.shape)
print('Training labels shape: ', y_train.shape)
print('Test data shape: ', X_test.shape)
print('Test labels shape: ', y_test.shape)

图片文件共分为10类，这里先首先观察图片，每类图片选取7张。

# Visualize some examples from the dataset.
# We show a few examples of training images from each class.
classes = ['plane', 'car', 'bird', 'cat', 'deer', 'dog', 'frog', 'horse', 'ship', 'truck']
num_classes = len(classes)
samples_per_class = 7
for y, cls in enumerate(classes):idxs = np.flatnonzero(y_train == y)idxs = np.random.choice(idxs, samples_per_class, replace=False)for i, idx in enumerate(idxs):plt_idx = i * num_classes + y + 1plt.subplot(samples_per_class, num_classes, plt_idx)plt.imshow(X_train[idx].astype('uint8'))plt.axis('off')if i == 0:plt.title(cls)
plt.show()

在这里插入图片描述
设定训练集和测试集大小，训练集大小为5000张图片，测试集大小为500张图片。

# Subsample the data for more efficient code execution in this exercise
num_training = 5000
mask = list(range(num_training))
X_train = X_train[mask]
y_train = y_train[mask]num_test = 500
mask = list(range(num_test))
X_test = X_test[mask]
y_test = y_test[mask]# Reshape the image data into rows
X_train = np.reshape(X_train, (X_train.shape[0], -1))
X_test = np.reshape(X_test, (X_test.shape[0], -1))
print(X_train.shape, X_test.shape)

from cs231n.classifiers import KNearestNeighbor# Create a kNN classifier instance.
# Remember that training a kNN classifier is a noop:
# the Classifier simply remembers the data and does no further processing
classifier = KNearestNeighbor()
classifier.train(X_train, y_train)

We would now like to classify the test data with the kNN classifier. Recall that we can break down this process into two steps:

First we must compute the distances between all test examples and all train examples.
Given these distances, for each test example we find the k nearest examples and have them vote for the label

Lets begin with computing the distance matrix between all training and test examples. For example, if there are Ntr training examples and Nte test examples, this stage should result in a Nte x Ntr matrix where each element (i,j) is the distance between the i-th test and j-th train example.

Note: For the three distance computations that we require you to implement in this notebook, you may not use the np.linalg.norm() function that numpy provides.

First, open cs231n/classifiers/k_nearest_neighbor.py and implement the function compute_distances_two_loops that uses a (very inefficient) double loop over all pairs of (test, train) examples and computes the distance matrix one element at a time.

Two_loops练习（参考答案）

 def compute_distances_two_loops(self, X):"""Compute the distance between each test point in X and each training pointin self.X_train using a nested loop over both the training data and thetest data.Inputs:- X: A numpy array of shape (num_test, D) containing test data.Returns:- dists: A numpy array of shape (num_test, num_train) where dists[i, j]is the Euclidean distance between the ith test point and the jth trainingpoint."""num_test = X.shape[0]num_train = self.X_train.shape[0]dists = np.zeros((num_test, num_train))for i in range(num_test):for j in range(num_train):###################################################################### TODO:                                                             ## Compute the l2 distance between the ith test point and the jth    ## training point, and store the result in dists[i, j]. You should   ## not use a loop over dimension, nor use np.linalg.norm().          ####################################################################### *****START OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****dists[i,j] = np.sqrt(np.sum(np.square(X[i] - self.X_train[j])))# *****END OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****return dists
# Open cs231n/classifiers/k_nearest_neighbor.py and implement
# compute_distances_two_loops.# Test your implementation:
dists = classifier.compute_distances_two_loops(X_test)
print(dists.shape)

# We can visualize the distance matrix: each row is a single test example and
# its distances to training examples
plt.imshow(dists, interpolation='none')
plt.show()

在这里插入图片描述

# Now implement the function predict_labels and run the code below:
# We use k = 1 (which is Nearest Neighbor).
y_test_pred = classifier.predict_labels(dists, k=1)# Compute and print the fraction of correctly predicted examples
num_correct = np.sum(y_test_pred == y_test)
accuracy = float(num_correct) / num_test
print('Got %d / %d correct => accuracy: %f' % (num_correct, num_test, accuracy))

You should expect to see approximately 27% accuracy. Now lets try out a larger k, say k = 5:

y_test_pred = classifier.predict_labels(dists, k=5)
num_correct = np.sum(y_test_pred == y_test)
accuracy = float(num_correct) / num_test
print('Got %d / %d correct => accuracy: %f' % (num_correct, num_test, accuracy))

You should expect to see a slightly better performance than with k = 1.

We can also use other distance metrics such as L1 distance.
For pixel values $p_{ij}^{(k)}$ at location $(i, j)$ of some image $I_k$ ,

the mean $μ\mu$ across all pixels over all images is $μ=1nhw∑k=1n∑i=1h∑j=1wpij(k)\mu=\frac{1}{nhw}\sum_{k=1}^n\sum_{i=1}^{h}\sum_{j=1}^{w}p_{ij}^{(k)}$
And the pixel-wise mean $μij\mu_{ij}$ across all images is
$μij=1n∑k=1npij(k).\mu_{ij}=\frac{1}{n}\sum_{k=1}^np_{ij}^{(k)}.$
The general standard deviation $σ\sigma$ and pixel-wise standard deviation $σij\sigma_{ij}$ is defined similarly.

Which of the following preprocessing steps will not change the performance of a Nearest Neighbor classifier that uses L1 distance? Select all that apply.

Subtracting the mean $μ\mu$ ( $p~ij(k)=pij(k)−μ\tilde{p}_{ij}^{(k)}=p_{ij}^{(k)}-\mu$ .)
Subtracting the per pixel mean $μij\mu_{ij}$ ( $p~ij(k)=pij(k)−μij\tilde{p}_{ij}^{(k)}=p_{ij}^{(k)}-\mu_{ij}$ .)
Subtracting the mean $μ\mu$ and dividing by the standard deviation $σ\sigma$ .
Subtracting the pixel-wise mean $μij\mu_{ij}$ and dividing by the pixel-wise standard deviation $σij\sigma_{ij}$ .
Rotating the coordinate axes of the data.

One_loop练习（参考答案）

def compute_distances_one_loop(self, X):"""Compute the distance between each test point in X and each training pointin self.X_train using a single loop over the test data.Input / Output: Same as compute_distances_two_loops"""num_test = X.shape[0]num_train = self.X_train.shape[0]dists = np.zeros((num_test, num_train))for i in range(num_test):######################################################################## TODO:                                                               ## Compute the l2 distance between the ith test point and all training ## points, and store the result in dists[i, :].                        ## Do not use np.linalg.norm().                                        ######################################################################### *****START OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****dists[i] = np.sqrt(np.sum(np.square(self.X_train - X[i]), axis = 1))# *****END OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****return dists# Now lets speed up distance matrix computation by using partial vectorization
# with one loop. Implement the function compute_distances_one_loop and run the
# code below:
dists_one = classifier.compute_distances_one_loop(X_test)# To ensure that our vectorized implementation is correct, we make sure that it
# agrees with the naive implementation. There are many ways to decide whether
# two matrices are similar; one of the simplest is the Frobenius norm. In case
# you haven't seen it before, the Frobenius norm of two matrices is the square
# root of the squared sum of differences of all elements; in other words, reshape
# the matrices into vectors and compute the Euclidean distance between them.
difference = np.linalg.norm(dists - dists_one, ord='fro')
print('One loop difference was: %f' % (difference, ))
if difference < 0.001:print('Good! The distance matrices are the same')
else:print('Uh-oh! The distance matrices are different')

No_loop（参考答案）

 def compute_distances_no_loops(self, X):"""Compute the distance between each test point in X and each training pointin self.X_train using no explicit loops.Input / Output: Same as compute_distances_two_loops"""num_test = X.shape[0]num_train = self.X_train.shape[0]dists = np.zeros((num_test, num_train))########################################################################## TODO:                                                                 ## Compute the l2 distance between all test points and all training      ## points without using any explicit loops, and store the result in      ## dists.                                                                ##                                                                       ## You should implement this function using only basic array operations; ## in particular you should not use functions from scipy,                ## nor use np.linalg.norm().                                             ##                                                                       ## HINT: Try to formulate the l2 distance using matrix multiplication    ##       and two broadcast sums.                                         ########################################################################### *****START OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****dists = np.sqrt(-2*np.dot(X, self.X_train.T) + np.sum(np.square(self.X_train), axis = 1) + np.transpose([np.sum(np.square(X), axis = 1)]))# *****END OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****return dists# Now implement the fully vectorized version inside compute_distances_no_loops
# and run the code
dists_two = classifier.compute_distances_no_loops(X_test)# check that the distance matrix agrees with the one we computed before:
difference = np.linalg.norm(dists - dists_two, ord='fro')
print('No loop difference was: %f' % (difference, ))
if difference < 0.001:print('Good! The distance matrices are the same')
else:print('Uh-oh! The distance matrices are different')

# Let's compare how fast the implementations are
def time_function(f, *args):"""Call a function f with args and return the time (in seconds) that it took to execute."""import timetic = time.time()f(*args)toc = time.time()return toc - tictwo_loop_time = time_function(classifier.compute_distances_two_loops, X_test)
print('Two loop version took %f seconds' % two_loop_time)one_loop_time = time_function(classifier.compute_distances_one_loop, X_test)
print('One loop version took %f seconds' % one_loop_time)no_loop_time = time_function(classifier.compute_distances_no_loops, X_test)
print('No loop version took %f seconds' % no_loop_time)# You should see significantly faster performance with the fully vectorized implementation!# NOTE: depending on what machine you're using,
# you might not see a speedup when you go from two loops to one loop,
# and might even see a slow-down.

Cross-validation（参考答案）

We have implemented the k-Nearest Neighbor classifier but we set the value k = 5 arbitrarily. We will now determine the best value of this hyperparameter with cross-validation.

num_folds = 5
k_choices = [1, 3, 5, 8, 10, 12, 15, 20, 50, 100]X_train_folds = []
y_train_folds = []################################################################################
# TODO:                                                                        #
# Split up the training data into folds. After splitting, X_train_folds and    #
# y_train_folds should each be lists of length num_folds, where                #
# y_train_folds[i] is the label vector for the points in X_train_folds[i].     #
# Hint: Look up the numpy array_split function.                                #
################################################################################
# *****START OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****
X_train_folds.extend(np.array_split(X_train,num_folds))
y_train_folds.extend(np.array_split(y_train,num_folds))
# *****END OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****# A dictionary holding the accuracies for different values of k that we find
# when running cross-validation. After running cross-validation,
# k_to_accuracies[k] should be a list of length num_folds giving the different
# accuracy values that we found when using that value of k.
k_to_accuracies = {}################################################################################
# TODO:                                                                        #
# Perform k-fold cross validation to find the best value of k. For each        #
# possible value of k, run the k-nearest-neighbor algorithm num_folds times,   #
# where in each case you use all but one of the folds as training data and the #
# last fold as a validation set. Store the accuracies for all fold and all     #
# values of k in the k_to_accuracies dictionary.                               #
################################################################################
# *****START OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****
for k in k_choices:k_to_accuracies[k] = []for i in range(num_folds):X_train = np.concatenate([X_train_folds[j] for j in range(num_folds) if j!= i])y_train = np.concatenate([y_train_folds[j] for j in range(num_folds) if j!= i])classifier = KNearestNeighbor()classifier.train(X_train, y_train)x_valid = X_train_folds[i]y_valid = y_train_folds[i]y_predict = classifier.predict(x_valid, k)accuracy = np.sum(y_predict == y_valid) / len(y_valid)k_to_accuracies[k].append(accuracy)# *****END OF YOUR CODE (DO NOT DELETE/MODIFY THIS LINE)*****# Print out the computed accuracies
for k in sorted(k_to_accuracies):for accuracy in k_to_accuracies[k]:print('k = %d, accuracy = %f' % (k, accuracy))

k = 1, accuracy = 0.248438
k = 1, accuracy = 0.237500
k = 1, accuracy = 0.229687
k = 1, accuracy = 0.285938
k = 1, accuracy = 0.270313
k = 3, accuracy = 0.228125
k = 3, accuracy = 0.232813
k = 3, accuracy = 0.240625
k = 3, accuracy = 0.251563
k = 3, accuracy = 0.248438
k = 5, accuracy = 0.234375
k = 5, accuracy = 0.245312
k = 5, accuracy = 0.257812
k = 5, accuracy = 0.271875
k = 5, accuracy = 0.253125
k = 8, accuracy = 0.231250
k = 8, accuracy = 0.248438
k = 8, accuracy = 0.281250
k = 8, accuracy = 0.271875
k = 8, accuracy = 0.260937
k = 10, accuracy = 0.231250
k = 10, accuracy = 0.257812
k = 10, accuracy = 0.275000
k = 10, accuracy = 0.276562
k = 10, accuracy = 0.253125
k = 12, accuracy = 0.225000
k = 12, accuracy = 0.259375
k = 12, accuracy = 0.279687
k = 12, accuracy = 0.275000
k = 12, accuracy = 0.242188
k = 15, accuracy = 0.234375
k = 15, accuracy = 0.268750
k = 15, accuracy = 0.284375
k = 15, accuracy = 0.257812
k = 15, accuracy = 0.253125
k = 20, accuracy = 0.245312
k = 20, accuracy = 0.265625
k = 20, accuracy = 0.290625
k = 20, accuracy = 0.284375
k = 20, accuracy = 0.253125
k = 50, accuracy = 0.235937
k = 50, accuracy = 0.243750
k = 50, accuracy = 0.271875
k = 50, accuracy = 0.242188
k = 50, accuracy = 0.254688
k = 100, accuracy = 0.240625
k = 100, accuracy = 0.239063
k = 100, accuracy = 0.254688
k = 100, accuracy = 0.246875
k = 100, accuracy = 0.246875

# plot the raw observations
for k in k_choices:accuracies = k_to_accuracies[k]plt.scatter([k] * len(accuracies), accuracies)# plot the trend line with error bars that correspond to standard deviation
accuracies_mean = np.array([np.mean(v) for k,v in sorted(k_to_accuracies.items())])
accuracies_std = np.array([np.std(v) for k,v in sorted(k_to_accuracies.items())])
plt.errorbar(k_choices, accuracies_mean, yerr=accuracies_std)
plt.title('Cross-validation on k')
plt.xlabel('k')
plt.ylabel('Cross-validation accuracy')
plt.show()

在这里插入图片描述

# Based on the cross-validation results above, choose the best value for k,
# retrain the classifier using all the training data, and test it on the test
# data. You should be able to get above 28% accuracy on the test data.
best_k = 5classifier = KNearestNeighbor()
classifier.train(X_train, y_train)
y_test_pred = classifier.predict(X_test, k=best_k)# Compute and display the accuracy
num_correct = np.sum(y_test_pred == y_test)
accuracy = float(num_correct) / num_test
print('Got %d / %d correct => accuracy: %f' % (num_correct, num_test, accuracy))
