Description:

描述：

This article describes how to check whether a given tree is BST or not? This problem came in coding round of Microsoft.

本文介绍如何检查给定的树是否是BST ？ 这个问题来自微软的编码回合。

Problem Statement:

问题陈述：

Given a binary tree check whether it is a binary search tree or not.

给定二叉树，请检查它是否为二叉搜索树。

Solution

解

Algorithm:

算法：

From the definition of BST, it may seem that for a binary tree to be BST, it’s enough to check for each node if the node on its left is smaller & node on its right is greater. But this is actually the wrong approach since it will give wrong output for many test-cases.

从BST的定义来看，对于一棵二叉树来说，似乎BST足以检查每个节点，如果其左侧的节点较小，而其右侧的节点较大。 但这实际上是错误的方法，因为它将为许多测试用例提供错误的输出。

The correct algorithm is to check for each node whether the maximum of the left subtree is lesser than the node & the minimum of the right subtree is greater than the node. This algorithm works perfect but not efficient in terms of time complexity.

正确的算法是检查每个节点的左子树的最大值是否小于该节点，以及右子树的最小值是否大于该节点。 该算法在时间复杂度方面工作完美，但效率不高。

Intuition says that the in-order traversal for the BST results in a sorted list of nodes and we use this in our algorithm.

直觉说BST的有序遍历会导致节点的排序列表，我们在算法中使用了它。

1.  Set prev to INT_MIN.
2.  From main function call checkBST(root, prev)
//passing prev by reference to update it every time
checkBST(root, &prev)
3.  if(root==NULL)
return 1; //null tree is BST
4.  do in-order traversal and checking whether all tree node
data is sorted or not
if(!(checkBST(root->left,prev)))  //check left subtree
return 0;
//root->data must be greater than prevsince BST results in
//sorted list after in-order traversal.
5.  if(root->data<prev)
return 0;
6.  prev=root->data; //update prev value
7.  return checkBST(root->right,prev);//check right subtree

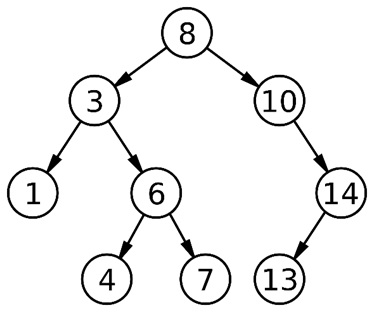

Example 1:

范例1：

Clearly Example 1 is a binary search tree. We will check out further through our function.

显然，示例1是一个二进制搜索树。 我们将通过功能进一步检查。

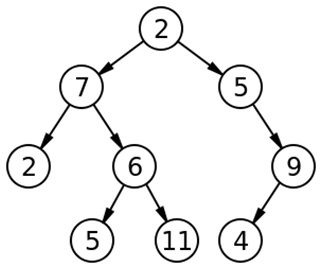

Example 2:

范例2：

Clearly Example 2 is not a binary tree. We will check out through our function.

显然，示例2不是二叉树。 我们将通过我们的功能签出。

树的C ++类实现 (C++ class implementation for tree)

// tree node is defined
class tree{
public:
int data;
tree *left;
tree *right;
};

C ++函数checkBST实现 (C++ function checkBST for implementation)

//passing reference of prev
int checkBST(tree* root,int &prev){
//null tree is BST
if(root==NULL)
return 1;
//doing inorder traversal and checking whether
//all tree node data is sorted or not
if(!(checkBST(root->left,prev)))
return 0;
if(root->data<prev)
return 0;
prev=root->data; //update prev value
return checkBST(root->right,prev);
}

用于创建树节点的C ++实现 (C++ implementation for creating tree nodes)

// creating new node
tree* newnode(int data)
{
tree* node = (tree*)malloc(sizeof(tree));
node->data = data;
node->left = NULL;
node->right = NULL;
return(node);
}

主驱动程序功能例如 (Main driver function for example1)

#include <bits/stdc++.h>
using namespace std;
int main()
{
//**same tree is builted as shown in example**
int c,prev=INT_MIN;//prev initialized to INT_MIN
cout<<"Tree is built like the example 1 aforesaid"<<endl;
tree *root=newnode(8);
root->left= newnode(3);
root->right= newnode(10);
root->right->right=newnode(14);
root->right->right->left=newnode(13);
root->left->left=newnode(1);
root->left->right=newnode(6);
root->left->right->left=newnode(4);
root->left->right->right=newnode(7);
cout<<"builting the binary tree like example 1......"<<endl;
c=checkBST(root,prev);
if(c)
cout<<"This binary tree is binary search tree"<<endl;
else
cout<<"This is not a binary search tree";
return 0;
}

主驱动程序功能例如 (Main driver function for example2)

#include <bits/stdc++.h>
using namespace std;
int main()
{
//**same tree is builted as shown in example**
int c,prev=INT_MIN;//prev initialized to INT_MIN
cout<<"Tree is built like the example 2 aforesaid"<<endl;
tree *root=newnode(2);
root->left= newnode(7);
root->right= newnode(5);
root->right->right=newnode(9);
root->right->right->left=newnode(4);
root->left->left=newnode(2);
root->left->right=newnode(6);
root->left->right->left=newnode(5);
root->left->right->right=newnode(11);
cout<<"builting the binary tree like example 2......"<<endl;
c=checkBST(root,prev);
if(c)
cout<<"This binary tree is binary search tree"<<endl;
else
cout<<"This is not a binary search tree";
return 0;
}

Output 1

输出1

Tree is built like the example 1 aforesaid
builting the binary tree like example 1......
This binary tree is binary search tree

Output 2

输出2

Tree is built like the example 2 aforesaid
builting the binary tree like example 2......
This is not a binary search tree
