在此示例中，我将展示如何将DynamicReport和JasperReports与Servlet和CDI集成。

工具：

TIBCO Jaspersoft Studio-6.0.4。最终版
Eclipse Luna服务版本2（4.4.2）。
WildFly 8.x应用程序服务器。

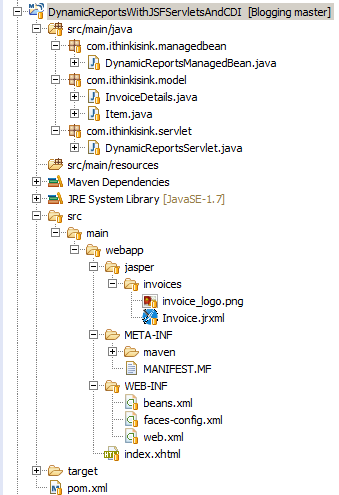

这是Eclipse上项目层次结构的屏幕截图。

2-DynamicReportsWithJSFServletsAndCDI

pom.xml文件包含Servlets + JSF + CDI + DynamicReports所需的依赖项。

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd"><modelVersion>4.0.0</modelVersion><groupId>com.ithinkisink</groupId><artifactId>DynamicReportsWithJSFServletsAndCDI</artifactId><packaging>war</packaging><version>0.0.1-SNAPSHOT</version><name>DynamicReportsWithJSFServletsAndCDI Maven Webapp</name><dependencies><dependency><groupId>javax.inject</groupId><artifactId>javax.inject</artifactId><version>1</version><scope>provided</scope></dependency><dependency><groupId>javax.faces</groupId><artifactId>jsf-api</artifactId><version>2.1</version><scope>provided</scope></dependency><dependency><groupId>javax.servlet</groupId><artifactId>javax.servlet-api</artifactId><version>3.1.0</version><scope>provided</scope></dependency><dependency><groupId>javax.enterprise</groupId><artifactId>cdi-api</artifactId><version>1.0</version><scope>provided</scope></dependency><dependency><groupId>net.sourceforge.dynamicreports</groupId><artifactId>dynamicreports-core</artifactId><version>4.0.0</version></dependency></dependencies><build><finalName>DynamicReportsWithJSFServletsAndCDI</finalName><plugins><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-compiler-plugin</artifactId><version>3.1</version><configuration><source>1.7</source><target>1.7</target></configuration></plugin></plugins></build>
</project>

使用TIBCO Jaspersoft Studio创建一个简单的JRXML模板，其中包含一个图像，该图像随后将作为参数从DynamicReportsManagedBean动态传递到DynamicReports。

<?xml version="1.0" encoding="UTF-8"?>
<!-- Created with Jaspersoft Studio version 6.0.4.final using JasperReports Library version 6.0.4  -->
<!-- 2015-12-04T17:15:43 -->
<jasperReport xmlns="http://jasperreports.sourceforge.net/jasperreports" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://jasperreports.sourceforge.net/jasperreports http://jasperreports.sourceforge.net/xsd/jasperreport.xsd" name="Invoice" pageWidth="595" pageHeight="842" columnWidth="535" leftMargin="20" rightMargin="20" topMargin="20" bottomMargin="20" uuid="4eedbb89-b4f6-4469-9ab6-f642a1688cf7"><property name="com.jaspersoft.studio.data.defaultdataadapter" value="One Empty Record"/><style name="Title" forecolor="#FFFFFF" fontName="Times New Roman" fontSize="50" isBold="false" pdfFontName="Times-Bold"/><style name="SubTitle" forecolor="#CCCCCC" fontName="Times New Roman" fontSize="18" isBold="false" pdfFontName="Times-Roman"/><style name="Column header" forecolor="#666666" fontName="Times New Roman" fontSize="14" isBold="true"/><style name="Detail" mode="Transparent" fontName="Times New Roman"/><style name="Row" mode="Transparent" fontName="Times New Roman" pdfFontName="Times-Roman"><conditionalStyle><conditionExpression><![CDATA[$V{REPORT_COUNT}%2 == 0]]></conditionExpression><style mode="Opaque" backcolor="#EEEFF0"/></conditionalStyle></style><style name="Table"><box><pen lineWidth="1.0" lineColor="#000000"/><topPen lineWidth="1.0" lineColor="#000000"/><leftPen lineWidth="1.0" lineColor="#000000"/><bottomPen lineWidth="1.0" lineColor="#000000"/><rightPen lineWidth="1.0" lineColor="#000000"/></box></style><style name="Table_TH" mode="Opaque" backcolor="#FFFFFF"><box><pen lineWidth="0.5" lineColor="#000000"/><topPen lineWidth="0.5" lineColor="#000000"/><leftPen lineWidth="0.5" lineColor="#000000"/><bottomPen lineWidth="0.5" lineColor="#000000"/><rightPen lineWidth="0.5" lineColor="#000000"/></box></style><style name="Table_CH" mode="Opaque" backcolor="#CACED0"><box><pen lineWidth="0.5" lineColor="#000000"/><topPen lineWidth="0.5" lineColor="#000000"/><leftPen lineWidth="0.5" lineColor="#000000"/><bottomPen lineWidth="0.5" lineColor="#000000"/><rightPen lineWidth="0.5" lineColor="#000000"/></box></style><style name="Table_TD" mode="Opaque" backcolor="#FFFFFF"><box><pen lineWidth="0.5" lineColor="#000000"/><topPen lineWidth="0.5" lineColor="#000000"/><leftPen lineWidth="0.5" lineColor="#000000"/><bottomPen lineWidth="0.5" lineColor="#000000"/><rightPen lineWidth="0.5" lineColor="#000000"/></box><conditionalStyle><conditionExpression><![CDATA[$V{REPORT_COUNT}%2 == 0]]></conditionExpression><style backcolor="#D8D8D8"/></conditionalStyle></style><subDataset name="tableDataset" uuid="f13e6d36-5148-4ecc-bbe3-3035def80980"><queryString><![CDATA[]]></queryString></subDataset><parameter name="invoiceNo" class="java.lang.String"/><parameter name="billingCompanyName" class="java.lang.String"/><parameter name="billingCompanyAddress" class="java.lang.String"/><parameter name="billingCompanyFirstState" class="java.lang.String"/><parameter name="billingCompanySecondState" class="java.lang.String"/><parameter name="shippingName" class="java.lang.String"/><parameter name="shippingAddress" class="java.lang.String"/><parameter name="shippingFirstState" class="java.lang.String"/><parameter name="shippingSecondState" class="java.lang.String"/><parameter name="IMAGE_PATH" class="java.lang.String"/><queryString language="SQL"><![CDATA[]]></queryString><field name="itemNo" class="java.lang.String"/><field name="description" class="java.lang.String"/><field name="unitCost" class="java.lang.Double"/><field name="quantity" class="java.lang.Integer"/><group name="Gruppo1"><groupExpression><![CDATA[(int)($V{REPORT_COUNT}/15)]]></groupExpression><groupHeader><band/></groupHeader><groupFooter><band><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></band></groupFooter></group><title><band height="196" splitType="Stretch"><staticText><reportElement x="0" y="90" width="84" height="25" uuid="57aed2b1-4f4e-40a3-a6ad-54dae8dd4c5a"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement><textElement><font size="16" isBold="true"/></textElement><text><![CDATA[Bill to:]]></text></staticText><line><reportElement x="0" y="80" width="556" height="1" uuid="806ce5df-1219-4876-ae0c-ca7405b1f246"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement></line><staticText><reportElement x="400" y="90" width="84" height="25" uuid="139ebe8d-25b0-411e-986c-270015400874"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement><textElement><font size="16" isBold="true"/></textElement><text><![CDATA[Ship to:]]></text></staticText><staticText><reportElement x="415" y="10" width="50" height="20" uuid="0f86baff-6386-4f3f-b3fe-2388707babe8"/><box rightPadding="4"/><textElement textAlignment="Right"/><text><![CDATA[Date:]]></text></staticText><textField pattern="EEEEE dd MMMMM yyyy"><reportElement x="465" y="10" width="84" height="20" uuid="bb10dbe1-0a4f-4722-9953-c163b63cf979"/><textFieldExpression><![CDATA[new java.util.Date()]]></textFieldExpression></textField><image hAlign="Center"><reportElement x="0" y="0" width="65" height="60" uuid="94883631-a913-43e2-b182-ab8d77d0181e"/><imageExpression><![CDATA[$P{IMAGE_PATH} + "/invoice_logo.png"]]></imageExpression></image><textField pattern="EEEEE dd MMMMM yyyy"><reportElement x="465" y="30" width="84" height="20" uuid="3836ce65-eca3-4cad-a6de-b1818def0a2b"/><textFieldExpression><![CDATA[$P{invoiceNo}]]></textFieldExpression></textField><staticText><reportElement x="415" y="30" width="50" height="20" uuid="0b3f9342-da78-4cfa-9fc5-2301c4749678"/><box rightPadding="4"/><textElement textAlignment="Right"/><text><![CDATA[Invoice #]]></text></staticText><staticText><reportElement x="95" y="0" width="210" height="25" uuid="e622555d-198b-4ccd-a4a1-c59c53304058"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement><textElement><font size="19" isBold="true"/></textElement><text><![CDATA[I think, I sink!]]></text></staticText><staticText><reportElement x="95" y="55" width="205" height="15" uuid="b8cc42fd-b569-497d-834d-7e854040ad18"/><text><![CDATA[+20 10 000 0000]]></text></staticText><staticText><reportElement x="95" y="25" width="205" height="15" uuid="c226e44d-3bb5-4145-b0b3-903bf1d79fde"/><text><![CDATA[Sesame street]]></text></staticText><staticText><reportElement x="95" y="40" width="205" height="15" uuid="b96f7183-44f8-43ad-ba60-43d8fbf50b6e"/><text><![CDATA[Sesame city]]></text></staticText><textField><reportElement x="0" y="115" width="150" height="15" uuid="7e9e0af2-08d1-4997-b3e1-971e74b1c8ad"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement><textFieldExpression><![CDATA[$P{billingCompanyName}]]></textFieldExpression></textField><textField><reportElement x="0" y="130" width="150" height="15" uuid="a0eaddab-ed2f-46fc-b9fc-d0d9747c6df3"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement><textFieldExpression><![CDATA[$P{billingCompanyAddress}]]></textFieldExpression></textField><textField><reportElement x="0" y="145" width="150" height="15" uuid="f9371f1e-125e-408d-a0f0-aa0ea5adc171"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement><textFieldExpression><![CDATA[$P{billingCompanyFirstState}]]></textFieldExpression></textField><textField><reportElement x="0" y="160" width="150" height="15" uuid="c14d7758-80e6-45d7-8526-797330e515d3"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement><textFieldExpression><![CDATA[$P{billingCompanySecondState}]]></textFieldExpression></textField><textField><reportElement x="400" y="160" width="140" height="15" uuid="a9baefea-45b3-4826-a81e-3572507eea6d"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement><textFieldExpression><![CDATA[$P{shippingSecondState}]]></textFieldExpression></textField><textField><reportElement x="400" y="145" width="140" height="15" uuid="338e1f40-9a03-4b77-aedc-568b1907628b"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement><textFieldExpression><![CDATA[$P{shippingFirstState}]]></textFieldExpression></textField><textField><reportElement x="400" y="130" width="140" height="15" uuid="54e6473f-44ef-4839-8f87-29e65af72561"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement><textFieldExpression><![CDATA[$P{shippingAddress}]]></textFieldExpression></textField><textField><reportElement x="400" y="115" width="140" height="15" uuid="1f093c2e-2d6f-403e-9c11-160dbaf82e6f"><property name="local_mesure_unitheight" value="pixel"/><property name="com.jaspersoft.studio.unit.height" value="px"/></reportElement><textFieldExpression><![CDATA[$P{shippingName}]]></textFieldExpression></textField></band></title><columnHeader><band height="24"><staticText><reportElement x="366" y="4" width="80" height="20" uuid="be792358-dade-4931-965d-fe4d4958b71c"/><textElement textAlignment="Center"><font size="12" isBold="false"/></textElement><text><![CDATA[Quantity]]></text></staticText><rectangle><reportElement mode="Opaque" x="10" y="2" width="531" height="20" backcolor="#C0D4EC" uuid="ce42b0b0-0d12-48c1-8020-576969255150"/><graphicElement><pen lineColor="#666666"/></graphicElement></rectangle><staticText><reportElement x="430" y="3" width="111" height="18" uuid="95b85246-2e67-42d0-9e41-987314cddba0"/><textElement textAlignment="Center"><font size="12" isBold="false"/></textElement><text><![CDATA[Price $]]></text></staticText><staticText><reportElement x="261" y="3" width="80" height="20" uuid="40050754-f800-4283-a0ed-64894f5652a2"/><textElement textAlignment="Center"><font size="12" isBold="false"/></textElement><text><![CDATA[Unit Cost $]]></text></staticText><staticText><reportElement x="10" y="3" width="50" height="20" uuid="299467fd-8d2b-48b0-af5b-769cc9d9bb37"/><textElement textAlignment="Center"><font size="12" isBold="false"/></textElement><text><![CDATA[Item]]></text></staticText><staticText><reportElement x="71" y="2" width="179" height="20" uuid="9818ad45-9dc2-4e62-821c-953f3801de84"/><textElement textAlignment="Center"><font size="12" isBold="false"/></textElement><text><![CDATA[Description]]></text></staticText><staticText><reportElement x="347" y="3" width="80" height="20" uuid="f10ae7d8-7499-404a-a1ab-a2ce63b22b3b"/><textElement textAlignment="Center"><font size="12" isBold="false"/></textElement><text><![CDATA[Quantity]]></text></staticText></band></columnHeader><detail><band height="29"><textField><reportElement x="11" y="5" width="54" height="20" uuid="0cd6aa63-bd20-45fb-8543-51931badd2fc"/><textElement textAlignment="Left"/><textFieldExpression><![CDATA[$F{itemNo}]]></textFieldExpression></textField><textField><reportElement x="70" y="5" width="180" height="20" uuid="1be950c3-370a-43fa-9510-2ee8db740774"/><textElement textAlignment="Left"/><textFieldExpression><![CDATA[$F{description}]]></textFieldExpression></textField><textField><reportElement x="261" y="5" width="80" height="20" uuid="3637c327-f832-4e7c-bb82-4cf41e607ca6"/><textElement textAlignment="Left"/><textFieldExpression><![CDATA[$F{unitCost}]]></textFieldExpression></textField><textField><reportElement x="347" y="5" width="80" height="20" uuid="e9bfe6dc-7101-4d22-90a7-4766122c4e8a"/><textElement textAlignment="Left"/><textFieldExpression><![CDATA[$F{quantity}]]></textFieldExpression></textField><textField><reportElement x="430" y="5" width="118" height="20" uuid="77c9d024-651d-4207-9f32-8637cd4dd449"/><textElement textAlignment="Left"/><textFieldExpression><![CDATA[$F{unitCost} * $F{quantity}]]></textFieldExpression></textField></band></detail><lastPageFooter><band height="177"><staticText><reportElement positionType="Float" x="-1" y="30" width="261" height="101" uuid="1a0d7088-5af7-4865-8be1-41ec5f51fb36"/><box><topPen lineWidth="1.1" lineStyle="Dashed"/><leftPen lineWidth="1.1" lineStyle="Dashed"/><bottomPen lineWidth="1.1" lineStyle="Dashed"/><rightPen lineWidth="1.1" lineStyle="Dashed"/></box><text><![CDATA[Your notes here]]></text></staticText><staticText><reportElement positionType="Float" mode="Opaque" x="0" y="147" width="556" height="30" backcolor="#E6E8E9" uuid="36aa233d-4305-48e6-974a-1bbf89bb3c8f"/><textElement textAlignment="Center" verticalAlignment="Middle"><font fontName="Serif" size="9" isItalic="true"/></textElement><text><![CDATA[THANKYOU FOR YOUR BUSINESS]]></text></staticText></band></lastPageFooter>
</jasperReport>

创建一个Item类，它将成为包含要绑定到JRXML模板字段的数据的模型对象。另外，我创建了一个InvoiceDetails类，该类具有将绑定到JRXML模板参数的数据。

package com.ithinkisink.model;/*** * @author Belal**/
public class Item {private String itemNo;private String description;private double unitCost;private int quantity;public Item(String itemNo, String description, double unitCost, int quantity) {super();this.itemNo = itemNo;this.description = description;this.unitCost = unitCost;this.quantity = quantity;}public String getItemNo() {return itemNo;}public void setItemNo(String itemNo) {this.itemNo = itemNo;}public String getDescription() {return description;}public void setDescription(String description) {this.description = description;}public double getUnitCost() {return unitCost;}public void setUnitCost(double unitCost) {this.unitCost = unitCost;}public int getQuantity() {return quantity;}public void setQuantity(int quantity) {this.quantity = quantity;}
}

DynamicReportsManagedBean将负责准备参数映射和包含将绑定到JRXML字段的List <Item>的JRBeanCollectionDataSource。

package com.ithinkisink.managedbean;import static net.sf.dynamicreports.report.builder.DynamicReports.report;import java.io.InputStream;
import java.io.OutputStream;
import java.io.Serializable;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import java.util.Map;import javax.annotation.PostConstruct;
import javax.enterprise.context.SessionScoped;
import javax.inject.Named;
import javax.servlet.ServletContext;import net.sf.dynamicreports.report.exception.DRException;
import net.sf.jasperreports.engine.data.JRBeanCollectionDataSource;import com.ithinkisink.model.InvoiceDetails;
import com.ithinkisink.model.Item;/*** * @author Belal**/
@Named
@SessionScoped
public class DynamicReportsManagedBean implements Serializable {private static final long serialVersionUID = -1;private String invoiceName;private JRBeanCollectionDataSource beanCollectionDataSource;private Map<String, Object> parameters;@PostConstructpublic void init() {invoiceName="Invoice.jrxml";List<Item> itemList = new ArrayList<>(Arrays.asList(new Item("01", "Item 01 description", 1.1, 1), new Item("02", "Item 02 description", 2.2, 2),new Item("03", "Item 03 description", 3.3, 3)));beanCollectionDataSource = new JRBeanCollectionDataSource(itemList);parameters = (new InvoiceDetails("INV#01", "Billing Company", "Billing Company Add", "Billing Company State 1", "Billing Company State 2", "Shipping Name", "Shipping Address", "Shipping State 1", "Shipping State 2", 1000)).toMap();}/*** Preparing an output stream of the generated PDF invoice.* * @return*/public OutputStream getOS(ServletContext context, OutputStream outputStream) {parameters.put("IMAGE_PATH", context.getRealPath("/jasper/invoices"));InputStream is = context.getResourceAsStream("/jasper/invoices/" + invoiceName);try {report().setTemplateDesign(is).setDataSource(beanCollectionDataSource).setParameters(parameters).toPdf(outputStream);} catch (DRException e) {e.printStackTrace();}return outputStream;}// setters and getterspublic String getInvoiceName() {return invoiceName;}public void setInvoiceName(String invoiceName) {this.invoiceName = invoiceName;}public JRBeanCollectionDataSource getBeanCollectionDataSource() {return beanCollectionDataSource;}public void setBeanCollectionDataSource(JRBeanCollectionDataSource beanCollectionDataSource) {this.beanCollectionDataSource = beanCollectionDataSource;}public void setParameters(Map<String, Object> parameters) {this.parameters = parameters;}public Map<String, Object> getParameters() {return parameters;}
}

CDI使我们能够将DynamicReportsManagedBean的实例注入到DynamicReportsServlet。 Servlet将处理响应输出流，该输出将呈现从模板的DynamicReports创建的输出流。

package com.ithinkisink.servlet;import java.io.IOException;
import java.io.OutputStream;import javax.inject.Inject;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;import com.ithinkisink.managedbean.DynamicReportsManagedBean;/*** * @author Belal**/
public class DynamicReportsServlet extends HttpServlet {private static final long serialVersionUID = 1L;@Injectprivate DynamicReportsManagedBean dynamicReportsManagedBean;@Overrideprotected void doGet(HttpServletRequest req, HttpServletResponse resp)throws ServletException, IOException {resp.setContentType("application/pdf");OutputStream out = resp.getOutputStream();out = dynamicReportsManagedBean.getOS(getServletContext(), out);out.close();}@Overrideprotected void doPost(HttpServletRequest req, HttpServletResponse resp)throws ServletException, IOException {super.doPost(req, resp);this.doGet(req, resp);}public void setDynamicReportsManagedBean(DynamicReportsManagedBean dynamicReportsManagedBean) {this.dynamicReportsManagedBean = dynamicReportsManagedBean;}public DynamicReportsManagedBean getDynamicReportsManagedBean() {return dynamicReportsManagedBean;}
}

在将servlet添加到web.xml中时，我更喜欢老派。

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"><display-name>DynamicReportsWithJSFServletsAndCDI Maven Webapp</display-name><servlet><description></description><display-name>DynamicReportsServlet</display-name><servlet-name>DynamicReportsServlet</servlet-name><servlet-class>com.ithinkisink.servlet.DynamicReportsServlet</servlet-class></servlet><servlet-mapping><servlet-name>DynamicReportsServlet</servlet-name><url-pattern>/*</url-pattern></servlet-mapping><welcome-file-list><welcome-file>/index.xhtml</welcome-file></welcome-file-list>
</web-app>

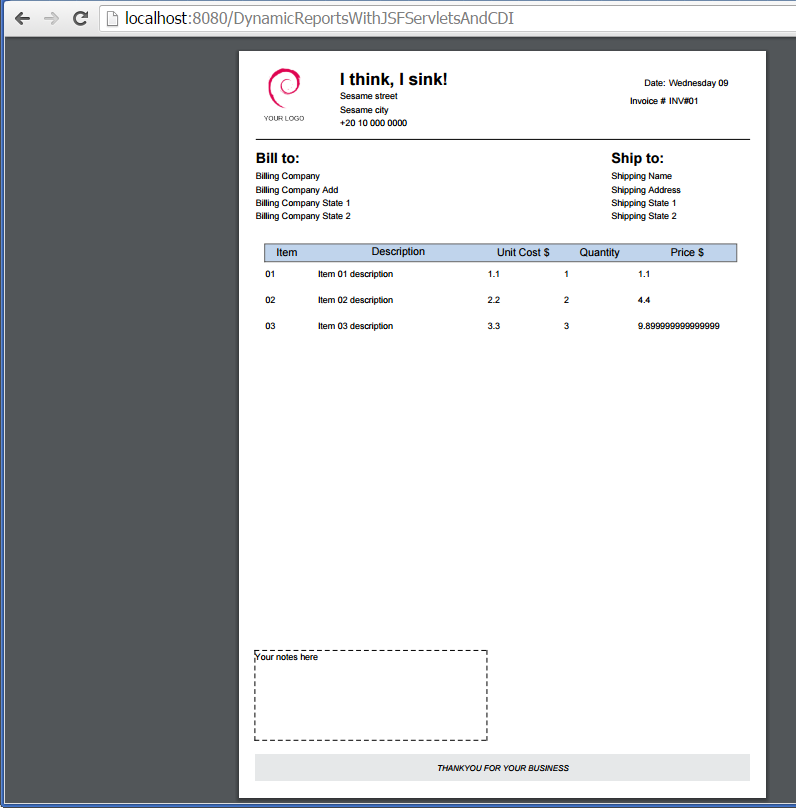

index.xhtml包含一个指向servlet的<iframe>。

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"xmlns:h="http://java.sun.com/jsf/html"><h:head><title>DynamicReports with Servlets, JSF and CDI</title>
</h:head><h:body><h:form><iframe name="receipt" height="600" id="theIFrame" width="100%"src="http://localhost:8080/DynamicReportsWithJSFServletsAndCDI" /></h:form>
</h:body></html>
