前言:
本文是基于 ClassLoader双亲委派机制源码分析 了解过正统JDK类加载机制及其实现原理的基础上,进而分析这种思想如何应用到Tomcat这个web容器中,从源码的角度对 违反ClassLoader双亲委派机制三部曲之首部——JDBC驱动加载 中提出的Tomcat是如何完成多个web应用之间相互隔离,又如何保证多个web应用都能加载到基础类库
的问题进行了解答,我们按如下的思路布局整篇文章:
- 先给出Tomcat整体的类加载体系结构
- 通过查看源码验证该类加载体系的正确性
- 总结Tomcat如何设计保证多应用隔离
另外本文是基于Tomcat7的源码进行分析的,因此读者最好先搭建一套基于Tomcat7的环境,以便查阅源码以及运行调试,可以按照该文章的方式进行搭建:Tomcat源码导入Idea
Tomcat类加载体系结构

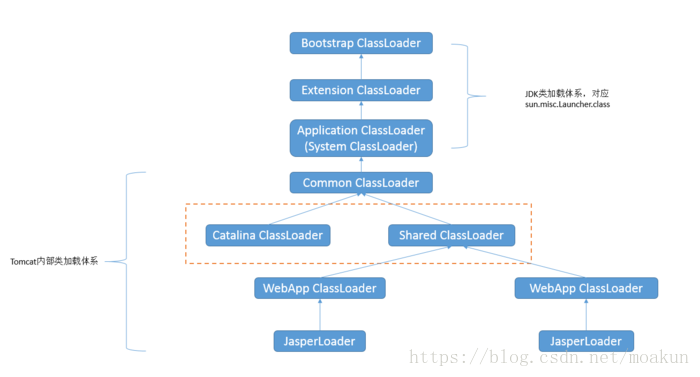

图1. Tomcat整体类加载体系结构
Tomcat本身也是一个java项目,因此其也需要被JDK的类加载机制加载,也就必然存在引导类加载器、扩展类加载器和应用(系统)类加载器。Tomcat自身定义的类加载器主要由图中下半部分组成,Common ClassLoader
作为Catalina ClassLoader
和Shared ClassLoader
的parent,而Shared ClassLoader
又可能存在多个children类加载器WebApp ClassLoader
,一个WebApp ClassLoader
实际上就对应一个Web应用,那Web应用就有可能存在Jsp页面,这些Jsp页面最终会转成class类被加载,因此也需要一个Jsp的类加载器,就是图中的JasperLoder
需要注意的是,在代码层面Catalina ClassLoader
、Shared ClassLoader
、Common ClassLoader
对应的实体类实际上都是URLClassLoader
或者SecureClassLoader
,一般我们只是根据加载内容的不同和加载父子顺序的关系,在逻辑上划分为这三个类加载器;而WebApp ClassLoader
和JasperLoader
都是存在对应的类加载器类的
下面我们从源码设计的角度验证图中类加载器的设计
源码分析Tomcat类加载机制
Tomcat的启动入口在Bootstrap.class
中

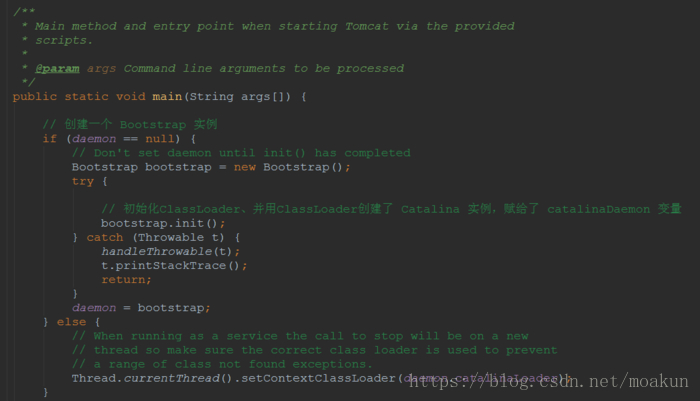

图2. Tomcat启动入口
其中初始化类加载器的流程在bootstrap.init();
中,如下“代码清单1”
public void init()throws Exception{// Set Catalina pathsetCatalinaHome();setCatalinaBase();// (1) 初始化 classLoaderinitClassLoaders();Thread.currentThread().setContextClassLoader(catalinaLoader);SecurityClassLoad.securityClassLoad(catalinaLoader);// Load our startup class and call its process() methodif (log.isDebugEnabled())log.debug("Loading startup class");//加载 org.apache.catalina.startup.Catalina classClass<?> startupClass =catalinaLoader.loadClass("org.apache.catalina.startup.Catalina");// (2) 实例化 Catalina 实例Object startupInstance = startupClass.newInstance();// Set the shared extensions class loaderif (log.isDebugEnabled())log.debug("Setting startup class properties");String methodName = "setParentClassLoader";Class<?> paramTypes[] = new Class[1];paramTypes[0] = Class.forName("java.lang.ClassLoader");Object paramValues[] = new Object[1];paramValues[0] = sharedLoader;Method method =startupInstance.getClass().getMethod(methodName, paramTypes);method.invoke(startupInstance, paramValues);catalinaDaemon = startupInstance;}
(1)处注释的代码主要进行类加载的初始化以及形成类加载器的关系初始化,继续跟进

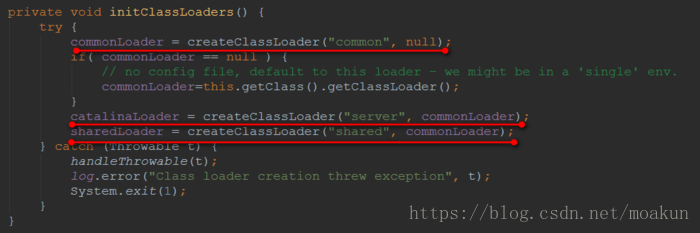

图3. initClassLoaders()方法
这里红线处的代码实际上创建了三个ClassLoader对象,其名称和Tomcat类加载关系图中的类加载器高度一致,那么我们猜测createClassLoader(String,ClassLoader)
方法可能就是创建Tomcat自定义类加载器的方法之一,继续往下看 “ 代码清单2 ”
private ClassLoader createClassLoader(String name, ClassLoader parent)throws Exception {// (1) 根据名称查找特定的配置String value = CatalinaProperties.getProperty(name + ".loader");if ((value == null) || (value.equals("")))return parent;value = replace(value);List<Repository> repositories = new ArrayList<Repository>();StringTokenizer tokenizer = new StringTokenizer(value, ",");while (tokenizer.hasMoreElements()) {String repository = tokenizer.nextToken().trim();if (repository.length() == 0) {continue;}// Check for a JAR URL repositorytry {@SuppressWarnings("unused")URL url = new URL(repository);repositories.add(new Repository(repository, RepositoryType.URL));continue;} catch (MalformedURLException e) {// Ignore}// Local repositoryif (repository.endsWith("*.jar")) {repository = repository.substring(0, repository.length() - "*.jar".length());repositories.add(new Repository(repository, RepositoryType.GLOB));} else if (repository.endsWith(".jar")) {repositories.add(new Repository(repository, RepositoryType.JAR));} else {repositories.add(new Repository(repository, RepositoryType.DIR));}}// (2) 类加载器工厂创建特定类加载器return ClassLoaderFactory.createClassLoader(repositories, parent);}
代码清单中(1)处注释是根据上图中传递的“名称”加上后缀.loader
去某个配置文件加载文件,为了突出重点,这里直接给出结论,其加载的内容为/org/apache/catalina/startup/catalina.properties
,比如要加载 common.loader
对应的value,其在文件中的值为${catalina.base}/lib,${catalina.base}/lib/*.jar,${catalina.home}/lib,${catalina.home}/lib/*.jar
,也就是说Common ClassLoader要加载的路径是这些,是Tomcat运行要使用的公共组件,比如servlet-api.jar
、catalina.jar
等;而我们发现当要加载server.loader
和shared.loader
时,其key在配置文件中的value为空,也就是说,默认情况下Catalina ClassLoader和Shared ClassLoader(Tomcat整体类加载体系结构图中红色虚线内)都不存在,只有Common ClassLoader
方法中的第二个参数表示创建类加载器的父类加载器是哪个,再看initClassLoaders()方法
图中代码,在创建catalinaLoader
和sharedLoader
时,父类加载器传入的实际上就是commonLoader
,以此可以验证图1中Catalina ClassLoader
、Shared ClassLoader
和Common ClassLoader
的父子关系。而common ClassLoader
的父类加载器参数传递的为null,为什么null就会导致该类加载器的父类加载器为System ClassLoader
呢?我们需要进入代码清单2中看注释(2)处标识的代码 代码清单3
public static ClassLoader createClassLoader(List<Repository> repositories,final ClassLoader parent)throws Exception {if (log.isDebugEnabled())log.debug("Creating new class loader");// Construct the "class path" for this class loaderSet<URL> set = new LinkedHashSet<URL>();// 加载指定路径下的资源对象if (repositories != null) {for (Repository repository : repositories) {if (repository.getType() == RepositoryType.URL) {URL url = buildClassLoaderUrl(repository.getLocation());if (log.isDebugEnabled())log.debug(" Including URL " + url);set.add(url);} else if (repository.getType() == RepositoryType.DIR) {File directory = new File(repository.getLocation());directory = directory.getCanonicalFile();if (!validateFile(directory, RepositoryType.DIR)) {continue;}URL url = buildClassLoaderUrl(directory);if (log.isDebugEnabled())log.debug(" Including directory " + url);set.add(url);} else if (repository.getType() == RepositoryType.JAR) {File file=new File(repository.getLocation());file = file.getCanonicalFile();if (!validateFile(file, RepositoryType.JAR)) {continue;}URL url = buildClassLoaderUrl(file);if (log.isDebugEnabled())log.debug(" Including jar file " + url);set.add(url);} else if (repository.getType() == RepositoryType.GLOB) {File directory=new File(repository.getLocation());directory = directory.getCanonicalFile();if (!validateFile(directory, RepositoryType.GLOB)) {continue;}if (log.isDebugEnabled())log.debug(" Including directory glob "+ directory.getAbsolutePath());String filenames[] = directory.list();if (filenames == null) {continue;}for (int j = 0; j < filenames.length; j++) {String filename = filenames[j].toLowerCase(Locale.ENGLISH);if (!filename.endsWith(".jar"))continue;File file = new File(directory, filenames[j]);file = file.getCanonicalFile();if (!validateFile(file, RepositoryType.JAR)) {continue;}if (log.isDebugEnabled())log.debug(" Including glob jar file "+ file.getAbsolutePath());URL url = buildClassLoaderUrl(file);set.add(url);}}}}// Construct the class loader itselffinal URL[] array = set.toArray(new URL[set.size()]);if (log.isDebugEnabled())for (int i = 0; i < array.length; i++) {log.debug(" location " + i + " is " + array[i]);}// 返回创建的类加载器return AccessController.doPrivileged(new PrivilegedAction<URLClassLoader>() {@Overridepublic URLClassLoader run() {if (parent == null)return new URLClassLoader(array);elsereturn new URLClassLoader(array, parent);}});}
大块的if
中的代码实际上是对资源进行转化加载的过程,而return
部分才是返回类加载器的部分,代码根据是否有parent调用了URLClassLoader
不同的构造器,Common ClassLoader
调用的是没有parent的构造器
图4. Common ClassLoader的parent创建的底层关键代码
按红线所画Common ClassLoader
的parent实际上是JDK中sun.misc.Launcher.class
类的loader成员变量,而在上一篇文章中已经知道该loader的值就是应用类加载器(系统类加载器)System ClassLoader
。至此Tomcat中类加载机制和JDK的类加载机制也建立上了联系
现在Tomcat的类加载机制已完成了一大半,剩下用于加载每个web应用的类加载器WebApp ClassLoader
的分析,这个时候需要重新回到代码清单1中看注释(2)以下的部分,其主要做的事情是通过反射创建了org.apache.catalina.startup.Catalina
类的实例,然后调用了签名为void setParentClassLoader(ClassLoader parentClassLoader)
的方法,并传入了Shared ClassLoader
,上面我们说过默认情况下Shared ClassLoader
就是Common ClassLoader
,因此其传入的参数实际上是Common ClassLoader
我们思考既然有保存parent的方法,必定使用时会调用获得parent方法,那么我们需要查看Catalina
类中ClassLoader getParentClassLoader()
方法的调用栈(层级关系比较复杂,要紧跟主线不要迷失),最终定位到StandardContext
中的synchronized void startInternal() throws LifecycleException
方法(其中涉及到Tomcat的各种组件关系,生命周期管理等内容,将在下次分析Tomcat组件文章中详细介绍),下面是只保留核心逻辑的startInternal()
方法 代码清单4
protected synchronized void startInternal() throws LifecycleException {// 其他逻辑略......// Add missing components as necessaryif (webappResources == null) { // (1) Required by Loaderif (log.isDebugEnabled())log.debug("Configuring default Resources");try {String docBase = getDocBase();if (docBase == null) {setResources(new EmptyDirContext());} else if (docBase.endsWith(".war")&& !(new File(getBasePath())).isDirectory()) {setResources(new WARDirContext());} else {setResources(new FileDirContext());}} catch (IllegalArgumentException e) {log.error(sm.getString("standardContext.resourcesInit"), e);ok = false;}}if (ok) {if (!resourcesStart()) {throw new LifecycleException("Error in resourceStart()");}}// (1) 为每一个web应用创建一个WebappLoaderif (getLoader() == null) {WebappLoader webappLoader = new WebappLoader(getParentClassLoader());webappLoader.setDelegate(getDelegate());setLoader(webappLoader);}// 其他逻辑略......try {if (ok) {// (2) 调用WebappLoader的start// Start our subordinate components, if anyif ((loader != null) && (loader instanceof Lifecycle))((Lifecycle) loader).start();}// 其他逻辑省略......} finally {// Unbinding threadunbindThread(oldCCL);}}
(1)处注释下的代码逻辑就是为每一个web应用创建一个类加载器,该类加载器的父类加载器就是通过getParentClassLoader()
得到的Shared ClassLoader
(Common ClassLoader
),(2)处代码调用了WebappLoader
的start
方法,继续跟进
protected void startInternal() throws LifecycleException {// 其他逻辑省略.....try {//创建类加载器关键方法classLoader = createClassLoader();classLoader.setResources(container.getResources());classLoader.setDelegate(this.delegate);classLoader.setSearchExternalFirst(searchExternalFirst);if (container instanceof StandardContext) {classLoader.setAntiJARLocking(((StandardContext) container).getAntiJARLocking());classLoader.setClearReferencesRmiTargets(((StandardContext) container).getClearReferencesRmiTargets());classLoader.setClearReferencesStatic(((StandardContext) container).getClearReferencesStatic());classLoader.setClearReferencesStopThreads(((StandardContext) container).getClearReferencesStopThreads());classLoader.setClearReferencesStopTimerThreads(((StandardContext) container).getClearReferencesStopTimerThreads());classLoader.setClearReferencesHttpClientKeepAliveThread(((StandardContext) container).getClearReferencesHttpClientKeepAliveThread());}// 其他逻辑省略.....}
由于Tomcat的设计,WebappLoader
的start
方法实际上调用的是父类的模板,而模板中的startinternal
方法由各个子类具体实现,其中最关键的方法为createClassLoader()
图5. WebappLoader中createClassLoader方法
上图中的loadClass
成员变量的值为org.apache.catalina.loader.WebappClassLoader
,所以,实际上该类为每一个web应用创建了一个WebappClassLoader
的实例,该实例的parent就是Shared ClassLoader
或者Common ClassLoader
,至此WebApp ClassLoader
在图1中的位置也得以验证。
从理论上分析来看,由于类加载的“双亲委派”机制,一个类加载器只能加载本加载器指定的目录以及使用有“继承”关系的父类加载器加载过的类,而Tomcat为每一个Web应用创建了一个WebappClassLoader
,不同的WebappClassLoader
是同级关系,不会存在交叉访问的问题,从而达到web应用相互隔离的目的。
那Tomcat是否没有"破坏"双亲委派机制呢?我们通过查看WebappClassLoader
及其父类WebappClassLoaderBase
的loadClass()
和findClass()
分析一下Tomcat加载web应用相关类的策略
public Class<?> loadClass(String name, boolean resolve) throws ClassNotFoundException {synchronized (getClassLoadingLockInternal(name)) {if (log.isDebugEnabled())log.debug("loadClass(" + name + ", " + resolve + ")");Class<?> clazz = null;// Log access to stopped classloaderif (!started) {try {throw new IllegalStateException();} catch (IllegalStateException e) {log.info(sm.getString("webappClassLoader.stopped", name), e);}}// (1) // Check our previously loaded local class cacheclazz = findLoadedClass0(name);if (clazz != null) {if (log.isDebugEnabled())log.debug(" Returning class from cache");if (resolve)resolveClass(clazz);return (clazz);}// (2)// Check our previously loaded class cacheclazz = findLoadedClass(name);if (clazz != null) {if (log.isDebugEnabled())log.debug(" Returning class from cache");if (resolve)resolveClass(clazz);return (clazz);}// (3)// Try loading the class with the system class loader, to prevent// the webapp from overriding J2SE classestry {clazz = j2seClassLoader.loadClass(name);if (clazz != null) {if (resolve)resolveClass(clazz);return (clazz);}} catch (ClassNotFoundException e) {// Ignore}// Permission to access this class when using a SecurityManagerif (securityManager != null) {int i = name.lastIndexOf('.');if (i >= 0) {try {securityManager.checkPackageAccess(name.substring(0,i));} catch (SecurityException se) {String error = "Security Violation, attempt to use " +"Restricted Class: " + name;if (name.endsWith("BeanInfo")) {// BZ 57906: suppress logging for calls from// java.beans.Introspector.findExplicitBeanInfo()log.debug(error, se);} else {log.info(error, se);}throw new ClassNotFoundException(error, se);}}}// (4)boolean delegateLoad = delegate || filter(name);// (5)// Delegate to our parent if requestedif (delegateLoad) {if (log.isDebugEnabled())log.debug(" Delegating to parent classloader1 " + parent);try {clazz = Class.forName(name, false, parent);if (clazz != null) {if (log.isDebugEnabled())log.debug(" Loading class from parent");if (resolve)resolveClass(clazz);return (clazz);}} catch (ClassNotFoundException e) {// Ignore}}// (6)// Search local repositoriesif (log.isDebugEnabled())log.debug(" Searching local repositories");try {clazz = findClass(name);if (clazz != null) {if (log.isDebugEnabled())log.debug(" Loading class from local repository");if (resolve)resolveClass(clazz);return (clazz);}} catch (ClassNotFoundException e) {// Ignore}// Delegate to parent unconditionallyif (!delegateLoad) {if (log.isDebugEnabled())log.debug(" Delegating to parent classloader at end: " + parent);try {clazz = Class.forName(name, false, parent);if (clazz != null) {if (log.isDebugEnabled())log.debug(" Loading class from parent");if (resolve)resolveClass(clazz);return (clazz);}} catch (ClassNotFoundException e) {// Ignore}}}throw new ClassNotFoundException(name);}
我们首先定位到WebappClassLoaderBase
的loadClass
方法,(1)处首先看name
对应的类是否存在缓存中,缓存是一个ConcurrentHashMap<String, ResourceEntry>
的集合,如果没有缓存执行(2)处逻辑,从JVM中查找是否曾今加载过该类,(3)中的代码保证自定义类不会覆盖java基础类库中的类,(4)的逻辑就是是否进行双亲委派的分叉口,其中delegate
默认为false
,那么就要看filter(String)
方法,该方法的内部实际上将待加载类的全路径名称和一个成员变量protected static final String[] packageTriggers
中的类名进行比较,如果待加载的类名和packageTriggers
数组中的内容前缀匹配,则需要委派父类加载,即执行(5)处代码,否则执行(6),调用重写的findClass(String)
方法加载该类
public Class<?> findClass(String name) throws ClassNotFoundException {// 其他代码略去.....// Ask our superclass to locate this class, if possible// (throws ClassNotFoundException if it is not found)Class<?> clazz = null;try {if (log.isTraceEnabled())log.trace(" findClassInternal(" + name + ")");// (1)if (hasExternalRepositories && searchExternalFirst) {try {clazz = super.findClass(name);} catch(ClassNotFoundException cnfe) {// Ignore - will search internal repositories next} catch(AccessControlException ace) {log.warn("WebappClassLoaderBase.findClassInternal(" + name+ ") security exception: " + ace.getMessage(), ace);throw new ClassNotFoundException(name, ace);} catch (RuntimeException e) {if (log.isTraceEnabled())log.trace(" -->RuntimeException Rethrown", e);throw e;}}// (2)if ((clazz == null)) {try {clazz = findClassInternal(name);} catch(ClassNotFoundException cnfe) {if (!hasExternalRepositories || searchExternalFirst) {throw cnfe;}} catch(AccessControlException ace) {log.warn("WebappClassLoaderBase.findClassInternal(" + name+ ") security exception: " + ace.getMessage(), ace);throw new ClassNotFoundException(name, ace);} catch (RuntimeException e) {if (log.isTraceEnabled())log.trace(" -->RuntimeException Rethrown", e);throw e;}}//其他代码略去........return (clazz);}
(1)处由于hasExternalRepositories
和searchExternalFirst
默认为false,因此执行(2)处逻辑,调用findClassInternal(String)
方法

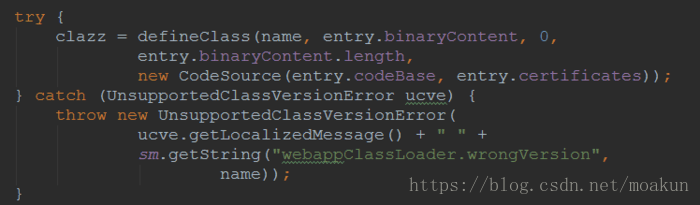

图6. WebappClassLoader类的findClassInternal方法
其主要的思想是根据待加载类的全路径读取该类的二进制数据,进而进行类的预定义、class source的解析等,将该类加载到JVM中
综上所述,我认为Tomcat的类加载机制不能算完全“正统”的双亲委派,WebappClassLoader
内部重写了loadClass
和findClass
方法,实现了绕过“双亲委派”直接加载web应用内部的资源,当然可以通过在Context.xml文件中加上<Loader delegate = "true">
开启正统的“双亲委派”加载机制
