在xy图(散点图)是根据一个数据系列组成的x和y值的列表。每个值对(x,y)是坐标系中的一个点。这里1值确定水平(X)位置,而另一个确定垂直(Y)位置。本章演示了如何使用JFreeChart从一个给定的业务数据创建XY图表。
业务数据
考虑这种情况,我们要创建一个XY图表所有主要浏览器的一个例子。在这里,不同的性能分数是从不同类型的人们聚集,如下所示:
Firefox | Category(X) | Score(Y) |
---|---|---|
1.0 | 1.0 | |
2.0 | 4.0 | |
3.0 | 3.0 |
Chrome | Category(X) | Score(Y) |
---|---|---|
1.0 | 4.0 | |
2.0 | 5.0 | |
3.0 | 6.0 |
IE | Category(X) | Score(Y) |
---|---|---|
3.0 | 4.0 | |
4.0 | 5.0 | |
5.0 | 4.0 |
基于AWT的应用
以下是对从上述给定的信息创建XY图表的代码。此代码可以在AWT应用程序嵌入一个XY图表。
import java.awt.Color;
import java.awt.BasicStroke;
import org.jfree.chart.ChartPanel;
import org.jfree.chart.JFreeChart;
import org.jfree.data.xy.XYDataset;
import org.jfree.data.xy.XYSeries;
import org.jfree.ui.ApplicationFrame;
import org.jfree.ui.RefineryUtilities;
import org.jfree.chart.plot.XYPlot;
import org.jfree.chart.ChartFactory;
import org.jfree.chart.plot.PlotOrientation;
import org.jfree.data.xy.XYSeriesCollection;
import org.jfree.chart.renderer.xy.XYLineAndShapeRenderer;public class XYLineChart_AWT extends ApplicationFrame
{public XYLineChart_AWT( String applicationTitle, String chartTitle ){super(applicationTitle);JFreeChart xylineChart = ChartFactory.createXYLineChart(chartTitle ,"Category" ,"Score" ,createDataset() ,PlotOrientation.VERTICAL ,true , true , false);ChartPanel chartPanel = new ChartPanel( xylineChart );chartPanel.setPreferredSize( new java.awt.Dimension( 560 , 367 ) );final XYPlot plot = xylineChart.getXYPlot( );XYLineAndShapeRenderer renderer = new XYLineAndShapeRenderer( );renderer.setSeriesPaint( 0 , Color.RED );renderer.setSeriesPaint( 1 , Color.GREEN );renderer.setSeriesPaint( 2 , Color.YELLOW );renderer.setSeriesStroke( 0 , new BasicStroke( 4.0f ) );renderer.setSeriesStroke( 1 , new BasicStroke( 3.0f ) );renderer.setSeriesStroke( 2 , new BasicStroke( 2.0f ) );plot.setRenderer( renderer ); setContentPane( chartPanel ); }private XYDataset createDataset( ){final XYSeries firefox = new XYSeries( "Firefox" ); firefox.add( 1.0 , 1.0 ); firefox.add( 2.0 , 4.0 ); firefox.add( 3.0 , 3.0 ); final XYSeries chrome = new XYSeries( "Chrome" ); chrome.add( 1.0 , 4.0 ); chrome.add( 2.0 , 5.0 ); chrome.add( 3.0 , 6.0 ); final XYSeries iexplorer = new XYSeries( "InternetExplorer" ); iexplorer.add( 3.0 , 4.0 ); iexplorer.add( 4.0 , 5.0 ); iexplorer.add( 5.0 , 4.0 ); final XYSeriesCollection dataset = new XYSeriesCollection( ); dataset.addSeries( firefox ); dataset.addSeries( chrome ); dataset.addSeries( iexplorer );return dataset;}public static void main( String[ ] args ) {XYLineChart_AWT chart = new XYLineChart_AWT("Browser Usage Statistics", "Which Browser are you using?");chart.pack( ); RefineryUtilities.centerFrameOnScreen( chart ); chart.setVisible( true ); }
}
让我们保存XYLineChart_AWT.java文件如上面的Java代码,然后从命令提示符下编译并运行它,如下所示:
$javac XYLineChart_AWT.java $java XYLineChart_AWT

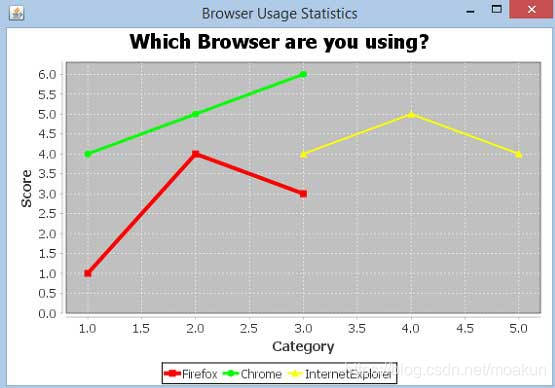

如果一切顺利,它会编译并运行生成以下XY图:
创建JPEG图像
让我们重新编写上面的例子,在命令行生成JPEG图像。
import java.io.*;
import org.jfree.chart.ChartFactory;
import org.jfree.chart.JFreeChart;
import org.jfree.data.xy.XYSeries;
import org.jfree.chart.plot.PlotOrientation;
import org.jfree.data.xy.XYSeriesCollection;
import org.jfree.chart.ChartUtilities; public class XYLineChart_image
{public static void main( String[ ] args )throws Exception{final XYSeries firefox = new XYSeries( "Firefox" );firefox.add( 1.0 , 1.0 );firefox.add( 2.0 , 4.0 );firefox.add( 3.0 , 3.0 );final XYSeries chrome = new XYSeries( "Chrome" );chrome.add( 1.0 , 4.0 );chrome.add( 2.0 , 5.0 );chrome.add( 3.0 , 6.0 );final XYSeries iexplorer = new XYSeries( "InternetExplorer" );iexplorer.add( 3.0 , 4.0 );iexplorer.add( 4.0 , 5.0 );iexplorer.add( 5.0 , 4.0 );final XYSeriesCollection dataset = new XYSeriesCollection( );dataset.addSeries( firefox );dataset.addSeries( chrome );dataset.addSeries( iexplorer );JFreeChart xylineChart = ChartFactory.createXYLineChart("Browser usage statastics", "Category","Score", dataset,PlotOrientation.VERTICAL, true, true, false);int width = 640; /* Width of the image */int height = 480; /* Height of the image */ File XYChart = new File( "XYLineChart.jpeg" ); ChartUtilities.saveChartAsJPEG( XYChart, xylineChart, width, height);}
}
让我们保存在XYLineChart_image.java文件如上面的Java代码,然后从命令提示符下编译并运行它,如下所示:
$javac XYLineChart_image.java $java XYLineChart_image
如果一切顺利,它会编译并运行在当前的目录中创建JPEG图像文件namedXYLineChart.jpeg。
