.Net Core使用Ocelot网关(二) -鉴权认证

前言

上一章.Net Core使用Ocelot网关(一) -负载,限流,熔断,Header转换已经简单的介绍了ocelot的使用了,但是网关暴露的接口如果什么人都能访问的话安全性就太低啦。所以我们需要去鉴权和认证。这里我们使用identityServer4给我们的网关来鉴权认证。

创建Identity服务

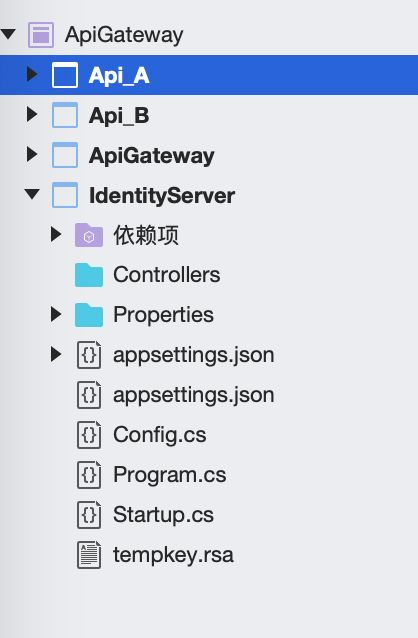

我们创建一个identity的服务来用于令牌的发放和鉴权。下图是我的项目结构。

Api_Gatewat端口:5000
Api_A端口:5001
Api_B端口:5002
IdentityServer端口:5003

通过nuget添加IdentityServer4的包,也可以通过程序包管理控制台执行以下命令Install-Package IdentityServer4。

添加一个Congif文件。

using System.Collections.Generic;
using IdentityModel;
using IdentityServer4;
using IdentityServer4.Models;namespace IdentityServer
{public static class Config{public static IEnumerable<IdentityResource> GetIdentityResourceResources(){return new List<IdentityResource>{new IdentityResources.OpenId(), //必须要添加，否则报无效的scope错误};}// scopes define the API resources in your systempublic static IEnumerable<ApiResource> GetApiResources(){//可访问的API资源(资源名，资源描述)return new List<ApiResource>{new ApiResource("Api_A", "Api_A"),new ApiResource("Api_B", "Api_B")};}public static IEnumerable<Client> GetClients(){return new List<Client>{new Client{ClientId = "client_a", //访问客户端Id,必须唯一//使用客户端授权模式，客户端只需要clientid和secrets就可以访问对应的api资源。AllowedGrantTypes = GrantTypes.ClientCredentials,ClientSecrets ={new Secret("secret".Sha256())},AllowedScopes = { "Api_A",IdentityServerConstants.StandardScopes.OpenId,IdentityServerConstants.StandardScopes.Profile }},new  Client{ClientId = "client_b",ClientSecrets = new [] { new Secret("secret".Sha256()) },AllowedGrantTypes = GrantTypes.ClientCredentials,AllowedScopes = { "Api_B",IdentityServerConstants.StandardScopes.OpenId,IdentityServerConstants.StandardScopes.Profile }}};}}
}

添加两个API资源，并且添加两个客户端分别去访问不同资源。

在 Startup 中的 ConfigureServices 中配置IdentityServer服务。

public void ConfigureServices(IServiceCollection services)
{services.AddIdentityServer().AddDeveloperSigningCredential().AddInMemoryApiResources(Config.GetApiResources()).AddInMemoryClients(Config.GetClients());
}

在 Configure 中把IdentityServer放入http管道中。

public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
{if (env.IsDevelopment()){app.UseDeveloperExceptionPage();}app.UseIdentityServer();
}

为ocelot集成Identity

通过nuget添加IdentityServer4.AccessTokenValidation的包,也可以通过程序包管理控制台执行以下命令 Install-Package IdentityServer4.AccessTokenValidation

IdentityServer4.AccessTokenValidation - 用于验证IdentityServer4中的JWT和引用令牌

在 Startup 的 ConfigureServices 中分别注册两个认证方案 Configure 中配置IdentityServer服务。

public void ConfigureServices(IServiceCollection services)
{services.AddAuthentication().AddJwtBearer("Api_A", i =>{i.Audience = "Api_A";i.Authority = "http://localhost:5003";i.RequireHttpsMetadata = false;}).AddJwtBearer("Api_B", y =>{y.Audience = "Api_B";y.Authority = "http://localhost:5003";y.RequireHttpsMetadata = false;});services.AddOcelot(new ConfigurationBuilder().AddJsonFile("configuration.json").Build());
}public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
{if (env.IsDevelopment()){app.UseDeveloperExceptionPage();}app.UseOcelot();app.UseAuthorization();
}

并修改ocelot配置文件,在Routes中添加授权信息

{"ReRoutes": [{"UpstreamPathTemplate": "/Api_A/{controller}/{action}","DownstreamPathTemplate": "/api/{controller}/{action}","UpstreamHttpMethod": [ "GET", "POST", "DELETE", "PUT" ],"DownstreamScheme": "http","DownstreamHostAndPorts": [{"Host": "localhost","Port": 5001}],"RateLimitOptions": {"ClientWhitelist": [ "127.0.0.1" ],"EnableRateLimiting": true,"Period": "1m","PeriodTimespan": 30,"Limit": 5},"FileCacheOptions": {"TtlSeconds": 5,"Region": "time"},"UpstreamHeaderTransform": {"demo": "a,b"},"DownstreamHeaderTransform": {"demo": "xxxxxxx","Location": "{DownstreamBaseUrl},{BaseUrl}"},//授权信息"AuthenticationOptions": {"AuthenticationProviderKey": "Api_A","AllowedScopes": []}},{"UpstreamPathTemplate": "/Api_B/{controller}/{action}","DownstreamPathTemplate": "/api/{controller}/{action}","UpstreamHttpMethod": [ "GET", "POST", "DELETE", "PUT" ],"DownstreamScheme": "http","DownstreamHostAndPorts": [{"Host": "localhost","Port": 5002}],//授权信息"AuthenticationOptions": {"AuthenticationProviderKey": "Api_B","AllowedScopes": []}}],"QoSOptions": {"ExceptionsAllowedBeforeBreaking": 3,"DurationOfBreak": 20,"TimeoutValue": 5000},"GlobalConfiguration": {"RateLimitOptions": {"DisableRateLimitHeaders": false,"QuotaExceededMessage": "接口限流!","HttpStatusCode": 200,"ClientIdHeader": "ClientId"}}
}

Ocelot会去检查ReRoutes是否配置了AuthenticationOptions节点。如果有会根据配置的认证方案进行身份认证。如果没有则不进行身份认证。
AuthenticationProviderKey 是刚才注册的认证方案。
AllowedScopes 是 AllowedScopes中配置的授权访问范围。
