在前面博文【Vue】Vue 与 ASP.NET Core WebAPI 的集成中，介绍了集成原理：在中间件管道中注册SPA终端中间件，整个注册过程中，终端中间件会调用node，执行npm start命令启动vue开发服务器，向中间件管道添加路由匹配，即非 api 请求（请求静态文件,js css html）都代理转发至SPA开发服务器。
注册代码如下：
public void Configure(Microsoft.AspNetCore.Builder.IApplicationBuilder app, IWebHostEnvironment env)
{#region +Endpoints// Execute the matched endpoint.app.UseEndpoints(endpoints =>{endpoints.MapControllers();});app.UseSpa(spa =>{spa.Options.SourcePath = "ClientApp";if (env.IsDevelopment()){//spa.UseReactDevelopmentServer(npmScript: "start");spa.UseVueCliServer(npmScript: "start");//spa.UseProxyToSpaDevelopmentServer("http://localhost:8080");}});#endregion
}
“可以看到先注册了能够匹配
”API请求的属性路由。
如果上面的属性路由无法匹配，请求就会在中间件管道中传递，至下一个中间件：SPA的终端中间件
以上便是集成原理。接下来我们对其中间件源码进行解读。整体还是有蛮多值得解读学习的知识点：
异步编程
内联中间件
启动进程
事件驱动
1.异步编程-ContinueWith
我们先忽略调用npm start命令执行等细节。映入我们眼帘的便是异步编程。众所周知，vue执行npm start(npm run dev)的一个比较花费时间的过程。要达成我们完美集成的目的：我们注册中间件，就需要等待vue前端开发服务器启动后，正常使用，接收代理请求至这个开发服务器。这个等待后一个操作完成后再做其他操作，这就是一个异步编程。
建立需要返回
npm run dev结果的类：
class VueCliServerInfo
{public int Port { get; set; }
}
编写异步代码，启动前端开发服务器
private static async Task<VueCliServerInfo> StartVueCliServerAsync(string sourcePath, string npmScriptName, ILogger logger)
{//省略代码
}
1.1 ContinueWith
编写继续体
ContinueWith本身就会返回一个Task
var vueCliServerInfoTask = StartVueCliServerAsync(sourcePath, npmScriptName, logger);//继续体
var targetUriTask = vueCliServerInfoTask.ContinueWith(task =>{return new UriBuilder("http", "localhost", task.Result.Port).Uri;});
1.2 内联中间件
继续使用这个继续体返回的 task，并
applicationBuilder.Use()配置一个内联中间件，即所有请求都代理至开发服务器
SpaProxyingExtensions.UseProxyToSpaDevelopmentServer(spaBuilder, () =>{var timeout = spaBuilder.Options.StartupTimeout;return targetUriTask.WithTimeout(timeout,$"The Vue CLI process did not start listening for requests " +$"within the timeout period of {timeout.Seconds} seconds. " +$"Check the log output for error information.");});
public static void UseProxyToSpaDevelopmentServer(this ISpaBuilder spaBuilder,Func<Task<Uri>> baseUriTaskFactory)
{var applicationBuilder = spaBuilder.ApplicationBuilder;var applicationStoppingToken = GetStoppingToken(applicationBuilder);//省略部分代码// Proxy all requests to the SPA development serverapplicationBuilder.Use(async (context, next) =>{var didProxyRequest =await SpaProxy.PerformProxyRequest(context, neverTimeOutHttpClient, baseUriTaskFactory(), applicationStoppingToken,proxy404s: true);});
}
所有的后续请求，都会类似 nginx 一样的操作：
public static async Task<bool> PerformProxyRequest(HttpContext context,HttpClient httpClient,Task<Uri> baseUriTask,CancellationToken applicationStoppingToken,bool proxy404s)
{//省略部分代码...//获取task的结果，即开发服务器urivar baseUri = await baseUriTask;//把请求代理至开发服务器//接收开发服务器的响应 给到 context，由asp.net core响应
}
2.启动进程-ProcessStartInfo
接下来进入StartVueCliServerAsync的内部，执行node进程，执行npm start命令。
2.1 确定 vue 开发服务器的端口
确定一个随机的、可用的开发服务器端口，代码如下：
internal static class TcpPortFinder
{public static int FindAvailablePort(){var listener = new TcpListener(IPAddress.Loopback, 0);listener.Start();try{return ((IPEndPoint)listener.LocalEndpoint).Port;}finally{listener.Stop();}}
}
2.2 执行 npm 命令
确定好可用的端口，根据前端项目目录spa.Options.SourcePath = "ClientApp";
private static async Task<VueCliServerInfo> StartVueCliServerAsync(string sourcePath, string npmScriptName, ILogger logger)
{var portNumber = TcpPortFinder.FindAvailablePort();logger.LogInformation($"Starting Vue/dev-server on port {portNumber}...");//执行命令var npmScriptRunner = new NpmScriptRunner(//sourcePath, npmScriptName, $"--port {portNumber}");sourcePath, npmScriptName, $"{portNumber}");
}
NpmScriptRunner内部便在开始调用 node 执行 cmd 命令:
internal class NpmScriptRunner
{public EventedStreamReader StdOut { get; }public EventedStreamReader StdErr { get; }public NpmScriptRunner(string workingDirectory, string scriptName, string arguments){var npmExe = "npm";var completeArguments = $"run {scriptName} {arguments ?? string.Empty}";if (RuntimeInformation.IsOSPlatform(OSPlatform.Windows)){npmExe = "cmd";completeArguments = $"/c npm {completeArguments}";}var processStartInfo = new ProcessStartInfo(npmExe){Arguments = completeArguments,UseShellExecute = false,RedirectStandardInput = true,RedirectStandardOutput = true,RedirectStandardError = true,WorkingDirectory = workingDirectory};var process = LaunchNodeProcess(processStartInfo);//读取文本输出流StdOut = new EventedStreamReader(process.StandardOutput);//读取错误输出流StdErr = new EventedStreamReader(process.StandardError);}
}
private static Process LaunchNodeProcess(ProcessStartInfo startInfo)
{try{var process = Process.Start(startInfo);process.EnableRaisingEvents = true;return process;}catch (Exception ex){var message = $"Failed to start 'npm'. To resolve this:.\n\n"+ "[1] Ensure that 'npm' is installed and can be found in one of the PATH directories.\n"+ $" Current PATH enviroment variable is: { Environment.GetEnvironmentVariable("PATH") }\n"+ " Make sure the executable is in one of those directories, or update your PATH.\n\n"+ "[2] See the InnerException for further details of the cause.";throw new InvalidOperationException(message, ex);}
}
internal class EventedStreamReader
{public delegate void OnReceivedChunkHandler(ArraySegment<char> chunk);public delegate void OnReceivedLineHandler(string line);public delegate void OnStreamClosedHandler();public event OnReceivedChunkHandler OnReceivedChunk;public event OnReceivedLineHandler OnReceivedLine;public event OnStreamClosedHandler OnStreamClosed;private readonly StreamReader _streamReader;private readonly StringBuilder _linesBuffer;//构造函数中启动线程读流public EventedStreamReader(StreamReader streamReader){_streamReader = streamReader ?? throw new ArgumentNullException(nameof(streamReader));_linesBuffer = new StringBuilder();Task.Factory.StartNew(Run);}private async Task Run(){var buf = new char[8 * 1024];while (true){var chunkLength = await _streamReader.ReadAsync(buf, 0, buf.Length);if (chunkLength == 0){//触发事件的方法OnClosed();break;}//触发事件的方法OnChunk(new ArraySegment<char>(buf, 0, chunkLength));var lineBreakPos = Array.IndexOf(buf, '\n', 0, chunkLength);if (lineBreakPos < 0){_linesBuffer.Append(buf, 0, chunkLength);}else{_linesBuffer.Append(buf, 0, lineBreakPos + 1);//触发事件的方法OnCompleteLine(_linesBuffer.ToString());_linesBuffer.Clear();_linesBuffer.Append(buf, lineBreakPos + 1, chunkLength - (lineBreakPos + 1));}}}private void OnChunk(ArraySegment<char> chunk){var dlg = OnReceivedChunk;dlg?.Invoke(chunk);}private void OnCompleteLine(string line){var dlg = OnReceivedLine;dlg?.Invoke(line);}private void OnClosed(){var dlg = OnStreamClosed;dlg?.Invoke();}
}
2.3 读取并输出 npm 命令执行的日志
npmScriptRunner.AttachToLogger(logger);
注册OnReceivedLine与OnReceivedChunk事件，由读文本流和错误流触发：
internal class EventedStreamReader
{public void AttachToLogger(ILogger logger){StdOut.OnReceivedLine += line =>{if (!string.IsNullOrWhiteSpace(line)){logger.LogInformation(StripAnsiColors(line));}};StdErr.OnReceivedLine += line =>{if (!string.IsNullOrWhiteSpace(line)){logger.LogError(StripAnsiColors(line));}};StdErr.OnReceivedChunk += chunk =>{var containsNewline = Array.IndexOf(chunk.Array, '\n', chunk.Offset, chunk.Count) >= 0;if (!containsNewline){Console.Write(chunk.Array, chunk.Offset, chunk.Count);}};}
}
2.4 读取输出流至开发服务器启动成功

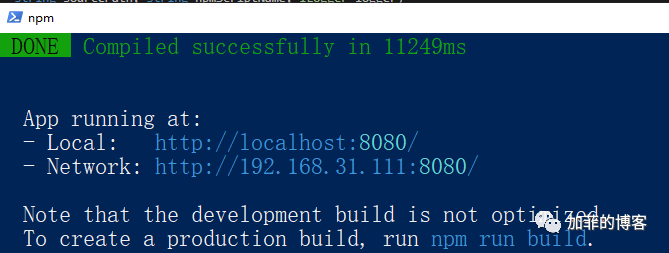

正常情况下，Vue开发服务器启动成功后，如下图：
所以代码中只需要读取输入流中的http://localhost:port，这里使用了正则匹配：
Match openBrowserLine;
openBrowserLine = await npmScriptRunner.StdOut.WaitForMatch(new Regex("- Local: (http:\\S+/)", RegexOptions.None, RegexMatchTimeout));
2.5 异步编程-TaskCompletionSource
**TaskCompletionSource也是一种创建Task的方式。**这里的异步方法WaitForMatch便使用了TaskCompletionSource，会持续读取流，每一行文本输出流，进行正则匹配:
匹配成功便调用
SetResult()给Task完成信号匹配失败便调用
SetException()给Task异常信号
internal class EventedStreamReader
{public Task<Match> WaitForMatch(Regex regex){var tcs = new TaskCompletionSource<Match>();var completionLock = new object();OnReceivedLineHandler onReceivedLineHandler = null;OnStreamClosedHandler onStreamClosedHandler = null;//C#7.0 本地函数void ResolveIfStillPending(Action applyResolution){lock (completionLock){if (!tcs.Task.IsCompleted){OnReceivedLine -= onReceivedLineHandler;OnStreamClosed -= onStreamClosedHandler;applyResolution();}}}onReceivedLineHandler = line =>{var match = regex.Match(line);//匹配成功if (match.Success){ResolveIfStillPending(() => tcs.SetResult(match));}};onStreamClosedHandler = () =>{//一直到文本流结束ResolveIfStillPending(() => tcs.SetException(new EndOfStreamException()));};OnReceivedLine += onReceivedLineHandler;OnStreamClosed += onStreamClosedHandler;return tcs.Task;}
}
2.6 确保开发服务器访问正常
并从正则匹配结果获取uri，即使在Vue CLI提示正在监听请求之后，如果过快地发出请求，在很短的一段时间内它也会给出错误(可能就是代码层级才会出现)。所以还得继续添加异步方法WaitForVueCliServerToAcceptRequests()确保开发服务器的的确确准备好了。
private static async Task<VueCliServerInfo> StartVueCliServerAsync(string sourcePath, string npmScriptName, ILogger logger)
{var portNumber = TcpPortFinder.FindAvailablePort();logger.LogInformation($"Starting Vue/dev-server on port {portNumber}...");//执行命令var npmScriptRunner = new NpmScriptRunner(//sourcePath, npmScriptName, $"--port {portNumber}");sourcePath, npmScriptName, $"{portNumber}");npmScriptRunner.AttachToLogger(logger);Match openBrowserLine;//省略部分代码openBrowserLine = await npmScriptRunner.StdOut.WaitForMatch(new Regex("- Local: (http:\\S+/)", RegexOptions.None, RegexMatchTimeout));var uri = new Uri(openBrowserLine.Groups[1].Value);var serverInfo = new VueCliServerInfo { Port = uri.Port };await WaitForVueCliServerToAcceptRequests(uri);return serverInfo;
}
private static async Task WaitForVueCliServerToAcceptRequests(Uri cliServerUri)
{var timeoutMilliseconds = 1000;using (var client = new HttpClient()){while (true){try{await client.SendAsync(new HttpRequestMessage(HttpMethod.Head, cliServerUri),new CancellationTokenSource(timeoutMilliseconds).Token);return;}catch (Exception){//它创建Task，但并不占用线程await Task.Delay(500);if (timeoutMilliseconds < 10000){timeoutMilliseconds += 3000;}}}}
}
“”
Task.Delay()的魔力：创建 Task，但并不占用线程，相当于异步版本的Thread.Sleep，且可以在后面编写继续体:ContinueWith
3.总结
3.1 异步编程
通过
ContinueWiht继续体返回Task的特性创建Task，并在后续配置内联中间件时使用这个Task
app.Use(async (context, next)=>{});
使ASP.NET Core的启动与中间件注册顺滑。
通过
TaskCompletionSource可以在稍后开始和结束的任意操作中创建Task,这个Task，可以手动指示操作何时结束（SetResult），何时发生故障（SetException），这两种状态都意味着Task完成tcs.Task.IsCompleted，对经常需要等 IO-Bound 类工作比较理想。
