处理要求

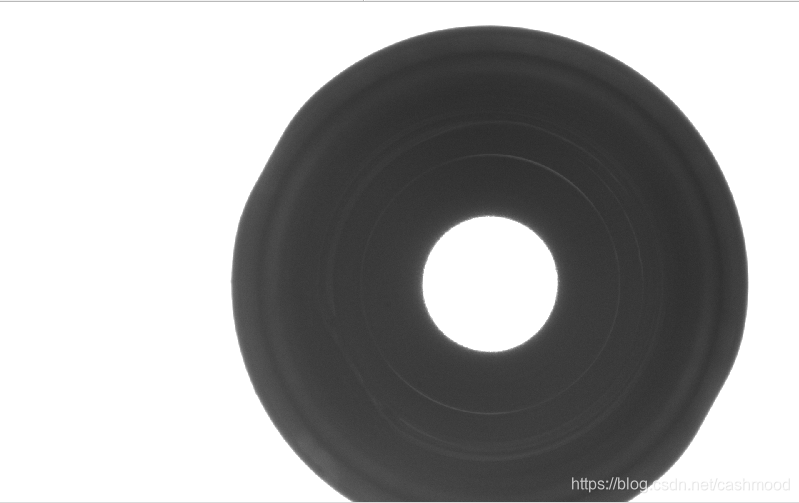

测量圆环同心度

处理源码

read_image (Image, 'C:/Users/22967/Desktop/图像Barrel 20201024/201024 手机行业 摄像头检测/Barrel 背光/Pic_2020_10_24_095951_blockId#20579.bmp')
dev_close_window ()
dev_open_window_fit_image (Image, 0, 0, -1, -1, WindowHandle)*背光，测量外轮廓相对圆心差别
* Image Acquisition 01: Code generated by Image Acquisition 01
list_files ('C:/Users/22967/Desktop/图像Barrel 20201024/201024 手机行业 摄像头检测/Barrel 背光', ['files','follow_links'], ImageFiles)
tuple_regexp_select (ImageFiles, ['\\.(tif|tiff|gif|bmp|jpg|jpeg|jp2|png|pcx|pgm|ppm|pbm|xwd|ima|hobj)$','ignore_case'], ImageFiles)
for Index := 0 to |ImageFiles| - 1 by 1read_image (Image, ImageFiles[Index])binary_threshold (Image, Region, 'max_separability', 'dark', UsedThreshold)connection (Region, ConnectedRegions)select_shape_std (ConnectedRegions, SelectedRegions, 'max_area', 70)smallest_circle (SelectedRegions, Row, Column, Radius)fill_up (SelectedRegions, RegionFillUp)difference (RegionFillUp, SelectedRegions, RegionDifference)smallest_circle (RegionDifference, Row1, Column1, Radius1)FindShapeModelBaseMetro (Image, Contour, Row, Column, Radius, ParameterUnder)FindShapeModelBaseMetro (Image, Contour, Row1, Column1, Radius1, ParameterUnder1)disUnderX[Index]:=ParameterUnder[1]-ParameterUnder1[1]disUnderY[Index]:=ParameterUnder[0]-ParameterUnder1[0]disUnder[Index]:=pow( pow(disUnderX[Index],2)+pow(disUnderY[Index],2),0.5)dev_display (Image)dev_set_draw ('margin')disp_circle (WindowHandle, Row1, Column1, Radius1)disp_circle (WindowHandle, Row, Column, Radius)
*     stop()
endfor
tuple_deviation (disUnder, DeviationUnder)
stop ()

自定义函数FindShapeModelBaseMetro源码

    create_metrology_model (MetrologyHandle)add_metrology_object_circle_measure (MetrologyHandle, Row, Column, Radius, Radius/10, Radius/60, 1, 4, ['measure_distance','min_score'], [Radius/30,0.2], Index1)apply_metrology_model (Image, MetrologyHandle)gen_empty_obj (Contours)get_metrology_object_measures (Contours, MetrologyHandle, 'all', 'all', Row1, Column1)get_metrology_object_result (MetrologyHandle, 'all', 'all', 'result_type', 'all_param', Parameter)get_metrology_object_result_contour (Contour, MetrologyHandle, 'all', 'all', 1.5)clear_metrology_model (MetrologyHandle)
return ()

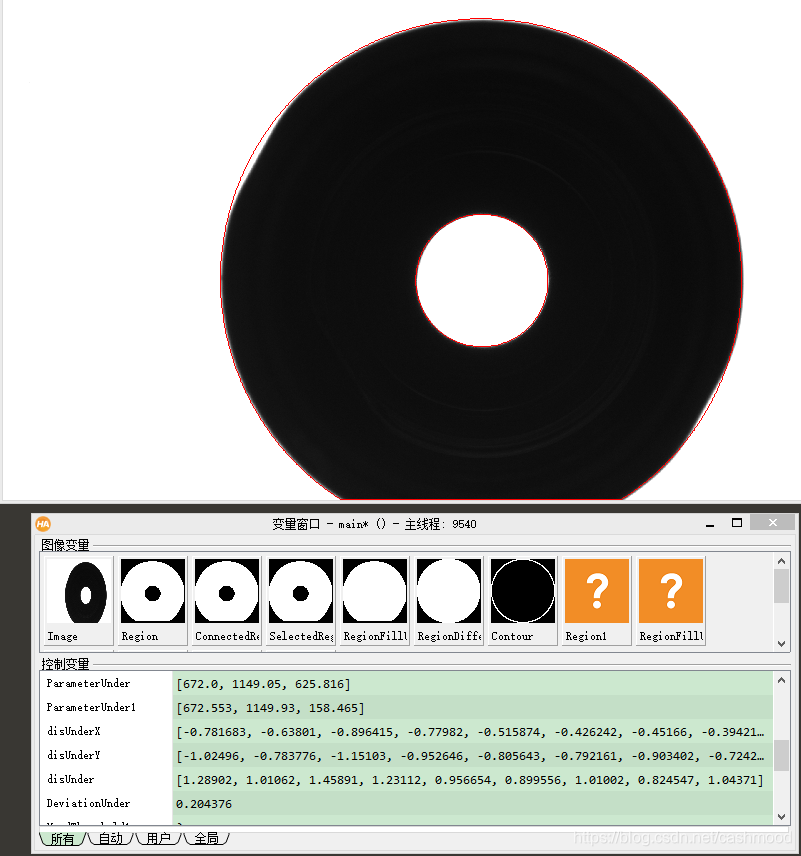

处理结果
