项目中集成ECharts图表（通过定时任务SpringTask统计每天的订单金额）

项目应用Echarts

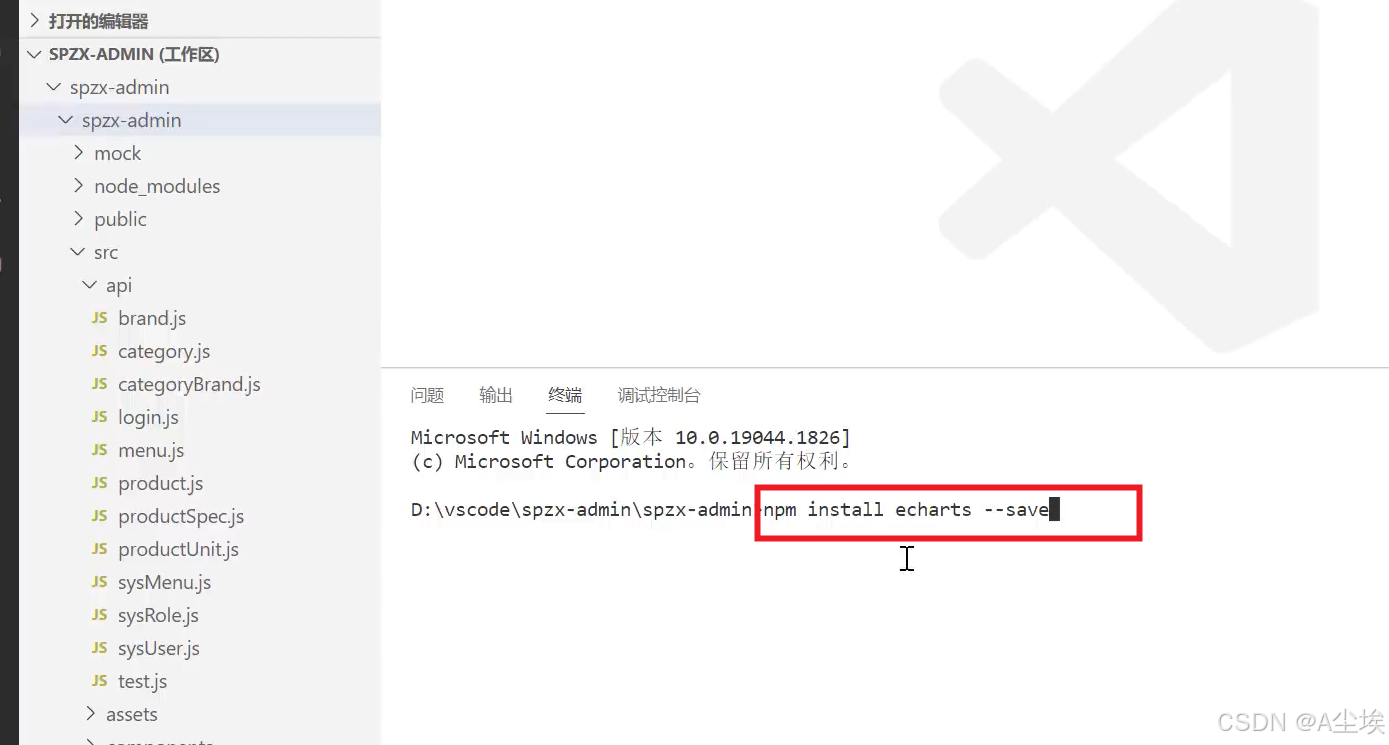

①、前端终端安装Echarts

npm install echarts --save
在这里插入图片描述

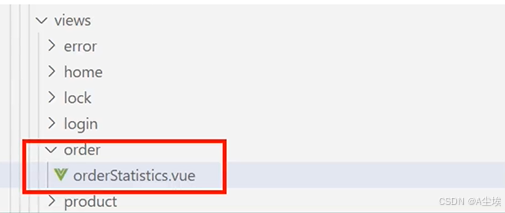

②、src/views创建order目录，在order目录下创建orderStatistics.vue
在这里插入图片描述

③、src/router/modules目录下创建order.js，配置路由

const layout = ()=>import('@/layout/index.vue')
const orderStatistics = ()=>import('@/views/order/orderStatistics.vue')export default[{path:'/order',component:Layout,name:'order',meta:{title:'订单管理',},icon:'Operation',children:[{path:'orderStatistics',name:'orderStatistics',component:orderStatistics,meta:{title:'订单统计',}}],},]

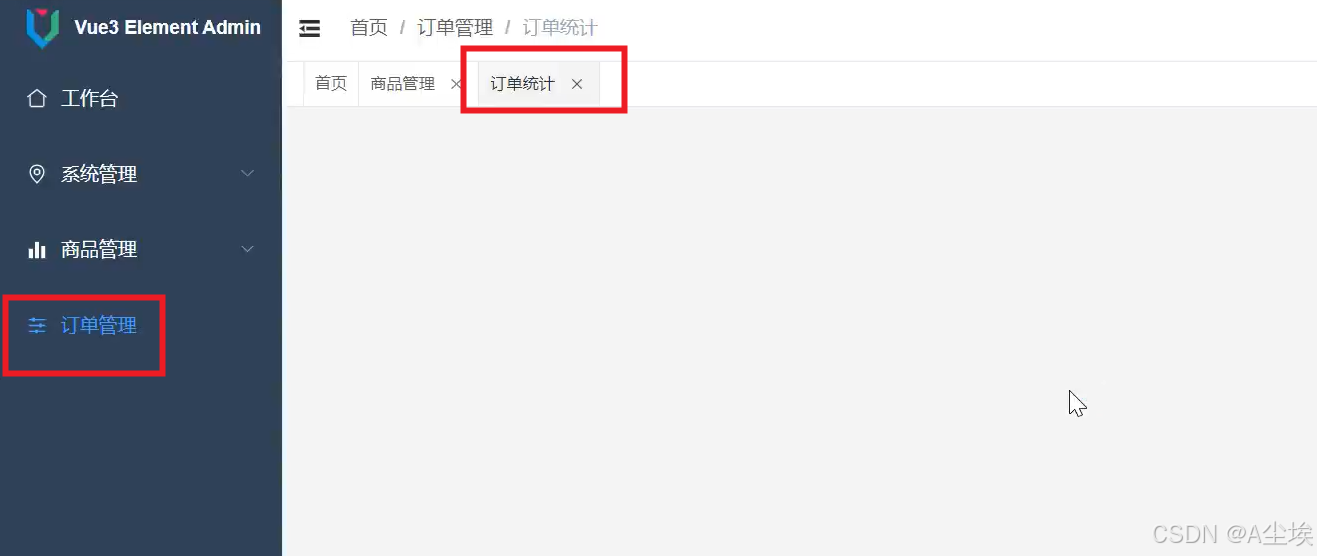

④、src/router/index.js中添加订单管理路由

import order from './mudules/order'//动态菜单
export const asyncRoutes = [...system,...product,...order]

在这里插入图片描述

⑤、页面

api/orderInfo.js

import request from '@/utils/request'const api_name = '/admin/order/orderInfo'//订单统计
export const GetOrderStatisticsData = searchObj => {return request({url:`${api_name}/getOrerStatisticsData`,method:'get',params:searchObj,})
}

<template><div ref="orderTotalAmountDiv" style="width:100%;height:100%"></div>
</template><script setup>import {ref,onMounted} from 'vue'import * as echarts from 'echarts'//导入Echart的图形报表组件//定义chart数据模型，用来选中div组件const orderTotalAmountDiv = ref()//需要在onMounted钩子函数对div区域使用echarts进行初始化onMounted(（）=>{//基于准备好的dom，初始化echarts实例var orderTotalAmountChart = echarts.init(orderTotalAmountDiv.value);//绘制图表orderTotalAmountChart.setOption({title:{text:'订单数据统计'},tooltip:{},xAxis:{//data:['','','','','','']data:dateList},yAxis:{},series:[{name:'订单总金额（万元）',type:'bar',//data:[20,40,30,100,50,25]data:amountList,}]});})
</script>

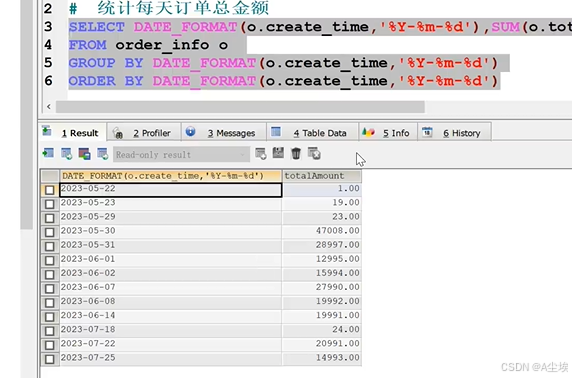

⑥、统计每天的订单总金额

SELECT o.create_time,SUM(o.total_amount) AS totalAmount
FROM order_info o
GROUP BY DATA_FORMAT(o.o.create_time,'%Y-%m-%d')
ORDER BY DATA_FORMAT(o.o.create_time,'%Y-%m-%d')

在这里插入图片描述

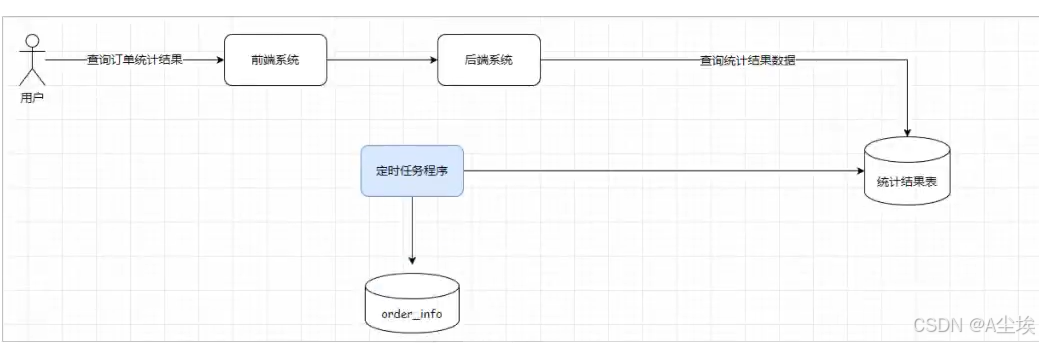

每一次展示数据的时候都从订单数据库进行一次统计查询，如果数据量过大，分组查询受到性能影响
所以通过分组结果计算好，写入到一张统计结果表中进行优化
在这里插入图片描述

项目启动类添加注解@EnableScheduling开启定时任务

@Component
public class OrderStatisticsTask{@Autowiredprivate OrderInfoMapper orderInfoMapper;@Autowriedprivate OrderStatisticsMapper orderStatisticsMapper;//每天凌晨2点，查询前一天统计数据，把统计之后数据添加到统计结果表中@Scheduled(cron="0 0 2 * * ? ")public void orderToTalAmountStatistics(){//获取前一天的日期String createTime = DateUtil.offsetDay(new Date(),-1).toString(new SimpleDateFormat("yyyy-MM-dd"));//根据前一天的日期统计前一天的交易金额OrderStatistics orderStatistics = orderInfoMapper.selectOrderStatistics(createTime);if(orderStatistics!=null){orderStatisticsMapper.insert(orderStatistics);}}}

<select id="selectStatisticsByDate" resultType="com.xxx.order.OrderStatistics">SELECT DATE_FORMAT(o.create_time,'%Y-%m-%d'),SUM(o.total_amount) AS totalAmount,COUNT(o.id) AS totalNumFROM order_info oWHERE DATE_FORMAT(o.create_time,'%Y-m%-d%')=#{createDate}GROUP BY DATE_FORMAT(o.create_time,'%Y-m%-d%')
</select>

⑦、用ECharts图标展示

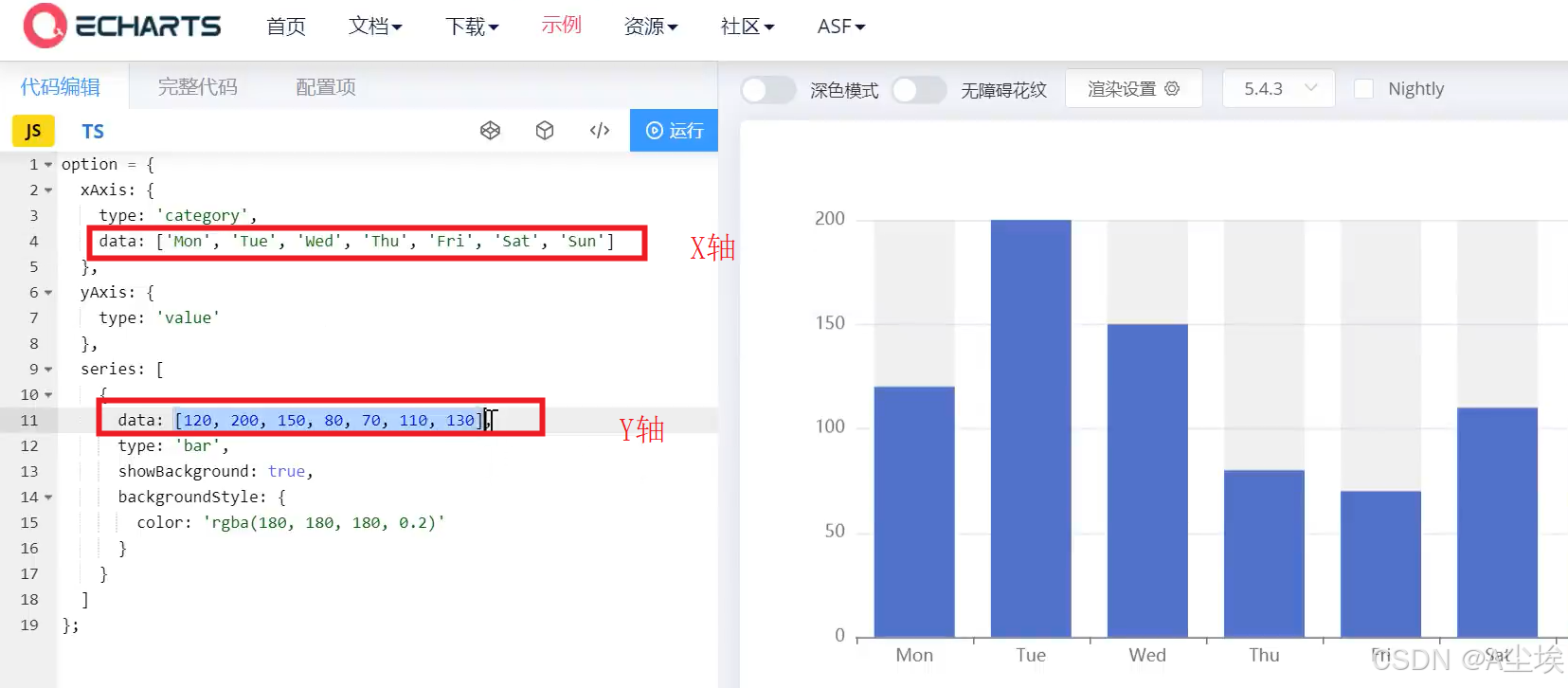

json数组格式——>对应java中的list集合
在这里插入图片描述

@RestController
@RequestMapping(value="/admin/order/orderInfo")
public class OrderInfoController{@Autowiredprivate OrderInfoService orderInfoService;@GetMapping("/getOrderStatisticsData")public Result<OrderStatisticsVo> getOrderStatisticsData(OrderStatisticsDto orderStatisticsDto){OrderStatisticsVo orderStatisticsVo = orderInfoService.getOrderStatisticsData(orderStatisticsDto);return Result.build(orderStatisticsVo,ResultCodeEnum.SUCCESS);}
}

@Service
public class OrderInfoServiceImpl implements OrderInfoService{@Autowiredprivate OrderStatisticsMapper orderStatisticsMapper;@Overridepublic OrderStatisticsVo getOrderStatisticsData(OrderStatisticsDto orderStatisticsDto){//根据dto条件查询统计结果数据，返回list集合List<OrderStatistics> orderStatisticsList = orderStatisticsMapper.selectList(orderStatisticsDto);//遍历list集合，得到所有日期，把所有日期封装list新集合里面(X轴)List<String> dateList = orderStatisticsList.stream().map(orderStatistics->DateUtil.format(orderStatistics.getOrderDate(),"yyyy-MM-dd")).collect(Collectors.toList());//遍历list集合，得到所有日期对应总金额，把所有日期封装list新集合里面List<BigDecimal> decimalList = orderStatisticsList.stream().map(OrderStatistics::getTotalAmount).collect(Collectors.toList());//将两个list集合封装到OrderStatisticsVo中OrderStatisticsVo orderStatisticsVo = new OrderStatisticsVo();orderStatisticsVo.setDateList(dateList);orderStatisticsVo.setAmountList(decimalList);return orderStatisticsVo;}
}

<select id="selectList" resultMap="orderStatisticsMap">select <include refid="columns">from order_statistics<where><if test="createTimeBegin != null and createTimeBegin=''">and order_date>=#{createTimeBegin}</if><if test="createTimeEnd != null and createTimeEnd != ''">and order_date &lt;= #{createTimeEnd}</if></where>order by order_date
</select>

=====================================================================

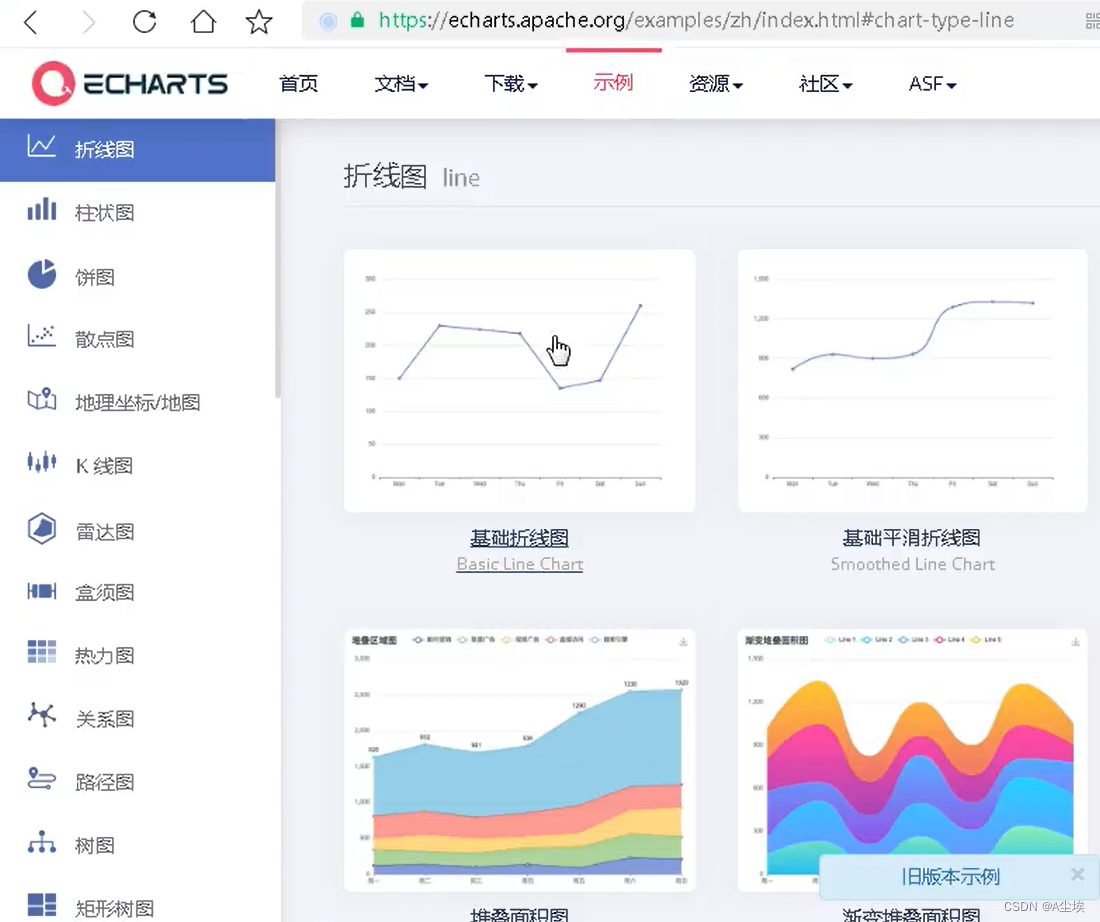

点击每个图表可以进入代码显示
在这里插入图片描述

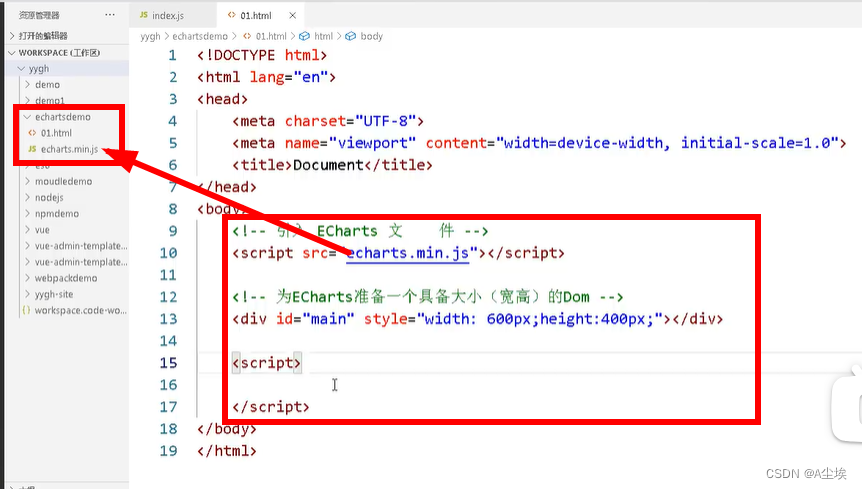

引入echarts.min.js文件
在这里插入图片描述

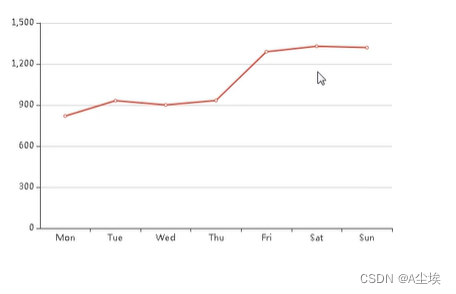

<script>var myChart = echarts.init(document.getElementById("main"));var option = {//x轴是类目轴（离散数据），必须通过data设置类目数据xAxis:{type:'category',data:['Mon','Tue','Wed','Thu','Fri','Sat','Sun']},//y轴是数据轴（连续数据）yAxis:{type:'value'},//系列列表。每个系列通过type决定自己的图表类型series:[{//细娥中的数据内容数组data:[820,932,901,934,1290,1330,1320],//折线图type:'line'}]};myChart.setOption(option);
</script>

在这里插入图片描述

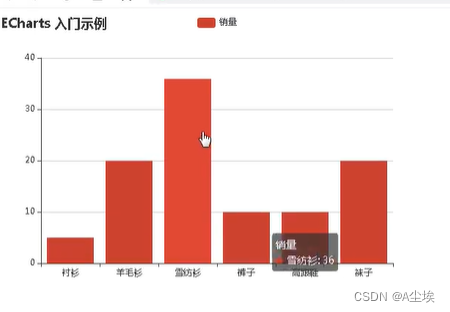

<script>var myChart = echarts.init(document.getElementById('main'));//指定图表的配置项和数据var option = {title:{text:'ECharts入门示例'},tooltip:{},legend:{data:['销量']},xAxis:{data:["衬衫","羊毛衫","雪纺衫","裤子","高跟鞋","袜子"]},yAxis:{},series:[{name:'销量',type:'bar',data:[5,20,36,10,10,20]}]};myChart.setOption(option);
</script>

在这里插入图片描述

项目中集成ECharts

一、前端：npm install --save echarts@4.1.0

二、后端获取数据接口，每天的数量

SQL

select count(*) as count,reserve_date as reserveDate
from order_info
group by reserve_Date
order by reserve_date

mapper

public interface OrderMapper extends BaseMapper<OrderInfo>{//查询预约统计数据的方法List<OrderCountVo> selectOrderCount(@Param("vo") OrderCountQueryVo orderCountQueryVo);
}

<mapper namespace="com.michael.yygh.order.mapper.OrderMapper"><select id="selectOrderCount" resultType="com.michael.yygh.vo.order.OrderCountVo">SELECT COUNT(*) AS count,reserve_date AS reserveDate FROM order_info<where><if test="vo.hostname!=null and vo.hosname!=''">and hosname like CONCAT('%',#{vo.hosname},'%')</if><if test="vo.reserveDateBegin!=nul and vo.reserveDateBegin!=''">and reserve_date >= #{vo.reserveDateBegin}</if><if test="vo.reserveDateEnd != null and vo.reserveDateEnd!=''">and reserve_date &lt:=#{vo.reserveDateEnd}</if>and is_deleted=0</where>GROUP BY reserve_dateORDER BY reserve_date</select>
</mapper>

模块配置文件application.properties必须添加

mybatis-plus.mapper-locations=classpath:com/michael/yygh/order/mapper/xml/*.xml

依赖文件pom.xml中项目构建打包中必须包含xml

<build><resources><resource><directory>src/main/java</directory><includes><include>**/*.xml</include></includes><filtering>false</filtering></resource></resources>
</build>

Service接口以及实现类

//预约统计
@Override
public Map<String,Object> getCountMap(OrderCountQueryVo orderCountQueryVo){List<OrderCountVo> orderCountVoList = baseMapper.selectOrderCount(orderCountQueryVo);//获取X轴需要的日期List<String> dateList = orderCountVoList.stream().map(OrderCountVo::getReserveDate).collect(Collectors.toList());//获取y轴需要的数量List<Integer> countList = orderountVoList.stream().map(OrderCountVo::getCount).collect(Collectors.toList());Map<String,Object> map = new HashMap<>();map.put("dateList",dateList);map.put("countList",countList);return map;
}

Controller

@ApiOperation(value="获取订单统计数据")
@PostMapping("inner/getCountMap")
public Map<String,Object> getCountMap(@RequestBody OrderCountQueryVo orderCountQueryVo){return orderService.getCountMap(orderCountQueryVo);
}

远程模块的接口

@FeignClient(value="service-order")
@Repository
public interface OrderFeignClient{@PostMapping("inner/getCountMap")public Map<String,Object> getCountMap(@RequestBody OrderCountQueryVo orderCountVo);
}

统计模块对远程调用模块进行调用

@RestController
@RequestMapping("/admin/statistics")
public class StatisticsController{@Autowiredprivate OrderFeignClient orderFeignClient;//获取预约统计数据@GetMapping("getCountMap")public Result getCountMap(OrderCountQueryVo orderCountQueryVo){Map<String,Object> countMap = orderFeignClient.getCountMap(orderCountQueryVo);return Result.ok(countMap);}
}
