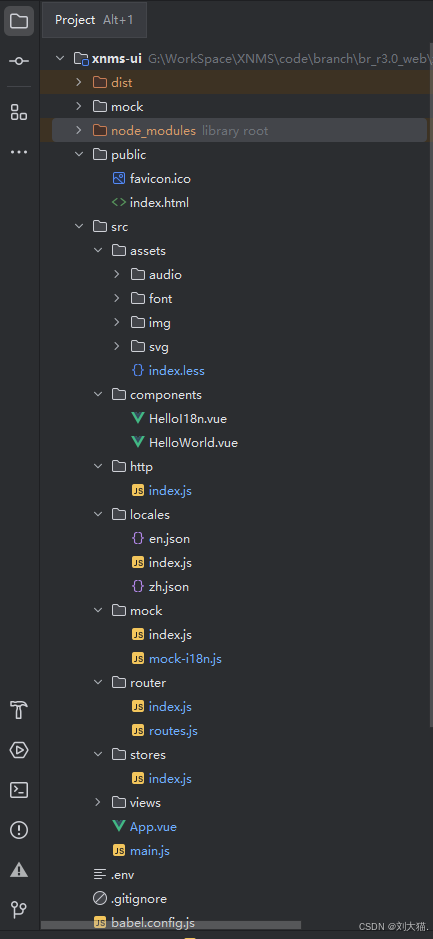

一、介绍

• node_modules文件夹：项目依赖文件夹
• public文件夹：一般放置一些静态资源（图片），需要注意，放在public文件夹中的静态资源，在webpack打包时，会原封不动的打包到dist文件夹中。
• src文件夹（程序员源代码文件夹）：
  • assets文件夹：一般也是放置静态资源（一般放置多个组件共用的静态资源），需要注意，放在assets文件夹里的静态资源，在webpack打包时，会把此静态资源当作一个模块，打包到JS文件中。
  • components文件夹：一般放置非路由组件（全局组件）。
  • http文件夹：
    • index.js：集中管理 HTTP 请求的配置和处理逻辑，使得在应用中发送 HTTP 请求变得更加简单和一致。通过使用 Axios 实例和拦截器，可以有效地管理请求和响应，处理身份验证和错误情况，确保用户体验的流畅性。
  • App.vue文件：唯一的根组件。
  • main.js文件：程序的入口文件，也是整个程序当中最先执行的文件。
  • pages|views文件夹：路由组件。
  • router文件夹：路由相关配置。
    • index.js：配置路由
    • routes.js：路由规则定义（该文件夹可有可无，可全部放在上面index.js中）
  • store文件夹：
    • index.js：vuex相关配置。
  • utils文件夹：该文件夹里面经常放一些常用的功能模块，比如正则、临时身份UUID等等。
  • locales：
    • en.json：英文词条
    • zh.json：中文词条
    • index.js：国际化相关配置
  • mock文件夹：模拟json文件及相关接口调用
    • index.js：是一个用于模拟 API 响应的模块，通常在前端开发中使用。它利用 mockjs 库来创建虚拟的 API 接口，以便在开发和测试过程中不依赖于后端服务。以下是这个文件的主要功能和组成部分。
    • mock-i18n.js：模拟的词条文件。

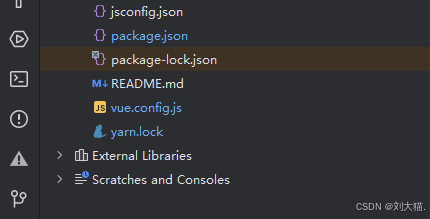

• babel.config.js文件：babel配置文件（bable相关）。
• package.json文件：相当于项目的“身份证”，记录了项目的相关信息（如名字、依赖、运行方式等等）。
• package-lock.json文件：又叫“缓存性文件”，跟踪被安装的每个软件包的确切版本，以便产品可以以相同的方式被 100％ 复制（即使软件包的维护者更新了软件包）。即为什么刚开始启动慢，而后面启动就很快？因为缓存性文件都记录下来相关信息了，所以后续启动很快。
• README.md文件：项目的说明性文件
• vue.config.js文件：用于关闭ESLINT校验工具+配置代理服务器解决跨域
• jsconfig.json文件：给src文件夹简写方法，配置别名，方便引入资源

二、举例说明

1.src/http/index.js

/*** @Name：* @Author：贾志博* @description：*/
import axios, { AxiosInstance, AxiosResponse } from "axios";
import {useStore} from "@/stores";// 创建http请求的实例对象
const $http = axios.create({timeout: 30000,withCredentials: false,headers: {'Content-Type': 'application/json;charset=UTF-8','Access-Control-Allow-Origin': '*','X-Requested-With': 'XMLHttpRequest'}
});// 添加请求拦截器
// $http.interceptors.request.use((config) => {
//   const token = ''
//   if (token) {
//     config.headers.Authorization = token;
//   }
//   return config;
// }, (error) => {
//   return Promise.reject(error)
// });// 添加响应拦截器
$http.interceptors.response.use(response=> {const { data } = responseif (response.status === 200) {return data}},error => {if (error.status === 401) {sessionStorage.removeItem('principal');localStorage.removeItem('mldn-session-id')// 路由跳转到登录界面window.location.href = `${window.location.origin}/#/`} else if (error.status == 502) {sessionStorage.removeItem('principal');localStorage.removeItem('mldn-session-id')window.location.href = `${window.location.origin}/#/`}return Promise.resolve({code: error.status})}
);const Method = {GET: 'get',POST: 'post',DELETE: 'delete',PUT: 'put',
}export { $http,  Method };

2.src/router/index.js

import { createRouter, createWebHashHistory } from 'vue-router'
import { baseRoutes, routes } from "./routes";
import { useStore } from "@/stores";
import {queryUserMenu} from "@/views/pages/system/system";
import { commonResponse } from "@/views/pages/_common";
import { getSystemType } from "@/views/login/_request";const router = createRouter({history: createWebHashHistory(process.env.BASE_URL),routes: baseRoutes
})
let permissionRoutes = []
let permissionMap = new Map()router.beforeEach((to, from, next) => {var principal = localStorage.getItem('mldn-session-id');var session_prncipal = sessionStorage.getItem('principal');const userName = localStorage.getItem("xnms-user-name");if (session_prncipal == null && principal == null) {principal = null;}if (principal == null) {if (to.name === 'login') {useStore().hasAuth = false;next()} else {useStore().hasAuth = false;next({name: 'login'})}} else if (to.name === 'login') {if(permissionRoutes.length > 0) {const initRouterPush = "/pages/" + permissionRoutes[0].path + "/" + permissionRoutes[0].children[0].path;useStore().setSelectedMenuKeyFunction(permissionRoutes[0].path)useStore().setSelectedMenuItemKeyFunction([permissionRoutes[0].path + "_" + permissionRoutes[0].children[0].path]);useStore().setOpenMenuItemFunction([permissionRoutes[0].path]);next({path: initRouterPush, replace: true});} else {hasAuthHandle(to, next, userName);}} else {hasAuthHandle(to, next, userName);}
});const hasAuthHandle = (to, next, userName) => {if(!useStore().hasAuth) {getSystemType().then(resp => {localStorage.setItem('system-type', resp.data)useStore().setMode(resp.data)queryUserMenu(userName).then(response => {commonResponse({response,onSuccess: () => {permissionRoutes = []permissionMap = new Map()try {const deepRoutes =  JSON.parse(JSON.stringify(routes));fillPermissionMap(permissionMap, response)permissionRoutes = handleRoutes(deepRoutes, permissionMap)if (permissionRoutes.length > 0) {useStore().routes.value = permissionRoutespermissionRoutes.forEach(item => {router.addRoute('pages', item)})}} catch (error) {console.error("Error during deep copy:", error);}useStore().hasAuth = true// 检查 to 是否在动态加载的路由里const isRouteExists = permissionRoutes.some(route => {if (route.name === to.name || route.path === to.path) {return true;}if (route.children) {return route.children.some(childRoute => {return childRoute.name === to.name || childRoute.path === to.path;});}return false;});if (isRouteExists) {next({...to, replace: true})} else {// 如果 to 不在动态路由里，可以导航到默认页面if (permissionRoutes.length > 0) {const initRouterPush = "/pages/" + permissionRoutes[0].path + "/" + permissionRoutes[0].children[0].path;useStore().setSelectedMenuKeyFunction(permissionRoutes[0].path)useStore().setSelectedMenuItemKeyFunction([permissionRoutes[0].path + "_" + permissionRoutes[0].children[0].path]);useStore().setOpenMenuItemFunction([permissionRoutes[0].path]);next({path: initRouterPush, replace: true});}}}})})})} else {next()}
}const fillPermissionMap = (permissionMap, response) => {const userName = localStorage.getItem('xnms-user-name')if (userName == "Admin") {response.data?.forEach(item => {const { code, canLook, canEdit } = item;permissionMap.set(code, {view: canLook == true ? 1 : 0,edit: canEdit == true ? 1 : 0})})} else {response.data?.forEach(item => {const { code, canLook, canEdit } = item;if (code.length === 4) {permissionMap.set(code, {view: canLook == true ? 1 : 0,edit: canEdit == true ? 1 : 0})}})response.data?.forEach(item => {const { code} = item;if (code.length === 2) {const children = response.data.filter(child => child.pid === code);const hasViewVisibleChild = children.some(child => child.canLook === 1);const hasEditVisibleChild = children.some(child => child.canEdit === 1);permissionMap.set(code, {view: hasViewVisibleChild ? 1 : 0,edit: hasEditVisibleChild ? 1 : 0});}})}
}const handleRoutes = (routes, permissionMap) => {for (let i = 0; i < routes.length; i++) {const item = routes[i]if (permissionMap?.get(routes[i].meta.key)?.view) {routes[i].meta.edit = permissionMap?.get(routes[i].meta.key)?.editif (item.children?.length) {handleRoutes(item.children, permissionMap)} else {if (!item.component) {let fileExistCommon = truelet pathStr = ''try {const path = item.name.split('_')pathStr = path.reduce((pre, cur, index) => {return `${pre}/${index === path.length - 1 ? cur.charAt(0).toUpperCase() + cur.slice(1) : cur}`})require(`@/views/pages/${pathStr}.vue`)} catch (e) {fileExistCommon = false}let fileExistDiff = trueconst modeName = useStore().getMode() ? 'XPT' : 'NOR'try {require(`@/views/pages/${pathStr}-${modeName}.vue`)} catch (e) {fileExistDiff = false}if (fileExistDiff) {item.component = () => import(`@/views/pages/${pathStr}-${modeName}.vue`)} else if (fileExistCommon) {item.component = () => import(`@/views/pages/${pathStr}.vue`)} else {item.component = () => import('@/views/pages/_error/404.vue')}}}} else {routes.splice(i, 1)i--}}return routes
}export default router

3.src/router/routes.js

import Login from "@/views/login/index.vue";
import Index from "@/views/pages/index.vue";export const baseRoutes = [{path: '/',name: 'login',component: Login,},{path: '/pages',name: 'pages',component: Index,children: []}
]export const routes = [{path: 'topology',name: 'topology',meta: {key: '00'},children: [{path: 'topologyView',name: 'topology_topologyView',breadcrumb: 'menu_topoView',meta: {key: '0000'},},{path: 'electronicMap',name: 'topology_electronicMap',breadcrumb: 'menu_electronicMap',meta: {key: '0001'},},]}
]

4.src/stores/index.js

import {defineStore} from "pinia";
import {ref} from 'vue'export const useStore = defineStore('main', () => {const mode = ref(0)const setMode = (modeVal) => {mode.value = modeVal}const getMode = () => {return mode.value}const openMenuItem = ref([]);const setOpenMenuItemFunction = (modeVal) => {openMenuItem.value = modeVal}const getOpenMenuItemFunction = () => {return openMenuItem}const selectedMenuItemKey = ref(null);const setSelectedMenuItemKeyFunction = (modeVal) => {selectedMenuItemKey.value = modeVal}const getSelectedMenuItemKeyFunction = () => {return selectedMenuItemKey}const selectedMenuKey = ref("");const setSelectedMenuKeyFunction = (modeVal) => {selectedMenuKey.value = modeVal}const getSelectedMenuKeyFunction = () => {return selectedMenuKey}const hasAuth = ref(false)const routes = ref([])const popoverVisible = ref(false);const popoverPosition = ref({ top: 0, left: 0 });const selectTopoNode = ref(null)const websocketRepeaterList = ref([])return {getMode,setMode,setSelectedMenuKeyFunction,getSelectedMenuKeyFunction,setSelectedMenuItemKeyFunction,getSelectedMenuItemKeyFunction,setOpenMenuItemFunction,getOpenMenuItemFunction,hasAuth,routes,popoverVisible,popoverPosition,selectTopoNode,websocketRepeaterList,}
})

使用方式：在其他xx.vue页面中

import { useStore } from "@/stores";useStore().hasAuth = false;

5.src/App.vue

<template><router-view/>
</template><script setup>
import {reactive, provide} from "vue";
import {useI18n} from "vue-i18n";
import {useStore} from "@/stores";
import {getSystemLanguage} from "@/views/pages/system/system";
const userInfo = reactive({userId: '',token: ''
})
provide('t', useI18n().t)
provide('userInfo', userInfo)const getSystemMode = () => {getSystemLanguage().then(response => {const mode = response.dataif (mode) {localStorage.setItem('xnms-mode', mode)useStore().setMode(parseInt(mode))}})
}getSystemMode()
</script><style>
</style>

6.src/main.js

import { createApp } from 'vue';
import App from './App.vue';
import { createPinia } from "pinia";
// import getRouter from '@/router';
import router from '@/router'
import getI18n from '@/locales';
import SelfComponents from "@/views/pages/_common/selfComponents/index";
import ArcoVue, {Message} from '@arco-design/web-vue';
import ArcoVueIcon from '@arco-design/web-vue/es/icon';
import '@arco-design/web-vue/dist/arco.css';
import '@/assets/index.less';
window.Message = Message
if (process.env.NODE_ENV === 'development') {// import('@/mock')
}const store = createPinia()const promise = Promise.all([getI18n()])
const _beforeMount = await promise
// window.i18n = _beforeMount[0]const app = createApp(App)
app.use(_beforeMount[0]).use(router).use(ArcoVue).use(ArcoVueIcon).use(store).use(SelfComponents)
app.mount('#app')

7.babel.config.js

module.exports = {presets: ['@vue/cli-plugin-babel/preset']
}

8.jsconfig.json

{"compilerOptions": {"target": "es5","module": "esnext","baseUrl": "./","moduleResolution": "node","paths": {"@/*": ["src/*"]},"lib": ["esnext","dom","dom.iterable","scripthost"]}
}

9.vue.config.js

const { defineConfig } = require('@vue/cli-service')
const path = require('path')
// const target = 'http://127.0.0.1:61000/'
// const target = 'http://10.110.24.117:62000/'
const target = 'http://10.110.24.62:61000/'
module.exports = defineConfig({// publicPath: process.env.NODE_ENV === 'development' ? '' : '/XNMS',transpileDependencies: true,lintOnSave: false,assetsDir: 'assets',devServer: {proxy: {'/api': {target,changeOrigin: true,},}},pluginOptions: {i18n: {locale: 'en',fallbackLocale: 'en',localeDir: 'locales',enableLegacy: false,runtimeOnly: false,compositionOnly: false,fullInstall: true}},chainWebpack: config => {config.module.rule('svg').exclude.add(path.resolve('src/assets/svg'))config.module.rule('icons').test(/\.svg$/).include.add(path.resolve('src/assets/svg')).end().use('svg-sprite-loader').loader('svg-sprite-loader').options({ symbolId: 'icon-[name]' })}
})

10. .env

VUE_APP_I18N_LOCALE=en
VUE_APP_I18N_FALLBACK_LOCALE=en

11.src/mock/index.js

import Mock from 'mockjs'
import {i18nList} from './mock-i18n'Mock.mock('/menu/list', 'get', {status: 0,dataList: [{path: 'topology',children: [{path: 'topologyView',name: 'topology_topologyView',},{path: 'electronicMap',name: 'topology_electronicMap',},]}]
})Mock.mock('/api/in', 'get', {code: 200,data: 1,msg: "成功",pagination: null
})Mock.mock(/^\/api\/in\/[\S]*$/, 'get', {code: 200,msg: '',data: {...i18nList()}
})Mock.mock('/api/site_statistic', 'post', {"code": 200,"data": [{"businessData": {"datas": {"additionalProp1": 1,"additionalProp2": 2,"additionalProp3": 3,"additionalProp4": 4,"additionalProp5": 5},},"siteData": {"datas": {"additionalProp1": 1,"additionalProp2": 2,"additionalProp3": 3,"additionalProp4": 4,"additionalProp5": 5},},"siteID": 1,"siteAlias": "站点1",},{"businessData": {"datas": {"additionalProp1": 1,"additionalProp2": 2,"additionalProp3": 3,"additionalProp4": 4,"additionalProp5": 5},},"siteData": {"datas": {"additionalProp1": 1,"additionalProp2": 2,"additionalProp3": 3,"additionalProp4": 4,"additionalProp5": 5},},"siteID": 2,"siteAlias": "站点2",}],"msg": "string","pagination": {"currentPage": 0,"pageSize": 0,"totalPages": 0,"totalRecords": 0}
})Mock.mock('/api/getTransferBusinessData', 'post', {code: 200,data: [{id: '1',name: '站点1',byDateLine: [{date: '2021-01-01',value1: 1,value2: 2}, {date: '2021-01-02',value1: 3,value2: 4}, {date: '2021-01-04',value1: 3,value2: 6}],byBusinessTimePie: {1: 2,2: 4,3: 6,4: 1,5: 3},byTimeLine: [{date: '2021-01-01',value1: 1,value2: 2}, {date: '2021-01-02',value1: 3,value2: 4}, {date: '2021-01-04',value1: 3,value2: 6}],},{id: '2',name: '站点2',byDateLine: [{date: '2021-01-01',value1: 1,value2: 2}, {date: '2021-01-02',value1: 3,value2: 4}, {date: '2021-01-04',],}]
})

12.src/mock/mock-i18n.js

export const i18nList = () => {return {"Title": "XNMS客户端","XPTTitle": "XNMS","Login": "登  录","LoginCancel": "取消登录","LoginCheckPassword": "验证中…",}
}

13.src/locales/en.json

{"menu_topology": "Topology View","menu_alarm": "Monitoring Alarm","menu_device": "Equipment Parameters","menu_data": "Data Query","menu_business": "Business Statistics",
}

14.src/locales/zh.json

{"menu_topology": "拓扑展示","menu_alarm": "监控告警","menu_device": "设备参数","menu_data": "数据查询","menu_business": "业务统计",
}

15.src/locales/index.js

import { createI18n } from 'vue-i18n'
import {getI18nLanguagePkg, getNowLanguageType} from "@/views/login/_request";const getNowLanguage = async () => {return new Promise((resolve, reject) => {getNowLanguageType().then(response => {if (response.code === 200) {resolve(response.data)} else {window.Message.warning(response.msg)}})})
}const loadRemoteMessages = async (language) => {return new Promise((resolve, reject) => {getI18nLanguagePkg(language).then(response => {if (response.code === 200) {const messages = {}messages[languageEnum[language]] = response.dataresolve(messages)} else {window.Message.warning(response.msg)}})})
}const getI18n = async () => {const language = await getNowLanguage()localStorage.setItem('xnms-language', language)const remoteMessages = await loadRemoteMessages(language)const i18n = createI18n({legacy: false,locale: languageEnum[language],fallbackLocale: 'zh',messages: remoteMessages,globalInjection: true})return new Promise((resolve) => {resolve(i18n)})
}const languageEnum = {0: 'en',1: 'zh',2: 'ru'
}export default getI18n

16.src/views/pages/system/system.js

import { $http, Method } from "@/http";export const getDeviceManageList = (data) => {return $http({url: `/api/deviceManage/queryDeviceList`,method: Method.POST,data})
}export const getSystemLanguage = (data) => {return $http({url: `/api/config`,method: Method.GET,data})
}export const deleteDevice = (data) => {return $http({url: `/api/deviceManage/deleteRepeater`,method: Method.DELETE,data})
}export const updateDevive = (data) => {return $http({url: `/api/deviceManage/updateDeviceSnmpV3`,method: Method.PUT,data})
}

17. .gitignore

.DS_Store
node_modules
/dist# local env files
.env.local
.env.*.local# Log files
npm-debug.log*
yarn-debug.log*
yarn-error.log*
pnpm-debug.log*# Editor directories and files
.idea
.vscode
*.suo
*.ntvs*
*.njsproj
*.sln
*.sw?

18.package.json

{"name": "xnms","version": "0.1.0","private": true,"scripts": {"serve": "vue-cli-service serve","build": "vue-cli-service build","lint": "vue-cli-service lint","i18n:report": "vue-cli-service i18n:report --src \"./src/**/*.?(js|vue)\" --locales \"./src/locales/**/*.json\""},"dependencies": {"axios": "^1.7.7","core-js": "^3.8.3","echarts": "^5.5.1","html2canvas": "^1.4.1","jspdf": "^3.0.0","leaflet": "^1.9.4","leaflet-polylinedecorator": "^1.6.0","less": "^4.2.0","less-loader": "^12.2.0","mockjs": "^1.1.0","moment": "^2.30.1","pinia": "^2.2.2","svg-sprite-loader": "^6.0.11","vue": "^3.2.13","vue-i18n": "^9.1.0","vue-router": "^4.0.3"},"devDependencies": {"@arco-design/web-vue": "^2.56.2","@babel/core": "^7.12.16","@babel/eslint-parser": "^7.12.16","@intlify/vue-i18n-loader": "^3.0.0","@vue/cli-plugin-babel": "~5.0.0","@vue/cli-plugin-eslint": "~5.0.0","@vue/cli-plugin-router": "~5.0.0","@vue/cli-service": "~5.0.0","eslint": "^7.32.0","eslint-plugin-vue": "^8.0.3","vue-cli-plugin-i18n": "~2.3.2","vue-cli-plugin-mock": "~1.0.3"},"eslintConfig": {"root": true,"env": {"node": true},"extends": ["plugin:vue/vue3-essential","eslint:recommended"],"parserOptions": {"parser": "@babel/eslint-parser"},"rules": {}},"browserslist": ["> 1%","last 2 versions","not dead","not ie 11"]
}
