paper：SFFNet: A Wavelet-Based Spatial and Frequency Domain Fusion Network for Remote Sensing Segmentation

Code：https://github.com/yysdck/SFFNet

---

1、Multiscale Dual-Representation Alignment Filter

频率域特征和空间域特征分别捕捉图像的不同方面和属性，但它们之间存在语义差异。直接将两者融合可能导致特征表示不一致，无法充分发挥各自优势。需要一种方法来对齐两者的语义，并选择更具代表性的特征进行融合。所以这篇论文提出一种 多尺度双表示对齐过滤器（Multiscale Dual-Representation Alignment Filter），其主要包含以下两点：多尺度映射 (Multiscale Mapping)：使用不同尺度的竖条卷积对频率域特征和空间域特征进行处理。将处理后的特征拼接并进行 1x1 卷积，得到统一尺度的矩阵 Q, K, V 作为输入。多域注意力融合 (MDAF)：设计了 DAF (Dual-Representation Alignment Filter) 结构，利用交叉注意力机制实现语义对齐和特征选择。通过查询对方及其自身的键值对计算注意力，并进行特征加权，最终实现特征选择。

实现过程：

1. 多尺度映射：对空间域特征 Fs 和频率域特征 Ff 分别进行多尺度映射，得到两组矩阵 (Q1, K1, V1) 和 (Q2, K2, V2)
2. DAF 计算：计算 DAF 输出 F1 和 F2：（1）F1 = δ1×1(Attn(Q2, K1, V1))：使用 Ff 的 Q, K, V 与 Fs 的 K, V 计算注意力，并进行特征加权。（2）F2 = δ1×1(Attn(Q1, K2, V2))：使用 Fs 的 Q, K, V 与 Ff 的 K, V 计算注意力，并进行特征加权。
3. MDAF 输出：将 F1 和 F2 拼接得到最终的输出特征。

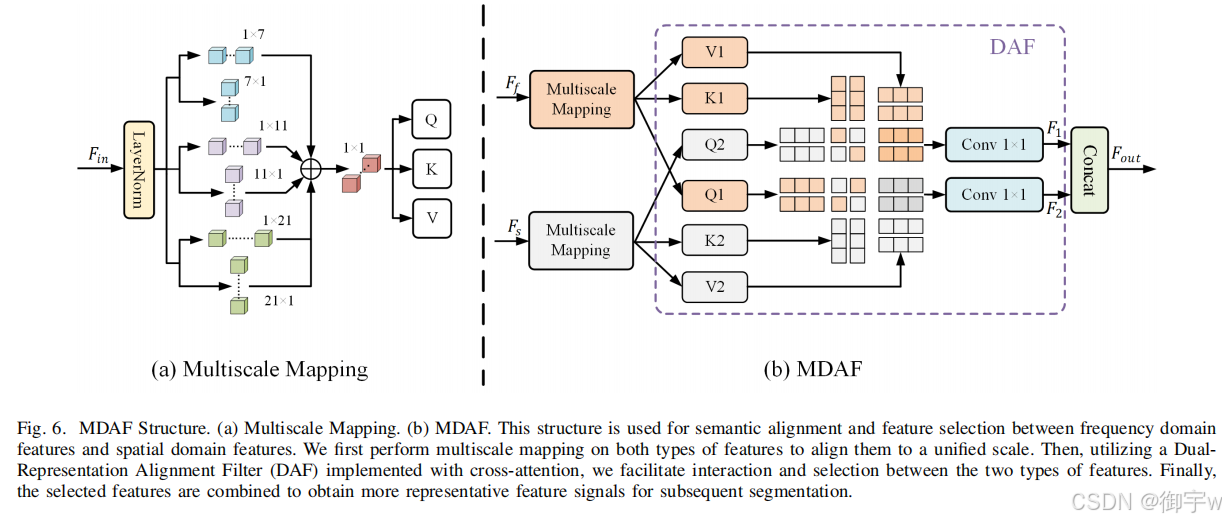

Multiscale Dual-Representation Alignment Filter 结构图：

2、代码实现

import torch
import torch.nn as nn
import torch.nn.functional as F
import numbers
from einops import rearrangedef to_3d(x):return rearrange(x, 'b c h w -> b (h w) c')def to_4d(x, h, w):return rearrange(x, 'b (h w) c -> b c h w', h=h, w=w)class BiasFree_LayerNorm(nn.Module):def __init__(self, normalized_shape):super(BiasFree_LayerNorm, self).__init__()if isinstance(normalized_shape, numbers.Integral):normalized_shape = (normalized_shape,)normalized_shape = torch.Size(normalized_shape)assert len(normalized_shape) == 1self.weight = nn.Parameter(torch.ones(normalized_shape))self.normalized_shape = normalized_shapedef forward(self, x):sigma = x.var(-1, keepdim=True, unbiased=False)return x / torch.sqrt(sigma + 1e-5) * self.weightclass WithBias_LayerNorm(nn.Module):def __init__(self, normalized_shape):super(WithBias_LayerNorm, self).__init__()if isinstance(normalized_shape, numbers.Integral):normalized_shape = (normalized_shape,)normalized_shape = torch.Size(normalized_shape)assert len(normalized_shape) == 1self.weight = nn.Parameter(torch.ones(normalized_shape))self.bias = nn.Parameter(torch.zeros(normalized_shape))self.normalized_shape = normalized_shapedef forward(self, x):mu = x.mean(-1, keepdim=True)sigma = x.var(-1, keepdim=True, unbiased=False)return (x - mu) / torch.sqrt(sigma + 1e-5) * self.weight + self.biasclass LayerNorm(nn.Module):def __init__(self, dim, LayerNorm_type):super(LayerNorm, self).__init__()if LayerNorm_type == 'BiasFree':self.body = BiasFree_LayerNorm(dim)else:self.body = WithBias_LayerNorm(dim)def forward(self, x):h, w = x.shape[-2:]return to_4d(self.body(to_3d(x)), h, w)class MDAF(nn.Module):def __init__(self, dim, num_heads=8, LayerNorm_type='WithBias'):super(MDAF, self).__init__()self.num_heads = num_headsself.norm1 = LayerNorm(dim, LayerNorm_type)self.norm2 = LayerNorm(dim, LayerNorm_type)self.project_out = nn.Conv2d(dim, dim, kernel_size=1)self.conv1_1_1 = nn.Conv2d(dim, dim, (1, 7), padding=(0, 3), groups=dim)self.conv1_1_2 = nn.Conv2d(dim, dim, (1, 11), padding=(0, 5), groups=dim)self.conv1_1_3 = nn.Conv2d(dim, dim, (1, 21), padding=(0, 10), groups=dim)self.conv1_2_1 = nn.Conv2d(dim, dim, (7, 1), padding=(3, 0), groups=dim)self.conv1_2_2 = nn.Conv2d(dim, dim, (11, 1), padding=(5, 0), groups=dim)self.conv1_2_3 = nn.Conv2d(dim, dim, (21, 1), padding=(10, 0), groups=dim)self.conv2_1_1 = nn.Conv2d(dim, dim, (1, 7), padding=(0, 3), groups=dim)self.conv2_1_2 = nn.Conv2d(dim, dim, (1, 11), padding=(0, 5), groups=dim)self.conv2_1_3 = nn.Conv2d(dim, dim, (1, 21), padding=(0, 10), groups=dim)self.conv2_2_1 = nn.Conv2d(dim, dim, (7, 1), padding=(3, 0), groups=dim)self.conv2_2_2 = nn.Conv2d(dim, dim, (11, 1), padding=(5, 0), groups=dim)self.conv2_2_3 = nn.Conv2d(dim, dim, (21, 1), padding=(10, 0), groups=dim)def forward(self, x1,x2):b, c, h, w = x1.shapex1 = self.norm1(x1)x2 = self.norm2(x2)attn_111 = self.conv1_1_1(x1)attn_112 = self.conv1_1_2(x1)attn_113 = self.conv1_1_3(x1)attn_121 = self.conv1_2_1(x1)attn_122 = self.conv1_2_2(x1)attn_123 = self.conv1_2_3(x1)attn_211 = self.conv2_1_1(x2)attn_212 = self.conv2_1_2(x2)attn_213 = self.conv2_1_3(x2)attn_221 = self.conv2_2_1(x2)attn_222 = self.conv2_2_2(x2)attn_223 = self.conv2_2_3(x2)out1 = attn_111 + attn_112 + attn_113 +attn_121 + attn_122 + attn_123out2 = attn_211 + attn_212 + attn_213 +attn_221 + attn_222 + attn_223out1 = self.project_out(out1)out2 = self.project_out(out2)k1 = rearrange(out1, 'b (head c) h w -> b head h (w c)', head=self.num_heads)v1 = rearrange(out1, 'b (head c) h w -> b head h (w c)', head=self.num_heads)k2 = rearrange(out2, 'b (head c) h w -> b head w (h c)', head=self.num_heads)v2 = rearrange(out2, 'b (head c) h w -> b head w (h c)', head=self.num_heads)q2 = rearrange(out1, 'b (head c) h w -> b head w (h c)', head=self.num_heads)q1 = rearrange(out2, 'b (head c) h w -> b head h (w c)', head=self.num_heads)q1 = torch.nn.functional.normalize(q1, dim=-1)q2 = torch.nn.functional.normalize(q2, dim=-1)k1 = torch.nn.functional.normalize(k1, dim=-1)k2 = torch.nn.functional.normalize(k2, dim=-1)attn1 = (q1 @ k1.transpose(-2, -1))attn1 = attn1.softmax(dim=-1)out3 = (attn1 @ v1) + q1attn2 = (q2 @ k2.transpose(-2, -1))attn2 = attn2.softmax(dim=-1)out4 = (attn2 @ v2) + q2out3 = rearrange(out3, 'b head h (w c) -> b (head c) h w', head=self.num_heads, h=h, w=w)out4 = rearrange(out4, 'b head w (h c) -> b (head c) h w', head=self.num_heads, h=h, w=w)out = self.project_out(out3) + self.project_out(out4) + x1+x2return outif __name__ == '__main__':x = torch.randn(4, 64, 128, 128).cuda()y = torch.randn(4, 64, 128, 128).cuda()model = MDAF(64).cuda()out = model(x,y)print(out.shape)
