首先，虽然本文是介绍IE浏览器下OCX控件播放RTSP或RTMP，但这种方式并不推荐，毕竟它只能用于IE浏览器环境下，局限太大，而且随着微软IE浏览器的更新，不确定后续支持情况。当然，话说回来，如果是在特定的使用场景下，只需要某些版本IE浏览器支持，但对延迟和稳定性要求非常高，OCX控件方式也不失为一个好的选择。

如果需要浏览器场景下有更好的兼容性，对于RTSP流来说，好多公司通常的做法是把RTSP转RTMP，然后分发到RTMP服务器，然后服务器转http-flv出来，浏览器直接播放http-flv流，或者直接播放hls流（如果可以忍受几秒甚至十几秒延迟的话）。

本文基于大牛直播SDK https://github.com/daniulive/SmarterStreaming 现有RTSP、RTMP播放接口的基础上，二次封装，扩展了ocx控件，用于IE浏览器下的低延迟RTMP或RTSP播放，支持RTMP/RTSP H.265(hevc)播放。

页面展示

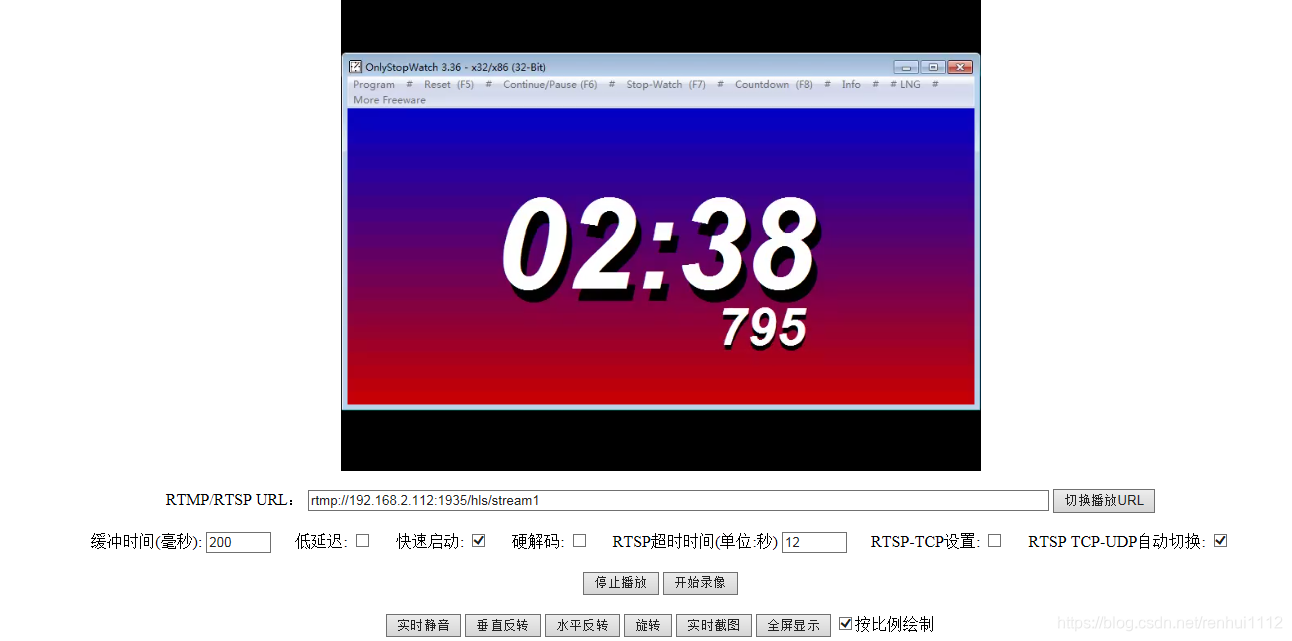

图一：

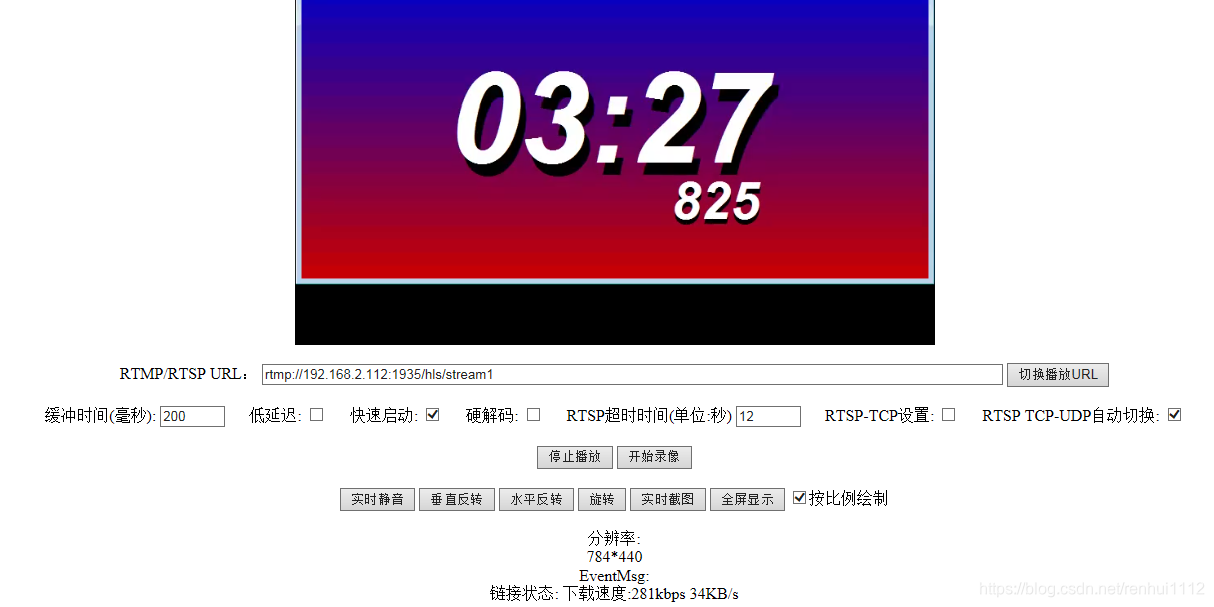

图二：

设计注意事项：

1. 接口透传，不再赘述，注意数据类型即可；

2. Event回调传递，特别是多窗口多实例播放模式下，需要区分处理不同实例回调上来的event（如分辨率、实时码率、网络状态等）；

3. OCX控件正常注册、反注册（运行网页播放端之前，请确保以管理员权限注册ocx控件：regplayerocx.bat右键-->“以管理员身份运行(A)”，同理，反注册也是需要管理员身份）；

4. 浏览器模式下，如滚动条拖动，避免因此带来的闪烁；

5. 等比例绘制，这块最好做到底层SDK里面去，要么，比较笨的办法是，底层回调上来视频宽高信息，上层根据比例二次处理；

6. 窗口显示模式和全屏模式切换等。

对应封装接口

	ULONG NT_Open();ULONG NT_Close();ULONG NT_StartPlay();ULONG NT_StopPlay();ULONG NT_SetMute(LONG is_mute);ULONG NT_SetURL(LPCTSTR url);ULONG NT_SetBuffer(LONG buffer);ULONG NT_SetRTSPTcpMode(LONG isUsingTCP);ULONG NT_SetRtspTimeout(LONG timeout);ULONG NT_SetRtspAutoSwitchTcpUdp(LONG is_auto_switch_tcp_udp);ULONG NT_SetFastStartup(LONG isFastStartup);ULONG NT_SetVideoHardwareDecoder(LONG isVideoHardwareDecoder);ULONG NT_SetLowLatencyMode(LONG mode);ULONG NT_SetFlipVertical(LONG is_flip);ULONG NT_SetFlipHorizontal(LONG is_flip);ULONG NT_SetRotation(LONG degress);ULONG NT_SwitchURL(LPCTSTR url);ULONG NT_SetCaptureImagePath(LPCTSTR path);ULONG NT_CaptureImage();ULONG NT_SetRecorderDirectory(LPCTSTR dir);ULONG NT_SetRecorderFileMaxSize(ULONG size);ULONG NT_NT_SP_RecorderFileNameRuler(ULONG type, LPCTSTR file_name_prefix, LONG append_date, LONG append_time);ULONG NT_SetRecorderAudioTranscodeAAC(LONG is_transcode);ULONG NT_SetRecorderVideo(LONG is_record_video);ULONG NT_SetRecorderAudio(LONG is_record_audio);ULONG NT_StartRecorder();ULONG NT_StopRecorder();ULONG NT_FullScreen();void OnSDKEventReceived(BSTR object_id, ULONG event_id, ULONG param1);void OnVideoSizeReceived(ULONG width, ULONG height);ULONG NT_SetLogPath(LPCTSTR log_path);ULONG NT_SetObjectID(LPCTSTR obj_id_str);ULONG NT_SetSDKClientKey(LPCTSTR cid, LPCTSTR key);ULONG NT_SetAudioVolume(LONG audio_volume);ULONG NT_SetRenderScaleMode(LONG mode);

设置LOG存放路径：

ULONG CSmartPlayerActiveXCtrl::NT_SetLogPath(LPCTSTR log_path)

请于NT_Open() 之前调用，代码示例：

var obj = document.getElementById("SmartPlayerActiveX");//如需记录log文件，请确保log路径存在, 如多级目录, 可按照"D:\\Daniulive\\log"类似格式设定, 记录文件名: smart_sdk.logobj.NT_SetLogPath("D:\\");

接口说明：

1. ULONG NT_Open();

打开player实例；
2. ULONG NT_Close();

关闭player实例；
3. ULONG NT_StartPlay();

开始播放；
4. ULONG NT_StopPlay();

停止播放；
5. ULONG NT_SetMute(LONG is_mute);

设置实时静音；
6. ULONG NT_SetURL(LPCTSTR url);

设置播放的RTMP或RTSP url；
7. ULONG NT_SetBuffer(LONG buffer);

设置buffer time，缓冲时间，单位：毫秒；
8. ULONG NT_SetRTSPTcpMode(LONG isUsingTCP);

设置RTSP TCP/UDP播放模式；
9. ULONG NT_SetRtspTimeout(LONG timeout);

设置RTSP超时时间；
10. ULONG NT_SetRtspAutoSwitchTcpUdp(LONG is_auto_switch_tcp_udp);

设置是否自动切换TCP/UDP模式；
11. ULONG NT_SetFastStartup(LONG isFastStartup);

设置是否快速启动；
12. ULONG NT_SetLowLatencyMode(LONG mode);

设置是否低延迟模式播放；
13. ULONG NT_SetFlipVertical(LONG is_flip);

设置垂直反转模式图像；
14. ULONG NT_SetFlipHorizontal(LONG is_flip);

设置水平反转图像；
15. ULONG NT_SetRotation(LONG degress);

设置旋转图像，可设定角度：0度 90度 180度 270度；
16. ULONG NT_SwitchURL(LPCTSTR url);

设置快速切换RTSP/RTMP url；
17. ULONG NT_SetCaptureImagePath(LPCTSTR path);

设置快照保存位置；
18. ULONG NT_CaptureImage();

设置实时快照功能；
19. ULONG NT_SetRecorderDirectory(LPCTSTR dir);

设置录像保存位置；
20. ULONG NT_SetRecorderFileMaxSize(ULONG size);

设置单个录像文件最大size，单位：兆；
21. ULONG NT_NT_SP_RecorderFileNameRuler(ULONG type, LPCTSTR file_name_prefix, LONG append_date, LONG append_time);

设置录像文件命名规则：是否需要前缀、是否添加日期、是否添加时间；
22. ULONG NT_SetRecorderAudioTranscodeAAC(LONG is_transcode);

设置录像音频文件是否转AAC后录制，支持PCMA/PCMU/SPEEX转AAC后录制文件；
23. ULONG NT_SetRecorderVideo(LONG is_record_video);

设置是否录制视频；
24. ULONG NT_SetRecorderAudio(LONG is_record_audio);

设置是否录制音频；
25. ULONG NT_StartRecorder();

开始录像；
26. ULONG NT_StopRecorder();

停止录像；
27. ULONG NT_FullScreen();

全屏显示窗口。

28. ULONG NT_SetObjectID();

设置Object ID，用于区分不同实例。

29. ULONG NT_SetSDKClientKey();

设置license key，用于授权。

30. ULONG NT_SetAudioVolume();

播放端实时音量调节。

31. ULONG NT_SetRenderScaleMode();

设置是否等比例显示窗体。

事件Event：

1. void OnSDKEventReceived;

回调网络状态、buffering状态、下载速度等；

事件类型：

		<script>var NT_EVENT_ID_SMART_PLAYER_SDK = 0x01000000;var NT_SP_E_EVENT_ID_BASE = NT_EVENT_ID_SMART_PLAYER_SDK;var NT_SP_E_EVENT_ID_CONNECTING				= NT_SP_E_EVENT_ID_BASE | 0x2;	/*连接中*/var NT_SP_E_EVENT_ID_CONNECTION_FAILED		= NT_SP_E_EVENT_ID_BASE | 0x3;	/*连接失败*/var NT_SP_E_EVENT_ID_CONNECTED				= NT_SP_E_EVENT_ID_BASE | 0x4;	/*已连接*/var NT_SP_E_EVENT_ID_DISCONNECTED			= NT_SP_E_EVENT_ID_BASE | 0x5;	/*断开连接*/var NT_SP_E_EVENT_ID_NO_MEDIADATA_RECEIVED	= NT_SP_E_EVENT_ID_BASE | 0x8;	/*收不到RTMP数据*/var NT_SP_E_EVENT_ID_RTSP_STATUS_CODE       = NT_SP_E_EVENT_ID_BASE | 0xB;  /*rtsp status code上报, 目前只上报401, param1表示status code*//* 接下来请从0x81开始*/var NT_SP_E_EVENT_ID_START_BUFFERING = NT_SP_E_EVENT_ID_BASE | 0x81; /*开始缓冲*/var NT_SP_E_EVENT_ID_BUFFERING		 = NT_SP_E_EVENT_ID_BASE | 0x82; /*缓冲中, param1 表示百分比进度*/var NT_SP_E_EVENT_ID_STOP_BUFFERING  = NT_SP_E_EVENT_ID_BASE | 0x83; /*停止缓冲*/var NT_SP_E_EVENT_ID_DOWNLOAD_SPEED  = NT_SP_E_EVENT_ID_BASE | 0x91; /*下载速度， param1表示下载速度，单位是(Byte/s)*/var NT_SP_E_EVENT_ID_PLAYBACK_REACH_EOS		= NT_SP_E_EVENT_ID_BASE | 0xa1; /*播放结束, 直播流没有这个事件，点播流才有*/var NT_SP_E_EVENT_ID_RECORDER_REACH_EOS		= NT_SP_E_EVENT_ID_BASE | 0xa2; /*录像结束, 直播流没有这个事件, 点播流才有*/var NT_SP_E_EVENT_ID_PULLSTREAM_REACH_EOS   = NT_SP_E_EVENT_ID_BASE | 0xa3; /*拉流结束, 直播流没有这个事件，点播流才有*/var NT_SP_E_EVENT_ID_DURATION = NT_SP_E_EVENT_ID_BASE | 0xa8; /*视频时长，如果是直播，则不上报，如果是点播的话, 若能从视频源获取视频时长的话，则上报， param1表示视频时长，单位是毫秒(ms)*/</script>

调用展示：

		<script language='javascript' for="SmartPlayerActiveX"  event="OnSDKEventReceived(object_id, event_id, param1)">// Test 1 - statically load the script (This is the basis for the hack)// Works on IE8, IE9, IE10 and IE11var show_str = "";var connection_status = event_id;if (connection_status != 0){show_str += "链接状态: ";if (NT_SP_E_EVENT_ID_CONNECTING == connection_status){show_str += "链接中";}else if (NT_SP_E_EVENT_ID_CONNECTION_FAILED == connection_status){show_str += "链接失败";}else if (NT_SP_E_EVENT_ID_CONNECTED == connection_status){show_str += "链接成功";}else if (NT_SP_E_EVENT_ID_DISCONNECTED == connection_status){show_str += "链接断开";}else if (NT_SP_E_EVENT_ID_NO_MEDIADATA_RECEIVED == connection_status){show_str += "收不到数据";}}var download_speed = -1;if (NT_SP_E_EVENT_ID_DOWNLOAD_SPEED == event_id){download_speed = param1;}if (download_speed != -1){show_str += "下载速度:" + (download_speed * 8 / 1000).toFixed(0) + "kbps " + (download_speed / 1024).toFixed(0) + "KB/s";}var buffer_status = 0;if (NT_SP_E_EVENT_ID_START_BUFFERING == event_id|| NT_SP_E_EVENT_ID_BUFFERING == event_id|| NT_SP_E_EVENT_ID_STOP_BUFFERING == event_id){buffer_status = event_id;}if (buffer_status != 0){show_str += "缓冲状态: ";if (NT_SP_E_EVENT_ID_START_BUFFERING == buffer_status){show_str += "开始缓冲";}else if (NT_SP_E_EVENT_ID_BUFFERING == buffer_status){show_str += "缓冲中" + param1 + "%";}else if (NT_SP_E_EVENT_ID_STOP_BUFFERING == buffer_status){show_str += "结束缓冲";}}var EventMsgText = document.getElementById("EventMsg");EventMsgText.innerHTML = show_str;</script>

2. void OnVideoSizeReceived(ULONG width, ULONG height);

回调视频宽高信息。

调用展示：

<script language='javascript' for="SmartPlayerActiveX"  event="OnVideoSizeReceived(width, height)">// Test 1 - statically load the script (This is the basis for the hack)// Works on IE8, IE9, IE10 and IE11var VideoResolutionText = document.getElementById("VideoResolution");VideoResolutionText.innerHTML = width + "*" + height;
</script>

SDK接口调用实例：

播放和录像调用示例：

			function OpenPlayer(){			   if(is_player_opened){return;}var obj = document.getElementById("SmartPlayerActiveX");//如需记录log文件，请确保log路径存在, 如多级目录, 可按照"D:\\Daniulive\\log"类似格式设定, 记录文件名: smart_sdk.logobj.NT_SetLogPath("D:\\");obj.NT_SetObjectID("SmartPlayerActiveX");var ret = obj.NT_Open();if(ret == 0){   //设置TCP/UDP模式var rtsp_tcp_mode = document.getElementById("rtspTcpMode").checked ? 1 : 0;obj.NT_SetRTSPTcpMode(rtsp_tcp_mode);//设置RTSP超时时间var rtsp_timeout = document.getElementById("rtspTimeout").value;obj.NT_SetRtspTimeout(rtsp_timeout);//设置是否自动切换TCP-UDP模式var rtsp_auto_switch_tcp_udp = document.getElementById("rtspAutoSwitchTcpUdp").checked ? 1 : 0;obj.NT_SetRtspAutoSwitchTcpUdp(rtsp_auto_switch_tcp_udp);//设置是否快速启动var fast_startup_mode = document.getElementById("fastStartupMode").checked ? 1 : 0;obj.NT_SetFastStartup(fast_startup_mode);//设置是否硬解码var is_video_hardware_decoder = document.getElementById("videoHardwareDecoder").checked ? 1 : 0;obj.NT_SetVideoHardwareDecoder(is_video_hardware_decoder);//设置需要播放或录像的RTSP/RTMP urlvar url = document.getElementById("playorReocordUrl").value;obj.NT_SetURL(url);//设置实时截图路径(可自行设置或选取系统存在的文件夹), 如多级目录可按照"D:\\Daniulive\\image"类似格式设定var image_path = "D:\\";obj.NT_SetCaptureImagePath(image_path);is_player_opened = true;}}function ClosePlayer(){if(is_player_opened){var obj = document.getElementById("SmartPlayerActiveX");obj.NT_Close();var EventMsgText = document.getElementById("EventMsg");	EventMsgText.innerHTML = "";is_player_opened = false;}}function OnBnClickedPlay(){if(!isIE()){alert("非IE浏览器，请用IE打开播放控件..");return;}if(!isActiveXInstalled()){alert("控件未加载，请先加载控件..");return;}if(is_playing){StopPlayback();}else{StartPlayback();}}//开始播放function StartPlayback() {if(!is_playing && !is_recording){OpenPlayer();}var obj = document.getElementById("SmartPlayerActiveX");//设置是否启用低延迟模式var low_latency_mode = document.getElementById("lowlatencyMode").checked ? 1 : 0;obj.NT_SetLowLatencyMode(low_latency_mode);//设置缓冲时间var buffer_time = document.getElementById("bufferTime").value;obj.NT_SetBuffer(buffer_time);//设置播放音量, 范围是[0, 100], 0是静音，100是最大音量, 默认是100//var audio_volume = 0;//obj.NT_SetAudioVolume(audio_volume);//设置视频画面的填充模式，如填充整个绘制窗口、等比例填充绘制窗口，如不设置，默认填充整个绘制窗口//mode： 0: 填充整个绘制窗口; 1: 等比例填充绘制窗口, 默认值是0var render_scale_mode = 1;obj.NT_SetRenderScaleMode(render_scale_mode);var ret = obj.NT_StartPlay();if(ret == 0){is_playing = true;	var playBtnText = document.getElementById("playBtn");playBtnText.innerHTML = "停止播放";}		}//停止播放function StopPlayback() {if(!is_playing){return;}var obj = document.getElementById("SmartPlayerActiveX");obj.NT_StopPlay();is_playing = false;var playBtnText = document.getElementById("playBtn");playBtnText.innerHTML = "开始播放";if(!is_recording){ClosePlayer();}var VideoResolutionText = document.getElementById("VideoResolution");VideoResolutionText.innerHTML = "";}function OnBnClickedRecord(){if(!isIE()){alert("非IE浏览器，请用IE打开播放控件..");return;}if(!isActiveXInstalled()){alert("控件未加载，请先加载控件..");return;}if(is_recording){StopRecorder();}else{StartRecorder();}}//开始录像function StartRecorder() {if(!is_playing && !is_recording){OpenPlayer();}var obj = document.getElementById("SmartPlayerActiveX");//设置实时录像存放路径(可自行设置或选取系统存在的文件夹), 如多级目录可按照"D:\\Daniulive\\rec"类似格式设定var rec_dir = "D:\\";obj.NT_SetRecorderDirectory(rec_dir);var rec_max_size = 200;obj.NT_SetRecorderFileMaxSize(rec_max_size);var type = 0;var file_name_prefix = "daniulive";var append_date = 1;var append_time = 1;obj.NT_NT_SP_RecorderFileNameRuler(type, file_name_prefix, append_date, append_time);var is_transcode = 1;obj.NT_SetRecorderAudioTranscodeAAC(is_transcode);var is_record_video = 1;obj.NT_SetRecorderVideo(is_record_video);var is_record_audio = 1;obj.NT_SetRecorderAudio(is_record_audio);var ret = obj.NT_StartRecorder();if(ret == 0){is_recording = true;var recordBtnText = document.getElementById("recordBtn");recordBtnText.innerHTML = "停止录像";}}//停止录像function StopRecorder() {if(!is_recording){return;}var obj = document.getElementById("SmartPlayerActiveX");obj.NT_StopRecorder();is_recording = false;var recordBtnText = document.getElementById("recordBtn");recordBtnText.innerHTML = "开始录像";if(!is_playing){ClosePlayer();}}

快速切换URL调用示例：

//快速切换播放URL
function SwitchUrl() {if(!is_playing){return;}var obj = document.getElementById("SmartPlayerActiveX");var switch_url = document.getElementById("playorReocordUrl").value;obj.NT_SwitchURL(switch_url);
}

实时静音调用示例：

//实时静音
var is_mute = 1;
function SetMute() {var obj = document.getElementById("SmartPlayerActiveX");obj.NT_SetMute(is_mute);var muteText = document.getElementById("MuteBtn");if(is_mute == 1 ){is_mute = 0;muteText.innerHTML = "取消静音";}else{is_mute = 1;muteText.innerHTML  = "实时静音";}
}

视频view垂直反转、水平反转、旋转调用示例：

//垂直反转
var is_flip_vertical = 1;
function SetFlipVertical() {var obj = document.getElementById("SmartPlayerActiveX");obj.NT_SetFlipVertical(is_flip_vertical);var flipVerticalText = document.getElementById("FlipVerticalBtn");if(is_flip_vertical == 1 ){is_flip_vertical = 0;flipVerticalText.innerHTML = "取消反转";}else{is_flip_vertical = 1;flipVerticalText.innerHTML  = "垂直反转";}
}//水平反转
var is_flip_horizontal = 1;
function SetFlipHorizontal() {var obj = document.getElementById("SmartPlayerActiveX");obj.NT_SetFlipHorizontal(is_flip_horizontal);var flipHorizontalText = document.getElementById("FlipHorizontalBtn");if(is_flip_horizontal == 1 ){is_flip_horizontal = 0;flipHorizontalText.innerHTML = "取消反转";}else{is_flip_horizontal = 1;flipHorizontalText.innerHTML  = "水平反转";}
}//视频view旋转
var rotate_degrees_ = 0;
function SetRotation() {rotate_degrees_ += 90;rotate_degrees_ = rotate_degrees_ % 360;var obj = document.getElementById("SmartPlayerActiveX");obj.NT_SetRotation(rotate_degrees_);var rotateText = document.getElementById("RotateBtn");if (0 == rotate_degrees_){rotateText.innerHTML = "旋转90度";}else if (90 == rotate_degrees_){rotateText.innerHTML = "旋转180度";}else if (180 == rotate_degrees_){rotateText.innerHTML = "旋转270度";}else if (270 == rotate_degrees_){rotateText.innerHTML = "不旋转";}
}

实时截图调用示例：

function CaptureImage() {var obj = document.getElementById("SmartPlayerActiveX");obj.NT_CaptureImage();
}

全屏显示窗口调用示例：

//全屏显示窗口
function FullScreen() {var obj = document.getElementById("SmartPlayerActiveX");obj.NT_FullScreen();
}
