nacos 集成 zipkin sleuth实现链路追踪（入门篇）

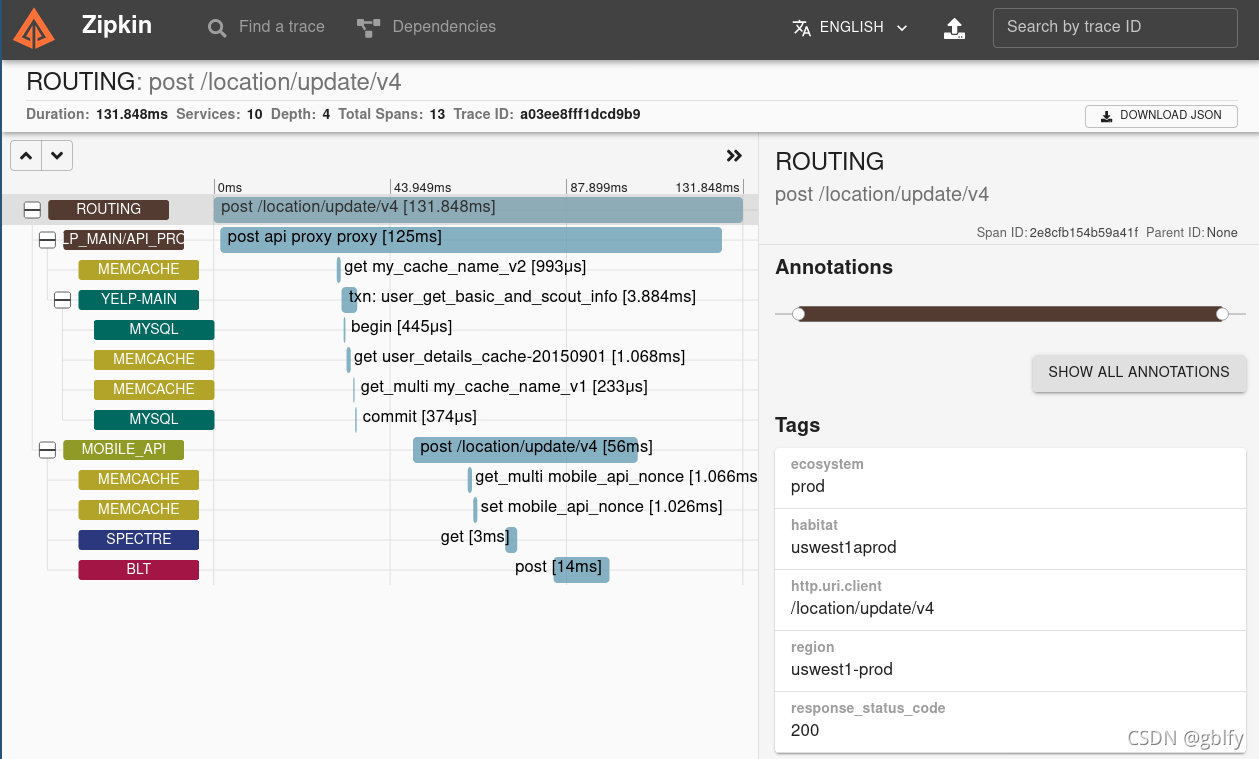

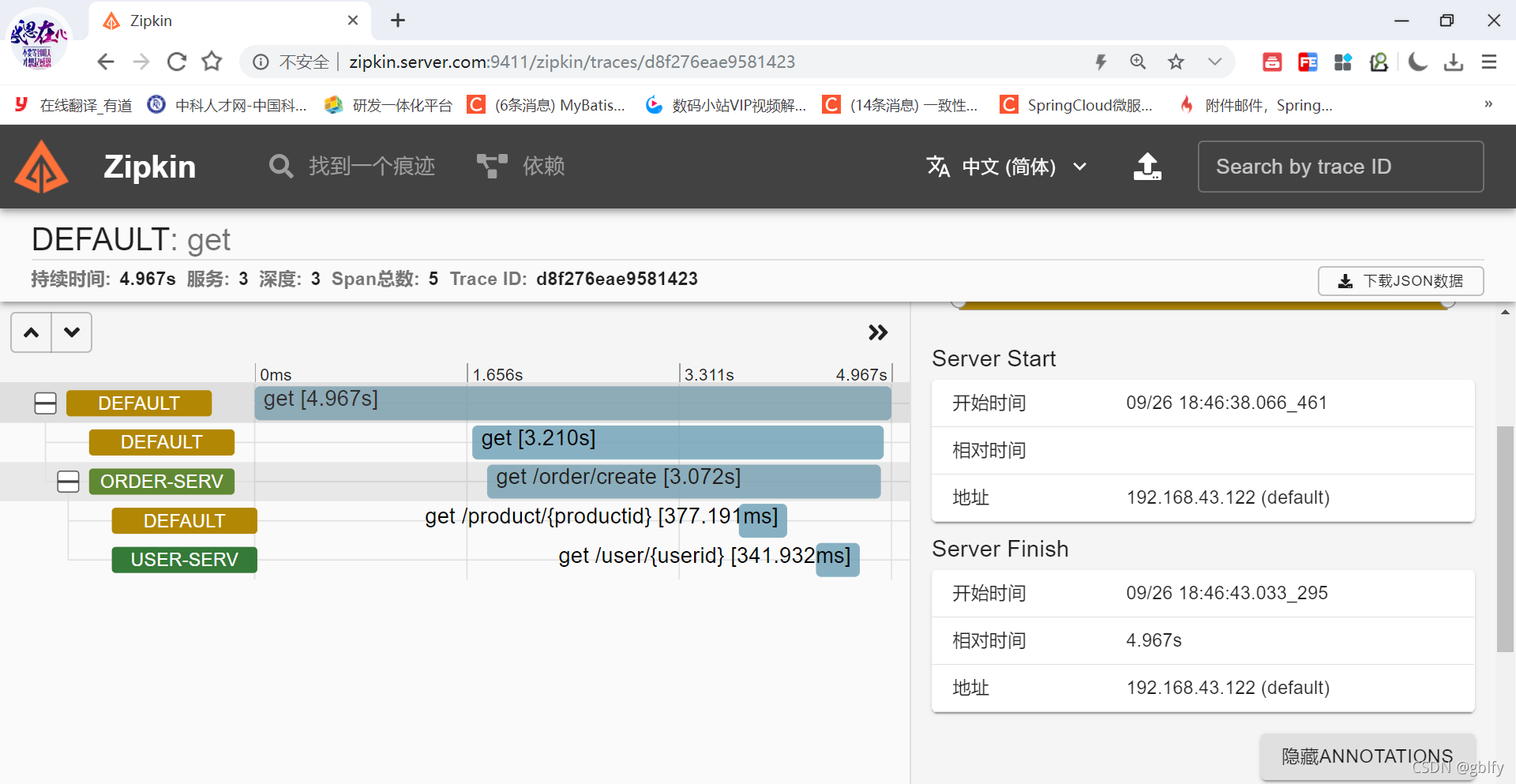

在这里插入图片描述

声明：链路追踪属于微服务的一部分，微服务系列博文陆续会出，可以帮助小伙伴们学习微服务一站式从入门到精通。

文章目录

- - - - 一、zipkin 服务端
      - 1. 下载
        2. 前台运行
        3. 服务端访问
      - 二、网关服务
      - 2.1. 父项目依赖
        2.2. gateway依赖
        2.3. gateway配置
      - 三、订单服务
      - 3.1. order依赖
        3.2. order配置
        3.3. 控制层
      - 四、产品服务
      - 4.1. product依赖
        4.2. 配置
        4.3. 控制层
      - 五、用户服务
      - 5.1.user依赖
        5.1.user配置
        5.3.控制层
      - 六、测试验证
      - 6.1. 访问

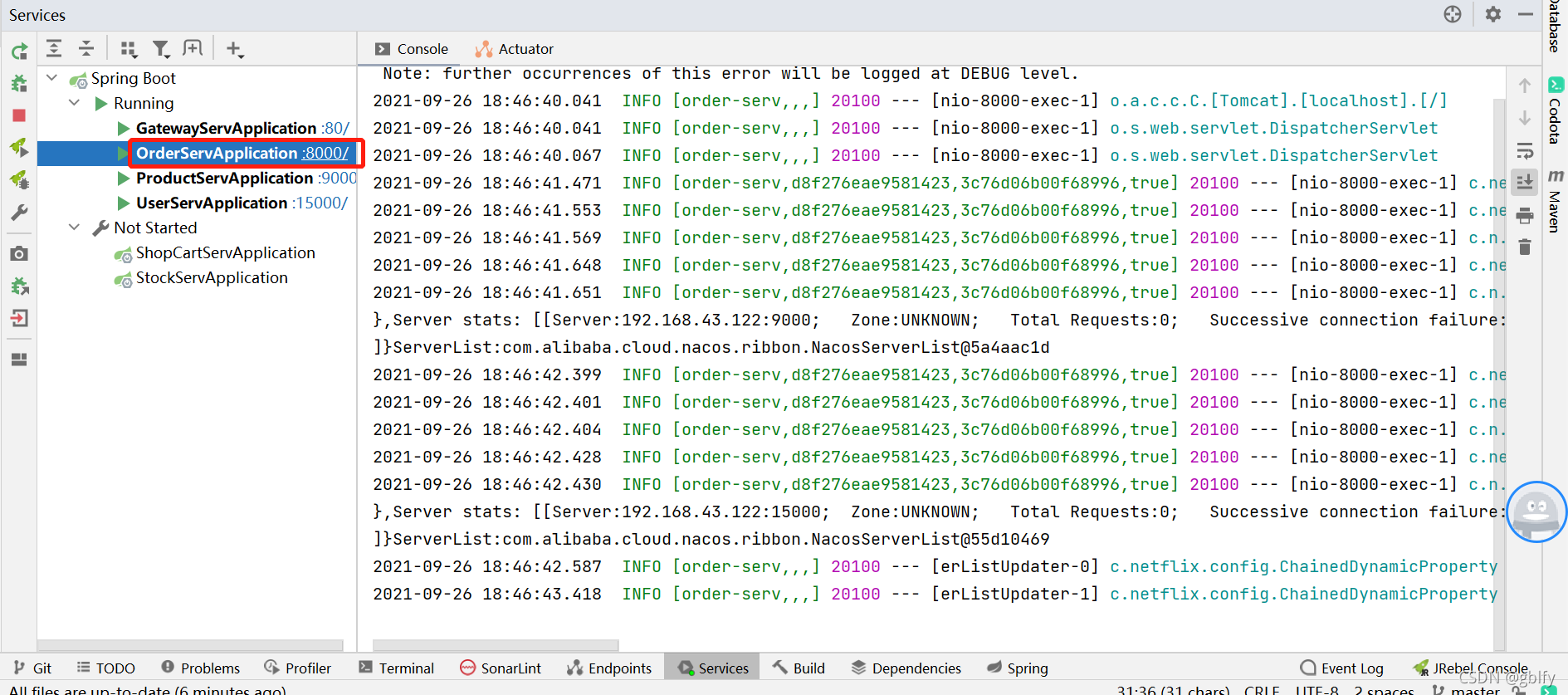

        6.2. 控制出台日志

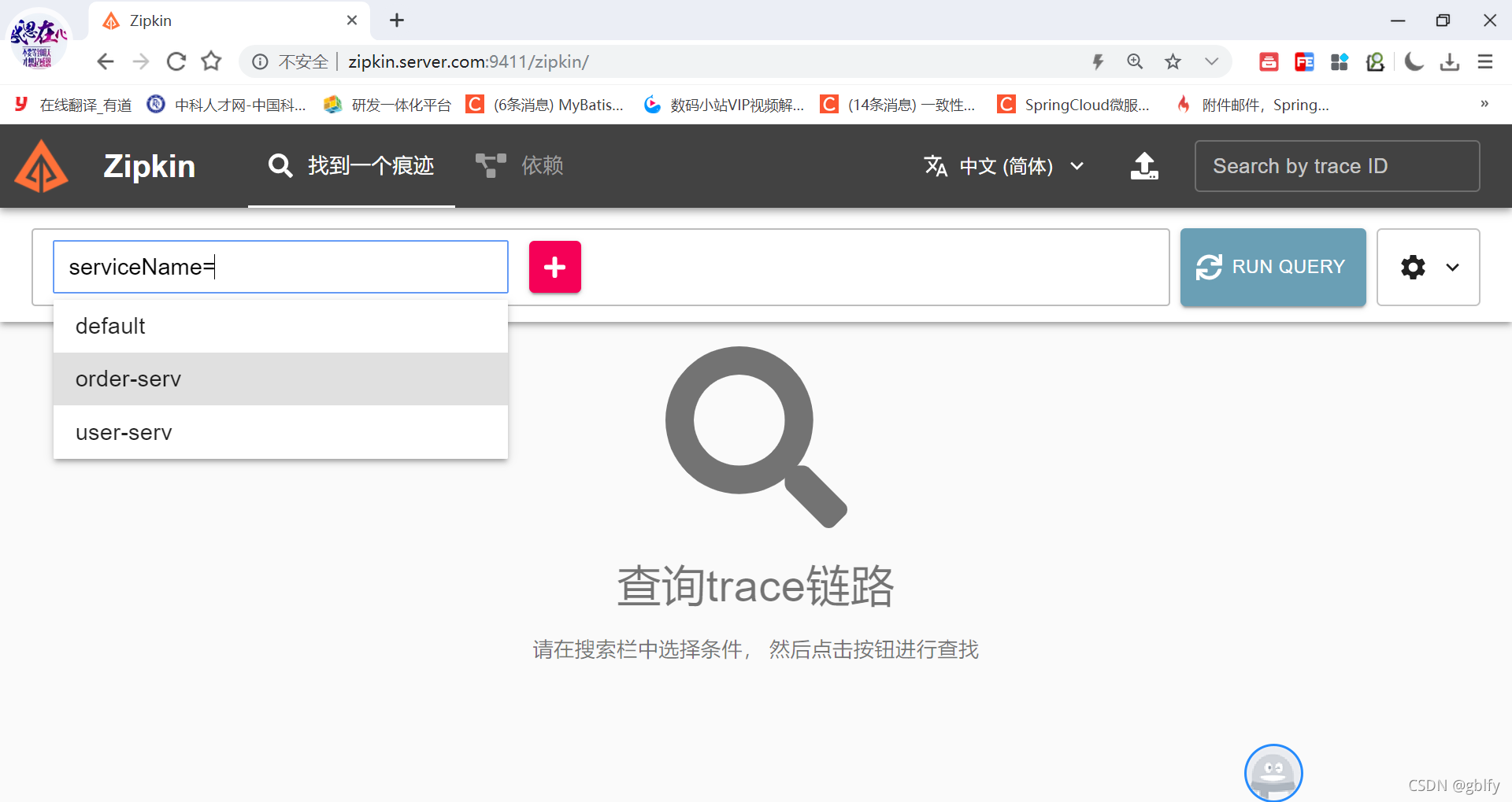

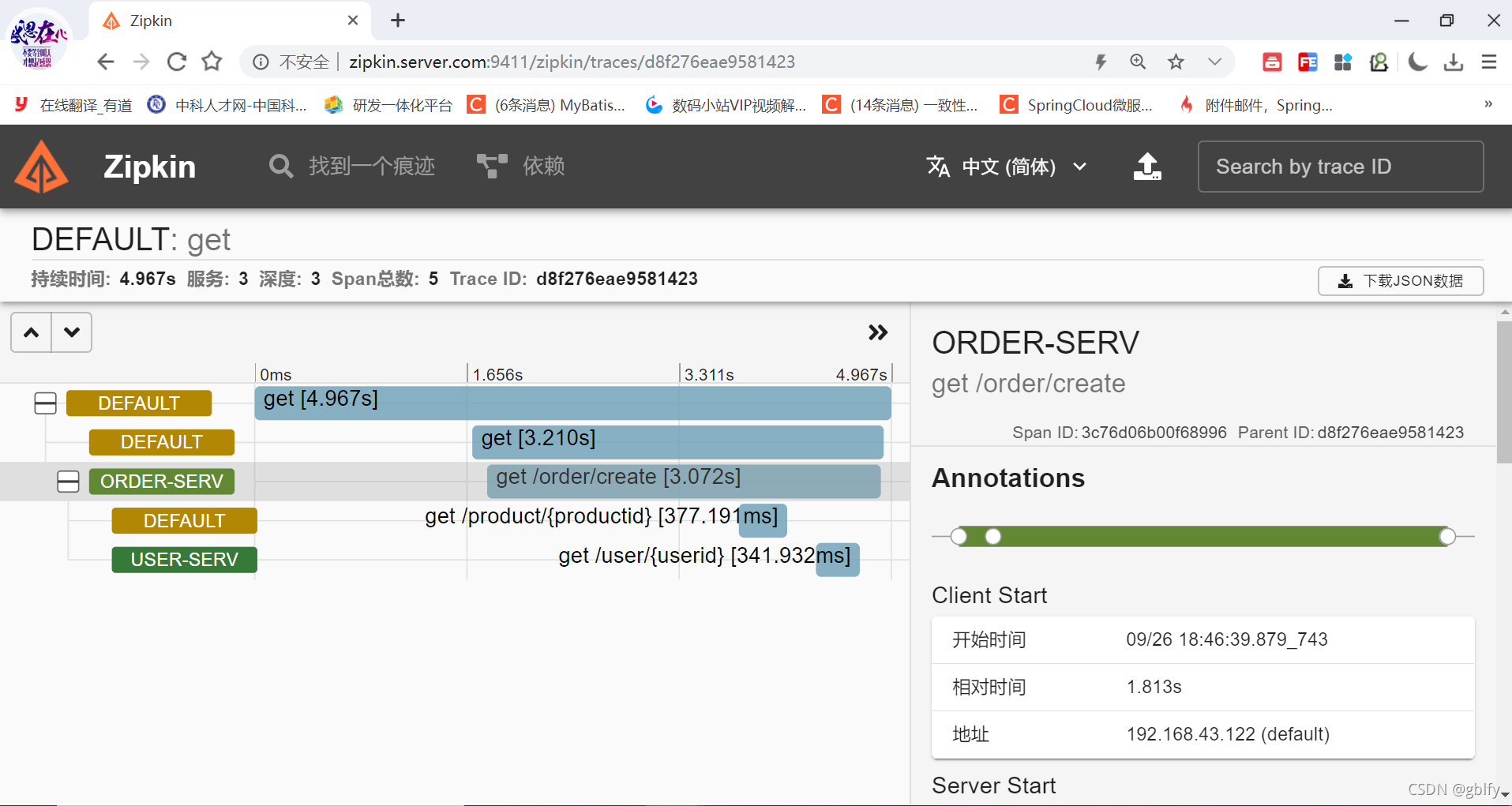

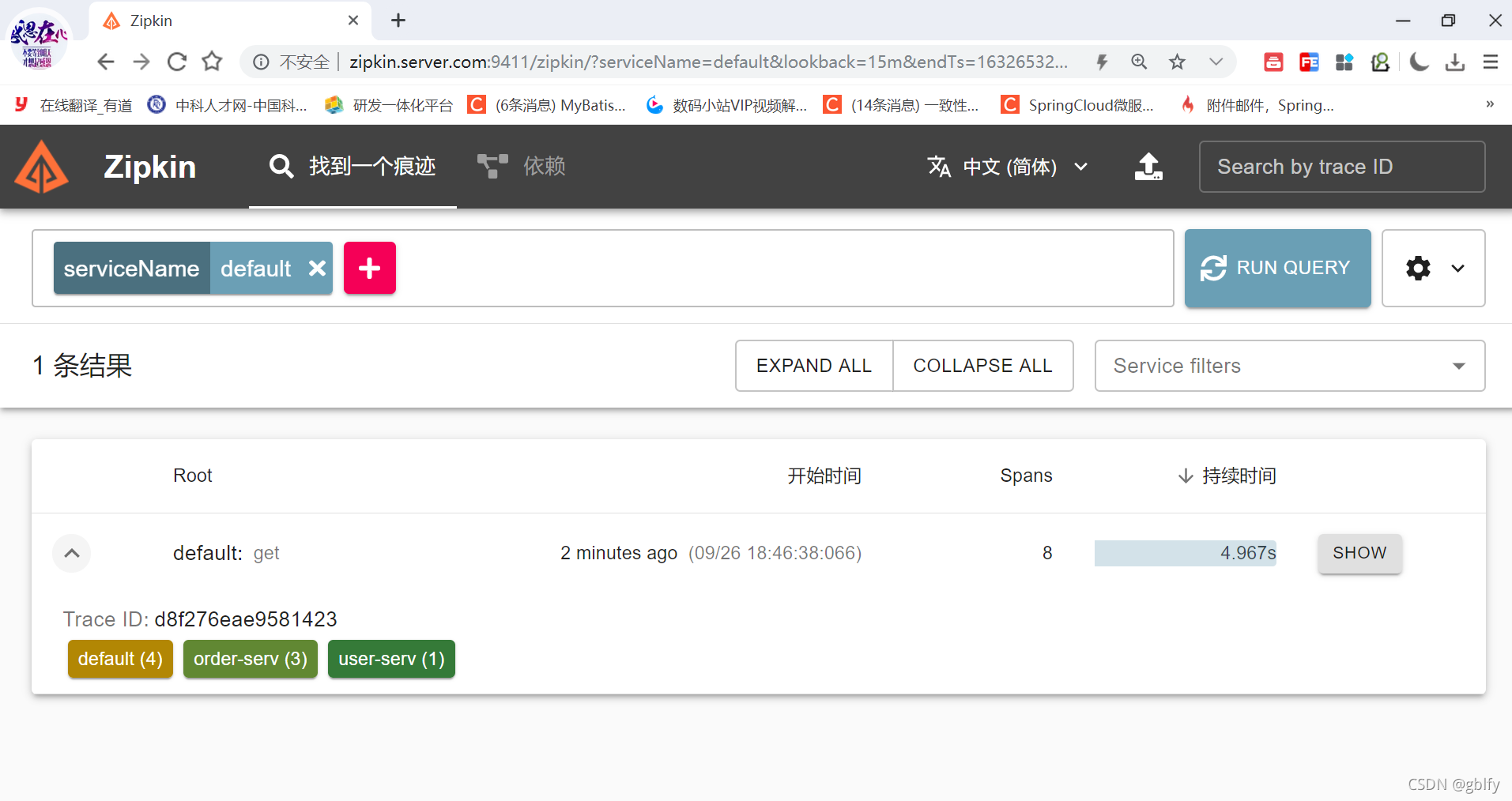

        6.3. 服务端监控

一、zipkin 服务端

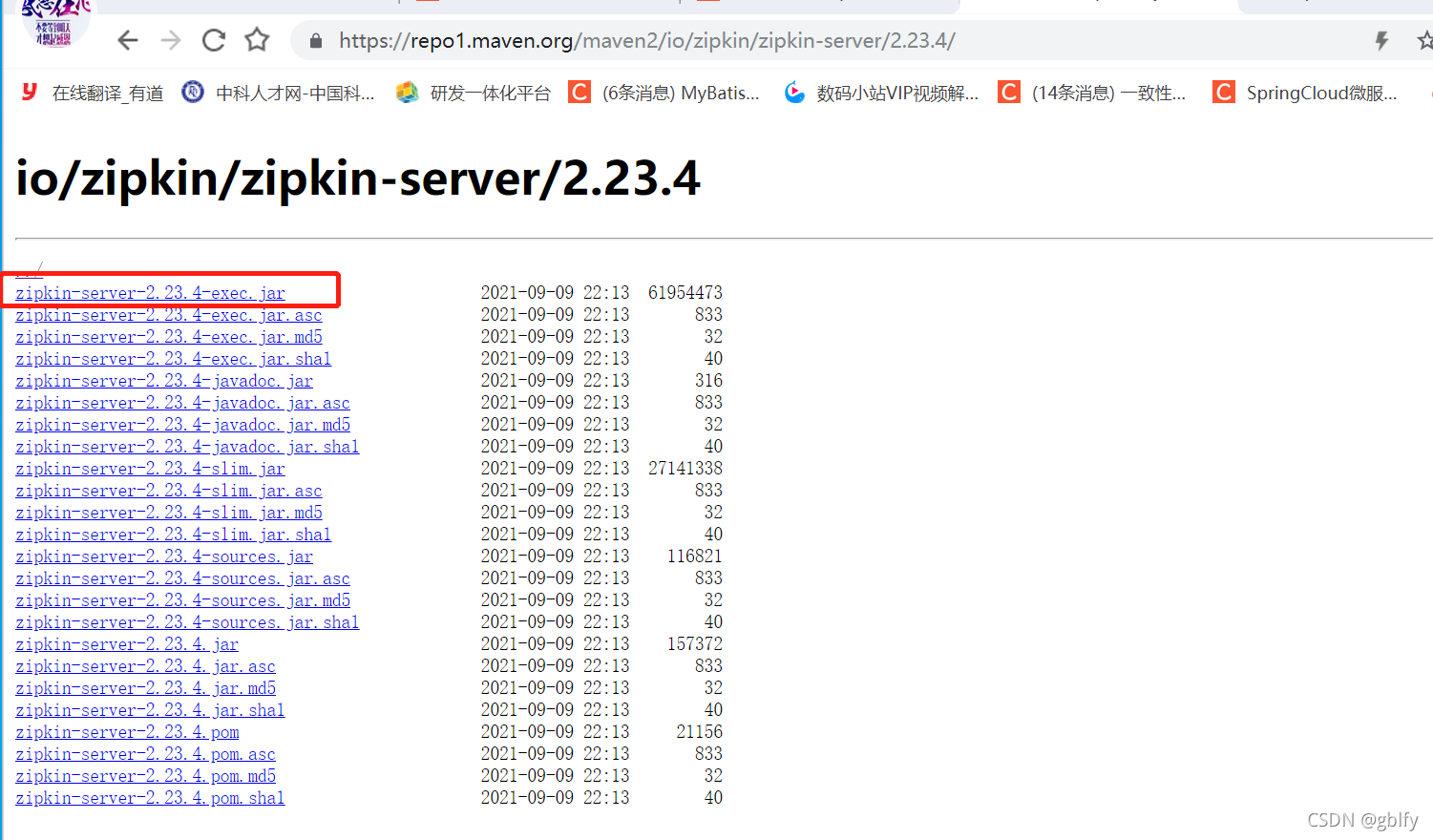

1. 下载

https://repo1.maven.org/maven2/io/zipkin/zipkin-server

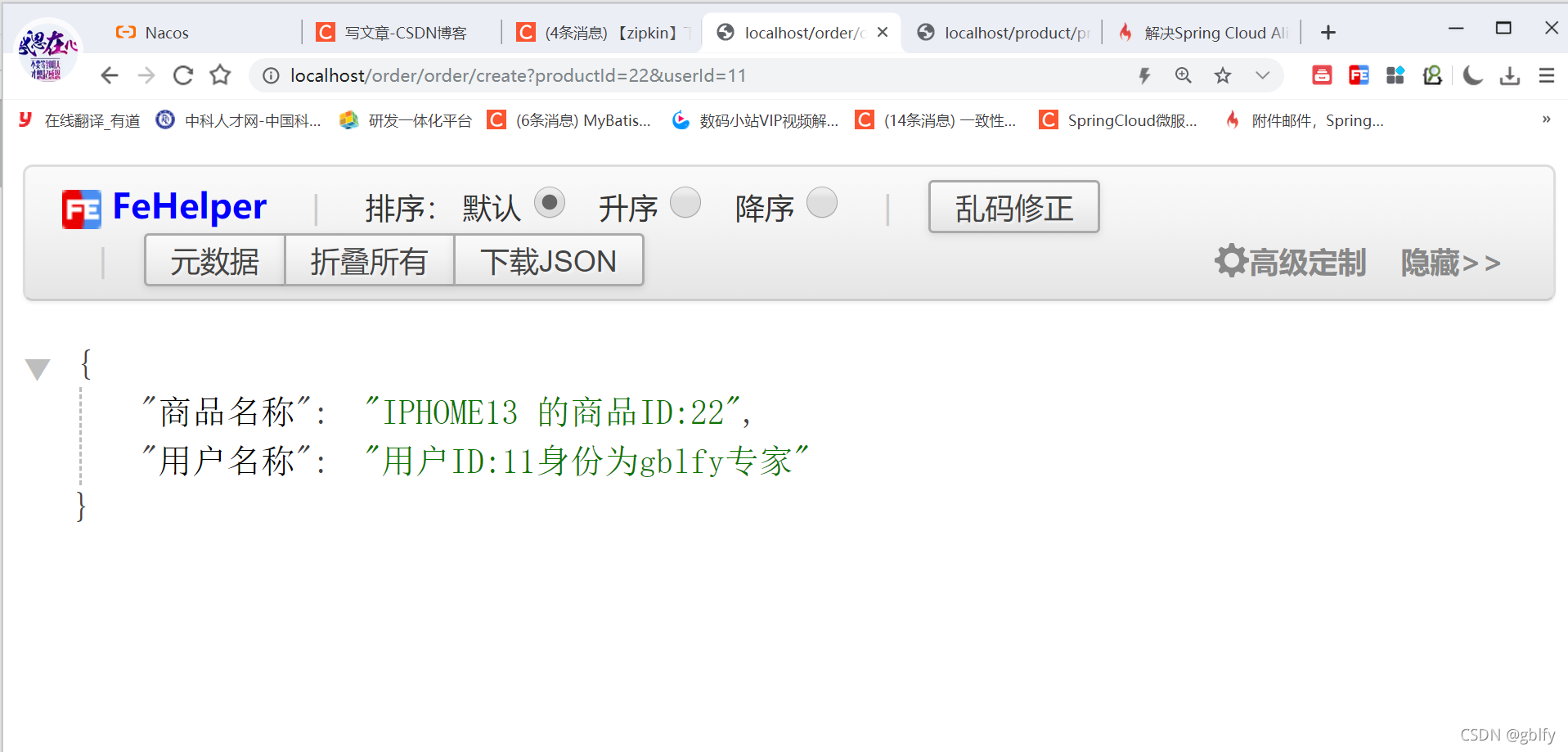

在这里插入图片描述

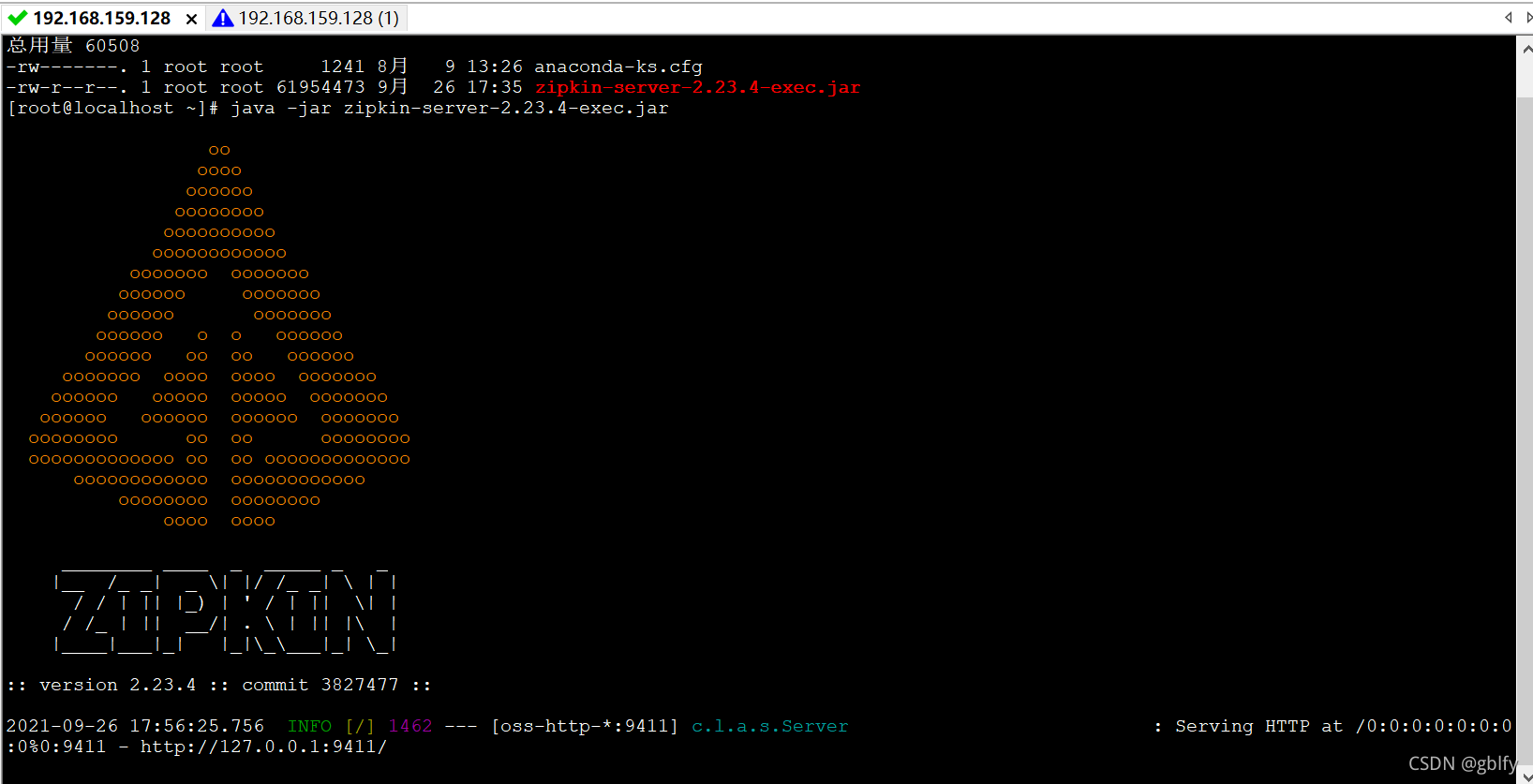

2. 前台运行

java -jar zipkin-server-2.23.4-exec.jar

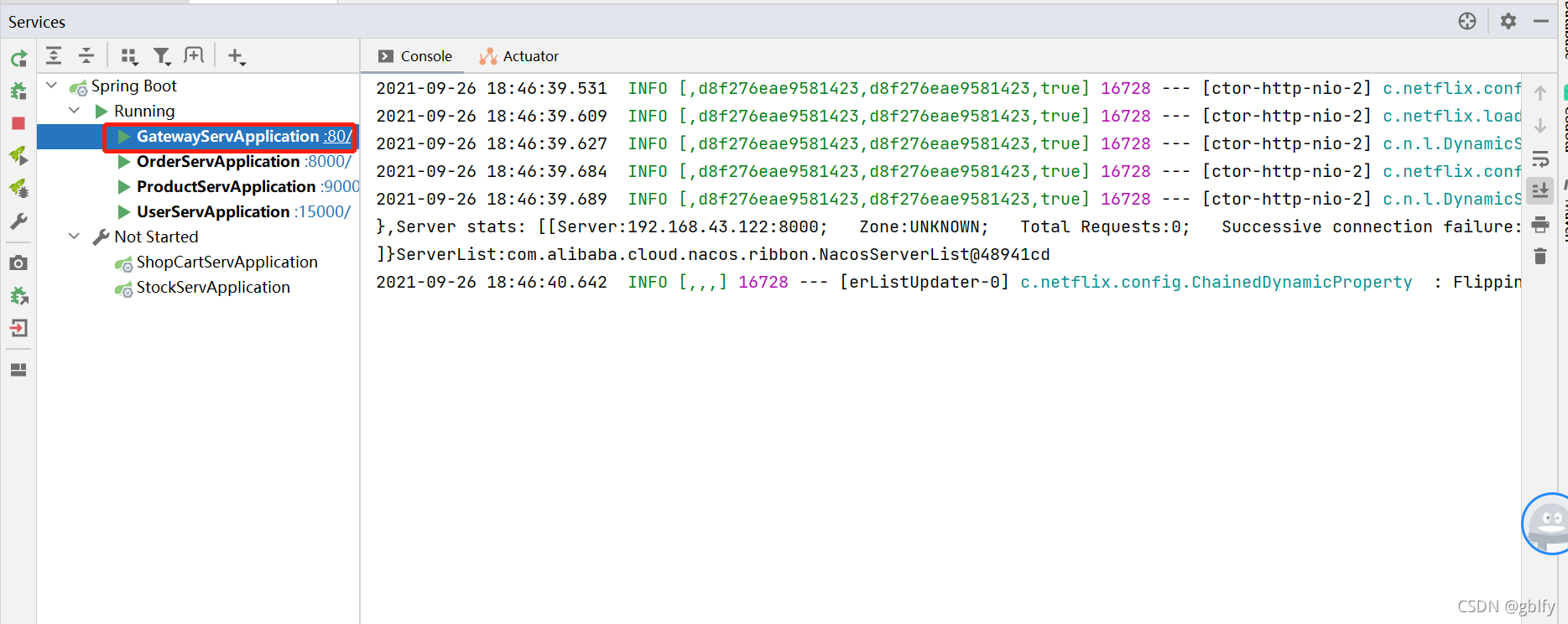

在这里插入图片描述

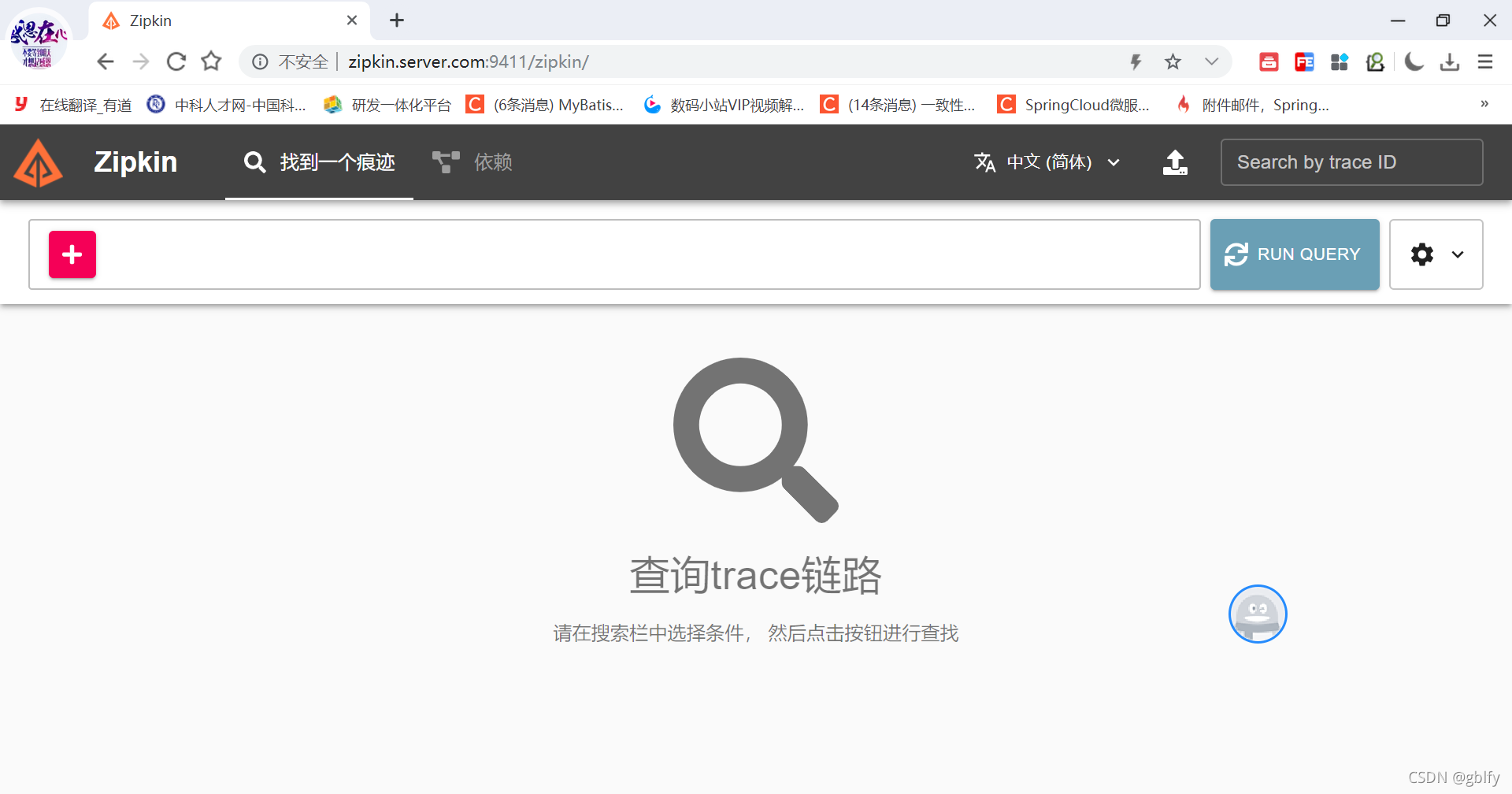

3. 服务端访问

http://zipkin.server.com:9411/zipkin/

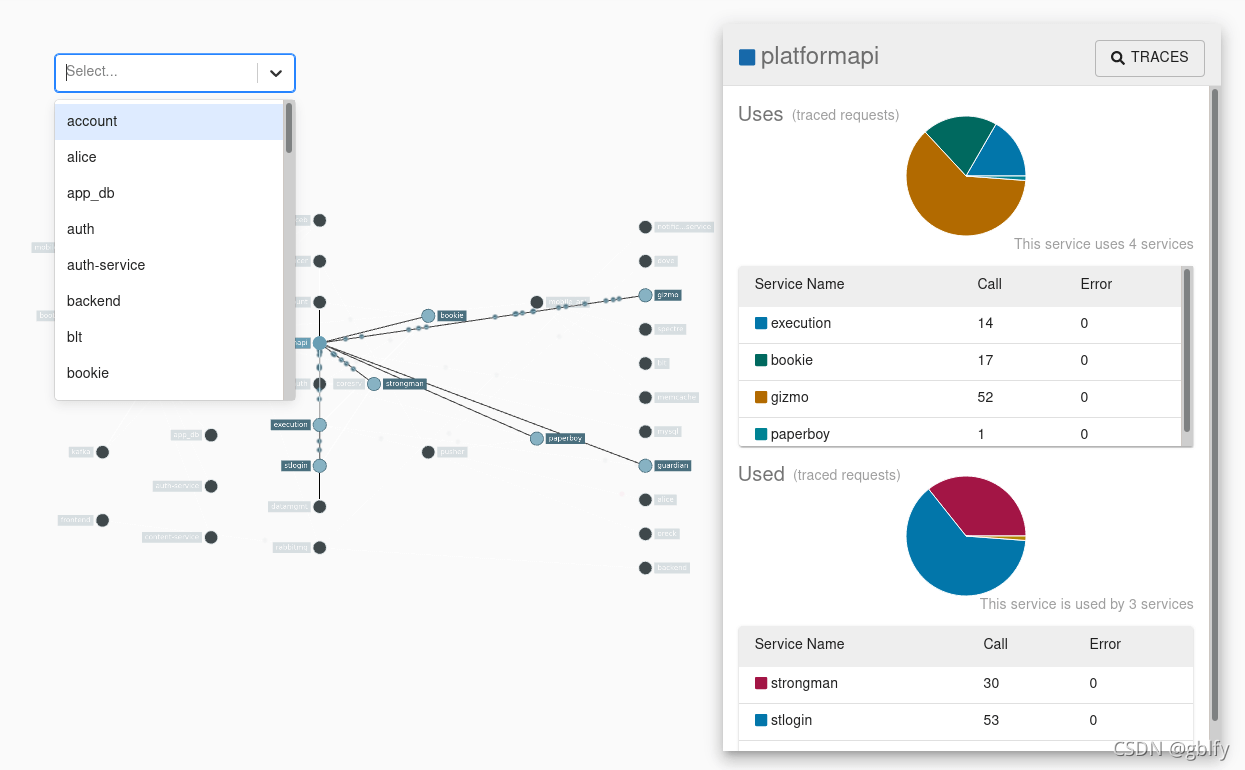

在这里插入图片描述

二、网关服务

2.1. 父项目依赖

  <properties><!--全局版本统一管理--><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding><project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding><java.version>1.8</java.version><common.version>1.0-SNAPSHOT</common.version><api.version>1.0-SNAPSHOT</api.version><spring-cloud.version>Hoxton.SR9</spring-cloud.version><spring-cloud-alibaba.version>2.2.6.RELEASE</spring-cloud-alibaba.version></properties><dependencies><!--服务注册发现--><dependency><groupId>com.alibaba.cloud</groupId><artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId></dependency><!-- spring cloud zipkin 依赖 --><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-zipkin</artifactId></dependency></dependencies><dependencyManagement><dependencies><!--公共模块--><dependency><groupId>com.gblfy</groupId><artifactId>api-serv</artifactId><version>${api.version}</version></dependency><!--公共模块--><dependency><groupId>com.gblfy</groupId><artifactId>common</artifactId><version>${common.version}</version></dependency><!--https://github.com/alibaba/spring-cloud-alibaba/wiki/%E7%89%88%E6%9C%AC%E8%AF%B4%E6%98%8E--><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-dependencies</artifactId><version>${spring-cloud.version}</version><type>pom</type><scope>import</scope></dependency><!--spring-cloud-alibaba 版本控制--><dependency><groupId>com.alibaba.cloud</groupId><artifactId>spring-cloud-alibaba-dependencies</artifactId><version>${spring-cloud-alibaba.version}</version><type>pom</type><scope>import</scope></dependency></dependencies></dependencyManagement>

2.2. gateway依赖

  	   <dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-gateway</artifactId></dependency>

2.3. gateway配置

server:port: 80
spring:cloud:nacos:discovery:service: gateway-servserver-addr: localhost:8848gateway:discovery:locator: # 是否与服务发现组件进行结合，通过 serviceId 转发到具体服务实例。lowerCaseServiceId: true # 是否开启基于服务发现的路由规则enabled: true # 是否将服务名称转小写routes:# 订单服务- id: order-servuri: lb://order-servpredicates:- Path=/order/**filters:- StripPrefix=1# 商品服务- id: product-servuri: lb://product-servpredicates:- Path=/product/**filters:- StripPrefix=1zipkin:base-url: http://zipkin.server.com:9411/ # 服务端地址discovery-client-enabled: falsesender:type: web                      # 数据传输方式，web 表示以 HTTP 报文的形式向服务端发送数据sleuth:sampler:probability: 1.0            # 收集数据百分比，默认 0.1（10%）

三、订单服务

3.1. order依赖

 <!-- SpringCloud Openfeign --><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-openfeign</artifactId></dependency><!--springmvc--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency>

3.2. order配置

server:port: 8000
spring:application:name: order-servcloud:nacos:discovery:service: order-servserver-addr: localhost:8848zipkin:base-url: http://zipkin.server.com:9411/ # 服务端地址discovery-client-enabled: falsesender:type: web                      # 数据传输方式，web 表示以 HTTP 报文的形式向服务端发送数据sleuth:sampler:probability: 1.0            # 收集数据百分比，默认 0.1（10%）#请求处理的超时时间
ribbon:ReadTimeout: 10000ConnectTimeout: 10000# feign 配置
feign:sentinel:enabled: trueokhttp:enabled: truehttpclient:enabled: falseclient:config:default:connectTimeout: 10000readTimeout: 10000compression:request:enabled: trueresponse:enabled: true# 暴露监控端点
management:endpoints:web:exposure:include: '*'

3.3. 控制层

package com.gblfy.order.controller;import com.alibaba.fastjson.JSON;
import com.gblfy.api.RemoteProductService;
import com.gblfy.api.RemoteUserService;
import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;import java.util.HashMap;@RestController
@RequiredArgsConstructor(onConstructor_ = @Autowired)
public class OrderController {private final RemoteProductService productService;private final RemoteUserService userService;//http://localhost:8000/order/create?productId=11&userId=11222@GetMapping("/order/create")public String createOrder(@RequestParam Integer productId, @RequestParam Integer userId) {// 调用商品服务，通过商品ID获取商品名称String productName = productService.getProductName(productId);// 调用用户服务，通过用户ID获取用户名称String userName = userService.geUserName(userId);HashMap<String, Object> map = new HashMap<>();map.put("商品名称", productName);map.put("用户名称", userName);return JSON.toJSONString(map);}
}

四、产品服务

4.1. product依赖

 <!-- SpringCloud Openfeign --><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-openfeign</artifactId></dependency><!--springmvc--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency>

4.2. 配置

server:port: 8000
spring:application:name: order-servcloud:nacos:discovery:service: order-servserver-addr: localhost:8848zipkin:base-url: http://zipkin.server.com:9411/ # 服务端地址discovery-client-enabled: falsesender:type: web                      # 数据传输方式，web 表示以 HTTP 报文的形式向服务端发送数据sleuth:sampler:probability: 1.0            # 收集数据百分比，默认 0.1（10%）#请求处理的超时时间
ribbon:ReadTimeout: 10000ConnectTimeout: 10000# feign 配置
feign:sentinel:enabled: trueokhttp:enabled: truehttpclient:enabled: falseclient:config:default:connectTimeout: 10000readTimeout: 10000compression:request:enabled: trueresponse:enabled: true# 暴露监控端点
management:endpoints:web:exposure:include: '*'

4.3. 控制层

package com.gblfy.product.controller;import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;@RestController
@RequiredArgsConstructor(onConstructor_ = @Autowired)
public class ProductController {//http://localhost:9000/product/" + productId@GetMapping("/product/{productId}")public String getProductName(@PathVariable Integer productId) {// 调用用户服务，通过用户ID获取用户名称return "IPHOME13 的商品ID:" + productId;}
}

五、用户服务

5.1.user依赖

 <!-- SpringCloud Openfeign --><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-openfeign</artifactId></dependency><!--springmvc--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency>

5.1.user配置

server:port: 15000
spring:cloud:nacos:discovery:service: user-servserver-addr: localhost:8848zipkin:base-url: http://zipkin.server.com:9411/ # 服务端地址discovery-client-enabled: falsesender:type: web                      # 数据传输方式，web 表示以 HTTP 报文的形式向服务端发送数据sleuth:sampler:probability: 1.0            # 收集数据百分比，默认 0.1（10%）application:name: user-serv

5.3.控制层

package com.gblfy.user.controller;import com.gblfy.user.service.UserService;
import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;@RestController
@RequiredArgsConstructor(onConstructor_ = @Autowired)
public class UserController {private final UserService userService;@GetMapping("/user/{userId}")public String getUserName(@PathVariable Integer userId) {return userService.getUserName(userId);}
}
