SpringBoot 整合 knife4j

文章目录

- - - - 简述
        2. 导入依赖
        3. 创建配置类
        4. 创建User实体类
        5. 创建开发接口

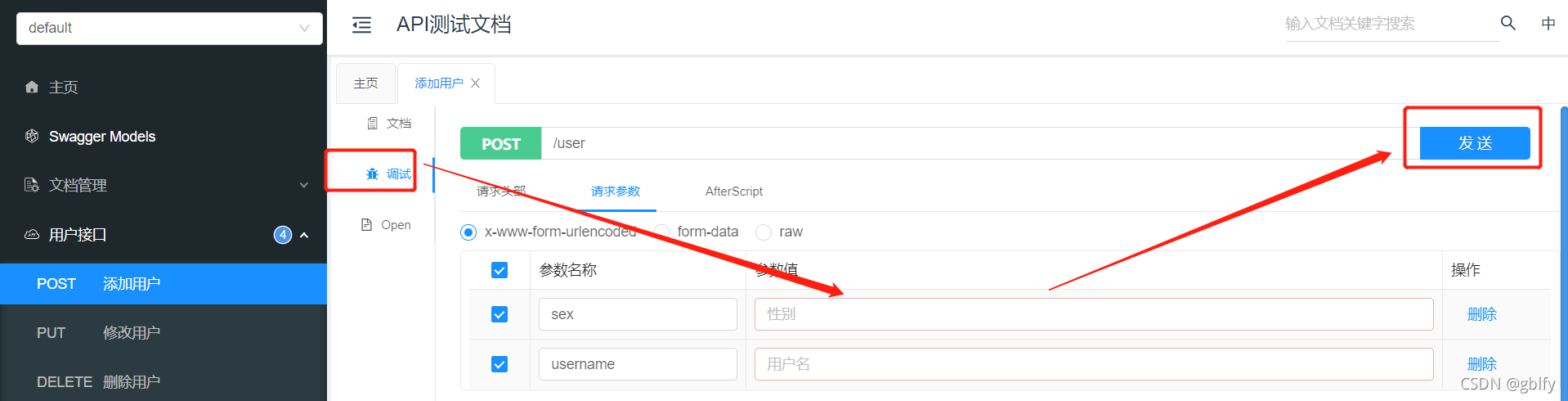

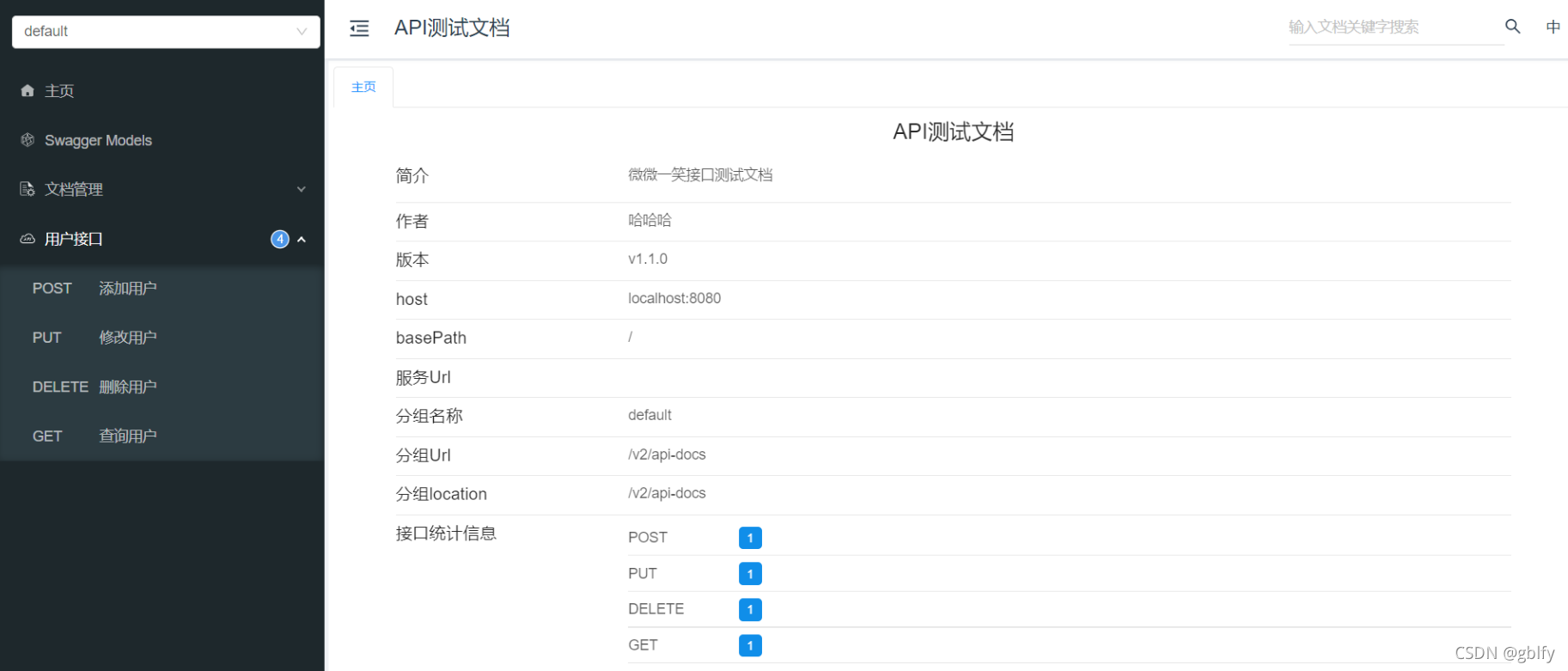

        6. 启动项目

简述

Swagger是一款测试文档Api接口，具体用法见SpringBoot整合Swagger。而knife4j是对Swagger进一步封装，其优化了api文档的界面。官网https://doc.xiaominfo.com/knife4j/documentation/

2. 导入依赖

新建一个SpringBoot的项目，导入需要的依赖

<dependency><groupId>com.github.xiaoymin</groupId><artifactId>knife4j-spring-boot-starter</artifactId><version>3.0.3</version></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency>

3. 创建配置类

package com.gblfy.config;import com.github.xiaoymin.knife4j.spring.annotations.EnableKnife4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;@Configuration
@EnableKnife4j
public class Knife4jConfig {@Beanpublic Docket createRestApi() {return new Docket(DocumentationType.SWAGGER_2).useDefaultResponseMessages(false).apiInfo(apiInfo()).select().apis(RequestHandlerSelectors.basePackage("com.gblfy.controller")).paths(PathSelectors.any()).build();}private ApiInfo apiInfo() {return new ApiInfoBuilder().description("Swagger3接口文档").contact(new Contact("哈哈", "https://gblfy.com", "gblfy@qq.com")).version("v1.1.0").title("适用于前后端分离统一的接口文档").build();}
}

4. 创建User实体类

package com.gblfy.entity;import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;@Data
@ApiModel(value = "用户实体")
public class User {@ApiModelProperty(value = "id")private Integer id;@ApiModelProperty(value = "用户名")private  String username;@ApiModelProperty(value = "性别，0男，1女")private Integer sex;}

5. 创建开发接口

package com.gblfy.controller;import com.example.demo.User;
import io.swagger.annotations.*;
import org.springframework.web.bind.annotation.*;
import springfox.documentation.annotations.ApiIgnore;@RestController
@Api(tags = "用户接口")//描述UserController的信息
public class UserController {@ApiOperation(value = "查询用户",notes = "根据id查询用户")@ApiImplicitParam(paramType = "path",name="id",value = "用户id",required = true)@GetMapping("/user/query/{id}")public String getUserById(@PathVariable Integer id) {return "/user/"+id;}@ApiResponses({@ApiResponse(code=200,message="删除成功"),@ApiResponse(code=500,message="删除失败")})@ApiOperation(value = "删除用户",notes = "根据id删除用户")@DeleteMapping("/user/delete/{id}")public Integer deleteUserById(@PathVariable Integer id) {return id;}@ApiOperation(value = "添加用户",notes = "添加一个用户，传入用户名和性别")@ApiImplicitParams({@ApiImplicitParam(paramType = "query",name="username",value = "用户名",required = true,defaultValue = "张三"),@ApiImplicitParam(paramType = "query",name="sex",value = "性别",required = true,defaultValue = "女")})@PostMapping("/user")public String addUser(@RequestParam String username,@RequestParam String sex){return username+","+sex;}@ApiOperation(value="修改用户",notes = "根据传入的用户信息修改用户")@PutMapping("/user")public String updateUser(@RequestBody User user){return user.toString();}@GetMapping("/ignore")@ApiIgnorepublic void ignoreMethod(){}}
