经过前面学习代码的编写，这一部分，我们要学会如何进行分析，一个很直观的方式就是将结果图形化表示出来。
ns-allinone包的一部分是“xgraph”，一个绘图程序，可用于创建模拟结果的图形表示。 在本节中，将向您展示如何在Tcl脚本中创建可用作xgraph数据集的输出文件的简单方法。 在途中，还将向您展示如何使用流量生成器。（这里介绍的技术是创建适合xgraph的输出文件的许多可能方式之一）
1、创建拓扑图

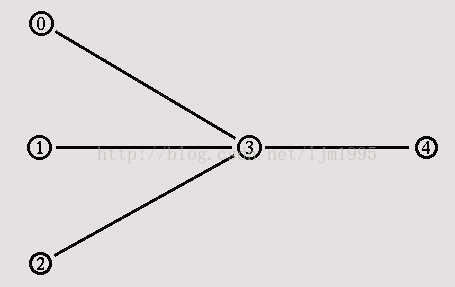

首先，我们需要创建一个如下图的拓扑图。
代码如下所示：
set n0 [$ns node]
set n1 [$ns node]
set n2 [$ns node]
set n3 [$ns node]
set n4 [$ns node]$ns duplex-link $n0 $n3 1Mb 100ms DropTail
$ns duplex-link $n1 $n3 1Mb 100ms DropTail
$ns duplex-link $n2 $n3 1Mb 100ms DropTail
$ns duplex-link $n3 $n4 1Mb 100ms DropTailproc attach-expoo-traffic { node sink size burst idle rate } {#Get an instance of the simulatorset ns [Simulator instance]#Create a UDP agent and attach it to the nodeset source [new Agent/UDP]$ns attach-agent $node $source#Create an Expoo traffic agent and set its configuration parametersset traffic [new Application/Traffic/Exponential]$traffic set packetSize_ $size$traffic set burst_time_ $burst$traffic set idle_time_ $idle$traffic set rate_ $rate# Attach traffic source to the traffic generator$traffic attach-agent $source#Connect the source and the sink$ns connect $source $sinkreturn $traffic
}首先，该过程创建流量源并将其附加到节点，然后创建一个Traffic / Expoo对象，设置其配置参数并将其附加到流量源，最后连接源和宿。 最后，该过程返回流量来源的句柄。 这个过程是一个很好的例子，可以处理如何将诸如将流量源附加到多个节点的任务。 现在我们使用这个过程将具有不同峰值速率的流量源连接到n0，n1和n2，并将它们连接到n4上的三个流量接收器，这些流量源必须首先创建：
set sink0 [new Agent/LossMonitor]
set sink1 [new Agent/LossMonitor]
set sink2 [new Agent/LossMonitor]
$ns attach-agent $n4 $sink0
$ns attach-agent $n4 $sink1
$ns attach-agent $n4 $sink2set source0 [attach-expoo-traffic $n0 $sink0 200 2s 1s 100k]
set source1 [attach-expoo-traffic $n1 $sink1 200 2s 1s 200k]
set source2 [attach-expoo-traffic $n2 $sink2 200 2s 1s 300k]现在我们可以写出实际将数据写入输出文件的程序。
proc record {} {global sink0 sink1 sink2 f0 f1 f2#Get an instance of the simulatorset ns [Simulator instance]#Set the time after which the procedure should be called againset time 0.5#How many bytes have been received by the traffic sinks?set bw0 [$sink0 set bytes_]set bw1 [$sink1 set bytes_]set bw2 [$sink2 set bytes_]#Get the current timeset now [$ns now]#Calculate the bandwidth (in MBit/s) and write it to the filesputs $f0 "$now [expr $bw0/$time*8/1000000]"puts $f1 "$now [expr $bw1/$time*8/1000000]"puts $f2 "$now [expr $bw2/$time*8/1000000]"#Reset the bytes_ values on the traffic sinks$sink0 set bytes_ 0$sink1 set bytes_ 0$sink2 set bytes_ 0#Re-schedule the procedure$ns at [expr $now+$time] "record"
}2、运行模拟
首先，调用“record”过程，然后每0.5秒定期重新安排一次。 然后三个流量来源在10秒钟开始，并在50秒钟停止。 在60秒钟后，调用“finish”过程。完整的脚本代码如下：
#Create a simulator object
set ns [new Simulator]#Open the output files
set f0 [open out0.tr w]
set f1 [open out1.tr w]
set f2 [open out2.tr w]#Create 5 nodes
set n0 [$ns node]
set n1 [$ns node]
set n2 [$ns node]
set n3 [$ns node]
set n4 [$ns node]#Connect the nodes
$ns duplex-link $n0 $n3 1Mb 100ms DropTail
$ns duplex-link $n1 $n3 1Mb 100ms DropTail
$ns duplex-link $n2 $n3 1Mb 100ms DropTail
$ns duplex-link $n3 $n4 1Mb 100ms DropTail#Define a 'finish' procedure
proc finish {} {global f0 f1 f2#Close the output filesclose $f0close $f1close $f2#Call xgraph to display the resultsexec xgraph out0.tr out1.tr out2.tr -geometry 800x400 &exit 0
}#Define a procedure that attaches a UDP agent to a previously created node
#'node' and attaches an Expoo traffic generator to the agent with the
#characteristic values 'size' for packet size 'burst' for burst time,
#'idle' for idle time and 'rate' for burst peak rate. The procedure connects
#the source with the previously defined traffic sink 'sink' and returns the
#source object.
proc attach-expoo-traffic { node sink size burst idle rate } {#Get an instance of the simulatorset ns [Simulator instance]#Create a UDP agent and attach it to the nodeset source [new Agent/UDP]$ns attach-agent $node $source#Create an Expoo traffic agent and set its configuration parametersset traffic [new Application/Traffic/Exponential]$traffic set packetSize_ $size$traffic set burst_time_ $burst$traffic set idle_time_ $idle$traffic set rate_ $rate# Attach traffic source to the traffic generator$traffic attach-agent $source#Connect the source and the sink$ns connect $source $sinkreturn $traffic
}#Define a procedure which periodically records the bandwidth received by the
#three traffic sinks sink0/1/2 and writes it to the three files f0/1/2.
proc record {} {global sink0 sink1 sink2 f0 f1 f2#Get an instance of the simulatorset ns [Simulator instance]#Set the time after which the procedure should be called againset time 0.5#How many bytes have been received by the traffic sinks?set bw0 [$sink0 set bytes_]set bw1 [$sink1 set bytes_]set bw2 [$sink2 set bytes_]#Get the current timeset now [$ns now]#Calculate the bandwidth (in MBit/s) and write it to the filesputs $f0 "$now [expr $bw0/$time*8/1000000]"puts $f1 "$now [expr $bw1/$time*8/1000000]"puts $f2 "$now [expr $bw2/$time*8/1000000]"#Reset the bytes_ values on the traffic sinks$sink0 set bytes_ 0$sink1 set bytes_ 0$sink2 set bytes_ 0#Re-schedule the procedure$ns at [expr $now+$time] "record"
}#Create three traffic sinks and attach them to the node n4
set sink0 [new Agent/LossMonitor]
set sink1 [new Agent/LossMonitor]
set sink2 [new Agent/LossMonitor]
$ns attach-agent $n4 $sink0
$ns attach-agent $n4 $sink1
$ns attach-agent $n4 $sink2#Create three traffic sources
set source0 [attach-expoo-traffic $n0 $sink0 200 2s 1s 100k]
set source1 [attach-expoo-traffic $n1 $sink1 200 2s 1s 200k]
set source2 [attach-expoo-traffic $n2 $sink2 200 2s 1s 300k]#Start logging the received bandwidth
$ns at 0.0 "record"
#Start the traffic sources
$ns at 10.0 "$source0 start"
$ns at 10.0 "$source1 start"
$ns at 10.0 "$source2 start"
#Stop the traffic sources
$ns at 50.0 "$source0 stop"
$ns at 50.0 "$source1 stop"
$ns at 50.0 "$source2 stop"
#Call the finish procedure after 60 seconds simulation time
$ns at 60.0 "finish"#Run the simulation
$ns run
链接：http://www.isi.edu/nsnam/ns/tutorial/
)
