测试题：参考博文

笔记：W2.自然语言处理与词嵌入

作业1：

• 加载预训练的 单词向量，用 $cos(\theta )$ 余弦夹角 测量相似度
• 使用词嵌入解决类比问题
• 修改词嵌入降低性比歧视

import numpy as np
from w2v_utils import *

这个作业使用 50-维的 GloVe vectors 表示单词

words, word_to_vec_map = read_glove_vecs('data/glove.6B.50d.txt')

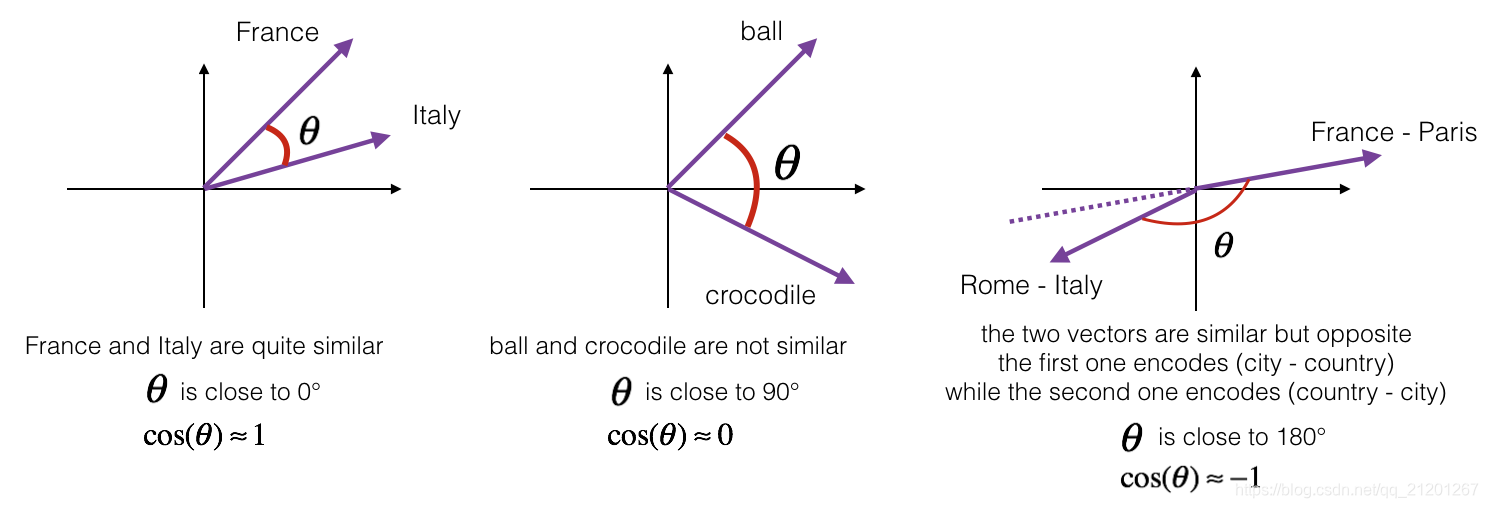

1. 余弦相似度

$$\text{CosineSimilarity(u, v)}=\frac{u.v}{||u|{|}_2||v|{|}_2}=cos(\theta )$$

其中 $||u|{|}_2=\sqrt{{\sum }_{i=1}^n{u}_i^2}$

# GRADED FUNCTION: cosine_similaritydef cosine_similarity(u, v):"""Cosine similarity reflects the degree of similariy between u and vArguments:u -- a word vector of shape (n,)          v -- a word vector of shape (n,)Returns:cosine_similarity -- the cosine similarity between u and v defined by the formula above."""distance = 0.0### START CODE HERE #### Compute the dot product between u and v (≈1 line)dot = np.dot(u, v)# Compute the L2 norm of u (≈1 line)norm_u = np.linalg.norm(u)# Compute the L2 norm of v (≈1 line)norm_v = np.linalg.norm(v)# Compute the cosine similarity defined by formula (1) (≈1 line)cosine_similarity = dot/(norm_u*norm_v)### END CODE HERE ###return cosine_similarity

2. 单词类比

例如：男人：女人 --> 国王：王后

# GRADED FUNCTION: complete_analogydef complete_analogy(word_a, word_b, word_c, word_to_vec_map):"""Performs the word analogy task as explained above: a is to b as c is to ____. Arguments:word_a -- a word, stringword_b -- a word, stringword_c -- a word, stringword_to_vec_map -- dictionary that maps words to their corresponding vectors. Returns:best_word --  the word such that v_b - v_a is close to v_best_word - v_c, as measured by cosine similarity"""# convert words to lower caseword_a, word_b, word_c = word_a.lower(), word_b.lower(), word_c.lower()### START CODE HERE #### Get the word embeddings v_a, v_b and v_c (≈1-3 lines)e_a, e_b, e_c = word_to_vec_map[word_a],word_to_vec_map[word_b],word_to_vec_map[word_c]### END CODE HERE ###words = word_to_vec_map.keys()max_cosine_sim = -100              # Initialize max_cosine_sim to a large negative numberbest_word = None                   # Initialize best_word with None, it will help keep track of the word to output# loop over the whole word vector setfor w in words:        # to avoid best_word being one of the input words, pass on them.if w in [word_a, word_b, word_c] :continue### START CODE HERE #### Compute cosine similarity between the vector (e_b - e_a) and the vector ((w's vector representation) - e_c)  (≈1 line)cosine_sim = cosine_similarity(e_b-e_a, word_to_vec_map[w]-e_c)# If the cosine_sim is more than the max_cosine_sim seen so far,# then: set the new max_cosine_sim to the current cosine_sim and the best_word to the current word (≈3 lines)if cosine_sim > max_cosine_sim:max_cosine_sim = cosine_simbest_word = w### END CODE HERE ###return best_word

测试：

triads_to_try = [('italy', 'italian', 'spain'), ('india', 'delhi', 'japan'), ('man', 'woman', 'boy'), ('small', 'smaller', 'large')]
for triad in triads_to_try:print ('{} -> {} :: {} -> {}'.format( *triad, complete_analogy(*triad,word_to_vec_map)))

输出：

italy -> italian :: spain -> spanish
india -> delhi :: japan -> tokyo
man -> woman :: boy -> girl
small -> smaller :: large -> larger

额外测试：

good -> ok :: bad -> oops（糟糕）
father -> dad :: mother -> mom

3. 词向量纠偏

研究反映在单词嵌入中的性别偏见，并探索减少这种偏见的算法

g = word_to_vec_map['woman'] - word_to_vec_map['man']
print(g)

输出：向量（50维）

[-0.087144    0.2182     -0.40986    -0.03922    -0.1032      0.94165-0.06042     0.32988     0.46144    -0.35962     0.31102    -0.868240.96006     0.01073     0.24337     0.08193    -1.02722    -0.211220.695044   -0.00222     0.29106     0.5053     -0.099454    0.404450.30181     0.1355     -0.0606     -0.07131    -0.19245    -0.06115-0.3204      0.07165    -0.13337    -0.25068714 -0.14293    -0.224957-0.149       0.048882    0.12191    -0.27362    -0.165476   -0.204260.54376    -0.271425   -0.10245    -0.32108     0.2516     -0.33455-0.04371     0.01258   ]

print ('List of names and their similarities with constructed vector:')# girls and boys name
name_list = ['john', 'marie', 'sophie', 'ronaldo', 'priya', 'rahul', 'danielle', 'reza', 'katy', 'yasmin']for w in name_list:print (w, cosine_similarity(word_to_vec_map[w], g))

输出：

List of names and their similarities with constructed vector:
john -0.23163356145973724
marie 0.315597935396073
sophie 0.31868789859418784
ronaldo -0.31244796850329437
priya 0.17632041839009402
rahul -0.16915471039231716
danielle 0.24393299216283895
reza -0.07930429672199553
katy 0.2831068659572615
yasmin 0.2331385776792876

可以看出，

• 女性的名字往往与向量 𝑔 有正的余弦相似性，
• 而男性的名字往往有负的余弦相似性。结果似乎可以接受。

试试其他的词语

print('Other words and their similarities:')
word_list = ['lipstick', 'guns', 'science', 'arts', 'literature', 'warrior','doctor', 'tree', 'receptionist', 'technology',  'fashion', 'teacher', 'engineer', 'pilot', 'computer', 'singer']
for w in word_list:print (w, cosine_similarity(word_to_vec_map[w], g))

输出：

Other words and their similarities:
lipstick 0.2769191625638267
guns -0.1888485567898898
science -0.06082906540929701
arts 0.008189312385880337
literature 0.06472504433459932
warrior -0.20920164641125288
doctor 0.11895289410935041
tree -0.07089399175478091
receptionist 0.3307794175059374
technology -0.13193732447554302
fashion 0.03563894625772699
teacher 0.17920923431825664
engineer -0.0803928049452407
pilot 0.0010764498991916937
computer -0.10330358873850498
singer 0.1850051813649629

这些结果反映了某些性别歧视。例如，“computer 计算机”更接近“man 男人”，“literature 文学”更接近“woman 女人”。

下面看到如何使用Boliukbasi等人2016年提出的算法来减少这些向量的偏差。

请注意，有些词对，如“演员”/“女演员”或“祖母”/“祖父”应保持性别特异性，而其他词如“接待员”或“技术”应保持中立，即与性别无关。纠偏时，你必须区别对待这两种类型的单词

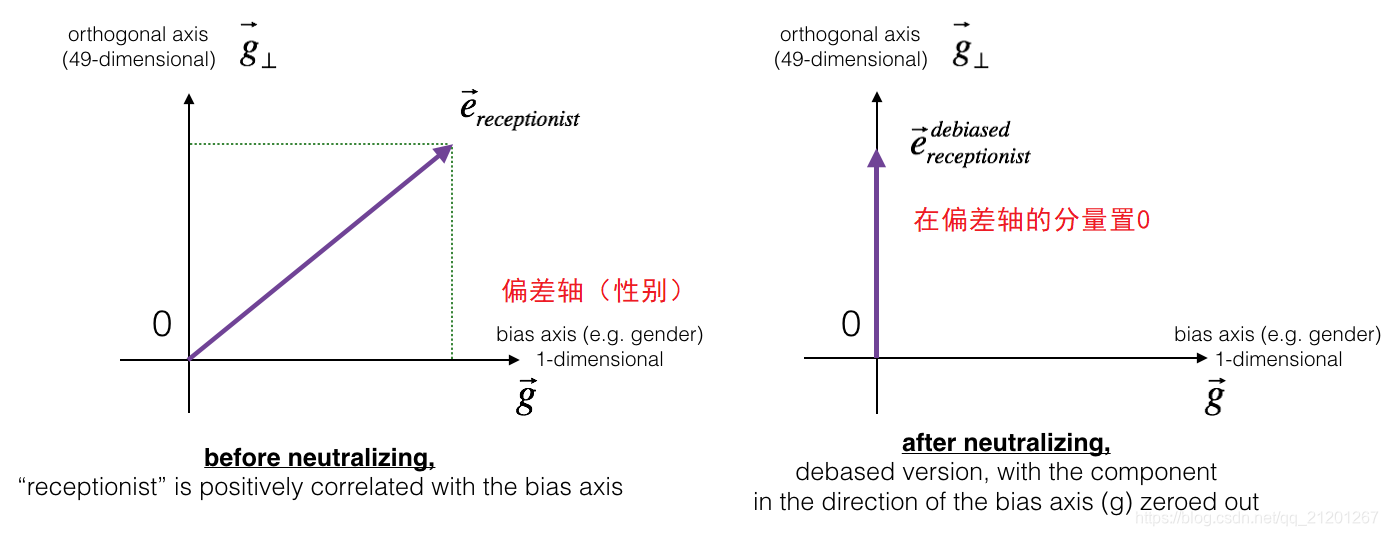

3.1 消除对非性别词语的偏见

$$e^{bias\_component}=\frac{e\cdot g}{||g|{|}_2^2}\ast g$$

$$e^{debiased}=e-e^{bias\_component}$$

def neutralize(word, g, word_to_vec_map):"""Removes the bias of "word" by projecting it on the space orthogonal to the bias axis. This function ensures that gender neutral words are zero in the gender subspace.Arguments:word -- string indicating the word to debiasg -- numpy-array of shape (50,), corresponding to the bias axis (such as gender)word_to_vec_map -- dictionary mapping words to their corresponding vectors.Returns:e_debiased -- neutralized word vector representation of the input "word""""### START CODE HERE #### Select word vector representation of "word". Use word_to_vec_map. (≈ 1 line)e = word_to_vec_map[word]# Compute e_biascomponent using the formula give above. (≈ 1 line)e_biascomponent = np.dot(e, g)/np.linalg.norm(g)**2*g# Neutralize e by substracting e_biascomponent from it # e_debiased should be equal to its orthogonal projection. (≈ 1 line)e_debiased = e - e_biascomponent### END CODE HERE ###return e_debiased

测试：

e = "receptionist"
print("cosine similarity between " + e + " and g, before neutralizing: ", cosine_similarity(word_to_vec_map["receptionist"], g))e_debiased = neutralize("receptionist", g, word_to_vec_map)
print("cosine similarity between " + e + " and g, after neutralizing: ", cosine_similarity(e_debiased, g))

输出：

cosine similarity between receptionist and g, before neutralizing:  0.3307794175059374
cosine similarity between receptionist and g, after neutralizing:  -2.099120994400013e-17

纠偏以后，receptionist（接待员）与性别的相似度接近于 0，既不偏向男人，也不偏向女人

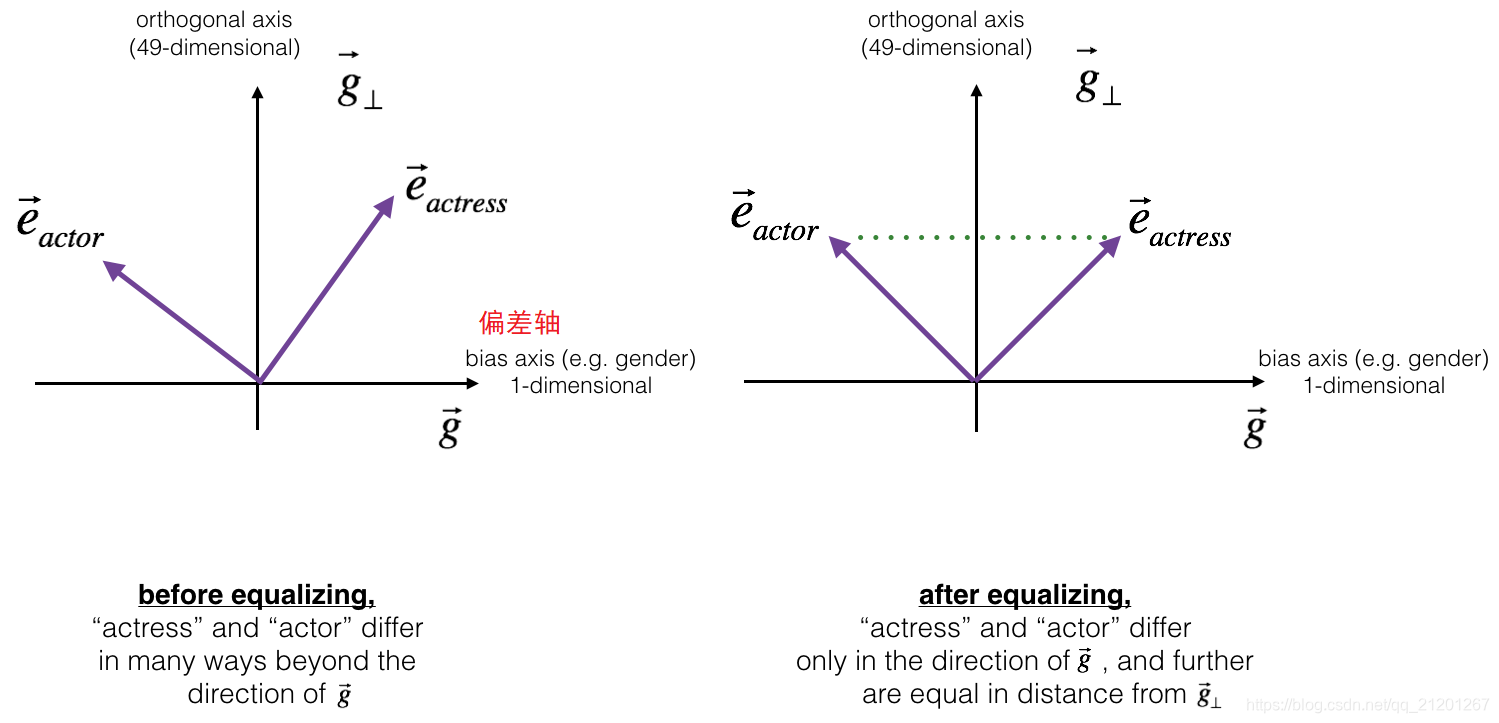

3.2 性别词的均衡算法

如何将纠偏应用于单词对，例如“女演员”和“演员”。
均衡化应用：只希望通过性别属性而有所不同的单词对。
作为一个具体的例子，假设“女演员”比“演员”更接近“保姆”，通过对“保姆”进行中性化，我们可以减少与保姆相关的性别刻板印象。但这仍然不能保证“演员”和“女演员”与“保姆”的距离相等，均衡算法可以处理这一点。

$$\mu =\frac{e_{w1}+e_{w2}}{2}$$

$${\mu }_B=\frac{\mu \cdot \text{bias\_axis}}{||\text{bias\_axis}|{|}_2^2}\ast \text{bias\_axis}$$

$${\mu }_{\perp }=\mu -{\mu }_B$$

$$e_{w1B}=\frac{e_{w1}\cdot \text{bias\_axis}}{||\text{bias\_axis}|{|}_2^2}\ast \text{bias\_axis}$$

$$e_{w2B}=\frac{e_{w2}\cdot \text{bias\_axis}}{||\text{bias\_axis}|{|}_2^2}\ast \text{bias\_axis}$$

$$e_{w1B}^{corrected}=\sqrt{|1-||{\mu }_{\perp }|{|}_2^2|}\ast \frac{e_{\text{w1B}}-{\mu }_B}{|(e_{w1}-{\mu }_{\perp })-{\mu }_B)|}$$

$$e_{w2B}^{corrected}=\sqrt{|1-||{\mu }_{\perp }|{|}_2^2|}\ast \frac{e_{\text{w2B}}-{\mu }_B}{|(e_{w2}-{\mu }_{\perp })-{\mu }_B)|}$$

$$e_1=e_{w1B}^{corrected}+{\mu }_{\perp }$$

$$e_2=e_{w2B}^{corrected}+{\mu }_{\perp }$$

def equalize(pair, bias_axis, word_to_vec_map):"""Debias gender specific words by following the equalize method described in the figure above.Arguments:pair -- pair of strings of gender specific words to debias, e.g. ("actress", "actor") bias_axis -- numpy-array of shape (50,), vector corresponding to the bias axis, e.g. genderword_to_vec_map -- dictionary mapping words to their corresponding vectorsReturnse_1 -- word vector corresponding to the first worde_2 -- word vector corresponding to the second word"""### START CODE HERE #### Step 1: Select word vector representation of "word". Use word_to_vec_map. (≈ 2 lines)w1, w2 = pair[0], pair[1]e_w1, e_w2 = word_to_vec_map[w1], word_to_vec_map[w2]# Step 2: Compute the mean of e_w1 and e_w2 (≈ 1 line)mu = (e_w1+e_w2)/2# Step 3: Compute the projections of mu over the bias axis and the orthogonal axis (≈ 2 lines)mu_B = np.dot(mu, bias_axis)/np.linalg.norm(bias_axis)**2*bias_axismu_orth = mu-mu_B# Step 4: Use equations (7) and (8) to compute e_w1B and e_w2B (≈2 lines)e_w1B = np.dot(e_w1,bias_axis)/np.linalg.norm(bias_axis)**2*bias_axise_w2B = np.dot(e_w2,bias_axis)/np.linalg.norm(bias_axis)**2*bias_axis# Step 5: Adjust the Bias part of e_w1B and e_w2B using the formulas (9) and (10) given above (≈2 lines)corrected_e_w1B = np.sqrt(np.abs(1-np.linalg.norm(mu_orth)**2))*np.divide((e_w1B-mu_B),np.abs(e_w1-mu_orth-mu_B))corrected_e_w2B = np.sqrt(np.abs(1-np.linalg.norm(mu_orth)**2))*np.divide((e_w2B-mu_B),np.abs(e_w2-mu_orth-mu_B))# Step 6: Debias by equalizing e1 and e2 to the sum of their corrected projections (≈2 lines)e1 = corrected_e_w1B+mu_orthe2 = corrected_e_w2B+mu_orth### END CODE HERE ###return e1, e2

测试：

print("cosine similarities before equalizing:")
print("cosine_similarity(word_to_vec_map[\"man\"], gender) = ", cosine_similarity(word_to_vec_map["man"], g))
print("cosine_similarity(word_to_vec_map[\"woman\"], gender) = ", cosine_similarity(word_to_vec_map["woman"], g))
print()
e1, e2 = equalize(("man", "woman"), g, word_to_vec_map)
print("cosine similarities after equalizing:")
print("cosine_similarity(e1, gender) = ", cosine_similarity(e1, g))
print("cosine_similarity(e2, gender) = ", cosine_similarity(e2, g))

输出：

cosine similarities before equalizing:
cosine_similarity(word_to_vec_map["man"], gender) =  -0.11711095765336832
cosine_similarity(word_to_vec_map["woman"], gender) =  0.35666618846270376cosine similarities after equalizing:
cosine_similarity(e1, gender) =  -0.7165727525843935
cosine_similarity(e2, gender) =  0.7396596474928909

平衡以后，相似度符号相反，数值接近

作业2：Emojify表情生成

使用 word vector representations 建立 Emojifier

让你的消息更有表现力😁，使用单词向量的话，可以是你的单词没有在该表情的关联里面，也能学习到可以使用该表情。

• 导入一些包

import numpy as np
from emo_utils import *
import emoji
import matplotlib.pyplot as plt%matplotlib inline

1. Baseline model: Emojifier-V1

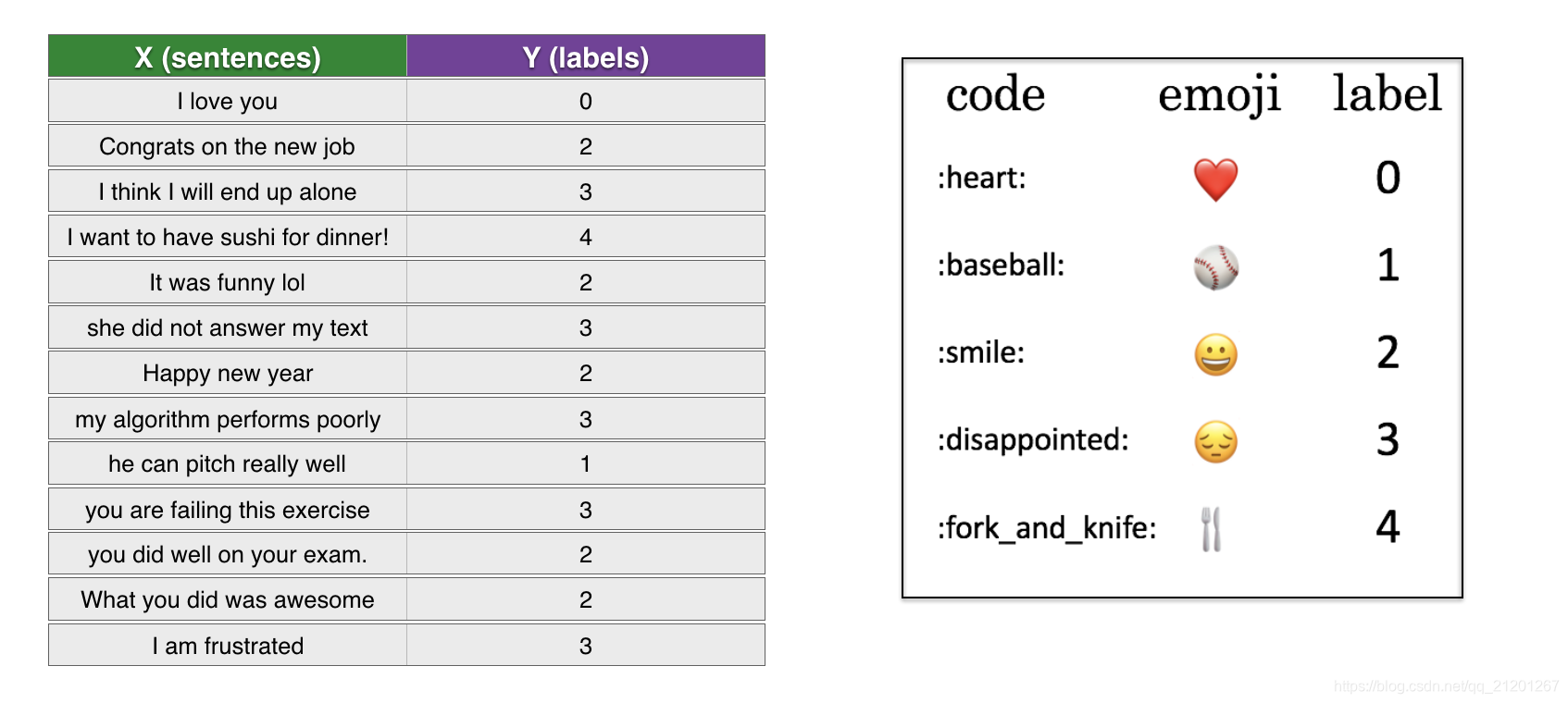

1.1 数据集

X：127个句子（字符串）
Y：整型 标签 0 - 4 ，是相关的句子的表情

• 加载数据集，训练集（127个样本），测试集（56个样本）

X_train, Y_train = read_csv('data/train_emoji.csv')
X_test, Y_test = read_csv('data/tesss.csv')

maxLen = len(max(X_train, key=len).split())
print(max(X_train, key=len).split())

输出：

['I', 'am', 'so', 'impressed', 'by', 'your', 'dedication', 'to', 'this', 'project']

最长的句子是10个单词

• 查看数据集

index = 3
print(X_train[index], label_to_emoji(Y_train[index]))

输出：
Miss you so much ❤️

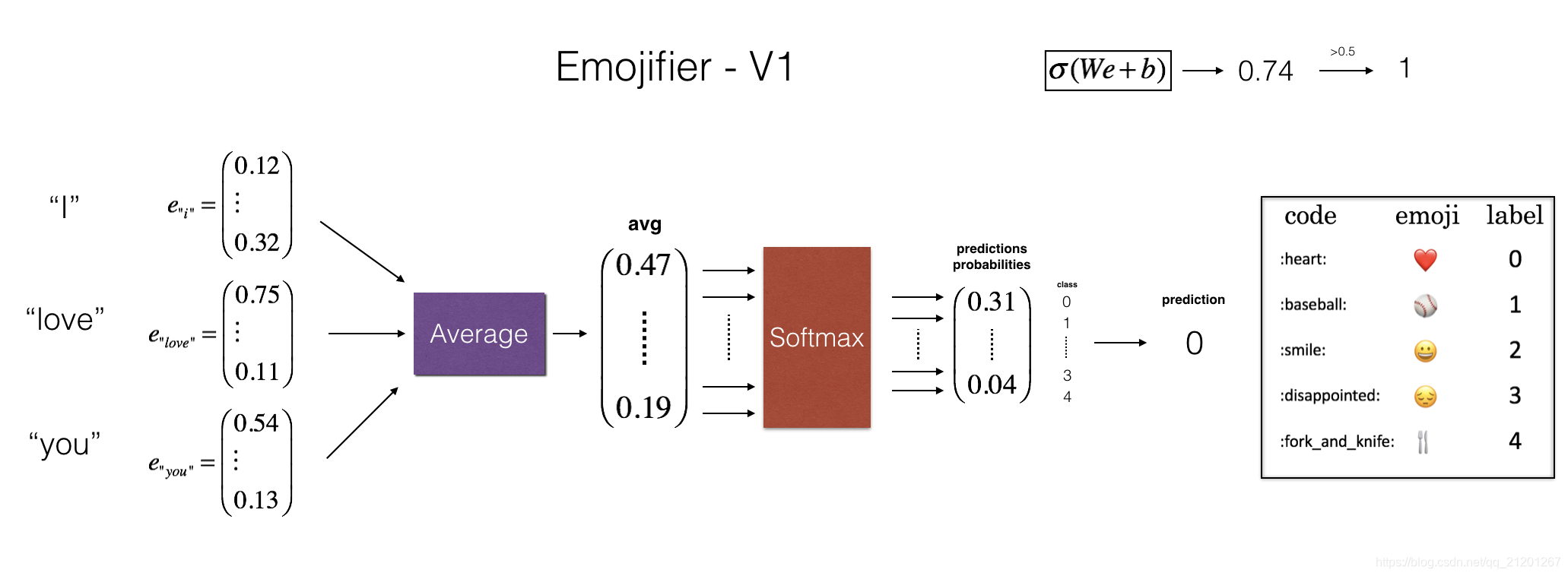

1.2 模型预览

为了方便，把 Y 的形状从 $(m,1)$ 改成 one-hot 表示 $(m,5)$

Y_oh_train = convert_to_one_hot(Y_train, C = 5)
Y_oh_test = convert_to_one_hot(Y_test, C = 5)

index = 52
print(Y_train[index], "is converted into one hot", Y_oh_train[index])

输出：

3 is converted into one hot [0. 0. 0. 1. 0.]

1.3 实现 Emojifier-V1

使用预训练的 50-dimensional GloVe embeddings

word_to_index, index_to_word, word_to_vec_map = read_glove_vecs('data/glove.6B.50d.txt')

• 检查下是否正确

word = "cucumber"
index = 289846
print("the index of", word, "in the vocabulary is", word_to_index[word])
print("the", str(index) + "th word in the vocabulary is", index_to_word[index])

输出：

the index of cucumber in the vocabulary is 113317
the 289846th word in the vocabulary is potatos

实现 sentence_to_avg()：

• 转换每个句子为小写，并切分成单词
• 每个句子的单词，使用 GloVe 向量表示，然后求句子的平均

# GRADED FUNCTION: sentence_to_avgdef sentence_to_avg(sentence, word_to_vec_map):"""Converts a sentence (string) into a list of words (strings). Extracts the GloVe representation of each wordand averages its value into a single vector encoding the meaning of the sentence.Arguments:sentence -- string, one training example from Xword_to_vec_map -- dictionary mapping every word in a vocabulary into its 50-dimensional vector representationReturns:avg -- average vector encoding information about the sentence, numpy-array of shape (50,)"""### START CODE HERE #### Step 1: Split sentence into list of lower case words (≈ 1 line)words = sentence.lower().split()# Initialize the average word vector, should have the same shape as your word vectors.avg = np.zeros(word_to_vec_map[words[0]].shape)# Step 2: average the word vectors. You can loop over the words in the list "words".for w in words:avg += word_to_vec_map[w]avg /= len(words)### END CODE HERE ###return avg

测试：

avg = sentence_to_avg("Morrocan couscous is my favorite dish", word_to_vec_map)
print("avg = ", avg)

输出：

avg =  [-0.008005    0.56370833 -0.50427333  0.258865    0.55131103  0.03104983-0.21013718  0.16893933 -0.09590267  0.141784   -0.15708967  0.185258670.6495785   0.38371117  0.21102167  0.11301667  0.02613967  0.260377670.05820667 -0.01578167 -0.12078833 -0.02471267  0.4128455   0.51520610.38756167 -0.898661   -0.535145    0.33501167  0.68806933 -0.21562651.797155    0.10476933 -0.36775333  0.750785    0.10282583  0.348925-0.27262833  0.66768    -0.10706167 -0.283635    0.59580117  0.28747333-0.3366635   0.23393817  0.34349183  0.178405    0.1166155  -0.0764330.1445417   0.09808667]

模型

用sentence_to_avg() 处理完以后，进行前向传播、计算损失、后向传播更新参数

$$z^{(i)}=W.av{g}^{(i)}+b$$

$$a^{(i)}=softmax(z^{(i)})$$

$${\mathcal{L}}^{(i)}=-\sum _{k=0}^{n_y-1}Yo{h}_k^{(i)}\ast log(a_k^{(i)})$$

# GRADED FUNCTION: modeldef model(X, Y, word_to_vec_map, learning_rate = 0.01, num_iterations = 400):"""Model to train word vector representations in numpy.Arguments:X -- input data, numpy array of sentences as strings, of shape (m, 1)Y -- labels, numpy array of integers between 0 and 7, numpy-array of shape (m, 1)word_to_vec_map -- dictionary mapping every word in a vocabulary into its 50-dimensional vector representationlearning_rate -- learning_rate for the stochastic gradient descent algorithmnum_iterations -- number of iterationsReturns:pred -- vector of predictions, numpy-array of shape (m, 1)W -- weight matrix of the softmax layer, of shape (n_y, n_h)b -- bias of the softmax layer, of shape (n_y,)"""np.random.seed(1)# Define number of training examplesm = Y.shape[0]                          # number of training examplesn_y = 5                                 # number of classes  n_h = 50                                # dimensions of the GloVe vectors # Initialize parameters using Xavier initializationW = np.random.randn(n_y, n_h) / np.sqrt(n_h)b = np.zeros((n_y,))# Convert Y to Y_onehot with n_y classesY_oh = convert_to_one_hot(Y, C = n_y) # Optimization loopfor t in range(num_iterations):                       # Loop over the number of iterationsfor i in range(m):                                # Loop over the training examples### START CODE HERE ### (≈ 4 lines of code)# Average the word vectors of the words from the i'th training exampleavg = sentence_to_avg(X[i], word_to_vec_map)# Forward propagate the avg through the softmax layerz = np.dot(W, avg)+ba = softmax(z)# Compute cost using the i'th training label's one hot representation and "A" (the output of the softmax)cost = - sum(Y_oh[i]*np.log(a))### END CODE HERE #### Compute gradients dz = a - Y_oh[i]dW = np.dot(dz.reshape(n_y,1), avg.reshape(1, n_h))db = dz# Update parameters with Stochastic Gradient DescentW = W - learning_rate * dWb = b - learning_rate * dbif t % 100 == 0:print("Epoch: " + str(t) + " --- cost = " + str(cost))pred = predict(X, Y, W, b, word_to_vec_map)return pred, W, b

1.4 在训练集上测试

print("Training set:")
pred_train = predict(X_train, Y_train, W, b, word_to_vec_map)
print('Test set:')
pred_test = predict(X_test, Y_test, W, b, word_to_vec_map)

输出：

Training set:
Accuracy: 0.9772727272727273
Test set:
Accuracy: 0.8571428571428571

随机猜测的话，平均概率是 20%（1/5），模型的效果很不错，在只有127个训练样本的情况下

让我们来测试：

• 我们在训练集里看到了 I love you 有标签 ❤️
• 我们来检查下使用 adore（爱慕） （该词没有在训练集出现过）

X_my_sentences = np.array(["i adore you", "i love you", "funny lol", "lets play with a ball", "food is ready", "not feeling happy"])
Y_my_labels = np.array([[0], [0], [2], [1], [4],[3]])pred = predict(X_my_sentences, Y_my_labels , W, b, word_to_vec_map)
print_predictions(X_my_sentences, pred)

输出：

Accuracy: 0.8333333333333334（5/6，最后一个错了）

i adore you ❤️（adore 跟 love 有相似的 embedding ）
i love you ❤️
funny lol 😄
lets play with a ball ⚾
food is ready 🍴
not feeling happy 😄（识别错误，不能发现 not 这类组合词）

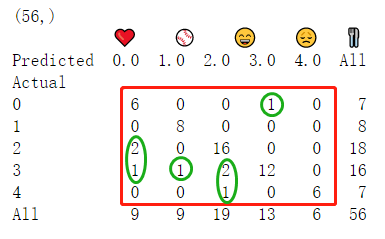

检查错误：
打印混淆矩阵可以帮助了解哪些样本模型预测不准。
一个混淆矩阵显示了一个标签是一个类（真实标签）的例子被算法用不同的类（预测错误）错误标记的频率

print(Y_test.shape)
print('           '+ label_to_emoji(0)+ '    ' + label_to_emoji(1) + '    ' +  label_to_emoji(2)+ '    ' + label_to_emoji(3)+'   ' + label_to_emoji(4))
print(pd.crosstab(Y_test, pred_test.reshape(56,), rownames=['Actual'], colnames=['Predicted'], margins=True))
plot_confusion_matrix(Y_test, pred_test)

2. Emojifier-V2: Using LSTMs in Keras

让我们构建一个LSTM模型，它将单词序列作为输入。这个模型将能够考虑单词顺序。
Emojifier-V2 将继续使用预先训练过的 word embeddings 来表示单词，将把它们输入LSTM，LSTM的任务是预测最合适的表情符号。

• 导入一些包

import numpy as np
np.random.seed(0)
from keras.models import Model
from keras.layers import Dense, Input, Dropout, LSTM, Activation
from keras.layers.embeddings import Embedding
from keras.preprocessing import sequence
from keras.initializers import glorot_uniform
np.random.seed(1)

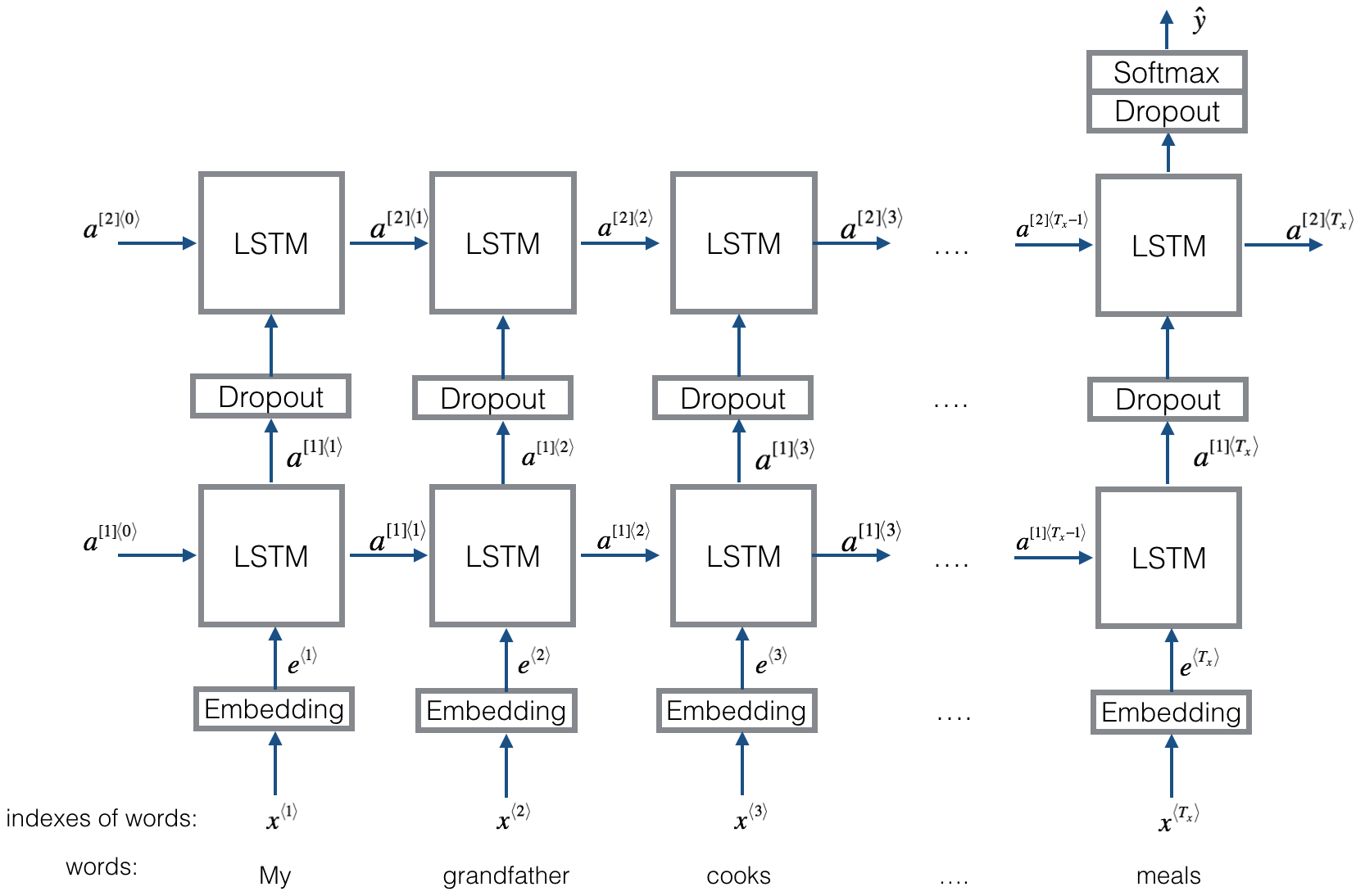

2.1 模型预览

2.2 Keras and mini-batching

为了使样本能够批量训练，我们必须处理句子，使他们的长度都一样长，长度不够最大长度的，后面补上一些 0 向量 $(e_i,e_{love},e_{you},\vec{0},\vec{0},\dots ,\vec{0})$

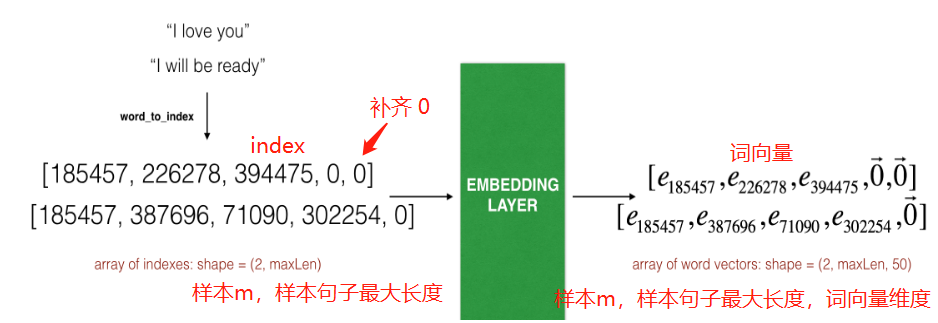

2.3 Embedding 层

https://keras.io/zh/layers/embeddings/

• 先把所有句子的单词对应的 idx 填好

# GRADED FUNCTION: sentences_to_indicesdef sentences_to_indices(X, word_to_index, max_len):"""Converts an array of sentences (strings) into an array of indices corresponding to words in the sentences.The output shape should be such that it can be given to `Embedding()` (described in Figure 4). Arguments:X -- array of sentences (strings), of shape (m, 1)word_to_index -- a dictionary containing the each word mapped to its indexmax_len -- maximum number of words in a sentence. You can assume every sentence in X is no longer than this. Returns:X_indices -- array of indices corresponding to words in the sentences from X, of shape (m, max_len)"""m = X.shape[0]                                   # number of training examples### START CODE HERE #### Initialize X_indices as a numpy matrix of zeros and the correct shape (≈ 1 line)X_indices = np.zeros((m, max_len))for i in range(m):                               # loop over training examples# Convert the ith training sentence in lower case and split is into words. You should get a list of words.sentence_words = X[i].lower().split()# Initialize j to 0j = 0# Loop over the words of sentence_wordsfor w in sentence_words:# Set the (i,j)th entry of X_indices to the index of the correct word.X_indices[i, j] = word_to_index[w]# Increment j to j + 1j = j+1### END CODE HERE ###return X_indices

实现 pretrained_embedding_layer()

• 初始化 词嵌入矩阵，注意 shape
• 填充 词嵌入矩阵，从word_to_vec_map里抽取
• 定义 Keras embedding 层，注意设置trainable = False，使之不可被训练，如果为True，则允许算法修改词嵌入的值
• 将 嵌入权重 设置为与 嵌入矩阵 相等

# GRADED FUNCTION: pretrained_embedding_layerdef pretrained_embedding_layer(word_to_vec_map, word_to_index):"""Creates a Keras Embedding() layer and loads in pre-trained GloVe 50-dimensional vectors.Arguments:word_to_vec_map -- dictionary mapping words to their GloVe vector representation.word_to_index -- dictionary mapping from words to their indices in the vocabulary (400,001 words)Returns:embedding_layer -- pretrained layer Keras instance"""vocab_len = len(word_to_index) + 1                  # adding 1 to fit Keras embedding (requirement)emb_dim = word_to_vec_map["cucumber"].shape[0]      # define dimensionality of your GloVe word vectors (= 50)### START CODE HERE #### Initialize the embedding matrix as a numpy array of zeros of shape (vocab_len, dimensions of word vectors = emb_dim)emb_matrix = np.zeros((vocab_len, emb_dim))# Set each row "index" of the embedding matrix to be the word vector representation of the "index"th word of the vocabularyfor word, index in word_to_index.items():emb_matrix[index, :] = word_to_vec_map[word]# Define Keras embedding layer with the correct output/input sizes, make it trainable. Use Embedding(...). Make sure to set trainable=False. embedding_layer = Embedding(vocab_len, emb_dim, trainable=False)### END CODE HERE #### Build the embedding layer, it is required before setting the weights of the embedding layer. Do not modify the "None".embedding_layer.build((None,))# Set the weights of the embedding layer to the embedding matrix. Your layer is now pretrained.embedding_layer.set_weights([emb_matrix])return embedding_layer

2.3 建立 Emojifier-V2

https://keras.io/zh/layers/core/#input
https://keras.io/zh/layers/embeddings/#embedding
https://keras.io/zh/layers/recurrent/#lstm
https://keras.io/zh/layers/core/#dropout
https://keras.io/zh/layers/core/#dense
https://keras.io/zh/activations/
https://keras.io/zh/models/about-keras-models/#model

# GRADED FUNCTION: Emojify_V2def Emojify_V2(input_shape, word_to_vec_map, word_to_index):"""Function creating the Emojify-v2 model's graph.Arguments:input_shape -- shape of the input, usually (max_len,)word_to_vec_map -- dictionary mapping every word in a vocabulary into its 50-dimensional vector representationword_to_index -- dictionary mapping from words to their indices in the vocabulary (400,001 words)Returns:model -- a model instance in Keras"""### START CODE HERE #### Define sentence_indices as the input of the graph, it should be of shape input_shape and dtype 'int32' (as it contains indices).sentence_indices = Input(input_shape, dtype='int32')# Create the embedding layer pretrained with GloVe Vectors (≈1 line)embedding_layer = pretrained_embedding_layer(word_to_vec_map, word_to_index)# Propagate sentence_indices through your embedding layer, you get back the embeddingsembeddings = embedding_layer(sentence_indices)# Propagate the embeddings through an LSTM layer with 128-dimensional hidden state# Be careful, the returned output should be a batch of sequences.X = LSTM(128,return_sequences=True)(embeddings)# Add dropout with a probability of 0.5X = Dropout(rate=0.5)(X)# Propagate X trough another LSTM layer with 128-dimensional hidden state# Be careful, the returned output should be a single hidden state, not a batch of sequences.X = LSTM(128, return_sequences=False)(X)# Add dropout with a probability of 0.5X = Dropout(rate=0.5)(X)# Propagate X through a Dense layer with softmax activation to get back a batch of 5-dimensional vectors.X = Dense(5)(X)# Add a softmax activationX = Activation('softmax')(X)# Create Model instance which converts sentence_indices into X.model = Model(inputs=sentence_indices, outputs=X)### END CODE HERE ###return model

• 创建模型

model = Emojify_V2((maxLen,), word_to_vec_map, word_to_index)
model.summary()

输出：

Model: "model_1"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
input_3 (InputLayer)         (None, 10)                0
_________________________________________________________________
embedding_4 (Embedding)      (None, 10, 50)            20000050
_________________________________________________________________
lstm_3 (LSTM)                (None, 10, 128)           91648
_________________________________________________________________
dropout_1 (Dropout)          (None, 10, 128)           0
_________________________________________________________________
lstm_4 (LSTM)                (None, 128)               131584
_________________________________________________________________
dropout_2 (Dropout)          (None, 128)               0
_________________________________________________________________
dense_1 (Dense)              (None, 5)                 645
_________________________________________________________________
activation_1 (Activation)    (None, 5)                 0
=================================================================
Total params: 20,223,927
Trainable params: 223,877
Non-trainable params: 20,000,050  注：（400,001个单词*50词向量维度）
_________________________________________________________________

• 配置模型

model.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

• 训练模型

转换 X，Y 的格式

X_train_indices = sentences_to_indices(X_train, word_to_index, maxLen)
Y_train_oh = convert_to_one_hot(Y_train, C = 5)

训练

model.fit(X_train_indices, Y_train_oh, epochs = 50, batch_size = 32, shuffle=True)

输出：

WARNING:tensorflow:From c:\program files\python37\lib\site-packages\keras\backend\tensorflow_backend.py:422: The name tf.global_variables is deprecated. Please use tf.compat.v1.global_variables instead.Epoch 1/50
132/132 [==============================] - 1s 5ms/step - loss: 1.6088 - accuracy: 0.1970
Epoch 2/50
132/132 [==============================] - 0s 582us/step - loss: 1.5221 - accuracy: 0.3636
Epoch 3/50
132/132 [==============================] - 0s 574us/step - loss: 1.4762 - accuracy: 0.3939
(省略)
Epoch 49/50
132/132 [==============================] - 0s 597us/step - loss: 0.0115 - accuracy: 1.0000
Epoch 50/50
132/132 [==============================] - 0s 582us/step - loss: 0.0182 - accuracy: 0.9924

在训练集上的准确率几乎 100%

• 在测试集上测试

X_test_indices = sentences_to_indices(X_test, word_to_index, max_len = maxLen)
Y_test_oh = convert_to_one_hot(Y_test, C = 5)
loss, acc = model.evaluate(X_test_indices, Y_test_oh)
print()
print("Test accuracy = ", acc)

输出：

56/56 [==============================] - 0s 2ms/stepTest accuracy =  0.875

测试集上准确率为 87.5%

• 查看预测错误的样本

# This code allows you to see the mislabelled examples
C = 5
y_test_oh = np.eye(C)[Y_test.reshape(-1)]
X_test_indices = sentences_to_indices(X_test, word_to_index, maxLen)
pred = model.predict(X_test_indices)
for i in range(len(X_test)):x = X_test_indicesnum = np.argmax(pred[i])if(num != Y_test[i]):print('Expected emoji:'+ label_to_emoji(Y_test[i]) + ' prediction: '+ X_test[i] + label_to_emoji(num).strip())

输出：

Expected emoji:😞 prediction: work is hard 😄
Expected emoji:😞 prediction: This girl is messing with me ❤️
Expected emoji:😞 prediction: work is horrible 😄
Expected emoji:🍴 prediction: any suggestions for dinner 😄
Expected emoji:😄 prediction: you brighten my day ❤️
Expected emoji:😞 prediction: go away ⚾
Expected emoji:🍴 prediction: I did not have breakfast ❤️

• 用自己的例子测试

# Change the sentence below to see your prediction. Make sure all the words are in the Glove embeddings.
x_test = np.array(['not feeling happy'])
X_test_indices = sentences_to_indices(x_test, word_to_index, maxLen)
print(x_test[0] +' '+  label_to_emoji(np.argmax(model.predict(X_test_indices))))

not feeling happy 😞 （这次 LSTM 可以预测 not 这类的组合词了）
not very happy 😞
very happy 😄
i really love my wife ❤️

---

总结：

• 如果你有一个训练集很小的NLP任务，使用单词嵌入可以显著地帮助你的算法。单词嵌入允许模型处理测试集中没有出现在训练集中的单词
• 在Keras（和大多数其他深度学习框架中）中训练序列模型需要一些重要的细节：

1. 要使用 mini-batches，需要填充序列，以便 mini-batches 中的所有样本具有相同的长度
2. “Embedding()” 层可以用预先训练的值初始化。这些值可以是固定的，也可以在数据集中进一步训练。如果数据集很小就不要接着训练了（效果不大）
3. LSTM() 有一个名为“return_sequences”的标志，用于决定是返回每个隐藏状态还是只返回最后一个隐藏状态
4. 可以在LSTM() 之后使用Dropout()来正则化网络

---

本文地址：https://michael.blog.csdn.net/article/details/108902060

我的CSDN博客地址 https://michael.blog.csdn.net/

长按或扫码关注我的公众号（Michael阿明），一起加油、一起学习进步！
