前面的博客讲了具体实现，现在深究算法代码实现细节！！！

1.CO

(1)关于train

从以下代码可知，CO首先是对各个电器的功率数据做了train，为了了解其原生实现对代码进行了深究：

classifiers = {'CO':CombinatorialOptimisation()}
predictions = {}
sample_period = 120  ## 采样周期是两分钟
for clf_name, clf in classifiers.items():print("*"*20)print(clf_name)print("*" *20)clf.train(top_5_train_elec, sample_period=sample_period)  ### 训练部分

进入代码可知：

def train(self, metergroup, num_states_dict=None, **load_kwargs):"""Train using 1D CO. Places the learnt model in the `model` attribute.Parameters----------metergroup : a nilmtk.MeterGroup objectnum_states_dict : dict**load_kwargs : keyword arguments passed to `meter.power_series()`Notes-----* only uses first chunk for each meter (TODO: handle all chunks)."""if num_states_dict is None:num_states_dict = {}if self.model:raise RuntimeError("This implementation of Combinatorial Optimisation"" does not support multiple calls to `train`.")num_meters = len(metergroup.meters)if num_meters > 12:max_num_clusters = 2else:max_num_clusters = 3
#        print(max_num_clusters)for i, meter in enumerate(metergroup.submeters().meters):print("Training model for submeter '{}'".format(meter))power_series = meter.power_series(**load_kwargs)chunk = next(power_series)num_total_states = num_states_dict.get(meter)if num_total_states is not None:num_on_states = num_total_states - 1else:num_on_states = Noneself.train_on_chunk(chunk, meter, max_num_clusters, num_on_states)# Check to see if there are any more chunks.# TODO handle multiple chunks per appliance.try:next(power_series)except StopIteration:passelse:warn("The current implementation of CombinatorialOptimisation"" can only handle a single chunk.  But there are multiple"" chunks available.  So have only trained on the"" first chunk!")print("Done training!")

简单来看传入参数有：metergroup--> top_5_train_elec (五种用电量较高的电器)

                                    num_states_dict=None,（建立一个字典，后期没找到用途）

                                    **load_kwargs  -->sample_period=sample_period（采样周期是120秒，也就是2两分钟）

设置参数有：如果训练的电器数量大于12，将聚类的数量置为2，其他则为3，我们此处为5种电器，因此，max_num_clusters =3

总体过程：遍历这5种电器数据，每类电器进行单独聚类，返回每个电器的聚类结果，此结果为不同电器在不同状态下的功率数值。

每种电器训练过程：

如果model存在，则提示已经训练好，无需二次训练，否则就进行电器的聚类，输入参数为：chunk-->每个电器的功率数据；max_num_clusters 聚类数。并将每个电器的聚类结果记录states，training_metadata参数保存成model。

def train_on_chunk(self, chunk, meter, max_num_clusters, num_on_states):# Check if we've already trained on this metermeters_in_model = [d['training_metadata'] for d in self.model]if meter in meters_in_model:raise RuntimeError("Meter {} is already in model!""  Can't train twice on the same meter!".format(meter))states = cluster(chunk, max_num_clusters, num_on_states)
#        print('states',states)self.model.append({'states': states,'training_metadata': meter})

结果为：

聚类详解：

通过_transform_data(X)进行数据格式转换，主要是将pd.Series或者单列的pd.DataFrame转成ndarray数据，然后再对数据进行聚类，得到每个类别的质心值，然后增加设备off状态的功率数据，按理说聚类传入的参数是3，在增加一个状态，应该是四个状态值，事实上只有3个状态，继续深究可知！！

def cluster(X, max_num_clusters=3, exact_num_clusters=None):'''Applies clustering on reduced data,i.e. data where power is greater than threshold.Parameters----------X : pd.Series or single-column pd.DataFramemax_num_clusters : intReturns-------centroids : ndarray of int32sPower in different states of an appliance, sorteda'''# Find where power consumption is greater than 10data = _transform_data(X)# Find clusterscentroids = _apply_clustering(data, max_num_clusters, exact_num_clusters)
#    print('centroids',centroids)centroids = np.append(centroids, 0)  # add 'off' statecentroids = np.round(centroids).astype(np.int32)centroids = np.unique(centroids)  # np.unique also sorts# TODO: Merge similar clustersreturn centroids

电器状态值缺少的原因：

由_apply_clustering函数的for n_clusters in range(1, max_num_clusters)可知，在max_num_clusters取值为3的情况下，n_clusters 的取值为1,2，因此少了一个状态！额外的，在进行聚类的时候，将每个电器的数据聚类成1簇，2簇，并采用了聚类算法的轮廓系数（sklearn.metrics.silhouette_score）选取了最好的n_clusters,即为n_clusters=2.

def _apply_clustering(X, max_num_clusters, exact_num_clusters=None):'''Parameters----------X : ndarraymax_num_clusters : intReturns-------centroids : list of numbersList of power in different states of an appliance'''# If we import sklearn at the top of the file then it makes autodoc failfrom sklearn import metrics# Finds whether 2 or 3 gives better Silhouellete coefficient# Whichever is higher serves as the number of clusters for that# appliancenum_clus = -1sh = -1k_means_labels = {}k_means_cluster_centers = {}k_means_labels_unique = {}# If the exact number of clusters are specified, then use thatif exact_num_clusters is not None:labels, centers = _apply_clustering_n_clusters(X, exact_num_clusters)return centers.flatten()# Exact number of clusters are not specified, use the cluster validity measures# to find the optimal numberfor n_clusters in range(1, max_num_clusters):try:labels, centers = _apply_clustering_n_clusters(X, n_clusters)
#            print('labels, centers',labels, centers)k_means_labels[n_clusters] = labelsk_means_cluster_centers[n_clusters] = centersk_means_labels_unique[n_clusters] = np.unique(labels)try:sh_n = metrics.silhouette_score(X, k_means_labels[n_clusters], metric='euclidean')if sh_n > sh:sh = sh_nnum_clus = n_clustersexcept Exception:num_clus = n_clustersexcept Exception:if num_clus > -1:return k_means_cluster_centers[num_clus]else:return np.array([0])print(k_means_cluster_centers[num_clus].flatten())return k_means_cluster_centers[num_clus].flatten()

选取聚类算法为Kmeans！！！

def _apply_clustering_n_clusters(X, n_clusters):""":param X: ndarray:param n_clusters: exact number of clusters to use:return:"""from sklearn.cluster import KMeansk_means = KMeans(init='k-means++', n_clusters=n_clusters)k_means.fit(X)return k_means.labels_, k_means.cluster_centers_

此为训练结果的全过程！

（2）disaggregate_chunk

分解时候的函数是用的disaggregate_chunk，得到房间的总功率曲线，并对5种电器进行分解。

首先是将之前train()过程的质心提取出来，并做一个枚举操作，cartesian函数是做枚举操作，由5个模型，每个模型3个状态，则可得3*3*3*3*3=243行，5列的状态组合数据。

 def _set_state_combinations_if_necessary(self):"""Get centroids"""# If we import sklearn at the top of the file then auto doc fails.#枚举所有可能性if (self.state_combinations is None orself.state_combinations.shape[1] != len(self.model)):from sklearn.utils.extmath import cartesiancentroids = [model['states'] for model in self.model]
#            print(len(centroids),len(centroids[0]))self.state_combinations = cartesian(centroids)

接下来，对状态数据进行按列累加，然后调用find_nearest函数，求得负荷数据和状态数据的残差和具体索引值。find_nearest的传入参数有按列累加之后的状态数据，用户的总功率数据。

def find_nearest(known_array, test_array):"""Find closest value in `known_array` for each element in `test_array`.Parameters----------known_array : numpy arrayconsisting of scalar values only; shape: (m, 1)test_array : numpy arrayconsisting of scalar values only; shape: (n, 1)Returns-------indices : numpy array; shape: (n, 1)For each value in `test_array` finds the index of the closest valuein `known_array`.residuals : numpy array; shape: (n, 1)For each value in `test_array` finds the difference from the closestvalue in `known_array`."""# from http://stackoverflow.com/a/20785149/732596#将x中的元素从小到大排列，提取其对应的index(索引),从小到大排序index_sorted = np.argsort(known_array)known_array_sorted = known_array[index_sorted]#将功率值插入到known_array_sorted对应的位置，并返回indexidx1 = np.searchsorted(known_array_sorted, test_array)idx2 = np.clip(idx1 - 1, 0, len(known_array_sorted)-1)idx3 = np.clip(idx1,     0, len(known_array_sorted)-1)#上限-实际值diff1 = known_array_sorted[idx3] - test_array#实际值-下限diff2 = test_array - known_array_sorted[idx2]#找到差据最小的indexindices = index_sorted[np.where(diff1 <= diff2, idx3, idx2)]#残差residuals = test_array - known_array[indices]return indices, residuals

得到索引值和残差之后，就可通过每个model来分别进行计算了，此时indices_of_state_combinations与indices等价。

 appliance_powers_dict = {}for i, model in enumerate(self.model):print("Estimating power demand for '{}'".format(model['training_metadata']))predicted_power = state_combinations[indices_of_state_combinations, i].flatten()column = pd.Series(predicted_power, index=mains.index, name=i)
#            print(column)appliance_powers_dict[self.model[i]['training_metadata']] = columnappliance_powers = pd.DataFrame(appliance_powers_dict, dtype='float32')

主要的分解核心代码在于

state_combinations[
                indices_of_state_combinations, i].flatten()

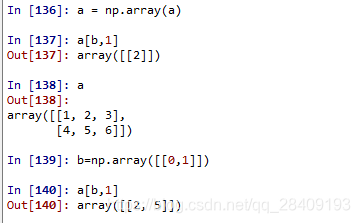

下面看一个小例子：

由此可知，分别按列遍历，然后选取indices_of_state_combinations对应位置的值为当前电器的分解结果。

2.FHMM

(1)关于train

在train函数里边频繁使用了好几次GaussianHMM，没有理解其中深意。先看代码吧，首先传入meters，检查内存是否能支撑状态转换概率矩阵的计算。

def _check_memory(num_appliances):"""Checks if the maximum resident memory is enough to handle the combined matrix of transition probabilities"""# Each transmat is small (usually 2x2 or 3x3) but the combined# matrix is dense, using much more memory# Get the approximate memory in MBtry:# If psutil is installed, we can get the correct total # physical memory of the systemimport psutilavailable_memory = psutil.virtual_memory().total >> 20except ImportError:# Otherwise use a crude approximationavailable_memory = 16 << 10# We use (num_appliances + 1) here to get a pessimistic approximation:# 8 bytes * (2 ** (num_appliances + 1)) ** 2required_memory = ((1 << (2 * (num_appliances + 1))) << 3) >> 20if required_memory >= available_memory:warn("The required memory for the model may be more than the total system memory!"" Try using fewer appliances if the training fails.")

然后，遍历每个电器，获取每个电器的状态数据，经过一系列判断语句，最终发现他用了聚类来确定每个电器的状态。

 if num_total_states is None:states = cluster(meter_data, max_num_clusters)num_total_states = len(states)

然后调用hmmlearn的GaussianHMM来进行模型训练。

print("Training model for submeter '{}' with {} states".format(meter, num_total_states))
learnt_model[meter] = hmm.GaussianHMM(num_total_states, "full")
# Fit
learnt_model[meter].fit(X)

对GaussianHMM计算的means_结果进行排序，然后根据means_索引值得到相应的startprob,covars,transmat等，然后在进行一次GaussianHMM，并对参数赋值。

self.meters = []
new_learnt_models = OrderedDict()
for meter in learnt_model:startprob, means, covars, transmat = sort_learnt_parameters(learnt_model[meter].startprob_, learnt_model[meter].means_,learnt_model[meter].covars_, learnt_model[meter].transmat_)new_learnt_models[meter] = hmm.GaussianHMM(startprob.size, "full")new_learnt_models[meter].startprob_ = startprobnew_learnt_models[meter].transmat_ = transmatnew_learnt_models[meter].means_ = meansnew_learnt_models[meter].covars_ = covars# UGLY! But works.self.meters.append(meter)

均值排序计算的代码如下：

def return_sorting_mapping(means):means_copy = deepcopy(means)means_copy = np.sort(means_copy, axis=0)# Finding mappingmapping = {}for i, val in enumerate(means_copy):mapping[i] = np.where(val == means)[0][0]return mapping

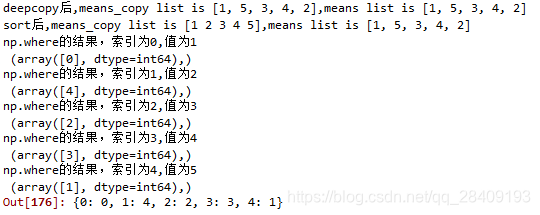

例子：设定a=[1,5,3,4,2],return_sorting_mapping返回的是均值从小到大的索引值。

其余参数计算皆以均值有序值进行计算，代码如下：

def sort_startprob(mapping, startprob):""" Sort the startprob according to power means; as returned by mapping"""num_elements = len(startprob)new_startprob = np.zeros(num_elements)for i in range(len(startprob)):new_startprob[i] = startprob[mapping[i]]return new_startprobdef sort_covars(mapping, covars):new_covars = np.zeros_like(covars)for i in range(len(covars)):new_covars[i] = covars[mapping[i]]return new_covarsdef sort_transition_matrix(mapping, A):"""Sorts the transition matrix according to increasing order ofpower means; as returned by mappingParameters----------mapping :A : numpy.array of shape (k, k)transition matrix"""num_elements = len(A)A_new = np.zeros((num_elements, num_elements))for i in range(num_elements):for j in range(num_elements):A_new[i, j] = A[mapping[i], mapping[j]]return A_new

然后又对结果值做了一个GaussianHMM，代码如下：

def create_combined_hmm(model):list_pi = [model[appliance].startprob_ for appliance in model]list_A = [model[appliance].transmat_ for appliance in model]list_means = [model[appliance].means_.flatten().tolist()for appliance in model]pi_combined = compute_pi_fhmm(list_pi)A_combined = compute_A_fhmm(list_A)[mean_combined, cov_combined] = compute_means_fhmm(list_means)combined_model = hmm.GaussianHMM(n_components=len(pi_combined), covariance_type='full')combined_model.startprob_ = pi_combinedcombined_model.transmat_ = A_combinedcombined_model.covars_ = cov_combinedcombined_model.means_ = mean_combined

又对means，transmat,startprob三个状态数据做了转换，代码如下：

def compute_A_fhmm(list_A):"""Parameters-----------list_pi : List of PI's of individual learnt HMMsReturns--------result : Combined Pi for the FHMM"""result = list_A[0]for i in range(len(list_A) - 1):result = np.kron(result, list_A[i + 1])return resultdef compute_means_fhmm(list_means):"""Returns-------[mu, cov]"""states_combination = list(itertools.product(*list_means))num_combinations = len(states_combination)means_stacked = np.array([sum(x) for x in states_combination])means = np.reshape(means_stacked, (num_combinations, 1))cov = np.tile(5 * np.identity(1), (num_combinations, 1, 1))return [means, cov]def compute_pi_fhmm(list_pi):"""Parameters-----------list_pi : List of PI's of individual learnt HMMsReturns-------result : Combined Pi for the FHMM"""result = list_pi[0]for i in range(len(list_pi) - 1):result = np.kron(result, list_pi[i + 1])return result

然后得到了模型：

（2）disaggregate_chunk

首先是获取总表的功率数据，然后通过GaussianHMM的predict函数进行预测,然后在进行decode_hmm函数进行解码，一顿操作猛如虎，还是没看懂。

  def disaggregate_chunk(self, test_mains):"""Disaggregate the test data according to the model learnt previouslyPerforms 1D FHMM disaggregation.For now assuming there is no missing data at this stage."""# See v0.1 code# for ideas of how to handle missing data in this code if needs be.# Array of learnt stateslearnt_states_array = []test_mains = test_mains.dropna()length = len(test_mains.index)temp = test_mains.values.reshape(length, 1)learnt_states_array.append(self.model.predict(temp))print(learnt_states_array[0].shape)# Modelmeans = OrderedDict()for elec_meter, model in self.individual.items():means[elec_meter] = (model.means_.round().astype(int).flatten().tolist())means[elec_meter].sort()decoded_power_array = []decoded_states_array = []print(means.keys())for learnt_states in learnt_states_array:[decoded_states, decoded_power] = decode_hmm(len(learnt_states), means, means.keys(), learnt_states)decoded_states_array.append(decoded_states)decoded_power_array.append(decoded_power)prediction = pd.DataFrame(decoded_power_array[0], index=test_mains.index)return prediction

解码函数：

def decode_hmm(length_sequence, centroids, appliance_list, states):"""Decodes the HMM state sequence"""hmm_states = {}hmm_power = {}total_num_combinations = 1for appliance in appliance_list:print(centroids[appliance])total_num_combinations *= len(centroids[appliance])print(total_num_combinations)for appliance in appliance_list:hmm_states[appliance] = np.zeros(length_sequence, dtype=np.int)hmm_power[appliance] = np.zeros(length_sequence)for i in range(length_sequence):factor = total_num_combinationsfor appliance in appliance_list:# assuming integer division (will cause errors in Python 3x)factor = factor // len(centroids[appliance])temp = int(states[i]) / factorhmm_states[appliance][i] = temp % len(centroids[appliance])hmm_power[appliance][i] = centroids[appliance][hmm_states[appliance][i]]return [hmm_states, hmm_power]

每个电器有3个状态均值，共有243种组合方式，然后进行了除和取余操作，实现对数据的分解。

粗略解析只能到这里了，具体还要看HMM等相关理论才能想明白那些操作吧！

代码源于nilmtk包的源码文件.
