深度学习-超参数调优

在机器学习中有很多调优的方式机器学习——超参数调优，深度学习中也存在同样的方式，接下来，介绍一下深度学习框架里边的自动调参模块。

1. 基于Tensorflow的Keras tuner

官方教程如下：Introduction to the Keras Tuner | TensorFlow Core (google.cn)

官网API极其更多细节：HyperParameters - Keras Tuner (keras-team.github.io)

超参数分为两种类型：

模型超参数（例如隐藏层的权重和数量）
算法超参数（例如SGD的学习率，KNN的K值等）

（1）定义模型

当建立模型进行超参数优化时，我们需要根据模型建立超参数搜索空间，建立hypermodel通常是两个途径：

使用模型建立函数（model builder function）
使用Keras Tuner API中HyperModel的子类HyperXception and HyperResNet

Keras Tuner API使用hp进行参数遍历，常用方法有

hp.Int

hp_units = hp.Int('units', min_value=32, max_value=512, step=32)

name: Str. 参数的名字，必须唯一
min_value: Int. 范围的最小值
max_value: Int. 范围的最大值
step: 步长

hp.Choice

hp_learning_rate = hp.Choice('learning_rate', values=[1e-2, 1e-3, 1e-4])

name: Str. 参数的名字，必须唯一
values: 可能值的list. 值的类型可以是int, float,str, or bool. 所有的值必须是一个类型
ordered: Whether the values passed should be considered to
have an ordering. This defaults to `True` for float/int
values. Must be `False` for any other values.

hp.Float

hp_units = hp.Float('units', min_value=32.0, max_value=512.0, step=32.0)

name: Str. 参数的名字，必须唯一
min_value: Float. 范围的最小值
max_value: Float. 范围的最大值
step: Optional. Float, e.g. 0.1.
smallest meaningful distance between two values.
Whether step should be specified is Oracle dependent,
since some Oracles can infer an optimal step automatically.

hp.Boolean

name: Str. 参数的名字，必须唯一
default: Default value to return for the parameter.
If unspecified, the default value will be False.

hp.Fixed

name: Str. 参数的名字，必须唯一
value: Value to use (can be any JSON-serializable
Python type).

建立builder function，主要对units和learning_rate两个参数进行了调优，代码如下：

def model_builder(hp):model = keras.Sequential()model.add(keras.layers.Flatten(input_shape=(28, 28)))# Tune the number of units in the first Dense layer# Choose an optimal value between 32-512hp_units = hp.Int('units', min_value=32, max_value=512, step=32)model.add(keras.layers.Dense(units=hp_units, activation='relu'))model.add(keras.layers.Dense(10))# Tune the learning rate for the optimizer# Choose an optimal value from 0.01, 0.001, or 0.0001hp_learning_rate = hp.Choice('learning_rate', values=[1e-2, 1e-3, 1e-4])model.compile(optimizer=keras.optimizers.Adam(learning_rate=hp_learning_rate),loss=keras.losses.SparseCategoricalCrossentropy(from_logits=True),metrics=['accuracy'])return model

（2）实例化调优器并进行调优

The Keras Tuner有四个调优器，分别是RandomSearch, Hyperband, BayesianOptimization, and Sklearn，这里主要是用了Hyperband，需要指定objective和max_epochs等参数，并在directory='my_dir'/project_name='intro_to_kt'的文件中记录训练细节。代码如下：

tuner = kt.Hyperband(model_builder,objective='val_accuracy',max_epochs=10,factor=3,directory='my_dir',project_name='intro_to_kt')#早停
stop_early = tf.keras.callbacks.EarlyStopping(monitor='val_loss', patience=5)tuner.search(img_train, label_train, epochs=50, validation_split=0.2, callbacks=[stop_early])# Get the optimal hyperparameters
best_hps=tuner.get_best_hyperparameters(num_trials=1)[0]print(f"""
The hyperparameter search is complete. The optimal number of units in the first densely-connected
layer is {best_hps.get('units')} and the optimal learning rate for the optimizer
is {best_hps.get('learning_rate')}.
""")

（3）模型调优之后，可以通过最优参数进行重新training。

#利用搜索得到的超参数，找出最优epoch数来训练模型。
# Build the model with the optimal hyperparameters and train it on the data for 50 epochs
model = tuner.hypermodel.build(best_hps)
history = model.fit(img_train, label_train, epochs=50, validation_split=0.2)val_acc_per_epoch = history.history['val_accuracy']
best_epoch = val_acc_per_epoch.index(max(val_acc_per_epoch)) + 1
print('Best epoch: %d' % (best_epoch,))#重新实例化超模型，从上面用最优的纪元数训练它。
hypermodel = tuner.hypermodel.build(best_hps)# Retrain the model
hypermodel.fit(img_train, label_train, epochs=best_epoch, validation_split=0.2)

拓展：其他优化器的用法

    import kerastuner as ktfrom sklearn import ensemblefrom sklearn import datasetsfrom sklearn import linear_modelfrom sklearn import metricsfrom sklearn import model_selectiondef build_model(hp):model_type = hp.Choice('model_type', ['random_forest', 'ridge'])if model_type == 'random_forest':model = ensemble.RandomForestClassifier(n_estimators=hp.Int('n_estimators', 10, 50, step=10),max_depth=hp.Int('max_depth', 3, 10))else:model = linear_model.RidgeClassifier(alpha=hp.Float('alpha', 1e-3, 1, sampling='log'))return modeltuner = kt.tuners.Sklearn(oracle=kt.oracles.BayesianOptimization(objective=kt.Objective('score', 'max'),max_trials=10),hypermodel=build_model,scoring=metrics.make_scorer(metrics.accuracy_score),cv=model_selection.StratifiedKFold(5),directory='.',project_name='my_project')X, y = datasets.load_iris(return_X_y=True)X_train, X_test, y_train, y_test = model_selection.train_test_split(X, y, test_size=0.2)tuner.search(X_train, y_train)best_model = tuner.get_best_models(num_models=1)[0]

其他两个：

tuner = kt.tuners.BayesianOptimization(hypermodel=model_builder,objective='val_accuracy',max_trials=4,directory='.',project_name='my_project')    tuner = kt.tuners.RandomSearch(hypermodel=model_builder,objective='val_accuracy',max_trials=4,directory='.',project_name='my_project')

2.RAY tune

RAY现在仅支持Mac和Linux，Windows的wheels还没有。

（1）安装：

 pip install 'ray[tune]'

（2）优势：

支持多平台包括PyTorch, XGBoost, MXNet和Keras
自动管理检查点和记录到TensorBoard

（3）关键点

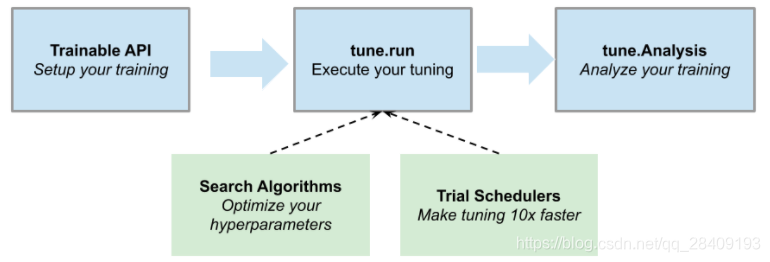

Ray tune的使用核心点主要如下图构成：

Trainable：包装目标函数

#损失函数
def objective(x, a, b):return a * (x ** 0.5) + b
#wrapper
def trainable(config):# config (dict): A dict of hyperparameters.for x in range(20):score = objective(x, config["a"], config["b"])tune.report(score=score)  # This sends the score to Tune.

tune.run:执行参数优化

# Pass in a Trainable class or function to tune.run.
tune.run(trainable)

search space：建立搜索空间

config = {"uniform": tune.uniform(-5, -1),  # Uniform float between -5 and -1"quniform": tune.quniform(3.2, 5.4, 0.2),  # Round to increments of 0.2"loguniform": tune.loguniform(1e-4, 1e-2),  # Uniform float in log space"qloguniform": tune.qloguniform(1e-4, 1e-1, 5e-4),  # Round to increments of 0.0005"randn": tune.randn(10, 2),  # Normal distribution with mean 10 and sd 2"qrandn": tune.qrandn(10, 2, 0.2),  # Round to increments of 0.2"randint": tune.randint(-9, 15),  # Random integer between -9 and 15"qrandint": tune.qrandint(-21, 12, 3),  # Round to increments of 3 (includes 12)"choice": tune.choice(["a", "b", "c"]),  # Choose one of these options uniformly"func": tune.sample_from(lambda spec: spec.config.uniform * 0.01), # Depends on other value"grid": tune.grid_search([32, 64, 128])  # Search over all these values
}

search Algorithms（Search Algorithms (tune.suggest) — Ray v1.2.0所支持的搜索算法）

# Be sure to first run `pip install hyperopt`import hyperopt as hp
from ray.tune.suggest.hyperopt import HyperOptSearch# Create a HyperOpt search space
config = {"a": tune.uniform(0, 1),"b": tune.uniform(0, 20)# Note: Arbitrary HyperOpt search spaces should be supported!# "foo": tune.randn(0, 1))
}# Specify the search space and maximize score
hyperopt = HyperOptSearch(metric="score", mode="max")# Execute 20 trials using HyperOpt and stop after 20 iterations
tune.run(trainable,config=config,search_alg=hyperopt,num_samples=20,stop={"training_iteration": 20}
)

Trial Schedulers：查看训练过程
Analysis:分析训练过程

（4）使用

from ray import tunedef objective(step, alpha, beta):return (0.1 + alpha * step / 100)**(-1) + beta * 0.1def training_function(config):# Hyperparametersalpha, beta = config["alpha"], config["beta"]for step in range(10):# Iterative training function - can be any arbitrary training procedure.intermediate_score = objective(step, alpha, beta)# Feed the score back back to Tune.tune.report(mean_loss=intermediate_score)analysis = tune.run(training_function,config={"alpha": tune.grid_search([0.001, 0.01, 0.1]),"beta": tune.choice([1, 2, 3])})print("Best config: ", analysis.get_best_config(metric="mean_loss", mode="min"))# Get a dataframe for analyzing trial results.
df = analysis.results_df
