进程之间通信共享内存

命令

ipcs 命令查看共享内存、消息队列、管道等相关信息
ipcs -m 查看共享内存的信息

代码

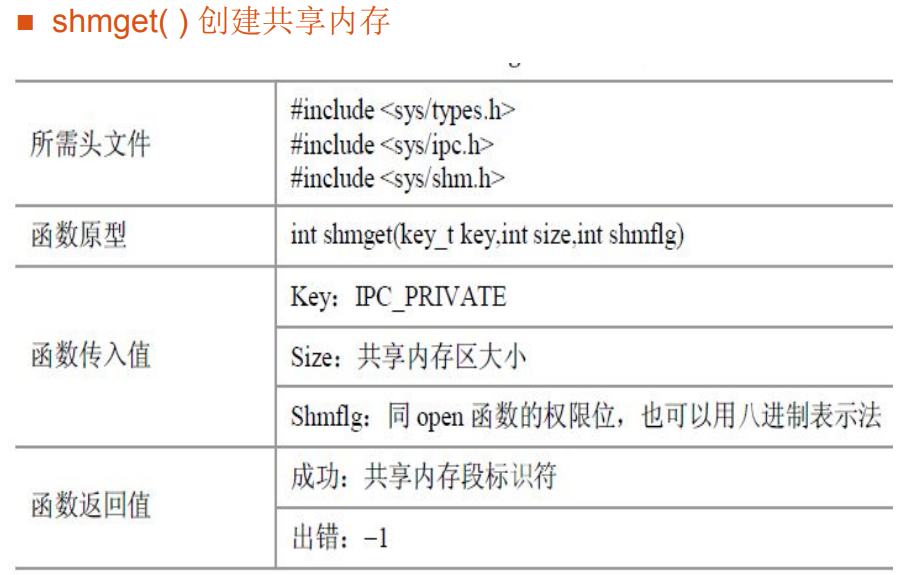

创建共享内存

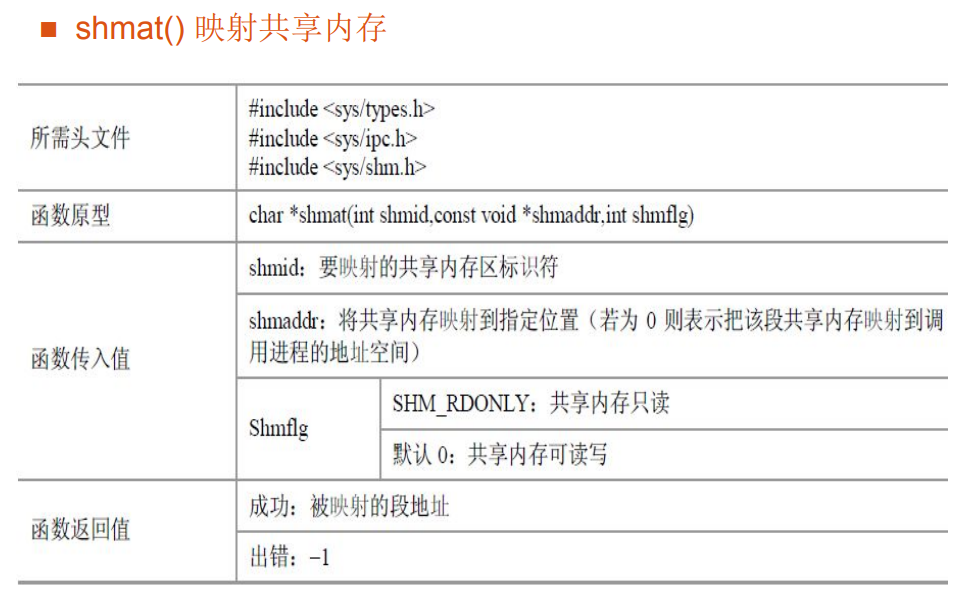

共享内存关联进程

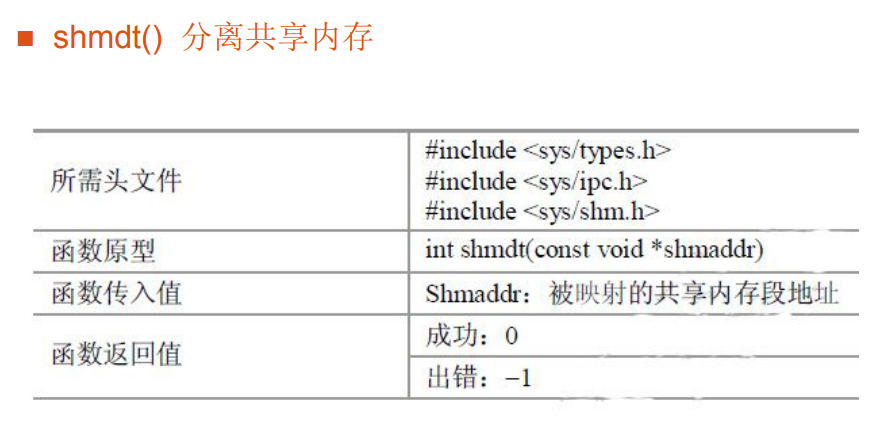

分离共享内存
删除共享内存

#include <sys/shm.h>
#include <iostream>#define BUF_SIZE 1024int main() {int share_id = 0;//创建共享内存if ((share_id = shmget(IPC_PRIVATE,BUF_SIZE,0666))<0){//IPC_PRIVATE 系统分配管理，其key以0x00000000标识perror("shmget error!");exit(1);} else{printf("created shared-memory:%d\n",share_id);system("ipcs -m");}//共享内存 关联 逻辑指针void *share_add;if((share_add = shmat(share_id,0,0)) < (void *)0){perror("shmat error!");exit(1);}else{printf("attached shared-memory!\n");system("ipcs -m");}//分离共享内存if((shmdt(share_add))<0){perror("shmdt error!");exit(1);}else{printf("separate shared-memory!\n");system("ipcs -m");}//删除共享内存if ((shmctl(share_id,IPC_RMID,0))<0){perror("shmctl error!");exit(1);}else{printf("release shared-memory!\n");system("ipcs -m");}return 0;
}

代码

服务器产生数据，客户端输出数据，服务器和客户端使用相同的共享内存

服务器

#include <sys/shm.h>
#include <iostream>
#include <unistd.h>#define BUF_SIZE 1024struct sys_data{float data_rh;float data_t;
};
int main(int argc,char* argv[]) {int share_id = 0;struct sys_data *struct_data{};//创建共享内存share_id = shmget((key_t)45958023,sizeof (sys_data),0666|IPC_CREAT);if (share_id == -1){perror("shmget error!");exit(-1);}else{printf("created shared-memory:%d\n",share_id);}//共享内存 关联 逻辑指针void *share_add;share_add = shmat(share_id,0,0);if (share_id == -1){perror("shmat error!");exit(-1);}float f_temp{};float f_humi{};struct_data = reinterpret_cast<struct sys_data *>(share_add);while (1){f_temp = rand() % 100;f_humi = rand() % 100;struct_data->data_rh = f_humi;struct_data->data_t = f_temp;sleep(1);}
//    //分离共享内存
//    if((shmdt(share_add))<0){
//        perror("shmdt error!");
//        exit(1);
//    }
//    //删除共享内存
//    if ((shmctl(share_id,IPC_RMID,0))<0){
//        perror("shmctl error!");
//        exit(1);
//    }else{
//        printf("release shared-memory!\n");
//        system("ipcs -m");
//    }return 0;
}

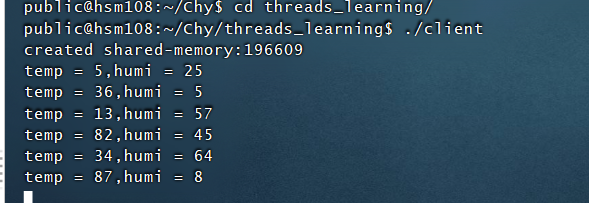

客户端

#include <sys/shm.h>
#include <iostream>
#include <unistd.h>#define BUF_SIZE 1024struct sys_data{float data_rh;float data_t;
};
int main(int argc,char* argv[]) {int share_id = 0;struct sys_data *struct_data{};//创建共享内存share_id = shmget((key_t)45958023,sizeof (sys_data),0666|IPC_CREAT);if (share_id == -1){perror("shmget error!");exit(-1);}else{printf("created shared-memory:%d\n",share_id);}//共享内存 关联 逻辑指针void *share_add;share_add = shmat(share_id,0,0);if (share_id == -1){perror("shmat error!");exit(-1);}float f_temp{};float f_humi{};struct_data = reinterpret_cast<struct sys_data *>(share_add);while (1){sleep(2);printf("temp = %.lf,humi = %.lf\n",struct_data->data_t,struct_data->data_rh);}
//    //分离共享内存
//    if((shmdt(share_add))<0){
//        perror("shmdt error!");
//        exit(1);
//    }
//    //删除共享内存
//    if ((shmctl(share_id,IPC_RMID,0))<0){
//        perror("shmctl error!");
//        exit(1);
//    }else{
//        printf("release shared-memory!\n");
//        system("ipcs -m");
//    }return 0;
}
