iis运行原理 Asp.Net详解IIS内部运行原理

本章节主要讲IIS和管道内部如何处理客户端Http请求，会较多的以代码的形式讲述，让大家对HttpApplication、HttpHandler、HttpApplicationFactory、Page这几个在处理请求过程中扮演重要角色的对象有更深入的了解。

下面我们通过单步调式跟踪System.Web.Dll源码来分析各个过程中关键处理函数

（说明：部分代码只保留了关键代码）

1、首先进入管道运行时中的托管入口函数

IIS集成模式：

在IPipelineRuntime.cs类中请求通知函数：ProcessRequestNotification，并调用ProcessRequestNotificationHelper函数
internal static int ProcessRequestNotification(
IntPtr rootedObjectsPointer,
IntPtr nativeRequestContext,
IntPtr moduleData,
int flags)
{
try {
//调用ProcessRequestNotificationHelper
return ProcessRequestNotificationHelper(rootedObjectsPointer, nativeRequestContext, moduleData, flags);
}
catch(Exception e) {
ApplicationManager.RecordFatalException(e);
throw;
}
}

2、在ProcessRequestNotificationHelper函数中调用运行时HttpRuntime中的ProcessRequestNotification函数

internal static int ProcessRequestNotificationHelper(
IntPtr rootedObjectsPointer,
IntPtr nativeRequestContext,
IntPtr moduleData,
int flags)
{
IIS7WorkerRequest wr = null;
HttpContext context = null;
RequestNotificationStatus status = RequestNotificationStatus.Continue;
RootedObjects root;
bool workerRequestWasJustCreated = false;
try {
status = HttpRuntime.ProcessRequestNotification(wr, context);//调用ProcessRequestNotification函数
}
finally {
}
return (int)status;
}
3、在ProcessRequestNotification中调用ProcessRequestNotificationPrivate

4、处理请求通知ProcessRequestNotificationPrivate函数中调用了HttpApplicatioinFactory的GetApplicationInstance()函数来获取HttpApplication实例对象，并调用BeginProcessRequestNotification处理请求
private RequestNotificationStatus ProcessRequestNotificationPrivate(IIS7WorkerRequest wr, HttpContext context) {
RequestNotificationStatus status = RequestNotificationStatus.Pending;
try {
IHttpHandler handler = null;
if (context.NeedToInitializeApp()) {
try {
EnsureFirstRequestInit(context);
}
catch {
}
context.Response.InitResponseWriter();
handler = HttpApplicationFactory.GetApplicationInstance(context);//获取HttpApplication实例
if (handler == null)
throw new HttpException(SR.GetString(SR.Unable_create_app_object));
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Infrastructure)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_START_HANDLER, context.WorkerRequest, handler.GetType().FullName, "Start");
HttpApplication app = handler as HttpApplication;
if (app != null) {
// associate the context with an application instance
app.AssignContext(context);
}
}
wr.SynchronizeVariables(context);
if (context.ApplicationInstance != null) {
// 处理请求
IAsyncResult ar = context.ApplicationInstance.BeginProcessRequestNotification(context, _requestNotificationCompletionCallback);
if {
status = RequestNotificationStatus.Continue;
}
}
else if (handler != null) {
// HttpDebugHandler is processed here
handler.ProcessRequest(context);
status = RequestNotificationStatus.FinishRequest;
}
else {
status = RequestNotificationStatus.Continue;
}
}
catch (Exception e) {
}
return status;
}

IIS经典模式：

在ISAPIRuntime.cs类中请求 ProcessRequest函数并调用HttpRuntime.ProcessReques方法

1、HttpRuntime处理请求入口函数
public static void ProcessRequest(HttpWorkerRequest wr) {
if (wr == null)
throw new ArgumentNullException("wr");
if (HttpRuntime.UseIntegratedPipeline) {
throw new PlatformNotSupportedException(SR.GetString(SR.Method_Not_Supported_By_Iis_Integrated_Mode, "HttpRuntime.ProcessRequest"));
}
ProcessRequestNoDemand(wr);//调用ProcessRequestNoDemand函数
}
2、ProcessRequestNoDemand函数，调用ProcessRequestNow函数 internal static void ProcessRequestNoDemand(HttpWorkerRequest wr) {
RequestQueue rq = _theRuntime._requestQueue;
wr.UpdateInitialCounters();
if (rq != null) // could be null before first request
wr = rq.GetRequestToExecute(wr);
if (wr != null) {
CalculateWaitTimeAndUpdatePerfCounter(wr);
wr.ResetStartTime();
ProcessRequestNow(wr);调用ProcessRequestNow
}
}
3、ProcessRequestNow函数，调用ProcessRequestInternal internal static void ProcessRequestNow(HttpWorkerRequest wr)
{
_theRuntime.ProcessRequestInternal(wr);//调用ProcessRequestInternal
}

4、ProcessRequestInternal函数，调用HttpApplicatioinFactory的GetApplicationInstance()函数来获取HttpApplication实例对象
private void ProcessRequestInternal(HttpWorkerRequest wr) {
// Count active requests
Interlocked.Increment(ref _activeRequestCount);
// Get application instance
IHttpHandler app = HttpApplicationFactory.GetApplicationInstance(context);//获取HttpApplication对象
if (app == null)
throw new HttpException(SR.GetString(SR.Unable_create_app_object));
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Infrastructure)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_START_HANDLER, context.WorkerRequest, app.GetType().FullName, "Start");
if (app is IHttpAsyncHandler) {
// asynchronous handler
IHttpAsyncHandler asyncHandler = (IHttpAsyncHandler)app;
context.AsyncAppHandler = asyncHandler;
//来到了真正处理请求步骤
asyncHandler.BeginProcessRequest(context, _handlerCompletionCallback, context);
}
else {
// synchronous handler
app.ProcessRequest(context);
FinishRequest(context.WorkerRequest, context, null);
}
}
catch (Exception e) {
context.Response.InitResponseWriter();
FinishRequest(wr, context, e);
}
}

说明：以上4个步骤集成模式和经典模式分不同的函数执行，从下面开始两种模式调用相同的函数，只是在函数中针对不同的模式进行不同的处理

5、进入HttpApplicationFactory，调用GetNormalApplicationInstance函数

internal static IHttpHandler GetApplicationInstance(HttpContext context) {
if (_customApplication != null)
return _customApplication;
if (context.Request.IsDebuggingRequest)
return new HttpDebugHandler();
_theApplicationFactory.EnsureInited();
_theApplicationFactory.EnsureAppStartCalled(context);
return _theApplicationFactory.GetNormalApplicationInstance(context);//返回HttpApplication实例
}

6、进入GetNormalApplicationInstance函数，调用InitInternal初始化HttpApplication内部对象
private HttpApplication GetNormalApplicationInstance(HttpContext context) {
HttpApplication app = null;
lock (_freeList) {
if (_numFreeAppInstances > 0) {
app = (HttpApplication)_freeList.Pop();
_numFreeAppInstances--;
if (_numFreeAppInstances < _minFreeAppInstances) {
_minFreeAppInstances = _numFreeAppInstances;
}
}
}
if (app == null) {
// If ran out of instances, create a new one
app = (HttpApplication)HttpRuntime.CreateNonPublicInstance(_theApplicationType);
using (new ApplicationImpersonationContext()) {
app.InitInternal(context, _state, _eventHandlerMethods);//初始化Application内部对象
}
}
if (AppSettings.UseTaskFriendlySynchronizationContext) {
// When this HttpApplication instance is no longer in use, recycle it.
app.ApplicationInstanceConsumersCounter = new CountdownTask(1); // representing required call to HttpApplication.ReleaseAppInstance
app.ApplicationInstanceConsumersCounter.Task.ContinueWith((_, o) => RecycleApplicationInstance((HttpApplication)o), app, TaskContinuationOptions.ExecuteSynchronously);
}
return app;
}

7、进入HttpApplication,调用InitInternal函数来初始化Application内部对象。初始化HttpModule和建立处理执行步骤

internal void InitInternal(HttpContext context, HttpApplicationState state, MethodInfo[] handlers) {
Debug.Assert(context != null, "context != null");
// Remember state
_state = state;
PerfCounters.IncrementCounter(AppPerfCounter.PIPELINES);
try {
try {
// Remember context for config lookups
_initContext = context;
_initContext.ApplicationInstance = this;
// Set config path to be application path for the application initialization
context.ConfigurationPath = context.Request.ApplicationPathObject;
// keep HttpContext.Current working while running user code
using (new DisposableHttpContextWrapper(context)) {
// Build module list from config 根据IIS集成模式和经典模式初始化HttpMudule
if (HttpRuntime.UseIntegratedPipeline) { //集成模式
Debug.Assert(_moduleConfigInfo != null, "_moduleConfigInfo != null");
Debug.Assert(_moduleConfigInfo.Count >= 0, "_moduleConfigInfo.Count >= 0");
try {
context.HideRequestResponse = true;
_hideRequestResponse = true;
InitIntegratedModules();//集成模式初始化HttpModule
}
finally {
context.HideRequestResponse = false;
_hideRequestResponse = false;
}
}
else { //经典模式
InitModules();//经典模式初始化HttpModule
// this is used exclusively for integrated mode
Debug.Assert(null == _moduleContainers, "null == _moduleContainers");
}
// Hookup event handlers via reflection
if (handlers != null)
HookupEventHandlersForApplicationAndModules(handlers);
// Initialization of the derived class
_context = context;
if (HttpRuntime.UseIntegratedPipeline && _context != null) {
_context.HideRequestResponse = true;
}
_hideRequestResponse = true;
try {
Init();
}
catch (Exception e) {
RecordError(e);
}
}
if (HttpRuntime.UseIntegratedPipeline && _context != null) {
_context.HideRequestResponse = false;
}
_hideRequestResponse = false;
_context = null;
_resumeStepsWaitCallback= new WaitCallback(this.ResumeStepsWaitCallback);
// Construct the execution steps array
if (HttpRuntime.UseIntegratedPipeline) { //集成模式调用PipelineStepManager
_stepManager = new PipelineStepManager(this);
}
else {
 _stepManager = new ApplicationStepManager(this); //经典模式调用 ApplicationStepManager
}
_stepManager.BuildSteps(_resumeStepsWaitCallback); //建立执行处理步骤
}
finally {
_initInternalCompleted = true;
// Reset config path
context.ConfigurationPath = null;
// don't hold on to the context
_initContext.ApplicationInstance = null;
_initContext = null;
}
}
catch { // Protect against exception filters
throw;
}
}

8、初始化HttpModule，包含系统默认的HttpModule和自定义的HttpModule

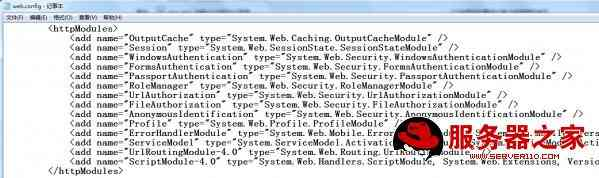

1）、系统默认的HttpModule：

C:\Windows\\Framework64\v4.0.30319\Config\web.config

2）、自定义的HttpModule在网站的Web.config中配置

经典模式：

<system.web>
<httpModules>
<add name="mymodule" type="WebApplication2.myModule"/>
</httpModules>
</system.web>
集成模式： <system.webServer>
<modules>
<add name="mymodule" type="WebApplication2.myModule"/>
</modules>
</system.webServer>
3）、经典模式初始化： private void InitModules() {
//读取配置文件中HttpModules节点
HttpModulesSection pconfig = RuntimeConfig.GetAppConfig().HttpModules;
//获取HttpModule集合
HttpModuleCollection moduleCollection = pconfig.CreateModules();
HttpModuleCollection dynamicModules = CreateDynamicModules();
moduleCollection.AppendCollection(dynamicModules);
_moduleCollection = moduleCollection; // don't assign until all ops have succeeded
InitModulesCommon();//调用InitModulesCommon
}

4）、初始化各个HttpModule对象.
private void InitModulesCommon() {
int n = _moduleCollection.Count;
for (int i = 0; i < n; i++) {
// remember the module being inited for event subscriptions
// we'll later use this for routing
_currentModuleCollectionKey = _moduleCollection.GetKey(i);
_moduleCollection[i].Init(this);//初始化每个HttpModule
}
_currentModuleCollectionKey = null;
InitAppLevelCulture();
}

5）、初始化HttpModule，在Init函数中注册HttpApplication对象的事件，这里举了两个例子

OutputCacheModule.cs web.config中默认第一个HttpModule
void IHttpModule.Init(HttpApplication app) {
OutputCacheSection cacheConfig = RuntimeConfig.GetAppConfig().OutputCache;
if (cacheConfig.EnableOutputCache) {
app.ResolveRequestCache += new EventHandler(this.OnEnter);
app.UpdateRequestCache += new EventHandler(this.OnLeave);
}
}
SessionStateModule.cs web.config中默认第二个HttpModule，实现Session的系统HttpModule public void Init(HttpApplication app) {
bool initModuleCalled = false;
SessionStateSection config = RuntimeConfig.GetAppConfig().SessionState;
if (!s_oneTimeInit) {
s_lock.AcquireWriterLock();
try {
if (!s_oneTimeInit) {
InitModuleFromConfig(app, config);
initModuleCalled = true;
if (!CheckTrustLevel(config))
s_trustLevelInsufficient = true;
s_timeout = (int)config.Timeout.TotalMinutes;
s_useHostingIdentity = config.UseHostingIdentity;
// See if we can try InProc optimization. See inline doc of s_allowInProcOptimization
// for details.
if (config.Mode == SessionStateMode.InProc &&
_usingAspnetSessionIdManager) {
s_allowInProcOptimization = true;
}
if (config.Mode != SessionStateMode.Custom &&
config.Mode != SessionStateMode.Off &&
!config.RegenerateExpiredSessionId) {
s_allowDelayedStateStoreItemCreation = true;
}
s_configExecutionTimeout = RuntimeConfig.GetConfig().HttpRuntime.ExecutionTimeout;
s_configRegenerateExpiredSessionId = config.RegenerateExpiredSessionId;
s_configCookieless = config.Cookieless;
s_configMode = config.Mode;
// The last thing to set in this if-block.
s_oneTimeInit = true;
Debug.Trace("SessionStateModuleInit",
"Configuration: _mode=" + config.Mode +
";Timeout=" + config.Timeout +
";CookieMode=" + config.Cookieless +
";SqlConnectionString=" + config.SqlConnectionString +
";StateConnectionString=" + config.StateConnectionString +
";s_allowInProcOptimization=" + s_allowInProcOptimization +
";s_allowDelayedStateStoreItemCreation=" + s_allowDelayedStateStoreItemCreation);
}
}
finally {
s_lock.ReleaseWriterLock();
}
}
if (!initModuleCalled) {
InitModuleFromConfig(app, config);
}
if (s_trustLevelInsufficient) {
throw new HttpException(SR.GetString(SR.Session_state_need_higher_trust));
}
}

集成模式初始化HttpModule代码我就不贴出来了，大家可以在源码中查看

9、建立处理步骤BuildSteps，将所有要执行的步骤载入到一个IExecutionStep[]集合中，待后面ResumeSteps调用

经典模式：调用ApplicationStepManager类中的BuildSteps函数

internal class ApplicationStepManager : StepManager {
private IExecutionStep[] _execSteps;
private WaitCallback _resumeStepsWaitCallback;
private int _currentStepIndex;
private int _numStepCalls;
private int _numSyncStepCalls;
private int _endRequestStepIndex;
internal ApplicationStepManager(HttpApplication app): base(app) {
}
internal override void BuildSteps(WaitCallback stepCallback )
{
ArrayList steps = new ArrayList();
HttpApplication app = _application;
bool urlMappingsEnabled = false;
UrlMappingsSection urlMappings = RuntimeConfig.GetConfig().UrlMappings;
urlMappingsEnabled = urlMappings.IsEnabled && ( urlMappings.UrlMappings.Count > 0 );
steps.Add(new ValidateRequestExecutionStep(app));
steps.Add(new ValidatePathExecutionStep(app));
if (urlMappingsEnabled)
steps.Add(new UrlMappingsExecutionStep(app)); // url mappings
app.CreateEventExecutionSteps(HttpApplication.EventBeginRequest, steps);
app.CreateEventExecutionSteps(HttpApplication.EventAuthenticateRequest, steps);
app.CreateEventExecutionSteps(HttpApplication.EventDefaultAuthentication, steps);
app.CreateEventExecutionSteps(HttpApplication.EventPostAuthenticateRequest, steps);
app.CreateEventExecutionSteps(HttpApplication.EventAuthorizeRequest, steps);
app.CreateEventExecutionSteps(HttpApplication.EventPostAuthorizeRequest, steps);
app.CreateEventExecutionSteps(HttpApplication.EventResolveRequestCache, steps);
app.CreateEventExecutionSteps(HttpApplication.EventPostResolveRequestCache, steps);
steps.Add(new MapHandlerExecutionStep(app));//分配一个Handler
app.CreateEventExecutionSteps(HttpApplication.EventPostMapRequestHandler, steps);
app.CreateEventExecutionSteps(HttpApplication.EventAcquireRequestState, steps);
app.CreateEventExecutionSteps(HttpApplication.EventPostAcquireRequestState, steps);
app.CreateEventExecutionSteps(HttpApplication.EventPreRequestHandlerExecute, steps);
steps.Add(app.CreateImplicitAsyncPreloadExecutionStep()); // implict async preload step
steps.Add(new CallHandlerExecutionStep(app)); // 执行HttpHandler
app.CreateEventExecutionSteps(HttpApplication.EventPostRequestHandlerExecute, steps);
app.CreateEventExecutionSteps(HttpApplication.EventReleaseRequestState, steps);
app.CreateEventExecutionSteps(HttpApplication.EventPostReleaseRequestState, steps);
steps.Add(new CallFilterExecutionStep(app)); // filtering
app.CreateEventExecutionSteps(HttpApplication.EventUpdateRequestCache, steps);
app.CreateEventExecutionSteps(HttpApplication.EventPostUpdateRequestCache, steps);
_endRequestStepIndex = steps.Count;
app.CreateEventExecutionSteps(HttpApplication.EventEndRequest, steps);
steps.Add(new NoopExecutionStep()); // the last is always there
_execSteps = new IExecutionStep[steps.Count];
steps.CopyTo(_execSteps);
// callback for async completion when reposting to threadpool thread
_resumeStepsWaitCallback = stepCallback;
}

集成模式：调用PipelineStepManager类中的 BuildSteps函数
internal override void BuildSteps(WaitCallback stepCallback) {
Debug.Trace("PipelineRuntime", "BuildSteps");
//ArrayList steps = new ArrayList();
HttpApplication app = _application;
// add special steps that don't currently
// correspond to a configured handler
IExecutionStep materializeStep = new MaterializeHandlerExecutionStep(app);
// implicit map step
app.AddEventMapping(
HttpApplication.IMPLICIT_HANDLER,
RequestNotification.MapRequestHandler,
false, materializeStep);
// implicit async preload step
app.AddEventMapping(
HttpApplication.IMPLICIT_HANDLER,
RequestNotification.ExecuteRequestHandler,
false, app.CreateImplicitAsyncPreloadExecutionStep());
// implicit handler routing step
IExecutionStep handlerStep = new CallHandlerExecutionStep(app);
app.AddEventMapping(
HttpApplication.IMPLICIT_HANDLER,
RequestNotification.ExecuteRequestHandler,
false, handlerStep);
// implicit handler WebSockets step
IExecutionStep webSocketsStep = new TransitionToWebSocketsExecutionStep(app);
app.AddEventMapping(
HttpApplication.IMPLICIT_HANDLER,
RequestNotification.EndRequest,
true /* isPostNotification */, webSocketsStep);
// add implicit request filtering step
IExecutionStep filterStep = new CallFilterExecutionStep(app);
// normally, this executes during UpdateRequestCache as a high priority module
app.AddEventMapping(
HttpApplication.IMPLICIT_FILTER_MODULE,
RequestNotification.UpdateRequestCache,
false, filterStep);
// for error conditions, this executes during LogRequest as a high priority module
app.AddEventMapping(
HttpApplication.IMPLICIT_FILTER_MODULE,
RequestNotification.LogRequest,
false, filterStep);
_resumeStepsWaitCallback = stepCallback;
}
10、真正处理请求阶段，调用ResumeSteps函数来执行处理步骤

经典模式：

返回到ProcessRequestInternal函数中执行BeginProcessRequest函数
IAsyncResult IHttpAsyncHandler.BeginProcessRequest(HttpContext context, AsyncCallback cb, Object extraData) {
HttpAsyncResult result;
// Setup the asynchronous stuff and application variables
_context = context;
_context.ApplicationInstance = this;
_stepManager.InitRequest();
// Make sure the context stays rooted (including all async operations)
_context.Root();
// Create the async result
result = new HttpAsyncResult(cb, extraData);
// Remember the async result for use in async completions
AsyncResult = result;
if (_context.TraceIsEnabled)
HttpRuntime.Profile.StartRequest(_context);
// Start the application
ResumeSteps(null);//执行处理步骤
// Return the async result
return result;
}
ResumeSteps函数，调用ExecuteStepl函数来执行处理步骤 internal override void ResumeSteps(Exception error) {
bool appCompleted = false;
bool stepCompletedSynchronously = true;
HttpApplication app = _application;
CountdownTask appInstanceConsumersCounter = app.ApplicationInstanceConsumersCounter;
HttpContext context = app.Context;
ThreadContext threadContext = null;
AspNetSynchronizationContextBase syncContext = context.SyncContext;
Debug.Trace("Async", "HttpApplication.ResumeSteps");
try {
if (appInstanceConsumersCounter != null) {
appInstanceConsumersCounter.MarkOperationPending(); // ResumeSteps call started
}
using (syncContext.AcquireThreadLock()) {
//执行步骤
error = app.ExecuteStep(_execSteps[_currentStepIndex], ref stepCompletedSynchronously);
}
}

集成模式：

返回到ProcessRequestNotificationPrivate函数，执行BeginProcessRequestNotification

BeginProcessRequestNotification函数，调用ResumeSteps执行处理步骤

internal IAsyncResult BeginProcessRequestNotification(HttpContext context, AsyncCallback cb)
{
if (this._context == null)
{
this.AssignContext(context);
}
context.CurrentModuleEventIndex = -1;
HttpAsyncResult result = new HttpAsyncResult(cb, context);
context.NotificationContext.AsyncResult = result;
this.ResumeSteps(null);//开始执行处理步骤
return result;
}

ResumeSteps

// PipelineStepManager::ResumeSteps
// called from IIS7 (on IIS thread) via BeginProcessRequestNotification
// or from an async completion (on CLR thread) via HttpApplication::ResumeStepsFromThreadPoolThread
// This attribute prevents undesirable 'just-my-code' debugging behavior (VSWhidbey 404406/VSWhidbey 609188)
[System.Diagnostics.DebuggerStepperBoundaryAttribute]
internal override void ResumeSteps(Exception error) {
HttpContext context = _application.Context;
IIS7WorkerRequest wr = context.WorkerRequest as IIS7WorkerRequest;
AspNetSynchronizationContextBase syncContext = context.SyncContext;
RequestNotificationStatus status = RequestNotificationStatus.Continue;
ThreadContext threadContext = null;
bool needToDisassociateThreadContext = false;
bool isSynchronousCompletion = false;
bool needToComplete = false;
bool stepCompletedSynchronously = false;
int currentModuleLastEventIndex = _application.CurrentModuleContainer.GetEventCount(context.CurrentNotification, context.IsPostNotification) - 1;
CountdownTask appInstanceConsumersCounter = _application.ApplicationInstanceConsumersCounter;
using (context.RootedObjects.WithinTraceBlock()) {
error = _application.ExecuteStep(step, ref stepCompletedSynchronously);//执行处理步骤
}
}
11、ExecuteStep执行BuildSteps中的各个步骤 internal Exception ExecuteStep(IExecutionStep step, ref bool completedSynchronously) {
Exception error = null;
try {
try {
if (step.IsCancellable) {
_context.BeginCancellablePeriod(); // request can be cancelled from this point
try {
step.Execute();
}
finally {
_context.EndCancellablePeriod(); // request can be cancelled until this point
}
_context.WaitForExceptionIfCancelled(); // wait outside of finally
}
else {
step.Execute();
}
if {
completedSynchronously = false;
return null;
}
}
}

这里贴出了两个很重要的步骤：获取HttpHandler（MaterializeHandlerExecutionStep）和执行HttpHandler（CallHandlerExecutionStep）

经典模式：

MapHandlerExecutionStep

// execution step -- map HTTP handler (used to be a separate module)
internal class MapHandlerExecutionStep : IExecutionStep {
private HttpApplication _application;
internal MapHandlerExecutionStep(HttpApplication app) {
_application = app;
}
void IExecutionStep.Execute() {
HttpContext context = _application.Context;
HttpRequest request = context.Request;
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Infrastructure)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_MAPHANDLER_ENTER, context.WorkerRequest);
//获取HttpHandler
context.Handler = _application.MapHttpHandler(
context,
request.RequestType,
request.FilePathObject,
request.PhysicalPathInternal,
false /*useAppConfig*/);
Debug.Assert(context.ConfigurationPath == context.Request.FilePathObject, "context.ConfigurationPath (" +
context.ConfigurationPath + ") != context.Request.FilePath (" + context.Request.FilePath + ")");
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Infrastructure)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_MAPHANDLER_LEAVE, context.WorkerRequest);
}
bool pletedSynchronously {
get { return true;}
}
bool IExecutionStep.IsCancellable {
get { return false; }
}
}

MapHttpHandler获取处理请求的HttpHandler

internal IHttpHandler MapHttpHandler(HttpContext context, string requestType, VirtualPath path, string pathTranslated, bool useAppConfig)
{
IHttpHandler handler = (context.ServerExecuteDepth == 0) ? context.RemapHandlerInstance : null;
using (new ApplicationImpersonationContext())
{
if (handler != null)
{
return handler;
}
HttpHandlerAction mapping = this.GetHandlerMapping(context, requestType, path, useAppConfig);
if (mapping == null)
{
PerfCounters.IncrementCounter(AppPerfCounter.REQUESTS_NOT_FOUND);
PerfCounters.IncrementCounter(AppPerfCounter.REQUESTS_FAILED);
throw new HttpException(SR.GetString("Http_handler_not_found_for_request_type", new object[] { requestType }));
}
IHttpHandlerFactory factory = this.GetFactory(mapping);//获取HttpHandlerFactory对象，如果网站Web.config中自定义了HttpHandlerFactory对象，则会覆盖系统默认的
try
{
IHttpHandlerFactory2 factory2 = factory as IHttpHandlerFactory2;
if (factory2 != null)
{
handler = factory2.GetHandler(context, requestType, path, pathTranslated);//获取HttpHandler对象，如果为自定义的HttpHandlerFactory，则返回自定义HttpHandlerFactory中设置的HttpHandler
}
else
{
handler = factory.GetHandler(context, requestType, path.VirtualPathString, pathTranslated);
}
}
catch (FileNotFoundException exception)
{
if (HttpRuntime.HasPathDiscoveryPermission(pathTranslated))
{
throw new HttpException(0x194, null, exception);
}
throw new HttpException(0x194, null);
}
catch (DirectoryNotFoundException exception2)
{
if (HttpRuntime.HasPathDiscoveryPermission(pathTranslated))
{
throw new HttpException(0x194, null, exception2);
}
throw new HttpException(0x194, null);
}
catch (PathTooLongException exception3)
{
if (HttpRuntime.HasPathDiscoveryPermission(pathTranslated))
{
throw new HttpException(0x19e, null, exception3);
}
throw new HttpException(0x19e, null);
}
if (this._handlerRecycleList == null)
{
this._handlerRecycleList = new ArrayList();
}
this._handlerRecycleList.Add(new HandlerWithFactory(handler, factory));
}
return handler;
}

集成模式：

MaterializeHandlerExecutionStep步骤

internal class MaterializeHandlerExecutionStep: IExecutionStep {
private HttpApplication _application;
internal MaterializeHandlerExecutionStep(HttpApplication app) {
_application = app;
}
void IExecutionStep.Execute() {
HttpContext context = _application.Context;
HttpRequest request = context.Request;
IHttpHandler handler = null;
string configType = null;
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Infrastructure)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_MAPHANDLER_ENTER, context.WorkerRequest);
IIS7WorkerRequest wr = context.WorkerRequest as IIS7WorkerRequest;
// Get handler
if (context.RemapHandlerInstance != null){
//RemapHandler overrides all
wr.SetScriptMapForRemapHandler();
context.Handler = context.RemapHandlerInstance;
}
else if (request.RewrittenUrl != null) {
// RewritePath, we need to re-map the handler
bool handlerExists;
configType = wr.ReMapHandlerAndGetHandlerTypeString(context, request.Path, out handlerExists);
if (!handlerExists) {
// WOS 1973590: When RewritePath is used with missing handler in Integrated Mode,an empty response 200 is returned instead of 404
throw new HttpException(404, SR.GetString(SR.Http_handler_not_found_for_request_type, request.RequestType));
}
}
else {
configType = wr.GetManagedHandlerType();
}
if (!String.IsNullOrEmpty(configType)) {
IHttpHandlerFactory factory = _application.GetFactory(configType);//获取HttpHandlerFactory对象
string pathTranslated = request.PhysicalPathInternal;
try {
handler = factory.GetHandler(context, request.RequestType, request.FilePath, pathTranslated);//获取HttpHandler对象
}
catch (FileNotFoundException e) {
if (HttpRuntime.HasPathDiscoveryPermission(pathTranslated))
throw new HttpException(404, null, e);
else
throw new HttpException(404, null);
}
catch (DirectoryNotFoundException e) {
if (HttpRuntime.HasPathDiscoveryPermission(pathTranslated))
throw new HttpException(404, null, e);
else
throw new HttpException(404, null);
}
catch (PathTooLongException e) {
if (HttpRuntime.HasPathDiscoveryPermission(pathTranslated))
throw new HttpException(414, null, e);
else
throw new HttpException(414, null);
}
context.Handler = handler;
// Remember for recycling
if (_application._handlerRecycleList == null)
_application._handlerRecycleList = new ArrayList();
_application._handlerRecycleList.Add(new HandlerWithFactory(handler, factory));
}
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Infrastructure)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_MAPHANDLER_LEAVE, context.WorkerRequest);
}
bool pletedSynchronously {
get { return true;}
}
bool IExecutionStep.IsCancellable {
get { return false; }
}
}

12、执行callhandlerexecutestep步骤，调用handler.ProcessRequest(context)，如果HttpHandler类型为Page，则开始Page页生命周期

internal class CallHandlerExecutionStep: IExecutionStep {
private HttpApplication _application;
private AsyncCallback _completionCallback;
private IHttpAsyncHandler _handler; // per call
private AsyncStepCompletionInfo _asyncStepCompletionInfo; // per call
private bool _sync; // per call
internal CallHandlerExecutionStep(HttpApplication app) {
_application = app;
_completionCallback = new AsyncCallback(this.OnAsyncHandlerCompletion);
}
voidIExecutionStep.Execute()
{
HttpContext context = _application.Context;
IHttpHandler handler = context.Handler;
if (EtwTrace.IsTraceEnabled(rmation, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_HTTPHANDLER_ENTER, context.WorkerRequest);
if (handler != null && HttpRuntime.UseIntegratedPipeline) {
IIS7WorkerRequest wr = context.WorkerRequest as IIS7WorkerRequest;
if (wr != null && wr.IsHandlerExecutionDenied()) {
_sync = true;
HttpException error = new HttpException(403, SR.GetString(SR.Handler_access_denied));
error.SetFormatter(new PageForbiddenErrorFormatter(context.Request.Path, SR.GetString(SR.Handler_access_denied)));
throw error;
}
}
if (handler == null) {
_sync = true;
}
else if (handler is IHttpAsyncHandler) {
// asynchronous handler
IHttpAsyncHandler asyncHandler = (IHttpAsyncHandler)handler;
_sync = false;
_handler = asyncHandler;
var beginProcessRequestDelegate = AppVerifier.WrapBeginMethod<HttpContext>(_application, asyncHandler.BeginProcessRequest);
_asyncStepCompletionInfo.Reset();
context.SyncContext.AllowVoidAsyncOperations();
IAsyncResult ar;
try {
ar = beginProcessRequestDelegate(context, _completionCallback, null);
}
catch {
// The asynchronous step has completed, so we should disallow further
// async operations until the next step.
context.SyncContext.ProhibitVoidAsyncOperations();
throw;
}
bool operationCompleted;
bool mustCallEndHandler;
_asyncStepCompletionInfo.RegisterBeginUnwound(ar, out operationCompleted, out mustCallEndHandler);
if (operationCompleted) {
_sync = true;
_handler = null; // not to remember
// The asynchronous step has completed, so we should disallow further
// async operations until the next step.
context.SyncContext.ProhibitVoidAsyncOperations();
try {
if (mustCallEndHandler) {
asyncHandler.EndProcessRequest(ar);
}
_asyncStepCompletionInfo.ReportError();
}
finally {
SuppressPostEndRequestIfNecessary(context);
// In Integrated mode, generate the necessary response headers
// after the handler runs
context.Response.GenerateResponseHeadersForHandler();
}
if (EtwTrace.IsTraceEnabled(rmation, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_HTTPHANDLER_LEAVE, context.WorkerRequest);
}
}
else {
//同步 handler
_sync = true;
context.SyncContext.SetSyncCaller();
try {
handler.ProcessRequest(context);//开始Page页面生命周期
}
finally {
context.SyncContext.ResetSyncCaller();
if (EtwTrace.IsTraceEnabled(rmation, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_HTTPHANDLER_LEAVE, context.WorkerRequest);
SuppressPostEndRequestIfNecessary(context);
context.Response.GenerateResponseHeadersForHandler();
}
}
}
bool pletedSynchronously {
get { return _sync;}
}
bool IExecutionStep.IsCancellable {
// launching of async handler should not be cancellable
get { return (_application.Context.Handler is IHttpAsyncHandler) ? false : true; }
}
}

13、进入Page类的 ProcessRequest方法开始处理请求
private void ProcessRequest() {
// culture needs to be saved/restored only on synchronous pages (if at all)
// save culture
Thread currentThread = Thread.CurrentThread;
CultureInfo prevCulture = currentThread.CurrentCulture;
CultureInfo prevUICulture = currentThread.CurrentUICulture;
try {
ProcessRequest(true /*includeStagesBeforeAsyncPoint*/, true /*includeStagesAfterAsyncPoint*/);//调用ProcessRequest函数
}
finally {
// restore culture
RestoreCultures(currentThread, prevCulture, prevUICulture);
}
}

14、进入ProcessRequest,调用ProcessRequestMain函数

private void ProcessRequest(bool includeStagesBeforeAsyncPoint, bool includeStagesAfterAsyncPoint) {
// Initialize the object and build the tree of controls.
// This must happen *after* the intrinsics have been set.
// On async pages only call Initialize once (ProcessRequest is called twice)
if (includeStagesBeforeAsyncPoint) {
FrameworkInitialize();
this.ControlState = ControlState.FrameworkInitialized;
}
bool needToCallEndTrace = Context.WorkerRequest is IIS7WorkerRequest;
try {
try {
if (IsTransacted) {
ProcessRequestTransacted();
}
else {
// No transactions
ProcessRequestMain(includeStagesBeforeAsyncPoint, includeStagesAfterAsyncPoint);//调用ProcessRequestMain函数
}
if (includeStagesAfterAsyncPoint) {
needToCallEndTrace = false;
ProcessRequestEndTrace();
}
}
catch (ThreadAbortException) {
try {
if (needToCallEndTrace)
ProcessRequestEndTrace();
} catch {}
}
finally {
if (includeStagesAfterAsyncPoint) {
ProcessRequestCleanup();
}
}
}
catch { throw; } // Prevent Exception Filter Security Issue (ASURT 122835)
}

15、进入ProcessRequestMain,开始Page页面主体处理过程

private void ProcessRequestMain(bool includeStagesBeforeAsyncPoint, bool includeStagesAfterAsyncPoint) {
try {
HttpContext con = Context;
string exportedWebPartID = null;
if (con.TraceIsEnabled) Trace.Write("aspx.page", "Begin PreInit");
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_PRE_INIT_ENTER, _context.WorkerRequest);
PerformPreInit(); //Page页面生命周期的OnPerLoad阶段
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_PRE_INIT_LEAVE, _context.WorkerRequest);
if (con.TraceIsEnabled) Trace.Write("aspx.page", "End PreInit");
if (con.TraceIsEnabled) Trace.Write("aspx.page", "Begin Init");
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_INIT_ENTER, _context.WorkerRequest);
InitRecursive(null);
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_INIT_LEAVE, _context.WorkerRequest);
if (con.TraceIsEnabled) Trace.Write("aspx.page", "End Init");
if (con.TraceIsEnabled) Trace.Write("aspx.page", "Begin InitComplete");
OnInitComplete(EventArgs.Empty);//Page页面生命周期的OnInitComplete阶段
if (con.TraceIsEnabled) Trace.Write("aspx.page", "End InitComplete");
if (IsPostBack) {
if (con.TraceIsEnabled) Trace.Write("aspx.page", "Begin LoadState");
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_LOAD_VIEWSTATE_ENTER, _context.WorkerRequest);
LoadAllState();//Page页面生命周期的LoadViewState阶段（加载视图状态）
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_LOAD_VIEWSTATE_LEAVE, _context.WorkerRequest);
if (con.TraceIsEnabled) {
Trace.Write("aspx.page", "End LoadState");
Trace.Write("aspx.page", "Begin ProcessPostData");
}
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_LOAD_POSTDATA_ENTER, _context.WorkerRequest);
ProcessPostData(_requestValueCollection, true /* fBeforeLoad */);//Page页面生命周期ProcessPostData阶段（处理回发数据）
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_LOAD_POSTDATA_LEAVE, _context.WorkerRequest);
if (con.TraceIsEnabled) Trace.Write("aspx.page", "End ProcessPostData");
}
if (con.TraceIsEnabled) Trace.Write("aspx.page", "Begin PreLoad");
OnPreLoad(EventArgs.Empty);//Page页面生命周期OnPreLoad阶段（预加载）
if (con.TraceIsEnabled) Trace.Write("aspx.page", "End PreLoad");
if (con.TraceIsEnabled) Trace.Write("aspx.page", "Begin Load");
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_LOAD_ENTER, _context.WorkerRequest);
LoadRecursive();//Page页面生命周期Load阶段（加载）
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_LOAD_LEAVE, _context.WorkerRequest);
if (con.TraceIsEnabled) Trace.Write("aspx.page", "End Load");
if (IsPostBack) {
// Try process the post data again (ASURT 29045)
if (con.TraceIsEnabled) Trace.Write("aspx.page", "Begin ProcessPostData Second Try");
 ProcessPostData(_leftoverPostData, false /* !fBeforeLoad */);//Page页面生命周期 ProcessPostData阶段
if (con.TraceIsEnabled) {
Trace.Write("aspx.page", "End ProcessPostData Second Try");
Trace.Write("aspx.page", "Begin Raise ChangedEvents");
}
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_POST_DATA_CHANGED_ENTER, _context.WorkerRequest);
RaiseChangedEvents();//Page页面生命周期 RaiseChangedEvents阶段（处理回发更改事件）
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_POST_DATA_CHANGED_LEAVE, _context.WorkerRequest);
if (con.TraceIsEnabled) {
Trace.Write("aspx.page", "End Raise ChangedEvents");
Trace.Write("aspx.page", "Begin Raise PostBackEvent");
}
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_RAISE_POSTBACK_ENTER, _context.WorkerRequest);
RaisePostBackEvent(_requestValueCollection);//Page页面生命周期 RaisePostBackEvent阶段（处理回发事件）
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_RAISE_POSTBACK_LEAVE, _context.WorkerRequest);
if (con.TraceIsEnabled) Trace.Write("aspx.page", "End Raise PostBackEvent");
}
if (con.TraceIsEnabled) Trace.Write("aspx.page", "Begin LoadComplete");
OnLoadComplete(EventArgs.Empty);//Page页面生命周期加载完成
if (con.TraceIsEnabled) Trace.Write("aspx.page", "End LoadComplete");
if (IsPostBack && IsCallback) {
PrepareCallback(callbackControlId);//Page页面生命周期 PrepareRender(预呈现)
}
else if (!IsCrossPagePostBack) {
if (con.TraceIsEnabled) Trace.Write("aspx.page", "Begin PreRender");
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_PRE_RENDER_ENTER, _context.WorkerRequest);
PreRenderRecursiveInternal();
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_PRE_RENDER_LEAVE, _context.WorkerRequest);
if (con.TraceIsEnabled) Trace.Write("aspx.page", "End PreRender");
}
}
/// Async Point here
if (_legacyAsyncInfo == null || _legacyAsyncInfo.CallerIsBlocking) {
// for non-async pages with registered async tasks - run the tasks here
// also when running async page via server.execute - run the tasks here
ExecuteRegisteredAsyncTasks();
}
// Make sure RawUrl gets validated.
ValidateRawUrlIfRequired();
if (includeStagesAfterAsyncPoint) {
if (IsCallback) {
RenderCallback();
return;
}
if (IsCrossPagePostBack) {
return;
}
if (con.TraceIsEnabled) Trace.Write("aspx.page", "Begin PreRenderComplete");
PerformPreRenderComplete();
if (con.TraceIsEnabled) Trace.Write("aspx.page", "End PreRenderComplete");
if (con.TraceIsEnabled) {
BuildPageProfileTree(EnableViewState);
Trace.Write("aspx.page", "Begin SaveState");
}
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_SAVE_VIEWSTATE_ENTER, _context.WorkerRequest);
SaveAllState();//Page页面生命周期 SaveAllState阶段（保存视图状态）
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_SAVE_VIEWSTATE_LEAVE, _context.WorkerRequest);
if (con.TraceIsEnabled) {
Trace.Write("aspx.page", "End SaveState");
Trace.Write("aspx.page", "Begin SaveStateComplete");
}
OnSaveStateComplete(EventArgs.Empty);
if (con.TraceIsEnabled) {
Trace.Write("aspx.page", "End SaveStateComplete");
Trace.Write("aspx.page", "Begin Render");
}
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_RENDER_ENTER, _context.WorkerRequest);
// Special-case Web Part Export so it executes in the same security context as the page itself (VSWhidbey 426574)
if (exportedWebPartID != null) {
ExportWebPart(exportedWebPartID);
}
else {
RenderControl(CreateHtmlTextWriter(Response.Output));//Page页面生命周期 Render阶段（呈现）
}
if (EtwTrace.IsTraceEnabled(EtwTraceLevel.Verbose, EtwTraceFlags.Page)) EtwTrace.Trace(EtwTraceType.ETW_TYPE_PAGE_RENDER_LEAVE, _context.WorkerRequest);
if (con.TraceIsEnabled) Trace.Write("aspx.page", "End Render");
CheckRemainingAsyncTasks(false);
}
}

至此，整个IIS处理完整请求就结束了，列举了各个关键处理阶段的处理函数。当我们了解.net framework内部处理机制后能够使我们理解运行机制和本质，对开发人员来说这很重要，不能只停留在会用会写的阶段，而且要知道其内部原理。这样不仅可以帮助我们编写更高效的代码,同时可以学习并借鉴微软的面向对象的编程思想，受益颇多！
