SpringBoot集成FastDFS依赖实现文件上传

前言

对FastDFS文件系统安装后的使用。

FastDFS的安装请参考这篇：https://www.cnblogs.com/niceyoo/p/13511082.html

本文环境：IDEA + JDK1.8 + Maven

1、引入依赖

简单说一下这个依赖部分，目前大部分都是采用的如下依赖：

<!-- https://mvnrepository.com/artifact/net.oschina.zcx7878/fastdfs-client-java -->
<dependency><groupId>net.oschina.zcx7878</groupId><artifactId>fastdfs-client-java</artifactId><version>1.27.0.0</version>
</dependency>

本着不重复造轮子，且为了使用方便我们可以去GitHub找一个集成好的依赖：

https://github.com/tobato/FastDFS_Client

<dependency><groupId>com.github.tobato</groupId><artifactId>fastdfs-client</artifactId><version>1.27.2</version>
</dependency>

2、将Fdfs配置引入项目

只需要创建一个配置类就可以了：

@Configuration
@Import(FdfsClientConfig.class)
@EnableMBeanExport(registration = RegistrationPolicy.IGNORE_EXISTING)
public class ComponetImport {// 导入依赖组件
}

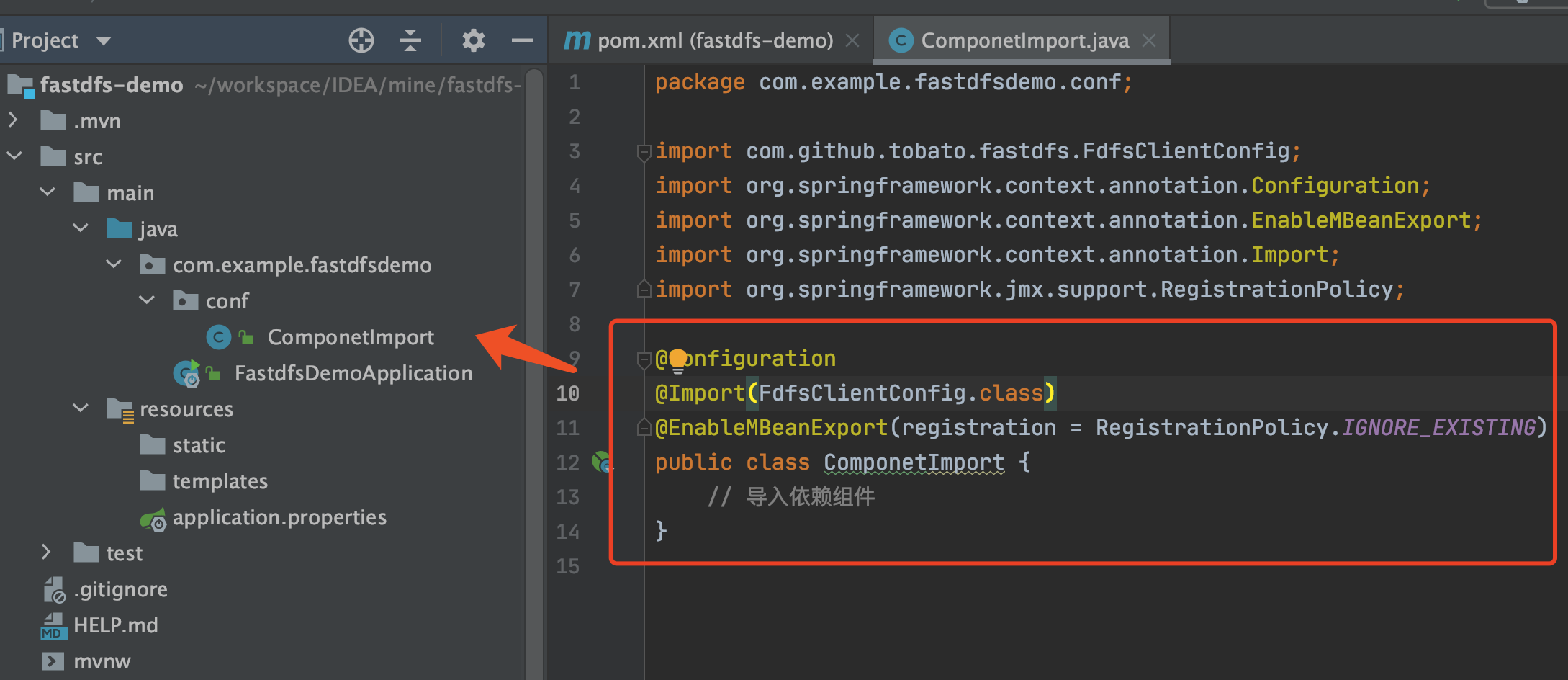

参考截图：

3、在application.yml当中配置Fdfs相关参数

根据自己情况修改相应ip地址及端口号：

server:port: 8080ip: 10.211.55.4 # 根据自己FastDFS服务器修改fdfs:so-timeout: 1501connect-timeout: 601thumb-image:             #缩略图生成参数width: 150height: 150tracker-list:            #TrackerList参数,支持多个- 10.211.55.4:22122web-server-url: http://${ip}:8888/

4、client封装工具类

import com.github.tobato.fastdfs.domain.conn.FdfsWebServer;
import com.github.tobato.fastdfs.domain.fdfs.StorePath;
import com.github.tobato.fastdfs.domain.proto.storage.DownloadByteArray;
import com.github.tobato.fastdfs.exception.FdfsUnsupportStorePathException;
import com.github.tobato.fastdfs.service.FastFileStorageClient;
import org.apache.commons.io.FilenameUtils;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.multipart.MultipartFile;
import java.io.ByteArrayInputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.nio.charset.Charset;@Component
public class FastDFSClient {@Autowiredprivate FastFileStorageClient storageClient;@Autowiredprivate FdfsWebServer fdfsWebServer;/*** 上传文件* @param file 文件对象* @return 文件访问地址* @throws IOException*/public String uploadFile(MultipartFile file) throws IOException {StorePath storePath = storageClient.uploadFile(file.getInputStream(),file.getSize(), FilenameUtils.getExtension(file.getOriginalFilename()),null);return getResAccessUrl(storePath);}/*** 上传文件* @param file 文件对象* @return 文件访问地址* @throws IOException*/public String uploadFile(File file) throws IOException {FileInputStream inputStream = new FileInputStream (file);StorePath storePath = storageClient.uploadFile(inputStream,file.length(), FilenameUtils.getExtension(file.getName()),null);return getResAccessUrl(storePath);}/*** 将一段字符串生成一个文件上传* @param content 文件内容* @param fileExtension* @return*/public String uploadFile(String content, String fileExtension) {byte[] buff = content.getBytes(Charset.forName("UTF-8"));ByteArrayInputStream stream = new ByteArrayInputStream(buff);StorePath storePath = storageClient.uploadFile(stream,buff.length, fileExtension,null);return getResAccessUrl(storePath);}/*** 封装图片完整URL地址*/private String getResAccessUrl(StorePath storePath) {String fileUrl = fdfsWebServer.getWebServerUrl() + storePath.getFullPath();return fileUrl;}/*** 删除文件* @param fileUrl 文件访问地址* @return*/public void deleteFile(String fileUrl) {if (StringUtils.isEmpty(fileUrl)) {return;}try {StorePath storePath = StorePath.parseFromUrl(fileUrl);storageClient.deleteFile(storePath.getGroup(), storePath.getPath());} catch (FdfsUnsupportStorePathException e) {System.out.println(e.getMessage());// TODO 只是测试，所以未使用，logger，正式环境请修改打印方式}}/*** 下载文件** @param fileUrl 文件URL* @return 文件字节* @throws IOException*/public byte[] downloadFile(String fileUrl) throws IOException {String group = fileUrl.substring(0, fileUrl.indexOf("/"));String path = fileUrl.substring(fileUrl.indexOf("/") + 1);DownloadByteArray downloadByteArray = new DownloadByteArray();byte[] bytes = storageClient.downloadFile(group, path, downloadByteArray);return bytes;}}

5、创建Conttoler测试类

5.1 文件上传测试

@RestController
@RequestMapping("/file")
public class FileUploadController {@Autowiredprivate FastDFSClient fastDFSClient;/*** 上传* @param file* @return* @throws IOException*/@RequestMapping("/upload")public String uploadFile(MultipartFile file) throws IOException {return fastDFSClient.uploadFile(file);}}

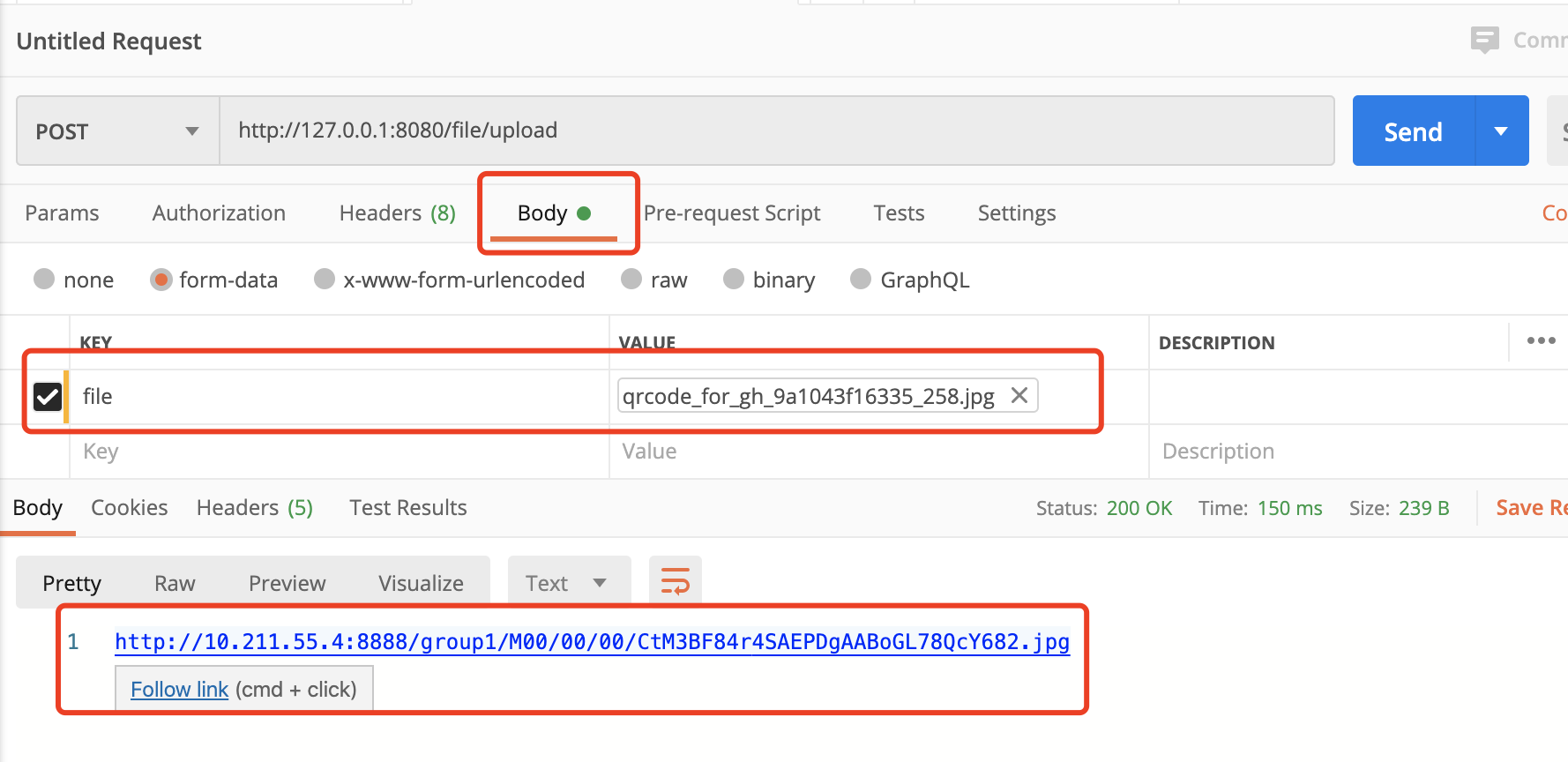

执行效果截图：

5.2、下载文件测试

@RestController
@RequestMapping("/file")
public class FileUploadController {@Autowiredprivate FastDFSClient fastDFSClient;/*** 下载* @param fileUrl* @param response* @throws IOException*/@RequestMapping("/download")public void downloadFile(String fileUrl, HttpServletResponse response) throws IOException {byte[] bytes = fastDFSClient.downloadFile(fileUrl);// TODO 这里只是为了整合fastdfs，所以写死了文件格式。需要在上传的时候保存文件名。下载的时候使用对应的格式response.setHeader("Content-disposition", "attachment;filename=" + URLEncoder.encode("sb.xlsx", "UTF-8"));response.setCharacterEncoding("UTF-8");ServletOutputStream outputStream = null;try {outputStream = response.getOutputStream();outputStream.write(bytes);} catch (IOException e) {e.printStackTrace();} finally {try {outputStream.flush();outputStream.close();} catch (IOException e) {e.printStackTrace();}}}}

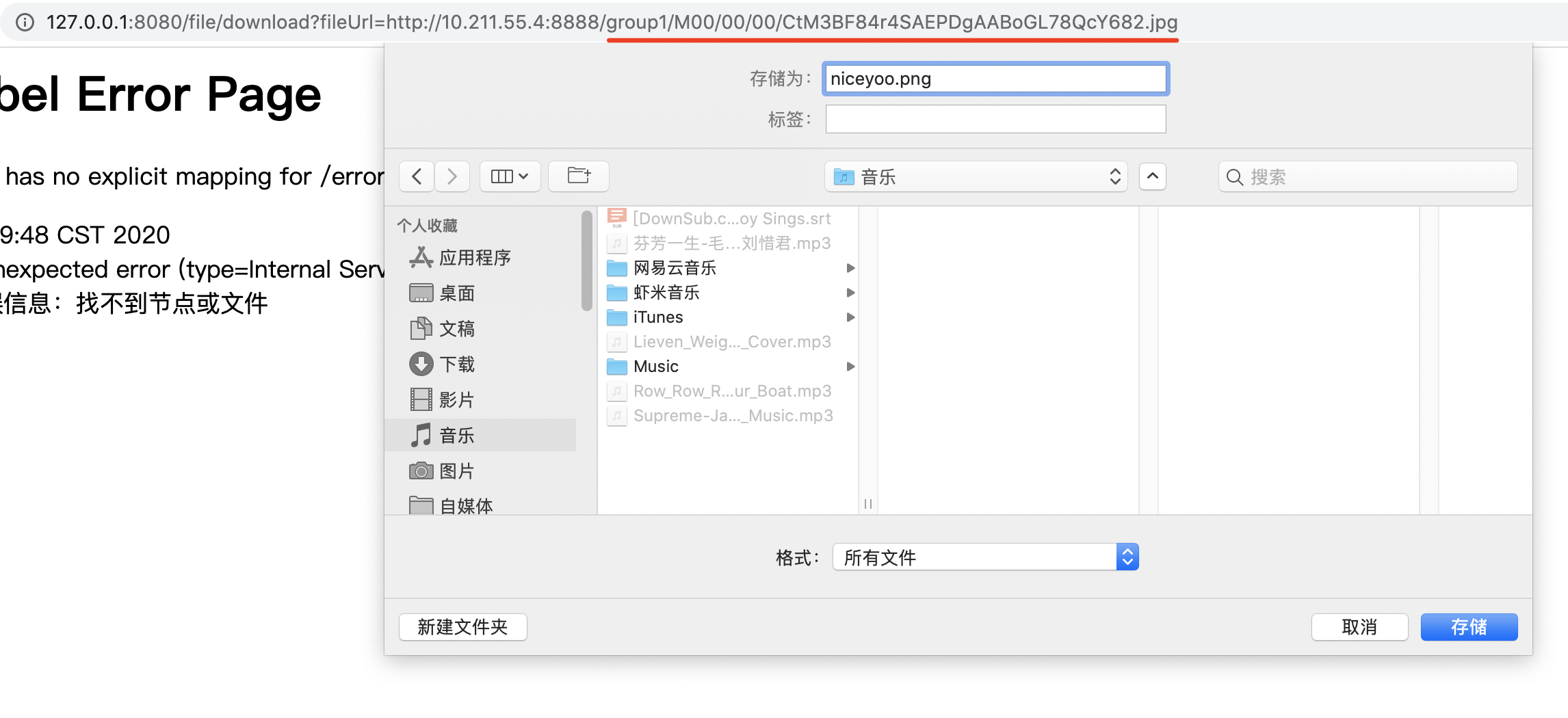

测试下载路径：

http://127.0.0.1:8080/file/download?fileUrl=group1/M00/00/00/CtM3BF84r4SAEPDgAABoGL78QcY682.jpg

拼接的参数为：group1/M00/00/00/CtM3BF84r4SAEPDgAABoGL78QcY682.jpg

大家想修改路径的话，需要同步修改 downloadFile() 方法里的分隔方式。
