在这三部分的博客中跟随了演示之后，您将能够： (After following along with the demos in this three part blog you will be able to:)

• Understand how you and your Data Science teams can improve your MLOps practices using MLflow
  了解您和您的数据科学团队如何使用MLflow改进您的MLOps实践
• Use all the Components of MLflow (Tracking, Projects, Models, Registry)
  使用MLflow的所有组件(跟踪，项目，模型，注册表)
• Use MLflow in an Anaconda Environment
  在Anaconda环境中使用MLflow
• Use MLflow in a Docker Environment (Including running an IDE inside of a container)
  在Docker环境中使用MLflow(包括在容器内运行IDE)
• Use Postgres Backend Store and Minio Artifact Store for Easy Collaboration
  使用Postgres后端商店和Minio Artifact商店进行轻松协作

The instructions and demos below assume you are using a Mac OSX operating system. Other operating systems can be used with minor modifications.

以下说明和演示假定您使用的是Mac OSX操作系统。 其他操作系统可以稍作修改即可使用。

目录： (Table of Contents:)

Part 1: Anaconda Environment

第1部分：Anaconda环境

1. What is MLflow and Why Should You Use It?

   什么是MLflow？为什么要使用它？

2. Using MLflow with a Conda Environment

   在Conda环境中使用MLflow

1.什么是MLflow，为什么要使用它？ (1. What is MLflow and Why Should You Use It?)

基本概念 (Basic Concepts)

MLflow is an MLOps tool that can be used to increase the efficiency of machine learning experimentation and productionalization. MLflow is organized into four components (Tracking, Projects, Models, and Registry). You can use each of these components on their own but they are designed to work well together. MLflow is designed to work with any machine learning library, determine most things about your code by convention, and require minimal changes to integrate into an existing codebase. It aims to take any codebase written in its format and make it reproducible and reusable by multiple data scientists. MLflow lets you train, reuse, and deploy models with any library and package them into reproducible steps that other data scientists can use as a “black box”, without even having to know which library you are using.

MLflow是一种MLOps工具，可用于提高机器学习实验和生产化的效率。 MLflow被组织为四个组件(跟踪，项目，模型和注册表)。 您可以单独使用这些组件中的每个组件，但是它们被设计为可以很好地协同工作。 MLflow旨在与任何机器学习库一起使用，按照约定确定有关代码的大多数内容，并且只需进行最小的更改即可集成到现有代码库中。 它旨在获取以其格式编写的任何代码库，并使其可被多个数据科学家复制和重用。 MLflow允许您使用任何库来训练，重用和部署模型，并将它们打包为可重复的步骤，其他数据科学家可以将其用作“黑匣子”，而不必知道您使用的是哪个库。

机器学习中的生产力挑战 (Productivity Challenges in Machine Learning)

It is difficult to keep track of experiments

很难跟踪实验

If you are just working with a script or notebook, how do you tell which data, code, and parameters went into getting a particular model result?

如果您只是在使用脚本或笔记本，那么如何确定获取特定模型结果的数据，代码和参数呢？

It is difficult to reproduce code

难以复制代码

Even if you have meticulously tracked the code versions and parameters, you need to capture the whole environment (e.g. library dependencies) to get the same result. This is especially challenging if you want another data scientist to use your code, or if you want to run the same code at scale on another platform (e.g. in the cloud).

即使您已经仔细跟踪了代码版本和参数，也需要捕获整个环境(例如，库依赖项)才能获得相同的结果。 如果您想让另一个数据科学家使用您的代码，或者想在另一个平台(例如，在云中)上大规模运行相同的代码，则这尤其具有挑战性。

There’s no standard way to package and deploy models

没有打包和部署模型的标准方法

Every data science team comes up with its own approach for each ML library it uses, and the link between a model and the code and parameters that produced it is often lost.

每个数据科学团队都会针对其使用的每个ML库提出自己的方法，并且模型与产生该模型的代码和参数之间的链接通常会丢失。

There is no central store to manage models (their version and stage transitions)

没有中央存储来管理模型(它们的版本和阶段转换)

A data science team creates many models. In the absence of a central place to collaborate and manage model lifecycle, data science teams face challenges in how they manage models and stages.

数据科学团队会创建许多模型。 在缺乏协作和管理模型生命周期的中心位置的情况下，数据科学团队在如何管理模型和阶段方面面临挑战。

MLflow组件 (MLflow Components)

MLflow Tracking

MLflow追踪

This is an API and UI for logging parameters, code versions, metrics, and artifacts when running your machine learning code and later for visualizing results. You can use MLflow Tracking in any environment (e.g. script or notebook) to log results to local files or to a server, then compare multiple runs. Teams can use MLflow tracking to compare results from different users.

这是一个API和UI，用于在运行机器学习代码时记录参数，代码版本，指标和工件，并在以后用于可视化结果。 您可以在任何环境(例如脚本或笔记本)中使用MLflow Tracking将结果记录到本地文件或服务器中，然后比较多次运行。 团队可以使用MLflow跟踪来比较不同用户的结果。

MLflow Projects

MLflow项目

MLflow Projects are a standard format for packaging reusable data science code. Each project is simply a directory with code, and uses a descriptor file to specify its dependencies and how to run the code. For example, a project can contain a conda.yaml for specifying a Python Anaconda environment.

MLflow项目是用于包装可重用数据科学代码的标准格式。 每个项目只是一个包含代码的目录，并使用描述符文件指定其依赖关系以及如何运行代码。 例如，一个项目可以包含conda.yaml用于指定Python Anaconda环境。

MLflow Models

MLflow模型

MLflow Models offer a convention for packaging machine learning models in multiple flavors, and a variety of tools to help deploy them. Each model is saved as a directory containing arbitrary files and a descriptor file that lists several “flavors” the model can be used in. For example, a Tensorflow model can be loaded as a TensorFlow DAG, or as a python function to apply to input data.

MLflow模型提供了一种用于包装多种形式的机器学习模型的约定，并提供了多种工具来帮助部署它们。 每个模型都保存为包含任意文件的目录和一个描述符文件，该文件列出了可以在其中使用的几种“样式”。例如，可以将Tensorflow模型作为TensorFlow DAG加载，或者作为python函数加载到输入中数据。

MLflow Registry

MLflow注册表

MLflow Registry offers a centralized model store, set of APIs, and UI, to collaboratively manage the full lifecycle of a MLflow model. It provides model lineage (which MLflow experiment and run produced the model), model versioning, stage transitions (for example from staging to production or archiving), and annotations.

MLflow Registry提供了一个集中的模型存储，一组API和UI，以协作管理MLflow模型的整个生命周期。 它提供模型沿袭(由MLflow实验并运行以生成模型)，模型版本控制，阶段过渡(例如，从登台到生产或归档)和注释。

可扩展性和大数据 (Scalability and Big Data)

An individual MLflow run can execute on a distributed cluster. You can launch runs on the distributed infrastructure of your choice and report results to a tracking server to compare them.

单个MLflow运行可以在分布式集群上执行。 您可以在您选择的分布式基础架构上启动运行，并将结果报告给跟踪服务器以进行比较。

MLflow supports launching multiple runs in parallel with different parameters, for example for hyperparameter tuning. You can use the Projects API to start multiple runs and the tracking API to track them.

MLflow支持并行启动具有不同参数的多个运行，例如用于超参数调整。 您可以使用Projects API来启动多个运行，并使用跟踪API来跟踪它们。

MLflow Projects can take input from, and write output to, distributed storage systems such as AWS S3. This means that you can write projects that build large datasets, such as featurizing a 100TB file.

MLflow项目可以从分布式存储系统(例如AWS S3)中获取输入，或将输出写入到其中。 这意味着您可以编写构建大型数据集的项目，例如将100TB文件特征化。

MLflow Model Registry offers large organizations a central hub to collaboratively manage a complete model lifecycle. Many data science teams within an organization develop hundreds of models, each model with its experiments, runs, versions, artifacts, and stage transitions.

MLflow Model Registry为大型组织提供了一个中心枢纽，以协作管理一个完整的模型生命周期。 组织中的许多数据科学团队都会开发数百个模型，每个模型都包含其实验，运行，版本，工件和阶段转换。

用例范例 (Example Use Cases)

Individual Data Scientists

个人数据科学家

Individual data scientists can use MLflow Tracking to track experiments locally on their machine, organize code in projects for future reuse, and output models that production engineers can then deploy using MLflow’s deployment tools.

单个数据科学家可以使用MLflow跟踪来在其计算机上本地跟踪实验，组织项目中的代码以供将来重用，以及输出模型，生产工程师可以使用MLflow的部署工具进行部署。

Data Science Teams

数据科学团队

Data science teams can deploy an MLflow Tracking server to log and compare results across multiple users working on the same problem (and experimenting with different models). Anyone can download and run another team member’s model.

数据科学团队可以部署MLflow跟踪服务器，以记录和比较处理同一问题(并尝试不同模型)的多个用户的结果。 任何人都可以下载并运行其他团队成员的模型。

Large Organizations

大型组织

Large organizations can share projects, models, and results. Any team can run another team’s code using MLflow Projects, so organizations can package useful training and data preparation steps that another team can use, or compare results from many teams on the same task. Engineering teams can easily move workflows from R&D to staging to production.

大型组织可以共享项目，模型和结果。 任何团队都可以使用MLflow项目来运行另一个团队的代码，因此组织可以打包另一个团队可以使用的有用的培训和数据准备步骤，或者比较来自多个团队在同一任务上的结果。 工程团队可以轻松地将工作流程从研发转移到生产到生产。

Production Engineers

生产工程师

Production engineers can deploy models from diverse ML libraries in the same way, store the models as files in a management system of their choice, and track which run a model came from.

生产工程师可以以相同的方式从各种ML库中部署模型，将模型存储为文件到他们选择的管理系统中，并跟踪运行模型的来源。

Researchers and Open Source Developers

研究人员和开源开发人员

Researchers and open source developers can publish code to GitHub in the MLflow project format, making it easy for anyone to run their code by pointing the mlflow run command directly to GitHub.

研究人员和开源开发人员可以以MLflow项目格式将代码发布到GitHub，从而使任何人都可以通过将mlflow run命令直接指向GitHub来轻松运行其代码。

ML Library Developers

ML库开发人员

ML library developers can output models in the MLflow Model format to have them automatically support deployment using MLflow’s built in tools. Deployment tool developers (for example, a cloud vendor building a servicing platform) can automatically support a large variety of models.

ML库开发人员可以使用MLflow Model格式输出模型，以使其使用MLflow的内置工具自动支持部署。 部署工具开发人员(例如，构建服务平台的云供应商)可以自动支持多种模型。

2.在Conda环境中使用MLflow (2. Using MLflow with a Conda Environment)

In this section we cover how to use the various features of MLflow with an Anaconda environment.

在本节中，我们介绍如何在Anaconda环境中使用MLflow的各种功能。

设置教程 (Setting up for the Tutorial)

1. Make sure you have Anaconda installed
   确保已安装Anaconda
2. Install a tool for installing programs (I use Homebrew)
   安装用于安装程序的工具(我使用Homebrew)

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/master/install.sh)"

3. Install Git

3.安装Git

brew install git

4. Clone the repository

4.克隆存储库

git clone https://github.com/Noodle-ai/mlflow_part1_condaEnv.git

5. Create a conda environment from the conda.yaml file and activate

5.从conda.yaml文件创建一个conda.yaml环境并激活

conda env create --file conda.yaml
conda activate mlflow_demos

If, instead of using the conda.yaml to set up your environment, you wanted to create an environment from scratch use the following commands to create your own conda.yaml.

如果要从头创建环境而不是使用conda.yaml来设置环境，请使用以下命令来创建自己的conda.yaml 。

conda create --name mlflow_demos python=3.8.3
conda activate mlflow_demos
conda install -c anaconda jupyter=1.0.0
conda install -c conda-forge mlflow=1.8.0
conda install scikit-learn=0.22.1
conda install -c anaconda psycopg2=2.8.5
conda install -c anaconda boto3=1.14.12
conda env export --name mlflow_demos > conda.yaml

例子 (Examples)

Open experiment.ipynb and follow along. The notebook contains examples demonstrating how to use MLflow Tracking and MLflow Models. It also contains descriptions of how to use MLflow Projects.

打开experiment.ipynb然后继续。 笔记本中包含一些示例，这些示例演示了如何使用MLflow跟踪和MLflow模型。 它还包含有关如何使用MLflow项目的描述。

Using the Tracking API

使用Tracking API

The MLflow Tracking API lets you log metrics and artifacts (files from your data science code) in order to track a history of your runs.

MLflow Tracking API使您可以记录指标和工件(数据科学代码中的文件)，以便跟踪运行历史。

The code below logs a run with one parameter (param1), one metric (foo) with three values (1,2,3), and an artifact (a text file containing “Hello world!”).

下面的代码使用一个参数(param1)，一个带有三个值(1,2,3)的度量(foo)和一个工件(一个包含“ Hello world！”的文本文件)记录一次运行。

import mlflow
mlflow.start_run()
# Log a parameter (key-value pair)
mlflow.log_param("param1", 5)
# Log a metric; metrics can be updated throughout the run
mlflow.log_metric("foo", 1)
mlflow.log_metric("foo", 2)
mlflow.log_metric("foo", 3)
# Log an artifact (output file)
with open("output.txt", "w") as f:
    f.write("Hello world!")
mlflow.log_artifact("output.txt")
mlflow.end_run()

Viewing the Tracking UI

查看跟踪界面

By default, wherever you run your program, the tracking API writes data into a local ./mlruns directory. You can then run MLflow’s Tracking UI.

默认情况下，无论您在哪里运行程序，跟踪API都会将数据写入本地./mlruns目录。 然后，您可以运行MLflow的跟踪UI。

Activate the MLflow Tracking UI by typing the following into the terminal. You must be in the same folder as mlruns.

通过在终端中输入以下内容来激活MLflow跟踪UI。 您必须与mlruns位于同一文件夹中。

mlflow ui

View the tracking UI by visiting the URL returned by the previous command.

通过访问上一个命令返回的URL来查看跟踪UI。

Click on the run to see more details

单击运行以查看更多详细信息

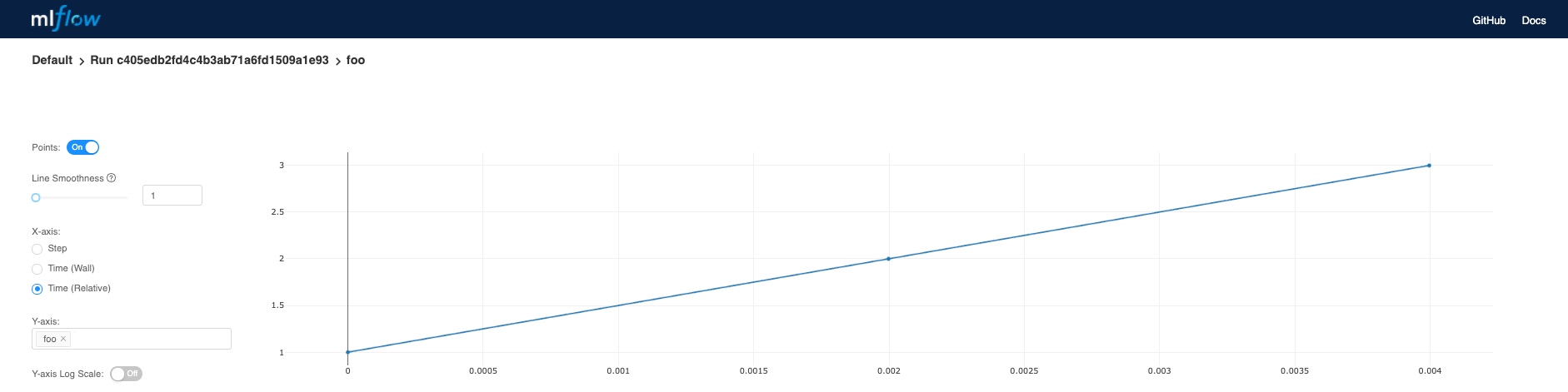

Click on the metric to see more details.

单击该指标以查看更多详细信息。

合并MLflow跟踪，MLflow模型和MLflow项目的示例 (Example Incorporating MLflow Tracking, MLflow Models, and MLflow Projects)

In this example MLflow Tracking is used to keep track of different hyperparameters, performance metrics, and artifacts of a linear regression model. MLflow Models is used to store the pickled trained model instance, a file describing the environment the model instance was created in, and a descriptor file that lists several “flavors” the model can be used in. MLflow Projects is used to package the training code. And lastly MLflow Models is used to deploy the model to a simple HTTP server.

在此示例中，MLflow跟踪用于跟踪线性回归模型的不同超参数，性能指标和工件。 MLflow Models用于存储腌制的经过训练的模型实例，描述该模型实例在其中创建的环境的文件以及一个可以使用该模型的列出了几种“风味”的描述符文件。MLflow Projects用于打包训练代码。 最后，MLflow模型用于将模型部署到简单的HTTP服务器。

This tutorial uses a dataset to predict the quality of wine based on quantitative features like the wine’s “fixed acidity”, “pH”, “residual sugar”, and so on. The dataset is from UCI’s machine learning repository.

本教程使用数据集基于定量特征(如葡萄酒的“固定酸度”，“ pH”，“残糖”等)来预测葡萄酒的质量。 数据集来自UCI的机器学习存储库。

Training the Model

训练模型

First, we train the linear regression model that takes two hyperparameters: alpha and l1_ratio.

首先，我们训练具有两个超参数的线性回归模型：alpha和l1_ratio。

This example uses the familiar pandas, numpy, and sklearn APIs to create a simple machine learning model. The MLflow Tracking APIs log information about each training run like hyperparameters (alpha and l1_ratio) used to train the model, and metrics (root mean square error, mean absolute error, and r2) used to evaluate the model. The example also serializes the model in a format that MLflow knows how to deploy.

本示例使用熟悉的pandas，numpy和sklearn API创建简单的机器学习模型。 MLflow跟踪API记录有关每次训练运行的信息，例如用于训练模型的超参数(alpha和l1_ratio)以及用于评估模型的指标(均方根误差，均值绝对误差和r2)。 该示例还以MLflow知道如何部署的格式序列化了模型。

Each time you run the example MLflow logs information about your experiment runs in the directory mlruns.

每次运行示例MLflow时，都会在目录mlruns记录有关实验运行的信息。

There is a script containing the training code called train.py. You can run the example through the .py script using the following command.

有一个包含训练代码的脚本，名为train.py 。 您可以使用以下命令通过.py脚本运行示例。

python train.py <alpha> <l1_ratio>

There is also a notebook function of the training script. You can use the notebook to run the training (train() function shown below).

培训脚本还具有笔记本功能。 您可以使用笔记本计算机运行训练(如下所示的train()函数)。

# Wine Quality Sampledef train(in_alpha, in_l1_ratio):
    import pandas as pd
    import numpy as np
    from sklearn.metrics import mean_squared_error, \
        mean_absolute_error, r2_score
    from sklearn.model_selection import train_test_split
    from sklearn.linear_model import ElasticNet
    import mlflow
    import mlflow.sklearn    def eval_metrics(actual, pred):
        rmse = np.sqrt(mean_squared_error(actual, pred))
        mae = mean_absolute_error(actual, pred)
        r2 = r2_score(actual, pred)
        return rmse, mae, r2    np.random.seed(40)    # Read the wine-quality csv file from the URL
    csv_url =\
        'http://archive.ics.uci.edu/ml/machine-learning-databases/wine-quality/winequality-red.csv'
    data = pd.read_csv(csv_url, sep=';')    # Split the data into training and test sets (0.75, 0.25) split
    train, test = train_test_split(data)
    # The predicted column is "quality" which is a scalar [3, 9]
    train_x = train.drop(["quality"], axis=1)
    test_x = test.drop(["quality"], axis=1)
    train_y = train[["quality"]]
    test_y = test[["quality"]]
    # Set default values if no alpha is provided
    if float(in_alpha) is None:
        alpha = 0.5
    else:
        alpha = float(in_alpha)
    # Set default values if no l1_ratio is provided
    if float(in_l1_ratio) is None:
        l1_ratio = 0.5
    else:
        l1_ratio = float(in_l1_ratio)
    # Useful for multiple runs
    with mlflow.start_run():
        # Execute ElasticNet
        lr = ElasticNet(
            alpha=alpha,
            l1_ratio=l1_ratio,
            random_state=42
        )
        lr.fit(train_x, train_y)
        # Evaluate Metrics
        predicted_qualities = lr.predict(test_x)
        (rmse, mae, r2) = eval_metrics(test_y, predicted_qualities)
        # Print out metrics
        print("Elasticnet model (alpha=%f, l1_ratio=%f):" % (alpha, l1_ratio))
        print("  RMSE: %s" % rmse)
        print("  MAE: %s" % mae)
        print("  R2: %s" % r2)
        # Log parameter, metrics, and model to MLflow
        mlflow.log_param("alpha", alpha)
        mlflow.log_param("l1_ratio", l1_ratio)
        mlflow.log_metric("rmse", rmse)
        mlflow.log_metric("r2", r2)
        mlflow.log_metric("mae", mae)
        mlflow.sklearn.log_model(lr, "model")

Comparing the Models

比较模型

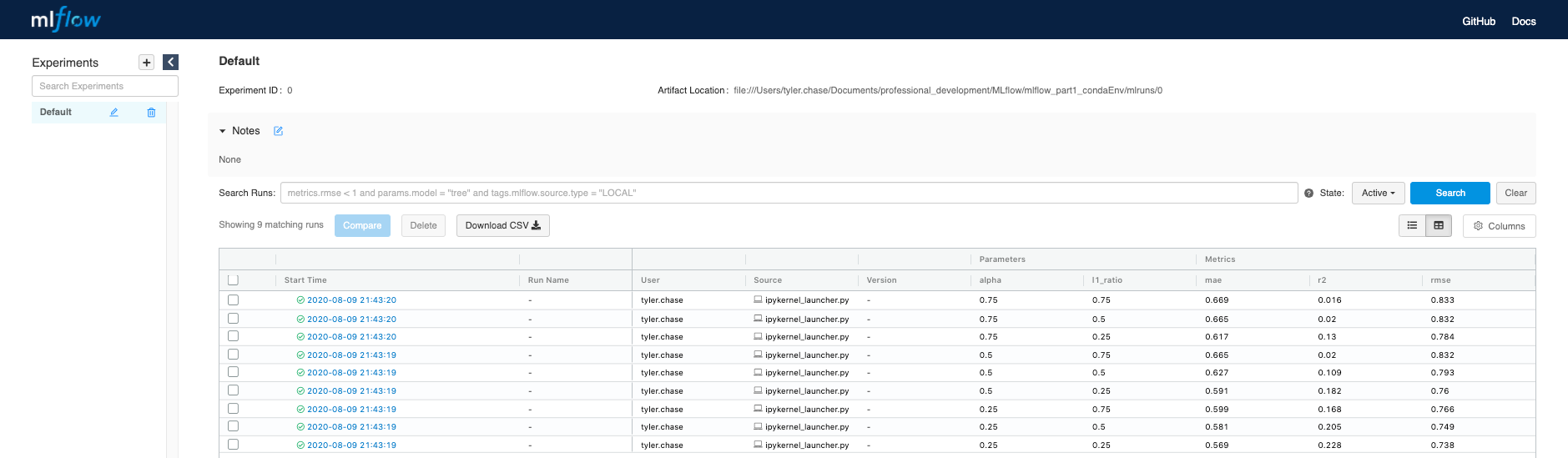

Use the MLflow UI (as described above) to compare the models that you have produced.

使用MLflow UI(如上所述)比较您生成的模型。

You can use the search feature to quickly filter out many models. For example the query (metrics.rmse < 0.8) returns all of the models with root mean square error less than 0.8. For more complex manipulations, you can download this table as a CSV and use your favorite data munging software to analyze it.

您可以使用搜索功能快速筛选出许多模型。 例如，查询(metrics.rmse <0.8)返回均方根误差小于0.8的所有模型。 对于更复杂的操作，您可以将该表下载为CSV，并使用自己喜欢的数据处理软件对其进行分析。

Loading a Saved Model

加载保存的模型

After a model has been saved using MLflow Models within MLflow Tracking you can easily load the model in a variety of flavors (python_function, sklearn, etc.). We need to choose a model from the mlruns folder for the model path.

使用MLflow Tracking中的MLflow模型保存模型后，您可以轻松加载各种样式的模型(python_function，sklearn等)。 我们需要从mlruns文件夹中选择一个模型作为模型路径。

model_path = './mlruns/0/<run_id>/artifacts/model'
mlflow.<model_flavor>.load_model(modelpath)

Packaging the Training Code in a Conda Env with MLflow Projects

将培训代码与MLflow项目打包在Conda Env中

Now that you have your training code, you can package it so that other data scientists can easily reuse the training script, or so that you can run the training remotely.

现在您有了培训代码，可以打包它，以便其他数据科学家可以轻松地重用培训脚本，或者可以远程运行培训。

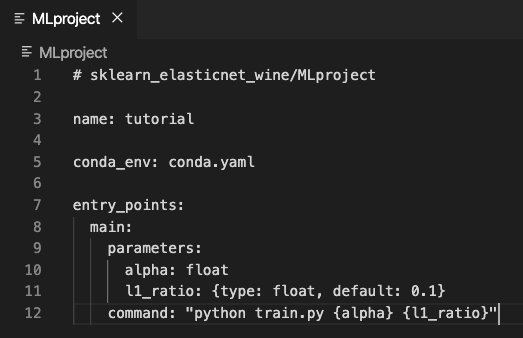

You do this by using MLflow Projects to specify the dependencies and entry points to your code. The MLproject file specifies the project has the dependencies located in a Conda environment (defined by conda.yaml) and has one entry point (train.py) that takes two parameters: alpha and l1_ratio.

您可以通过使用MLflow Projects指定代码的依赖项和入口点来实现。 MLproject文件指定该项目具有位于Conda环境(由conda.yaml定义)中的依赖项，并具有一个入口点( train.py )，该入口点train.py两个参数：alpha和l1_ratio。

To run this project use mlflow run on the folder containing the MLproject file.

要运行此项目，请在包含MLproject文件的文件夹上mlflow run mlflow。

mlflow run . -P alpha=1.0 -P l1_ratio=1.0

After running this command, MLflow runs your training code in a new Conda environment with the dependencies specified in conda.yaml.

运行此命令后，MLflow运行在一个新conda环境中指定的依赖你的训练码conda.yaml 。

If a repository has an MLproject file you can also run a project directly from GitHub. This tutorial lives in the https://github.com/Noodle-ai/mlflow_part1_condaEnv repository which you can run with the following command. The symbol “#” can be used to move into a subdirectory of the repo. The “ — version” argument can be used to run code from a different branch.

如果存储库中有MLproject文件，您也可以直接从GitHub运行项目。 本教程位于https://github.com/Noodle-ai/mlflow_part1_condaEnv存储库中，您可以使用以下命令运行该存储库。 符号“＃”可用于移至存储库的子目录。 “ — version”自变量可用于从其他分支运行代码。

mlflow run https://github.com/Noodle-ai/mlflow_part1_condaEnv -P alpha=1.0 -P l1_ratio=0.8

Serving the Model

服务模型

Now that you have packaged your model using the MLproject convention and have identified the best model, it is time to deploy the model using MLflow Models. An MLflow Model is a standard format for packaging machine learning models that can be used in a variety of downstream tools — for example, real-time serving through a REST API or batch inference on Apache Spark.

既然您已经使用MLproject约定打包了模型并确定了最佳模型，那么现在该使用MLflow Models部署模型了。 MLflow模型是包装机器学习模型的标准格式，可以在多种下游工具中使用，例如，通过REST API进行实时服务或在Apache Spark上进行批量推断。

In the example training code above, after training the linear regression model, a function in MLflow saved the model as an artifact within the run.

在上面的示例训练代码中，在训练了线性回归模型之后，MLflow中的一个函数在运行中将模型另存为工件。

mlflow.sklearn.log_model(lr, "model")

To view this artifact, you can use the UI again. When you click a date in the list of experiment runs you’ll see this page.

要查看此工件，可以再次使用UI。 当您点击实验运行列表中的日期时，您会看到此页面。

At the bottom, you can see the call to mlflow.sklearn.log_model produced three files in ./mlruns/0/<run_id>/artifacts/model. The first file, MLmodel, is a metadata file that tells MLflow how to load the model. The second file is a conda.yaml that contains the model dependencies from the Conda environment. The third file, model.pkl, is a serialized version of the linear regression model that you trained.

在底部，你可以看到呼叫mlflow.sklearn.log_model中产生的三个文件./mlruns/0/<run_id>/artifacts/model 。 第一个文件MLmodel是元数据文件，它告诉MLflow如何加载模型。 第二个文件是conda.yaml ，其中包含来自Conda环境的模型依赖项。 第三个文件model.pkl是您训练的线性回归模型的序列化版本。

In this example, you can use this MLmodel format with MLflow to deploy a local REST server that can serve predictions.

在此示例中，您可以将此MLmodel格式与MLflow一起使用，以部署可以提供预测的本地REST服务器。

To deploy the server, run the following command.

要部署服务器，请运行以下命令。

mlflow models serve -m ./mlruns/0/<run_id>/artifacts/model -p 1234

Note: The version of Python used to create the model must be the same as the one running mlflow models serve. If this is not the case, you may see the error UnicodeDecodeError: ‘ascii’ codec can’t decode byte 0x9f in position 1: ordinal not in range(128) or raise ValueError, “unsupported pickle protocol: %d”.

注意：用于创建模型的Python版本必须与运行mlflow models serve的版本相同。 如果不是这种情况，您可能会看到错误UnicodeDecodeError: 'ascii' codec can't decode byte 0x9f in position 1: ordinal not in range(128) or raise ValueError, “unsupported pickle protocol: %d” 。

Once you have deployed the server, you can pass it some sample data and see the predictions. The following example uses curl to send a JSON-serialized pandas DataFrame with the split orientation to the model server. For more information about the input data formats accepted by the model server, see the MLflow deployment tools documentation.

部署服务器后，可以向其传递一些示例数据并查看预测。 以下示例使用curl将具有拆分方向的JSON序列化的熊猫DataFrame发送到模型服务器。 有关模型服务器接受的输入数据格式的更多信息，请参阅MLflow部署工具文档 。

curl -X POST -H "Content-Type:application/json; format=pandas-split" --data '{"columns":["alcohol", "chlorides", "citric acid", "density", "fixed acidity", "free sulfur dioxide", "pH", "residual sugar", "sulphates", "total sulfur dioxide", "volatile acidity"],"data":[[12.8, 0.029, 0.48, 0.98, 6.2, 29, 3.33, 1.2, 0.39, 75, 0.66]]}' http://127.0.0.1:1234/invocations

The server should respond with output similar to:

服务器应使用类似于以下内容的输出进行响应：

[3.7783608837127516]
