使用ActiveMQ –具有故障转移协议的“主/从”配置

介绍

ActiveMQ代理往往是企业中消息传递基础结构的核心部分。此消息传递基础结构的高度可用性和可伸缩性至关重要。请阅读此链接，以了解有关创建经纪人网络以支持各种用例的更多信息。 ActiveMQ的流行用例之一是带有共享数据库的主/从配置。使用此配置时，消息使用者和生产者可以使用不带有中断转移协议的ActiveMQ的连接工厂来不受干扰地进行操作。当从属ActiveMQ节点接管成为主节点时，故障转移协议使使用者和生产者不必处理任何潜在的停机时间或应用程序级别的重新连接逻辑，如果当前主节点由于任何原因而发生故障，该故障转移协议就会发生。我必须警告，不得使用此配置来掩盖掉主节点的任何问题。我们应该消除导致计划外主节点中断的任何原因。

总览

在此博客中，我将演示以下内容：

在具有共享的基于KahaDB文件的数据库的主/从配置中运行2个ActiveMQ节点。
将托管在Tomcat实例中的ActiveMQ Web控制台配置为指向群集中的哪个节点为主节点。
故障转移方案。
故障转移忽略的消息发布者和使用者行为。

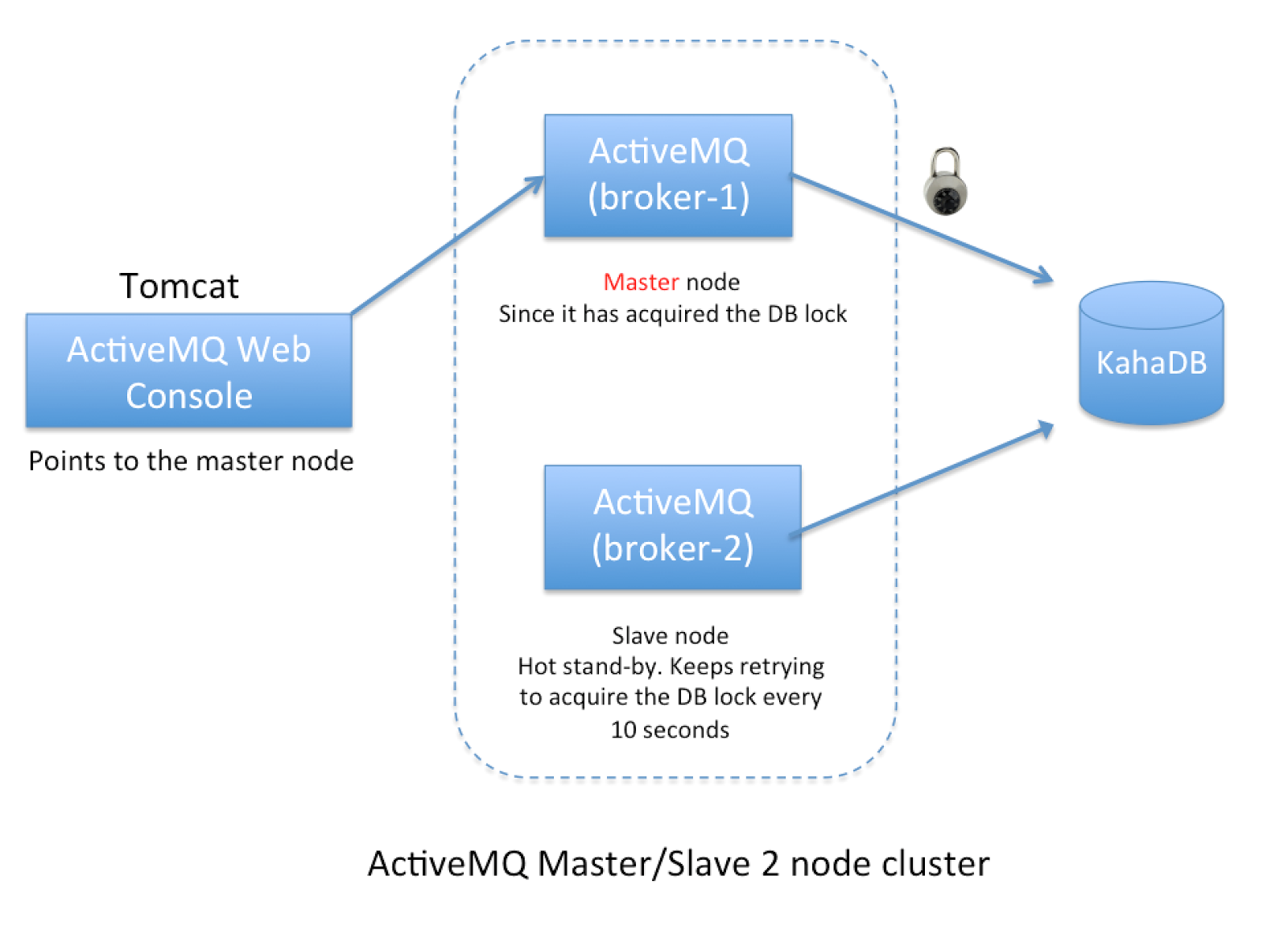

屏幕截图2013年7月9日下午11.59.29

先决条件

安装ActiveMQ版本5.8.0
从此处下载ActiveMQ版本5.8.0 Web控制台之战
安装Tomcat版本7.0.35 –承载ActiveMQ Web控制台应用程序

深潜

我们将在同一台Windows 7计算机上创建一个2节点ActiveMQ群集。我们将需要配置端口（TCP和JMX），以便没有冲突。 ActiveMQ提供了一个名为“ activemq-admin.bat”的脚本，该脚本可帮助使用相同的二进制文件（类似于Tomcat）运行ActiveMQ的多个实例。让我们继续创建broker-1和broker-2实例。

命令： activemq-admin创建<DIR-for-ActiveMQ-node>

C:\apache-activemq-5.8.0\bin>activemq-admin create ..\cluster\broker-1Java Runtime: Sun Microsystems Inc. 1.6.0_31 C:\Program Files\Java\jdk1.6.0_31\jreHeap sizes: current=125632k  free=124976k  max=1864192kJVM args: -Dactivemq.classpath=C:\apache-activemq-5.8.0\bin\..\conf;C:\apache-activemq-5.8.0\bin\..\data; -Dactivemq.home=C:\apache-activemq-5.8.0
\bin\.. -Dactivemq.base=C:\apache-activemq-5.8.0\bin\.. -Dactivemq.data=C:\apache-activemq-5.8.0\bin\..\data -Djava.io.tmpdir=C:\apache-activemq-5.8.0
\bin\..\data\tmp -Dactivemq.conf=C:\apache-activemq-5.8.0\bin\..\conf
Extensions classpath:[C:\apache-activemq-5.8.0\bin\..\lib,C:\apache-activemq-5.8.0\bin\..\lib\camel,C:\apache-activemq-5.8.0\bin\..\lib\optional,C:\apache-activemq-5.8.0
\bin\..\lib\web,C:\apache-activemq-5.8.0\bin\..\lib\extra]
ACTIVEMQ_HOME: C:\apache-activemq-5.8.0\bin\..
ACTIVEMQ_BASE: C:\apache-activemq-5.8.0\bin\..
ACTIVEMQ_CONF: C:\apache-activemq-5.8.0\bin\..\conf
ACTIVEMQ_DATA: C:\apache-activemq-5.8.0\bin\..\data
Running create broker task...
Creating directory: C:\apache-activemq-5.8.0\cluster\broker-1
Creating directory: C:\apache-activemq-5.8.0\cluster\broker-1\bin
Creating directory: C:\apache-activemq-5.8.0\cluster\broker-1\conf
Creating new file: C:\apache-activemq-5.8.0\cluster\broker-1\bin\broker-1.bat
Creating new file: C:\apache-activemq-5.8.0\cluster\broker-1\bin\broker-1
Copying from: C:\apache-activemq-5.8.0\conf\activemq.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-command.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-command.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-demo.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-demo.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-dynamic-network-broker1.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-dynamic-network-broker1.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-dynamic-network-broker2.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-dynamic-network-broker2.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-jdbc.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-jdbc.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-scalability.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-scalability.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-security.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-security.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-specjms.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-specjms.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-static-network-broker1.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-static-network-broker1.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-static-network-broker2.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-static-network-broker2.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-stomp.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-stomp.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-throughput.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-throughput.xml
Copying from: C:\apache-activemq-5.8.0\conf\broker-localhost.certto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\broker-localhost.cert
Copying from: C:\apache-activemq-5.8.0\conf\broker.ksto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\broker.ks
Copying from: C:\apache-activemq-5.8.0\conf\broker.tsto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\broker.ts
Copying from: C:\apache-activemq-5.8.0\conf\camel.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\camel.xml
Copying from: C:\apache-activemq-5.8.0\conf\client.ksto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\client.ks
Copying from: C:\apache-activemq-5.8.0\conf\client.tsto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\client.ts
Copying from: C:\apache-activemq-5.8.0\conf\credentials-enc.propertiesto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\credentials-enc.properties
Copying from: C:\apache-activemq-5.8.0\conf\credentials.propertiesto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\credentials.properties
Copying from: C:\apache-activemq-5.8.0\conf\jetty-demo.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\jetty-demo.xml
Copying from: C:\apache-activemq-5.8.0\conf\jetty-realm.propertiesto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\jetty-realm.properties
Copying from: C:\apache-activemq-5.8.0\conf\jetty.xmlto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\jetty.xml
Copying from: C:\apache-activemq-5.8.0\conf\jmx.accessto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\jmx.access
Copying from: C:\apache-activemq-5.8.0\conf\jmx.passwordto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\jmx.password
Copying from: C:\apache-activemq-5.8.0\conf\log4j.propertiesto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\log4j.properties
Copying from: C:\apache-activemq-5.8.0\conf\logging.propertiesto: C:\apache-activemq-5.8.0\cluster\broker-1\conf\logging.properties

现在让我们创建broker-2实例…

C:\apache-activemq-5.8.0\bin>activemq-admin create ..\cluster\broker-2Java Runtime: Sun Microsystems Inc. 1.6.0_31 C:\Program Files\Java\jdk1.6.0_31\jreHeap sizes: current=125632k  free=124976k  max=1864192kJVM args: -Dactivemq.classpath=C:\apache-activemq-5.8.0\bin\..\conf;C:\apache-activemq-5.8.0\bin\..\data; -Dactivemq.home=C:\apache-activemq-5.8.0
\bin\.. -Dactivemq.base=C:\apache-activemq-5.8.0\bin\.. -Dactivemq.data=C:\apache-activemq-5.8.0\bin\..\data -Djava.io.tmpdir=C:\apache-activemq-5.8.0
\bin\..\data\tmp -Dactivemq.conf=C:\apache-activemq-5.8.0\bin\..\conf
Extensions classpath:[C:\apache-activemq-5.8.0\bin\..\lib,C:\apache-activemq-5.8.0\bin\..\lib\camel,C:\apache-activemq-5.8.0\bin\..\lib\optional,C:\apache-activemq-5.8.0
\bin\..\lib\web,C:\apache-activemq-5.8.0\bin\..\lib\extra]
ACTIVEMQ_HOME: C:\apache-activemq-5.8.0\bin\..
ACTIVEMQ_BASE: C:\apache-activemq-5.8.0\bin\..
ACTIVEMQ_CONF: C:\apache-activemq-5.8.0\bin\..\conf
ACTIVEMQ_DATA: C:\apache-activemq-5.8.0\bin\..\data
Running create broker task...
Creating directory: C:\apache-activemq-5.8.0\cluster\broker-2
Creating directory: C:\apache-activemq-5.8.0\cluster\broker-2\bin
Creating directory: C:\apache-activemq-5.8.0\cluster\broker-2\conf
Creating new file: C:\apache-activemq-5.8.0\cluster\broker-2\bin\broker-2.bat
Creating new file: C:\apache-activemq-5.8.0\cluster\broker-2\bin\broker-2
Copying from: C:\apache-activemq-5.8.0\conf\activemq.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-command.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-command.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-demo.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-demo.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-dynamic-network-broker1.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-dynamic-network-broker1.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-dynamic-network-broker2.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-dynamic-network-broker2.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-jdbc.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-jdbc.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-scalability.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-scalability.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-security.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-security.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-specjms.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-specjms.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-static-network-broker1.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-static-network-broker1.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-static-network-broker2.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-static-network-broker2.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-stomp.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-stomp.xml
Copying from: C:\apache-activemq-5.8.0\conf\activemq-throughput.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-throughput.xml
Copying from: C:\apache-activemq-5.8.0\conf\broker-localhost.certto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\broker-localhost.cert
Copying from: C:\apache-activemq-5.8.0\conf\broker.ksto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\broker.ks
Copying from: C:\apache-activemq-5.8.0\conf\broker.tsto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\broker.ts
Copying from: C:\apache-activemq-5.8.0\conf\camel.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\camel.xml
Copying from: C:\apache-activemq-5.8.0\conf\client.ksto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\client.ks
Copying from: C:\apache-activemq-5.8.0\conf\client.tsto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\client.ts
Copying from: C:\apache-activemq-5.8.0\conf\credentials-enc.propertiesto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\credentials-enc.properties
Copying from: C:\apache-activemq-5.8.0\conf\credentials.propertiesto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\credentials.properties
Copying from: C:\apache-activemq-5.8.0\conf\jetty-demo.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\jetty-demo.xml
Copying from: C:\apache-activemq-5.8.0\conf\jetty-realm.propertiesto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\jetty-realm.properties
Copying from: C:\apache-activemq-5.8.0\conf\jetty.xmlto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\jetty.xml
Copying from: C:\apache-activemq-5.8.0\conf\jmx.accessto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\jmx.access
Copying from: C:\apache-activemq-5.8.0\conf\jmx.passwordto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\jmx.password
Copying from: C:\apache-activemq-5.8.0\conf\log4j.propertiesto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\log4j.properties
Copying from: C:\apache-activemq-5.8.0\conf\logging.propertiesto: C:\apache-activemq-5.8.0\cluster\broker-2\conf\logging.properties

您可能已经注意到上面的以下属性：

ACTIVEMQ_BASE: C:\apache-activemq-5.8.0\bin\..
ACTIVEMQ_CONF: C:\apache-activemq-5.8.0\bin\..\conf
ACTIVEMQ_DATA: C:\apache-activemq-5.8.0\bin\..\data

这些属性需要固定，因为我们希望ACTIVE-1和Broker-2的ACTIVEMQ_BASE和ACTIVEMQ_CONF有所不同。

我们需要编辑以下文件：

C：\ apache-activemq-5.8.0 \ cluster \ broker-1 \ bin目录中的broker-1.bat
- 设置ACTIVEMQ_HOME =” C：/apache-activemq-5.8.0”

C：\ apache-activemq-5.8.0 \ cluster \ broker-2 \ bin目录中的broker-2.bat
- 设置ACTIVEMQ_HOME =” C：/apache-activemq-5.8.0”

您可能会观察到broker-1和broker-2节点共享相同的ACTIVEMQ_DATA文件夹。由于我们使用内置的KahaDB来保持持久性，因此broker-1和broker-2都将共享这一点。

我们需要区分Broker-1和Broker-2的tcp端口，还需要启用JMX并配置JMX端口以进行远程监视。

让我们编辑broker-1的activemq.xml来修复tcp端口：

<transportConnectors><!-- DOS protection, limit concurrent connections to 1000 and frame size to 100MB --><transportConnector name="openwire" uri="tcp://0.0.0.0:61616?maximumConnections=1000&wireformat.maxFrameSize=104857600"/><!--<transportConnector name="amqp" uri="amqp://0.0.0.0:5672?maximumConnections=1000&wireformat.maxFrameSize=104857600"/>-->
</transportConnectors>

让我们编辑broker-1的activemq.xml以启用JMX监视，注意下面的useJMX =“ true”属性。

<broker xmlns="http://activemq.apache.org/schema/core" brokerName="broker-1" dataDirectory="${activemq.data}" useJmx="true">

让我们配置JMX端口

<managementContext><managementContext createConnector="true" connectorPort="1099"/>
</managementContext>

对broker-2重复相同的步骤。将TCP端口设置为61626，将JMX端口设置为2099。

启动broker-1。

C:\apache-activemq-5.8.0\cluster\broker-1\bin>broker-1.bat
Java Runtime: Sun Microsystems Inc. 1.6.0_31 C:\Program Files\Java\jdk1.6.0_31\jreHeap sizes: current=1004928k  free=994439k  max=1004928kJVM args: -Dcom.sun.management.jmxremote -Xms1G -Xmx1G -Djava.util.logging.config.file=logging.properties -Dactivemq.classpath=C:/apache-activemq-
5.8.0/cluster/broker-1/conf;C:/apache-activemq-5.8.0/cluster/broker-1/conf;C:/apache-activemq-5.8.0/conf; -Dactivemq.home=C:/apache-activemq-5.8.0 -Da
ctivemq.base=C:/apache-activemq-5.8.0/cluster/broker-1 -Dactivemq.conf=C:/apache-activemq-5.8.0/cluster/broker-1/conf -Dactivemq.data=C:/apache-active
mq-5.8.0\data -Djava.io.tmpdir=C:/apache-activemq-5.8.0\data\tmp
Extensions classpath:[C:\apache-activemq-5.8.0\cluster\broker-1\lib,C:\apache-activemq-5.8.0\lib,C:\apache-activemq-5.8.0\cluster\broker-1\lib\camel,C:\apache-activemq-5
.8.0\cluster\broker-1\lib\optional,C:\apache-activemq-5.8.0\cluster\broker-1\lib\web,C:\apache-activemq-5.8.0\cluster\broker-1\lib\extra,C:\apache-act
ivemq-5.8.0\lib\camel,C:\apache-activemq-5.8.0\lib\optional,C:\apache-activemq-5.8.0\lib\web,C:\apache-activemq-5.8.0\lib\extra]
ACTIVEMQ_HOME: C:\apache-activemq-5.8.0
ACTIVEMQ_BASE: C:\apache-activemq-5.8.0\cluster\broker-1
ACTIVEMQ_CONF: C:\apache-activemq-5.8.0\cluster\broker-1\conf
ACTIVEMQ_DATA: C:\apache-activemq-5.8.0\data
Loading message broker from: xbean:activemq.xmlINFO | Refreshing org.apache.activemq.xbean.XBeanBrokerFactory$1@71060478: startup date [Tue Jul 09 16:59:15 CDT 2013]; root of context hierarchyINFO | PListStore:[C:\apache-activemq-5.8.0\data\broker-1\tmp_storage] startedINFO | Using Persistence Adapter: KahaDBPersistenceAdapter[C:\apache-activemq-5.8.0\data\kahadb]INFO | JMX consoles can connect to service:jmx:rmi:///jndi/rmi://localhost:1099/jmxrmiINFO | KahaDB is version 4INFO | Recovering from the journal ...INFO | Recovery replayed 1 operations from the journal in 0.028 seconds.INFO | Apache ActiveMQ 5.8.0 (broker-1, ID:AKUNTAMU-1-27777-1373407157813-0:1) is startingINFO | Listening for connections at: tcp://AKUNTAMU-1:61616?maximumConnections=1000&wireformat.maxFrameSize=104857600INFO | Connector openwire StartedINFO | Apache ActiveMQ 5.8.0 (broker-1, ID:AKUNTAMU-1-27777-1373407157813-0:1) startedINFO | For help or more information please see: http://activemq.apache.orgWARN | Store limit is 102400 mb, whilst the data directory: C:\apache-activemq-5.8.0\data\kahadb only has 38889 mb of usable space
ERROR | Temporary Store limit is 51200 mb, whilst the temporary data directory: C:\apache-activemq-5.8.0\data\broker-1\tmp_storage only has 38889 mb o
f usable spaceINFO | Web console type: embeddedINFO | ActiveMQ WebConsole initialized.INFO | Initializing Spring FrameworkServlet 'dispatcher'INFO | jolokia-agent: No access restrictor found at classpath:/jolokia-access.xml, access to all MBeans is allowed

启动broker-2。

您将观察到broker-2无法获取该锁，因为broker-1已经抓住了它。 broker-2将继续尝试每10秒获取一次锁定。

C:\apache-activemq-5.8.0\cluster\broker-2\bin>broker-2.bat
Java Runtime: Sun Microsystems Inc. 1.6.0_31 C:\Program Files\Java\jdk1.6.0_31\jreHeap sizes: current=1004928k  free=994439k  max=1004928kJVM args: -Dcom.sun.management.jmxremote -Xms1G -Xmx1G -Djava.util.logging.config.file=logging.properties -Dactivemq.classpath=C:/apache-activemq-
5.8.0/cluster/broker-2/conf;C:/apache-activemq-5.8.0/cluster/broker-2/conf;C:/apache-activemq-5.8.0/conf; -Dactivemq.home=C:/apache-activemq-5.8.0 -Da
ctivemq.base=C:/apache-activemq-5.8.0/cluster/broker-2 -Dactivemq.conf=C:/apache-activemq-5.8.0/cluster/broker-2/conf -Dactivemq.data=C:/apache-active
mq-5.8.0\data -Djava.io.tmpdir=C:/apache-activemq-5.8.0\data\tmp
Extensions classpath:[C:\apache-activemq-5.8.0\cluster\broker-2\lib,C:\apache-activemq-5.8.0\lib,C:\apache-activemq-5.8.0\cluster\broker-2\lib\camel,C:\apache-activemq-5
.8.0\cluster\broker-2\lib\optional,C:\apache-activemq-5.8.0\cluster\broker-2\lib\web,C:\apache-activemq-5.8.0\cluster\broker-2\lib\extra,C:\apache-act
ivemq-5.8.0\lib\camel,C:\apache-activemq-5.8.0\lib\optional,C:\apache-activemq-5.8.0\lib\web,C:\apache-activemq-5.8.0\lib\extra]
ACTIVEMQ_HOME: C:\apache-activemq-5.8.0
ACTIVEMQ_BASE: C:\apache-activemq-5.8.0\cluster\broker-2
ACTIVEMQ_CONF: C:\apache-activemq-5.8.0\cluster\broker-2\conf
ACTIVEMQ_DATA: C:\apache-activemq-5.8.0\data
Loading message broker from: xbean:activemq.xmlINFO | Refreshing org.apache.activemq.xbean.XBeanBrokerFactory$1@420f9c40: startup date [Tue Jul 09 17:02:55 CDT 2013]; root of context hierarchyINFO | PListStore:[C:\apache-activemq-5.8.0\data\broker-2\tmp_storage] startedINFO | Using Persistence Adapter: KahaDBPersistenceAdapter[C:\apache-activemq-5.8.0\data\kahadb]INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio
n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked.INFO | JMX consoles can connect to service:jmx:rmi:///jndi/rmi://localhost:2099/jmxrmiINFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio
n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked.INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio
n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked.

现在，让我们配置ActiveMQ Web控制台。

默认情况下，ActiveMQ分发包含管理Web控制台，但是在“主/从”配置中，未知哪个节点是主节点。因此，使用嵌入式Web控制台没有任何意义。因此，最好将ActiveMQ Web控制台放在ActiveMQ节点之外。

您可以通过在每个ActiveMQ节点的conf目录中的activemq.xml中注释以下行来禁用每个节点中的嵌入式ActiveMQ Web控制台。

<!--<import resource="jetty.xml"/>-->

对于我们的示例，我们将在Tomcat容器中部署ActiveMQ Web控制台Web应用程序，然后配置ActiveMQ Web控制台应用程序以智能地指向ActiveMQ群集中的主节点。

因此，让我们将activemq-web-console-5.8.0.war复制到Tomcat的webapps目录中。将以下行添加到catalina.bat

set JAVA_OPTS=-Dwebconsole.type=properties -Dwebconsole.jms.url=failover:(tcp://localhost:61616,tcp://localhost:61626) -Dwebconsole.jmx.url=service:jmx:rmi:///jndi/rmi://localhost:1099/jmxrmi,service:jmx:rmi:///jndi/rmi://localhost:2099/jmxrmi

现在让我们启动Tomcat。

C:\apache-tomcat-7.0.35\bin>.\catalina.bat run
Using CATALINA_BASE:   "C:\apache-tomcat-7.0.35"
Using CATALINA_HOME:   "C:\apache-tomcat-7.0.35"
Using CATALINA_TMPDIR: "C:\apache-tomcat-7.0.35\temp"
Using JRE_HOME:        "C:\Program Files\Java\jdk1.6.0_31"
Using CLASSPATH:       "C:\apache-tomcat-7.0.35\bin\bootstrap.jar;C:\apache-tomcat-7.0.35\bin\tomcat-juli.jar"
Jul 9, 2013 5:28:08 PM org.apache.coyote.AbstractProtocol init
INFO: Initializing ProtocolHandler ["http-bio-8080"]
Jul 9, 2013 5:28:08 PM org.apache.coyote.AbstractProtocol init
INFO: Initializing ProtocolHandler ["ajp-bio-8009"]
Jul 9, 2013 5:28:08 PM org.apache.catalina.startup.Catalina load
INFO: Initialization processed in 635 ms
Jul 9, 2013 5:28:08 PM org.apache.catalina.core.StandardService startInternal
INFO: Starting service Catalina
Jul 9, 2013 5:28:08 PM org.apache.catalina.core.StandardEngine startInternal
INFO: Starting Servlet Engine: Apache Tomcat/7.0.35
Jul 9, 2013 5:28:08 PM org.apache.catalina.startup.HostConfig deployWAR
INFO: Deploying web application archive C:\apache-tomcat-7.0.35\webapps\activemq-web-console-5.8.0.war
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/C:/apache-tomcat-7.0.35/webapps/activemq-web-console-5.8.0/WEB-INF/lib/activemq-all-5.8.0.jar!/org/slf4j/impl/Stati
cLoggerBinder.class]
SLF4J: Found binding in [jar:file:/C:/apache-tomcat-7.0.35/webapps/activemq-web-console-5.8.0/WEB-INF/lib/slf4j-log4j12-1.6.6.jar!/org/slf4j/impl/Stat
icLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
2013-07-09 17:28:13,389 [ost-startStop-1] INFO  WebConsoleStarter              - Web console type: properties
2013-07-09 17:28:13,960 [ost-startStop-1] INFO  WebConsoleStarter              - ActiveMQ WebConsole initialized.
2013-07-09 17:28:14,095 [ost-startStop-1] INFO  ndingBeanNameUrlHandlerMapping - Mapped URL path [/createDestination.action] onto handler '/createDest
ination.action'
2013-07-09 17:28:14,096 [ost-startStop-1] INFO  ndingBeanNameUrlHandlerMapping - Mapped URL path [/deleteDestination.action] onto handler '/deleteDest
ination.action'
2013-07-09 17:28:14,097 [ost-startStop-1] INFO  ndingBeanNameUrlHandlerMapping - Mapped URL path [/createSubscriber.action] onto handler '/createSubsc
riber.action'
2013-07-09 17:28:14,098 [ost-startStop-1] INFO  ndingBeanNameUrlHandlerMapping - Mapped URL path [/deleteSubscriber.action] onto handler '/deleteSubsc
riber.action'
2013-07-09 17:28:14,099 [ost-startStop-1] INFO  ndingBeanNameUrlHandlerMapping - Mapped URL path [/sendMessage.action] onto handler '/sendMessage.acti
on'
2013-07-09 17:28:14,100 [ost-startStop-1] INFO  ndingBeanNameUrlHandlerMapping - Mapped URL path [/purgeDestination.action] onto handler '/purgeDestin
ation.action'
2013-07-09 17:28:14,101 [ost-startStop-1] INFO  ndingBeanNameUrlHandlerMapping - Mapped URL path [/deleteMessage.action] onto handler '/deleteMessage.
action'
2013-07-09 17:28:14,103 [ost-startStop-1] INFO  ndingBeanNameUrlHandlerMapping - Mapped URL path [/copyMessage.action] onto handler '/copyMessage.acti
on'
2013-07-09 17:28:14,104 [ost-startStop-1] INFO  ndingBeanNameUrlHandlerMapping - Mapped URL path [/moveMessage.action] onto handler '/moveMessage.acti
on'
2013-07-09 17:28:14,105 [ost-startStop-1] INFO  ndingBeanNameUrlHandlerMapping - Mapped URL path [/deleteJob.action] onto handler '/deleteJob.action'
Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.HostConfig deployDirectory
INFO: Deploying web application directory C:\apache-tomcat-7.0.35\webapps\docs
Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.HostConfig deployDirectory
INFO: Deploying web application directory C:\apache-tomcat-7.0.35\webapps\examples
Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.HostConfig deployDirectory
INFO: Deploying web application directory C:\apache-tomcat-7.0.35\webapps\host-manager
Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.HostConfig deployDirectory
INFO: Deploying web application directory C:\apache-tomcat-7.0.35\webapps\manager
Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.HostConfig deployDirectory
INFO: Deploying web application directory C:\apache-tomcat-7.0.35\webapps\ROOT
Jul 9, 2013 5:28:14 PM org.apache.coyote.AbstractProtocol start
INFO: Starting ProtocolHandler ["http-bio-8080"]
Jul 9, 2013 5:28:14 PM org.apache.coyote.AbstractProtocol start
INFO: Starting ProtocolHandler ["ajp-bio-8009"]
Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.Catalina start
INFO: Server startup in 6642 ms

让我们访问Web控制台：http：// localhost：8080 / activemq-web-console-5.8.0

如果出现提示，请使用admin / admin作为用户名/密码。这些是默认的安全设置。请参考conf目录中的jetty.xml和jetty-realm.properties。

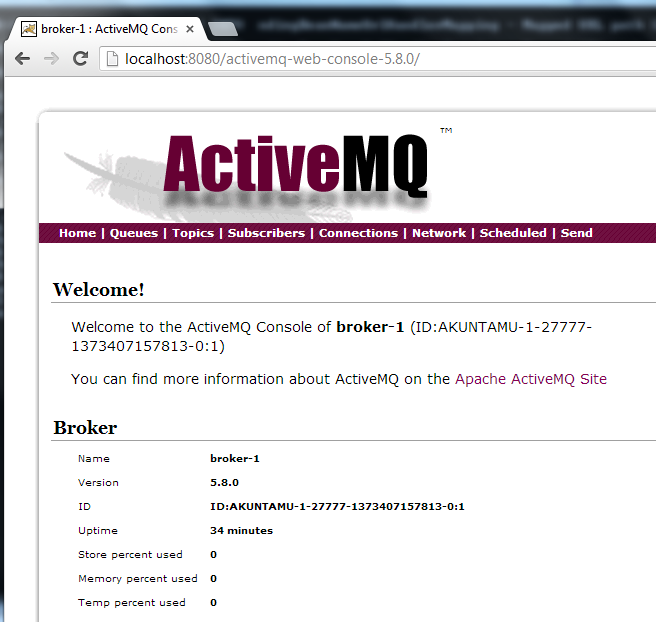

broker-1-ActiveMQ控制台

如上所示，“经纪人-1”是当前的主经纪人。

现在，如果要关闭broker-1。在运行broker-1的Terminal窗口中，按Control + C，您会注意到broker-2获得了锁定并成为了主服务器。

INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio
n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked.INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio
n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked.INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio
n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked.INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio
n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked.INFO | KahaDB is version 4INFO | Recovering from the journal ...INFO | Recovery replayed 2 operations from the journal in 0.022 seconds.INFO | Apache ActiveMQ 5.8.0 (broker-2, ID:AKUNTAMU-1-28147-1373409767675-0:1) is startingINFO | Listening for connections at: tcp://AKUNTAMU-1:61626?maximumConnections=1000&wireformat.maxFrameSize=104857600INFO | Connector openwire StartedINFO | Apache ActiveMQ 5.8.0 (broker-2, ID:AKUNTAMU-1-28147-1373409767675-0:1) startedINFO | For help or more information please see: http://activemq.apache.orgWARN | Store limit is 102400 mb, whilst the data directory: C:\apache-activemq-5.8.0\data\kahadb only has 38888 mb of usable space
ERROR | Temporary Store limit is 51200 mb, whilst the temporary data directory: C:\apache-activemq-5.8.0\data\broker-2\tmp_storage only has 38888 mb o
f usable spaceINFO | Web console type: embeddedINFO | ActiveMQ WebConsole initialized.INFO | Initializing Spring FrameworkServlet 'dispatcher'INFO | jolokia-agent: No access restrictor found at classpath:/jolokia-access.xml, access to all MBeans is allowed

让我们刷新Web控制台

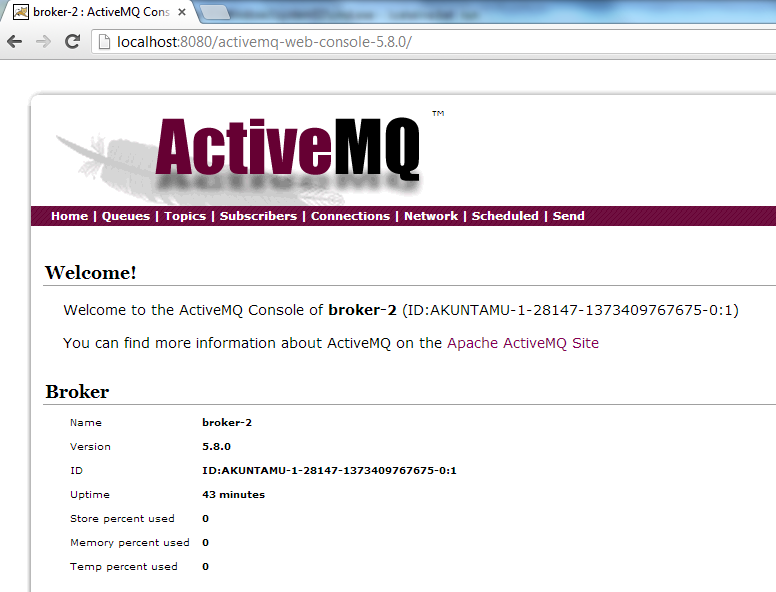

broker-2-ActiveMQ控制台

您可能会看到，现在主节点是broker-2。

现在，我们已经看到在故障转移场景中使用外部Web控制台在节点之间进行无缝切换，让我们从消息生产者和使用者的角度来看相同的情况。

我将使用简单的消息发布器将50条持久消息发布到队列中，并让异步使用者接收这50条消息。我将在发送消息时引入一些延迟，以便我们可以将主服务器断开几次并创建一些故障转移方案。目的是了解故障转移协议如何使节点故障转移完全透明，从而使应用程序不必处理任何重新连接逻辑。

这是一个使用ActiveMQConnectionFactory和故障转移协议的简单生产者。请注意下面的代码片段中突出显示的故障转移协议URL。

package com.akuntamukkala.amqms;import javax.jms.Connection;
import javax.jms.DeliveryMode;
import javax.jms.Destination;
import javax.jms.MessageProducer;
import javax.jms.Session;
import javax.jms.TextMessage;import org.apache.activemq.ActiveMQConnectionFactory;
import org.apache.log4j.Logger;public class Producer {private static final Logger log = Logger.getLogger(Producer.class);public static void main(String[] args) throws Exception {// Create a ConnectionFactoryActiveMQConnectionFactory connectionFactory = new ActiveMQConnectionFactory("failover:(tcp://localhost:61616,tcp://localhost:61626)");for (int i = 0; i < 50; i++) {log.info("Establishing connection");// Create a ConnectionConnection connection = connectionFactory.createConnection();connection.start();log.info("Connection established");// Create a SessionSession session = connection.createSession(false,Session.AUTO_ACKNOWLEDGE);// Create the destination (Topic or Queue)Destination destination = session.createQueue("TEST.FOO");// Create a MessageProducer from the Session to the Topic or QueueMessageProducer producer = session.createProducer(destination);producer.setDeliveryMode(DeliveryMode.PERSISTENT);// Create a messagesString text = "Message Counter : " + i;TextMessage message = session.createTextMessage(text);log.info("Sending message : " + text);producer.send(message);log.info("Sent message : " + text);// Clean upsession.close();connection.close();Thread.sleep(1000);}}
}

这是我交替关闭几次broker-1和broker-2时执行的日志。

2013-07-10 11:26:32 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:33 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:33 INFO  Producer:30 - Connection established
2013-07-10 11:26:33 INFO  Producer:47 - Sending message : Message Counter : 0
2013-07-10 11:26:33 INFO  Producer:49 - Sent message : Message Counter : 0
2013-07-10 11:26:34 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:35 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:35 INFO  Producer:30 - Connection established
2013-07-10 11:26:35 INFO  Producer:47 - Sending message : Message Counter : 1
2013-07-10 11:26:35 INFO  Producer:49 - Sent message : Message Counter : 1
2013-07-10 11:26:35 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:36 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:36 INFO  Producer:30 - Connection established
2013-07-10 11:26:36 INFO  Producer:47 - Sending message : Message Counter : 2
2013-07-10 11:26:36 INFO  Producer:49 - Sent message : Message Counter : 2
2013-07-10 11:26:37 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:37 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:37 INFO  Producer:30 - Connection established
2013-07-10 11:26:37 INFO  Producer:47 - Sending message : Message Counter : 3
2013-07-10 11:26:37 INFO  Producer:49 - Sent message : Message Counter : 3
2013-07-10 11:26:37 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:38 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:38 INFO  Producer:30 - Connection established
2013-07-10 11:26:38 INFO  Producer:47 - Sending message : Message Counter : 4
2013-07-10 11:26:38 INFO  Producer:49 - Sent message : Message Counter : 4
2013-07-10 11:26:39 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:39 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:39 INFO  Producer:30 - Connection established
2013-07-10 11:26:39 INFO  Producer:47 - Sending message : Message Counter : 5
2013-07-10 11:26:39 INFO  Producer:49 - Sent message : Message Counter : 5
2013-07-10 11:26:39 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:39 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:39 INFO  Producer:30 - Connection established
2013-07-10 11:26:39 INFO  Producer:47 - Sending message : Message Counter : 6
2013-07-10 11:26:39 INFO  Producer:49 - Sent message : Message Counter : 6
2013-07-10 11:26:40 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:40 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:40 INFO  Producer:30 - Connection established
2013-07-10 11:26:40 INFO  Producer:47 - Sending message : Message Counter : 7
2013-07-10 11:26:40 INFO  Producer:49 - Sent message : Message Counter : 7
2013-07-10 11:26:40 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:40 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:40 INFO  Producer:30 - Connection established
2013-07-10 11:26:40 INFO  Producer:47 - Sending message : Message Counter : 8
2013-07-10 11:26:40 INFO  Producer:49 - Sent message : Message Counter : 8
2013-07-10 11:26:41 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:41 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:41 INFO  Producer:30 - Connection established
2013-07-10 11:26:41 INFO  Producer:47 - Sending message : Message Counter : 9
2013-07-10 11:26:41 INFO  Producer:49 - Sent message : Message Counter : 9
2013-07-10 11:26:41 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:41 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:41 INFO  Producer:30 - Connection established
2013-07-10 11:26:41 INFO  Producer:47 - Sending message : Message Counter : 10
2013-07-10 11:26:41 INFO  Producer:49 - Sent message : Message Counter : 10
2013-07-10 11:26:42 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:43 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:43 INFO  Producer:30 - Connection established
2013-07-10 11:26:43 INFO  Producer:47 - Sending message : Message Counter : 11
2013-07-10 11:26:43 INFO  Producer:49 - Sent message : Message Counter : 11
2013-07-10 11:26:43 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:43 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:26:43 WARN  FailoverTransport:255 - Transport (tcp://127.0.0.1:61616) failed, reason:  java.net.SocketException: Software caused connection abort: recv failed, attempting to automatically reconnect
2013-07-10 11:26:50 INFO  FailoverTransport:1032 - Successfully reconnected to tcp://localhost:61626
2013-07-10 11:26:50 INFO  Producer:30 - Connection established
2013-07-10 11:26:50 INFO  Producer:47 - Sending message : Message Counter : 12
2013-07-10 11:26:50 INFO  Producer:49 - Sent message : Message Counter : 12
2013-07-10 11:26:51 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:52 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:26:52 INFO  Producer:30 - Connection established
2013-07-10 11:26:52 INFO  Producer:47 - Sending message : Message Counter : 13
2013-07-10 11:26:52 INFO  Producer:49 - Sent message : Message Counter : 13
2013-07-10 11:26:52 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:53 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:26:53 INFO  Producer:30 - Connection established
2013-07-10 11:26:53 INFO  Producer:47 - Sending message : Message Counter : 14
2013-07-10 11:26:53 INFO  Producer:49 - Sent message : Message Counter : 14
2013-07-10 11:26:54 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:54 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:26:54 INFO  Producer:30 - Connection established
2013-07-10 11:26:54 INFO  Producer:47 - Sending message : Message Counter : 15
2013-07-10 11:26:54 INFO  Producer:49 - Sent message : Message Counter : 15
2013-07-10 11:26:54 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:55 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:26:55 INFO  Producer:30 - Connection established
2013-07-10 11:26:55 INFO  Producer:47 - Sending message : Message Counter : 16
2013-07-10 11:26:55 INFO  Producer:49 - Sent message : Message Counter : 16
2013-07-10 11:26:56 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:57 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:26:57 INFO  Producer:30 - Connection established
2013-07-10 11:26:57 INFO  Producer:47 - Sending message : Message Counter : 17
2013-07-10 11:26:57 INFO  Producer:49 - Sent message : Message Counter : 17
2013-07-10 11:26:57 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:58 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:26:58 INFO  Producer:30 - Connection established
2013-07-10 11:26:58 INFO  Producer:47 - Sending message : Message Counter : 18
2013-07-10 11:26:58 INFO  Producer:49 - Sent message : Message Counter : 18
2013-07-10 11:26:59 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:59 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:26:59 INFO  Producer:30 - Connection established
2013-07-10 11:26:59 INFO  Producer:47 - Sending message : Message Counter : 19
2013-07-10 11:26:59 INFO  Producer:49 - Sent message : Message Counter : 19
2013-07-10 11:26:59 INFO  Producer:25 - Establishing connection
2013-07-10 11:26:59 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:26:59 INFO  Producer:30 - Connection established
2013-07-10 11:26:59 INFO  Producer:47 - Sending message : Message Counter : 20
2013-07-10 11:26:59 INFO  Producer:49 - Sent message : Message Counter : 20
2013-07-10 11:27:00 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:01 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:01 INFO  Producer:30 - Connection established
2013-07-10 11:27:01 INFO  Producer:47 - Sending message : Message Counter : 21
2013-07-10 11:27:01 INFO  Producer:49 - Sent message : Message Counter : 21
2013-07-10 11:27:01 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:01 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:01 INFO  Producer:30 - Connection established
2013-07-10 11:27:01 INFO  Producer:47 - Sending message : Message Counter : 22
2013-07-10 11:27:01 INFO  Producer:49 - Sent message : Message Counter : 22
2013-07-10 11:27:02 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:02 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:02 INFO  Producer:30 - Connection established
2013-07-10 11:27:02 INFO  Producer:47 - Sending message : Message Counter : 23
2013-07-10 11:27:02 INFO  Producer:49 - Sent message : Message Counter : 23
2013-07-10 11:27:02 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:02 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:02 INFO  Producer:30 - Connection established
2013-07-10 11:27:02 INFO  Producer:47 - Sending message : Message Counter : 24
2013-07-10 11:27:02 INFO  Producer:49 - Sent message : Message Counter : 24
2013-07-10 11:27:03 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:03 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:03 INFO  Producer:30 - Connection established
2013-07-10 11:27:03 INFO  Producer:47 - Sending message : Message Counter : 25
2013-07-10 11:27:03 INFO  Producer:49 - Sent message : Message Counter : 25
2013-07-10 11:27:03 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:03 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:03 INFO  Producer:30 - Connection established
2013-07-10 11:27:03 INFO  Producer:47 - Sending message : Message Counter : 26
2013-07-10 11:27:03 INFO  Producer:49 - Sent message : Message Counter : 26
2013-07-10 11:27:04 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:04 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:06 WARN  FailoverTransport:255 - Transport (tcp://127.0.0.1:61626) failed, reason:  java.net.SocketException: Software caused connection abort: recv failed, attempting to automatically reconnect
2013-07-10 11:27:15 INFO  FailoverTransport:1032 - Successfully reconnected to tcp://localhost:61616
2013-07-10 11:27:15 INFO  Producer:30 - Connection established
2013-07-10 11:27:15 INFO  Producer:47 - Sending message : Message Counter : 27
2013-07-10 11:27:15 INFO  Producer:49 - Sent message : Message Counter : 27
2013-07-10 11:27:16 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:17 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:17 INFO  Producer:30 - Connection established
2013-07-10 11:27:17 INFO  Producer:47 - Sending message : Message Counter : 28
2013-07-10 11:27:17 INFO  Producer:49 - Sent message : Message Counter : 28
2013-07-10 11:27:17 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:18 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:18 INFO  Producer:30 - Connection established
2013-07-10 11:27:18 INFO  Producer:47 - Sending message : Message Counter : 29
2013-07-10 11:27:18 INFO  Producer:49 - Sent message : Message Counter : 29
2013-07-10 11:27:19 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:20 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:20 INFO  Producer:30 - Connection established
2013-07-10 11:27:20 INFO  Producer:47 - Sending message : Message Counter : 30
2013-07-10 11:27:20 INFO  Producer:49 - Sent message : Message Counter : 30
2013-07-10 11:27:20 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:20 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:20 INFO  Producer:30 - Connection established
2013-07-10 11:27:20 INFO  Producer:47 - Sending message : Message Counter : 31
2013-07-10 11:27:20 INFO  Producer:49 - Sent message : Message Counter : 31
2013-07-10 11:27:21 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:22 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:22 INFO  Producer:30 - Connection established
2013-07-10 11:27:22 INFO  Producer:47 - Sending message : Message Counter : 32
2013-07-10 11:27:22 INFO  Producer:49 - Sent message : Message Counter : 32
2013-07-10 11:27:22 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:22 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:22 INFO  Producer:30 - Connection established
2013-07-10 11:27:22 INFO  Producer:47 - Sending message : Message Counter : 33
2013-07-10 11:27:22 INFO  Producer:49 - Sent message : Message Counter : 33
2013-07-10 11:27:23 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:23 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:23 INFO  Producer:30 - Connection established
2013-07-10 11:27:23 INFO  Producer:47 - Sending message : Message Counter : 34
2013-07-10 11:27:23 INFO  Producer:49 - Sent message : Message Counter : 34
2013-07-10 11:27:23 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:24 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:24 INFO  Producer:30 - Connection established
2013-07-10 11:27:24 INFO  Producer:47 - Sending message : Message Counter : 35
2013-07-10 11:27:24 INFO  Producer:49 - Sent message : Message Counter : 35
2013-07-10 11:27:25 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:27 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:27 INFO  Producer:30 - Connection established
2013-07-10 11:27:27 INFO  Producer:47 - Sending message : Message Counter : 36
2013-07-10 11:27:27 INFO  Producer:49 - Sent message : Message Counter : 36
2013-07-10 11:27:27 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:28 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:28 INFO  Producer:30 - Connection established
2013-07-10 11:27:28 INFO  Producer:47 - Sending message : Message Counter : 37
2013-07-10 11:27:28 INFO  Producer:49 - Sent message : Message Counter : 37
2013-07-10 11:27:29 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:30 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:30 INFO  Producer:30 - Connection established
2013-07-10 11:27:30 INFO  Producer:47 - Sending message : Message Counter : 38
2013-07-10 11:27:30 INFO  Producer:49 - Sent message : Message Counter : 38
2013-07-10 11:27:30 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:31 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:27:33 WARN  FailoverTransport:255 - Transport (tcp://127.0.0.1:61616) failed, reason:  java.net.SocketException: Software caused connection abort: recv failed, attempting to automatically reconnect
2013-07-10 11:27:38 INFO  FailoverTransport:1032 - Successfully reconnected to tcp://localhost:61626
2013-07-10 11:27:38 INFO  Producer:30 - Connection established
2013-07-10 11:27:38 INFO  Producer:47 - Sending message : Message Counter : 39
2013-07-10 11:27:38 INFO  Producer:49 - Sent message : Message Counter : 39
2013-07-10 11:27:39 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:39 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:39 INFO  Producer:30 - Connection established
2013-07-10 11:27:39 INFO  Producer:47 - Sending message : Message Counter : 40
2013-07-10 11:27:39 INFO  Producer:49 - Sent message : Message Counter : 40
2013-07-10 11:27:39 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:40 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:40 INFO  Producer:30 - Connection established
2013-07-10 11:27:40 INFO  Producer:47 - Sending message : Message Counter : 41
2013-07-10 11:27:40 INFO  Producer:49 - Sent message : Message Counter : 41
2013-07-10 11:27:41 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:42 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:42 INFO  Producer:30 - Connection established
2013-07-10 11:27:42 INFO  Producer:47 - Sending message : Message Counter : 42
2013-07-10 11:27:42 INFO  Producer:49 - Sent message : Message Counter : 42
2013-07-10 11:27:42 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:42 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:42 INFO  Producer:30 - Connection established
2013-07-10 11:27:42 INFO  Producer:47 - Sending message : Message Counter : 43
2013-07-10 11:27:42 INFO  Producer:49 - Sent message : Message Counter : 43
2013-07-10 11:27:43 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:44 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:44 INFO  Producer:30 - Connection established
2013-07-10 11:27:44 INFO  Producer:47 - Sending message : Message Counter : 44
2013-07-10 11:27:44 INFO  Producer:49 - Sent message : Message Counter : 44
2013-07-10 11:27:44 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:45 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:45 INFO  Producer:30 - Connection established
2013-07-10 11:27:45 INFO  Producer:47 - Sending message : Message Counter : 45
2013-07-10 11:27:45 INFO  Producer:49 - Sent message : Message Counter : 45
2013-07-10 11:27:46 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:47 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:47 INFO  Producer:30 - Connection established
2013-07-10 11:27:47 INFO  Producer:47 - Sending message : Message Counter : 46
2013-07-10 11:27:47 INFO  Producer:49 - Sent message : Message Counter : 46
2013-07-10 11:27:48 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:48 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:48 INFO  Producer:30 - Connection established
2013-07-10 11:27:48 INFO  Producer:47 - Sending message : Message Counter : 47
2013-07-10 11:27:48 INFO  Producer:49 - Sent message : Message Counter : 47
2013-07-10 11:27:48 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:49 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:49 INFO  Producer:30 - Connection established
2013-07-10 11:27:49 INFO  Producer:47 - Sending message : Message Counter : 48
2013-07-10 11:27:49 INFO  Producer:49 - Sent message : Message Counter : 48
2013-07-10 11:27:50 INFO  Producer:25 - Establishing connection
2013-07-10 11:27:51 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61626
2013-07-10 11:27:51 INFO  Producer:30 - Connection established
2013-07-10 11:27:51 INFO  Producer:47 - Sending message : Message Counter : 49
2013-07-10 11:27:51 INFO  Producer:49 - Sent message : Message Counter : 49

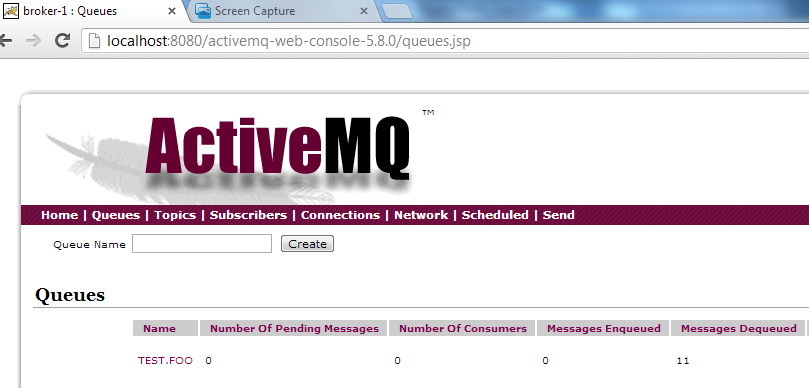

这是Web控制台，显示排队的50条消息。

broker-1-队列

请勿在上面的屏幕截图中困扰#Messages Enqueued = 0。此计数表示自此节点启动以来已排队的消息数。由于我已经在50条消息入队后重新启动了该节点，因此计数显示为0。

现在让我们尝试使用异步使用者使用这些消息，这些使用者使用带有故障转移协议的ActiveMQ连接工厂。

这是使用故障转移协议的ActiveMQConnectionFactory的简单异步使用者。

package com.akuntamukkala.amqms;import javax.jms.Connection;
import javax.jms.Destination;
import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageConsumer;
import javax.jms.MessageListener;
import javax.jms.Session;
import javax.jms.TextMessage;import org.apache.activemq.ActiveMQConnectionFactory;
import org.apache.log4j.Logger;public class Consumer implements MessageListener {private static final Logger log = Logger.getLogger(Consumer.class);public static void main(String[] args) throws Exception {ActiveMQConnectionFactory connectionFactory = new ActiveMQConnectionFactory("failover:(tcp://localhost:61616,tcp://localhost:61626)");// Create a ConnectionConnection connection = connectionFactory.createConnection();connection.start();// Create a SessionSession session = connection.createSession(false,Session.AUTO_ACKNOWLEDGE);// Create the destination (Topic or Queue)Destination destination = session.createQueue("TEST.FOO");// Create a MessageConsumer from the Session to the QueueMessageConsumer consumer = session.createConsumer(destination);consumer.setMessageListener(new Consumer()); // asynchronous listenerThread.sleep(120000); // long wait to keep program runningconsumer.close();session.close();connection.close();}/*** asynchronous message listener*/public void onMessage(Message message) {try {log.info(((TextMessage) message).getText());Thread.sleep(500);} catch (JMSException e) {log.error(e);} catch (InterruptedException e) {log.error(e);}}}

这是执行的日志。我在日志中明显地切换了主节点几次。

2013-07-10 11:46:01 INFO  FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:46:01 INFO  Consumer:49 - Message Counter : 0
2013-07-10 11:46:02 INFO  Consumer:49 - Message Counter : 1
2013-07-10 11:46:02 INFO  Consumer:49 - Message Counter : 2
2013-07-10 11:46:03 INFO  Consumer:49 - Message Counter : 3
2013-07-10 11:46:03 INFO  Consumer:49 - Message Counter : 4
2013-07-10 11:46:04 INFO  Consumer:49 - Message Counter : 5
2013-07-10 11:46:04 INFO  Consumer:49 - Message Counter : 6
2013-07-10 11:46:05 INFO  Consumer:49 - Message Counter : 7
2013-07-10 11:46:05 INFO  Consumer:49 - Message Counter : 8
2013-07-10 11:46:06 INFO  Consumer:49 - Message Counter : 9
2013-07-10 11:46:06 INFO  Consumer:49 - Message Counter : 10
2013-07-10 11:46:07 INFO  Consumer:49 - Message Counter : 11
2013-07-10 11:46:07 WARN  FailoverTransport:255 - Transport (tcp://127.0.0.1:61616) failed, reason:  java.io.EOFException, attempting to automatically reconnect
2013-07-10 11:46:18 INFO  FailoverTransport:1032 - Successfully reconnected to tcp://localhost:61626
2013-07-10 11:46:18 WARN  ActiveMQMessageConsumer:1348 - Duplicate dispatch on connection: ID:AKUNTAMU-1-2141-1373474760280-1:1 to consumer: ID:AKUNTAMU-1-2141-1373474760280-1:1:1:1, ignoring (auto acking) duplicate: MessageDispatch {commandId = 0, responseRequired = false, consumerId = ID:AKUNTAMU-1-2141-1373474760280-1:1:1:1, destination = queue://TEST.FOO, message = ActiveMQTextMessage {commandId = 5, responseRequired = true, messageId = ID:AKUNTAMU-1-1739-1373473592152-1:12:1:1:1, originalDestination = null, originalTransactionId = null, producerId = ID:AKUNTAMU-1-1739-1373473592152-1:12:1:1, destination = queue://TEST.FOO, transactionId = null, expiration = 0, timestamp = 1373473603281, arrival = 0, brokerInTime = 1373473603281, brokerOutTime = 1373474778676, correlationId = null, replyTo = null, persistent = true, type = null, priority = 4, groupID = null, groupSequence = 0, targetConsumerId = null, compressed = false, userID = null, content = null, marshalledProperties = null, dataStructure = null, redeliveryCounter = 0, size = 0, properties = null, readOnlyProperties = true, readOnlyBody = true, droppable = false, text = Message Counter : 11}, redeliveryCounter = 0}
2013-07-10 11:46:18 INFO  Consumer:49 - Message Counter : 12
2013-07-10 11:46:19 INFO  Consumer:49 - Message Counter : 13
2013-07-10 11:46:19 INFO  Consumer:49 - Message Counter : 14
2013-07-10 11:46:20 INFO  Consumer:49 - Message Counter : 15
2013-07-10 11:46:20 INFO  Consumer:49 - Message Counter : 16
2013-07-10 11:46:21 INFO  Consumer:49 - Message Counter : 17
2013-07-10 11:46:21 INFO  Consumer:49 - Message Counter : 18
2013-07-10 11:46:22 INFO  Consumer:49 - Message Counter : 19
2013-07-10 11:46:22 INFO  Consumer:49 - Message Counter : 20
2013-07-10 11:46:23 INFO  Consumer:49 - Message Counter : 21
2013-07-10 11:46:23 INFO  Consumer:49 - Message Counter : 22
2013-07-10 11:46:24 INFO  Consumer:49 - Message Counter : 23
2013-07-10 11:46:24 INFO  Consumer:49 - Message Counter : 24
2013-07-10 11:46:25 INFO  Consumer:49 - Message Counter : 25
2013-07-10 11:46:25 INFO  Consumer:49 - Message Counter : 26
2013-07-10 11:46:26 INFO  Consumer:49 - Message Counter : 27
2013-07-10 11:46:26 INFO  Consumer:49 - Message Counter : 28
2013-07-10 11:46:27 INFO  Consumer:49 - Message Counter : 29
2013-07-10 11:46:27 INFO  Consumer:49 - Message Counter : 30
2013-07-10 11:46:28 INFO  Consumer:49 - Message Counter : 31
2013-07-10 11:46:28 INFO  Consumer:49 - Message Counter : 32
2013-07-10 11:46:29 INFO  Consumer:49 - Message Counter : 33
2013-07-10 11:46:29 INFO  Consumer:49 - Message Counter : 34
2013-07-10 11:46:30 INFO  Consumer:49 - Message Counter : 35
2013-07-10 11:46:30 INFO  Consumer:49 - Message Counter : 36
2013-07-10 11:46:31 INFO  Consumer:49 - Message Counter : 37
2013-07-10 11:46:31 INFO  Consumer:49 - Message Counter : 38
2013-07-10 11:46:32 INFO  Consumer:49 - Message Counter : 39
2013-07-10 11:46:32 WARN  FailoverTransport:255 - Transport (tcp://127.0.0.1:61626) failed, reason:  java.io.EOFException, attempting to automatically reconnect
2013-07-10 11:46:43 INFO  FailoverTransport:1032 - Successfully reconnected to tcp://localhost:61616
2013-07-10 11:46:43 WARN  ActiveMQMessageConsumer:1348 - Duplicate dispatch on connection: ID:AKUNTAMU-1-2141-1373474760280-1:1 to consumer: ID:AKUNTAMU-1-2141-1373474760280-1:1:1:1, ignoring (auto acking) duplicate: MessageDispatch {commandId = 0, responseRequired = false, consumerId = ID:AKUNTAMU-1-2141-1373474760280-1:1:1:1, destination = queue://TEST.FOO, message = ActiveMQTextMessage {commandId = 5, responseRequired = true, messageId = ID:AKUNTAMU-1-1739-1373473592152-1:40:1:1:1, originalDestination = null, originalTransactionId = null, producerId = ID:AKUNTAMU-1-1739-1373473592152-1:40:1:1, destination = queue://TEST.FOO, transactionId = null, expiration = 0, timestamp = 1373473658595, arrival = 0, brokerInTime = 1373473658599, brokerOutTime = 1373474803745, correlationId = null, replyTo = null, persistent = true, type = null, priority = 4, groupID = null, groupSequence = 0, targetConsumerId = null, compressed = false, userID = null, content = null, marshalledProperties = null, dataStructure = null, redeliveryCounter = 0, size = 0, properties = null, readOnlyProperties = true, readOnlyBody = true, droppable = false, text = Message Counter : 39}, redeliveryCounter = 0}
2013-07-10 11:46:43 INFO  Consumer:49 - Message Counter : 40
2013-07-10 11:46:44 INFO  Consumer:49 - Message Counter : 41
2013-07-10 11:46:44 INFO  Consumer:49 - Message Counter : 42
2013-07-10 11:46:45 INFO  Consumer:49 - Message Counter : 43
2013-07-10 11:46:45 INFO  Consumer:49 - Message Counter : 44
2013-07-10 11:46:46 INFO  Consumer:49 - Message Counter : 45
2013-07-10 11:46:46 INFO  Consumer:49 - Message Counter : 46
2013-07-10 11:46:47 INFO  Consumer:49 - Message Counter : 47
2013-07-10 11:46:47 INFO  Consumer:49 - Message Counter : 48
2013-07-10 11:46:48 INFO  Consumer:49 - Message Counter : 49

我们来看看ActiveMQ Web控制台：

broker-1-队列故障转移
