使用ELK堆栈进行日志聚合

1.简介

随着微服务的使用，创建稳定的分布式应用程序和摆脱许多遗留问题变得很容易。

但是微服务的使用也带来了一些挑战， 分布式日志管理就是其中之一。

由于微服务是隔离的，因此它们不共享数据库和日志文件，因此实时搜索，分析和查看日志数据变得充满挑战。

这就是ELK堆栈的救援之处。

2. ELK

它是三个开源产品的集合：

弹性搜索是基于JSON的NoSQL数据库
Logstash一个日志管道工具，可从各种来源获取输入，执行不同的转换并将数据导出到各种目标（此处为弹性搜索）
Kibana是可视化层，可在弹性搜索之上

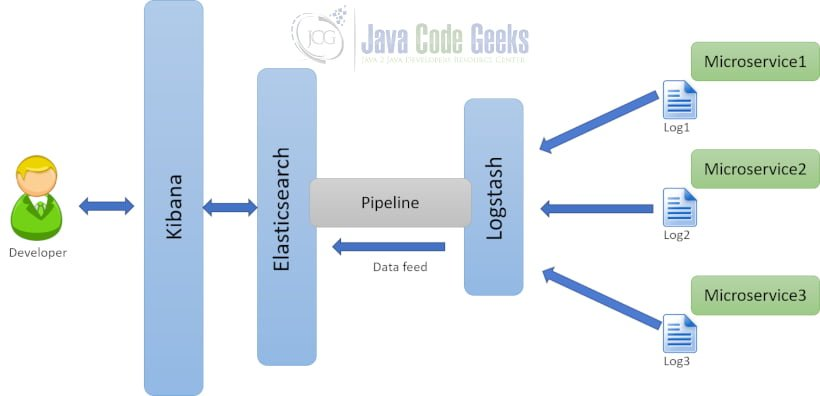

请参考下面给出的架构：

日志存储从微服务中获取日志。

提取的日志将转换为JSON并提供给弹性搜索。

开发人员可以使用Kibana查看弹性搜索中存在的日志。

3.安装ELK

ELK基于Java。

在安装ELK之前，必须确保已JAVA_HOME和PATH ，并且已使用JDK 1.8完成安装。

3.1 Elasticsearch

可以从下载页面下载最新版本的Elasticsearch，并且可以将其提取到任何文件夹中
可以使用bin\elasticsearch.bat从命令提示符处执行它
默认情况下，它将从http：// localhost：9200开始

3.2基巴纳

可以从下载页面下载最新版本的Kibana，并且可以将其提取到任何文件夹中
可以使用bin\kibana.bat在命令提示符下执行它
成功启动后，Kibana将在默认端口5601上启动，并且Kibana UI将位于http：// localhost：5601

3.3 Logstash

可以从下载页面下载最新版本的Logstash，并将其解压缩到任何文件夹中
根据配置说明创建一个文件cst_logstash.conf
可以使用bin/logstash -f cst_logstash.conf从命令提示符处执行以启动logstash

4.创建一个示例微服务组件

创建微服务是必需的，以便logstash可以指向API日志。

下面的清单显示了示例微服务的代码。

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><groupId>com.xyz.app</groupId><artifactId>ArtDemo1001_Rest_Controller_Full_Deployment_Logging</artifactId><version>0.0.1-SNAPSHOT</version><!-- Add Spring repositories --><!-- (you don't need this if you are using a .RELEASE version) --><repositories><repository><id>spring-snapshots</id><url>http://repo.spring.io/snapshot</url><snapshots><enabled>true</enabled></snapshots></repository><repository><id>spring-milestones</id><url>http://repo.spring.io/milestone</url></repository></repositories><pluginRepositories><pluginRepository><id>spring-snapshots</id><url>http://repo.spring.io/snapshot</url></pluginRepository><pluginRepository><id>spring-milestones</id><url>http://repo.spring.io/milestone</url></pluginRepository></pluginRepositories><parent><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-parent</artifactId><version>1.5.2.RELEASE</version></parent><properties><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding><project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding><java.version>1.8</java.version><spring-cloud.version>Dalston.SR3</spring-cloud.version></properties><!-- Add typical dependencies for a web application --><dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency></dependencies><!-- Package as an executable jar --><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId></plugin></plugins></build><dependencyManagement><dependencies><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-dependencies</artifactId><version>${spring-cloud.version}</version><type>pom</type><scope>import</scope></dependency></dependencies></dependencyManagement></project>

上面的pom.xml代码已配置了基于Spring Boot的项目所需的依赖项。

EmployeeDAO.java

package com.xyz.app.dao;import java.util.Collection;
import java.util.LinkedHashMap;
import java.util.Map;import org.springframework.stereotype.Repository;import com.xyz.app.model.Employee;@Repository
public class EmployeeDAO {/*** Map is used to Replace the Database * */static public Map<Integer,Employee> mapOfEmloyees = new LinkedHashMap<Integer,Employee>();static int count=10004;static{mapOfEmloyees.put(10001, new Employee("Jack",10001,12345.6,1001));mapOfEmloyees.put(10002, new Employee("Justin",10002,12355.6,1002));mapOfEmloyees.put(10003, new Employee("Eric",10003,12445.6,1003));}/*** Returns all the Existing Employees* */public Collection getAllEmployee(){return mapOfEmloyees.values();			}/**Get Employee details using EmployeeId .* Returns an Employee object response with Data if Employee is Found* Else returns a null* */public Employee getEmployeeDetailsById(int id){return mapOfEmloyees.get(id);}/**Create Employee details.* Returns auto-generated Id* */public Integer addEmployee(Employee employee){count++;employee.setEmployeeId(count);mapOfEmloyees.put(count, employee);return count;}/**Update the Employee details,* Receives the Employee Object and returns the updated Details  * */public Employee updateEmployee (Employee employee){mapOfEmloyees.put(employee.getEmployeeId(), employee);return employee;}/**Delete the Employee details,* Receives the EmployeeID and returns the deleted employee's Details  * */public Employee removeEmployee (int id){Employee emp= mapOfEmloyees.remove(id);return emp;}}

上面的代码表示应用程序的DAO层。

CRUD操作在包含Employee对象的Map集合上执行，以避免数据库依赖性并保持应用程序轻巧。

EmployeeController.java

package com.xyz.app.controller;import java.util.Collection;import org.apache.log4j.Logger;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;import com.xyz.app.dao.EmployeeDAO;
import com.xyz.app.model.Employee;@RestController
public class EmployeeController {@Autowired private EmployeeDAO employeeDAO;public static Logger logger = Logger.getLogger(EmployeeController.class);/** Method is used to get all the employee details and return the same */ @RequestMapping(value="emp/controller/getDetails",method=RequestMethod.GET,produces=MediaType.APPLICATION_JSON_VALUE)public ResponseEntity<Collection> getEmployeeDetails(){logger.info("From Producer method[getEmployeeDetails] start");logger.debug("From Producer method[getEmployeeDetails] start");Collection  listEmployee =employeeDAO.getAllEmployee();logger.debug("From Producer method[getEmployeeDetails] start");logger.info("From Producer method[getEmployeeDetails] end");return new ResponseEntity<Collection>(listEmployee, HttpStatus.OK);}/** Method finds an employee using employeeId and returns the found Employee If no employee is not existing corresponding to the employeeId, then null is returned with HttpStatus.INTERNAL_SERVER_ERROR as status*/ @RequestMapping(value="emp/controller/getDetailsById/{id}",method=RequestMethod.GET,produces=MediaType.APPLICATION_JSON_VALUE)public ResponseEntity getEmployeeDetailByEmployeeId(@PathVariable("id") int myId){logger.info("From Producer method[getEmployeeDetailByEmployeeId] start");Employee employee = employeeDAO.getEmployeeDetailsById(myId);if(employee!=null){logger.info("From Producer method[getEmployeeDetailByEmployeeId] end");return new ResponseEntity(employee,HttpStatus.OK);}else{logger.info("From Producer method[getEmployeeDetailByEmployeeId] end");return new ResponseEntity(HttpStatus.NOT_FOUND);}}/** Method creates an employee and returns the auto-generated employeeId */ @RequestMapping(value="/emp/controller/addEmp",method=RequestMethod.POST,consumes=MediaType.APPLICATION_JSON_VALUE,produces=MediaType.TEXT_HTML_VALUE)public ResponseEntity addEmployee(@RequestBody Employee employee){logger.info("From Producer method[addEmployee] start");logger.debug("From Producer method[addEmployee] start");int empId= employeeDAO.addEmployee(employee);logger.debug("From Producer method[addEmployee] start");logger.info("From Producer method[addEmployee] end");return new ResponseEntity("Employee added successfully with id:"+empId,HttpStatus.CREATED);}/** Method updates an employee and returns the updated Employee If Employee to be updated is not existing, then null is returned with HttpStatus.INTERNAL_SERVER_ERROR as status*/ @RequestMapping(value="/emp/controller/updateEmp",method=RequestMethod.PUT,consumes=MediaType.APPLICATION_JSON_VALUE,produces=MediaType.APPLICATION_JSON_VALUE)public ResponseEntity updateEmployee(@RequestBody Employee employee){logger.info("From Producer method[updateEmployee] start");if(employeeDAO.getEmployeeDetailsById(employee.getEmployeeId())==null){Employee employee2=null;return new ResponseEntity(employee2,HttpStatus.INTERNAL_SERVER_ERROR);}System.out.println(employee);employeeDAO.updateEmployee(employee);logger.info("From Producer method[updateEmployee] end");return new ResponseEntity(employee,HttpStatus.OK);}/** Method deletes an employee using employeeId and returns the deleted Employee If Employee to be deleted is not existing, then null is returned with HttpStatus.INTERNAL_SERVER_ERROR as status*/ @RequestMapping(value="/emp/controller/deleteEmp/{id}",method=RequestMethod.DELETE,produces=MediaType.APPLICATION_JSON_VALUE)public ResponseEntity deleteEmployee(@PathVariable("id") int myId){logger.info("From Producer method[deleteEmployee] start");if(employeeDAO.getEmployeeDetailsById(myId)==null){Employee employee2=null;return new ResponseEntity(employee2,HttpStatus.INTERNAL_SERVER_ERROR);}Employee employee = employeeDAO.removeEmployee(myId);System.out.println("Removed: "+employee);logger.info("From Producer method[deleteEmployee] end");return new ResponseEntity(employee,HttpStatus.OK);}
}

上面的代码代表具有请求处理程序的应用程序的控制器层。

请求处理程序调用DAO层函数并执行CRUD操作。

application.properties

server.port = 8090logging.level.com.xyz.app.controller.EmployeeController=DEBUG#name of the log file to be created#same file will be given as input to logstashlogging.file=app.logspring.application.name = producer

上面的代码表示为基于Spring Boot的应用程序配置的属性。

5. Logstash配置

如3.3节所述，需要为logstash创建配置文件。

logstash将使用此配置文件从微服务日志中获取输入。

日志被转换为JSON并馈入elasticsearch。

cst_logstash.conf

input {file {# If more than one log files from different microservices have to be tracked then a comma-separated list of log files can # be providedpath => ["PATH-TO-UPDATE/app.log"]codec => multiline {pattern => "^%{YEAR}-%{MONTHNUM}-%{MONTHDAY} %{TIME}.*"negate => "true"what => "previous"}}
}
output {stdout {codec => rubydebug}# Sending properly parsed log events to elasticsearchelasticsearch {hosts => ["localhost:9200"]}
}

上面的logstash配置文件侦听日志文件，并将日志消息推送到弹性搜索。

注意：根据您的设置更改日志路径。
