06Prism WPF 入门实战

06Prism WPF 入门实战 - Log控件库

1.概要

源码及PPT地址：https://github.com/JusterZhu/wemail

视频地址：https://www.bilibili.com/video/BV1KQ4y1C7tg?share\source=copy\web

本章分为以下几个部分来了解：

Part1 日志

Part1.1 全局异常捕捉

Part1.2 Dump

Part2 引入控件库

2.详细内容

Part1 日志

（1）Nuget安装：

Microsoft.Extensions.Logging.Abstractions

NLog.Extensions.Logging

NLog.Config

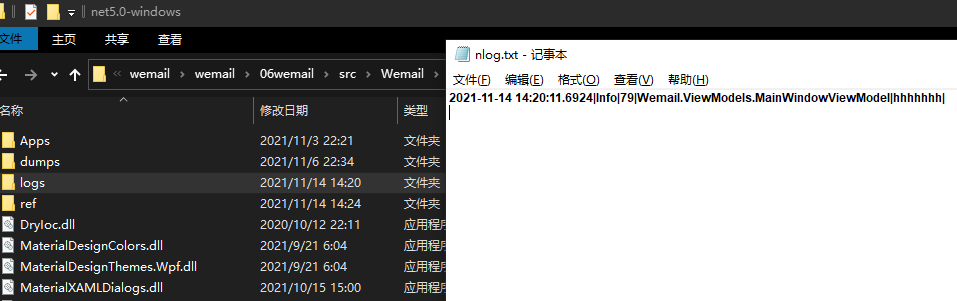

（2）配置Nlog.config

<?xml version="1.0" encoding="utf-8" ?>
<nlog xmlns="http://www.nlog-project.org/schemas/NLog.xsd"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"autoReload="true"internalLogLevel="info"throwException ="true"internalLogFile="logs/internal-nlog.txt">    //日志的错误位置文件<variable name="logDirectory" value="${basedir}/logs"/><!-- the targets to write to --><targets async="true"><!-- write logs to file  --><target xsi:type="File" name="allfile" fileName="${logDirectory}/nlog-all-${shortdate}.log"layout="${longdate}|${event-properties:item=EventId_Id}|${uppercase:${level}}|${logger}|${message} ${exception:format=tostring}" /><!-- another file log, only own logs. Uses some ASP.NET core renderers --><target xsi:type="File" name="ownFile-web" fileName="${logDirectory}/nlog-own-${shortdate}.log"layout="${longdate}|${event-properties:item=EventId_Id}|${uppercase:${level}}|${logger}|${message} ${exception:format=tostring}" /><!--|url: ${aspnet-request-url}|action: ${aspnet-mvc-action}--><!-- write log message to database --><!--<target name="db"  xsi:type="AsyncWrapper" queueLimit="5000" overflowAction="Discard">--><target type="Database" name="db" dbProvider="Npgsql.NpgsqlConnection,Npgsql"    《这里的数据库名字注意查找》connectionString="Database=backofficev2;Host=*;User Id=*;Password=*;pooling=false;port=*;"><commandText>  //使用postgresql 这里的字段要加双引号，timestamp要将string类型的转换为timestamp类型INSERT INTO "SystemLog"("Source","Level","Content","CreatedAt") VALUES(@source, @level, @content, TO_TIMESTAMP(@createdAt, 'YYYY-MM-DD HH24:MI:SS'));</commandText> <!-- database connection parameters  ${logger}  Server-->   <-数据库中要写的字段-><parameter name="@source" layout="Server" /><parameter name="@level" layout="${level}" /><parameter name="@content" layout="${message}" /><parameter name="@createdAt" layout="${date}" /></target><!--</target>--></targets><!-- rules to map from logger name to target --><rules><!--TRACE,DEBUG,INFO,WARN,ERROR,FATAL警告级别控制-->  <logger name="*" minlevel="Trace" writeTo="allfile" /><!--INFO,WARN,ERROR,FATAL--><logger name="AiEcgWebApi.Controllers.*" minlevel="Warn" writeTo="db" /><!--DEBUG,INFO,WARN,ERROR,FATAL--><logger name="*" minlevel="Debug" writeTo="ownFile-web" />   </rules>
</nlog>

（3）App.cs注入log组件

protected override void RegisterTypes(IContainerRegistry containerRegistry)
{var factory = new NLog.Extensions.Logging.NLogLoggerFactory();Microsoft.Extensions.Logging.ILogger logger = factory.CreateLogger("NLog");containerRegistry.RegisterInstance(logger);
}

(4)ViewModel构造函数获取log引用

public MainWindowViewModel(ILogger logger)
{logger.LogInformation("hhhhhhh");
}

Part1.1 全局异常捕捉

出错的任务中未观察到的异常将触发异常呈报策略时出现。

/// <summary>
/// 应用程序启动时创建Shell
/// </summary>
/// <returns></returns>
protected override Window CreateShell()
{//UI线程未捕获异常处理事件this.DispatcherUnhandledException += OnDispatcherUnhandledException;//Task线程内未捕获异常处理事件TaskScheduler.UnobservedTaskException += OnUnobservedTaskException;//多线程异常AppDomain.CurrentDomain.UnhandledException += OnUnhandledException; return Container.Resolve<MainWindow>();
}

Part1.2 Dump

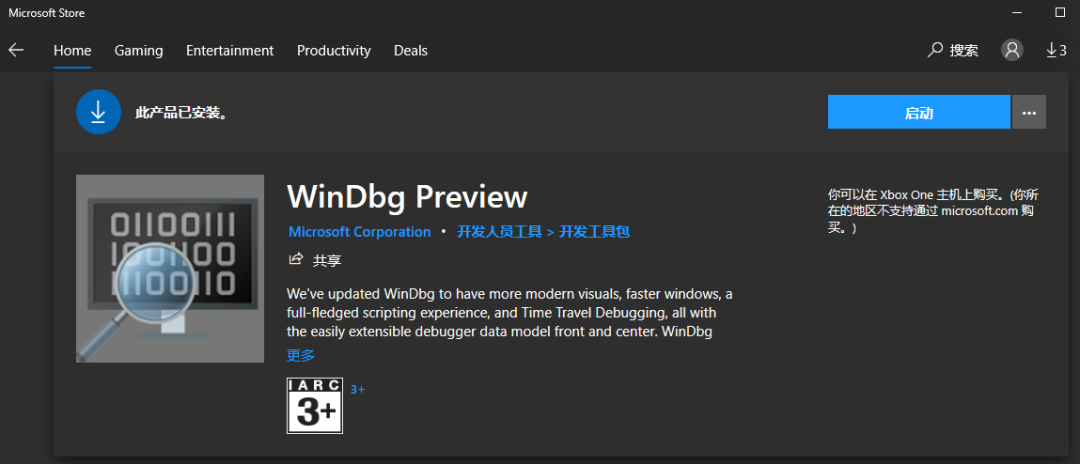

程序异常崩溃前使用此类为进程创建DUMP文件，之后可以使用WinDbg等工具进行分析。(该文件包含一些敏感信息切勿将公司项目中的dump文件公布到互联网上)

Windebug分析案例：

https://mp.weixin.qq.com/s/i6cJHTrIPweDIplzzfHnVQ

Windebug分析教程：

https://docs.microsoft.com/zh-cn/windows-hardware/drivers/debugger/getting-started-with-windows-debugging?WT.mc_id=WDIT-MVP-5004326

Windebug命令：

https://docs.microsoft.com/zh-cn/windows-hardware/drivers/debugger/commands?WT.mc_id=WDIT-MVP-5004326

Part2 控件库

1.Nuget安装：MaterialDesignInXamlToolkit2.选择主题
Light theme：<ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Light.xaml" />
Dark theme:   <ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Dark.xaml" />3.App文件：
<Application x:Class="MaterialTest.App"xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"StartupUri="MainWindow.xaml"><Application.Resources><ResourceDictionary><ResourceDictionary.MergedDictionaries><ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Light.xaml" /><ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Defaults.xaml" /><ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Primary/MaterialDesignColor.DeepPurple.xaml" /><ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Accent/MaterialDesignColor.Lime.xaml" /></ResourceDictionary.MergedDictionaries>            </ResourceDictionary></Application.Resources>
</Application>4.配置View
<Window [...]TextElement.Foreground="{DynamicResource MaterialDesignBody}"Background="{DynamicResource MaterialDesignPaper}"TextElement.FontWeight="Medium"TextElement.FontSize="14"FontFamily="pack://application:,,,/MaterialDesignThemes.Wpf;component/Resources/Roboto/#Roboto"[...] >
