我们已经出台SlidingMenu使用：Android开源项目SlidingMenu本学习笔记（一个），接下来再深入学习下。依据滑出项的Menu切换到相应的页面

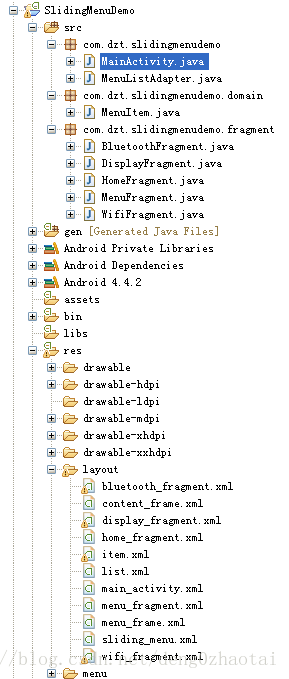

文件夹结构：

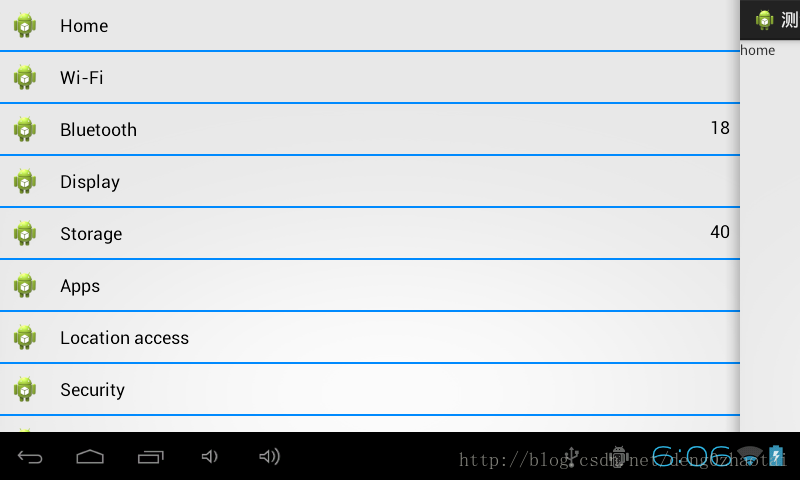

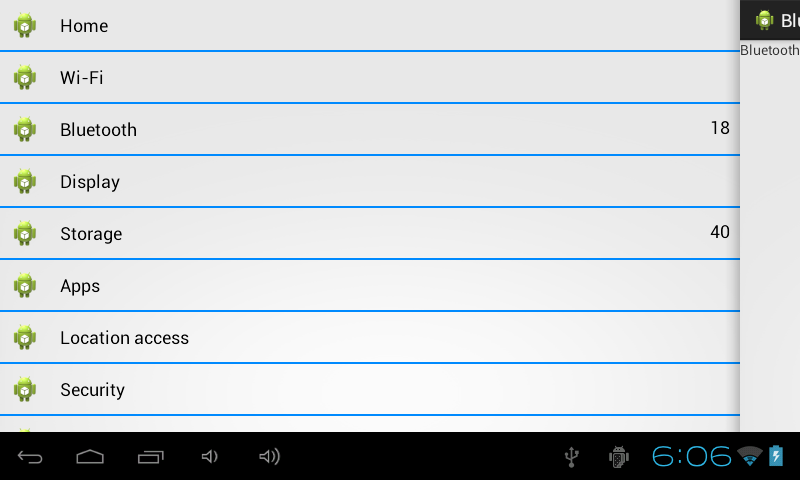

点击Bluetooth能够切换到对应的界面
关键代码
MainActivity.java
package com.dzt.slidingmenudemo;import android.app.Fragment;
import android.app.FragmentManager;
import android.app.FragmentTransaction;
import android.os.Bundle;
import android.util.Log;import com.dzt.slidingmenudemo.fragment.BluetoothFragment;
import com.dzt.slidingmenudemo.fragment.DisplayFragment;
import com.dzt.slidingmenudemo.fragment.HomeFragment;
import com.dzt.slidingmenudemo.fragment.MenuFragment;
import com.dzt.slidingmenudemo.fragment.WifiFragment;
import com.dzt.slidingmenudemo.fragment.MenuFragment.OnMenuListOnItemClickListener;
import com.slidingmenu.lib.SlidingMenu;
import com.slidingmenu.lib.app.SlidingActivity;/*** 依据不同的Menu切换到对应的Fragment* * @author Administrator* */
public class MainActivity extends SlidingActivity implementsOnMenuListOnItemClickListener {private SlidingMenu mChannelMenu;@Overridepublic void onCreate(Bundle savedInstanceState) {// TODO Auto-generated method stubsuper.onCreate(savedInstanceState);// 设置标题栏的标题setTitle("測试SlidingMenu");setContentView(R.layout.content_frame);initChannelMenu();}private void initChannelMenu() {setBehindContentView(R.layout.menu_frame);// 创建SlidingMenu对象mChannelMenu = getSlidingMenu();// 设置側滑栏菜单位置，这里在左边。拉动菜单时。会从左边弹出mChannelMenu.setMode(SlidingMenu.LEFT);// 设置触摸的范围，这里设置全屏mChannelMenu.setTouchModeAbove(SlidingMenu.TOUCHMODE_FULLSCREEN);// 设置阴影的宽度，查看上面第二张效果图，靠右边的位置，有一个阴影过渡。就是这个东西mChannelMenu.setShadowWidthRes(R.dimen.shadow_width);// 这里是阴影效果，能够设置图片或者一个颜色过渡mChannelMenu.setShadowDrawable(R.drawable.shadow);// 设置后面间距，側滑栏和原来界面间距mChannelMenu.setBehindOffsetRes(R.dimen.slidingmenu_offset);// 边框的角度，这里指边界地方mChannelMenu.setFadeDegree(0.35f);// 设置触摸屏幕的模式mChannelMenu.setTouchModeAbove(SlidingMenu.TOUCHMODE_FULLSCREEN);// 设置SlidingMenu的内容FragmentTransaction fragmentTransaction = getFragmentManager().beginTransaction();MenuFragment menuFragment = new MenuFragment();menuFragment.setOnMenuListOnItemClickListener(this);fragmentTransaction.replace(R.id.menu_frame, menuFragment);fragmentTransaction.replace(R.id.content_frame, new HomeFragment());fragmentTransaction.commit();}@Overridepublic void onBackPressed() {if (mChannelMenu.isMenuShowing()) {// 隐藏SlidingMenu，这里的Content就是我们的主ActivitymChannelMenu.showContent();} else {super.onBackPressed();}}@Overridepublic void onSelectItem(int position, String title) {// TODO Auto-generated method stubSystem.out.println("onSelectItem title = " + title);Fragment fragment = null;switch (position) {case 0:fragment = new HomeFragment();break;case 1:fragment = new WifiFragment();break;case 2:fragment = new BluetoothFragment();break;case 3:fragment = new DisplayFragment();break;default:break;}if (fragment != null) {FragmentManager fragmentManager = getFragmentManager();fragmentManager.beginTransaction().replace(R.id.content_frame, fragment).commit();// update selected item and title, then close the drawersetTitle(title);mChannelMenu.showContent();} else {// error in creating fragmentLog.e("MainActivity", "Error in creating fragment");}}}
package com.dzt.slidingmenudemo.fragment;import java.util.ArrayList;import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.ListView;import com.dzt.slidingmenudemo.MenuListAdapter;
import com.dzt.slidingmenudemo.R;
import com.dzt.slidingmenudemo.domain.MenuItem;public class MenuFragment extends Fragment implements OnItemClickListener {private ListView mLv;private String[] mMenuTitles;private ArrayList<MenuItem> mMenuItem;private MenuListAdapter mAdapter;private OnMenuListOnItemClickListener mListener;public View onCreateView(LayoutInflater inflater, ViewGroup container,Bundle savedInstanceState) {View rootView = inflater.inflate(R.layout.menu_fragment, container,false);initWidgets(rootView);return rootView;}private void initWidgets(View rootView) {mLv = (ListView) rootView.findViewById(R.id.left_menu);mMenuTitles = getResources().getStringArray(R.array.menu_title);mMenuItem = new ArrayList<MenuItem>();for (int i = 0; i < mMenuTitles.length; i++) {MenuItem item = null;if (i == 2) {item = new MenuItem(mMenuTitles[i], R.drawable.ic_launcher,"18", true);} else if (i == 4) {item = new MenuItem(mMenuTitles[i], R.drawable.ic_launcher,"40", true);} else {item = new MenuItem(mMenuTitles[i], R.drawable.ic_launcher);}mMenuItem.add(item);}mAdapter = new MenuListAdapter(getActivity(), mMenuItem);mLv.setAdapter(mAdapter);mLv.setOnItemClickListener(this);}@Overridepublic void onItemClick(AdapterView<?> parent, View view, int position,long id) {// TODO Auto-generated method stubmLv.setItemChecked(position, true);mLv.setSelection(position);if (mListener != null) {mListener.onSelectItem(position, mMenuTitles[position]);}}public void setOnMenuListOnItemClickListener(OnMenuListOnItemClickListener listener) {mListener = listener;}public interface OnMenuListOnItemClickListener {public void onSelectItem(int position, String title);}
}
相关代码：http://download.csdn.net/detail/deng0zhaotai/7862727
