matlab局部放大的图中图画法

【亲测有效】

在作图过程中，如果想将局部信息展示出来并且画在同一张图中，一般的MATLAB作图法就比较拙计了，好在MATLAB还是很强大的，当然，除了不能当女朋友之外 .... ╮(╯▽╰)╭

 function showdetail()% 在当前的axes上操作，用矩形框选出感兴趣的一
% 块区域然后在现有的axes里新建一axes将其画出set(gcf,'color','white');
% 拿到axes在figure中的坐标值及其刻度值分布范围
Pos   = get(gca,'Position');
X0    = Pos(1);
Y0    = Pos(2);
DX    = Pos(3);
DY    = Pos(4);
DLX   = xlim;
DLY   = ylim;% 拿到axes中曲线数据
h     = findobj(gcf,'Type','line');
xdata = get(h,'XData');
ydata = get(h,'YData');
Color             = get(h,'Color');
LineStyle         = get(h,'LineStyle');
LineWidth         = get(h,'LineWidth');
Marker            = get(h,'Marker');
MarkerSize        = get(h,'MarkerSize');
MarkerEdgeColor   = get(h,'MarkerEdgeColor');
MarkerFaceColor   = get(h,'MarkerFaceColor');% 选取需要放大显示的细节部分ROI

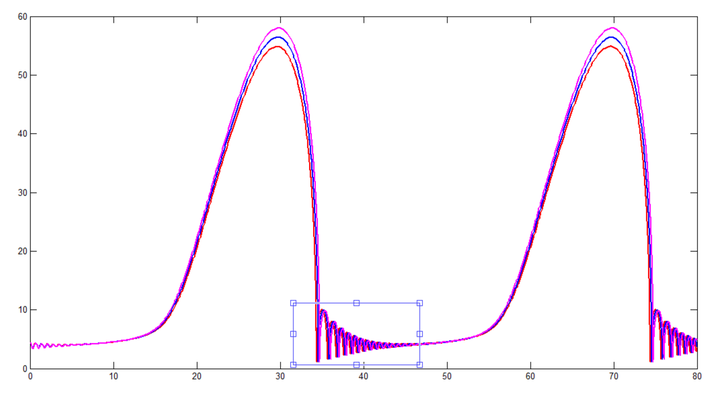

h1   = imrect;                   % 框选出需要的区域
wait(h1);
pos  = getPosition(h1);          % 返回区域的位置和大小
x0   = pos(1);
y0   = pos(2);
dx0  = pos(3);
dy0  = pos(4);% 细节部分的下标
if  iscell(xdata) == 0 indx1  = find( xdata >= x0 );indx2  = find( xdata <= x0+dx0 );indx   = indx1(1):indx2(end);
elsem      = length(xdata);indx1  = find( xdata{1}>=x0 );indx2  = find( xdata{1}<=x0+dx0 );indx   = indx1(1):indx2(end);
endhold on;
LineX = x0:dx0/10:x0+dx0;
LineY = y0:dy0/10:y0+dy0;
plot(LineX,y0*ones(size(LineX)),'k');
plot(LineX,(y0 + dy0)*ones(size(LineX)),'k');
plot(x0*ones(size(LineY)),LineY,'k');

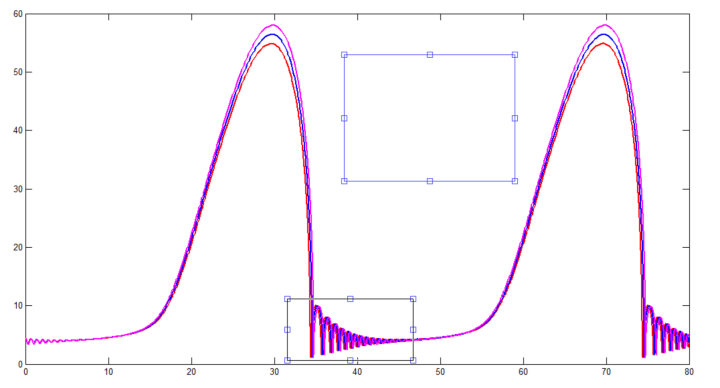

plot((x0+dx0)*ones(size(LineY)),LineY,'k');h2  = imrect;
wait(h2);
pos = getPosition(h2);
x   = pos(1);
y   = pos(2);
dx  = pos(3);
dy  = pos(4);xn  = X0 + DX*(x - DLX(1))/( DLX(2) - DLX(1) );
yn  = Y0 + DY*(y - DLY(1))/( DLY(2) - DLY(1) );
dxn = DX*dx / ( DLX(2) - DLX(1) );
dyn = DY*dy / ( DLY(2) - DLY(1) );
delete(h1);
delete(h2);

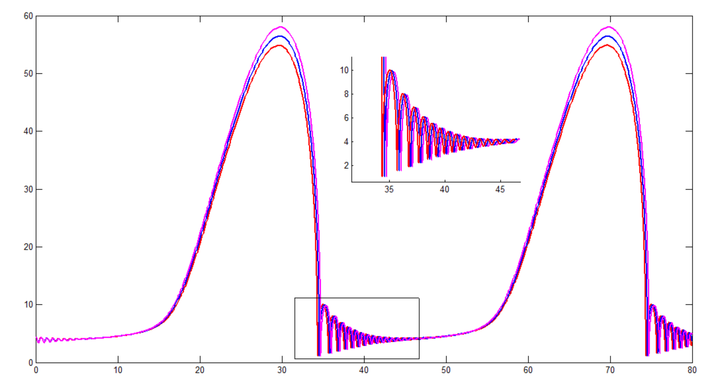

axes('Position', [xn yn dxn dyn]);if  iscell(xdata) == 0 plot(xdata(indx),ydata(indx),...'Color',Color,...'LineStyle',LineStyle,...'LineWidth',LineWidth,...'Marker',Marker,...'MarkerSize',MarkerSize,...'MarkerEdgeColor',MarkerEdgeColor,...'MarkerFaceColor',MarkerFaceColor);
elsefor i = 1:mplot(xdata{i}(indx),ydata{i}(indx),...'Color',Color{i},...'LineStyle',LineStyle{i},...'LineWidth',LineWidth{i},...'Marker',Marker{i},...'MarkerSize',MarkerSize{i},...'MarkerEdgeColor',MarkerEdgeColor{i},...'MarkerFaceColor',MarkerFaceColor{i});hold on;endend
set( gca , 'Box', 'off');
axis([x0 x0+dx0 y0 y0+dy0]);
hold off;end

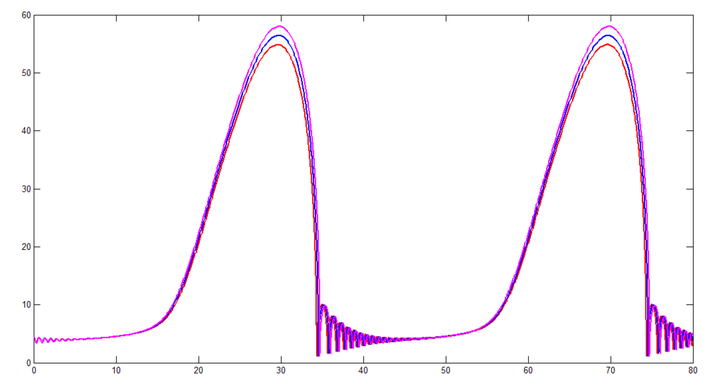

先准备好一张图，然后直接在命令行里运行
