`default_nettype	none
//
module	smplfir(i_clk, i_ce, i_val, o_val);parameter			IW=15;localparam			OW=IW+1;input	wire			i_clk, i_ce;input	wire	[(IW-1):0]	i_val;output	reg	[(OW-1):0]	o_val;reg	[(IW-1):0]	delayed;initial	delayed = 0;always @(posedge i_clk)if (i_ce)delayed <= i_val;always @(posedge i_clk)if (i_ce)o_val <= i_val + delayed;endmodule

clc;clear all;close all;
%=============产生输入信号==============%
N=12;           %数据位宽
load fir128.mat;
y_n = fir128;
y_n=round(y_n*(2^(N-3)-1));      %N比特量化;如果有n个信号相加，则设置（N-n）
%=============设置系统参数==============%
L=length(y_n);         %数据长度
%=================画图==================%

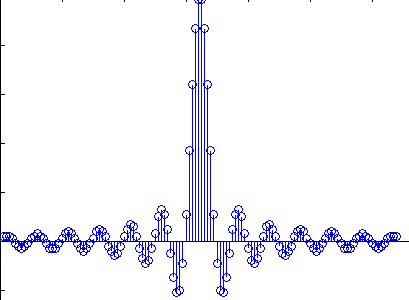

stem(1:L,y_n);
%=============写入外部文件==============%
fid=fopen('win.txt','w');    %把数据写入sin_data.txt文件中，如果没有就创建该文件
for k=1:length(y_n)B_s=dec2bin(y_n(k)+((y_n(k))<0)*2^N,N);for j=1:Nif B_s(j)=='1'tb=1;elsetb=0;endfprintf(fid,'%d',tb);endfprintf(fid,'\r\n');
endfprintf(fid,';');
fclose(fid);

clc;clear all;close all;
filename = 'win.txt';
fid = fopen(filename);
data_cell = textscan(fid,'%s','HeaderLines',0);
data = data_cell{1,1};Nbit = 12;%number of bits
len = length(data)-1;%length of filter
wins = zeros(1,len);
for i = 1:lenstr_win = data{i};if (str_win(1) == '0')wins(i) = bin2dec(str_win(2:end));endif (str_win(1) == '1')wins(i) = -bin2dec(num2str(ones(1,Nbit-1)))+bin2dec(str_win(2:end));end
end

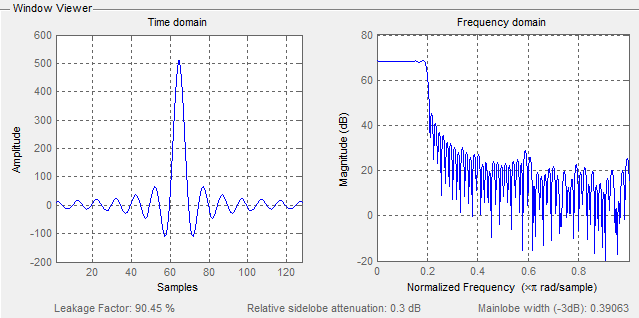

wvtool(wins)

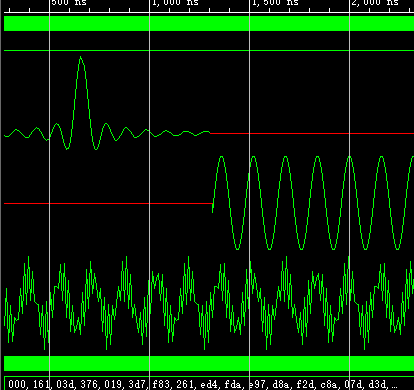

`timescale 1ns / 1ps
module tb;// Inputsreg Clk;reg rst;// Outputsparameter datawidth = 12;wire signed [2*datawidth-1:0] Yout;//Generate a clock with 10 ns clock period.
initial  Clk <= 0;always #5 Clk = ~Clk;//Initialize and apply the inputs.
//-------------------------------------//
parameter data_num = 32'd1024;
integer   i = 0;
reg [datawidth-1:0]  Xin[1:data_num];
reg  [datawidth-1:0]  data_out;initial beginrst = 1;
#20rst = 0;$readmemb("D:/PRJ/vivado/simulation_ding/009_lpf6tap/matlab/sin_data.txt",Xin);
endalways @(posedge Clk) beginif(rst)begindata_out <= 0;endelse   begindata_out <= Xin[i];i <= i + 8'd1;end
end   fastfir firinst(
.i_clk(Clk),
.i_reset(rst),
.i_ce(1'b1),
.i_sample(data_out),
.o_result(Yout)
);
endmodule

//
`default_nettype	none
//
module	fastfir(i_clk, i_reset, i_ce, i_sample, o_result);parameter		NTAPS=127, IW=12, TW=IW, OW=2*IW+7;input	wire			i_clk, i_reset;//input	wire			i_ce;input	wire	[(IW-1):0]	i_sample;output	wire signed	[(2*IW-1):0]	o_result;reg 	[(TW-1):0] tap		[0:NTAPS];wire	[(TW-1):0] tapout	[NTAPS:0];wire	[(IW-1):0] sample	[NTAPS:0];wire	[(OW-1):0] result	[NTAPS:0];wire		tap_wr;// The first sample in our sample chain is the sample we are givenassign	sample[0]	= i_sample;// Initialize the partial summing accumulator with zeroassign	result[0]	= 0;//observe filterreg [IW-1:0] fir_coef;integer i = 0;always @(posedge i_clk)beginif(i_reset) fir_coef <= 0;elsebeginfir_coef <= tap[i];i <= i+ 8'd1;end endgenvar	k;generatebegininitial $readmemb("D:/PRJ/vivado/simulation_ding/009_lpf6tap/matlab/win.txt", tap);assign	tap_wr = 1'b1;endfor(k=0; k<NTAPS; k=k+1)begin: FILTERfirtap #(.FIXED_TAPS(1'b1),.IW(IW), .OW(OW), .TW(TW),.INITIAL_VALUE(0))tapk(.i_clk(i_clk), .i_reset(i_reset), .i_tap_wr(tap_wr), .i_tap( tap[k]), .o_tap(tapout[k+1]),.i_ce(i_ce), .i_sample(sample[0]), .o_sample(sample[k+1]),.i_partial_acc(result[k]), .o_acc( result[k+1]));end endgenerateassign	o_result = result[NTAPS][2*IW-1:0];endmodule

//
`default_nettype	none
//
module	firtap(i_clk, i_reset, i_tap_wr, i_tap, o_tap,i_ce, i_sample, o_sample,i_partial_acc, o_acc);parameter		IW=12, TW=IW, OW=IW+TW+8;parameter [0:0]		FIXED_TAPS=1;parameter [(TW-1):0]	INITIAL_VALUE=0;//input	wire			i_clk, i_reset;//input	wire			i_tap_wr;input	wire	[(TW-1):0]	i_tap;output	wire signed [(TW-1):0]	o_tap;//input	wire			i_ce;input	wire signed [(IW-1):0]	i_sample;output	reg 	[(IW-1):0]	o_sample;//input	wire	[(OW-1):0]	i_partial_acc;output	reg 	[(OW-1):0]	o_acc;//reg		[(IW-1):0]	delayed_sample;reg	signed	[(TW+IW-1):0]	product;// Determine the tap we are usinggenerateif (FIXED_TAPS != 0)// If our taps are fixed, the tap is given by the i_tap// external input.  This allows the parent module to be// able to use readmemh to set all of the taps in a filterassign	o_tap = i_tap;else begin// If the taps are adjustable, then use the i_tap_wr signal// to know when to adjust the tap.  In this case, taps are// strung together through the filter structure--our output// tap becomes the input tap of the next tap module, and// i_tap_wr causes all of them to shift forward by one.reg	[(TW-1):0]	tap;initial	tap = INITIAL_VALUE;always @(posedge i_clk)if (i_tap_wr)tap <= i_tap;assign o_tap = tap;end endgenerate// Forward the sample on down the line, to be the input sample for the// next componentalways @(posedge i_clk)if (i_reset)begindelayed_sample <= 0;o_sample <= 0;end else if (i_ce)begin// Note the two sample delay in this forwarding// structure.  This aligns the inputs up so that the// accumulator structure (below) works.delayed_sample <= i_sample;o_sample <= delayed_sample;end// Multiply the filter tap by the incoming samplealways @(posedge i_clk)if (i_reset)product <= 0;else if (i_ce)product <= o_tap * i_sample;// Continue summing together the output components of the FIR filteralways @(posedge i_clk)if (i_reset)o_acc <= 0;else if (i_ce)o_acc <= i_partial_acc+ { {(OW-(TW+IW)){product[(TW+IW-1)]}},product };// Make verilator happy// verilate lint_on  UNUSEDwire	unused;assign	unused = i_tap_wr;// verilate lint_off UNUSED
