基于Deepface的情绪识别c++

简介

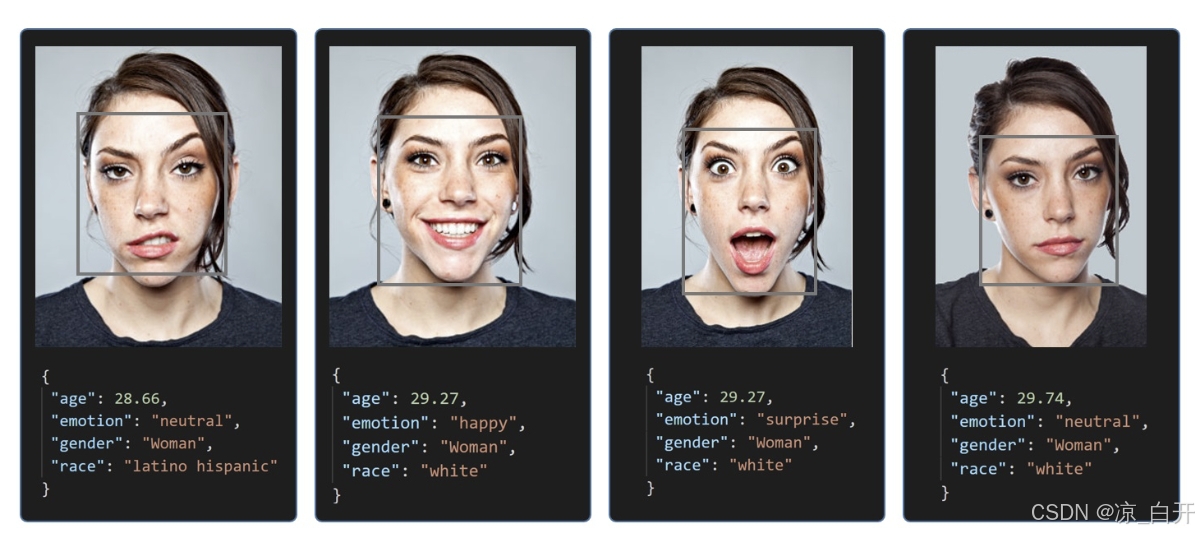

DeepFace是一个基于深度学习的开源人脸识别与属性分析框架，其情绪识别模块通过卷积神经网络（CNN）架构实现了对7种基础情绪（生气、厌恶、恐惧、开心、悲伤、惊讶、中性）的高精度分类。该技术结合了OpenCV的图像处理能力，支持从人脸检测、对齐到情绪预测的全流程自动化处理，准确率高达97.53%，超越人类平均水平。其核心模型如VGG-Face、ArcFace等通过大规模数据集（如FER2013、AffectNet）训练，能够捕捉面部微表情的细微差异。（以上内容来着deepseek）

下载模型并转为onnx（facial_expression_model_weights.h5）

这是情绪识别部分的源码

# stdlib dependencies
from typing import List, Union# 3rd party dependencies
import numpy as np
import cv2# project dependencies
from deepface.commons import package_utils, weight_utils
from deepface.models.Demography import Demography
from deepface.commons.logger import Logger# dependency configuration
tf_version = package_utils.get_tf_major_version()if tf_version == 1:from keras.models import Sequentialfrom keras.layers import Conv2D, MaxPooling2D, AveragePooling2D, Flatten, Dense, Dropout
else:from tensorflow.keras.models import Sequentialfrom tensorflow.keras.layers import (Conv2D,MaxPooling2D,AveragePooling2D,Flatten,Dense,Dropout,)# Labels for the emotions that can be detected by the model.
labels = ["angry", "disgust", "fear", "happy", "sad", "surprise", "neutral"]logger = Logger()# pylint: disable=line-too-long, disable=too-few-public-methodsWEIGHTS_URL = "https://github.com/serengil/deepface_models/releases/download/v1.0/facial_expression_model_weights.h5"class EmotionClient(Demography):"""Emotion model class"""def __init__(self):self.model = load_model()self.model_name = "Emotion"def _preprocess_image(self, img: np.ndarray) -> np.ndarray:"""Preprocess single image for emotion detectionArgs:img: Input image (224, 224, 3)Returns:Preprocessed grayscale image (48, 48)"""img_gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)img_gray = cv2.resize(img_gray, (48, 48))return img_graydef predict(self, img: Union[np.ndarray, List[np.ndarray]]) -> np.ndarray:"""Predict emotion probabilities for single or multiple facesArgs:img: Single image as np.ndarray (224, 224, 3) orList of images as List[np.ndarray] orBatch of images as np.ndarray (n, 224, 224, 3)Returns:np.ndarray (n, n_emotions)where n_emotions is the number of emotion categories"""# Preprocessing input image or image list.imgs = self._preprocess_batch_or_single_input(img)processed_imgs = np.expand_dims(np.array([self._preprocess_image(img) for img in imgs]), axis=-1)# Predictionpredictions = self._predict_internal(processed_imgs)return predictionsdef load_model(url=WEIGHTS_URL,
) -> Sequential:"""Consruct emotion model, download and load weights"""num_classes = 7model = Sequential()# 1st convolution layermodel.add(Conv2D(64, (5, 5), activation="relu", input_shape=(48, 48, 1)))model.add(MaxPooling2D(pool_size=(5, 5), strides=(2, 2)))# 2nd convolution layermodel.add(Conv2D(64, (3, 3), activation="relu"))model.add(Conv2D(64, (3, 3), activation="relu"))model.add(AveragePooling2D(pool_size=(3, 3), strides=(2, 2)))# 3rd convolution layermodel.add(Conv2D(128, (3, 3), activation="relu"))model.add(Conv2D(128, (3, 3), activation="relu"))model.add(AveragePooling2D(pool_size=(3, 3), strides=(2, 2)))model.add(Flatten())# fully connected neural networksmodel.add(Dense(1024, activation="relu"))model.add(Dropout(0.2))model.add(Dense(1024, activation="relu"))model.add(Dropout(0.2))model.add(Dense(num_classes, activation="softmax"))# ----------------------------weight_file = weight_utils.download_weights_if_necessary(file_name="facial_expression_model_weights.h5", source_url=url)model = weight_utils.load_model_weights(model=model, weight_file=weight_file)return model

下载模型并转为onnx

import tensorflow as tf
import tf2onnx
import onnx# 1. 加载原始模型
model = load_model()# 2. 定义输入签名
input_signature = [tf.TensorSpec(shape=(None, 48, 48, 1), dtype=tf.float32, name='input')]# 3. 转换为ONNX
onnx_model, _ = tf2onnx.convert.from_keras(model,input_signature=input_signature,opset=13,output_path="deepface_emotion.onnx"
)

测试

取出照片的人脸部分并处理成模型输入格式

测试图片：

取出人脸图片：

import cv2
import matplotlib.pyplot as plt#处理成输入格式
img = cv2.imread("../img/test2_face.jpg")
img = img.astype(np.float32)/255.0
img_gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
img_gray = cv2.resize(img_gray, (48, 48))
gray_img = np.expand_dims(img_gray, axis=-1)
test_input = np.expand_dims(gray_img, axis=0)

用模型推理一下看看结果

import onnxruntime as ort
import numpy as np# 加载ONNX模型
ort_session = ort.InferenceSession("deepface_emotion.onnx", providers=['CPUExecutionProvider'])# 运行推理
outputs = ort_session.run(None, {'input': test_input})
print("预测概率：", outputs[0])# 获取预测结果
predicted_class = np.argmax(outputs[0])
print("预测类别：", predicted_class)labels = ["angry", "disgust", "fear", "happy", "sad", "surprise", "neutral"]
print(f"预测类型：{labels[predicted_class]}，概率：{outputs[0][0][predicted_class]:.2f}")

结果：

预测概率： [[2.0709881e-10 1.9225350e-18 4.2878087e-06 9.9998260e-01 1.3058154e-051.4756028e-11 1.7358280e-08]]
预测类别： 3
预测类型：happy，概率：1.00

用onnxruntime的c++库推理

#pragma once
#include <iostream>
#include <numeric> //数值计算
#include <tuple>   //C++17 元组
#include <opencv2/opencv.hpp>
#include <onnxruntime_cxx_api.h>namespace LIANGBAIKAI_BASE_MODEL_NAME
{#define ORT_OLD_VISON 12 // ort1.12.0 之前的版本为旧版本APIclass Deepface_Emotion_Onnxruntime{public:enum Severity_log{E_INTERNAL_ERROR = 0, // 内部错误E_ERROR = 1,          // 一般错误E_WARNING = 2,        // 警告E_INFO = 3,           // 信息};Deepface_Emotion_Onnxruntime() : _OrtMemoryInfo(Ort::MemoryInfo::CreateCpu(OrtAllocatorType::OrtDeviceAllocator, OrtMemType::OrtMemTypeCPUOutput)) {};virtual ~Deepface_Emotion_Onnxruntime() {};/*** @description: 设置日志等级* @param {Severity_log} severity* @return {*}*/virtual void setReportableSeverity(Severity_log severity){_reportableSeverity = severity;log(E_INFO, "reportableSeverity set to " + std::to_string(severity));}/*** @description:* @param {string} &modelPath 模型文件* @param {int} netWidth 模型输入尺寸宽* @param {int} netHeight 模型输入尺寸高* @param {bool} isCuda 是否使用cuda* @param {int} cudaID cuda的id* @param {bool} warmUp warm up gpu-model* @return {*}  返回是否初始化成功*/bool init(const std::string &modelPath, int netWidth = 48, int netHeight = 48, bool isCuda = true, int cudaID = 0, bool warmUp = true){_netWidth = netWidth;_netHeight = netHeight;bool rec = ReadModel(modelPath, isCuda, cudaID, warmUp);return rec;}/*** @description: 推理* @param {cv::Mat} &img : 输入人脸图片* @return {std::tuple<int, float>}  返回情绪,置信度*/std::tuple<int, float> infer(const cv::Mat &img){log(E_INFO, "infer");cv::Mat img_tmp = img.clone();cv::resize(img_tmp, img_tmp, cv::Size(224, 224));cv::Mat normalizedImage;//  cv::normalize(img_tmp, normalizedImage, 0, 1, cv::NORM_MINMAX, CV_32F); // 归一化 结果与python的源码结果有一点偏差，用下面的方法img_tmp.convertTo(normalizedImage, CV_32F, 1.0 / 255.0);cv::Mat resizedImage;cv::resize(normalizedImage, resizedImage, cv::Size(_netWidth, _netHeight));cv::Mat grayImage;cv::cvtColor(resizedImage, grayImage, cv::COLOR_BGR2GRAY);cv::Mat blob;cv::dnn::blobFromImage(grayImage, blob, 1.0, cv::Size(0, 0), cv::Scalar(0), false, false);int64_t input_tensor_length = VectorProduct(_inputTensorShape);std::vector<Ort::Value> input_tensors;std::vector<Ort::Value> output_tensors;input_tensors.push_back(Ort::Value::CreateTensor<float>(_OrtMemoryInfo, (float *)blob.data, input_tensor_length, _inputTensorShape.data(), _inputTensorShape.size()));log(E_INFO, "infer run");output_tensors = _OrtSession->Run(Ort::RunOptions{nullptr},_inputNodeNames.data(),input_tensors.data(),_inputNodeNames.size(),_outputNodeNames.data(),_outputNodeNames.size());float *all_data = output_tensors[0].GetTensorMutableData<float>();int max_index = 0;float max_value = 0.0f;for (int i = 0; i < _outputTensorShape[1]; i++){log(E_INFO, "result" + std::to_string(i) + ": " + std::to_string(all_data[i]));if (all_data[i] > max_value){max_value = all_data[i];max_index = i;}}return std::make_tuple(max_index, max_value * 99.99);}private:/*** @description: 读取onnx模型* @param {string} &modelPath : onnx模型路径* @param {bool} isCuda: 如果为true，使用Ort-GPU，否则在cpu上运行。* @param {int} cudaID: 如果isCuda==true，在cudaID上运行Ort-GPU。* @param {bool} warmUp: 如果isCuda==true，预热GPU-model。* @return {*}*/bool ReadModel(const std::string &modelPath, bool isCuda = true, int cudaID = 0, bool warmUp = true){if (_batchSize < 1){_batchSize = 1;}try{// 列出可用的推理提供者 cpu cuda dml tensorrt openvinostd::vector<std::string> available_providers = Ort::GetAvailableProviders();auto cuda_available = std::find(available_providers.begin(), available_providers.end(), "CUDAExecutionProvider");if (isCuda && (cuda_available == available_providers.end())){log(E_ERROR, "Your ORT build without GPU. Change to CPU.");log(E_INFO, "************* Infer model on CPU! *************");}else if (isCuda && (cuda_available != available_providers.end())){log(E_INFO, "************* Infer model on GPU! *************");#if ORT_API_VERSION < ORT_OLD_VISONOrtCUDAProviderOptions cudaOption;cudaOption.device_id = cudaID;_OrtSessionOptions.AppendExecutionProvider_CUDA(cudaOption);
#else// 添加CUDA执行提供者OrtStatus *status = OrtSessionOptionsAppendExecutionProvider_CUDA(_OrtSessionOptions, cudaID);if (status != NULL){log(E_ERROR, "OrtSessionOptionsAppendExecutionProvider_CUDA ERROR");}
#endif}else{log(E_INFO, "************* Infer model on CPU! *************");}// 设置图优化级别_OrtSessionOptions.SetGraphOptimizationLevel(GraphOptimizationLevel::ORT_ENABLE_EXTENDED);#ifdef _WIN32std::wstring model_path(modelPath.begin(), modelPath.end());_OrtSession = std::make_shared<Ort::Session>(_OrtEnv, modelPath.c_str(), _OrtSessionOptions);
#else// 创建会话_OrtSession = std::make_shared<Ort::Session>(_OrtEnv, modelPath.c_str(), _OrtSessionOptions);
#endif// 创建默认的内存分配器Ort::AllocatorWithDefaultOptions allocator;// 初始化输入_inputNodesNum = _OrtSession->GetInputCount();
#if ORT_API_VERSION < ORT_OLD_VISON_inputName = _OrtSession->GetInputName(0, allocator);_inputNodeNames.push_back(_inputName);
#else// 获取输入名称_inputName = std::move(_OrtSession->GetInputNameAllocated(0, allocator));_inputNodeNames.push_back(_inputName.get());
#endif// 获取输入类型信息Ort::TypeInfo inputTypeInfo = _OrtSession->GetInputTypeInfo(0);// 获取输入张量类型和形状信息auto input_tensor_info = inputTypeInfo.GetTensorTypeAndShapeInfo();// 获取输入数据类型_inputNodeDataType = input_tensor_info.GetElementType();// 获取输入张量形状_inputTensorShape = input_tensor_info.GetShape();if (_inputTensorShape[0] == -1){_isDynamicShape = true;_inputTensorShape[0] = _batchSize;}if (_inputTensorShape[2] == -1 || _inputTensorShape[3] == -1){_isDynamicShape = true;_inputTensorShape[2] = _netHeight;_inputTensorShape[3] = _netWidth;}// 获取输出节点数_outputNodesNum = _OrtSession->GetOutputCount();// 获取输出名称
#if ORT_API_VERSION < ORT_OLD_VISON_output_name0 = _OrtSession->GetOutputName(0, allocator);_outputNodeNames.push_back(_output_name0);
#else_output_name0 = std::move(_OrtSession->GetOutputNameAllocated(0, allocator));_outputNodeNames.push_back(_output_name0.get());
#endifOrt::TypeInfo type_info_output0(nullptr);type_info_output0 = _OrtSession->GetOutputTypeInfo(0); // output0// 获取输出张量类型和形状信息auto tensor_info_output0 = type_info_output0.GetTensorTypeAndShapeInfo();// 获取输出数据类型_outputNodeDataType = tensor_info_output0.GetElementType();// 获取输出张量形状_outputTensorShape = tensor_info_output0.GetShape();log(E_INFO, "inputNodesNum:" + std::to_string(_inputNodesNum));log(E_INFO, "inputNodeNames:" + std::string(_inputNodeNames[0]));std::string inputTensorShapeStr = " ";for (unsigned int i = 0; i < _inputTensorShape.size(); i++){inputTensorShapeStr += std::to_string(_inputTensorShape[i]) + " ";}log(E_INFO, "inputTensorShape:" + inputTensorShapeStr);log(E_INFO, "outputNodesNum:" + std::to_string(_outputNodesNum));log(E_INFO, "outputNodeNames:" + std::string(_outputNodeNames[0]));std::string outputTensorShapeStr = " ";for (unsigned int i = 0; i < _outputTensorShape.size(); i++){outputTensorShapeStr += std::to_string(_outputTensorShape[i]) + " ";}log(E_INFO, "outputTensorShape:" + outputTensorShapeStr);log(E_INFO, "outputNodeDataType:" + std::to_string(_outputNodeDataType));// warm upif (isCuda && warmUp){// draw runlog(E_INFO, "Start warming up");// 计算输入张量长度size_t input_tensor_length = VectorProduct(_inputTensorShape);float *temp = new float[input_tensor_length];// 创建输入张量std::vector<Ort::Value> input_tensors;// 创建输出张量std::vector<Ort::Value> output_tensors;input_tensors.push_back(Ort::Value::CreateTensor<float>(_OrtMemoryInfo, temp, input_tensor_length, _inputTensorShape.data(),_inputTensorShape.size()));for (int i = 0; i < 3; ++i){output_tensors = _OrtSession->Run(Ort::RunOptions{nullptr},_inputNodeNames.data(),input_tensors.data(),_inputNodeNames.size(),_outputNodeNames.data(),_outputNodeNames.size());}delete[] temp;}}catch (const std::exception &){log(E_ERROR, "read model error !");return false;}log(E_INFO, "read model success !");return true;}void log(Severity_log severity, const std::string msg) noexcept{// 根据严重性级别决定是否打印日志if (severity <= _reportableSeverity){switch (severity){case Severity_log::E_INTERNAL_ERROR:std::cerr << "[INTERNAL ERROR] " << msg << std::endl;break;case Severity_log::E_ERROR:std::cerr << "[ERROR] " << msg << std::endl;break;case Severity_log::E_WARNING:std::cerr << "[WARNING] " << msg << std::endl;break;case Severity_log::E_INFO:std::cout << "[INFO] " << msg << std::endl;break;default:break;}}}// 计算向量中所有元素的乘积template <typename T>T VectorProduct(const std::vector<T> &v){return std::accumulate(v.begin(), v.end(), 1, std::multiplies<T>());};int _netWidth = 48;  // ONNX-net-input-widthint _netHeight = 48; // ONNX-net-input-heightint _batchSize = 1;           // if multi-batch,set thisbool _isDynamicShape = false; // onnx support dynamic shape// ONNXRUNTIMEOrt::Env _OrtEnv = Ort::Env(OrtLoggingLevel::ORT_LOGGING_LEVEL_ERROR, "Resnet");Ort::SessionOptions _OrtSessionOptions = Ort::SessionOptions();std::shared_ptr<Ort::Session> _OrtSession;Ort::MemoryInfo _OrtMemoryInfo;
#if ORT_API_VERSION < ORT_OLD_VISONchar *_inputName, *_output_name0;
#elsestd::shared_ptr<char> _inputName, _output_name0;
#endifstd::vector<char *> _inputNodeNames;  // 输入节点名std::vector<char *> _outputNodeNames; // 输出节点名size_t _inputNodesNum = 0;  // 输入节点数size_t _outputNodesNum = 0; // 输出节点数ONNXTensorElementDataType _inputNodeDataType; // 数据类型ONNXTensorElementDataType _outputNodeDataType;std::vector<int64_t> _inputTensorShape; // 输入张量shapestd::vector<int64_t> _outputTensorShape;Severity_log _reportableSeverity = Severity_log::E_ERROR;};
}

完整项目代码
