SpringBoot启动run方法分析

1.场景引入

在项目启动的时候，有时候我们需要在启动的时候，执行一些逻辑。

比如说，项目启动的时候，我想把一些热门商品的数据加载到缓存中去；

比如说，自定义了一个netty服务，我想在项目启动的时候，自动开启这个netty服务；

比如说，…

反正，这个场景大家肯定或多或少会碰到的吧。

下面就按照先后顺序依次介绍各种方式。

// 这个是示例初始化的方法
@Slf4j
public class InitCode {public static void startMethod( String str) {log.info("========================【{}】 就是这个~~~~~~~######", str);}
}

下面的六个方法参考了【https://blog.csdn.net/QIU176161650/article/details/118087254】这篇文章。其中的Servlet相关的，没有作细致分析，故打了**做标记。

①.实现ServletContextListener接口contextInitialized方法**

@Component
public class MyServletContextListener implements ServletContextListener {@Overridepublic void contextInitialized(ServletContextEvent sce) {InitCode.startMethod("ServletContextListener");}
}

②.@PostConstruct注解方式

这里顺便比较一下InitializingBean接口的方法。

@Component
public class NettyStarter implements InitializingBean {@Overridepublic void afterPropertiesSet() throws Exception {InitCode.startMethod("InitializingBean接口");}@PostConstructpublic void init() {InitCode.startMethod("@PostConstruct");}
}

③.实现ServletContextAware接口setServletContext 方法**

@Component
public class MyServletContextAware implements ServletContextAware {@Overridepublic void setServletContext(ServletContext servletContext) {InitCode.startMethod("ServletContextAware");}
}

④.@EventListener方式

@Component
public class MyEventListener {// 监听ContextRefreshedEvent事件@EventListenerpublic void onApplicationEvent(ContextRefreshedEvent event) {InitCode.startMethod("EventListener");}
}

⑤.实现ApplicationRunner接口run 方法

@Component
public class MyApplicationRunner implements ApplicationRunner {@Overridepublic void run(ApplicationArguments args) throws Exception {InitCode.startMethod("ApplicationRunner");}
}

⑥.实现CommandLineRunner接口run 方法

@Component
public class MyCommandLineRunner implements CommandLineRunner {@Overridepublic void run(String... args) throws Exception {InitCode.startMethod("CommandLineRunner");}
}

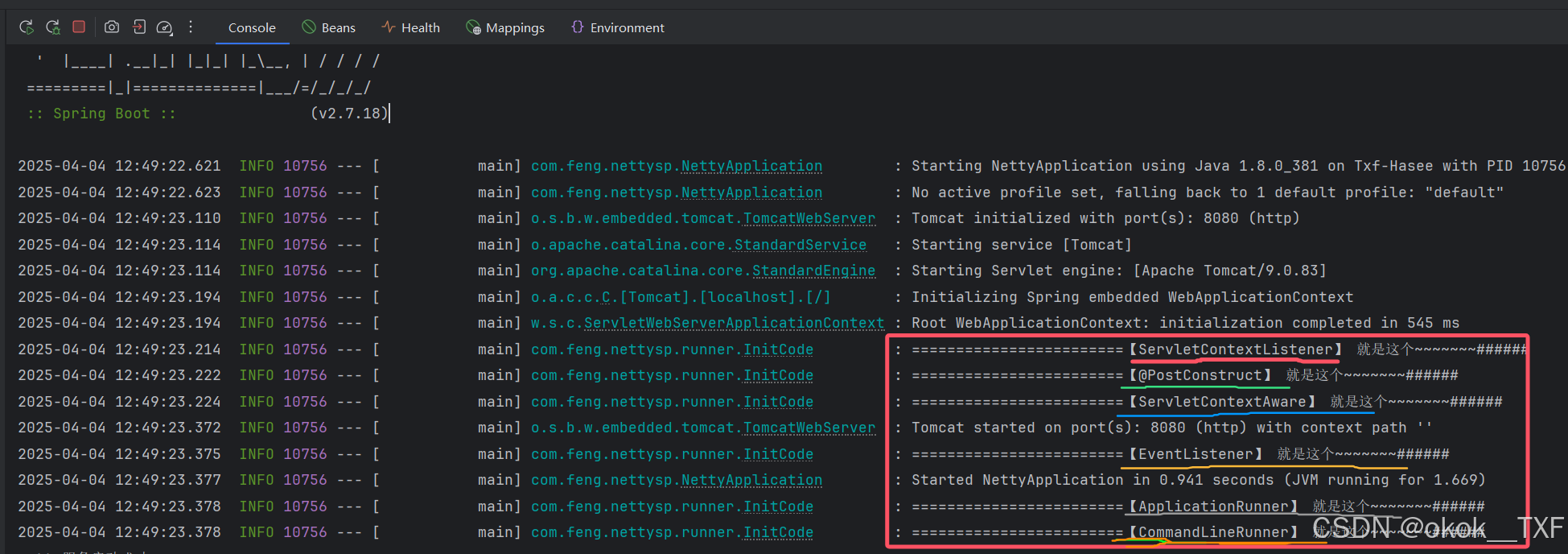

⑦.顺序演示

在这里插入图片描述

通过debug，我们发现前四个打印的是在springBoot的refreshContext(context);之后的。后面两个Runner是callRunners(context, applicationArguments);之后打印的

2.run(args )

这要从SpringBoot的启动流程讲起了。在这篇文章【springboot】【https://www.cnblogs.com/jackjavacpp/p/18653391】中，对run的方法没有作分析，现在我们来看一下run方法。

Spring Boot的启动流程可划分为以下阶段：

环境准备：加载配置文件、初始化环境变量。
容器创建：创建ApplicationContext，加载Bean定义。
Bean实例化：实例化Bean并完成依赖注入。
启动完成：执行后置任务，如缓存预热、定时任务启动。

每个阶段均提供扩展点供开发者介入自己的逻辑。

下面以SpringBoot2.7.18源码为例子

//Spring Boot应用启动入口方法，返回已初始化的应用上下文。
public ConfigurableApplicationContext run(String... args) {// 1.启动计时与引导上下文long startTime = System.nanoTime();DefaultBootstrapContext bootstrapContext = createBootstrapContext();ConfigurableApplicationContext context = null;configureHeadlessProperty();// 2.事件监听器初始化SpringApplicationRunListeners listeners = getRunListeners(args);listeners.starting(bootstrapContext, this.mainApplicationClass);try {// 3.环境准备阶段ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);ConfigurableEnvironment environment = prepareEnvironment(listeners, bootstrapContext, applicationArguments);configureIgnoreBeanInfo(environment);// 4.Banner打印与上下文创建Banner printedBanner = printBanner(environment);context = createApplicationContext();context.setApplicationStartup(this.applicationStartup);// 5.上下文准备阶段prepareContext(bootstrapContext, context, environment, listeners, applicationArguments, printedBanner);// 6.容器刷新（！！！最核心阶段！！！）refreshContext(context);// 7.启动后处理afterRefresh(context, applicationArguments);Duration timeTakenToStartup = Duration.ofNanos(System.nanoTime() - startTime);if (this.logStartupInfo) {new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), timeTakenToStartup);}listeners.started(context, timeTakenToStartup);callRunners(context, applicationArguments);}catch (Throwable ex) {handleRunFailure(context, ex, listeners);throw new IllegalStateException(ex);}try {// 8.应用就绪阶段Duration timeTakenToReady = Duration.ofNanos(System.nanoTime() - startTime);listeners.ready(context, timeTakenToReady); // ready事件}catch (Throwable ex) {handleRunFailure(context, ex, null);throw new IllegalStateException(ex);}return context;
}

根据上面的源码结构大致总结出以下流程：

graph TD
A[run()启动] --> B[初始化引导上下文]
B --> C[配置Headless模式]
C --> D[初始化事件监听器]
D --> E[发布ApplicationStartingEvent]
E --> F[准备环境变量]
F --> G[打印Banner]
G --> H[创建应用上下文]
H --> I[准备上下文]
I --> J[刷新上下文]==================最核心
J --> K[发布ApplicationStartedEvent]
K --> L[执行ApplicationRunner]
L --> M[发布ApplicationReadyEvent]
M --> N[返回上下文]

下面对run方法中重要的部分作分析。

①事件监听器初始化

SpringApplicationRunListeners listeners = getRunListeners(args);
listeners.starting(bootstrapContext, this.mainApplicationClass);// getRunListeners(args)
private SpringApplicationRunListeners getRunListeners(String[] args) {Class<?>[] types = new Class<?>[] { SpringApplication.class, String[].class };return new SpringApplicationRunListeners(logger,getSpringFactoriesInstances(SpringApplicationRunListener.class, types, this, args),this.applicationStartup);
}
// getSpringFactoriesInstances(xxx)
private <T> Collection<T> getSpringFactoriesInstances(Class<T> type, Class<?>[] parameterTypes, Object... args) {ClassLoader classLoader = getClassLoader();//SpringFactoriesLoader.loadFactoryNames----Set<String> names = new LinkedHashSet<>(SpringFactoriesLoader.loadFactoryNames(type, classLoader));List<T> instances = createSpringFactoriesInstances(type, parameterTypes, classLoader, args, names);AnnotationAwareOrderComparator.sort(instances);return instances;
}

通过spring.factories加载所有SpringApplicationRunListener实现类，发布ApplicationStartingEvent事件（最早触发的生命周期事件）

// 发布starting事件
void starting(ConfigurableBootstrapContext bootstrapContext, Class<?> mainApplicationClass) {doWithListeners("spring.boot.application.starting", (listener) -> listener.starting(bootstrapContext),(step) -> {if (mainApplicationClass != null) {step.tag("mainApplicationClass", mainApplicationClass.getName());}});
}

②容器刷新

refreshContext(context);private void refreshContext(ConfigurableApplicationContext context) {// Spring Boot 扩展点：应用上下文刷新前的处理if (this.registerShutdownHook) {shutdownHook.registerApplicationContext(context);}refresh(context);
}// 核心逻辑：调用 Spring Framework 的 refresh() 方法
protected void refresh(ConfigurableApplicationContext applicationContext) {applicationContext.refresh();
}// 到抽象类AbstractApplicationContext.java这里来了
@Override
public void refresh() throws BeansException, IllegalStateException {synchronized (this.startupShutdownMonitor) {StartupStep contextRefresh = this.applicationStartup.start("spring.context.refresh");prepareRefresh(); // 1.准备刷新// 2. 获取BeanFactoryConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();prepareBeanFactory(beanFactory);try {postProcessBeanFactory(beanFactory);StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");invokeBeanFactoryPostProcessors(beanFactory);registerBeanPostProcessors(beanFactory);beanPostProcess.end();initMessageSource();   initApplicationEventMulticaster();onRefresh();registerListeners();finishBeanFactoryInitialization(beanFactory);finishRefresh();}catch (BeansException ex) {if (logger.isWarnEnabled()) {logger.warn("Exception encountered during context initialization - " +"cancelling refresh attempt: " + ex);}// Destroy already created singletons to avoid dangling resources.destroyBeans();// Reset 'active' flag.cancelRefresh(ex);// Propagate exception to caller.throw ex;}finally {resetCommonCaches();contextRefresh.end();}}
}

refreshContext(context) 是 Spring Boot 启动过程中最核心的阶段之一，负责 Spring 容器的创建、配置和初始化。它直接调用了 Spring Framework 的 AbstractApplicationContext.refresh() 方法，由于我们demo引入了web依赖， Spring Boot 在此基础上进行了扩展（故会有内嵌 Web 容器的启动）。

1) 准备刷新

2) 获取BeanFactory

// AbstractApplicationContext.java
protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {// 销毁旧 BeanFactory（如果存在）refreshBeanFactory();// 创建新的 BeanFactory（默认实现为 DefaultListableBeanFactory）return getBeanFactory();
}

3) 配置BeanFactory

// AbstractApplicationContext.java
protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {beanFactory.setBeanClassLoader(getClassLoader());beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver());beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar());// 添加 BeanPostProcessor（如处理 @Autowired）beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));beanFactory.ignoreDependencyInterface(EnvironmentAware.class);// 注册环境变量等内置 BeanbeanFactory.registerSingleton("environment", getEnvironment());
}

核心操作：注册内置 Bean（如 Environment）和基础 BeanPostProcessor。

4) 后处理BeanFactory（扩展点）

// 子类可覆盖此方法（如 WebApplicationContext）
protected void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) {
}

5) 执行BeanFactoryPostProcessor

protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());// Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime// (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)if (!NativeDetector.inNativeImage() && beanFactory.getTempClassLoader() == null &&beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));}
}
// PostProcessorRegistrationDelegate.java
public static void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {// 处理 BeanDefinitionRegistryPostProcessor（优先级高）invokeBeanDefinitionRegistryPostProcessors(postProcessors, registry);// 处理 BeanFactoryPostProcessorinvokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);
}

关键扩展点：
- BeanDefinitionRegistryPostProcessor：动态注册 Bean 定义（如 @Configuration 类的解析）。
- BeanFactoryPostProcessor：修改 Bean 定义（如属性占位符替换 PropertySourcesPlaceholderConfigurer）。
Spring Boot 应用：ConfigurationClassPostProcessor 在此阶段解析 @ComponentScan、@Import（包括 @EnableAutoConfiguration）等注解。

6) 注册 BeanPostProcessor

protected void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory) {PostProcessorRegistrationDelegate.registerBeanPostProcessors(beanFactory, this);
}
// PostProcessorRegistrationDelegate.java
public static void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory, AbstractApplicationContext applicationContext) {// 获取所有 BeanPostProcessor 并排序String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class);for (String ppName : postProcessorNames) {beanFactory.addBeanPostProcessor(beanFactory.getBean(ppName, BeanPostProcessor.class));}
}

作用：将 BeanPostProcessor 实例注册到容器，后续 Bean 初始化时会经过这些处理器。
关键处理器：
- AutowiredAnnotationBeanPostProcessor：处理 @Autowired 和 @Value。
- CommonAnnotationBeanPostProcessor：处理 @PostConstruct、@PreDestroy。
- AnnotationAwareAspectJAutoProxyCreator：AOP 代理生成。

7) 初始化事件广播器

// AbstractApplicationContext.java
protected void initApplicationEventMulticaster() {if (beanFactory.containsLocalBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME)) {this.applicationEventMulticaster =beanFactory.getBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, ApplicationEventMulticaster.class);} else {// 默认使用 SimpleApplicationEventMulticasterthis.applicationEventMulticaster = new SimpleApplicationEventMulticaster(beanFactory);beanFactory.registerSingleton(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, this.applicationEventMulticaster);}
}

初始化事件发布机制，用于后续发布 ContextRefreshedEvent 等事件。

8) 模板方法(onRefresh())–内嵌web容器

protected void onRefresh() throws BeansException {// For subclasses: do nothing by default.
}//我们是 ServletWebServerApplicationContext.java
@Override
protected void onRefresh() {super.onRefresh();try {// 创建并启动内嵌的 Web 服务器（如 Tomcat）createWebServer();}catch (Throwable ex) {throw new ApplicationContextException("Unable to start web server", ex);}
}private void createWebServer() {WebServer webServer = this.webServer;ServletContext servletContext = getServletContext();if (webServer == null && servletContext == null) {StartupStep createWebServer = this.getApplicationStartup().start("spring.boot.webserver.create");ServletWebServerFactory factory = getWebServerFactory();createWebServer.tag("factory", factory.getClass().toString());// ServletWebServerFactory 创建 WebServerthis.webServer = factory.getWebServer(getSelfInitializer());createWebServer.end();getBeanFactory().registerSingleton("webServerGracefulShutdown",new WebServerGracefulShutdownLifecycle(this.webServer));getBeanFactory().registerSingleton("webServerStartStop",new WebServerStartStopLifecycle(this, this.webServer));}else if (servletContext != null) {try {getSelfInitializer().onStartup(servletContext);}catch (ServletException ex) {throw new ApplicationContextException("Cannot initialize servlet context", ex);}}initPropertySources();

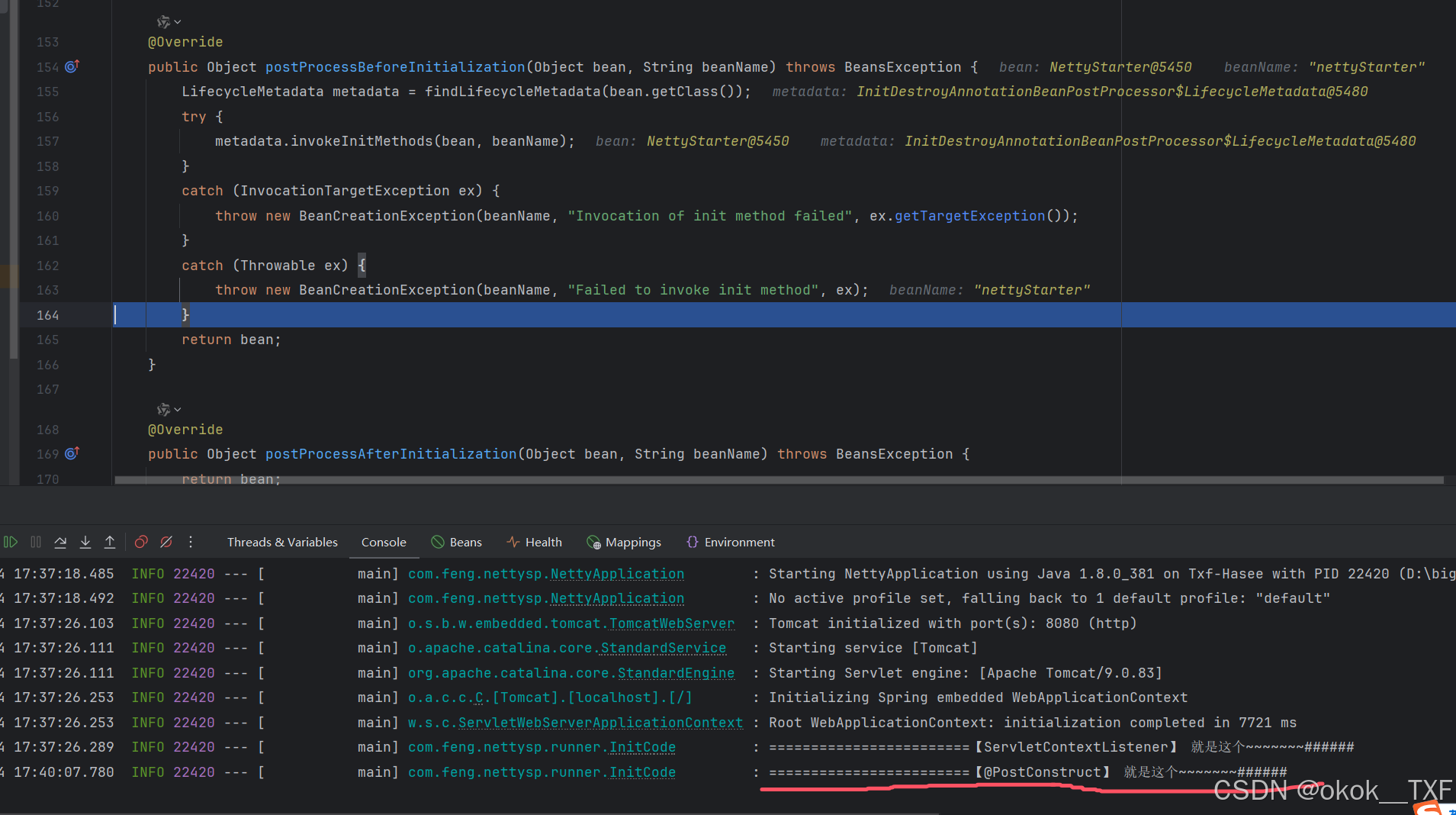

}// 经过调试发现运行到了StandardContext.java 不是spring框架范围了public boolean listenerStart() {...ServletContextEvent event = new ServletContextEvent(getServletContext());ServletContextEvent tldEvent = null;....ServletContextListener listener = (ServletContextListener) instance;try {fireContainerEvent("beforeContextInitialized", listener);if (noPluggabilityListeners.contains(listener)) {// ServletContextListener接口contextInitializedlistener.contextInitialized(tldEvent);} else {// ServletContextListener接口contextInitializedlistener.contextInitialized(event);}} ......}

在这里插入图片描述

Spring Boot 核心扩展：在此方法中启动内嵌的 Web 容器（如 Tomcat），这是 Spring Boot 与 Spring Framework 的重要区别。
流程：
1. 通过 ServletWebServerFactory 创建 WebServer。
2. 初始化 DispatcherServlet 并注册到 Servlet 容器。

9) 注册监听器

// AbstractApplicationContext.java
protected void registerListeners() {// 添加静态指定的监听器for (ApplicationListener<?> listener : getApplicationListeners()) {getApplicationEventMulticaster().addApplicationListener(listener);}// 注册 Bean 形式的监听器String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class);for (String listenerBeanName : listenerBeanNames) {getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);}// 发布早期事件（如果有）publishEarlyApplicationEvents();
}

将 ApplicationListener 注册到事件广播器，确保后续事件能被监听。

10) 【重要】初始化所有单例 Bean

// AbstractApplicationContext.java
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {// Initialize conversion service for this context.if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {beanFactory.setConversionService(beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));}if (!beanFactory.hasEmbeddedValueResolver()) {beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));}// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);for (String weaverAwareName : weaverAwareNames) {getBean(weaverAwareName);}// Stop using the temporary ClassLoader for type matching.beanFactory.setTempClassLoader(null);// Allow for caching all bean definition metadata, not expecting further changes.beanFactory.freezeConfiguration();// Instantiate all remaining (non-lazy-init) singletons.beanFactory.preInstantiateSingletons();
}// DefaultListableBeanFactory.java
public void preInstantiateSingletons() throws BeansException {...Object singletonInstance = getSingleton(beanName);...
}
// DefaultSingletonBeanRegistry.java
@Nullable
protected Object getSingleton(String beanName, boolean allowEarlyReference) {// Quick check for existing instance without full singleton lockObject singletonObject = this.singletonObjects.get(beanName);if (singletonObject == null && isSingletonCurrentlyInCreation(beanName)) {singletonObject = this.earlySingletonObjects.get(beanName);if (singletonObject == null && allowEarlyReference) {synchronized (this.singletonObjects) {// Consistent creation of early reference within full singleton locksingletonObject = this.singletonObjects.get(beanName);if (singletonObject == null) {singletonObject = this.earlySingletonObjects.get(beanName);if (singletonObject == null) {ObjectFactory<?> singletonFactory = this.singletonFactories.get(beanName);if (singletonFactory != null) {singletonObject = singletonFactory.getObject();this.earlySingletonObjects.put(beanName, singletonObject);this.singletonFactories.remove(beanName);}}}}}}return singletonObject;
}

核心逻辑：DefaultListableBeanFactory.preInstantiateSingletons() 方法会遍历所有 Bean 定义，实例化并初始化非懒加载的单例 Bean。
关键过程：
- 调用 BeanPostProcessor 的前置处理（如 AOP 代理生成）。
- 执行 @PostConstruct 方法。
- 调用 InitializingBean.afterPropertiesSet()。

getSingleton(String beanName, boolean allowEarlyReference) 如果allowEarlyReference是true的话，就用**三级缓存来解决循环依赖【见后续文章】**的问题。

debug源码得知，在DefaultListableBeanFactory::preInstantiateSingletons()中，调用了AbstractBeanFactory::getBean(String name)方法，接着往下是，AbstractBeanFactory::doGetBean(xx)方法，在该方法中有这样一个片段

// AbstractBeanFactory.java
// Create bean instance.
if (mbd.isSingleton()) {sharedInstance = getSingleton(beanName, () -> {try {return createBean(beanName, mbd, args); //==========这里往下}catch (BeansException ex) {// Explicitly remove instance from singleton cache: It might have been put there// eagerly by the creation process, to allow for circular reference resolution.// Also remove any beans that received a temporary reference to the bean.destroySingleton(beanName);throw ex;}});beanInstance = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}// AbstractAutowireCapableBeanFactory.java
@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)throws BeanCreationException {....Object beanInstance = doCreateBean(beanName, mbdToUse, args);
}
protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)throws BeanCreationException {... // 有如下片段// Initialize the bean instance.Object exposedObject = bean;try {populateBean(beanName, mbd, instanceWrapper);exposedObject = initializeBean(beanName, exposedObject, mbd);}.....
}// AbstractAutowireCapableBeanFactory.java
protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {if (System.getSecurityManager() != null) {AccessController.doPrivileged((PrivilegedAction<Object>) () -> {invokeAwareMethods(beanName, bean);return null;}, getAccessControlContext());}else {// 调用 Aware 接口回调invokeAwareMethods(beanName, bean);}Object wrappedBean = bean;if (mbd == null || !mbd.isSynthetic()) {// 1.调用BeanPostProcessors // ---触发BeanPostProcessor的前置处理wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);}try {// 2.调用初始化的方法/*在这个里面先((InitializingBean) bean).afterPropertiesSet();接着String initMethodName = mbd.getInitMethodName();if (StringUtils.hasLength(initMethodName) &&!(isInitializingBean && "afterPropertiesSet".equals(initMethodName)) &&!mbd.hasAnyExternallyManagedInitMethod(initMethodName)) {invokeCustomInitMethod(beanName, bean, mbd);}*/invokeInitMethods(beanName, wrappedBean, mbd);}catch (Throwable ex) {throw new BeanCreationException((mbd != null ? mbd.getResourceDescription() : null),beanName, "Invocation of init method failed", ex);}if (mbd == null || !mbd.isSynthetic()) {// 触发BeanPostProcessor的后置处理wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);}return wrappedBean;
}

initializeBean 方法是 Spring 框架中 Bean 生命周期的核心方法之一，负责：

调用 Aware 接口回调（如 BeanNameAware、BeanFactoryAware 等）。
触发 BeanPostProcessor 的前置处理（postProcessBeforeInitialization）。
执行 Bean 的初始化方法（InitializingBean-->invokeInitMethods::afterPropertiesSet 或自定义 init-method）。
触发 BeanPostProcessor 的后置处理（postProcessAfterInitialization）。

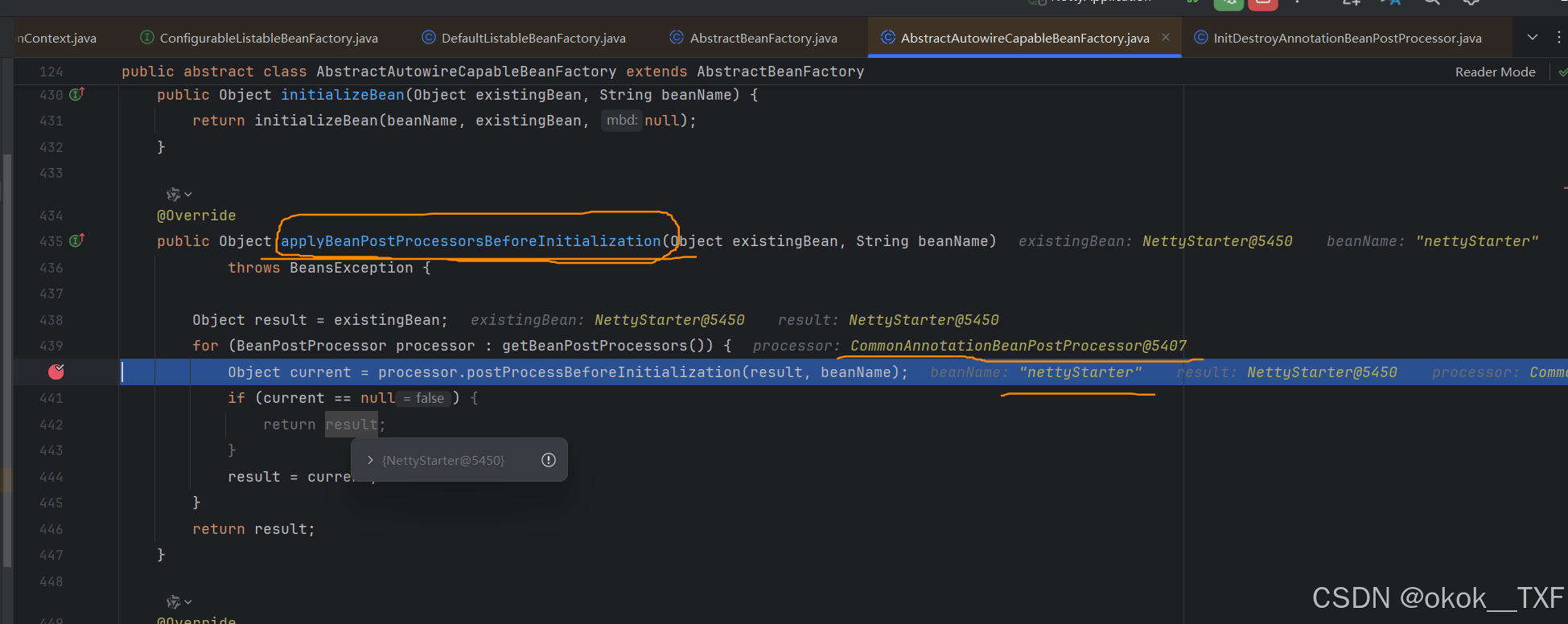

对于场景引入的例子②中，发现@PostConstruct注解标注的方法，在applyBeanPostProcessorsBeforeInitialization()调用的，也就是在bean的InitializingBean之前就执行了。也就是说PostConstruct 注解先执行 、 InitializingBean 接口方法 次之。
在这里插入图片描述

// 由上面可见,我们可以推断执行顺序如下：
Bean本身的构造函数
BeanPostProcessor的postProcessBeforeInitialization方法
类中添加了注解@PostConstruct 的方法 【上图中的CommonAnnotationBeanPostProcessor】
InitializingBean的afterPropertiesSet方法
initMethod
BeanPostProcessor的postProcessAftrInitialization方法

11) 完成刷新

protected void finishRefresh() {// Clear context-level resource caches (such as ASM metadata from scanning).clearResourceCaches();// Initialize lifecycle processor for this context.initLifecycleProcessor();// Propagate refresh to lifecycle processor first.getLifecycleProcessor().onRefresh();// Publish the final event.// 发布一个ContextRefreshed的事件-----------publishEvent(new ContextRefreshedEvent(this));// Participate in LiveBeansView MBean, if active.if (!NativeDetector.inNativeImage()) {LiveBeansView.registerApplicationContext(this);}
}

可以看到，在容器刷新完成之后，会发布一个ContextRefreshed的事件，所以下面的监听器会监听到。

// 监听ContextRefreshedEvent事件
@EventListener
public void onApplicationEvent(ContextRefreshedEvent event) {InitCode.startMethod("EventListener");
}

从这里可以看出来，我们框架使用者可以扩展的位置如下：

BeanFactoryPostProcessor：动态修改 Bean 定义。
BeanPostProcessor：干预 Bean 的初始化过程（如 AOP）。
ApplicationListener：监听容器刷新完成事件。
自定义 ServletWebServerFactory：修改内嵌服务器配置。

容器刷新这一小节目前就分析到这里了。

③callRunners()

执行所有ApplicationRunner和CommandLineRunner的实现类。执行顺序：通过@Order注解或Ordered接口控制。

//SpringApplication.java
private void callRunners(ApplicationContext context, ApplicationArguments args) {context.getBeanProvider(Runner.class).orderedStream().forEach((runner) -> {if (runner instanceof ApplicationRunner) {callRunner((ApplicationRunner) runner, args);}if (runner instanceof CommandLineRunner) {callRunner((CommandLineRunner) runner, args);}});
}// 执行run方法了，就是我们重写的run
private void callRunner(ApplicationRunner runner, ApplicationArguments args) {try {(runner).run(args);}catch (Exception ex) {throw new IllegalStateException("Failed to execute ApplicationRunner", ex);}
}private void callRunner(CommandLineRunner runner, ApplicationArguments args) {try {(runner).run(args.getSourceArgs());}catch (Exception ex) {throw new IllegalStateException("Failed to execute CommandLineRunner", ex);}
}

3.总结

经过第二大节的整体分析，我们大致可以知道

在容器刷新之前，由于是Servlet的Application，故由模板方法运行创建Servlet容器，ServletContextListener接口contextInitialized会先执行。
调用构造方法创建bean对象，实例化
BeanPostProcessor :: postProcessBeforeInitialization()
@PostConstruct ---- 【CommonAnnotationBeanPostProcessor】
InitializingBean接口的afterPropertiesSet()
自定义的initMethod
BeanPostProcessor :: postProcessAfterInitialization()
Runners

对于Spring的容器创建、bean的创建、以及事件等内容的详细分析，请见后续文章。本文通过对SpringBoot一个使用场景，在参考了别人的方法之后，想要探究其原理，对其启动过程作了一个大致的分析。

4.思考题

对上面作了大致分析后，其实还有其他方法，可以在需要在启动的时候，执行一些逻辑。

监听 ApplicationReadyEvent 事件.

@Component
public class StartupListener {@EventListener(ApplicationReadyEvent.class)public void onApplicationReady() {InitCode.startMethod("ApplicationReadyEventListener");}
}
