在构建本地或云端搜索引擎系统时，EasySearch 凭借其轻量、高性能、易部署等优势，逐渐成为众多开发者和技术爱好者的首选。但在实际部署过程中，如何借助 Nginx 为 EasySearch 提供高效、稳定且安全的访问入口，尤其是在身份认证方面，仍然是一个关键技术环节。

本教程将围绕 Basic Auth 认证机制展开，系统讲解如何通过 Nginx 实现安全防护、认证信息透传等常见配置场景，帮助你在多种实际部署环境中快速搭建可靠的访问控制机制。

无论你是在搭建家庭 NAS 服务，还是在企业环境中集成搜索引擎系统，本教程都能为你提供一套可落地、可复用的 Nginx 安全认证解决方案。。

下面是我的 Nginx 配置文件示例。我们通过 Docker 启动 Nginx 容器，并将本地编写好的配置文件挂载到容器中，从而实现自定义的反向代理和认证逻辑：

docker run -d \--name my-nginx \-p 80:80 \-v $(pwd)/default.conf:/etc/nginx/conf.d/default.conf \nginx

default.conf配置如下:

server {listen 80;server_name localhost;# 根路径可选配置，如果你要一个欢迎页location / {return 200 'Nginx is running.\n';add_header Content-Type text/plain;}# 反向代理 EasySearch location /es/ {proxy_pass https://backend:9200/;# 修正请求头proxy_http_version 1.1;# proxy_pass_request_headers on; ÷proxy_set_header Host $host;proxy_set_header X-Real-IP $remote_addr;proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;proxy_set_header X-Forwarded-Proto $scheme;# 如果需要保活连接proxy_set_header Connection "";# 可选：允许跨域访问（用于前端 AJAX 调试）add_header Access-Control-Allow-Origin *;add_header Access-Control-Allow-Methods 'GET, POST, OPTIONS';add_header Access-Control-Allow-Headers 'Authorization,Content-Type';# proxy_set_header Authorization "Basic YWRtaW46MTIzNDU2";# 清理路径前缀 `/es/`rewrite ^/es/(.*)$ /$1 break;}# 可选：静态资源支持# location /static/ {#     root /usr/share/nginx/html;# }
}

---

🌐 配置整体结构

server {listen 80;server_name localhost;

• 监听端口：监听本地 80 端口（HTTP 默认端口）
• 服务名称：用于匹配请求的 Host，这里是 localhost

---

🎉 欢迎页（根路径 /）

location / {return 200 'Nginx is running.\n';add_header Content-Type text/plain;
}

• 请求 / 会返回纯文本响应 "Nginx is running."，可用于验证 Nginx 是否启动正常。
• add_header Content-Type text/plain：指定响应内容为纯文本。

---

🔁 /es/ 代理 EasySearch 后端服务

---

🚚 请求头处理

    proxy_http_version 1.1;proxy_set_header Host $host;proxy_set_header X-Real-IP $remote_addr;proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;proxy_set_header X-Forwarded-Proto $scheme;proxy_set_header Connection "";

• proxy_http_version 1.1：确保代理使用 HTTP/1.1，支持长连接。
• Host：保留原始请求的主机名。
• X-Real-IP / X-Forwarded-For：传递客户端真实 IP。
• X-Forwarded-Proto：传递原始协议（http / https）。
• Connection ""：用于避免默认的 keep-alive 设置引起错误（推荐保留）。

---

🔐 可选的认证头（注释中）

# proxy_set_header Authorization "Basic YWRtaW46MTIzNDU2";

• 可选开启，用于将认证信息转发到后端。
• 上面的字符串是 admin:123456 的 base64 编码。可以根据需要开启。

---

🌍 CORS 设置（跨域）

add_header Access-Control-Allow-Origin *;
add_header Access-Control-Allow-Methods 'GET, POST, OPTIONS';
add_header Access-Control-Allow-Headers 'Authorization,Content-Type';

• 允许任意源访问（前端页面可以跨域请求 /es/）。
• 支持的方法：GET、POST、OPTIONS。
• 允许传递的请求头：Authorization 和 Content-Type。
• ✅ 适用于 AJAX 调试、前后端分离等场景。

---

🔧 URL 重写

rewrite ^/es/(.*)$ /$1 break;

• 移除 /es/ 前缀，转发给后端。例如：
  用户请求 /es/_cat/indices 实际转发到 /cat/indices。
• break 表示在当前 location 中中止后续重写检查。

---

📦 可选静态资源（被注释掉）

# location /static/ {
#     root /usr/share/nginx/html;
# }

• 若开启，可以直接通过 /static/xxx.js 访问 Nginx 本地 /usr/share/nginx/html/static/xxx.js 文件。

🔁 如果你想保留 /es/ 前缀，则删除 rewrite 行。

---

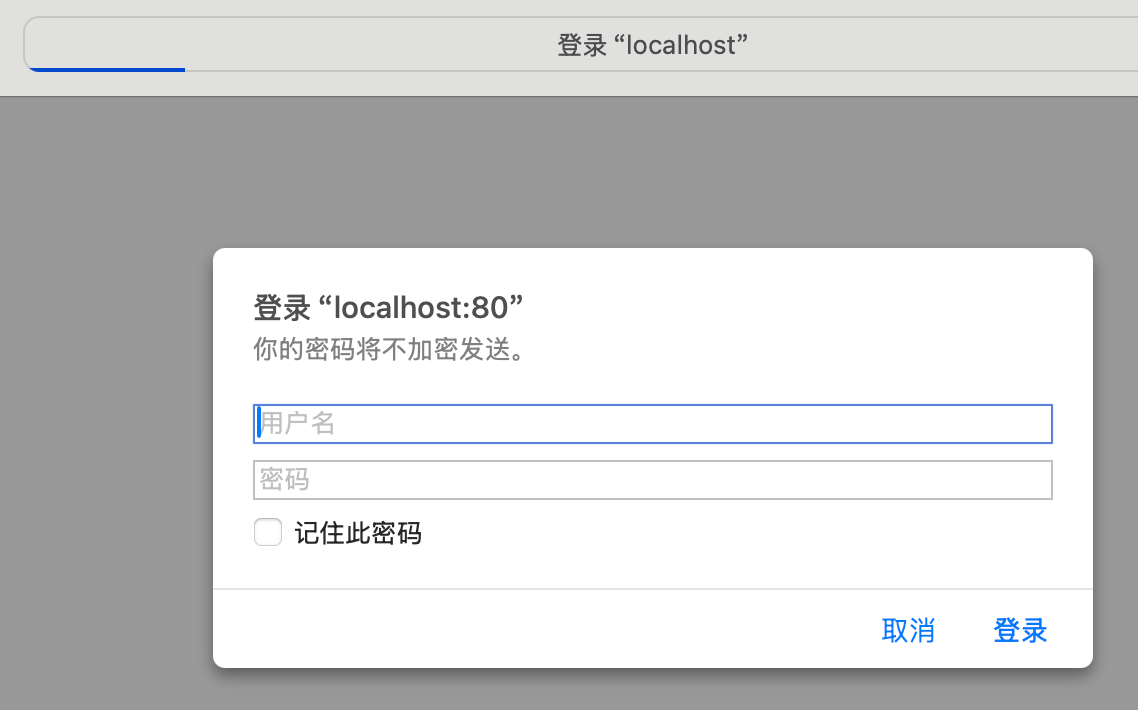

在启动服务后，当我们通过浏览器访问 Nginx 时，页面会弹出身份验证窗口。需要注意的是，这里的认证提示实际上来自后端的 EasySearch 服务，而非 Nginx 本身，说明请求中的认证信息未在 Nginx 层被处理或透传，因此由 EasySearch 发起了再次认证的要求。

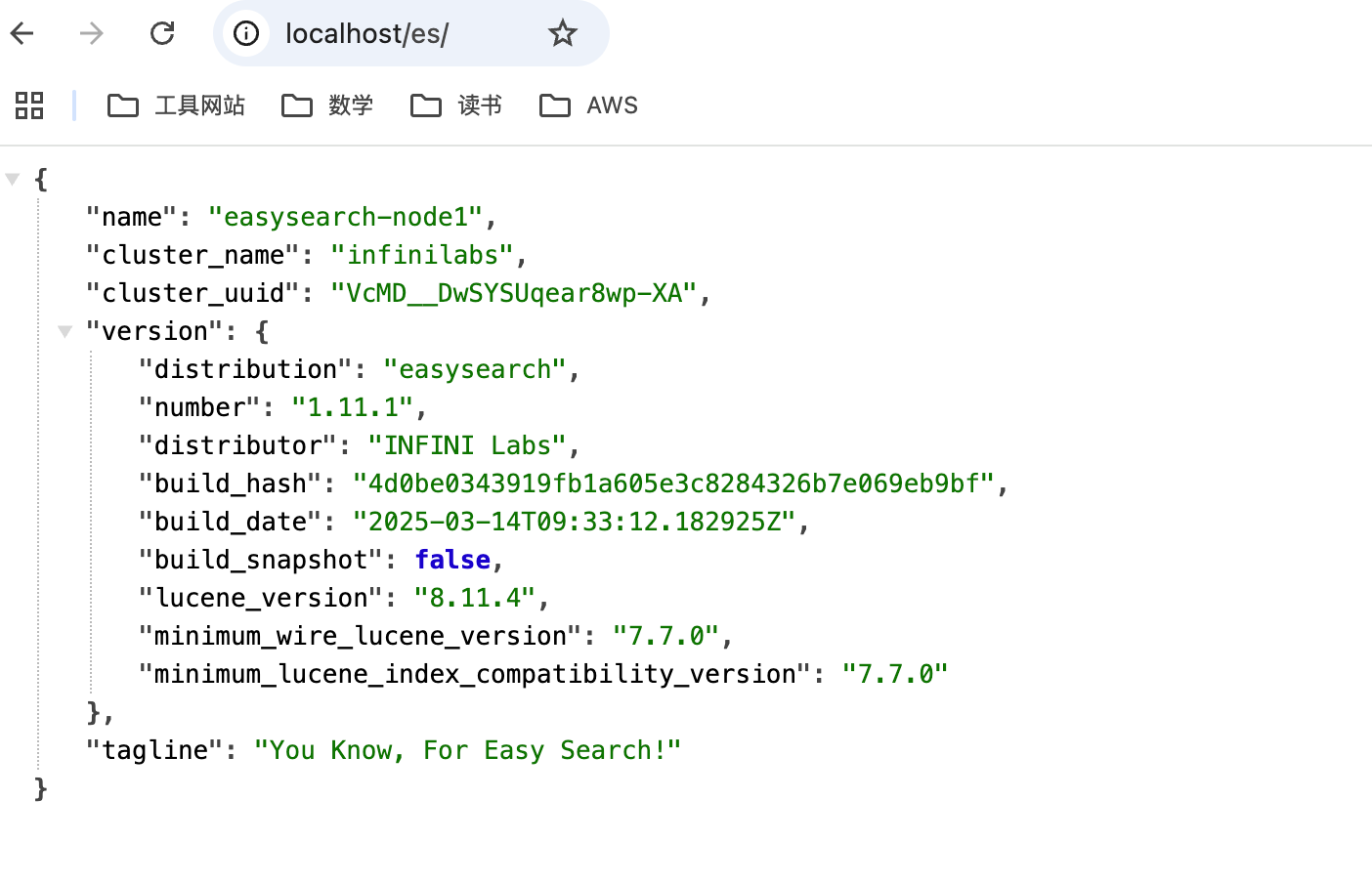

在输入正确的用户名和密码后，我们可以看到 Nginx 成功代理请求，并返回了来自 EasySearch 的 API 响应，说明认证流程已顺利通过，后端服务正常可用。

如果希望由 Nginx 代为完成 EasySearch 的身份验证，也就是实现自动登录的效果，可以在配置文件中添加如下指令，将认证信息通过 HTTP 头部传递给后端：

proxy_set_header Authorization "Basic YWRtaW46YWRtaW4=";

其中，YWRtaW46YWRtaW4xMjM= 是使用 Base64 编码后的 用户名:密码 字符串（例如 admin:admin）。Nginx 在转发请求时会自动携带该 Header，从而实现对 EasySearch 的自动认证。

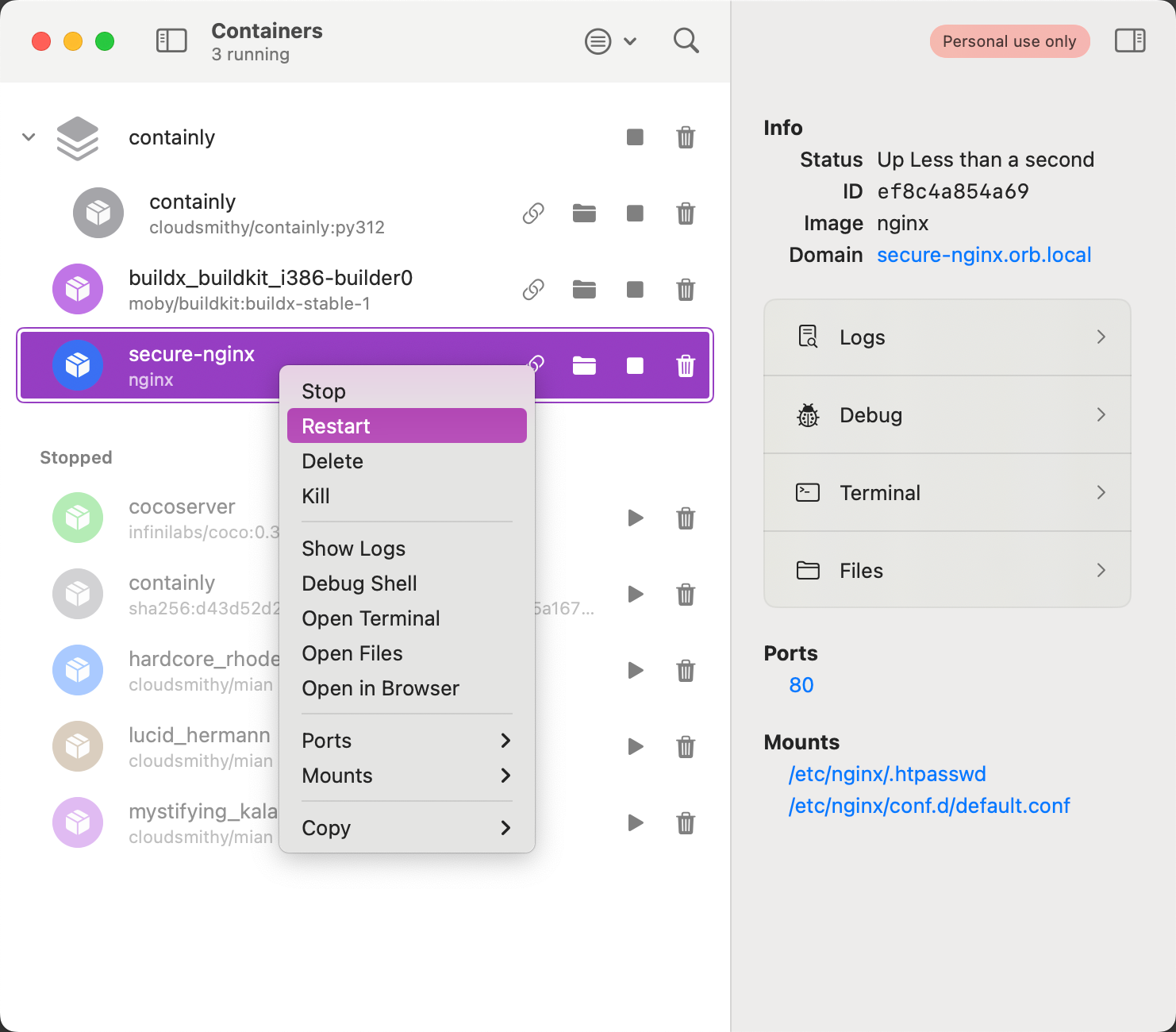

需要注意的是，Nginx 的配置文件修改后不会自动生效。为了确保配置被正确加载，需在每次更改配置文件后重启对应的容器服务。这是容器化部署中常见的操作流程，确保新配置被正确应用。

为了更直观地观察请求行为，我们使用了 Postman 进行测试。可以发现，即使在 Postman 中未显式添加任何认证信息，依然能够成功访问 EasySearch 集群。这说明前端未输入认证信息，但由于 Nginx 曾经缓存了认证状态，或配置了自动透传，导致后端依旧接收到了有效的认证头，从而允许了访问。

这种现象虽然在测试中提升了访问便利性，但在实际部署中可能带来安全风险，因此在生产环境中建议对认证流程进行严格控制，确保后端服务不会因为前端认证机制的疏漏而被绕过。

在一些教程中，常会提到一个名为 .htpasswd 的文件，它用于在 Nginx 层实现基本认证。当启用该机制后，Nginx 会对所有访问进行用户身份验证。

此时，是否将认证信息透传给后端服务，则由 proxy_pass_request_headers 参数决定。该参数默认值为 on，也就是说，当认证通过后，客户端发送的 Authorization 头部信息会被 Nginx 一并转发给后端服务。

为了验证这一行为，我编写了一个简单的 Flask 程序作为后端，用于观察请求中的 Header 内容。在真正将请求代理至 EasySearch 之前，我先让 Nginx 将请求反向代理到这个 Flask 应用，从而可以直观地查看是否存在 Authorization 头被透传的情况。

from flask import Flask, request,abort
import base64
app = Flask(__name__)@app.route('/')
def hello_world():print("📥 Headers received from Nginx:")print("Host:", request.headers.get('Host'))print("X-Real-IP:", request.headers.get('X-Real-IP'))print("X-Forwarded-For:", request.headers.get('X-Forwarded-For'))print("X-Forwarded-Proto:", request.headers.get('X-Forwarded-Proto'))print(request.headers)auth_header = request.headers.get('Authorization')print("Authorization:", auth_header)if not auth_header or not auth_header.startswith('Basic '):abort(401, description="Missing or invalid Authorization header")# 解码 base64encoded = auth_header.split(' ')[1]decoded = base64.b64decode(encoded).decode('utf-8')  # e.g. admin:123456username, password = decoded.split(':', 1)print(username, password)return 'Hello World!'if __name__ == '__main__':app.run(host='0.0.0.0', port=8000,debug=True)

这个是flask的打印的结果.

Host: secure-nginx.orb.local
X-Real-IP: 192.168.215.1
X-Forwarded-For: 192.168.215.1
X-Forwarded-Proto: http
Host: secure-nginx.orb.local
X-Real-Ip: 192.168.215.1
X-Forwarded-For: 192.168.215.1
X-Forwarded-Proto: http
Authorization: Basic YWRtaW46YWRtaW4=
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/135.0.0.0 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.7
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh-TW;q=0.9,zh;q=0.8
Cookie: perf_dv6Tr4n=1Authorization: Basic YWRtaW46YWRtaW4=
admin admin
192.168.X.X - - [24/Apr/2025 15:55:59] "GET / HTTP/1.1" 200 -

为了解决双重认证的问题，我们启用了认证信息透传的配置(默认的roxy_pass_request_headers on;)。启用该配置后，用户只需在访问 Nginx 时进行一次手动身份验证。Nginx 会将用户提供的凭证通过 HTTP Header 透传至后端的 EasySearch 服务，从而避免二次认证。当用户直接访问 EasySearch 时，依然需要单独输入凭证进行认证；但通过 Nginx 访问时，只需在前端认证一次即可完成整个请求流程。

curl -k https://easysearch:9200        {"error":{"root_cause":[{"type":"security_exception","reason":"Missing authentication information for REST request [/]","header":{"WWW-Authenticate":"Basic realm=\"Security\" charset=\"UTF-8\""}}],"type":"security_exception","reason":"Missing authentication information for REST request [/]","header":{"WWW-Authenticate":"Basic realm=\"Security\" charset=\"UTF-8\""}},"status":401}⏎
-------curl -v -u "admin:admin" http://nginxhost/es/*   Trying 192.168.5.171:9201...
* Connected to 192.168.5.171 (192.168.5.171) port 9201
* ALPN: curl offers h2,http/1.1
* (304) (OUT), TLS handshake, Client hello (1):
*  CAfile: /etc/ssl/cert.pem
*  CApath: none
* (304) (IN), TLS handshake, Server hello (2):
* (304) (IN), TLS handshake, Unknown (8):
* (304) (IN), TLS handshake, Request CERT (13):
* (304) (IN), TLS handshake, Certificate (11):
* SSL certificate problem: self signed certificate
* Closing connection
curl: (60) SSL certificate problem: self signed certificate
More details here: https://curl.se/docs/sslcerts.htmlcurl failed to verify the legitimacy of the server and therefore could not
establish a secure connection to it. To learn more about this situation and
how to fix it, please visit the web page mentioned above.
* Host localhost:80 was resolved.
* IPv6: ::1
* IPv4: 127.0.0.1
*   Trying [::1]:80...
* Connected to localhost (::1) port 80
* Server auth using Basic with user 'admin'
> GET /es/ HTTP/1.1
> Host: localhost
> Authorization: Basic YWRtaW46YWRtaW4=
> User-Agent: curl/8.7.1
> Accept: */*
>
* Request completely sent off
< HTTP/1.1 200 OK
< Server: nginx/1.27.4
< Date: Thu, 24 Apr 2025 07:45:10 GMT
< Content-Type: application/json; charset=UTF-8
< Content-Length: 552
< Connection: keep-alive
< Access-Control-Allow-Origin: *
< Access-Control-Allow-Methods: GET, POST, OPTIONS
< Access-Control-Allow-Headers: Authorization,Content-Type
<
{"name" : "easysearch-node1","cluster_name" : "infinilabs","cluster_uuid" : "VcMD__DwSYSUqear8wp-XA","version" : {"distribution" : "easysearch","number" : "1.11.1","distributor" : "INFINI Labs","build_hash" : "4d0be0343919fb1a605e3c8284326b7e069eb9bf","build_date" : "2025-03-14T09:33:12.182925Z","build_snapshot" : false,"lucene_version" : "8.11.4","minimum_wire_lucene_version" : "7.7.0","minimum_lucene_index_compatibility_version" : "7.7.0"},"tagline" : "You Know, For Easy Search!"
}
* Connection #0 to host localhost left intact

本次将 Nginx 的访问认证密码修改为 admin123 后，发现在请求过程中出现了两次身份验证的提示。具体表现为：当用户输入错误的密码时，Nginx 会首先返回一次 401 Unauthorized。由于 Nginx 与 EasySearch 使用了不同的认证信息，Nginx 在将请求头（包括 Authorization 字段）转发至 EasySearch 时，EasySearch 检测到凭据不匹配，也会返回一次 401。由此导致了双重身份认证失败的现象，影响了正常访问流程。

curl -v -u "admin:admin" http://localhost/es/*   Trying 192.168.5.171:9201...
* Connected to 192.168.5.171 (192.168.5.171) port 9201
* ALPN: curl offers h2,http/1.1
* (304) (OUT), TLS handshake, Client hello (1):
*  CAfile: /etc/ssl/cert.pem
*  CApath: none
* (304) (IN), TLS handshake, Server hello (2):
* (304) (IN), TLS handshake, Unknown (8):
* (304) (IN), TLS handshake, Request CERT (13):
* (304) (IN), TLS handshake, Certificate (11):
* SSL certificate problem: self signed certificate
* Closing connection
curl: (60) SSL certificate problem: self signed certificate
More details here: https://curl.se/docs/sslcerts.htmlcurl failed to verify the legitimacy of the server and therefore could not
establish a secure connection to it. To learn more about this situation and
how to fix it, please visit the web page mentioned above.
* Host localhost:80 was resolved.
* IPv6: ::1
* IPv4: 127.0.0.1
*   Trying [::1]:80...
* Connected to localhost (::1) port 80
* Server auth using Basic with user 'admin'
> GET /es/ HTTP/1.1
> Host: localhost
> Authorization: Basic YWRtaW46YWRtaW4=
> User-Agent: curl/8.7.1
> Accept: */*
>
* Request completely sent off
< HTTP/1.1 401 Unauthorized
< Server: nginx/1.27.4
< Date: Thu, 24 Apr 2025 09:21:09 GMT
< Content-Type: text/html
< Content-Length: 179
< Connection: keep-alive
* Authentication problem. Ignoring this.
< WWW-Authenticate: Basic realm="Restricted Area"
<
<html>
<head><title>401 Authorization Required</title></head>
<body>
<center><h1>401 Authorization Required</h1></center>
<hr><center>nginx/1.27.4</center>
</body>
</html>
* Connection #0 to host localhost left intact
❰xu❙~/OrbStack/docker/containers/secure-nginx/etc/nginx❱✔≻ curl -v https://192.168.5.171:9201/         (base) 17:21:09curl -v -u "admin:admin123" http://localhost/es/*   Trying 192.168.5.171:9201...
* Connected to 192.168.5.171 (192.168.5.171) port 9201
* ALPN: curl offers h2,http/1.1
* (304) (OUT), TLS handshake, Client hello (1):
*  CAfile: /etc/ssl/cert.pem
*  CApath: none
* (304) (IN), TLS handshake, Server hello (2):
* (304) (IN), TLS handshake, Unknown (8):
* (304) (IN), TLS handshake, Request CERT (13):
* (304) (IN), TLS handshake, Certificate (11):
* SSL certificate problem: self signed certificate
* Closing connection
curl: (60) SSL certificate problem: self signed certificate
More details here: https://curl.se/docs/sslcerts.htmlcurl failed to verify the legitimacy of the server and therefore could not
establish a secure connection to it. To learn more about this situation and
how to fix it, please visit the web page mentioned above.
* Host localhost:80 was resolved.
* IPv6: ::1
* IPv4: 127.0.0.1
*   Trying [::1]:80...
* Connected to localhost (::1) port 80
* Server auth using Basic with user 'admin'
> GET /es/ HTTP/1.1
> Host: localhost
> Authorization: Basic YWRtaW46YWRtaW4xMjM=
> User-Agent: curl/8.7.1
> Accept: */*
>
* Request completely sent off
< HTTP/1.1 401 Unauthorized
< Server: nginx/1.27.4
< Date: Thu, 24 Apr 2025 09:21:16 GMT
< Content-Type: application/json; charset=UTF-8
< Content-Length: 381
< Connection: keep-alive
* Authentication problem. Ignoring this.
< WWW-Authenticate: Basic realm="Security" charset="UTF-8"
<
* Connection #0 to host localhost left intact
{"error":{"root_cause":[{"type":"security_exception","reason":"Missing authentication information for REST request [/]","header":{"WWW-Authenticate":"Basic realm=\"Security\" charset=\"UTF-8\""}}],"type":"security_exception","reason":"Missing authentication information for REST request [/]","header":{"WWW-Authenticate":"Basic realm=\"Security\" charset=\"UTF-8\""}},"status":401}⏎

场景编号	Nginx 是否开启认证	EasySearch 是否开启认证	实际认证次数	说明
①	否	否	0 次	完全开放，任何请求无需验证。
②	否	✅ 是	1 次	访问时直接弹出 EasySearch 的认证窗口，用户需输入凭证。
③	✅ 是	否	1 次	仅在 Nginx 层验证，验证通过后直接访问后端。
④	✅ 是	✅ 是	2 次（默认）	Nginx 和 EasySearch 各自认证，用户需连续输入两次密码。
⑤	✅ 是	✅ 是	1 次（透传,proxy_pass_request_headers on;）	Nginx 开启认证，并通过 proxy_set_header Authorization 透传给 EasySearch，用户仅需输入一次密码即可完成认证。
